1. General Information
This manual provides you with the information for proper use and maintenance
of the misting pump. Please carefully follow the instructions provided. The
manufacturer/supplier is not liable for any damage to people, goods, or to the
systemitselfiftheequipmentisuseddifferentlyfromasdescribedinthismanual.
Information provided in this manual does not replace any safety regulations.
Therefore, the user should comply with the regulations in the area where the
pump is installed, as well as following common sense rules.
Do not use the product if you notice any defect or wear that may compromise a
safe environment. The user or the maintenance technician must report any
manufacturer defects to the supplier. The machine is meant for specific misting
applications only. Do not modify and/or use it for applications other than the
ones specified.
Instructions, drawings, tables, and all contents of this document are confidential
technical documentation and are the exclusive property of the manufacturer. No
information may be released to third parties without written permission by
HydroMist USA. Descriptions and images in this document are meant for
reference and as practical examples. They may be modified at any time and
without prior notice. If further technical and functional details are needed,
please contact the manufacturer/supplier.
IMPORTANT
nPlease read the information contained in this booklet. It will provide
information and instructions required for safe installation, use, and
maintenance.
nThe manufacturer is not liable for any damage to people, goods, or to the
machine itself if the pump is used differently from what is described in this
manual.
nKeep this booklet in a safe place to make it available for future reference.
nUpon delivery, check for any possible damages that may have resulted from
shipping and handling.

Pro Mist 35 User Manual
www.HydroMistUSA.com
2
2. Specifications
Pro Mist 35 Pump Specifications
Model
Pro Mist 35
Part Number
F10-04-003
Operating
Pressure Maximum = 1000 psi
Flow rate 0.2 GPM @ 1750 RPM
Nozzle
Capacity
#2 Nozzles (.008”/0.2mm)
|Minimum = 4 |Maximum = 16|
Motor
115 Volt, Single Phase AC @ 60 Hz
4 Amp, 1/3 HP Totally Enclosed Induction Motor

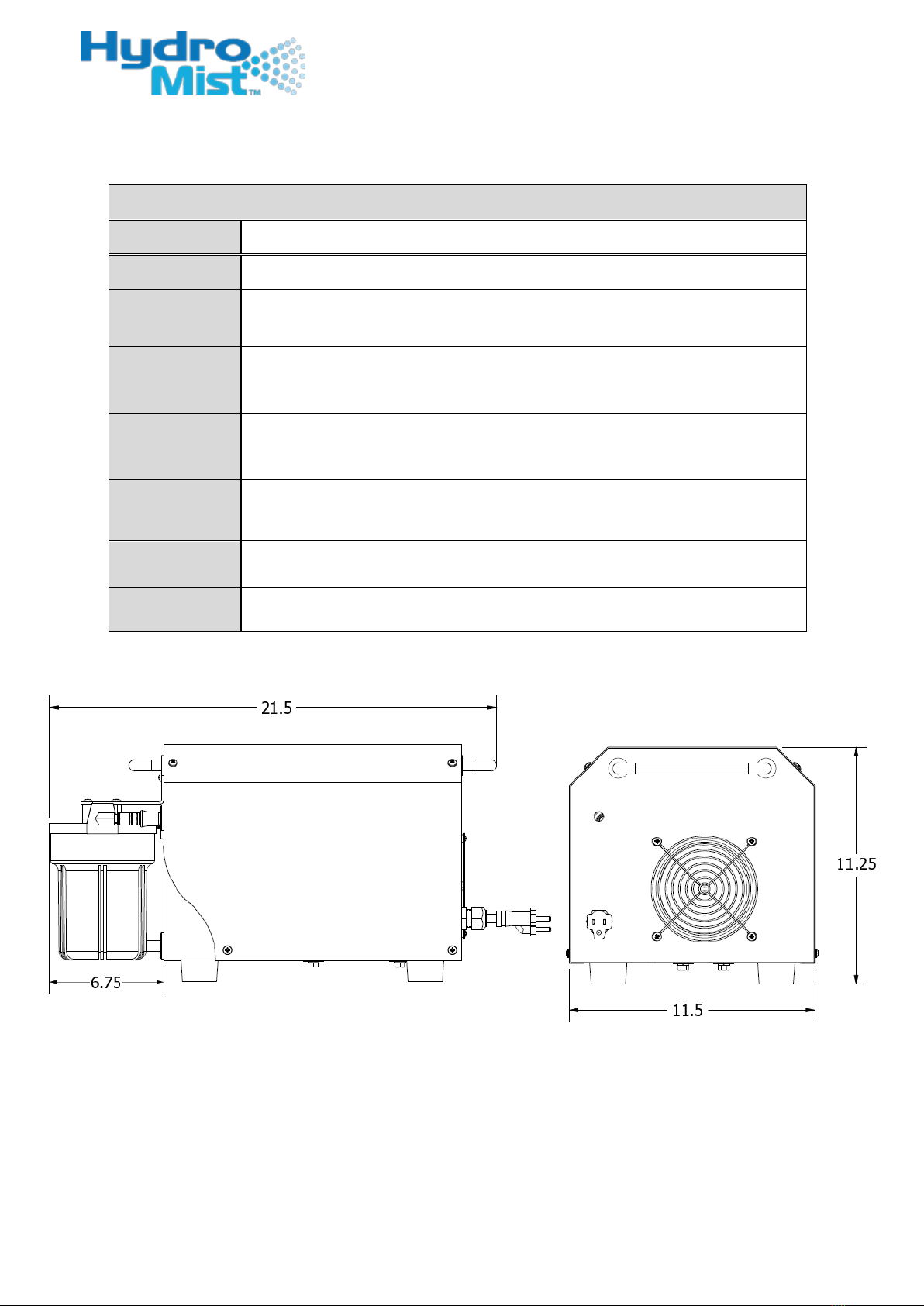

Dimensions
(Inches)
L×W×H: 21.5 x 11.5 x 11.25
Weight 41 lbs.
Dimensions in Inches
Note:HydroMistrecommendsusingthestainlesssteel#2nozzleswhichhaveacenter
holemeasurementof0.008”/0.2mm.Thisisourstandardofferingforallhigh-pressure
misting systems to deliver the best performance in evaporative cooling.
Extra misting nozzles can be purchased under the part number: F10-08-001.

Pro Mist 35 User Manual
www.HydroMistUSA.com
3

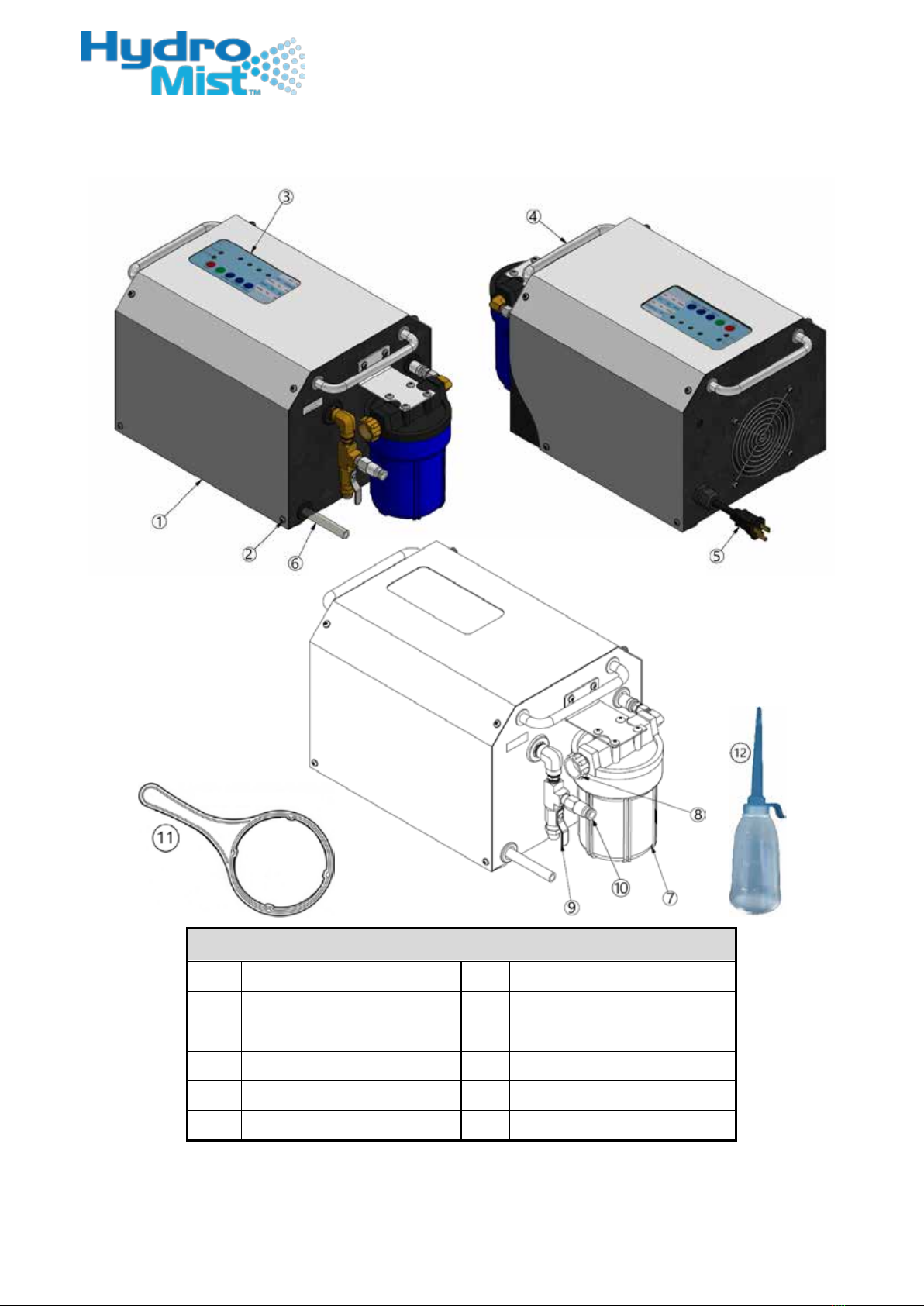

2.1 Components
Part Descriptions
1
Pump Cover
6
Purge Outlet Hose
2
Pump Cover Screw
7
Filter Housing
3
LED Control Panel
8
Water Inlet
4
Carry Handle
9
Purge Valve
5
Power Cord Plug
10
High Pressure Outlet
11
Water Filter Wrench
12
Oil Fill Squeeze Bottle

Pro Mist 35 User Manual
www.HydroMistUSA.com
4
3. Installation
The pump needs to be installed near an electrical and water
connection. Place the pump in a location where water leaks or
accumulation will not cause damage to nearby property or goods.
The purge hose discharges about ½ oz of water when the pump is
stopped, or in between the intermittent modes when the pump stops.
Connect the pump to a water supply with a hose rated for constant
pressure. Standard residential water pressure, generally between 40
and 60 PSI, is sufficient to supply the pump with enough water flow.
Regular garden hose may not be suitable to hold a constant pressure
over time, and can swell up and leak if left under pressure.
HydroMist has hoses available, made specifically for the permanent
connection of the misting pump to a standard garden hose bib.
Part Number
Description
F10-10-009
Hose, 5 feet w/ Garden Hose Connections
F10-10-010
Hose, 10 feet w/ Garden Hose Connections

Pro Mist 35 User Manual
www.HydroMistUSA.com
5
Connect the pump outlet to a misting system. The slip-lock outlet
fitting provided is for high pressure 3/8” nylon tube. This pump is only
compatible with high pressure misting systems, connections, rings,
pipes, or hoses designed for 1000 PSI of water pressure. The pump
will not work with medium or low-pressure misting components or
systems.

Pro Mist 35 User Manual
www.HydroMistUSA.com
6
4. Important Information
4.1 Dangers
OBSERVE THE FOLLOWING IN ORDER TO PREVENT SERIOUS INJURY
OR DEATH.
4.1.1 Do NOT use during severe storms, flooded areas, or near open
bodies of water.
4.1.2 Only trained personnel may operate this machine. Children and
adults who are not well-trained should not operate the machine.
4.1.3 Thepowersource must be equipped with overload circuit breaker
protection (Fuse or Circuit Breaker) to prevent injury from
electrocution, fire, or other unforeseen circumstances.
4.1.4 Do NOT move the machine during operation.
4.1.5 Mount the machine on a cement surface or another solid, flat
surface that provides a firm, level support. Keep the machine and
its surroundings dry.
4.1.6 Do NOT operate the machine before reading this operating
manual carefully.
4.2 Warnings
4.2.1 While the machine is in operation, do not open the cover or
touch the motor or pump.
4.2.2 Before running the machine, check that the electrical cords are in
good condition.

Pro Mist 35 User Manual
www.HydroMistUSA.com
7
4.3 Cautions
4.3.1 Do not operate in temperatures below freezing (0°C/32°F).
4.3.2 Before use, check for oil leakage. If there has been any leakage,
fix the leak and fill the pump oil.
4.3.3 Only use a power source with the electrical voltage (V),
frequency (Hz), and current (A) rating according to the machine
specifications.
4.3.4 Do not increase the operating pressure to over 1000 psi.
4.3.5 Do NOT use an extension cable than 30 ft. All extension cables
must be rated for the required voltage and amperage, and be
outdoor rated with a grounding prong.
4.3.6 The water supply pressure should be at least 30 psi for
continuous operation.
4.3.7 Water inlet temperature must not exceed 50°C/120°F.
4.3.8 Before use check that all hose fittings and high-pressure fittings
are FIRMLY attached and fully seated.
4.3.9 If a lower number of nozzles than recommended is used, the
system will be over-pressurized and the pump seals will
deteriorate quickly.
4.3.10 Avalve installedat the end of amistingsystem is recommended.
It will help to easily purge air from the system, especially in
extensively long installations, or with configurations where air is
easily trapped in the misting lines.
4.3.11 When misting, check all nozzles and ensure none are blocked. If
blocked, clean or change the nozzle.
4.3.12 Forstorageduringwintermonths,orwherethepumpwillnotbe
used for an extended period of time, discharge the system
pressure and drain any standing water from the misting system
and filter housing.

Pro Mist 35 User Manual
www.HydroMistUSA.com
8

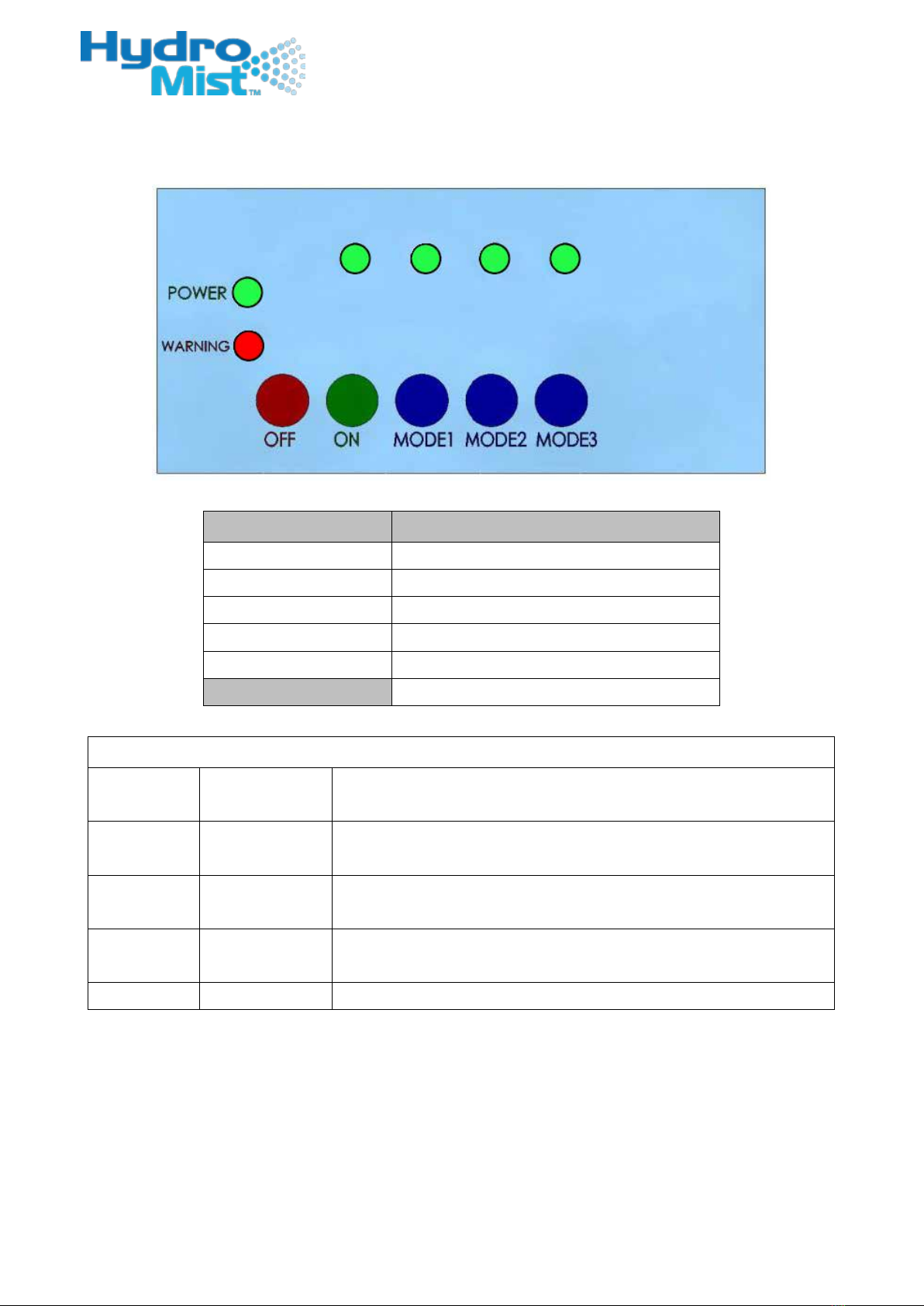

5. Control Panel Instructions
The control panel has 5 buttons and 6 LED lights.
Buttons
LED Lights
OFF
POWER (Green)
ON
WARNING (Red)
MODE 1
CONTINUOUS ON (Green)
MODE 2
MODE 1 ON (Green)
MODE 3
MODE 2 ON (Green)
MODE 3 ON (Green)
Misting Modes
Press
ON
Continuous
Misting
The pump will operate until the OFF button is pressed,
or the water supply is turned off.
Press
MODE 1
Intermittent
Misting
15 Seconds on (Misting On),
20 Seconds off (Misting Off), Repeat.
Press
MODE 2
Intermittent
Misting
25 Seconds on (Misting On),
30 Seconds off (Misting Off), Repeat.
Press
MODE 3
Intermittent
Misting
40 Seconds on (Misting On),
40 Seconds off (Misting Off), Repeat.
OFF
System Off
The pump will be turned OFF at any time.
The POWER light will always be on when the power cord of the pump is plugged in.
The WARNING light will be on when the water pressure cutoff switch detects no
water pressure or too little water pressure at the pump inlet. To reset the water
pressure cutoff switch, connect the pump to a water supply, press OFF, and then
press ON or any of the mode buttons.

Pro Mist 35 User Manual
www.HydroMistUSA.com
9
5.1 First Time Operation
Follow these steps to purge the pump and misting system of air.

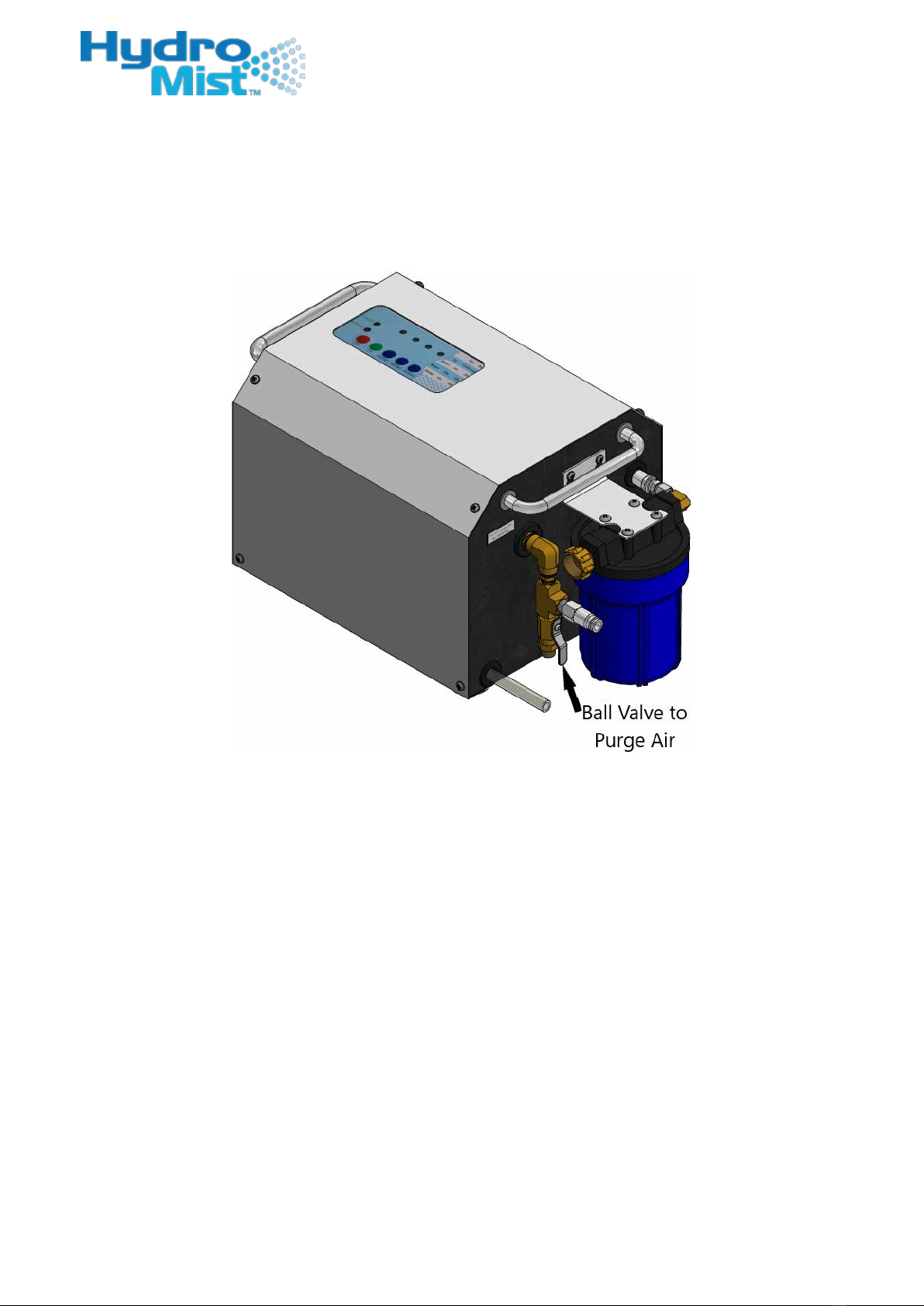

1) With your pump plugged in, and the water source turned on, open the ball valve
at the high-pressure misting outlet on the pump. Keep the pump off for now.
2) Remove a misting nozzle at the furthest end of your misting system. This will allow
air to be forced out of the system. If you have a system where the hose splits off into
multiple dead ends, remove a misting nozzle at the end of each leg of your system.
3) Turn on your misting pump to continuously run. Once a constant stream of water
comes out of the ball valve at the high-pressure outlet, close the ball valve.
4) Allow the pump to fill all of the misting lines with water, forcing air out of the
system. Once a continuous stream of water flows out of the end(s) of your misting
system. Turn the pump off.
5) Install all misting nozzles that were removed in step 2.
6) Turn on the misting pump. After a few seconds the system will pressurize.
Depending on the length of hose and size of your misting system, the time to
pressurize may vary slightly.
7) Check your misting system fittings and nozzle for leaks or blockages. Make sure
the pump is turned off before attempting to fix any leaks or blockages.

Pro Mist 35 User Manual
www.HydroMistUSA.com
10
5.2 Storage
5.2.1 Please follow the steps below to drain water from the pump.
a. Disconnect the watersupply to the pump.
b. Run the pump briefly with the ball valve open to expel any
water from the internal pump cavities. There may be some
intermittent spraying and drainage while the pump purges
water from itself.
c. After water stops coming out of the pump outlet, turn the
pump off.
d. Drain misting lines, pipes, and rings of standing water to
prevent cracking from freezing.
•When the machine is not in use, please keep it indoors.
•If exposed to rain, stop the machine, and immediately remove the plug
to avoid electric shock or leakage.
•Use caution when disassembling high pressure hose, pipe, nozzles,
rings, and fittings. There may be pressure (up to 1000 psi) inside and
serious injury can occur.
•Do not use this machine when temperature is below (0°C/32°F).
Running the pump with ice in the hoses or pump will cause damage to
the pump and can cause an over-pressure situation that may be
dangerous.

Pro Mist 35 User Manual
www.HydroMistUSA.com
11
6. Troubleshooting
Before troubleshooting, disconnect the power
source from the machine.
FAULT
CAUSE
REMEDY
No mist
comes out of
the nozzle
Ÿ
The misting nozzle is blocked.
ŸAir is in the lines.
ŸAir inside the pump.
ŸMisting nozzle is worn out.
Ÿ
Clean the nozzle. If it doesn’t work,
change the nozzle.
ŸPurge air from the lines.
ŸMake sure a steady flow of water
supply is present. Purge air using the
ball valve.
ŸChange misting nozzle.
The pump
fails to pump
water
Ÿ
No water supply.
ŸThe pump is clogged.
ŸAir is in the pump.
ŸThe water filter is blocked.
Ÿ
Turn on the water faucet.
ŸPurge air from the pump. Turn the
pump on/off several times without
connection to high-pressure misting
system.
ŸMake sure a steady flow of water
supply is present.
ŸClean or replace water filter.
Abnormal
noise or
vibration
ŸThe pump oil is burned or
worn.
ŸNylon hose and nozzle circuit is
blocked.
ŸPump components loose.
Ÿ
Pump is over pressurized
ŸAdd or change oil.
ŸClean or change nozzle and/or lines.
ŸRemove the pump cover to visually
inspect the internal components.
ŸDecrease the pump regulator to a
maximum of 1000 PSI.
Oil or water
leaks
Ÿ
There is aclamp or fitting that is
loose or faulty. Ÿ
Check the hose clamps, oil filler plug,
oil drain plug, and misting line fittings
for proper connection.
Motor
doesn’t
run
Ÿ
The voltage of the power
supply is not stable.
ŸThe built-in thermostatic switch
activated to protect the motor.
Ÿ
Disconnect any extension cords and
try again.
ŸReset theoverload protection device
inside of the pump. Run the machine
in a well-ventilated space or add
airflow to the space.

Pro Mist 35 User Manual
www.HydroMistUSA.com
12
The pump is equipped with a thermal overload protection device. This
device behaves like a circuit breaker and protects the pump from damage
due to excess heat or electricity.
There is a reset button to allow the user to reset the device if it activates
to protect the pump.
The cover must be removed in order to access the reset button on the
overload protection device. Once the cover is removed, reset the device
by pressing the button in. Plug the pump in and make sure the device
does not immediately activate again. If the button will not stay in the
normal position (pressedin), check your power supply where the pump is
plugged in. Do not attempt to make anyrepairs while the pump is plugged
into a power source.

Pro Mist 35 User Manual
www.HydroMistUSA.com
13
The misting pump comes preset at a maximum outlet pressure of 1000 PSI
for a system with 4 misting nozzles. The larger the system, the lower the
total system pressure will be. If the pump produces more than 1000 PSI it
can cause a noisy operating condition. You should decrease the pressure to
a maximum of 1000 PSI by adjusting the pressure regulator on the pump.
The pressure regulator has an adjustment knob located underneath the
pump cover on the brass pump head.
DO NOT attempt to adjust the pump pressure regulator without using a
pressure gauge designed for reading water pressures of at least 1000 PSI.
If you have doubts about your ability to safely and properly install a high-
pressure gauge into the high-pressure side of your misting system, contact
a professional for service.
Operating the pump above 1000 PSI will quickly and significantly decrease
the condition of the internal pump seals. It is outside of the intended use
of this product and related high pressuremisting system parts.

Pro Mist 35 User Manual
www.HydroMistUSA.com
14
Turn the knob counterclockwise to decrease the output pressure.
Turn the knob clockwise toincrease the output pressure.

Pro Mist 35 User Manual
www.HydroMistUSA.com
15
7. Maintenance
7.1 Periodic Check and Inspection
Items Interval
Before
Operation
50hr 100hr 200hr 300hr
Main Components
Check All Fittings are Tight
◆
◆
Check Water Lines for Leakage
◆
◆
Check Pump for Oil Leakage
◆
◆
Inspect Pump Cover for Damage
◆
◆
Hose/Pipe/Rings
Check Connectors and Hoses for
Damage or Loose Fittings
◆
◆
CheckandCleanInletWaterFilter
◆
◆
Check Nozzles for Leaks or
Blockage
◆
◆
◆
◆
◆
Electrical
Check Control Panel Operation
◆
◆
Check Electric Cord for Damage
◆
◆
Pump
Check Oil: Quality and Quantity
◆
◆
◆
Change Oil
◆
(Only for the
first time)
◆
Oil Seals
◆
Plungers
◆
Motor
Check the Rubber Motor Mounts
◆
The above maintenance schedule is for operation at normal conditions.
Varying environmental conditions may cause excess wear on the pump or
misting system components, and your equipment may need to be
serviced more frequently.

Pro Mist 35 User Manual
www.HydroMistUSA.com
16
7.2 Procedure for Oil Change
NOTE: The misting pump comes pre-filled with oil.
Oil must be changed after first the 50-hour operation mark,
and after every 250-300 hours of running.
Use ISO 68 oil or equivalent, available from HydroMist:
ISO68 Pump Oil, 21oz. bottle: Part# F02-06-001
Always power off the machine and disconnect power before
performing any maintenance or inspection.
—
Irregular maintenance and failure to change the oil regularly
will cause damage to the machine parts and/or shorten the
service life.
—When changing the oil make sure to remove the old oil
completely. Too much old oil can affect the quality of the new
oil.
—Only change the oil with the pump on a level surface.
—Do not change hot oil. Pump operation increases the oil
temperature to a dangerous level and can cause severe burns.
7.2.1 Purge pressure and water from the misting system by opening the ball
valve on the pump outlet.
7.2.2 Remove the water supply hose and high-pressure misting hose
connections.
7.2.3 Unplug the pump from the power supply.
7.2.4 Remove the pump cover by loosening the eight pump cover screws.
7.2.5 Check inside the bottom of the machine to see if there is any oil leakage
from the pump body. Clean up any oil leaks or spills so that a leak can be
detected.
7.2.6 The maximum oil capacity is 5 oz. (≈145 ml).

Pro Mist 35 User Manual
www.HydroMistUSA.com
17
7.2.7 There is an oil drain plug on the bottom side of the pump. Put a catch pan or
other small container under the plug and unscrew it to start draining the oil.
It is recommended to use an inexpensive plastic bin or other disposable catch
pan that can be discarded after use.
7.2.8 After the oil has drained, reinstall and tighten the drain plug.
7.2.9 Unscrew the oil fill plugon top of the pump housing.

Pro Mist 35 User Manual
www.HydroMistUSA.com
18
7.2.10 Add up to 5 oz. of oil through the fill hole. Use the included oil fill
squeeze bottle or a funnel to prevent spilling oil during the filling process.
7.2.11 Tighten the oil fill plug.Wipe up any spilled oil. Visually check the pump
and motor to ensure all bolts, screws and connectors are tight and in good
condition.
7.2.12 Replace the top cover and tighten the screws to secure the top cover
back into place.
7.2.13 RECYCLE YOUR USED OIL. In many places, it is a crime to dump used oil
into the environment, down the drain, or into the trash (even in a sealed
container). Save your used oil until you can locate a recycling center
and/or bring it to an approved drop-off site where used oil is accepted.
Many auto parts retail stores have drop-off sites where used oil can be
disposed of safely and properly for free.
•Make sure the oil drain plug and oil fill plug are not leaking after an oil
change, and make sure the oil fill plug is securely fastened onto the
pump. Make sure the cover screws are securely tightened after an oil
change.
