1.1 Dimensions
1.2 Schematics
2.1 Delivery
2.2 Base
2.3 Airflow
2.4 Tariffs
3.1 DYNAMIC Connection Dimensions & Components
5.1 Electrical Schematic
5.2 Pre-Connection & Regulations
5.3 Hard Wiring the System

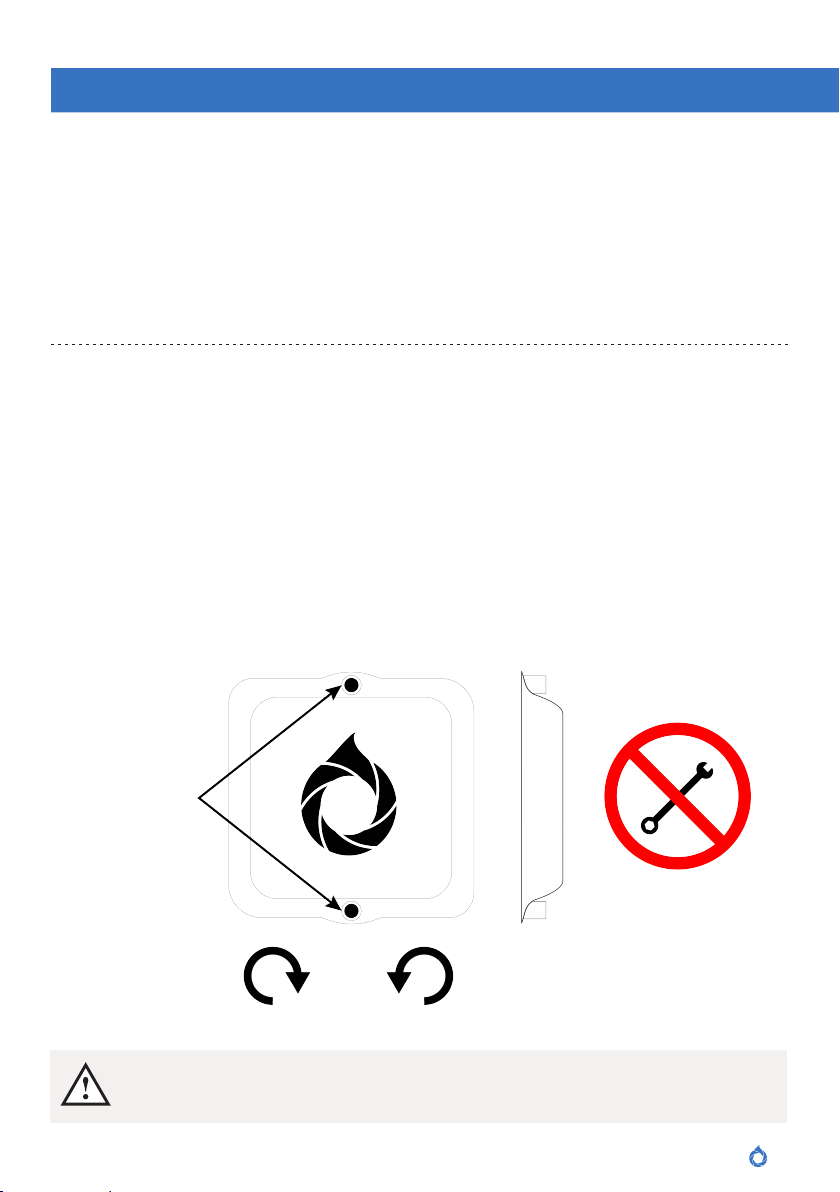

7.1 Accessing Display Panel
7.2 Control/Display Panel

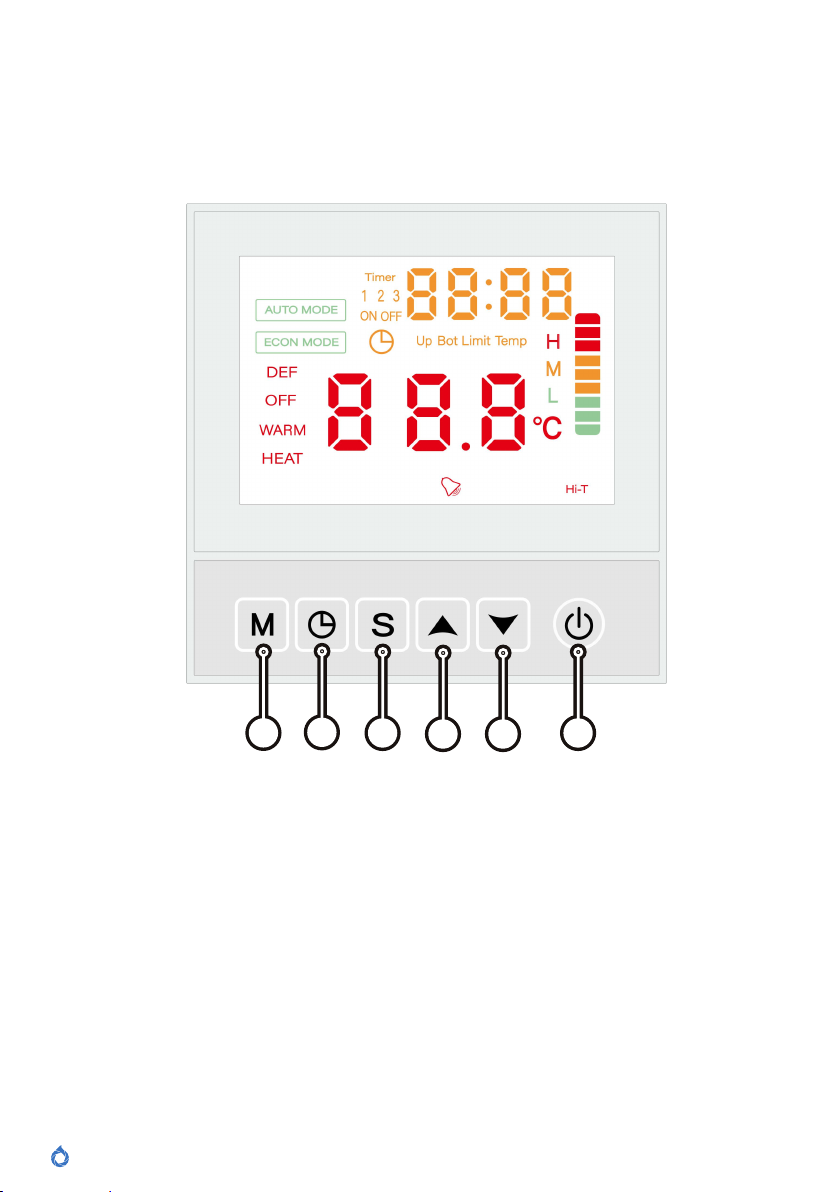

7.3 Display Panel

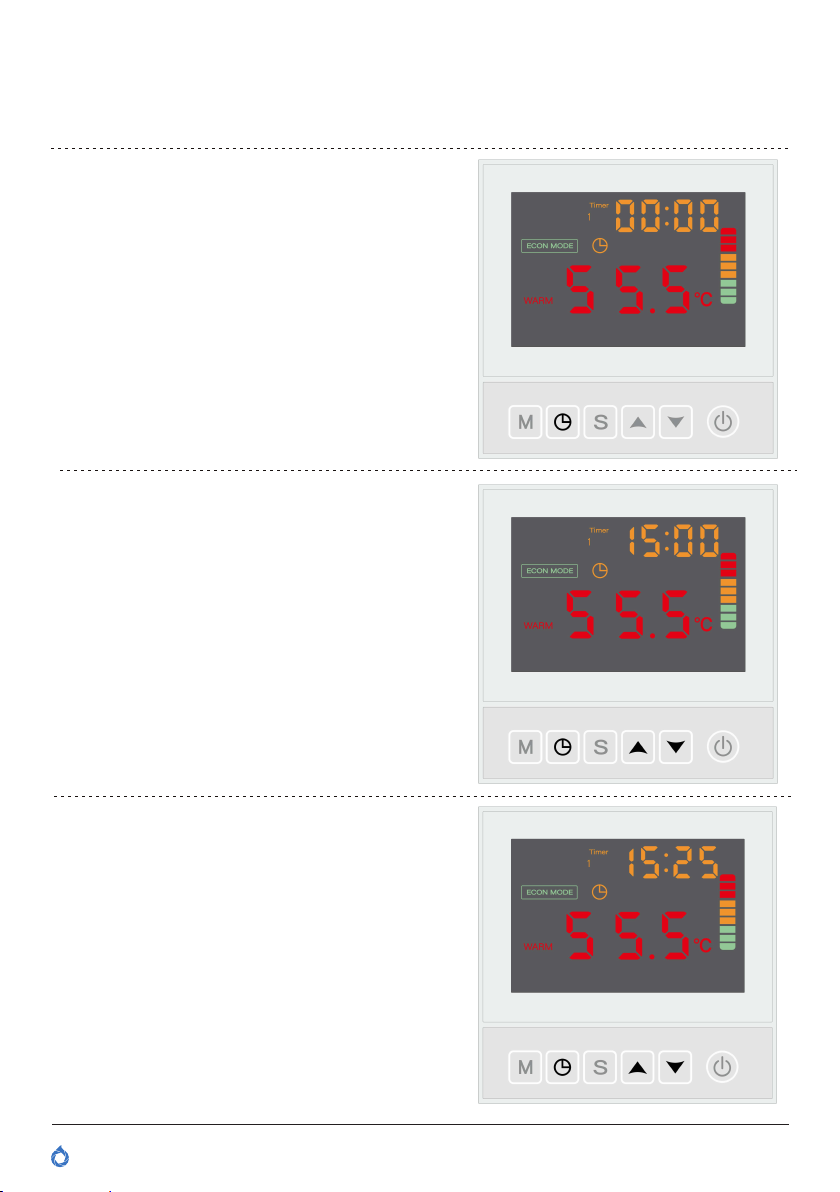

7.4 Setting the Clock
7.5 ECON MODE
7.6 AUTO MODE
1.0 PARTS & CONSTRUCTION SCHEMATIC...................4
6
9
10
5.0 ELECTRICAL CONNECTIONS...............................................13
15
17
22
23
2.4 Noise Considerations

4
1.0 PARTS & CONSTRUCTION SCHEMATIC

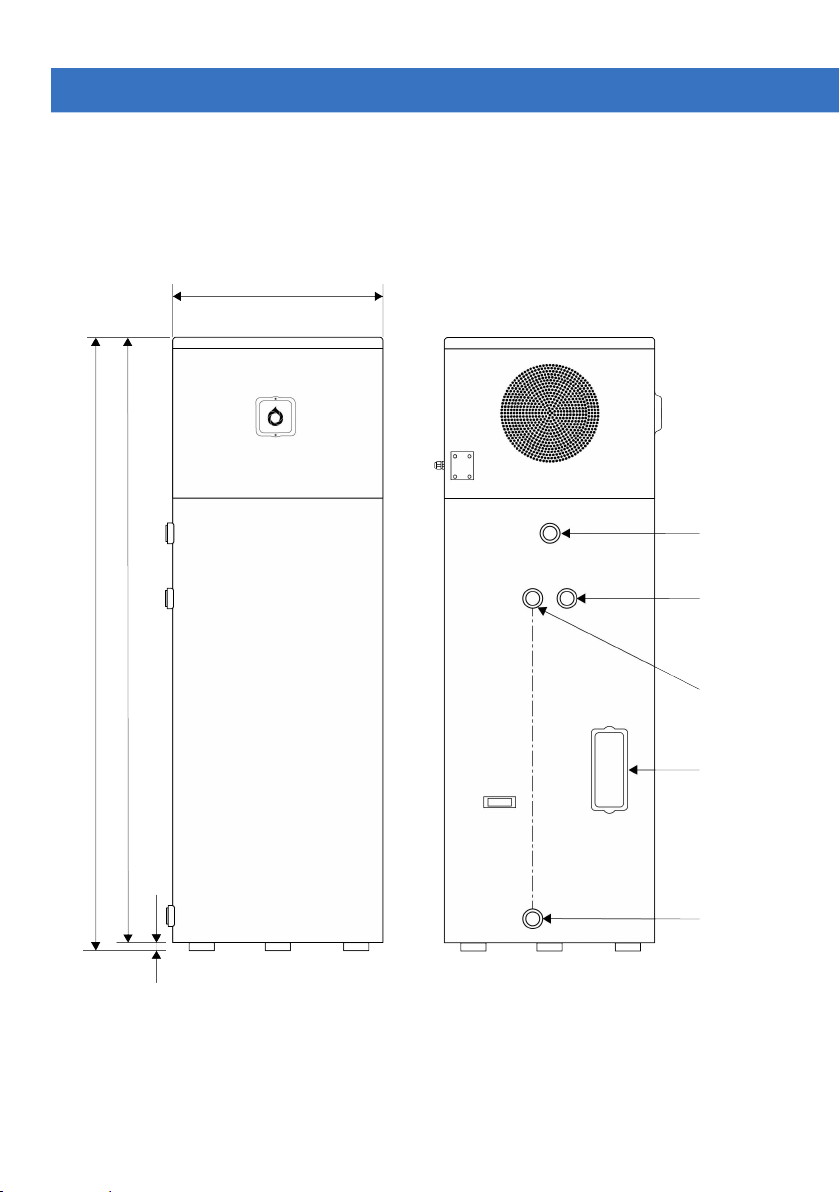

1.1 DIMENSIONS DYNAMIC-SS/X8/OP & DYNAMIC-SS/X8/C
Condensate
Drainage
Relief Valve
Port
Hot Water
Outlet
Access Cover
Cold Water
Outlet
645mm
1883mm
1860mm
23mm

5

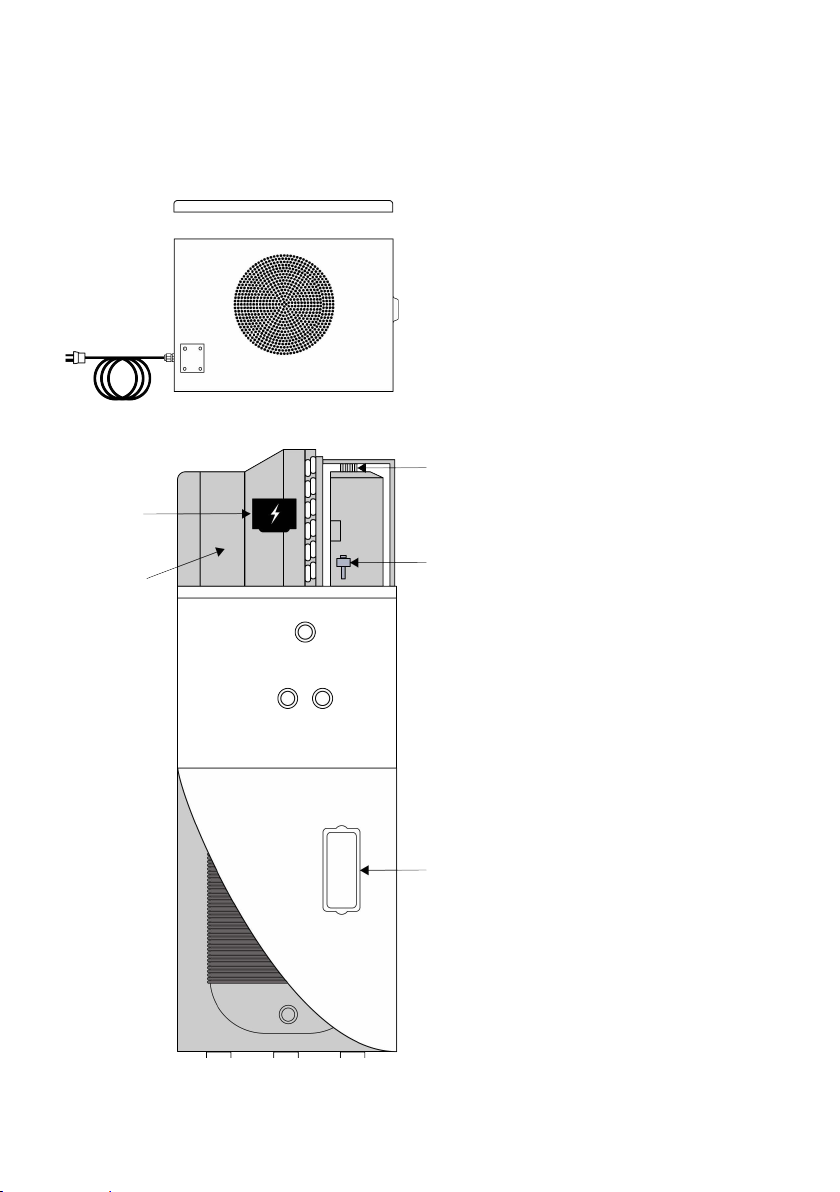

1.2 SCHEMATIC DYNAMIC-SS/X8/OP & DYNAMIC-SS/X8/C
1. Top Lid
2. Upper Cover
3. Electronic Main Board
4. Electronic Anode Transformer
5. Fan Capacitor
6. AC to DC Transformer
7. Compressor Run Capacitor
8. Compressor Starter Cap
9. Compressor Wiring
Harness
10. Compressor
11. Evaporator
12. Electronic TX Valve
13. 5V Sensor
14. Display Cover
15. Screen Board
16. Foam Fan Cover
17. Fan Blade
18. Fan Motor
19. Access Cover
20. Water Temp. Sensor
21. Electronic Anode
22. Magnesium Anode
1
2
3,4,5,6,13
7,8
10
11
12
14,15
16
17,18
19, 20,
21,22

6
2.0 INSTALLATION INSTRUCTIONS
2.1 DELIVERY
• Hydrotherm heat pumps must be stored
and transported in a near vertical position at
all times with a tilt ratio of no more than 30°.
Transporting or storing the unit in a horizontal
position will void warranty.
• The system should always be transported in
it's packaging.
• The weight of the package system is
128kg (106kg unpacked). The system must be
handled by two people at all times
to avoid unnecessary strain and damaged.
• Please note the outer casing of the unit
is susceptible to denting and damage. Care
and consideration should be taken into account
when moving the unit as any marks
caused by inappropriate handling are not
deemed as defects and are not covered under
warranty.
2.2 BASE
• The unit should be installed on a concrete plinth or stable structure capable of sustaining weights in excess of
450kg. If a concrete base paver is being used, a minimum dimension of 600mm x 600mm is required.
Please ensure that all three feet are supported by the base being used otherwise warranties may be voided.
• Proper drainage should be observed for any overflow in accordance with AS/NZS 3500.2.
• When installed the Hydrotherm unit must be completely vertical and level as to ensure that condensate can be
properly drained. If the system is installed at a level with a tilt of more than 3 degrees, warranties may be voided.
• If installed under fixtures or home eves, there must be a minimum 300mm clearance between the top of the
unit, 600mm on the right hand side of the system (when facing unit) and 600mm on the left hand side of
the system (when facing system) (see section 2.3 AIR FLOW). The Hydrotherm must be installed a minimum of 100mm
off your home's wall so that the entire unit can be accessed during any servicing work as well as to prevent
circulation of cold air (see section 2.3 AIR FLOW). If the system cannot be properly serviced due to the system
being installed closer than 100mm off your home's wall, the owner will be liable for the associated
plumbing costs of draining and moving the system.
•The Hydrotherm should be installed so that the control interface is accessible to users and that there is clear
access to the electrical panel at the back of the system. Where incorrect installation has occurred warranties
may be void or additional charges may be required to ensure that the system is compliant.
All Hydrotherm heat pumps are designed for installation by a licensed plumber in accordance with
standards set out in AS/NZS 3500.2 “National Plumbing and Drainage Code Hot Water Supply
Systems - Acceptable Solutions”.
Do not tilt
beyond 30°
Dynamic pallet for
transport only

7
2.0 INSTALLATION INSTRUCTIONS 2.3 AIR FLOW
• This unit is designed for external operation only and requires a continuous supply of air to operate efficiently.
• Avoid installation in areas where falling debris such as leaves is prevalent as this may result in air vents being
blocked or the unit being damaged.
• Avoid placing the system in locations with multiple walls or structures (Diagram 1 & 2).
• Always maintain optimum perimeter from all structures.

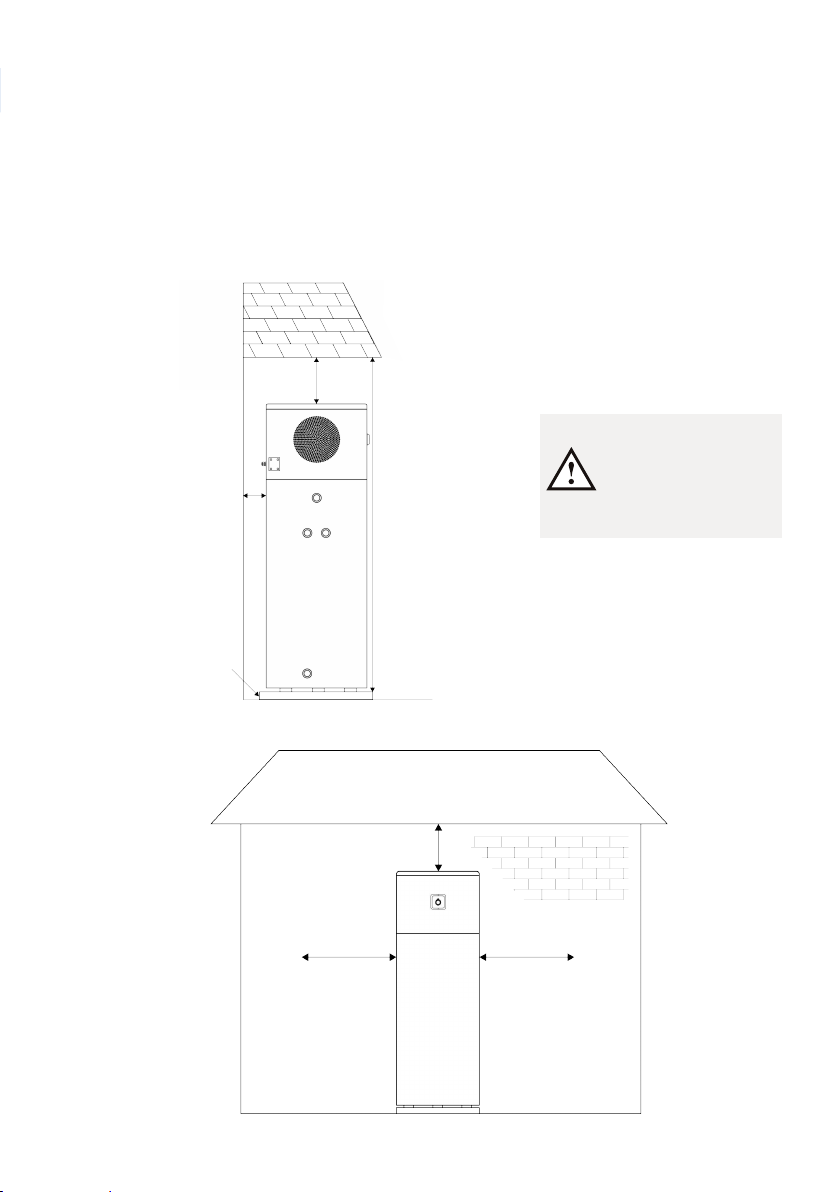

Diagram 1: Side profile of Hydrotherm installation requirements.
Diagram 2: Front profile of Hydrotherm installation requirements.
Min.
300mm
Min.
100mm
Concrete
base
Min. 2160mm
(from base to
rooftoop)
0° tilt
Min.
300mm
Min.
600mm
Min.
600mm
The electical access
point and display
panel should always
be accessible.

8
• The Hydrotherm range has been designed with the lowest possible running noise level (>49dB) to ensure
optimum comfort and minimum impact on living areas.
• All Hydrotherm customers are recommend to set the system onto ECON Mode to utilize the in-built
timer function. Setting the in-built timers to have the system run during the day is far more efficient and
will also limit any potential disturbances.
• Select a location that is removed from bedrooms if possible as the unit may function for a period of time during
the night.
2.5 NOISE CONSIDERATIONS
2.4 TARIFFS
Electricity companies across the states and territories of Australia have different usage rates, naming conventions
and even available tariffs. Generally these tariffs are:
oContinuous tariff - Tariff 11 (QLD) - 24 hours a day .
The Continuous tariff is what every household connected to the grid has as a minimum. If you would like to
utilize a Solar PV system to run your Hydrotherm system on, this is usually the only tariff available to do so.
oShoulder tariff - Tariff 33 (QLD) - Min. 16 hours a day .
The Shoulder tariff typically runs during the day and will turn off at night. The cost per kWh is cheaper
than a Continuous tariff. If your household has more than 4 people or are heavy users of hot water, we
recommend placing the Hydrotherm system on a Continuous tariff instead.
oOff Peak/Night time tariff - Tariff 31 (QLD) - Min. 8 hours a day
Hydrotherm strongly recommends not putting your system on an Off Peak tariff for the following reasons:
oHydrotherm heat pumps work up to 25% more efficiently during the daytime when ambient air
temperatures are at their highest. The cost of running the system is actually cheaper running on a Shoulder
tariff or Continuous tariff as the system will take considerably longer to heat on an Off Peak tariff.
oYou may run out of hot water. If your system needs to heat twice a day, it will unlikely be able to do some
on an Off Peak tariff.
oServicing cannot be done outside business hours (the only hours an Off Peak tariff has power). If the
system needs to be changed onto another tariff, the Hydrotherm owner will be liable for the associated
electrical costs.
If you would like further information regarding tariffs, we recommend speaking with your electrician and energy
service provider before your Hydrotherm is installed.
Note: When installing do not install less than 3 metres to a neighbour’s window or door other
than a garage door or shed.
i
If you are experiencing noise issues with your Hydrotherm system, please contact Hydrotherm
directly. There are mean to mitigate the sound produced when the system is operational.
i
i

3.0 PLUMBING SCHEMATICS
iThe following instructions and schematics have taken into account standards
AS4324, AS4020, AS1056.1, AS/NZS2712, AS/NZ3350.240/30/30.2, AS3498
and represents an optimum installation procedure for this unit however to ensure
minimum requirements are met all local regulations should be adhered too.
3.1 DYNAMIC CONNECTION DIMENSIONS AND COMPONENTS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
1
2
3
4
5
6
7
8
9
10
11.
11
To drain*
To drain*
Hot water
Cold water
To drain*
12.
*Supplied with system.
Cold water supply outlet
(3/4” female thread)
Hot water outlet
(3/4’’ female thread)
*Condensate drainage elbow
*P&T relief valve
(3/4’’ female thread 700Kpa)
Electrical cable
Tempering valve
(High performance)
*Expansion control valve (ECV)
(If required by council
600kPa) Pressure reduction
valve (PRV)
(500kPa)
Non-return valve
Isolation switch
(Hard wired into 10Amp
circuit)
Electrical access
Dish (50mm min.)
i
9

4.0 PLUMBING INSTALLATION
PLUMBING CONNECTIONS
1. Cold Water Supply Outlet
• The cold water supply connection is a 3/4” female thread.
• The cold water supply should be connected to RP 3/4” socket.
• The cold water supply outlet can also act as a drainage point for emptying the system.
2. Hot Water Connections
• The hot water supply connection is a 3/4” female thread.
• The hot water supply should be connected to RP 3/4” socket.
•To ensure thermal efficiency all hot water lines and connections must be insulated with a minimum 13mm closed
cell insulation.
• All hot water supply parts must be constructed from copper. If using pipe of other material please refer to local
authorities for further instructions.

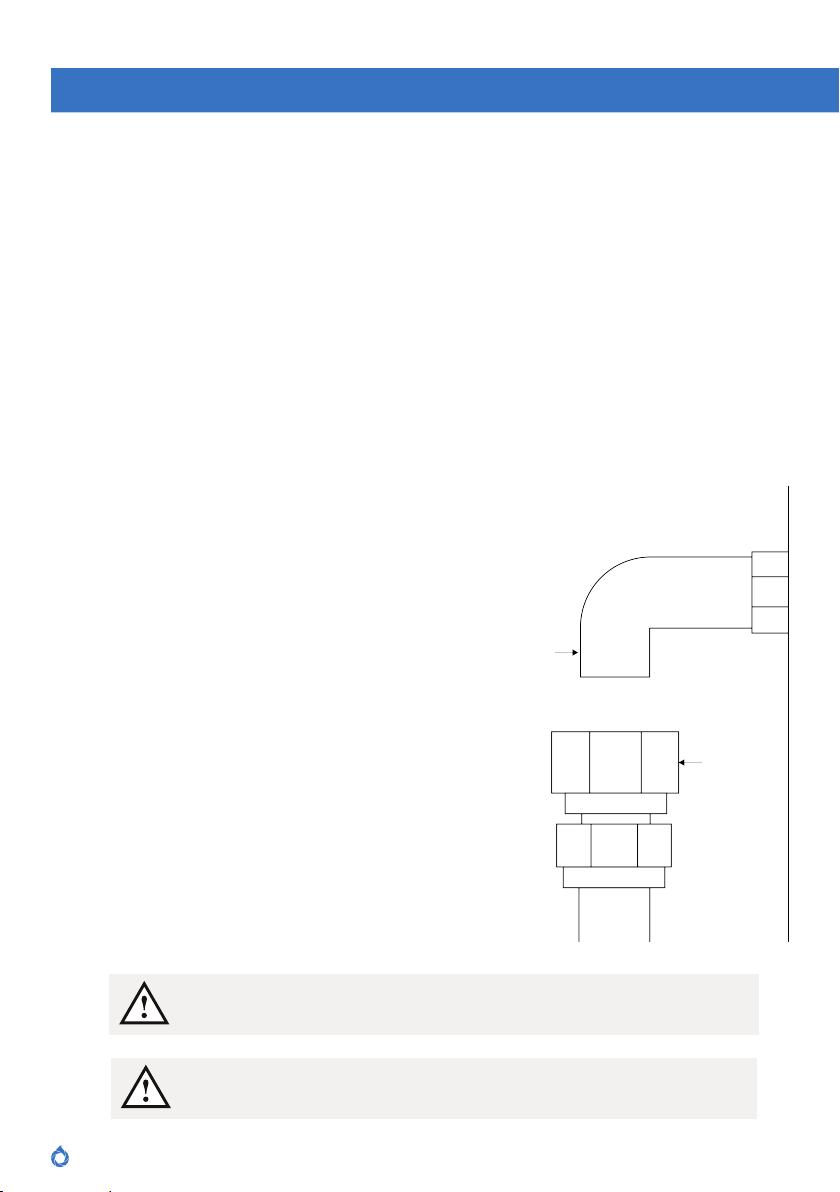

3. Condensate Drain
• The process of heat extraction from the atmosphere
through evaporator coils results in the production of water
in the form of condensation. More humid environments will
produce higher rates of condensation.
•To collect this water by-product a Condensate Tray is
located on top of the water storage tank. Overflow from
this tray runs out through the Condensate Drain.
• The condensate connection is a 3/4” female thread. A
RP 3/4” elbow socket is supplied with the system which
must be connected to the drain outlet. Drainage of
condensate from elbow to nearest storm water to be
done by the collection of condensate into an open dish
and drained via copper piping. If not drained properly,
the condensate line will attract termites as well produce
algae and moss growth.
• The Condensate line should be free of kinks and as the
water is gravity fed, should only be running down to
ensure the free flow of water.
Connecting any pipe directly to the condensate line without air gap will void warranties
Condensate
drainage
elbow
Dish
Do not use tools to tighten the condensate drainage elbow. Hand tighten only.
10

IMPORTANT:
A discharge pipe connected to the pressure- relief device is to be installed in a continuously
downward direction and in a frost-free environment. Warning: Do no connect any pressure-relief
device to the vent pipe of this water heater. The water may drip from the discharge pipe of the
pressure-relief device. This pipe must be left open to the atmosphere. The pressure-relief device
is to be operated regularly to remove lime deposits and to verify that it is not blocked.
• The system is supplied with a loose Pressure & Temperature Relief (PTR) valve appropriate to the pressure
rating of the water heater tank. If the PTR valve is not present please contact your supplier. The valve rating is
700kPa.
• The supplied PTR valve must be installed at Point 4 in section 3.2 Dynamic Connection Dimensions and
Components under the socket marked "RELIEF VALVE".
• The PTR valve must be insulated with a minimum 13mm closed coupled insulation, to minimize heat lost.
• The relief valve must be installed so that the drain line is facing downwards at all times with the discharge
point remaining open to the atmosphere.
4. Pressure & Temperature Relief (PTR) valve
5.Tempering Valve
• This device is automatically programmed to produce hot water in excess of 50°C. As such in accordance with
AS/NZS3500 it is mandatory that a “Tempering Valve” is installed.
• We recommend a high performance or solar rated tempering valve is used to ensure a more accurate hot
water delivery temperature.
•Your old hot water system might not have had a tempering valve installed before and therefore you will notice
a change in the temperature of the hot water. This is normal and required under the new legislation. Should you
have any concerns, please contact your installer.
6. Expansion Control Valve
• The system is supplied with a loose Expansion Control Valve (ECV) appropriate to the pressure rating of the
water heater tank. If the ECV valve is not present please contact your supplier. The valve rating is 600kPa.
• Observe the local requirements with regards to the installation of an ECV (optional in most counsels).
• When installing an ECV, ensure that the connecting pipe has a diameter no greater than that of the safety
valve.
• Ensure the drain is sized to allow for water runoff, even in incidents where the safety valve has been fully
opened.
• The drain outlet must remain open to the atmosphere at all times and must not have a closing function.
8. Pressure reducing valve
• The maximum inlet pressure to the system must be no more than 500kPa. Should the system be subjected to
pressures above 500kPa all warranties will be void.
• A pressure reducing valve must be used in the direct cold water supply line feeding into the system.
• This water heater is supplied with a PTR valve rated at 700kPa and is designed for direct connection to mains
water supply with a pressure not exceeding this rating. Should main pressure fluctuate above this rating, a
pressure limiting device (AS1357) should be connected at Point 8 in section 3.2 Dynamic Connection Dimensions
and Components.
11

4.0 PLUMBING INSTALLATION
9. Non-return Valve
• It is recommended that a non-returning valve is installed directly into the cold water supply line feeding the
system. This will allow the hot water system to be isolated from the rest of the homes water supply, making
servicing, draining and replacing the unit easy.
• The non-return valve can be combined with a PRV valve to form a duo valve as shown in the above schematic.
Filling The System
• Once the Hydrotherm has been connected in accordance to section 3.0 and 4.0 of this handbook,
the tank can be filled and pressurized.
• Open the non-return valve on the cold water inlet to begin filling the system with water. At the
same time, ensure at least one hot water tap is open inside the property. While the system begins
filling with water you will hear air being expelled from the open hot water tap. This is called
"bleeding the system" and it ensures that no air pockets remain. Once water begins running out of
the hot water tap, the system is completely bled and you can then turn the tap off.
• Always ensure that the tank is completely full before connecting and turning on electricity supply.
• When the system has been left running, but no hot water has been used for an excessive period of
time, it is recommended that hot water tap is left running for several minutes to remove any potential
gases through the plumbing network. Please do not smoke or have naked flames present during this
time.
12

i
5.0 ELECTRICAL CONNECTION
5.1 ELECTRICAL SCHEMATIC
Only qualified electricians may carry out the installations of the Hydrotherm
heat pump to main power in accordance with the following instructions.
2C1/2
No1 C1/2 C3/4 X C5
N02 No3 N o4 C3/4 X No5
GND B4 V
Key/spv
N
L
4321
G0 B1 B2 B3 ID5 ID3 ID1
G
GND
Y ID4 ID2
GND
GND
Tx/Rx
C
2
C1/2 No1 C1/2 C3/4 X C5
N02 No3 N o4 C3/4 X No5
GND B4 V
Key/spv
N
L
4321
G0 B1 B2 B3 ID5 ID3 ID1
G
GND
Y ID4 ID2
GND
GND
Tx/Rx
C
13

5.2 PRE-CONNECTION & REGULATIONS
• Before any work can commence ensure that the heater is isolated from the power supply at the control
panel.
• The Hydrotherm heat pump is designed for permanent fixed wiring to either a Continuous Tariff, single phase
240V AC supply or a Shoulder Tariff 33 (QLD only) single phase 240V AC supply.
• When connecting the unit work must comply with the local supply authority regulations as well as AS3000.
• The power rating of the unit is set at 10 amps as such the mains power supplying the unit must have a 10
amp minimum circuit breaker fitted.
• To gain access the electrician may remove the four connecting screws and raise the cover upwards off the
unit base exposing electrical works ( see section 3.2 Dynamic Connection Dimensions And Components).
• Note this device is fitted with an over-temperature control cut-out. Under no circumstances must the water
heater be in operation without this safety device connected to the circuit. Re-setting and replacement of this
device must only be carried out by a qualified electrical contractor.
• (AS/NZS 60335-1 Clause 7.12.2): disconnection must be incorporated in the fixed wiring in accordance with
the wiring rules.
• FUSE: 250V, T3.15A
5.3 HARD WIRING THE SYSTEM
•The Hydrotherm system is supplied with a 3 point earthed
plug and may be run off a standard power socket or
extension cord. Running the unit off the plug should only be
temporary (e.g. when an electrician is delayed to your
home).
•For continued long term operation the Hydrotherm system
must be hard wired into an isolated 10 amp circuit.
•A qualified electrician should remove the units plug and
utilize the power supply cord to wire the system into a
junction box.
•The junction box must be rated for outdoor use and should
be fitted with an isolating switch as shown in the diagram to
the right.
If the supply cord is damaged, it must
be replaced by either the
manufacturer, a service agent or
similarly qualified person in order to
avoid a hazard.
Depending on the installation address,
the Hydrotherm must be connected to
either a Continuous or Shoulder Tariff
power supply. Please refer to section
2.4 for further information.
This appliance shall be installed in
accordance with National wiring
regulations AS.3000.
2C1/2
No1 C1/2 C3/4 X C5
N02 No3 N o4 C3/4 X No5
GND B4 V
Key/spv
N
L
4321
G0 B1 B2 B3 ID5 ID3 ID1
G
GND
Y ID4 ID2
GND
GND
Tx/Rx
C
2
C1/2 No1 C1/2 C3/4 X C5
N02 No3 N o4 C3/4 X No5
GND B4 V
Key/spv
N
L
4321
G0 B1 B2 B3 ID5 ID3 ID1
G
GND
Y ID4 ID2
GND
GND
Tx/Rx
C
OFF
ON
14

PRE-START PROCEDURES AND CHECKS
• Once both the electrical and plumbing connections have been completed by qualified trades person, the system
is now ready for operation.
• Before turning the system on it is essential that you ensure the heat pump storage tank is full and the unit
thoroughly flushed.
• Air pockets must be bled from the system via a hot water tap. Do not use the PTR valve alone to bleed the system.
• Ensure the device is resting on a smooth flat concrete plinth and that a condensate drain is installed from the
condensate port to an appropriate drainage point.
• Ensure that your plumber has insulated with high temperature closed cell insulation to prevent heat loss.
• Ensure that air can flow freely around the intake vents.
WARNING: This appliance is not intended for use by persons (including children) with
reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not play with the
appliance. The appliance shall be installed in accordance with national wiring regulations.
6.0 COMMISSIONING SYSTEM
15

CHECKBOX
Once you have carried out all these checks you are ready to switch on the unit.
Once the system has been installed, the installing plumber should sign below to ensure
that all procedures have been complied to otherwise warranties may be voided.
Installer's Full Name Date
Signature of Installer
The Hydrotherm system is level.
The Hydrotherm system is installed on a concrete plinth or stable structure capable of
sustaining weights in excess of 450kg.
A minimum distance of 300mm is present above the Hydrotherm system, to allow the
lid to be removed for maintenance (see section 2.3 Air Flow).
A minimum distance of 600mm is present on either side of the Hydrotherm system for
airflow (see section 2.3 Air Flow).
A minimum distance of 150mm is present between the exterior of the tank and wall for
air circulation and servicing (see section 2.3 Air Flow).
The condensate drainage elbow has only been hand tightened (see section 4.0
Plumbing Installation).
The condensate drainage elbow is free flowing (i.e. gravity fed) and not directly
connected to the PTR or any other line (see section 4.0 Plumbing Installation).
The unit is connected to either Continuous (T11 in QLD) or Shoulder (T33 in QLD)
Tariff (not connected to the Night time (T31 in QLD) .
The plumber has explained the purpose of the tempering valve.
16

7.0 OPERATION PANEL INSTRUCTIONS
KEY FACTORS:
•Hydrotherm recommends setting systems in ECON MODE and using the in-built timer function unless your
household requires a large demand of hot water. Please be aware of temperature, tariff and usage
patterns when customizing timer periods.
•Optimum temperature of 60°C for Legionnaires disease control.
•Temperature differentiation setting of 10°C (Heat Pump heating cycle begins at 50°C)
ANY ISSUES OR QUERIES? Please contact Hydrotherm TOLL-FREE 1300 769
7.1 ACCESSING DISPLAY PANEL
A stainless steel display cover protects the display screen from any potential damage. To access the display panel:
1. Undo the hand screws located at the top and bottom of the display cover by turning them clockwise. Place the
hand screws somewhere safely.
2. Slowly remove the display cover and place somewhere safe.
To reattach the screen cover:
1. Place the display cover over the display screen, ensuring the hand screw holes are aligned.
2. Replace the hand screws and using your hands only, tight the hand screws by rotating clockwise. Ensure that a
seal is formed from the display cover over the display panel.
Always esnure that the screen panel has been replaced after accessing the control screen. If the
screen panel has not been replaced, the screen may become damaged from the elements.
Front Side
Hand tighten
only
Hand screws
Tighten Loosen
17

1. MODE
2. TIMER
3. SETTINGS
7.2 CONTROL/DISPLAY INTERFACE
Located on the front of the Hydrotherm is the unit interface. It houses all controls and displays necessary to
operate your new Hydrotherm Hot Water System. The legend below indicates all components referred to in this
manual.
4. UP
5. DOWN
6. ON/OFF
123456
18

1. ‘WORKING MODE’ - [ AUTO / ECON ]
AUTO - Automatic setting
ECON - Timer setting
2. ‘STATUS’ - [ DEF / OFF / WARM / HEAT ]
DEF - Defrosting of the pipes and apparatus
OFF - Unit is not operational
WARM - The water is warm and ready for use
HTG - Heating the water, heater activated
3. ‘CLOCK DISPLAY’
4. ‘TIMER’ - [ ON / OFF ]
5. ‘WATER’ - The current water temperature in the tank.
6. ‘TEMPERATURE GRADIENT’ - Shows the quantity of
hot water in the tank available.
7. ‘ALARM’ - Alarm representing a fault in the machine,
contact Hydrotherm Hot Water Systems on 1300 769
904 or at [email protected].
8. ‘Hi-T’ - Alarm identifying water temperatures
exceeding the temperature allowed.
7.3 DISPLAY PANEL
All functions and settings of the Hydrotherm are displayed on the DISPLAY PANEL. When a function is active, it is lit
up in either blue or red. Below, you can find the description of each function of the Hydrotherm and its location on
the panel.
7.0 OPERATION PANEL INSTRUCTIONS
1
2
3
ON - Identifies the ON timer is being set
OFF - Identifies when the OFF timer is being set
‘P1 / P2 / P3’ - Three different timers that can be set
4
5
6
78
19

7.4 SETTING THE CLOCK
The correct time is necessary for the unit to operate in ‘ECON MODE’. The time is displayed in a 24 hour format.
TO SET THE CLOCK:
1. Press ‘CLOCK’. The hour digits will begin
flashing, indicating that they can be changed.
2. Use the ‘ARROW’ buttons to select the correct hour.
To advance to minutes, press ‘CLOCK’,
3. Use the ‘ARROW’ buttons to select the correct
minutes. To finalise, press ‘CLOCK’. The clock is now set.
20
