Hygeniq FOGGER 1.0 User manual

USER MANUAL
HYGENIQ FOGGER
Model: HYGENIQ FOGGER1.0
Product code: E150004
Date: 17/09/2020
Version: A
HYGENIQ
Lenteweg 15, 7532 RV Enschede, The Netherlands
[phone]
[email protected]
www.hygeniq.com

HYGENIQ FOGGER
2
PREFACE
Thank you for purchasing the HYGENIQ FOGGER1.0. The powerful easy to use
system that can remove the dangerous particles from the air in seconds. It
also makes disinfecting surfaces much more effective when combined with
the approved HYGENIQ Mist. Due to the 24V Li-ion battery and refillable tank,
you can keep disinfecting for as long as you wish. Please read the user
manual carefully and become familiar with the operation and maintenance
procedures. Store the manual in a safe place.

HYGENIQ FOGGER
3
Content
PREFACE....................................................................................................................... 2
Packing List.................................................................................................................. 4
Safety Instructions ...................................................................................................... 5
Product Description .................................................................................................... 6
Setup ............................................................................................................................. 9
Operation....................................................................................................................11
Maintenance ........................................................................................................... 133

HYGENIQ FOGGER
4
Packing List
Accessory
The battery & charger kit is provided according to customer order requirement. It may not be in the
machine package. Please contact the supplier.
1 x Battery 1 x Charger 1 x Power cable

HYGENIQ FOGGER
5
Safety Instructions
The following symbols and terms are used throughout this manual and on the machine to alert the reader to
safety issues and important information:
Symbol
Term
Explanation
WARNING
Indicates a hazardous situation which, if the safety instructions are
not followed, can lead to injuries of the operator or bystanders, light
and/or moderate damage to the product or the environment.
STRONG MAGNET
Indicates the machine contains strong magnets. These can cause
pacemakers to stop or cause electronic data to be damaged, for
instance on information stored on access passes.
PACEMAKER
Indicates operators and maintenance crew wearing pacemakers
should keep a minimal distance of 6 inch/ 15 cm. In this specific
case operators may not use the machine as a backpack.
BATTERIES
Indicates a battery operated machine, batteries must be charged
according to the instructions in the separate Class I Battery Charger
user manual. Batteries must be disposed of according to your local
laws and regulations.
Read all instructions before using HYGENIQ FOGGER
Cautions when using the machine:
Do not operate the machine without reading and understanding the instructions. If the machine is operated
incorrectly it can pose danger to the operator and others and will invalidate the manufactures warranty.
Please understand the followings:
•A risk assessment for the works to be undertaken;
•MSDS Chemical Data sheet;
•Risk assessment for chemical use.
Keep the machine body upright and securely fastened at all times while using HYGENIQ FOGGER, during
preparation and transportation.
Only use approved HYGENIQ Mist and batteries for safe use of the machine. Using other consumable items in
the machine invalidates the warranty and will lead to damage of the internal parts of the machine and could
possibly pose a risk to operator.
Maintenance/service people and operators with pacemaker need to keep a distance to the integrated
magnets in HYGENIQ FOGGER of 6 inch/15 cm when they are doing maintenance on and operating FOGGER.
Make sure the operator has been fully trained before using the machine.
Avoid spray directly on humans and animals.
Ensure the machine is used in a dry environment, and don not allow water or any other liquid around the
motor air inlet.

HYGENIQ FOGGER
6
Product Description

HYGENIQ FOGGER
7
Item
Specification
Product weight
(W/O battery)
7.9KG
Product dimension
Main body: 200x595x225mm
Included harness: 300x600x315mm
Tank capacity
3.5L
Battery weight
1.3KG
Battery voltage
DC24V
Duration of battery
above 50 minutes
Charger input voltage
AC100~250 Voltage
Charging time
2.5 Hours
Speed of spray
175~100ml/minutes
Hose length
1.2 meters
Droplet size
20~150um
Spray nozzles
0.3x3mm, 0.5mm, 0.8mm, 1.0mm
Machine power
450W
Spray distance
5~6 meters
Pump
DC24V, 5W, 100ml/minute
Main body material
LDPE
Spray handle material
Aluminum

HYGENIQ FOGGER
8

HYGENIQ FOGGER
9
Setup

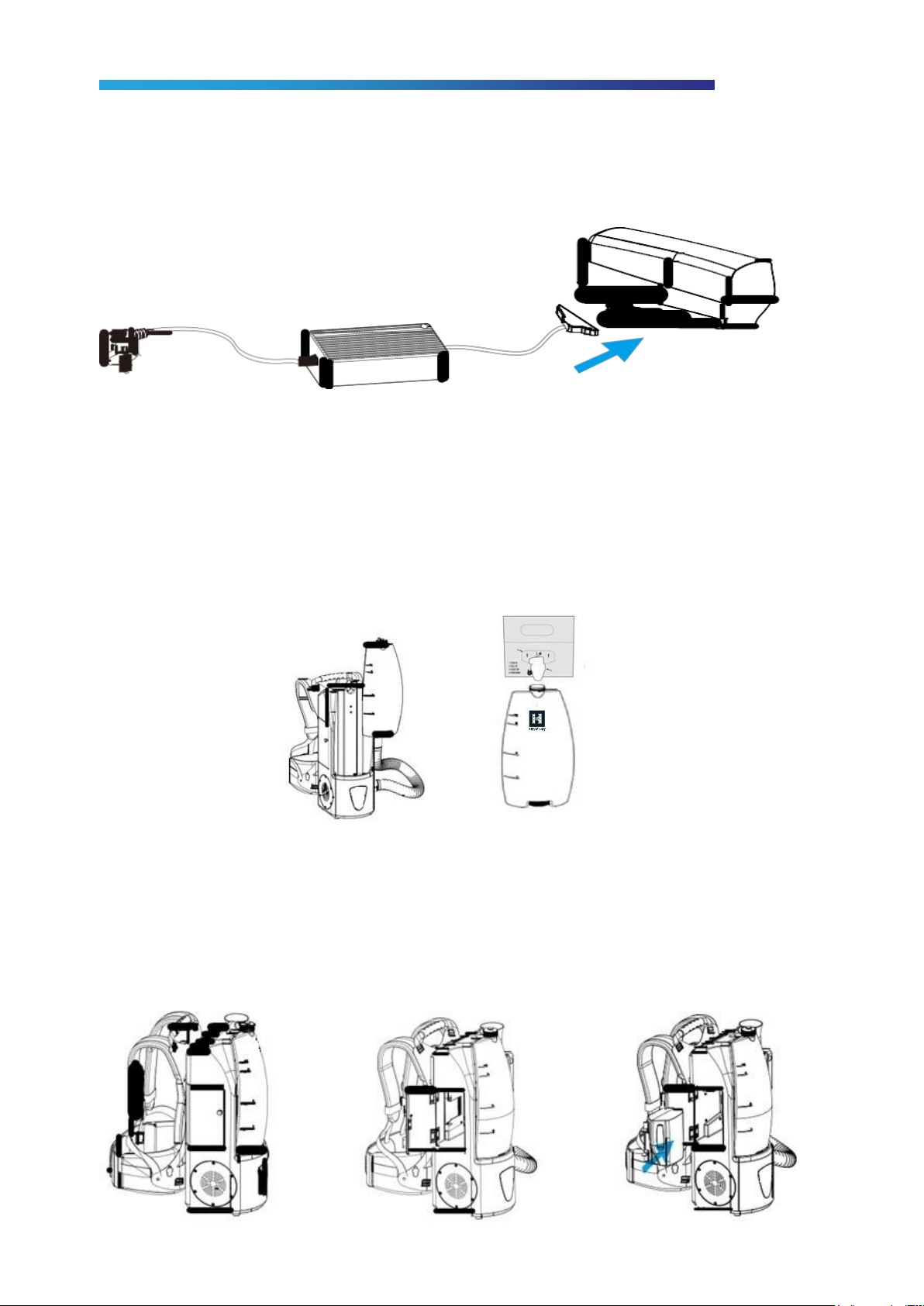

1. Charge the battery
Ensure that the battery has been fully charged before each operation. Before charging the battery for the first
time, please read the instruction manual of battery charger.
2. Fill the liquid tank
Place and secure the machine body upright. Unscrew the cap off the liquid tank, and pour the approved
HYGENIQ Mist into the tank.
Or
Take off the liquid tank from the machine, and place and secure it in a upright position. Unscrew the cap off
the liquid tank, and pour the approved HYGENIQ Mist into the tank. Insert the liquid tank back to the
machine which should also be placed in an upright position.
3. Insert the battery to the machine
Open the door of battery housing, and sliding one fully charged battery into the battery housing, until you
hear a “click” sound. Make sure the battery is installed correctly and then close the door.
To remove the battery, use the clamps on the sides of the battery to release.

HYGENIQ FOGGER
10

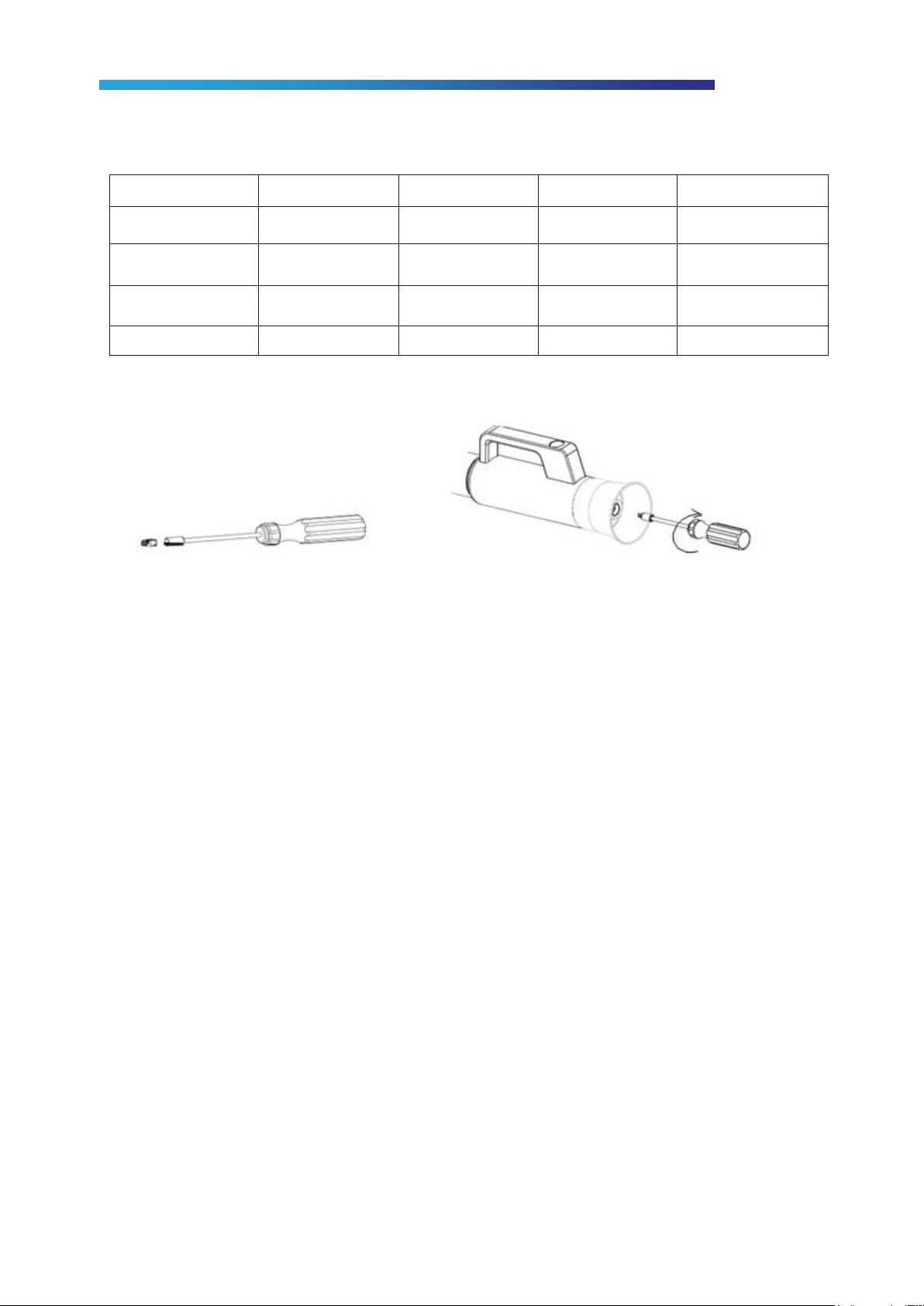

4. Installation of the nozzle in spray handle
Select the appropriate nozzle for the application.
Nozzle size
Droplet size
Spray distance
Duration (3.5L)
Appliccation
0.3mm(3x)
~20um
5~6m
35minutes
indoor
0.5mm
~30um
5~6m
30minutes
indoor
0.8mm
~40um
5~6m
25~30minutes
indoor
1.0mm
~60um
5~6m
20~25minutes
outdoor

HYGENIQ FOGGER
11
Operation

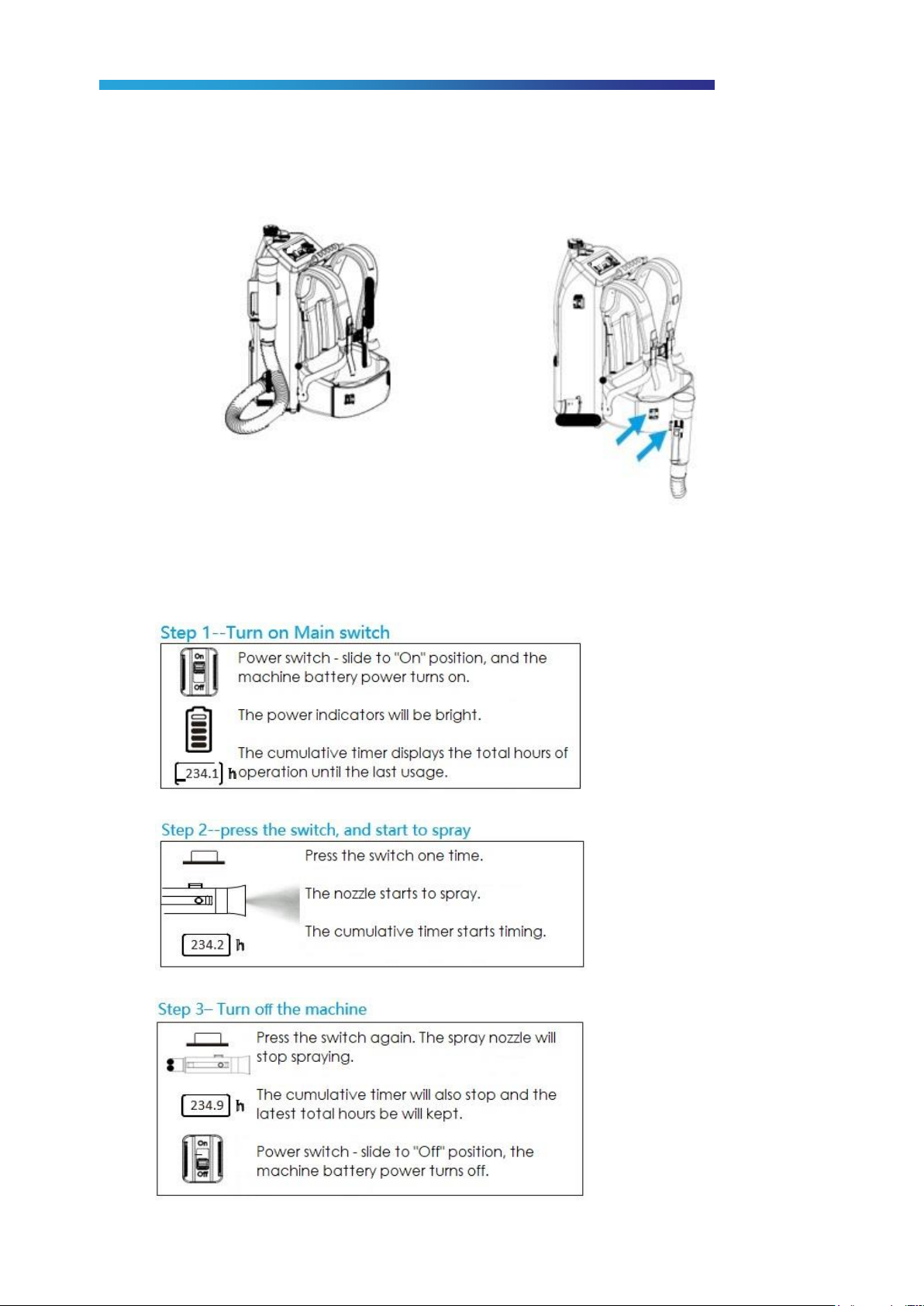

1. Place the machine body on the table, and then place the spray nozzle on the lower hook.
2. Place the machine on the back and adjust the straps and the belt to for an optimal/comfortable
operating position.
3. Spraying steps

HYGENIQ FOGGER
12
4. Additional information:
For larger spaces / rooms one should fog the higher part of the room. The Mist will agglomerate with the
particles present where the antimicrobial effect will do its job. Secondary effect is that the particles get
heavier and via laws of Gravity descend. This way the descending layer of mist works as a membrane filtering
all other unwanted particles (such as microdust) out. This results in a completely antibacterial filtered and
purified air composition in the room.
Specific ‘risk-points’ like door handles, light switches and other manual touch points can be targeted directly
to ensure a sanitized surface.

HYGENIQ FOGGER
13
Maintenance
The fogger needs to be maintained during normal use:
1. Empty the liquid tank after each use, and rinse the liquid tank and the hose with clean water;
2. Charge the battery fully after each use;
3. It is the best not to exceed 4 hours for each continuous use;
4. Ensure the machine is always used upright and in a dry environment, and do not allow water or any
other liquid around the motor air inlet.
5. Spray nozzles need to be stored in the small tool box, together with the screw driver. The tool box
can be hooked on to the backpack harness spring hook (3 nozzles in the tool box and 1 in the spray
handle).
6. If there is any issue with your fogger please contact HYGENIQ.
