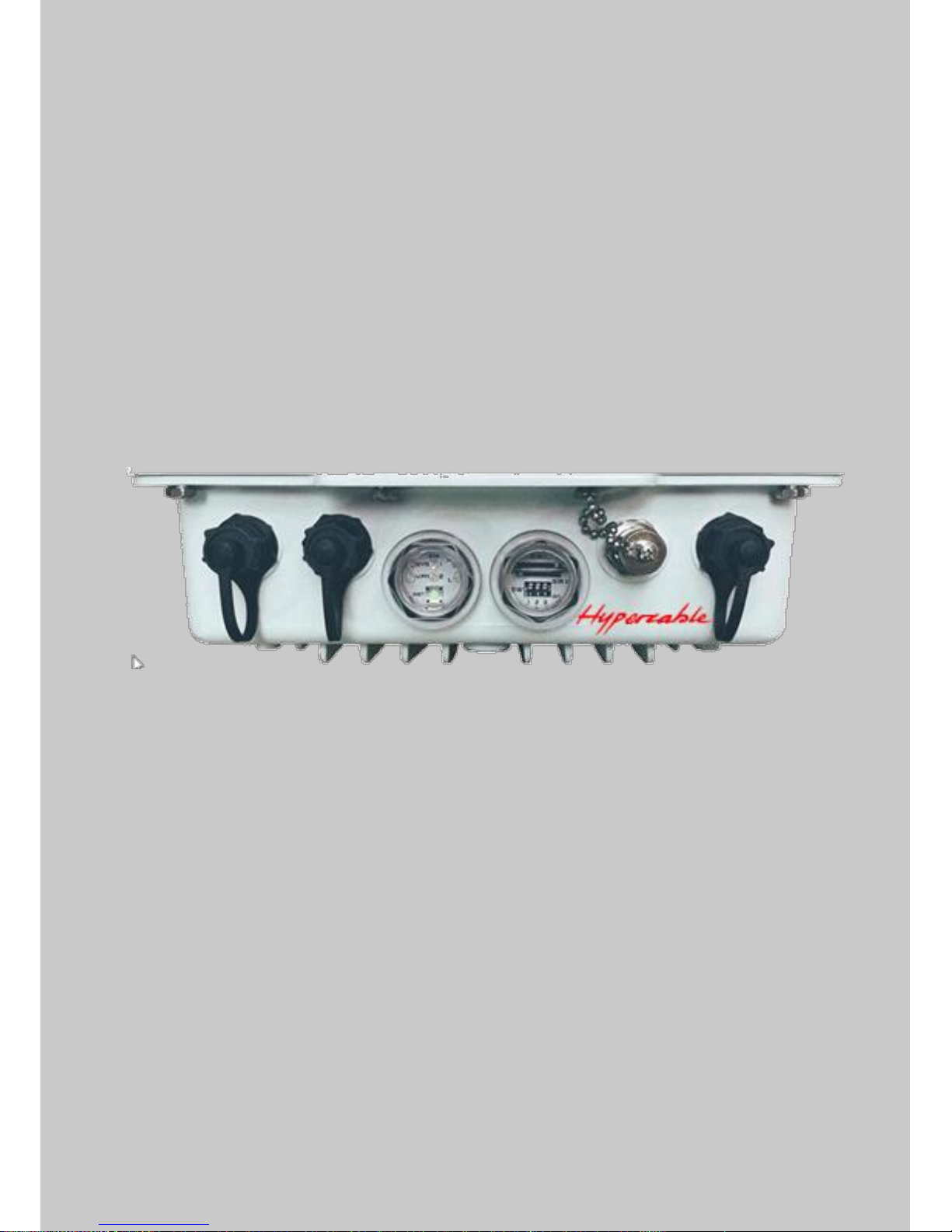

Hypercable SkyMesh HYC-OLTRG-100GN-27 User manual

User Manual
Includes install, configuration and trouble
shooting information for the broadband
wireless access outdoor radio.
Mars, 2018
Version 1.1.14
SkyMesh HYC-OLTRG-100gn-27
Outdoor 4G/LTE Router with 2.4GHz Wi-Fi

II
Table of Contents
1Introduction................................................................................................................ 5
1.1 Features ................................................................................................................5
1.2 Hardware Interface................................................................................................. 6
1.3 Hardware Interface Introduction ..............................................................................7
2Hardware Installation................................................................................................. 8
2.1 LED Indicators ........................................................................................................8
2.2 Reset Button (RST)..................................................................................................8
2.3 Ethernet Port .........................................................................................................9
2.4 Install the SIM Card (Micro-Sim)............................................................................... 9
2.5 External Antenna.................................................................................................. 10
2.6 Connecting the Power Supply ................................................................................ 10
3Configuration via Web Browser.............................................................................. 11
4Status ....................................................................................................................... 12
4.1 Status > GPS......................................................................................................... 13
5Configuration > System .......................................................................................... 15

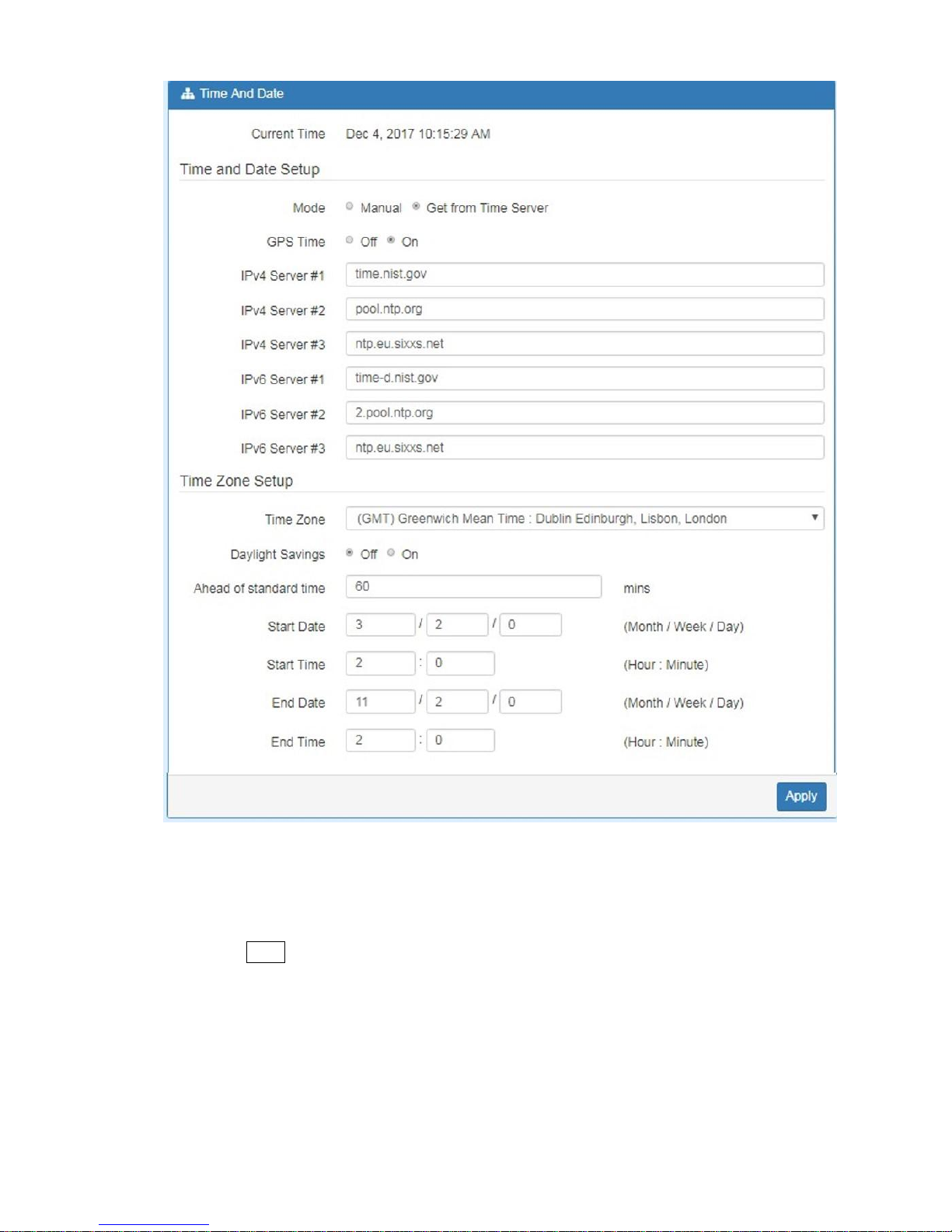

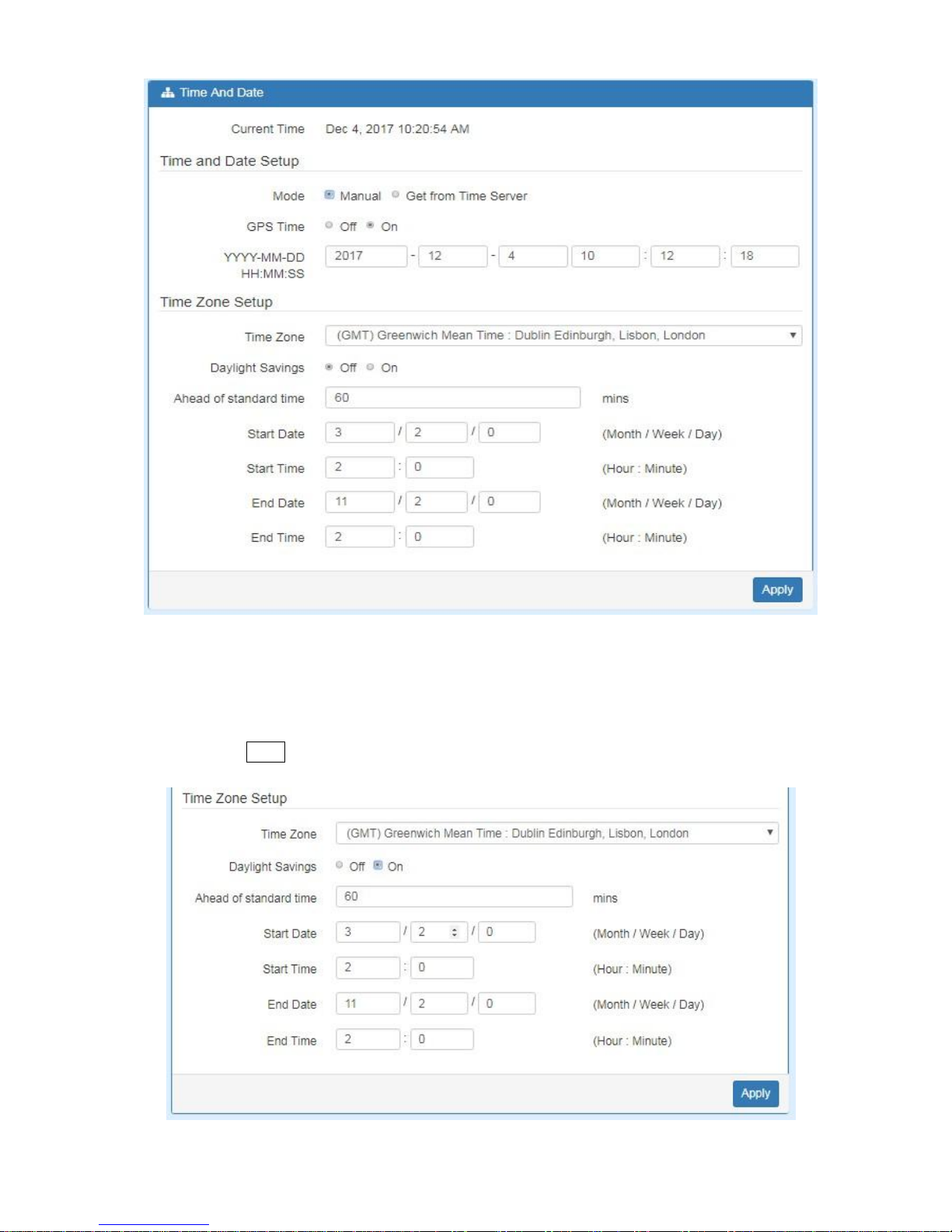

5.1 System > Time and Date........................................................................................ 15
5.2 System > Logging.................................................................................................. 19
5.2.1 Logging > Logging............................................................................................ 19
5.2.2 Logging > Log................................................................................................... 20
5.3 System > Alarm .................................................................................................... 21
5.3.1 Alarm > Name Group........................................................................................ 22
5.3.2 Alarm > Edit User.............................................................................................. 22
5.4 System > Ethernet Ports ........................................................................................ 24
5.5 System > Client List............................................................................................... 24
6Configuration > WAN............................................................................................... 26
6.1 WAN > Priority ..................................................................................................... 26
6.2 WAN > Ethernet ................................................................................................... 26
6.2.1 WAN Ethernet Configuration............................................................................. 26
6.2.2 Ethernet Ping Health......................................................................................... 29
6.3 WAN > IPv6 DNS................................................................................................... 30
7Configuration > LTE................................................................................................. 32
7.1 LTE > LTE Config.................................................................................................... 32
7.1.1 LTE Configuration............................................................................................. 32
7.1.2 LTE Ping Health................................................................................................ 33
7.2 LTE > Dual SIM...................................................................................................... 34
7.3 LTE > Usage Display............................................................................................... 38
7.4 LTE > SMS ............................................................................................................ 41

III
8Configuration > LAN................................................................................................ 43
8.1 LAN > IPv4 ........................................................................................................... 43
8.2 LAN > IPv6 ........................................................................................................... 44
8.3 LAN > VLAN ......................................................................................................... 44
8.4 LAN > Subnet ....................................................................................................... 46
9IP Routing................................................................................................................. 48
9.1 IP Routing > Static Route ....................................................................................... 48
9.2 IP Routing > RIP.................................................................................................... 50
9.3 IP Routing > OSPF ................................................................................................. 52
9.4 IP Routing > BGP................................................................................................... 56
10 Configuration > Service .......................................................................................... 59
10.1 Service > Configuration OpenVPN........................................................................... 59
10.1.1 Edit OpenVPN Connection.............................................................................. 59
10.1.2 Set up OpenVPN Client .................................................................................. 62
10.1.3 Set up OpenVPN Server................................................................................. 63
10.1.4 Set up OpenVPN Custom............................................................................... 64
10.2 Service > Configuration IPSec................................................................................. 66
10.2.1 IPSec > General setting.................................................................................. 66
10.2.2 IPSec > Connections ...................................................................................... 68
10.2.3 IPSec > The setting of X.509 Certificates........................................................ 69
10.2.4 IPSec > Net-to-Net Configuration.................................................................... 70
10.3 Service > Configuration Port Forwarding ................................................................. 75
10.4 Service > Dynamic DNS ......................................................................................... 76
10.5 Service > DMZ...................................................................................................... 78
10.6 Service > SNMP.................................................................................................... 78
10.6.1 SNMP configuration........................................................................................ 78
10.6.2 SNMP v3 User configuration........................................................................... 79
10.6.3 SNMP trap configuration................................................................................. 80
10.7 Service > TR069.................................................................................................... 81
10.8 Service > IP Filter.................................................................................................. 82
10.9 Service > MAC Filter.............................................................................................. 84
10.10 Service > URL Filter........................................................................................... 85
10.11 Service > VRRP ................................................................................................. 86
10.12 Service > MQTT ................................................................................................ 87
10.13 Service > UPnP ................................................................................................. 89
10.14 Service > SMTP................................................................................................. 89
10.15 Service > NAT ................................................................................................... 90
10.16 Service > IP Alias............................................................................................... 90
10.17 Service > GRE ................................................................................................... 91
11 Management............................................................................................................. 92
11.1 Identification ....................................................................................................... 92

IV
11.2 Administration ..................................................................................................... 93
11.3 Firmware............................................................................................................. 93
11.4 Configuration....................................................................................................... 93
11.5 Load Factory ........................................................................................................ 94
11.6 Restart ................................................................................................................ 94
12 Configuration Applications..................................................................................... 95
12.1 WAN Priority........................................................................................................ 95
12.2 LAN > IPv4/IPv6 Dual Stack .................................................................................... 97
12.3 MQTT Broker ....................................................................................................... 98
12.4 OpenVPN Configuration ........................................................................................ 99
12.4.1 OpenVPN Server Mode .................................................................................. 99
12.4.2 OpenVPN Client Mode.................................................................................. 100
12.4.3 OpenVPN Net-to-Net.................................................................................... 101
12.4.4 OpenVPN 1:1 NAT........................................................................................ 104
12.4.5 OpenVPN with third-party server................................................................... 105
12.5 VRRP Topology ................................................................................................... 106
12.6 TR069 Server (GenieACS Installation).................................................................... 107

1Introduction
Hypercable HYC-OLTRG-100 series 4G/LTE 4G/LTE Router are highly reliable and secure wireless
communications gateway designed for industrial networking. It supports multi-band connectivity
including FDD/TDD LTE, WCDMA and GSM for a wide range of applications and vertical
machine-to-machine (M2M) markets. To enhance reliability, HYC-OLTRG-100 series are equipped with
dual SIM that support failover and roaming over to ensure uninterrupted connectivity for
mission-critical cellular communications.
With flexible LAN/WAN Ethernet options, HYC-OLTRG-100 series allow you to customize your
professional applications in diverse environments. Integrated with WAN, LAN, the HYC-OLTRG-100
series also provide various network protocols, such as IPv6, MQTT and VPN for enriching connectivity
and security. For VPN tunnel, OpenVPN and IPSec are for reliable authentication of the network
stations, data encryption and verification of data integrity. The device is administrated via web GUI,
Telnet, SSH v2 and HTTP/HTTPS.
Built for secure and uninterrupted operation in harsh environments, HYC-OLTRG-100 series support
extended operating temperature from -20 to +70°C and IP-68 grade water and dust proof outdoor
enclosure.
1.1 Features
Highly reliable and secure for mission-critical cellular communications
Provide flexible options to configure LAN/ WAN ports
Support multi-band connectivity with FDD LTE/ TDD LTE/ WCDMA/ GSM/ LTE Cat4
Built-in dual SIM for network redundancy
Integrated dual detachable antenna against radio interference
LED indicators for connection and data transmission status
Industrial rated from -20°C to +70°C for use in harsh environments
Aluminum diecasting outdoor enclosure with IP68 industrial grade protection
IPv6/IPv4 dual stack and all applications are IPv6 ready
Support various serial communication protocols for connectivity
Enhance security and encryption for authentication and transmission

1.2 Hardware Interface
[Top Side View]
[Bottom Side View]
= 2.4GHz Wi-Fi Primary
Grounding Stud
Grounding Stud

1.3 Hardware Interface Introduction
[Top Side View]
Interface
Description
LTE-Main
Connect to LTE antenna with N-type connector
WAN
Connect to Ethernet Cable with M12 connector
GPS
Connect to GPS antenna with N-type connector
LTE-Aux
Connect to LTE antenna with N-type connector
[Bottom Side View]
Interface
Description
PWR
Connect to Power cable with Circle-B type connector
LAN
Connect to Ethernet Cable with M12 connector
LED Indicators
SYS / VPN / SIM1 / SIM2 / H (RSSI) / L (RSSI)
RST
Allows you to reboot the unit or restore to factory default setting.
Reboot - Press the button for 1 second
Restore to factory default setting - Press the button for 5 seconds
SIM1 & SIM2
Insert the Micro Sim Card (Push –Push Sim Card holder)
RF1-S
2.4GHz Wi-Fi Primary port –Connect to 2.4GHz antenna with N-type connector
Grounding stud
Connect to the ground wire with stainless screws.
Ethernet Cable with M12 connector Power Cable with Circular Standard (CCB)
connector

2Hardware Installation
This chapter introduces how to install and connect the hardware.
2.1 LED Indicators
LED
SYS
H (RSSI)
L (RSSI)
VPN
SIM1
SIM2
ON
System UP
Normal
Signal
Low Signal
VPN
Connected
Connected
Connected
Slow
Blinking
Booting
N/A
N/A
WAN
Connected
Connecting
Connecting
Fast
Blinking
N/A
N/A
N/A
N/A
Error
Error
OFF
Power
Down
N/A
N/A
NO WAN
Connection
Not
Working
Not
Working
Heart Beat
N/A
N/A
N/A
N/A
Reading
Reading
2.2 Reset Button (RST)
Reset button allows you to reboot the unit or restore to factory default setting.
Function
Operation
Reboot
Press the button for 1 second
Restore to factory default setting
Press the button for 5 seconds
Note:
Press the Reset button and count the time around 5 seconds. The LED Indicators will be blinking to
show you have activated the setting successfully.

Micro - SIM
Nano - SIM
Nano –Micro adaptor
Micro - SIM
2.3 Ethernet Port
(1) 10/100 Mbps Ethernet WAN
Pin
Description
Function
1
WAN TX+
10/100 Mbps WAN, TX+ Pin
2
WAN TX-
10/100 Mbps WAN, TX- Pin
3
WAN RX+
10/100 Mbps WAN, RX+ Pin
4
N/A
N/A
5
N/A
N/A
6
WAN RX-
10/100 Mbps WAN, RX- Pin
7
N/A
N/A
8
N/A
N/A
(2) 10/100 Mbps Ethernet LAN
Pin
Description
Function
1
LAN TX+
10/100 Mbps LAN, TX+ Pin
2
LAN TX-
10/100 Mbps LAN, TX- Pin
3
LAN RX+
10/100 Mbps LAN, RX+ Pin
4
N/A
N/A
5
N/A
N/A
6
LAN RX-
10/100 Mbps LAN, RX- Pin
7
N/A
N/A
8
N/A
N/A
2.4 Install the SIM Card (Micro-Sim)
1. Push-Push Sim Card holder for Micro-Sim Card
or
Note:
If you are using Nano –Micro adaptor as Micro-Sim, please use the sticker to stick the Nano Sim
card and adaptor together.

2. Insert and Remove SIM1/SIM2 Card
(1) Before inserting or removing the SIM card, ensure that the power has been turned off and
the power connector has been removed from 4G/LTE Router.
(2) Insert the Micro - SIM card into the push-push Sim card holder by following instruction.
SIM1 (chip side down) SIM2 (chip side up)
(3) Insert the SIM card with the contacts facing up and align it properly into the drawer. Make
sure your direction of SIM Card and put it into the tray.
(4) Slide the drawer back and locks it in place.
Note:
Please make sure the insert direction is correct first. When pulling the Micro-SIM card from the
tray by incorrect direction, the chip card or the tray might be damaged.
Please turn off your router before insert or remove the SIM card.
2.5 External Antenna
Each unit has two antenna connectors (SMA), MAIN and AUX. Connect the antenna to MAIN when you
have only one antenna. Please tighten the connecting nut properly to ensure good connection.
2.6 Connecting the Power Supply
The router requires a DC power supply in the range of 24V DC. Please ensure all components are
earthed to a common ground before connecting any wiring.
Note:
Please make sure the power voltage and polarization are correct and match with the wire color.
Wire color
DC Power (24V)
Yellow
Chassis Ground
White
V -
Black
V+

3Configuration via Web Browser
Access the Web Interface
4G/LTE Router:
The web configuration is an HTML-based management interface for quick and easy set up of the 4G/LTE
Router. Monitoring of the status, configuration and administration of the router can be done via the
Web interface.
After properly connecting the hardware of 4G/LTE Router as previously explained. Launch your web
browser and enter http://192.168.1.1 as URL.
The default IP address and sub net-mask of the 4G/LTE Router are 192.168.1.1 and 255.255.255.0.
Because the 4G/LTE Router acts as DHCP server in your network, the 4G/LTE Router will automatically
assign IP address for PC or NB in the network.
Control Panel > Selecting Language
You can choose the languages, including English and Taiwan.
Logging in the Router
In this section, please fill in the default User Name root and the default Password 2wsx#EDC and then
click Login. For the system security, suggest changing them after configuration.
After clicking, the interface shows Login ok.
2.4GHz Wi-Fi AP:
IP address: 192.168.1.2
User Name: root
Password: 2wsx#EDC

4Status
When you enter the web browser in the beginning, the interface displays the status of router to make
you know about Cellular Attribute, Dual SIM information, the current connectivity of WAN Ethernet
and LAN Ethernet. If you router with GPS function, the GPS interface is shown.
Status > WAN LTE
Item
Description
Attribute
SIM Card
Show the SIM card which the router work with currently: Current SIM or
Backup SIM.
Modem Status
Show the status of modem.
Operator
Display the name of operator.
Modem Access
Show the router to access protocol type
IMSI
Show the IMSI number of the current SIM cards.
Phone Number
Show the phone number of the current SIM or Backup SIM.
Band
Show current connected Band.
Channel ID
Show current connected channel ID.
IPv4 Address
LTE obtain IPv4 address.
IPv4 Mask
LTE IPv4 mask.

4.1 Status > GPS
For those GPS enabled router, you can see Location on the right-top banner of web interface when
connecting your GPS function. After clicking this banner, a map will automatically display the current
information of map according to location of router.
Status > WAN Ethernet
Item
Description
Attribute
IPv4 Address
Ethernet WAN obtain IPv4 Address.
IPv4 Mask
Ethernet WAN obtain IPv4 Mask.
Status > GPS
Item
Description
Attribute
Latitude
Show the latitude information of location.
Longitude
Show the longitude information of location.
Horizontal
Show the horizontal information of location.
Altitude
Show the altitude information of location.
Date(UTC)
Show the date information of location.
Satellite
Show the satellite information of location.
Status > LAN Ethernet
Item
Description
Attribute
IPv4 Address
Ethernet LAN is assigned IPv4 Address.
IPv4 Mask
Ethernet LAN is assigned IPv4 Mask.
IPv6 Address
Ethernet LAN is assigned IPv6 Address.
Status > WAN DNS
Item
Description
Attribute
IPv4 DNS Server #1
Show the address of IPv4 DNS Server #1.
IPv4 DNS Server #2
Show the address of IPv4 DNS Server #2.
IPv4 DNS Server #3
Show the address of IPv4 DNS Server #3.
IPv6 DNS Server #1
Show the address of IPv6 DNS Server #1.
IPv6 DNS Server #2
Show the address of IPv6 DNS Server #2.
IPv6 DNS Server #3
Show the address of IPv6 DNS Server #3.

5Configuration > System
This system section provides you to configure the following items, including Time and Date, Logging,
Alarm, Ethernet Ports, RIP.
5.1 System > Time and Date
This section allows you to set up the time and date of router and NTP server. There are two modes at
Time and Date Setup, including Get from Time Server and Manual. The default mode is Get from Time
Server.
If the router has GPS function, you can turn on "GPS Time" for sync time from GPS server.
For Time Zone Setup, the Daylight Savings Time allows the device to forward/backward the amount of
time from Ahead of standard time setting automatically when the time is at the Daylight Savings
duration that you have set up before.
I. Get from Time Server
Set up the time servers of IPv4 and IPv6.
Select your local time zone.
Click Apply to keep your configuration settings.

II. Manual
Set up the information of time and date, including year, month, date, and hour, minute, and
second.
Set up your local time zone.
Click Apply to submit your configuration changes.

III. Time Zone Setup
Set up Daylight Savings as On.
Set up Ahead of standard time.
Set up the information of Start Date/Time, including Month, Week, Day, Hour and Minute.
Set up the information of End Date/Time, including Month, Week, Day, Hour and Minute.
Click Apply to submit your configuration changes.

System > Time and Date->Daylight Savings
Item
Description
Daylight Saving
Turn on/off the Daylight Savings feature. Select from Off or On. The
default is Off.
Ahead of standard time
The forward/backward minutes when enter/leave Daylight Savings
duration.Default is 60 mins.
Start Date/Start Time
Time to enter Daylight Savings duration.
The Month range is 1~12;
1- Jan.
2 - Feb.
3 - Mar.
4 - Apr.
5 - May
6 - Jun.
7 - Jul.
8 - Aug.
9 - Sep.
10 - Oct.
11 - Nov.
12 - Dec.
The Week range is 1~5;
1 - first week in month.
2 - second week in month
3 - third week in month
4 - fourth week in month
5 - fifth week in month
The Day range is 0~6;
0 - Sunday(The start day of a week)
1- Monday
2 - Tuesday
3 - Wednesday
4 - Thursday
5 - Friday
6 - Saturday
The Hour range is 0~23;
The Min range is 0~59;
End Date/End Time
Time to leave Daylight Savings duration.
Same with Start Date/Start Time.

5.2 System > Logging
This section allows 4G/LTE Router to record the data and display the status of data.
5.2.1 Logging > Logging
(1) Logging section provides you to control all logging records.
(2) Users need to select Apply to confirm your settings.
System > Logging > Logging
Item
Description
Mode
Turn on/off the logging configuration. Select from Disable or
Enable. The default is Enable.
Remote Log
The logging messages send to remote log or not. Select from
Disable or Enable. The default is Disable.
Log Server Address
When you choose “Enable” on Remote Log, you should input IP
address to save and receive all logging data.
(Note: This server should have installed Log software.)

5.2.2 Logging > Log
This section displays all data status.
(1) You can choose Filter function to quickly search for your data.
(2) When you click Clear, all of the data that displays on the interface will be totally cleared without
any backup.
(3) When you click Refresh, the system will update and display the latest data from your 4G/LTE
Router.
(4) When you click Download Logs, the system will download the latest data from your 4G/LTE
Router.
System > Logging > Log
Item
Description
Filter
Filter the required data quickly.
Date
Show the date of log for each logging data.
Group
Show the group of software functions.
Module
Show the module of group of software functions.
Message
Show the messages for each logging data.
