HyperLink Technologies HA2401-XI-325X User manual

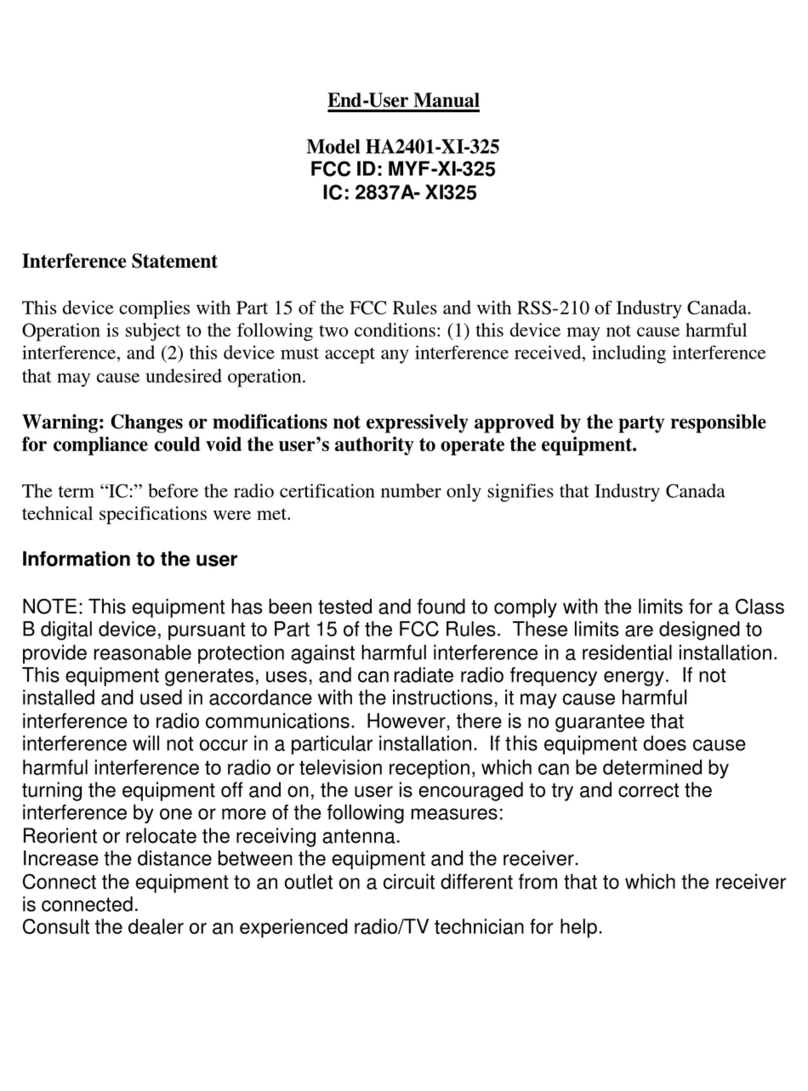

End-User Manual
Model HA2401-XI-325X
FCC ID: MYF-XI-325X
IC: 2837A- XI-325X
Interference Statement
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Warning: Changes or modifications not expressively approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
The term “IC:” before the radio certification number only signifies that Industry Canada
technical specifications were met.
Information to the user
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy. If not
installed and used in accordance with the instructions, it may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the distance between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications of equipment not expressly approved by the
manufacturer could void the user’s authority to operate the equipment and the
company’s warranty.
The device and its antenna and must not be co-located or operating in
conjunction with any other antenna or transmitter.
When this device is installed either as a fixed-mount or mobile application there
is a minimum required separation distance of 20 cm from users.
For further information contact:
Hyperlink Technologies, Inc.
Technical Support Department
1201 Clint Moore Road
Boca Raton, FL 33487
Email: [email protected]

When locating the antenna or operating this device you must observe the following
exposure limits:
When this device is installed either as a fixed-mount or mobile application there
is a minimum required separation distance of 20 cm from users.
Non-Amplified Systems:
For non-amplified systems simply plug the antenna connector into the antenna port on
the PC card and proceed to PC Card and Software Installation on the next page.
Amplified Systems:
Amplifier connections are clearly labeled on the amplifier unit as shown below.
1. Connect the antenna to the amplifier output labeled “ANTENNA”.
2. Connect the PC Card to the Amplifier input labeled “RADIO” using the pigtail cable.
3. Plug the AC adapter into the amplifier’s DC power jack and wall outlet.
Proceed to PC Card and Software Installation on the next page.

PC Card and Software Installation
I. Network Configuration
XI-325 is an IEEE802.11b-compliant PCMCIA Type II DSSS wireless LAN PC card.
It fully supports wireless networking under Windows 95/98/2000/XP and NT 4.0.
 XI-325 can be operated in Ad-Hoc and Infrastructure network configurations. Ad-Hoc mode
allows XI-325 users to join an Basic Service Set (i.e., peer-to-peer mode, without access point).
Infrastructure mode allows XI-325 users to join a Extended Basic Service Set (i.e., connect to
access point)
II. Package Content
XI-325 11Mb PC Card CD-ROM Utility Disk
Amplifier Kit (Optional) Antenna
III. XI-325 and Utility Installation under Windows
1. Insert the XI-325 card into the PCMCIA slot, then start Windows. Windows will auto-detect
new hardware and Windows Wizard will display “New Hardware Found".
2. Click on ‘Next’, then insert the corresponding driver and utility CD-ROM into the CD-ROM
drive, or the driver and utility disk into the floppy drive. Click on ‘Next’.
3. Once [Insert Win 95/98/2000/XP CD-Rom into the appropriate drive, then click ‘OK’] window
appears, please follow by either inserting the Windows CD-Rom or finding the Windows
source path within the appropriate drives, then click ‘OK’.
4. Click ‘Finish’ to complete the installation . Restart Windows.
5. To install the XI-325 Utility, insert the XI-325 driver and utility disk once again, then
execute A: setup.exe.
6. Follow the on-screen instructions to complete utility installation, then afterward double-click on
Infrastructure Network
Ad-hoc Network
Wired Network
Wireless Network
Access Point

the Utility icon. Utility interface will then appear and configuration can be accomplished here.
IV. Using Utility to Set Up Ad-Hoc Network
If wireless LAN has already been set up, simply plug in XI-325. Otherwise, set up a wireless
network by taking the following steps:
1. On the main utility interface, click on [Diagnostic tools], then click on [Site Survey].
This would disable wireless network links temporarily and display channel quality.
Please note that the blue bars indicate the best quality channels.
Note that amplified kits are shipped factory set to channel 6 and can not be changed.
2. Back on the main utility interface, click on [Network Configuration] and “Configure the
Adapter” window will appear. Setup procedures are as follows:
1) ESSID denotes the assigned name for the designated wireless LAN. If ESSID differs,
then wireless connection between wireless end devices will not be accomplished.
Please note that selecting [Use Non-Specified ESSID: ANY] will possibly be connected
to other wireless LAN. Therefore, ESSID setup is highly recommended.
Example: Specify ESSID as : TEST001.
Notice: Once the ESSID is set on the initial XI-325, and while the rest of the ESSID
remains as default value ANY, then the initial XI-325 with the ESSID must be started
first.
2) Select [Ad-Hoc] under ‘Network Type’, select the Channel in step 1 for [Ad-Hoc
Default Channel] (Note: Only channel 6 is selectable for amplified systems).
(Notice: Under Ad-Hoc, it would require a single uniform channel to enable a wireless
networking group).
3) Use WEP ** (will be available soon). The default is ‘ Disable’. If you require high
security in transmission, please select the “Enable” item and select [Encryption].
When you enter encryption configuration, you can type keyword and press [Generate]
to create 4 new encryption keys and select one of them to scramble your transmission
data.
Notice: When your use WEP to communicate with the other wireless clients, all the
wireless devices in this network must have the same encryption key and keyword.
4) Upon completing steps 1~3, click on [Modify] to save altered values.
V. Using Utility to Connect to Access Points
1. On the main Utility interface, click on [Diagnostic Tools], then click on [Access Point
Browser]. This would disable wireless connection temporarily and the subsequent display

3
would show status for all available access points. By using this tool, it is possible to find
out ESSID for the connected wireless group.On the main Utility interface, click on [Network
Configuration] and configuration screen will appear. Setup procedures are as follows:
1) ESSID denotes the assigned name for the designated wireless LAN. If ESSID differs,
then wireless connection between wireless end devices will not be accomplished.
Please note that selecting [Use Non-Specified ESSID: ANY] will possibly be connected
to other wireless LAN with different ESSID. Therefore, ESSID setup is highly
recommended.
Example : Specify ESSID as : TEST001.
Notice: If the ESSID of PC card remains as default value ANY, then the PC card is
possible to be connected to all available Access Points.
2) Select [Infrastructure] under ‘Network Type’
3) Use WEP ** (will be available soon). The default is ‘ Disable’. If you require high
security in transmission, please select the “Enable” item and select [Encryption]. When you
enter encryption configuration. You can type keyword and press [Generate] to create 4 new
encryption keys and select one of them to scramble your transmission data.
Notice: When your use WEP to communicate with the other wireless clients, all the wireless
devices in this network must have the same Encryption Key and keyword. )
4) Upon completing steps 1~3, click on [Modify] to save altered values.
 Infrastructure network configuration provides roaming to mobile users. Multiple (at
least 2) AP connection allows LANEscape users to access seamless wireless connection
while moving freely within the coverage area. To enable Extended Service Sets (ESS),
all LANEscape wireless end devices (XI-325, AP, etc.) will have to be under same
ESSID.
Utility Information

ESSID Select the wireless network group to join
(“ANY” is default setting).
Network Type Select the station operation mode,
Ad-Hoc: (without Access Point)
Infrastructure: (with Access Point, default
setting).
RTS Threshold To solve the “Hidden Node Problem” (Default
setting : “Disable”)
Frag Threshold To obtain better performance if XI325
always transmits large files in wireless LAN.
(Default setting : “Disable”)
Use WEP
(will be
available soon)
To have high security in transmission.
(Default setting : “Disable”)
Power Save To make power management.
(Default setting : “Disable”)
Network
Configuration
Transmission
Rate
Select the transmission rate
(Default setting : “Fully Auto”)
Site Survey Inspect channel quality for your site.
Link Quality
Test
Inspect the point-to-point data transmission
quality between two wireless LAN stations.
Diagnostic
Tools
Access Point
Browser
To browser all the active Access Points in this
environment.

Amplifier Power Rating (dB) Card Alone
Antenna Model Gain (dBi) 29.9 29 28 27 26 24 21.8 17.5
HG2401U 1 9.9 8.9 8.0 7.1 6.3 5.0 3.9 2.7
HG2402RD 211.1 10.0 8.9 8.0 7.1 5.6 4.4 3.0
HG2403RD 3 12.5 11.2 10.0 8.9 8.0 6.3 4.9 3.0
HG2403UR 3 12.5 11.2 10.0 8.9 8.0 6.3 4.9 3.0
HG2404CU 3 12.5 11.2 10.0 8.9 8.0 6.3 4.9 3.8
RE05E 5 15.7 14.1 12.6 11.2 10.0 8.0 6.2 3.8
RE05U 5 15.7 14.1 12.6 11.2 10.0 8.0 6.2 3.8
HG2405 5 15.7 14.1 12.6 11.2 10.0 8.0 6.2 -
HG2406U 6 17.6 15.9 14.1 12.6 11.2 8.9 6.9 -
HG2407U 7 N/A 17.8 15.9 14.1 12.6 10.0 7.8 -
HG2408U 8 N/A 20.0 17.8 15.9 14.1 11.2 8.7 -
HG2409U 8.5 N/A 21.2 18.9 16.8 15.0 11.9 9.2 -
HGV-2409U 8.5 N/A 21.2 18.9 16.8 15.0 11.9 9.2 -
HG2410U 10 N/A N/A 22.4 20.0 17.8 14.1 11.0 -
HG2412U 12 N/A N/A N/A 25.1 22.4 17.8 13.8 -
HG2415U-PRO 15 N/A N/A N/A N/A 31.7 25.1 19.5 -
Configurations with N/A are not permissible, via. FCC 15.247(b)(4)(i)
Configurations in RED can only be used in FIXED MOUNTED Installations
Configurations in BLACK Can be used in either MOBILE OR FIXED MOUNTED Installations
Appendix A - Minimum Separation Distance (cm)
Appendix A

Card Alone
1000 800 630 500 400 250 150 (mW) - as labeled
A
ntenna Model
A
ntenna Type Gain (dBi) 29.9 29 28 27 26 24 21.8 17.5 (dBm)
HG2401U whip/monopole 1 66666661-11
HG2402RD whip/monopole 2 66666661-11
HG2403RD whip/monopole 3 66666661-11
HG2403UR whip/monopole 3 66666661-11
HG2404CU whip/monopole 3 66666661-11
RE05E whip/monopole 5 66666661-11
RE05U whip/monopole 5 66666661-11
HG2405 whip/monopole 5 6666666 -
HG2406U whip/monopole 6 6666666 -
HG2407U whip/monopole 7 N/A 666666 -
HG2408U whip/monopole 8 N/A 666666 -
HG2409U whip/monopole 8.5 N/A 666666 -
HGV-2409U whip/monopole 8.5 N/A 666666 -
HG2410U whip/monopole 10 N/A N/A 66666 -
HG2412U whip/monopole 12 N/A N/A N/A 6666 -
HG2415U-PRO whip/monopole 15 N/
A
N/
A
N/
A
N/
A
666-
Configurations in BLUE can be used in either MOBILE OR FIXED MOUNTED Installations (NO FILTER REQUIRED)
Configurations with "-" are NOT PERMISSIBLE as they do not meet the FCC Part 15 restricted band limits
Channel
1
2
3
4
5
6
7
8
9
10
11
2447
2452
2457
2462
2427
2432
2437
2442
Frequency (MHz)
2412
2417
2422
Configurations in RED can only be used in FIXED MOUNTED Installations (FILTER REQUIRED)
Configurations with N/A are NOT PERMISSIBLE, via. FCC 15.247(b)(4)(i)
FCC / IC Compliant Configurations - Channels of Operation
Appendix B
Amplifier Power Rating
Configurations in BLACK can be used in either MOBILE OR FIXED MOUNTED Installations (FILTER REQUIRED)
