Hyundai power products HDBDN40V-A User manual

1
1. SAFETY WARNINGS
IMPORTANT
WARNING: Read thoroughly the instruction manual before use.

2
2. SAFETY INSTRUCTIONS
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
Safe operating practices
Training
a) Read the instructions carefully. Be familiar
with the controls and the correct use of the
machine.
b) Never allow children or people unfamiliar with
these instructions to use the machine. Local
regulations can restrict the age of the operator.
c) Keep in mind that the operator or user is
responsible for accidents or hazards occurring
to other people or their property.
Preparation
a) Before use, always visually inspect the
machine for damaged, missing or misplaced
guards or shields.
b) Never operate the machine while people,
especially children, or pets are nearby.

3
Operation
a) Wear eye protection and stout shoes at all
times while operating the machine.
b) Avoid using the machine in bad weather
conditions especially when there is a risk of
lighting.
c) Use the machine only in daylight or good
artificial light.
d) Never operate the machine with damaged
guards or shields or without guards or shields in
place.
e) Switch on the motor only when the hands and
feet are away from the cutting means.
f) Always switch off the tool and remove the
battery:
1) Whenever the machine is left unattended;
2) Before clearing a blockage;
3) Before checking, cleaning or working on the
machine;
4) After striking a foreign object;
5) Whenever the machine starts vibrating
abnormally.
g) Take care against injury to feet and hands
from the cutting means.

4
h) Always ensure that the ventilation openings
are kept clear of debris.
Maintenance and storage
a) Switch off and remove the battery before
carrying out maintenance or cleaning work.
b) Use only the manufacturer’s recommended
replacement parts and accessories.
c) Inspect and maintain the machine regularly.
Have the machine repaired only by an
authorized repairer.
d) When not in use, store the machine out of the
reach of children.
- Never allow children, persons with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge or people
unfamiliar with these instructions to use the
machine, local regulations may restrict the
age of the operator.
- Never operate the machine while people,
especially children, or pets are nearby. Keep
them at least 15 m away from the machine
during its operation.
- Stop using the tool when a risk might occur
(people are nearby, dangerous material on

5
the working area, problem with the tool, etc.).
Check the working area before working and
stay in alert when operating the tool.
- Follow the provided instructions for assembly,
use, repairs, maintenance and storage.
- Never replace the non-metallic cutting
means with metallic cutting means;
- Do not overreach and keep the balance at all
times, to always be sure of the footing on
slopes and to walk, never run.
- Do not to touch moving hazardous parts
before the machine is stopped and the
moving hazardous parts have come to a
complete stop.
- Always wear substantial footwear and long
trousers while operating the machine.
- Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
- Use personal protective equipment. Always
wear eye protection. Protective equipment

6
such as dust mask, non-skid safety shoes,
hard hat, or hearing protection used for
appropriate conditions will reduce personal
injuries.
- Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
the battery pack, picking up or carrying the
tool.
- Warning: danger of moving hazardous parts.
A moving cutting attachment can cause
severe injury. Maintain proper control of the
machine with both hands until the cutting
attachment has completely stopped rotating.
-Replace any cutting attachment that has
been damaged. Always make sure that the
cutting attachment is installed correctly
and securely fastened before each use.
-Use only accessories recommended by
manufacturer. Non-recommended
accessories can cause injuries and
accidents. Contact your dealer or our
service agent.
-Always use the harness provided when
operating the tool.

7
-Cover the blade with the blade protector
before storing the unit, or during
transportation. Always remove the blade
protector before using the unit. If not
removed, the blade protector could
become a thrown object as the blade
begins to turn.
-Do not expose the tool to rain and humidity.
-In case of abnormal vibrations, stop
immediately to use the tool and remove
the battery; check if all screws are firmly
tighten, if the cutting mean are correctly
assembled. In case of doubt, bring the tool
to our agent service for inspection.
-Always start the tool safely, tools correctly
and fully assembled, foot and body far
from the cutting means, harness installed
and used.
-Always inspect the tool before and after the
operation for signs of damage such as
cracks in the cutting attachment or ageing.
In case of damages or ageing, bring the
tool to our agent service for inspection and
reparation.

8
-Check the tool for loose fasteners. Tighten
safely loose fasteners.
-Never operate the machine with defective
guards or shields, or without safety
devices.
-Always use the tool with the battery fully
charged. Before use, check the charge
level and charge the battery if necessary.
-In case of accident or breakdown, stop
immediately the tool and remove the
battery. Check the breakdown or accident,
repair the tool if necessary. Bring the tool
to a service agent if necessary.
-Do not replace the blade with metal multi-
piece pivoting chains and flail blades; this
type of blade must not be used with this
tool.
-Stop the machine and allow it to cool
before storing or transporting. Do not store
or transport the machine with batteries
fitted, remove and secure separately.
-Clean all foreign material from the product.
Store it in a cool dry and well-ventilated
place that is inaccessible to children. Keep
away from corrosive agents such as

9
garden chemicals and de-icing salts. Do
not store outdoors.
-Cover the blade with the blade protector
before storing the unit, or during
transportation.
-For transportation, secure the machine
against movement or falling to prevent
injury to persons or damage to the
machine.
-Use only original manufacturer’s
replacement parts, accessories and
attachments. Failure to do so can cause
possible injury, poor performance and may
void your warranty. You may make
adjustments and repairs described here.
For other repairs, contact the authorized
service agent.
-Before any maintenance or adjustment,
stop the tool and remove the battery.
-After extending new cutter line or cleaning,
checking the blade, always return the
product to its normal operating position
before starting.
-After each use, clean the product with a
soft dry cloth.

10
-Check all nuts, bolts and screws at
frequent intervals for proper tightness to
ensure the product is in safe working
condition. Any part that is damaged should
be properly repaired or replaced by an
authorized service centre.
INSTRUCTIONS FOR CHARGER
-This charger can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and
understand the hazards involved. Children
shall not play with the appliance. Cleaning
and user maintenance shall not be made
by children without supervision.
-If the supply cord of the charger is
damaged, it must be replaced by the
manufacturer, its service agent or similarly
qualified persons in order to avoid a
hazard.

11
-Warning: Do not recharge non-
rechargeable batteries.
-The charger automatically charges the
battery after it is plugged in. Do not exceed
the capacity of the charger and the battery
(see the technical specifications).
RESIDUAL RISK
Even when the product is used as prescribed, it
is still impossible to completely eliminate certain
residual risk factors. The following hazards may
arise in use and the operator should pay special
attention to avoid the following:
-Injury caused by vibration. Always use the
right tool for the job, use designated
handles and restrict working time and
exposure.
-Exposure to noise can cause hearing injury.
Wear ear protection and limit exposure.
-Kickback can occur when using the
brushcutter. Ensure proper control by
using both hands on the designated
handles. Read and follow the directions
elsewhere in this manual to help reduce
the risk of kickback.

12
-Injuries may be caused, or aggravated, by
prolonged use of a tool. When using any
tool for prolonged periods, ensure you take
regular breaks.
INTENDED USE
Brush cutter
The product is intended for cutting long grass, pulpy weed, brush and
similar vegetation at or about ground level. The product is not allowed
to be used for cutting or chopping hedges, shrubs, bushes, flowers
and compost.
Trimmer
The product is designed for cutting grass and light weeds only in
private garden areas. The product is not allowed to be used in public
gardens, parks, sports center or at roadsides as well as for agricultural
and forestry use. The product is not allowed to be used for cutting or
chopping hedges, shrubs, bushes, flowers and compost.
Symbols
Read the instruction manual

13

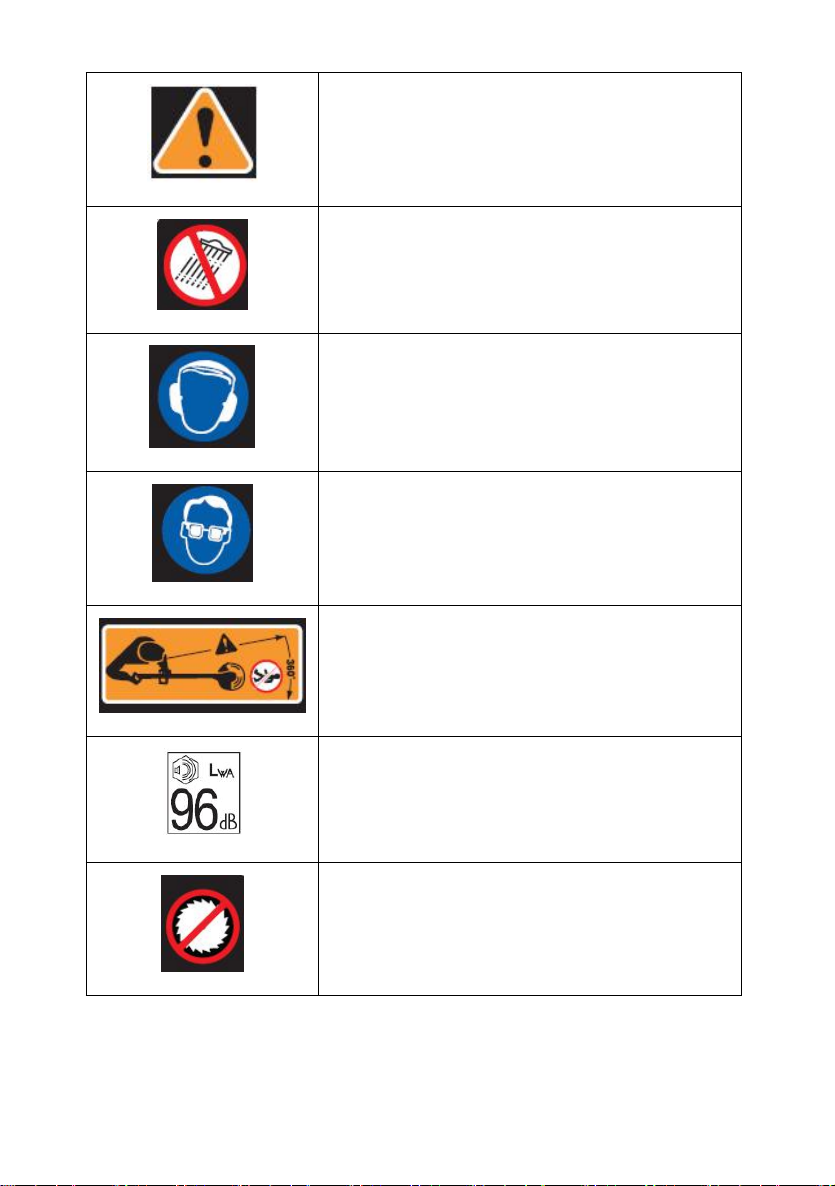

Warning symbol
Do not expose the tool to rain or humidity
Wear hearing protection
Wear ocular protection
People must kept away from the work area
Guarantee sound power level
Do not use saw blade

14

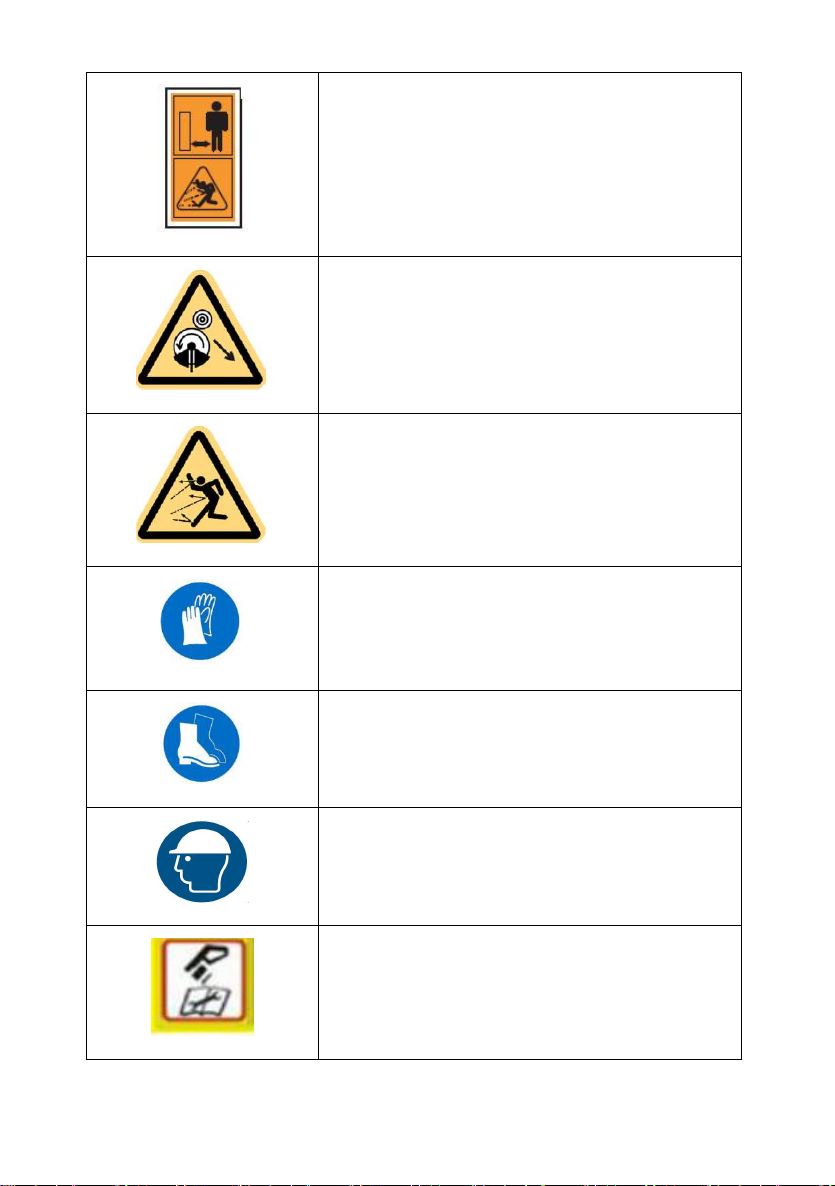

Risks of projection – Keep bystanders away
Be aware of blade thrust
Beware of thrown objects
Wear protection gloves
Wear protective and non-skid shoes
Wear a protective helmet
Remove the battery before maintenance and
repairs. Read the instructions

15
2.PRODUCT

16
Description
1. Battery compartment
2. Shoulder attachment
3. Security lock
4. Right handle
5. Trigger
6. Left handle
7. Drive tube
8. String head
9. Cutting blade for nylon wire
10. Blade (3 teethes)
11. Carter of protection
12. Battery (no provided)
13. Charger (no provided)
Technical data
machine mass
Max. 5,4 kg
cutting attachments (type,
diameter for blades),
Blade: 255x25,4x1,4 mm (3 teethes
blade)
Lawn trimmer: PA6 1,5 mm (nylon wire)
Voltage
36V (40V max)

17
Charger(no provided)
Model: HCH40V26-A
Input: 100-240Vac, 50/60Hz, 1,8A
Output: 24-36 Vd.c., 1,0-1,8A
Battery(no provided)
Battery Li-on
model HBAT40V4-A , 4Ah, 20 cells
Maximum rotational frequency
of the spindle
6000-7000/min
Vibration total value
5,9m/s² k= 1,5m/s²
Sound pressure level
Lawn trimmer
-Lpa: 82,5 dB(A)
-K= 3 dB(A)
Brushcutter
-Lpa: 83,8 dB(A)
-K= 3 dB(A)
Sound power level
Lawn trimmer
-Lwa: 96 dB(A)
Brushcutter
-Lwa: 96 dB(A)

18
3. ASSEMBLY

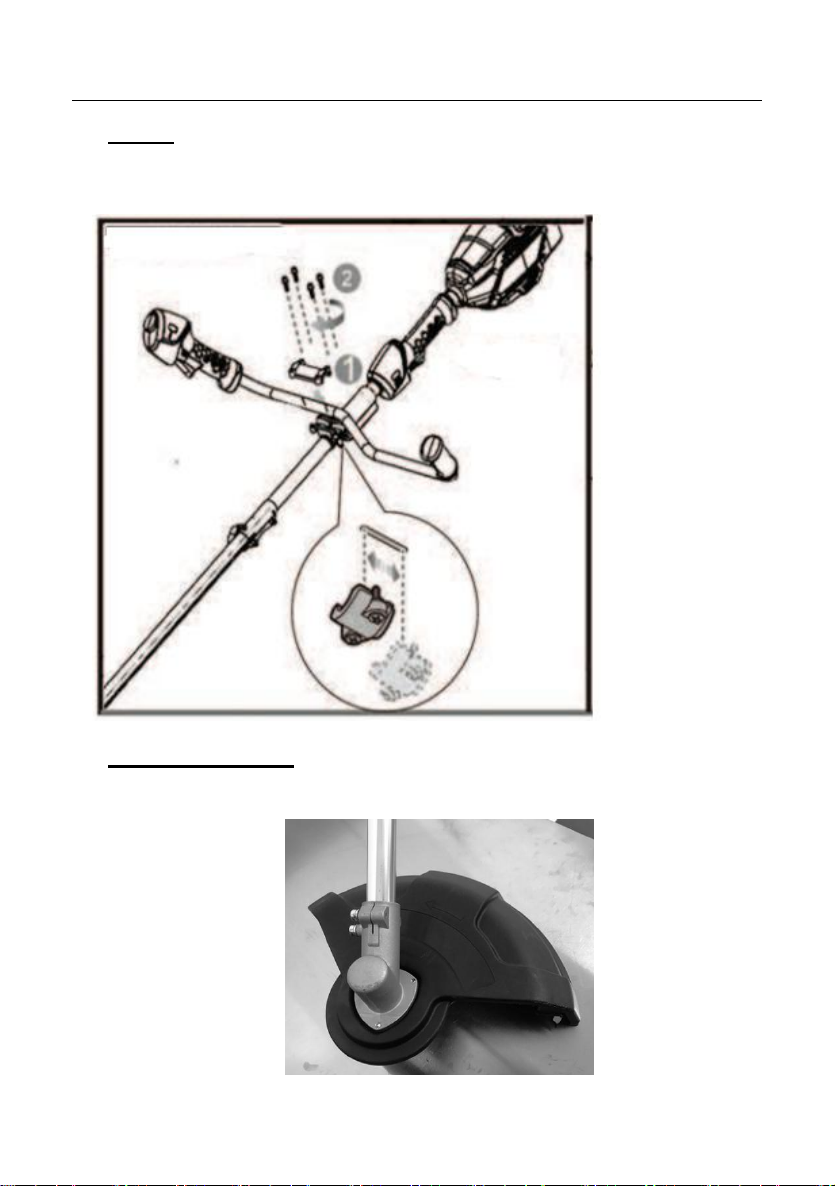

a. Handle
Install the handle on the bar and screw it with the 4 screws provided.
b. Carter of protection
Install the carter of protection on the shaft of the tool. Fix it with the 3
screws provided.

19

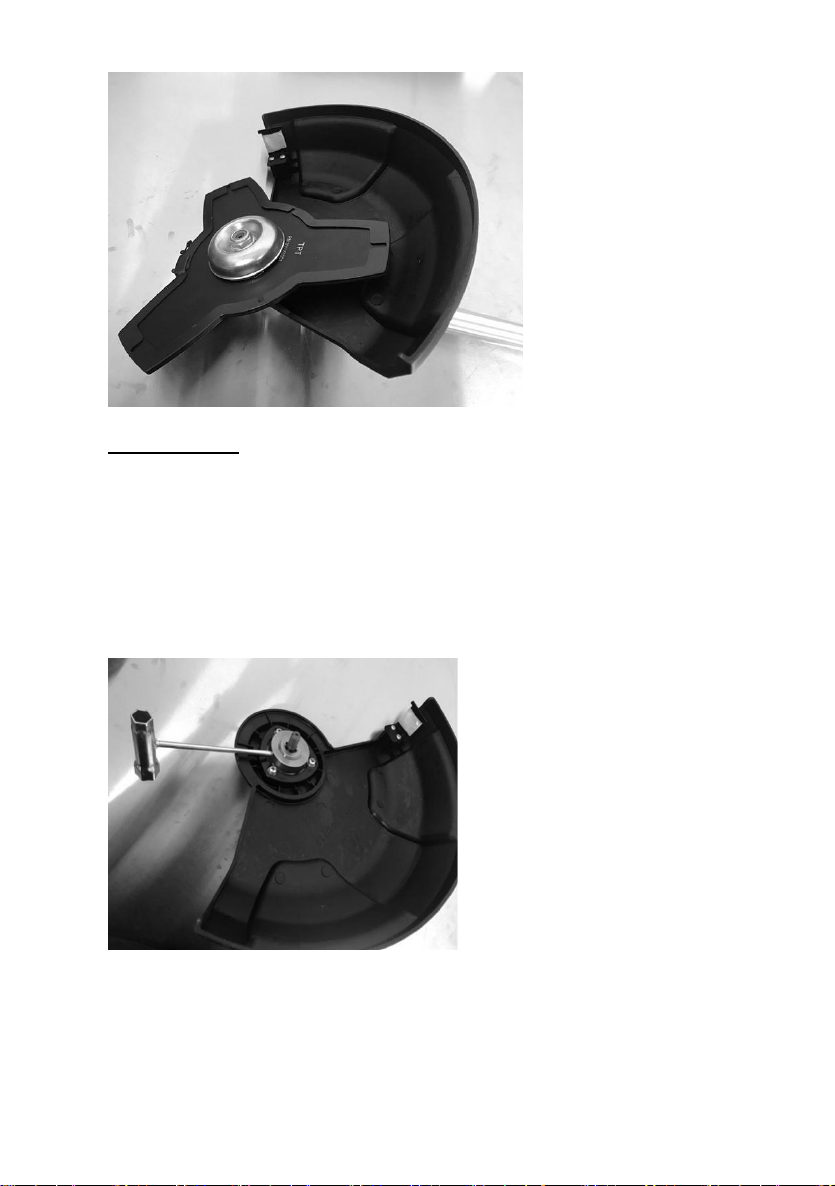

c. Cutting attachment
Brushcutter
When working with the metal cutting blade, wear gloves. Be careful
of the sharp edges.
-On the shaft, install the upper plate.
-Insert a metal rod on the side of the drive gear and on the tool drive.
-Insert in the following order: cutting blade, the lower plate, the cover
bell and the holding nut.
-Tighten the retaining nut counterclockwise with the supplied wrench.
- Remove then the metal rod.

20
Lawn trimmer
-On the shaft, install the upper plate.
-Secure the shaft by inserting a metal rod on the side of the drive gear
and on the tool drive.
-Screw on the shaft the nylon cutting head.
