OWNER'S MANUAL
A030A03E-AAT
Operation
Maintenance
Specifications
All information in this Owner's Manual is current at the time of publication. However, Hyundai reserves the right to make changes at any
time so that our policy of continual product improvement may be carried out.
This manual applies to all Hyundai ELANTRA models and includes descriptions and explanations of optional as well as standard equipment.
As a result, you may find material in this manual that does not apply to your specific vehicle.
HXDFL280
xdflhma-0.p65 2/5/2008, 1:59 PM3

A040A01A-AAT
FOREWORD
Thank you for choosing Hyundai. We are pleased to welcome you to the growing number of discriminating people who
drive Hyundais. The advanced engineering and high-quality construction of each Hyundai we build is something of which
we're very proud.
Your Owner's Manual will introduce you to the features and operation of your new Hyundai. It is suggested that you read
it carefully because the information it contains can contribute greatly to the satisfaction you receive from your new car.
The manufacturer also recommends that all service and maintenance on your car be performed by an authorized Hyundai
dealer. Hyundai dealers are prepared to provide high-quality service, maintenance and any other assistance that may
be required.
A050A05A-AAT
HYUNDAI MOTOR COMPANY
Note : Because future owners will also need the information included in this manual, if you sell this Hyundai, please leave
the manual in the vehicle for their use. Thank you.
CAUTION:
Severe engine and transaxle damage may result from the use of poor quality fuels and lubricants that do not
meet Hyundai specifications. You must always use high quality fuels and lubricants that meet the specifica-
tions listed on Page 9-4 in the Vehicle Specifications section of the Owner's Manual and which also appear
in the Service Station Information on the back cover of the Owner's Manual.
Copyright 2005 Hyundai Motor Company. All rights reserved. No part of this publication may be reproduced, stored in
any retrieval system or transmitted in any form or by any means without the prior written permission of Hyundai Motor
Company.
!
xdflhma-0.p65 2/5/2008, 1:59 PM5

A070A01A-AAT
CAUTION: MODIFICATIONS TO YOUR HYUNDAI
Your Hyundai should not be modified in any way. Such modifications may adversely affect the performance, safety
or durability of your Hyundai and may, in addition, violate conditions of the limited warranties covering the vehicle.
Certain modifications may also be in violation of regulations established by the U.S. Department of Transportation
and other federal or state agencies.
A080A01S-AAT
TWO-WAY RADIO OR CELLULAR TELEPHONE INSTALLATION
Your vehicle is equipped with electronic fuel injection and other electronic components. It is possible for an
improperly installed/adjusted two-way radio or cellular telephone to adversely affect electronic systems. For this
reason, we recommend that you carefully follow the radio manufacturer's instructions or consult your Hyundai
dealer for precautionary measures or special instructions if you choose to install one of these devices.
!
xdflhma-0.p65 2/5/2008, 1:59 PM6

A090A01A-AAT
SAFETY AND VEHICLE DAMAGE WARNING
This manual includes information titled as WARNING, CAUTION and NOTE.
These titles indicate the following:
WARNING:
This indicates that a condition may result in harm, serious injury or death to you or other persons if
the warning is not heeded. Follow the advice provided with the warning.
CAUTION:
This indicates that a condition may result in damage to your vehicle or its equipment if the caution is
not heeded. Follow the advice provided with the caution.
NOTE:
This indicates that interesting or helpful information is being provided.
!
!
xdflhma-0.p65 2/5/2008, 1:59 PM7

A100A03A-AAT
Guide to Hyundai Genuine Parts
1. What are Hyundai Genuine Parts?
Hyundai Genuine Parts are the same parts
used by Hyundai Motor Company to manu-
facture vehicles. They are designed and
tested for the optimum safety, performance,
and reliability to our customers.
2. Why should you use genuine parts?
Hyundai Genuine Parts are engineered and
built to meet rigid manufacturing require-
ments. Using imitation, counterfeit or used
salvage parts is not covered under the
Hyundai New Vehicle Limited Warranty or
any other Hyundai warranty. In addition, any
damage to or failure of Genuine Hyundai
Parts caused by the installation or failure of
an imitation, counterfeit or used salvage part
is not covered by any Hyundai Warranty.
3. How can you tell if you are purchasing
Hyundai Genuine Parts?
Look for the Hyundai Genuine Parts Logo on
the package (see below).
Hyundai Genuine Parts exported to the United
States are packaged with labels written only
in English.
Hyundai Genuine Parts are only sold through
authorized Hyundai Dealerships.
To find the closest authorized dealer call
1-800-826-CARS
A100A01L A100A02L A100A04L
A100A03L
xdflhma-0.p65 2/5/2008, 1:59 PM8

TABLE OF CONTENTS
SECTION
5
1
2
3
4
6
7
8
9
10
FEATURES OF YOUR HYUNDAI
DRIVING YOUR HYUNDAI
WHAT TO DO IN AN EMERGENCY
CORROSION PREVENTION & APPEARANCE CARE
VEHICLE MAINTENANCE REQUIREMENTS
DO-IT-YOURSELF MAINTENANCE
EMISSION CONTROL SYSTEMS
CONSUMER INFORMATION, REPORTING SAFETY DEFECTS &
BINDING ARBITRATION OF WARRANTY CLAIMS
VEHICLE SPECIFICATIONS
INDEX
xdflhma-0.p65 2/5/2008, 1:59 PM9

B250A03E-AAT
INSTRUMENTS AND CONTROLS
HXDFL002-A
xdflhma-0.p65 2/5/2008, 1:59 PM10

1. Panel Brightness Control Knob
2. TCS Switch (If installed)
3. Trip Computer Switch (If installed)
4. Multi-Function Light Switch
5. Horn and Driver's Airbag
6. Windshield Wiper/Washer Switch
7. Digital Clock
8. Audio System
9. Heating/Air Conditioning Control Panel
10.Cigarette Lighter
11.Power Outlet
12.Passenger's Airbag
13.Glove Box
14.Hood Release Lever
15.Storage compartment
16.Cruise Control Switch (If installed)
17.Front Ashtray
18.Shift Lever
19.Parking Brake
20.Console Box (If installed)
21.Rear Ashtray
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor
on the instrument panel surface. If there is any leakage from the air freshener onto these areas (Instrument cluster,
instrument panel or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these
areas, wash them with water immediately.
!
xdflhma-0.p65 2/5/2008, 1:59 PM11

YOUR VEHICLE AT A GLANCE
B255A01E-AAT
INDICATOR SYMBOLS ON THE INSTRUMENT PANEL
* More detailed explanations of these items will be found beginning on page 1-46.
SRS (Airbag) Service Reminder
Indicator
ABS Service Reminder Indicator
Turn Signal Indicator Lights
High Beam Indicator Light
Low Oil Pressure Warning Light
Parking Brake/Low Brake Fluid Level
Warning Light
Charging System Warning Light
Seat Belt Warning Light
Trunk Lid /Tail Gate Open Warning Light
Door Ajar Warning Light and Chime
Low Fuel Level Warning Light
Cruise Indicator Light (If installed)
Front Fog Indicator Light (If installed)
Malfunction Indicator Light
Traction Control Indicator Light
(If installed)
SET Indicator Light (If installed)
xdflhma-0.p65 2/5/2008, 1:59 PM12

FEATURES OF YOUR HYUNDAI
1
Fuel Recommendations ................................................ 1-2
Breaking in Your New Hyundai ..................................... 1-3
Keys.............................................................................. 1-3
Door .............................................................................. 1-4
Theft-Alarm System ...................................................... 1-8
Window ....................................................................... 1-10
Seat ............................................................................. 1-11
Seat Belts.................................................................... 1-17
Child Restraint System ............................................... 1-23
Supplemental Restraint (AIRBAG) System ................ 1-31
Instrument Cluster and Indicator ................................. 1-42
Warning and Indicator Lights ...................................... 1-46
Multi-Function Light Switch ......................................... 1-55
Windshield Wiper/Washer Switch ............................... 1-57
Sunroof ....................................................................... 1-64
Mirror ........................................................................... 1-68
Hood Release ............................................................. 1-72
Cruise Control ............................................................. 1-78
Heating and Cooling Control ....................................... 1-81
Stereo Sound System ................................................. 1-99
Audio System............................................................ 1-101
Antenna ..................................................................... 1-129
1
xdflhma-1a.p65 2/5/2008, 2:02 PM1

1FEATURESOFYOURHYUNDAI
2FUEL RECOMMENDATIONS
B010A03A-AAT
Use Unleaded Gasoline
Unleaded gasoline with a Pump Octane
Rating of 87 (Research Octane Number 91)
or higher must be used in your Hyundai.
B010A03E
UNLEADED
FUEL ONLY
B010B01A-AAT
What About Gasohol?
Gasohol (a mixture of 90% unleaded gasoline
and 10% ethanol or grain alcohol) may be used
in your Hyundai. However, if your engine devel-
ops driveability problems, the use of 100%
unleaded gasoline is recommended. Fuels with
unspecified quantities of alcohol, or alcohols
other than ethanol, should not be used.
B010C01A-AAT
Use of MTBE
Hyundai recommends that fuels containing
MTBE (Methyl Tertiary Butyl Ether) over 15.0%
vol. (Oxygen Content 2.7% weight) should not
be used in your Hyundai.
Fuel containing MTBE over 15.0% vol. (Oxygen
Content 2.7% weight) may reduce vehicle per-
formance and produce vapor lock or hard
starting.
B010D01A-AAT
Do Not Use Methanol
Fuels containing methanol (wood alcohol) should
not be used in your Hyundai. This type of fuel
can reduce vehicle performance and damage
components of the fuel system.
!CAUTION:
Your Hyundai's New Vehicle Limited War-
ranty may not cover damage to the fuel
system and any performance problems that
are caused by the use of fuels containing
methanol or fuels containing MTBE (Methyl
Tertiary Butyl Ether) over 15.0% vol. (Oxy-
gen Content 2.7% weight.).
CAUTION:
o Do not "TOP-OFF" after the first nozzle
shut off when refueling.
o The fuel cap must be tightened at least
3 clicks, otherwise " " light may illu-
minate.
!
xdflhma-1a.p65 2/5/2008, 2:02 PM2

1
FEATURESOFYOURHYUNDAI
3
KEYSBREAKING IN YOUR NEW HYUNDAI
B010E01A-AAT
Gasolines for Cleaner Air
To help contribute to cleaner air, Hyundai rec-
ommends that you use gasolines treated with
detergent additives, which help prevent deposit
formation in the engine. These gasolines will
help the engine run cleaner and enhance per-
formance of the Emission Control System.
B010F01A-AAT
Operation in Foreign Countries
If you are going to drive your Hyundai in another
country, be sure to:
o Observe all regulations regarding registra-
tion and insurance.
o Determine that acceptable fuel is available.
B020A01S-AAT
During the First 1,200 Miles (2,000 Km)
No formal "break-in" procedure is required with
your new Hyundai. However, you can contrib-
ute to the economical operation and durability of
your Hyundai by observing the following recom-
mendations during the first 1,200 miles (2,000
km).
o Don't drive faster than 55 MPH (88 km/h).
o While driving, keep your engine speed (rpm,
or revolutions per minute) between 2,000
rpm and 4,000 rpm.
o Use moderate acceleration. Don't start
quickly or depress the accelerator pedal
fully.
o For the first 200 miles (300 km), try to avoid
hard braking.
o Don't lug the engine (in other words, don't
drive so slowly in too high a gear that the
engine "bucks"-shift to a lower gear).
o Whether going fast or slow, vary your speed
from time to time.
o Don't let the engine idle longer than 3 minutes
at one time.
o Don't tow a trailer during the first 1,200 miles
(2,000 km) of operation.
B030A01A-AAT
For greater convenience, the same key oper-
ates all the locks in your Hyundai. However,
because the doors can be locked without a key,
carrying a spare key is recommended in case
you accidentally lock one key inside the car.
B030A01E
xdflhma-1a.p65 2/5/2008, 2:02 PM3

1FEATURESOFYOURHYUNDAI
4ILLUMINATED IGNITION SWITCH
!
DOOR
B030B01A-AAT
Record Your Key Number
A code number is stamped on the number plate
that came with the keys to your Hyundai. This
key number plate should not be left with the keys
but kept in a safe place, not in the vehicle. The
key number should also be recorded in a place
where it can be found in an emergency.
If you need additional keys, or if you should lose
your keys, your authorized Hyundai dealer can
make new keys if you can supply the key
number.
B030C01Y-AAT
(If installed)
Whenever a door is opened, the ignition switch
will be illuminated for your convenience, pro-
vided the ignition switch is not in the "ON"
position.
The light will go off approximately 10 seconds
after closing the door or when the ignition switch
is turned on.
B040A01A-AAT
DOOR LOCKS
B030B01E B030C01E-1
WARNING:
o Unlocked doors can be dangerous. Be-
fore you drive away (especially if there
are children in the car), be sure that all the
doors are securely closed and locked so
that the doors cannot be opened from
the inside. This helps ensure that the
doors will not be opened accidentally.
Also, when combined with the proper
use of seat belts, locking the doors helps
keep occupants from being ejected from
the car in case of an accident.
o Before opening the door, always look for
and avoid oncoming traffic.
xdflhma-1a.p65 2/5/2008, 2:02 PM4

1
FEATURESOFYOURHYUNDAI
5
B040B01A-AAT
Locking and Unlocking Front Doors With
a Key
o The door can be locked or unlocked with a
key.
o Lock the door by turning the key toward the
front of the vehicle and unlock it by turning the
key toward the rear.
NOTE:
The driver's door can be unlocked by turn-
ing the key once toward the rear. If you wish
to unlock all doors, turn the key again
toward the rear within 4 seconds.
B040C02O-AAT
Locking From the Outside
(Driver's side)
The doors can be locked without a key. To lock
the doors, first push the inside lock switch to the
"LOCK" position so that the red mark on the
switch is not visible, then close the door.
If your vehicle is equipped with central door
locking system, the door will not lock if the key
is left in the ignition switch when the front doors
are closed. This is normal.
UNLOCK
LOCK
HXDFL2003
NOTE:
o When pushing the lock switch of the
driver's door to the "LOCK" position,
only the driver's door can be locked.
o When locking the door this way, be care-
ful not to lock the door with the ignition
key left in the vehicle.
o To reduce the chances of theft, always
remove the ignition key, close all win-
dows, and lock all doors when leaving
your vehicle unattended.
B040C01E-A
Red Mark
xdflhma-1a.p65 2/5/2008, 2:02 PM5

1FEATURESOFYOURHYUNDAI
6
B040D01E-AAT
Locking From the Inside
(Driver's side)
o To lock the door from the inside, simply close
the door and push the lock switch to the
"LOCK" position. When this is done, neither
the outside nor the inside door handles can
be used.
o The driver's door can be opened by pulling
the inside door handle even if the lock switch
is depressed.
NOTE:
o When pushing the lock switch of the
driver's door to the "LOCK" position,
only the driver's door can be locked.
o When the door is locked, the red mark on
the switch is not visible.
HXD530-A
LOCK
UNLOCK
B045C02O-AAT
Locking From the Outside
(Passenger's side)
The doors can be locked without a key. To lock
the doors, first push the inside lock switch to the
"LOCK" position so that the red mark on the
switch is not visible, then close the door.
If your vehicle is equipped with central door
locking system, the door will not lock if the key
is left in the ignition switch when the front doors
are closed. This is normal.
B040C02E-R
NOTE:
o When pushing the lock switch of the
passenger's door to the "LOCK" posi-
tion, all doors can be locked.
o When locking the door this way, be care-
ful not to lock the door with the key left
in the vehicle.
o To reduce the chances of theft, always
remove the ignition key, close all win-
dows, and lock all doors when leaving
your vehicle unattended.
Red Mark
Red Mark
xdflhma-1a.p65 2/5/2008, 2:02 PM6

1
FEATURESOFYOURHYUNDAI
7
CENTRAL DOOR LOCK
B040E04A-AAT
Child-Protector Rear Door Lock
B040G01Y-AAT
(If installed)
The central door locking switch is located on the
driver's arm rest. It is operated by depressing
the door lock switch. If any door is open when
the switch is depressed to the lock position, the
door will remain locked when closed.
NOTE:
o When pushing the front portion of the
driver's door lock switch, all vehicle doors
will lock.
o When pushing the rear portion of these
switches, all vehicle doors will unlock.
B040E01E
B045D01O-AAT
Locking From the Inside
(Passenger's side)
To lock the doors from the inside, simply close
the door and push the lock switch to the "LOCK"
position. When this is done, neither the outside
nor the passenger's inside door handles can be
used.
NOTE:
o When pushing the lock switch of the
passenger's door to the "LOCK" posi-
tion all doors can be locked.
o When the door is locked, the red mark on
the switch is not visible.
HXD531-R
LOCK
UNLOCK
Your Hyundai is equipped with left and right side
"child-protector" rear door locks. When the lock
mechanism is engaged, the rear door cannot be
opened from the inside. Its use is recommended
whenever there are small children in the rear
seat.
To engage the child-protector feature so that
the door cannot be opened from the inside,
move the child-protector lever to the " " position
and close the door. Move the lever to the " "
position when normal door operation is desired.
To open the door from the outside, pull the
outside door handle.
B040G02E
Red Mark
xdflhma-1a.p65 2/5/2008, 2:02 PM7

1FEATURESOFYOURHYUNDAI
8THEFT-ALARM SYSTEM
B070B03E-AAT
Armed Stage
1) Remove the ignition key from the ignition
switch.
2) Make sure that the hood and trunk lid/ tail
gate are closed and latched.
3) Lock the doors using the transmitter of the
keyless entry system.
After completion of the steps above, the turn
signal lights will blink once to indicate that the
system is armed.
NOTE:
o If any door, the trunk lid/tail gate or hood
remains open, the system will not be
armed. If this happens, rearm the system
as described previous.
o If the "LOCK" button is pressed once
more within 4 seconds after pushing the
"LOCK" button on the transmitter, the
siren will sound once to indicate that the
system is armed.
o Do not arm the system until all passen-
gers have left the car. If the system is
armed while a passenger(s) remains in
the car, the alarm may be activated when
the remaining passenger(s) leaves the
car.
B070C01O-AAT
Alarm Stage
The alarm will be activated if any of the following
occurs while the car is parked and the system
is armed.
1) A front or rear door is opened without using
the transmitter or the ignition key.
2) The trunk lid or tail gate is opened without
using the transmitter or the ignition key.
3) The hood is opened.
The siren will sound and the turn signal lights will
blink continuously for about 30 seconds (This
will repeat 3 times). To turn off the system,
unlock the door or trunk lid/tail gate using the
transmitter or the ignition key.
CAUTION:
Avoid trying to start the engine while the
system is armed.
!
HXD200-A
UNLOCK
LOCK
PANIC
B070A01A-AAT
(If installed)
This system is designed to provide protection
from unauthorized entry into the car. This sys-
tem is operated in three stages : the first is the
"Armed" stage, the second is the "Alarm" stage
and the third is the "Disarmed" stage. If trig-
gered, the system provides an audible alarm
with blinking of the turn signal lights.
Park the car and stop the engine. Arm the
system as described below.
xdflhma-1a.p65 2/5/2008, 2:02 PM8

1
FEATURESOFYOURHYUNDAI
9
!
B070D03O-AAT
Disarmed Stage
The system will be disarmed by using the
transmitter or the ignition key.
The driver's door is unlocked by depressing
once the "UNLOCK" button on the transmitter.
If you wish to unlock all doors, press the "UN-
LOCK" button on the transmitter again within 4
seconds.
Whenever the step above is completed, the turn
signal lights will blink twice to indicate that the
system is disarmed.
B070E01O-AAT
Panic Warning
1. Push the "PANIC" button on the transmitter.
2. At the same time, the siren will sound and the
turn signal lights will blink for 30 seconds.
3. To turn off the system, push the "PANIC"
button again on the transmitter.

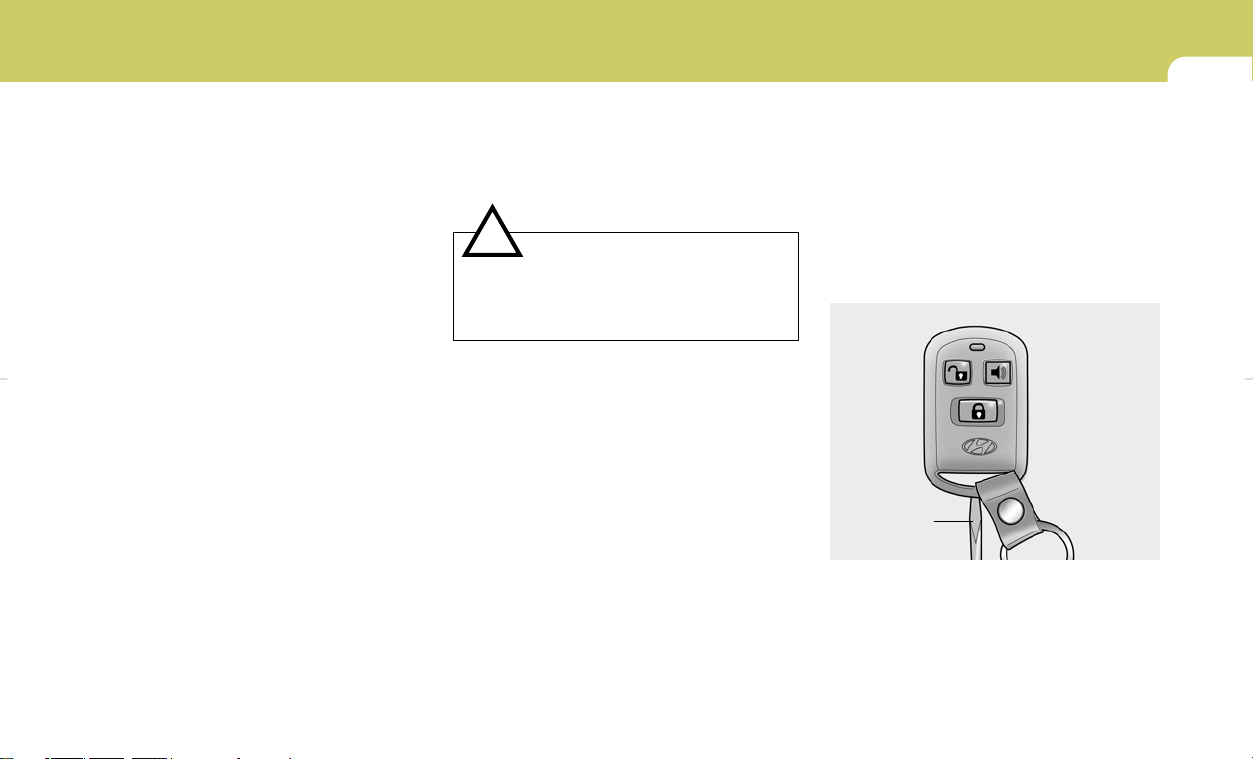

1. Carefully separate the case with a blade
screwdriver as shown in the illustration.
B070E02HP-AAT
Replacing the battery
When the transmitter's battery becomes, it may
take several pushes on the button to lock or
unlock the doors, and the LED will not light.
Replace the battery as soon as possible.
Battery type : CR2032
Replacement instructions:
HXD327
Screwdriver
B070F02O-AAT
KEYLESS ENTRY SYSTEM (If installed)
NOTE:
This device complies with Part 15 of the
FCC rules. Operation is subject to the fol-
lowing two conditions:
CAUTION:
Changes or modifications not expressly
approved by the party responsible for com-
pliance could void the user's authority to
operate the equipment.
Locking doors
1. Close all doors.
2. Push the "LOCK" button on the transmitter.
3. At the same time all doors lock, the turn signal
lights will blink once to indicate that the
system is armed.
Unlocking doors
1. Push the "UNLOCK" button on the transmit-
ter.
2. At the same time the driver's door unlocks,
the turn signal lights will blink twice to indicate
that the system is disarmed.
NOTE:
If you wish to unlock all doors, press the
"UNLOCK" button on the transmitter again
within 4 seconds.
(1) This device may not cause harmful in-
terference, and (2) this device must accept
any interference received, including inter-
ference that may cause undesired opera-
tion.
xdflhma-1a.p65 2/5/2008, 2:02 PM9
