OWNER'S MANUAL
Operation
Maintenance
Specifications
All information in this Owner's Manual is current at the time of publica-
tion. However, HYUNDAI reserves the right to make changes at any
time so that our policy of continual product improvement may be car-
ried out.
This manual applies to all models of this vehicle and includes descrip-
tions and explanations of optional as well as standard equipment.
As a result, you may find material in this manual that does not apply to
your specific vehicle.

F2
Your HYUNDAI should not be modified in any way. Such modifications may adversely affect
the performance, safety or durability of your HYUNDAI and may, in addition, violate condi-
tions of the limited warranties covering the vehicle. Certain modifications may also be in vio-
lation of regulations established by the Department of Transportation and other government
agencies in your country.
Your vehicle is equipped with electronic fuel injection and other electronic components. It is
possible for an improperly installed/adjusted two-way radio or cellular telephone to adversely
affect electronic systems. For this reason, we recommend that you carefully follow the radio
manufacturer's instructions or consult your HYUNDAI dealer for precautionary measures or
special instructions if you choose to install one of these devices.
CAUTION: MODIFICATIONS TO YOUR HYUNDAI
TWO-WAY RADIO OR CELLULAR TELEPHONE INSTALLATION

F3
This manual includes information titled as DANGER, WARNING, CAUTION and NOTICE.
These titles indicate the following:
SAFETY AND VEHICLE DAMAGE WARNING
DANGER indicates a hazardous situa-
tion which, if not avoided, will result
in death or serious injury.
DANGER
WARNING indicates a hazardous situ-
ation which, if not avoided, could
result in death or serious injury.
CAUTION indicates a hazardous situa-
tion which, if not avoided, could result
in minor or moderate injury.
CAUTION
NOTICE indicates a situation which, if not
avoided, could result in vehicle damage.
NOTICE
WARNING

F4
INTRODUCTION
Congratulations, and thank you for choosing HYUNDAI. We are pleased to welcome you to the growing number of dis-
criminating people who drive HYUNDAIS. We are very proud of the advanced engineering and high-quality construc-
tion of each HYUNDAI we build.
Your Owner’s Manual will introduce you to the features and operation of your new HYUNDAI. To become familiar with
your new HYUNDAI, so that you can fully enjoy it, read this Owner’s Manual carefully before driving your new vehicle.
This manual contains important safety information and instructions intended to familiarize you with your vehicle’s con-
trols and safety features so you can safely operate your vehicle.
This manual also contains information on maintenance designed to enhance safe operation of the vehicle. It is recom-
mended that all service and maintenance on your car be performed by an authorized HYUNDAI dealer. HYUNDAI deal-
ers are prepared to provide high-quality service, maintenance and any other assistance that may be required.
This Owner’s Manual should be considered a permanent part of your vehicle, and should be kept in the vehicle so you
can refer to it at any time. The manual should stay with the vehicle if you sell it to provide the next owner with impor-
tant operating, safety and maintenance information.
HYUNDAI ASSAN OTOMOTİV SAN. TİC. A. Ş.
Copyright 2019 HYUNDAI Motor Company. All rights reserved. No part of this publication may be reproduced, stored
in any retrieval system or transmitted in any form or by any means without the prior written permission of HYUNDAI
Motor Company.
Severe engine and transaxle damage may result from the use of poor quality fuels and lubricants that do
not meet HYUNDAI specifications. You must always use high quality fuels and lubricants that meet the
specifications listed on Page 8-6 in the Vehicle Specifications section of the Owner's Manual.
CAUTION

We want to help you get the greatest
possible driving pleasure from your
vehicle. Your Owner’s Manual can
assist you in many ways. To gain an
overview of the contents of your
Owner’s Manual, use the Table of
Contents in the front of the manual.
The first page of each Chapter
includes a detailed Table of Contents
of the Topics in that Chapter.
To quickly locate information about
your vehicle, use the Index in the
back of the manual. It is an alphabet-
ical list of what is in this manual and
the page number where it can be
found.
Your safety, and the safety of others,
is very important. This Owner’s
Manual provides you with many safe-
ty precautions and operating proce-
dures. This information alerts you to
potential hazards that may hurt you
or others, as well as damage to your
vehicle.
Safety messages found on vehicle
labels and in this manual describe
these hazards and what to do to
avoid or reduce the risks.
Warnings and instructions contained
in this manual are for your safety.
Failure to follow safety warnings and
instructions can lead to serious injury
or death.
Throughout this manual DANGER,
WARNING, CAUTION, NOTICE and
the SAFETY ALERT SYMBOL will
be used.
This is the safety alert sym-
bol. It is used to alert you to
potential physical injury haz-
ards. Obey all safety mes-
sages that follow this symbol
to avoid possible injury or
death. The safety alert sym-
bol precedes the signal words
DANGER, WARNING and
CAUTION.
HOW TO USE THIS MANUAL
F5
Introduction
DANGER indicates a hazardous
situation which, if not avoided,
will result in death or serious
injury.
DANGER
WARNING indicates a hazardous
situation which, if not avoided,
could result in death or serious
injury.
WARNING
SAFETY MESSAGES

F6
Introduction
NOTICE indicates a situation
which, if not avoided, could result
in vehicle damage.
Gasoline engine
Unleaded
For Europe
For the optimal vehicle performance,
we recommend you use unleaded
gasoline which has an octane rating of
RON (Research Octane Number) 95 /
AKI (Anti Knock Index) 91 or higher.
(Do not use methanol blended fuels.)
You may use unleaded gasoline with
an octane rating of RON 91-94 / AKI
87-90 but it may result in slight per-
formance reduction of the vehicle.
Except Europe
Your new vehicle is designed to use
only unleaded fuel having an Octane
Rating of RON (Research Octane
Number) 91 / AKI (Anti-Knock Index)
87 or higher. (Do not use methanol
blended fuels.)
Your new vehicle is designed to
obtain maximum performance with
UNLEADED FUEL, as well as mini-
mize exhaust emissions and spark
plug fouling.
NEVER USE LEADED FUEL. The
use of leaded fuel is detrimental to
the catalytic converter and will
damage the engine control sys-
tem’s oxygen sensor and affect
emission control.
Never add any fuel system clean-
ing agents to the fuel tank other
than what has been specified (We
recommend that you consult an
authorized HYUNDAI dealer for
details.)
NOTICE
NOTICE
•Do not "top off" after the noz-
zle automatically shuts off
when refueling.
•Always check that the fuel
cap is installed securely to
prevent fuel spillage in the
event of an accident.
WARNING
CAUTION indicates a hazardous
situation which, if not avoided,
could result in minor or moder-
ate injury.
CAUTION
FUEL REQUIREMENTS

F7
Introduction
Gasoline containing alcohol and
methanol
Gasohol, a mixture of gasoline and
ethanol (also known as grain alco-
hol), and gasoline or gasohol contain-
ing methanol (also known as wood
alcohol) are being marketed along
with or instead of leaded or unleaded
gasoline.
Do not use gasohol containing more
than 10% ethanol, and do not use
gasoline or gasohol containing any
methanol. Either of these fuels may
cause drivability problems and dam-
age to the fuel system, engine control
system and emission control system.
Discontinue using gasohol of any
kind if drivability problems occur.
To prevent damage to your vehi-
cle’s engine and fuel system:
• Never use gasohol which con-
tains methanol.
• Never use gasohol containing
more than 10% ethanol.
• Never use leaded fuel or leaded
gasohol.
Damage to the fuel system or per-
formance problems caused by the
use of any of these fuels may not
be covered by your New Vehicle
Limited Warranty.
Other fuels
Using fuels such as;
- Silicone (Si) contained fuel,
- MMT (Manganese, Mn) contained
fuel,
- Ferrocene (Fe) contained fuel, and
- Other metalic additives contained
fuels,
may cause vehicle and engine dam-
age or cause plugging, misfiring,
poor acceleration, engine stalling,
catalyst melting, abnormal corrosion,
life cycle reduction, etc. Also, the
Malfunction Indicator Lamp (MIL)
may illuminate.
Damage to the fuel system or per-
formance problems caused by the
use of any of these fuels may not
be covered by your New Vehicle
Limited Warranty.
NOTICE
NOTICE

F8
Introduction
Use of MTBE
HYUNDAI recommends avoiding
fuels containing MTBE (Methyl
Tertiary Butyl Ether) over 15.0% vol.
(Oxygen Content 2.7% weight) in
your vehicle.
Fuel containing MTBE over 15.0%
vol. (Oxygen Content 2.7% weight)
may reduce vehicle performance
and produce vapor lock or hard start-
ing.
Your New Vehicle Limited Warranty
may not cover damage to the fuel
system and any performance prob-
lems that are caused by the use of
fuels containing methanol or fuels
containing MTBE (Methyl Tertiary
Butyl Ether) over 15.0% vol.
(Oxygen Content 2.7% weight.)
Do not use methanol
Fuels containing methanol (wood
alcohol) should not be used in your
vehicle. This type of fuel can reduce
vehicle performance and damage
components of the fuel system,
engine control system and emission
control system.
Fuel Additives
HYUNDAI recommends that you use
unleaded gasoline which has an
octane rating of RON (Research
Octane Number) 95 / AKI (Anti Knock
Index) 91 or higher (for Europe) or
Octane Rating of RON (Research
Octane Number) 91 / AKI (Anti-Knock
Index) 87 or higher (except Europe).
For customers who do not use good
quality gasoline including fuel additives
regularly, and have problems starting
or the engine does not run smoothly,
one bottle of additive added to the fuel
tank according to the maintenance
schedule is recommended (refer to
chapter 7, “Normal Maintenance
Schedule”).
Additives are available from your
authorized HYUNDAI dealer along
with information on how to use them.
Do not mix other additives.
NOTICE

Operation in foreign countries
If you are going to drive your vehicle
in another country, be sure to:
• Observe all regulations regarding
registration and insurance.
• Determine that acceptable fuel is
available.
No special break-in period is needed.
By following a few simple precautions
for the first 1,000 km (600 miles) you
may add to the performance, econo-
my and life of your vehicle.
• Do not race the engine.
• While driving, keep your engine
speed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.
• Do not maintain a single speed for
long periods of time, either fast or
slow. Varying engine speed is need-
ed to properly break-in the engine.
• Avoid hard stops, except in emer-
gencies, to allow the brakes to seat
properly.
• Don't tow a trailer during the first
2,000 km (1,200 miles) of opera-
tion.
HYUNDAI promotes an environmen-
tally sound treatment for end of life
vehicles and offers to take back your
Hyundai end of life vehicles in accor-
dance with the European Union (EU)
End of Life Vehicles Directive.
You can get detailed information from
your national HYUNDAI homepage.
F9
Introduction
VEHICLE BREAK-IN
PROCESS
RETURNING USED
VEHICLES (FOR EUROPE)

1
2
3
4
5
6
7
8
I

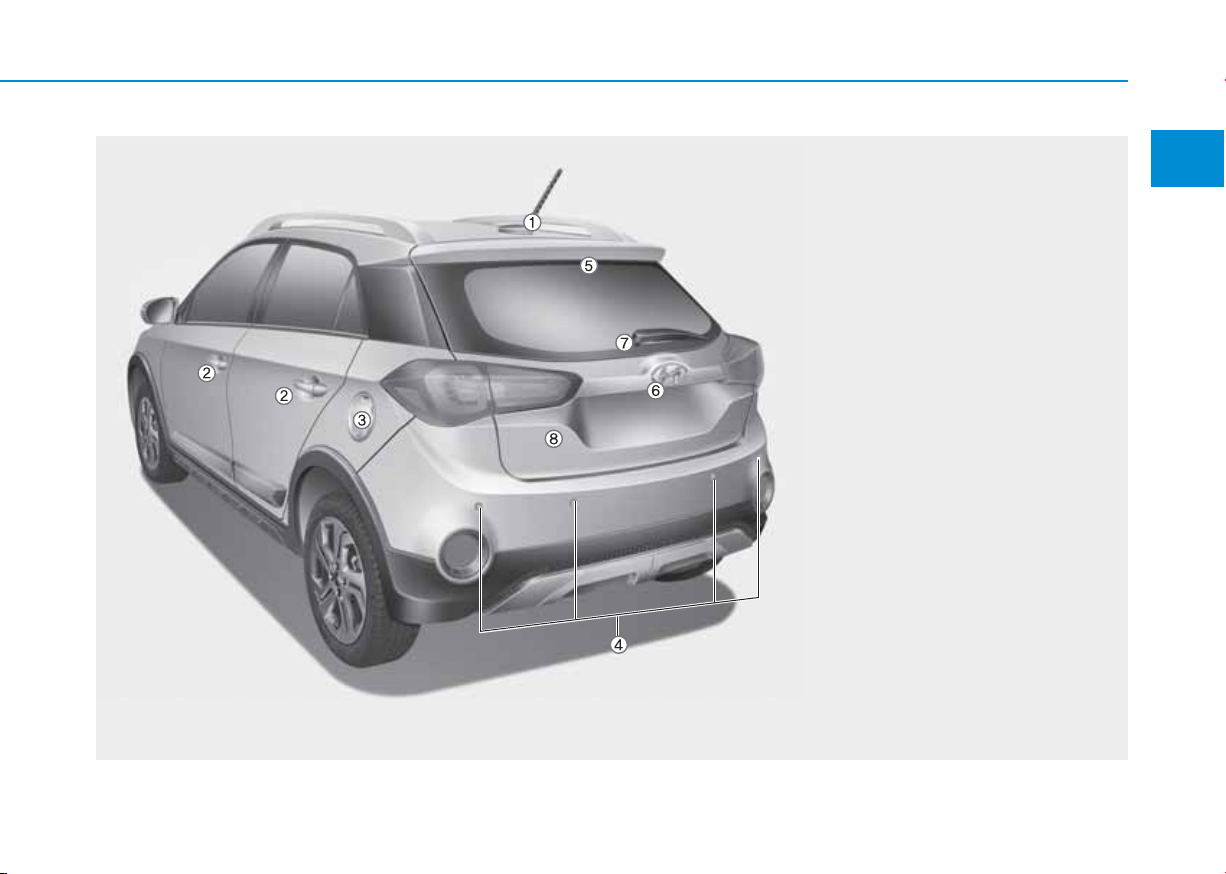

Your vehicle at a glance
Safety system of your vehicle
Convenient features of your vehicle
Multimedia System
Driving your vehicle
What to do in an emergency
Maintenance
Specifications & Consumer information
Appendix / Index
TABLE OF CONTENTS

Your vehicle at a glance
1
Your vehicle at a glance
1
Exterior overview (I).................................................1-2
Exterior overview (II) ...............................................1-5
Interior overview .......................................................1-8
Instrument panel overview.......................................1-9
Engine compartment...............................................1-10

1-2
EXTERIOR OVERVIEW (I)
Your vehicle at a glance
1. Hood..................................................3-31
2. Headlight ...........................................7-93
3. Fog light/Daytime running light* ........7-93
4. Tires and wheels ...............................7-62
5. Outside rearview mirror.....................3-41
6. Front windshield wiper blades...........7-54
7. Windows............................................3-20
8. Parking Distance Warning system
(Reverse/Forward)* ........................3-109
* : if equipped
OIB017001L
nFront view
• 5 Door
The actual shape may differ from the illustration.

1-3
Your vehicle at a glance
1
1. Hood .................................................3-31
2. Headlight...........................................7-93
3. Fog light ............................................7-93
4. Tires and wheels...............................7-62
5. Outside rearview mirror ....................3-41
6. Front windshield wiper blades ..........7-54
7. Windows ...........................................3-20
* : if equipped
OGB015006
nFront view
• 3 Door
The actual shape may differ from the illustration.

1-4
Your vehicle at a glance
1. Hood..................................................3-31
2. Headlight ...........................................7-93
3. Fog light ............................................7-93
4. Tires and wheels ...............................7-62
5. Outside rearview mirror.....................3-41
6. Front windshield wiper blades...........7-54
7. Windows............................................3-20
* : if equipped
OGB016001
nFront view
• Cross
The actual shape may differ from the illustration.

1-5
Your vehicle at a glance
1
EXTERIOR OVERVIEW (II)
OGB018005
1. Antenna................................................4-4
2. Doors..................................................3-13
3. Fuel filler door ....................................3-33
4. Parking Distance Warning system
(Reverse)* .......................................3-106
5. High mounted stop light ...................7-105
6. Rearview Monitor*............................3-105
7. Rear window wiper blade* .................7-56
8. Tailgate ...............................................3-18
* : if equipped
The actual shape may differ from the illustration.
nRear view
• 5 Door

1-6
Your vehicle at a glance
OGB015007
nRear view
• 3 Door
The actual shape may differ from the illustration.
1. Antenna................................................4-4
2. Doors..................................................3-13
3. Fuel filler door ....................................3-33
4. Parking Distance Warning system
(Reverse)* .......................................3-106
5. High mounted stop light ...................7-105
6. Rearview Monitor*............................3-105
7. Rear window wiper blade* .................7-56
8. Tailgate ...............................................3-18
* : if equipped

1-7
Your vehicle at a glance
1
OGB018002
nRear view
• Cross
The actual shape may differ from the illustration.
1. Antenna................................................4-4
2. Doors..................................................3-13
3. Fuel filler door ....................................3-33
4. Parking Distance Warning
system(Reverse)* ............................3-106
5. High mounted stop light ...................7-105
6. Rearview Monitor*............................3-105
7. Rear window wiper blade* .................7-56
8. Tailgate ...............................................3-18
* : if equipped

1-8
Your vehicle at a glance
INTERIOR OVERVIEW
1. Inside door handle ............................3-14
2. Outside rearview mirror folding
switch* ..............................................3-43
3. Outside rearview mirror control
switch* ..............................................3-42
4. Power window switches* ..................3-20
5. Power window lock switch* ..............3-24
6. Hood release lever ............................3-31
7. Headlight leveling device ....................3-98
8. Instrument panel illumination
control switch* ..................................3-45
9. Lane Departure Warning(LDW)
system*..............................................5-80
Lane Keeping Assist (LKA) system* 5-84
10. Electronic Stability Control (ESC)*..5-48
11. Fuel filler door opener ....................3-33
12. Fuse box ........................................7-79
13. Steering wheel ................................3-36
14. Seat ..................................................2-4
15. Clutch pedal* ..................................5-21
16. Brake pedal ....................................5-43
17. Accelerator pedal
* : if equipped
OGB014003
The actual shape may differ from the illustration.
