Hyundai ImageQuest Q19 User manual

FCC ID : PJIL19C0D072
REPORT NO. : HCT-F04-0901 HYUNDAI C–TECH 1/1
ATTACHMENT E.
- USER’S MANUAL -

NEXT
Type No. L19C0D072
User’s Guide
Hyundai ImageQuest Q19
Dual Function Monitior
Click
www.hyundaiQ.com
For recycling please look into our web site
www.hyundaiq.com

U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 5 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet of a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.
BACK
NEXT

WE Hyundai ImageQuest CO. LTD.
Ami-ri Bubal-Eub Ichon-Si Kyungki-Do
467-860 KOREA
declare under our sole responsibility that the product:
to which this declaration relates is in conformity with the
following standard(s) or other normative document(s)
following the provisions of the Low Voltage Directive 73/23/EEC
93/68/EEC and the EMC Directive 89/336/EEC.
KOREA / August. 15 2004 HONG KI KIM
(Place and date of issue) (Name and signature of
authorized person)
DECLARATION OF CONFORMITY
BACK
NEXT
Kind of equipment : LCD MONITOR
Type-Designation : L19C0D072
Safety : EN60950:2000
EMC : EN 55013/1990+A12 :1994+A13:1996+A14:1999
EN 55022 :1998+A1:2000 Class B
EN 55024 :1998+A1:2001
EN 61000-3-2:2000
EN 61000-3-3:1995+A1:20015
Accredited testlaboratory:
TÜV Rheinland
Am Grauen Stein
51105 Köln

Q19
19" Dual Function Monitor
Contents 1. Introduction ...................................1/24
2. Safety Information ........................1/24
3. Installing the monitor ...................4/24
3-1. Packing List .........................................4/24
3-2. Attaching the Cable Holder .............5/24
3-3. Selecting a suitable location ..............6/24
3-4. Connecting the monitor .....................6/24
3-5. Setting the refresh rate ....................10/24
Preset Timing Table ..........................11/24
3-6. User’s Environment ...........................12/24
BACK
NEXT
4. Adjusting the picture ..................14/24
4-1. Using the On Screen Display ...........16/24
4-2. Direct access buttons .......................16/24
4-3. OSD Adjustments .............................17/24
5. Display power management ......20/24
Reducing power consumption ..............20/24
6. Troubleshooting ..........................21/24
7. Specifications ..............................24/24

Q19
19" Dual Function Monitor
1. Introduction
2. Safety Information
1/24
BACK
NEXT
This manual contains instructions for installing and operating
Hyundai ImageQuest Q19.
Hyundai ImageQuest Q19 is a highly ergonomic color display unit.
• 19" viewable SXGA LCD
• High quality screen re-scaling capability
• 100-240V AC input voltage
• VESA DPMS (Display Power Management Signaling)
• VESA DDC1/2B compatibility
• Advanced digital On-Screen-Display controls
• Digital Signal Input by DVI-1.0 Compatability
• Fast and accurate auto adjustment
• Most advanced image scaling
• Supporting VESA Flat Panel Monitor Physical Mounting Interface
• Bus-Power USB 2.0 Hub
This Monitor has been engineered and manufactured to assure your safety.
You can prevent serious electrical shock and other hazards by keeping in mind
the following:
Do not place anything wet on the monitor or the power
cord. Never cover the ventilation openings with any
material and never touch them with metallic or
inflammable materials.

Q19
19" Dual Function Monitor
2/24
BACK
NEXT
Avoid operating the monitor in extreme heat,
humidity or areas affected by dust.
Temperature : 5~35°C
Humidity : 30~80RH
Be sure to turn the monitor off before plugging the
power cord into the socket. Make sure that the power
cord and the other cords are securely and rightly
connected.
Overloaded AC outlets and extension cords are
dangerous, as are frayed power cords and broken
plugs, which may cause electric shock or fire. Call
your service technician for replacement.
Do not use sharp tools such as a pin or a pencil near
the monitor, as they may scratch the LCD surface.
Do not use a solvent, such as benzene, to clean the
monitor, as it will damage the LCD surface.

Q19
19" Dual Function Monitor
Cleaning and Maintenance • To avoid risk of electric shock, do not disassemble the display unit cabinet. The
unit is not user-serviceable. Remember to unplug the display unit from the
power outlet before cleaning.
• Do not use alcohol (methyl, ethyl or isopropyl) or any strong dissolvent. Do not
use thinner or benzene, abrasive cleaners or compressed air.
• Do not wipe the screen with a cloth or sponge that could scratch the surface.
• To clean your antistatic screen, use water and a special microfiber screen
cleaning tissue used in optical lens cleaning, or lightly dampen a soft, clean
cloth with water or a mild detergent.
• If the instructions above do not help in removing stains, contact an authorized
service agent.
3/24
BACK
NEXT

Q19
19" Dual Function Monitor
4/24
BACK
NEXT
The following items should be found in the packaging.
Above power cord can be changed upon different voltage areas. Please
contact your dealer if anything is missing or damaged.
Other power cord except the cord packed in the product or longer than 3m
may affect EMC of the product in operating condition.
3. Installing the
monitor
3-1. Packing List
!
UK
America/Canada
Japan
Australia
Korea
Europe
South Africa
Power Cord
Signal Cable
DVI-D Cable
Compact Disc Cable Holder Audio Cable
USB Cable

Q19
19" Dual Function Monitor
3-2. Attaching the Cable
Holder (Cable
Organizing Device) 1. Remove the 2 rear rubber pieces.
2. Attach the Cable Holder and organize the cables.
5/24
BACK
NEXT

Q19
19" Dual Function Monitor
6/24
BACK
NEXT
3-3. Selecting a suitable
location

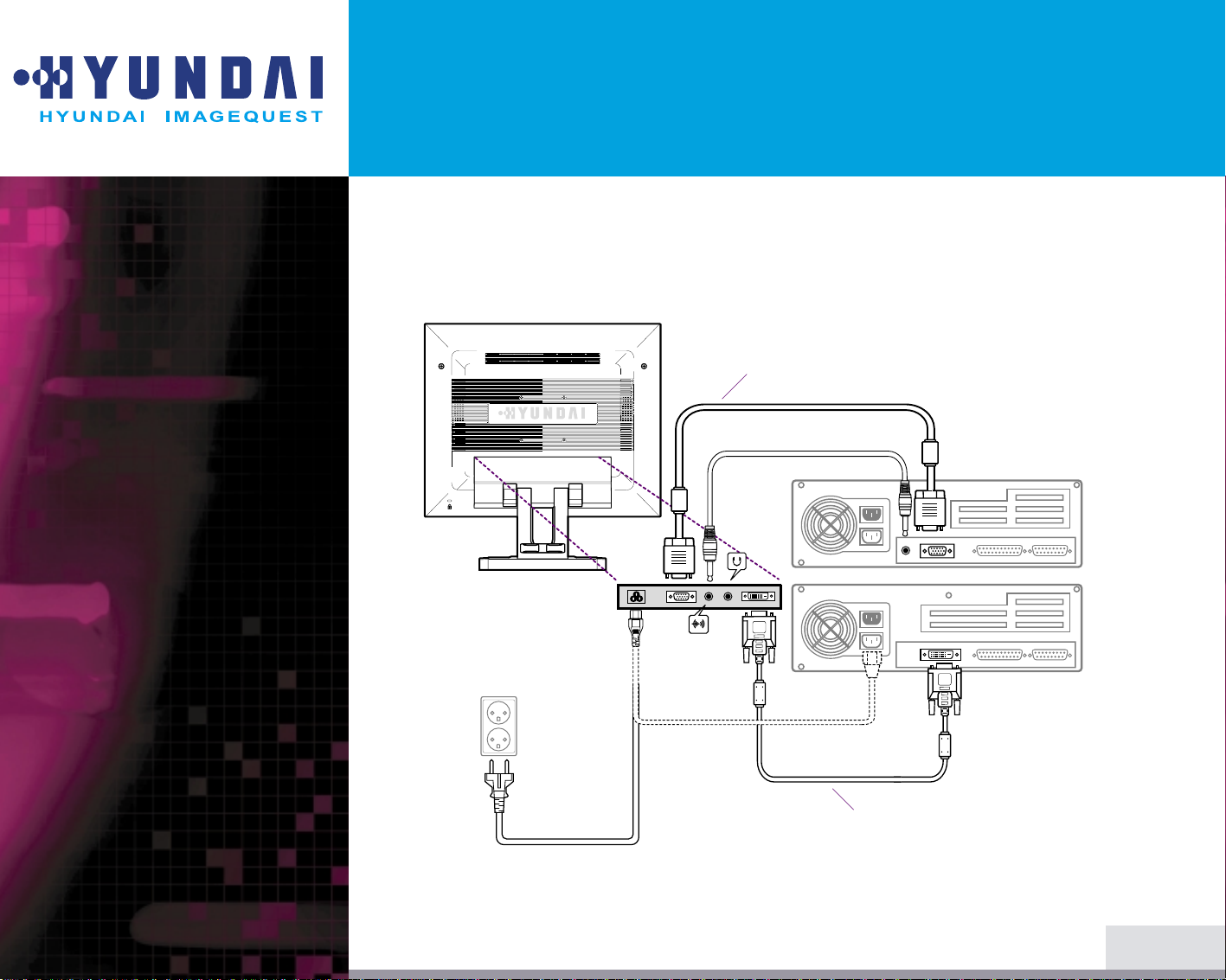

3-4. Connecting the
monitor
• 15 pin D-sub / DVI-D
•Place the monitor at least 30cm from other electrical or heat-emitting
equipment and allow at least 10cm on each side for ventilation.
•Place the monitor in a position where no light shines directly onto or is
reflected on the screen.
•To reduce eye strain, avoid installing the display unit against a bright
background such as a window.
•Position the monitor so that the top of the screen is no higher than eye level.
•Position the monitor directly in front of you at a comfortable reading distance
(around 45 to 90cm)
Before you start cabling your monitor, check that the
power is off on all units. To avoid any possibility of
electric shock, always connect your equipment to
properly earthed outlets.
1. Insert the other 15-pin/DVI-D signal cable connector into the 15-pin VGA/DVI-D
connection on your computer and screw it down.
2. Plug the power cord connection to connection on the monitor.
3. Plug the other end of the power cord to your computer's main supply or to a
100V-240V earthed electrical outlet.
4. Turn on the monitor using the power switch and check that the power LED is
on. If not, repeat steps 1,2,3 and 4 or refer to the Troubleshooting section of
this guide.
!!

Q19
19" Dual Function Monitor
7/24
BACK
NEXT
5. Turn on the power to the computer. The picture will appear within about 10
seconds. Adjust the picture to obtain optimum picture quality. See section
Adjusting the picture in this guide for more information.
15 pin D-sub cable (Analog RGB)
DVI-D cable (Digital TMDS)

Q19
19" Dual Function Monitor
• USB hub / PC Audio The USB hub(Bus-powerd mode hub) have 1 upstream port and 2 downstream
ports. The upstream port can be connected to the root hub of host PC or other
downstream port. Two(2) downstream ports allow to connect another USB device
such as USB mouse, joystick, printer etc.
1) The maximum supply current of downstream port is 500mA when bus-
powered mode hub.
2) To activate the USB hub, your host system should have USB capability.
8/24
BACK
NEXT
USB 2 downstream ports

Q19
19" Dual Function Monitor

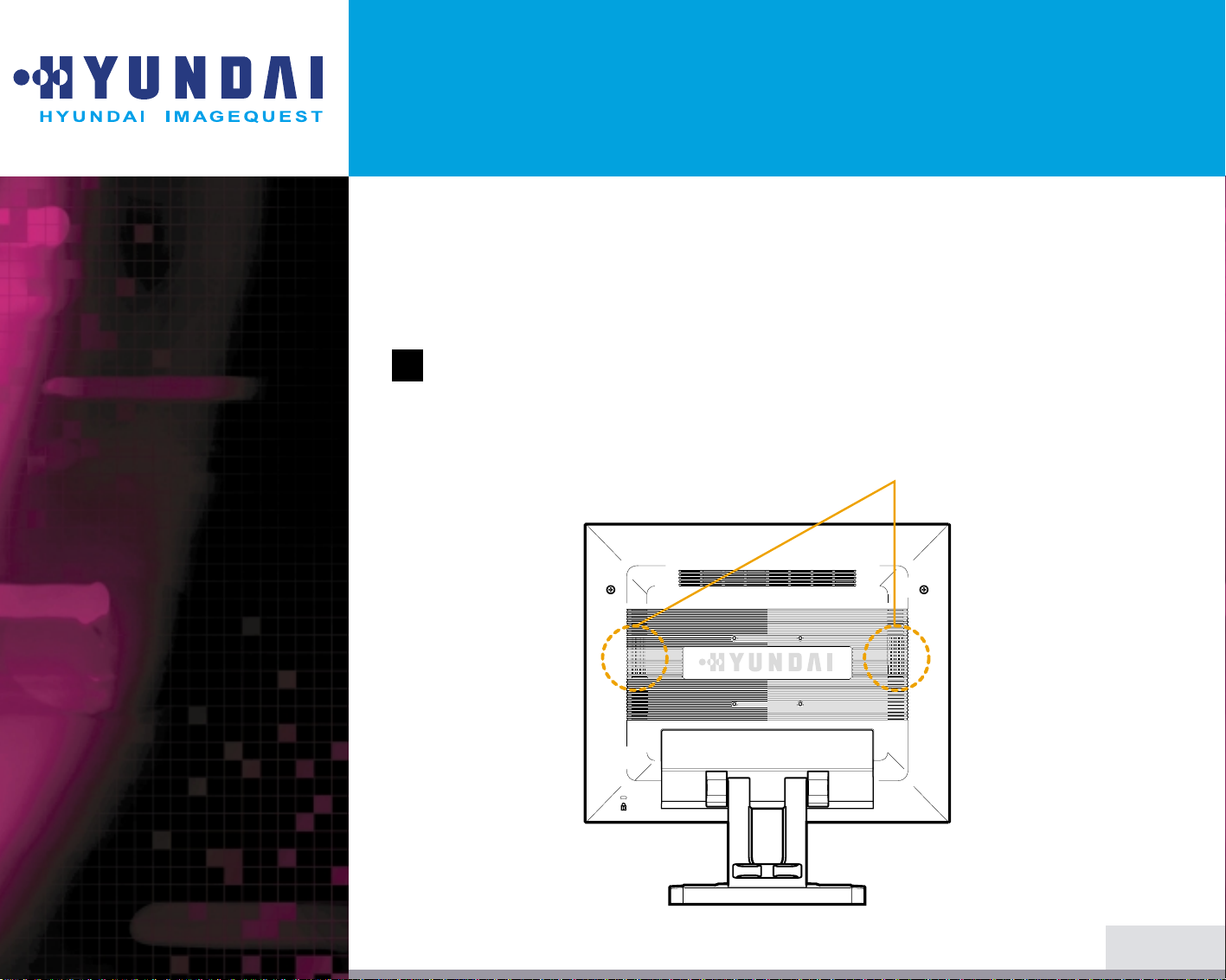

• Audio system This monitor has an audio system including two micro loudspeakers. Each of two
micro loudspeakers has an 2W(max.) output power. This system also supports a
headphone output jack.
This system has been tuned to get a best tone quality which an audio input
level is under 500mVrms. If the input level is more than 500mVrms, you must
tune down the audio input as the audio output tone may be distorted.
9/24
BACK
NEXT
!!
Speaker

Q19
19" Dual Function Monitor
3-5. Setting the refresh
rate Follow the instructions below to set your refresh rate in Windows 98/ME/XP/2000.
1. Go to the configuration window(Start-Settings-Configuration window).
2. Double click on the ‘Display’icon.
3. Click on the ‘Settings’tab.
4. Click on the ‘Advanced’button.
5. Click on ‘Adapter’and select 60Hz from the list.
6. Click on ‘Apply’to accept the selected value.
10/24
BACK
NEXT

Q19
19" Dual Function Monitor
11/24
BACK
NEXT
Preset Timing Table If the signal from the system doesn't equal to the preset timing mode, adjust
the mode with reference to the user guide of videocard because the screen
may not be displayed.
The recommended setting is a resolution of 1280x1024 and a refresh rate of 60Hz.
DIGITAL R.G.B INPUT
No.
1
2
3
4
Resolution
640 x 480
800 x 600
1024 x 768
1280 x 1024
Horizontal Frequency
31.5 KHz
37.9 KHz
48.4 KHz
63.9 KHz
Refresh rate
60 Hz
60 Hz
60 Hz
60 Hz
!
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Resolution
720
x 400
640
x 480
640 x 480
800
x 600
800
x 600
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1024 x 768
1152 x 864
1280 x 1024
1280 x 1024
Horizontal Frequency
31.5 KHz
31.5 KHz
37.5 KHz
35.2 KHz
37.9 KHz
48.1 KHz
46.9 KHz
49.7 KHz
48.4 KHz
56.5 KHz
60.0 KHz
67.5 KHz
63.9 KHz
80.0 KHz
Refresh rate
70 Hz
60 Hz
75 Hz
56 Hz
60 Hz
72 Hz
75 Hz
75 Hz
60 Hz
70 Hz
75 Hz
75 Hz
60 Hz
75 Hz
ANALOG R.G.B INPUT

Q19
19" Dual Function Monitor
3-6. User’s Environment
Kensington Security
(Locking) Slot
Recommended Ergonomic User’s Environment
•Viewing angle of the monitor should be between 0~20 degree.
•This display unit supports a Kensington-type security device to secure your
monitor. Kensington lock is not included.
•To purchase and install the Kensington locking device, please refer to the
following contact information.
* Kensington Technology Group
· Address : 2000 Alameda de las Pulgas 2F san mateo, California 94403-1289
· Tel : [phone] · Fax : [phone] · Web-site : www.kensington.com
12/24
BACK
NEXT
Kensington security slot

Q19
19" Dual Function Monitor
VESA MOUNT’G•This display unit supports VESA FPMPMI standard for 75mmx75mm screw
mounting by giving 4 screw holes inside the base stand of the unit.
•For buying VESA Flat Panel Monitor Mounting Devices, please contact
following information.
* Ergotron, Inc.
· Address : Ergotron Europe Kuiperbergweg 50 1101 AG Amsterdam The Netherlands
· Tel : [phone] · Fax : [phone]· E-mail : [email protected]
13/24
BACK
NEXT
Desk Mount
Wall Mount

Q19
19" Dual Function Monitor

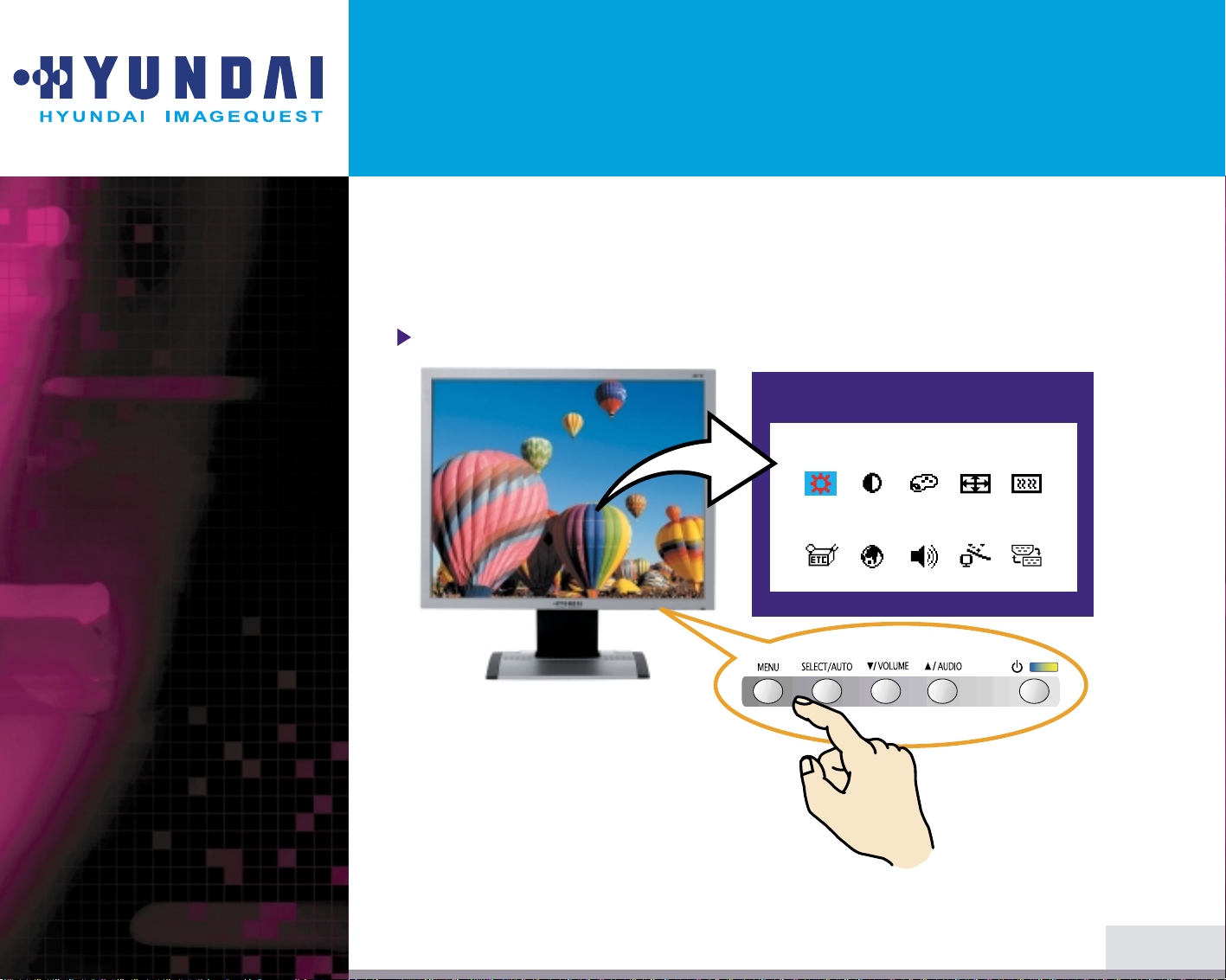

4. Adjusting the picture
14/24
BACK
NEXT
You can adjust the screen display by using the buttons located below the
screen.
1280x1024
H:63.9 V:60.0
BRIGHTNESSBRIGHTNESS
In case of applying Analog RGB Input

Q19
19" Dual Function Monitor
15/24
BACK
NEXT
1280x1024
H:63.9 V:60.0
BRIGHTNESSBRIGHTNESS
In case of applying Digital TMDS Input
