HYVE ATLANTA17 User manual

HYVE SOLUTIONS|CONFIDENTIAL 1
ATLANTA project
ATLANTA17, ATLANTAB1, ATLANTAB2, ATLANTA13, ATLANTA14, ATLANTA15, ATLANTA16 ,
AQUILADSF,ATLANTA10
Doc. #
Revision B
Revision
Description
Originator
Date
A
Initial Released
Runnie Wang
11/4/2018

HYVE SOLUTIONS|CONFIDENTIAL 2

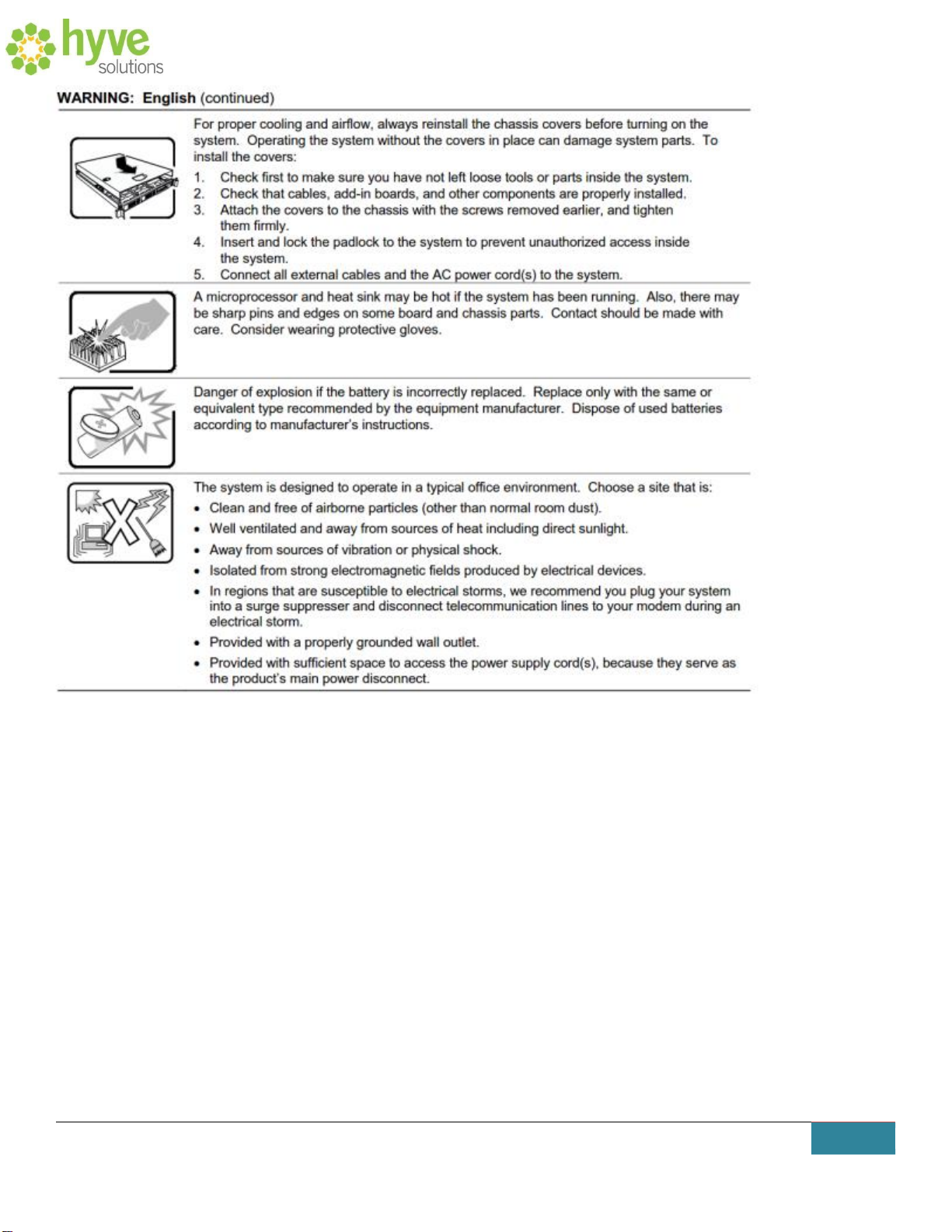

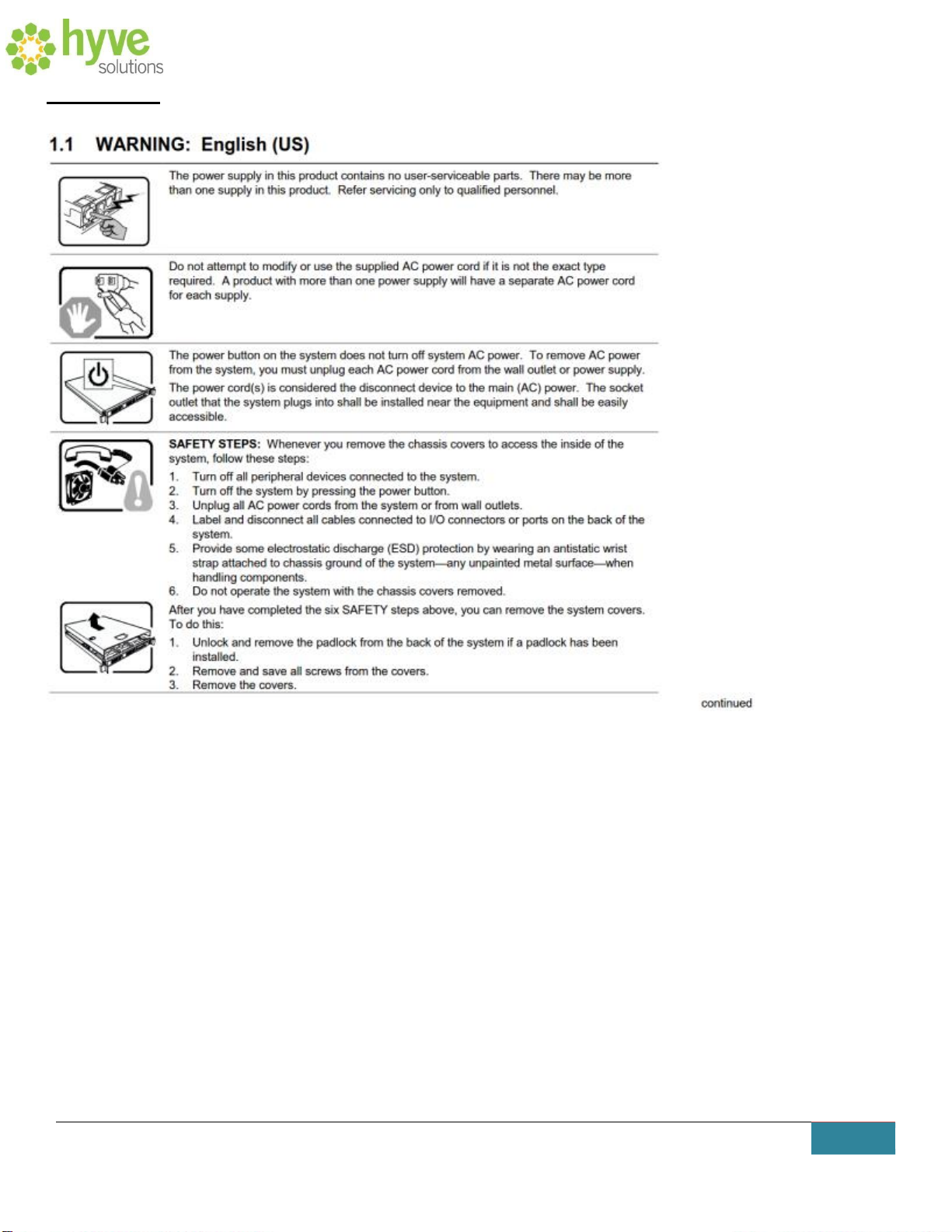

Warnings

HYVE SOLUTIONS|CONFIDENTIAL 3

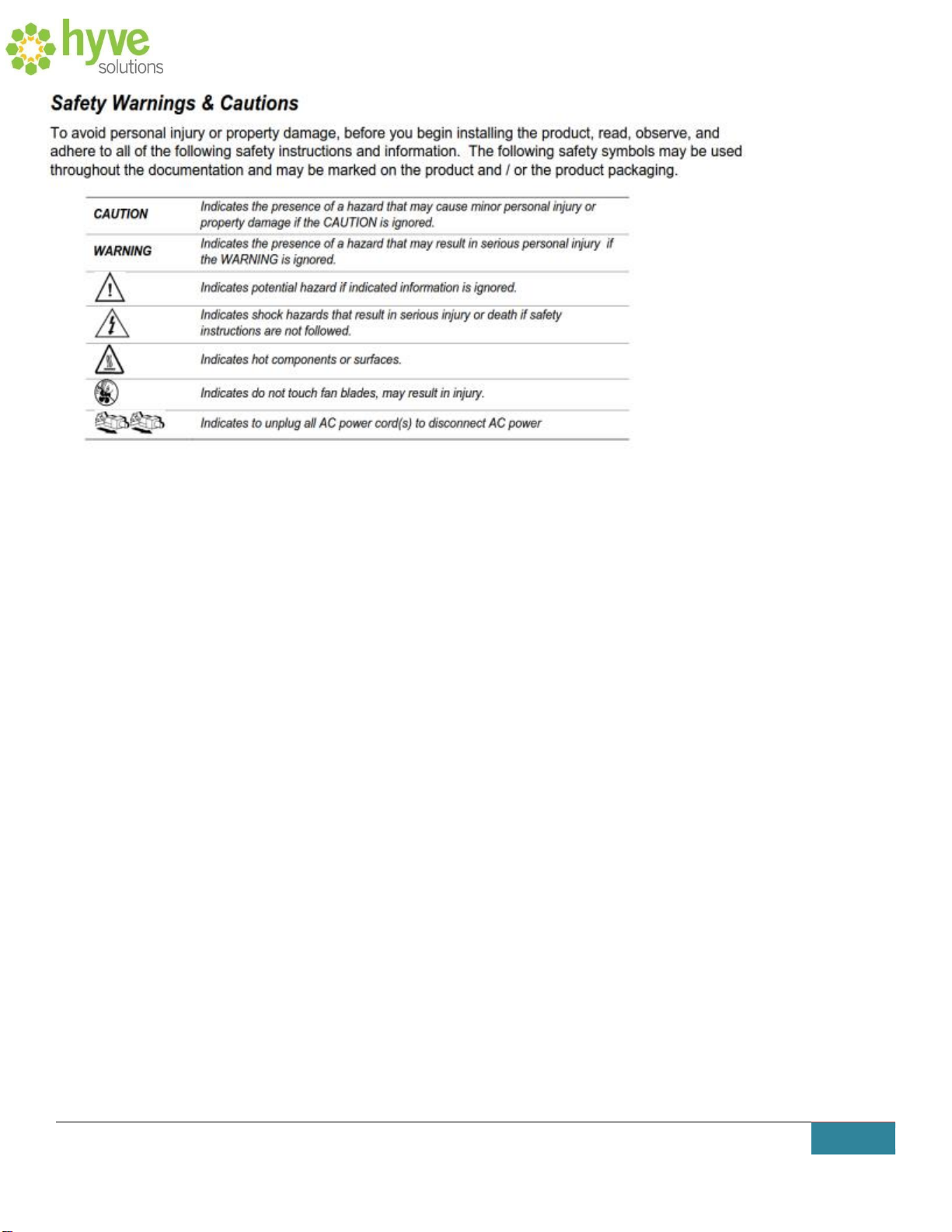

HYVE SOLUTIONS|CONFIDENTIAL 4

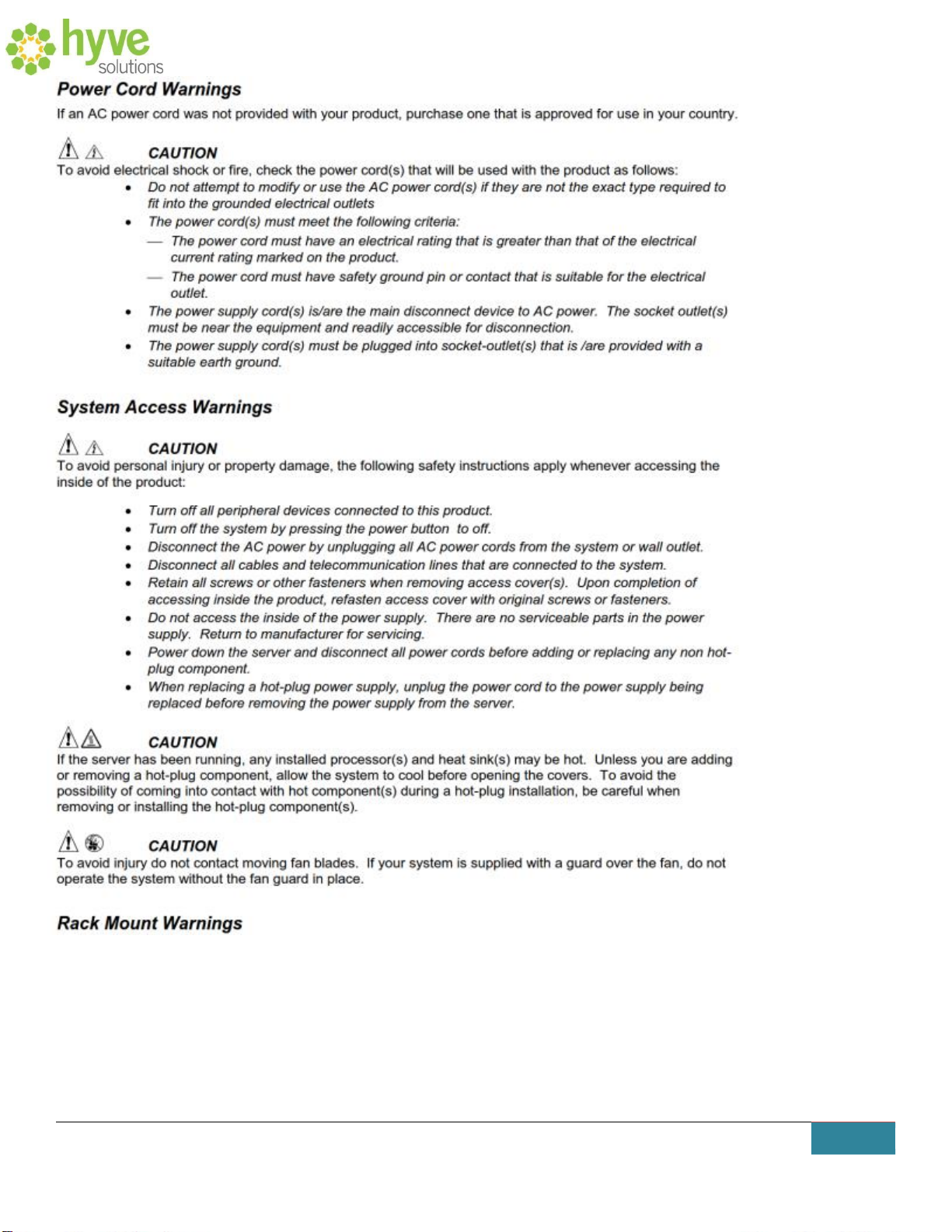

HYVE SOLUTIONS|CONFIDENTIAL 5

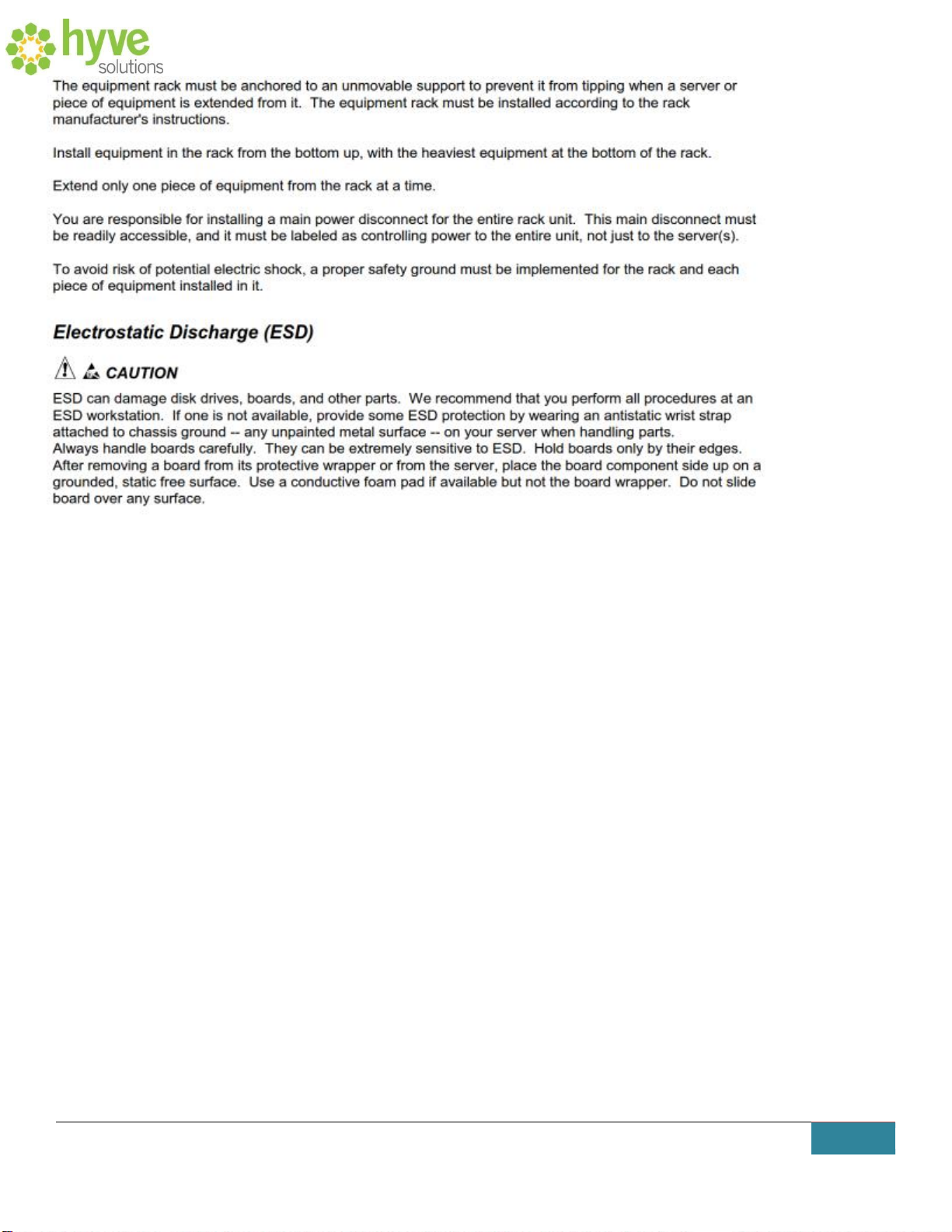

HYVE SOLUTIONS|CONFIDENTIAL 6

HYVE SOLUTIONS|CONFIDENTIAL 7

HYVE SOLUTIONS|CONFIDENTIAL 8

HYVE SOLUTIONS|CONFIDENTIAL 9

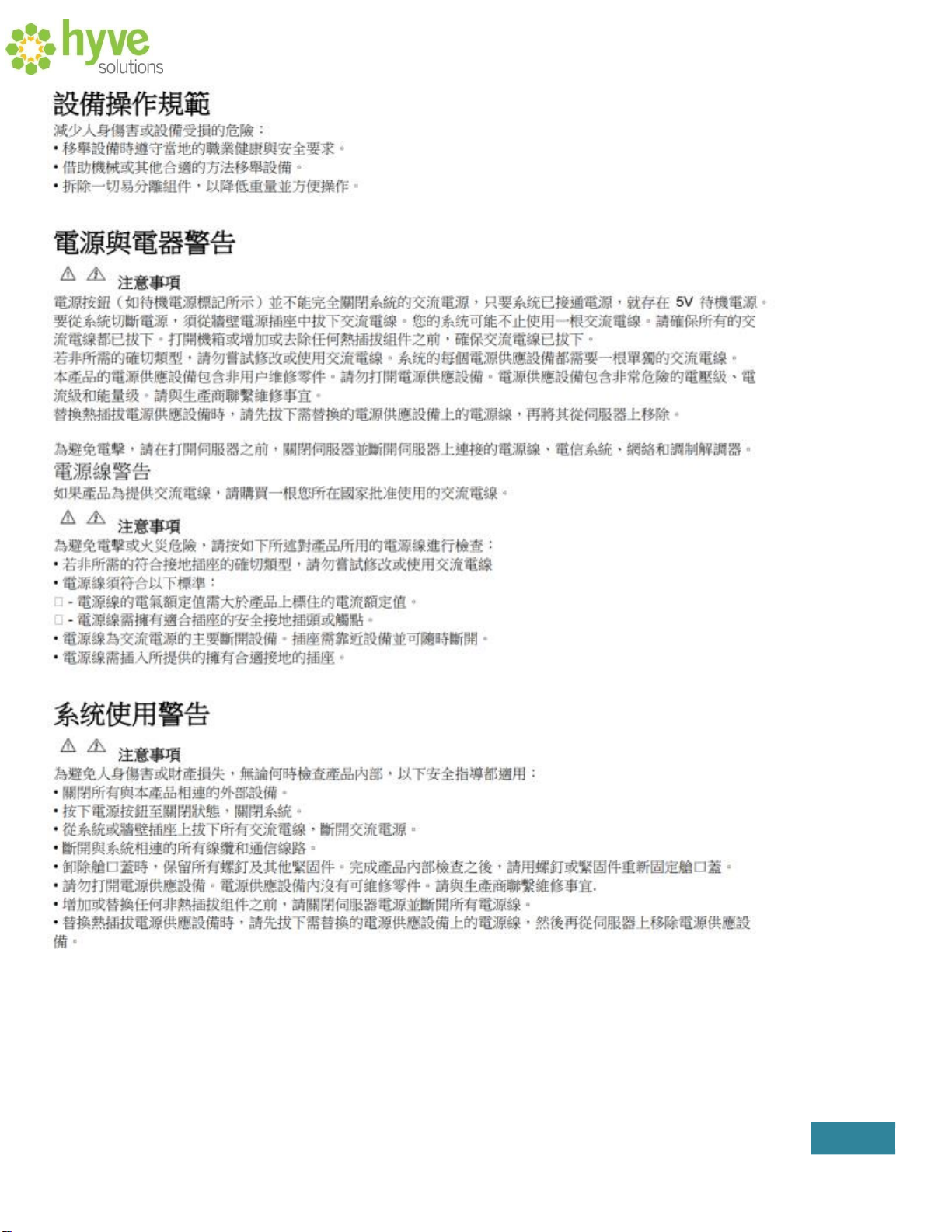

HYVE SOLUTIONS|CONFIDENTIAL 10

HYVE SOLUTIONS|CONFIDENTIAL 11

HYVE SOLUTIONS|CONFIDENTIAL 12

HYVE SOLUTIONS|CONFIDENTIAL 13
Warnings
Heedsafetyinstructions:Beforeworkingwithyourserverproduct,whetheryouareusingthisguideoranyotherresourceasa
reference, paycloseattentiontothe safety instructions. You must adhere totheassemblyinstructionsin thisguideto ensureand
maintaincompliancewithexistingproductcertificationsandapprovals.Useonlythedescribed,regulatedcomponentsspecifiedin
thisguide.Useofotherproducts/componentswillvoidtheULlistingandotherregulatoryapprovalsoftheproductandwillmost
likelyresultinnoncompliance withproduct regulationsintheregion(s)in whichtheproduct issold.

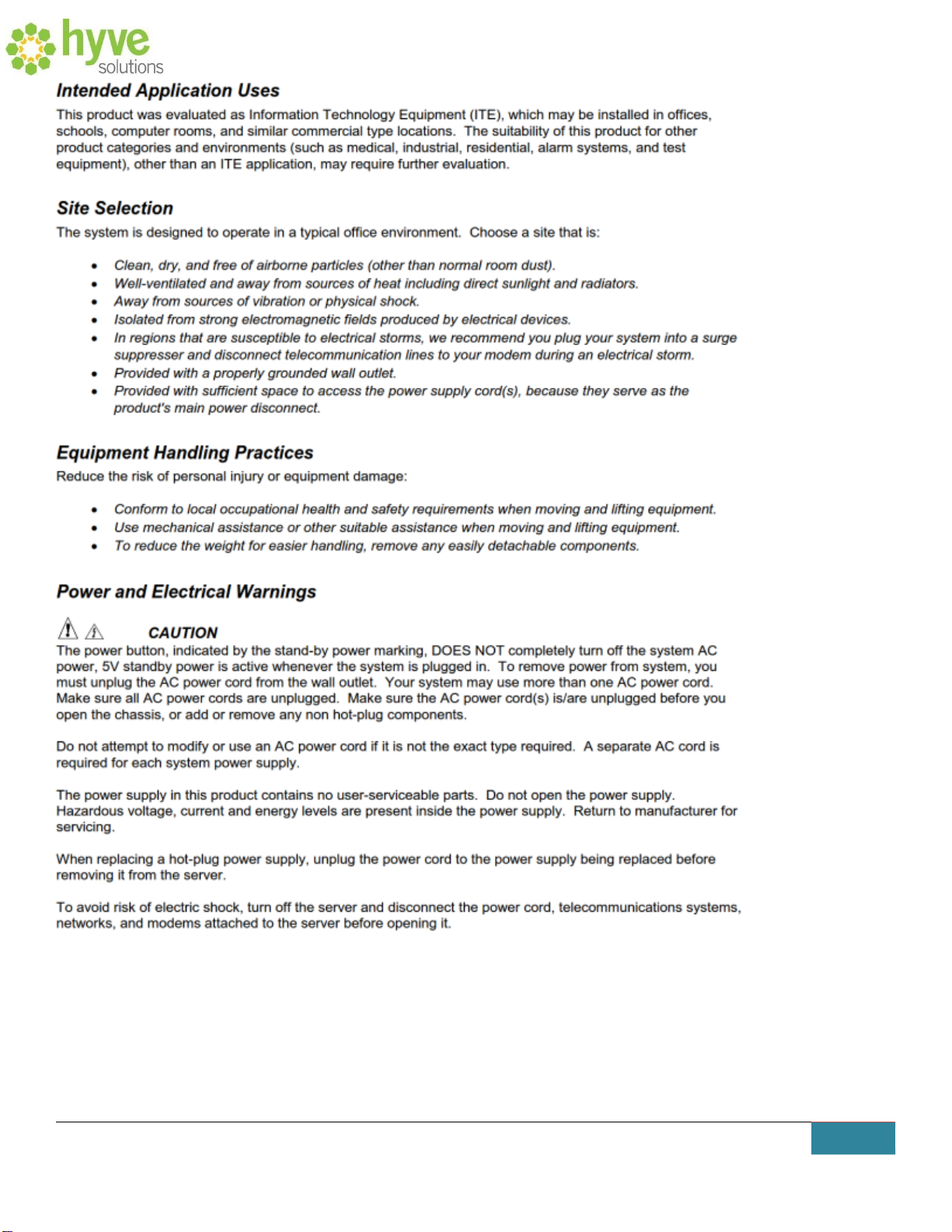

System power on/off: ThepowerbuttonsDOESNOTturnoffthesystemACpower.Toremovepowerfromthesystem,youmust
unplugtheACpowercordfromthewalloutlet.MakesuretheACpowercordisunpluggedbeforeyouopenthechassis,add,or
removeanycomponents.Hazardousconditions,devicesandcables:Hazardouselectricalconditionsmaybepresentonpower,
telephone,andcommunicationcables.Turnofftheserveranddisconnectthepowercord,telecommunicationssystems,networks,
andmodemsattachedtotheserverbeforeopeningit.Otherwise,personalinjuryorequipmentdamagecanresult.
Electrostatic discharge (ESD) and ESD protection: ESDcandamagediskdrives,boards,andotherparts.Werecommendthatyou
performallproceduresinthischapteronlyatanESDworkstation.Ifoneisnotavailable,providesomeESDprotectionby wearingan
antistaticwriststrapattachedtochassisgroundanyunpaintedmetalsurfaceonyourserverwhenhandlingparts.
ESD and handling boards: Alwayshandleboardscarefully.TheycanbeextremelysensitivetoESD.Holdboardsonlybytheiredges.
Afterremovingaboardfromitsprotectivewrapperorfromtheserver,placetheboardcomponentsideuponagrounded,static
freesurface.Useaconductivefoampadifavailablebutnottheboardwrapper.Donotslideboardoveranysurface.
Installing or removing jumpers: Ajumperisasmallplasticencasedconductorthatslipsovertwojumperpins.Somejumpershavea
smalltabontopthatyoucangripwithyourfingertipsorwithapairoffineneedlenosedpliers.Ifyourjumpersdonothavesucha
tab,takecarewhenusingneedlenosedplierstoremoveorinstallajumper;gripthenarrowsidesofthejumperwiththepliers,
neverthewidesides.Grippingthewidesidescandamagethecontactsinsidethejumper,causingintermittentproblemswiththe
functioncontrolledbythatjumper.Takecaretogripwith,butnotsqueeze,thepliersorothertoolyouusetoremoveajumper,or
you may bend or break the pins on the board.
CLASS I PLUGGABLE EQUIPMENT TYPE A:
- Apparatetsstikpropskaltilsluttesenstikkontaktmedjord,som giverforbindelsetilstikproppensjord
- Laiteonliitettävä suojakoskettimilla varustettuun pistorasiaan
- Apparatetmå tilkoples jordet stikkontakt
- Apparaten skall anslutas till jordat uttag

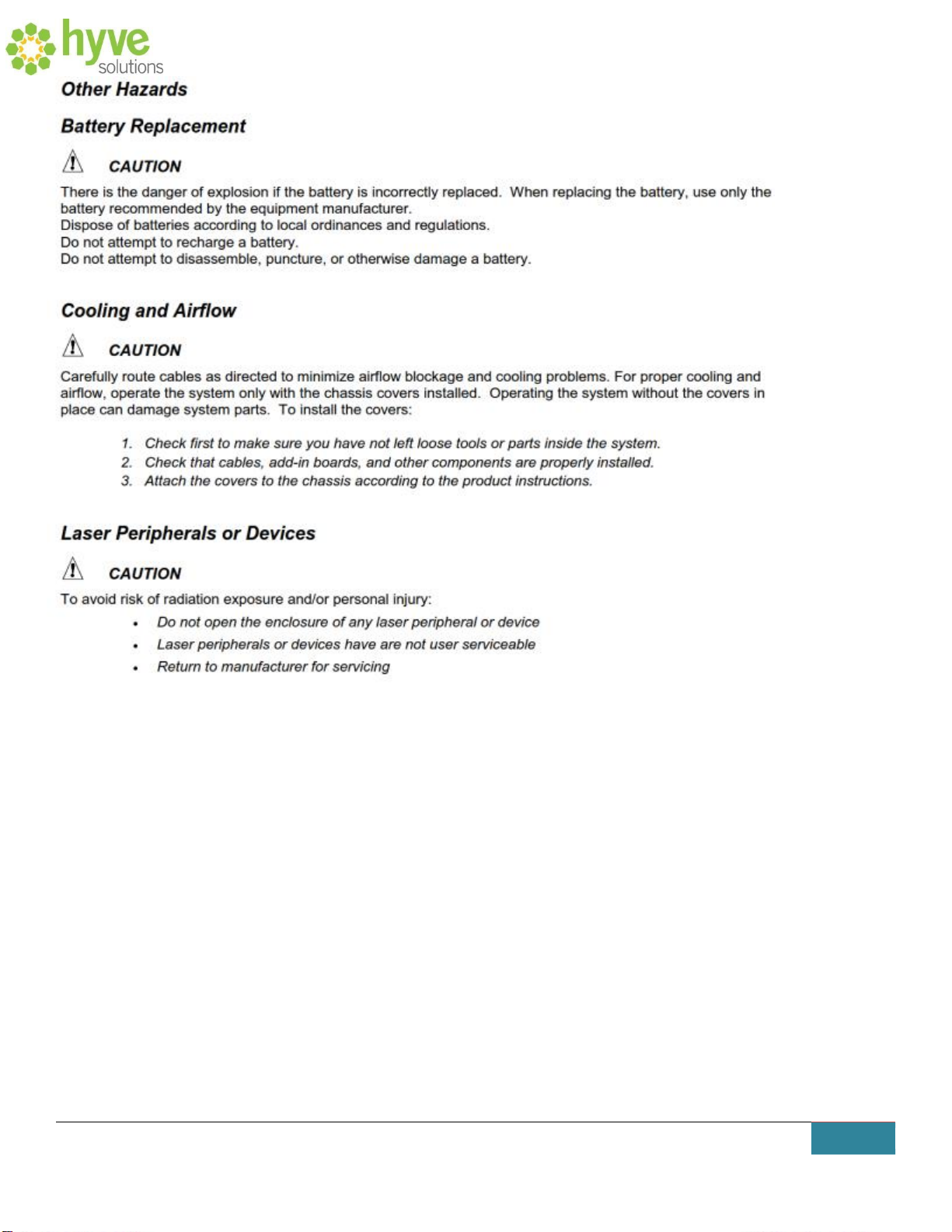

Caution
Battery:Lithiumbatteryincludedwiththisserver. Donotpuncture,mutilate,ordisposeofbatteryinfire. Youwillruntheriskofan
explosionifthebatteryisincorrectlyreplaced.Replaceonlywiththesameorequivalenttyperecommendedbythemanufacturer.
Disposeofusedbatteryaccordinglytothemanufacturer’s instructionsandinaccordancewithyourlocalregulation’s.
Service: Onlytrainedpersonnel’s shouldinstall,serviceorreplacepartsinthisserver. Theserverisforrestrictedaccessonly.
Power Supply: Thepowersupply inthisserverhasnouserserviceableparts. Ifthepowersupply isdefective,returntheunit for
service.
DC operated Server: Since this server is DC operated, it will be auto booted up when the server connects to DC power bus bar at
the back of Rack. The power button is provided on I/O panel for server ON-OFF services. For unscheduled service, unplug the
server from Rack will power off the server. For scheduled services, there are 2 ways to shut off the server DC power. The 1
st
way is
to press the power button for about 10 seconds for server to activate its power off sequence. The 2
nd
way is to issue a Linux
command to gracefully shut down the server for servicing.

HYVE SOLUTIONS|CONFIDENTIAL 14
Regulatory Compliance
FCC
Thisdevicecomplies withpart15oftheFCCRules. Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynot
causeharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesired operation.
VCCI
INDIA
“Self-declaration –conforming to IS XXXXX, R XXXXX”
CE
Complies to EN 55032, EN 552024 and EN 60950-1.
A级声明(Class-A Product Declaration)
本产品为A级ITE，在其使用说明,铭牌等显著位置中已包含如下内容的声明
We declare here that the subject product is Class-A ITE product, and the following statement is clearly marked in the user
manual and nameplate ：
BSMI
警告使用者：此為甲類資訊技術設備，於居住環境中使用時，可能會造成射頻擾動，在此
種情況下，使用者會被要求採取某些適當的對策。
声明
此为A级产品，在生活环境中，该产品可能会造成无线电干扰。在
这种情况下，可能需要用户对其干扰采取切实可行的措施。
WARNING
This is a Class-A product. In a domestic environment this
product may cause radio interference in which case the user
may be required to take adequate measures.

HYVE SOLUTIONS|CONFIDENTIAL 15
Additional Information
NCC
1. 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原
設計之特性及功能。
2. 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干
擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工
業、科學及醫療用電波輻射性電機設備之干擾。
除非安裝手冊或使用手冊中提及，否則請勿嘗試維修您的設備.永遠遵守安裝手冊及使用手冊的說明.
本產品測試時，使用額定電壓的+6%, -10%測試.
環境操作溫度35℃
有任何問題 請聯絡銷售商
或製造商 海峰電腦股份有限公司 臺北市內湖區堤頂大道2段301號7樓
Contact Manufacturer
Hyve Solutions Corporation
44217 Nobel Drive Fremont, CA 94538-3178,United States Of America
https://hyvesolutions.com/

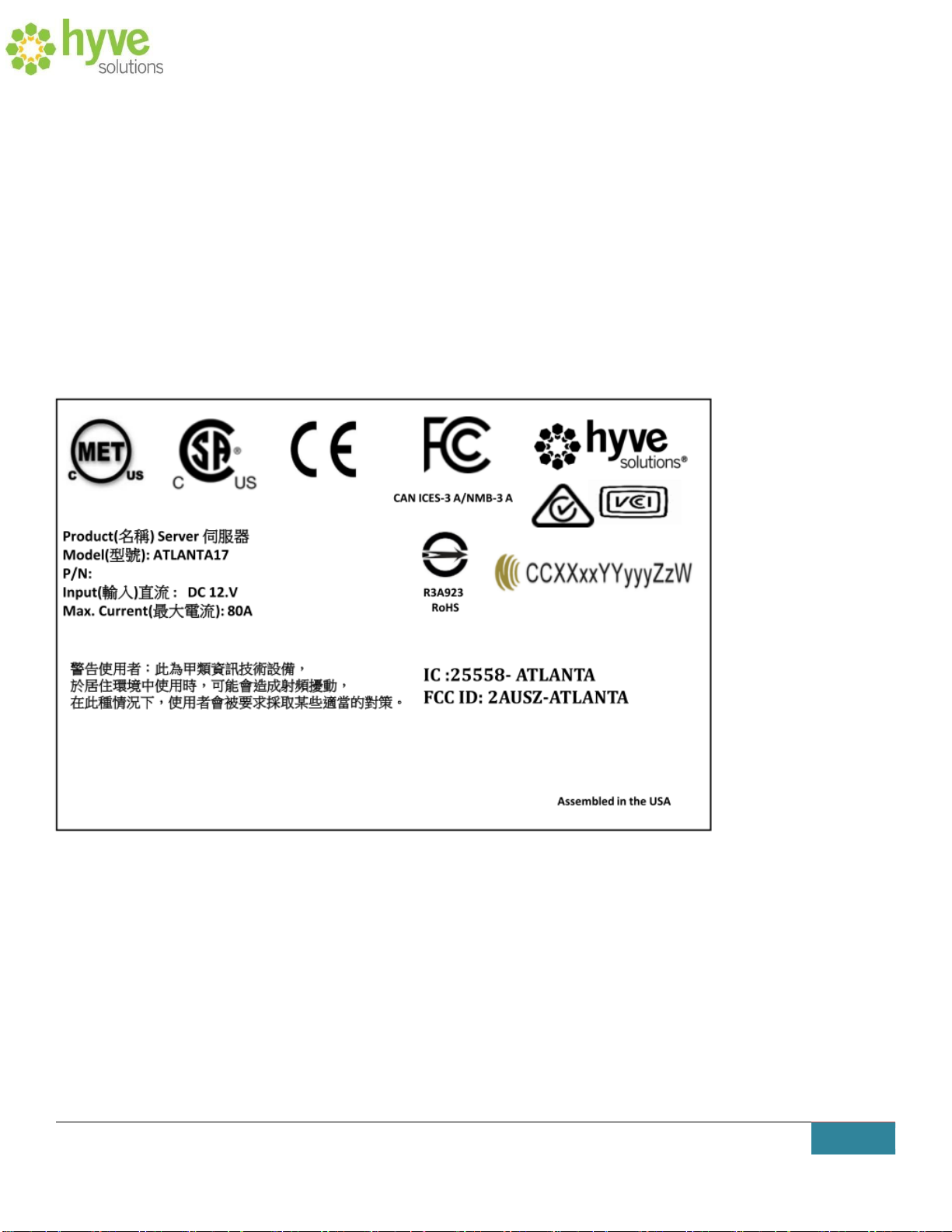

FCC ID:2AUSZ-ATLANTA
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.

HYVE SOLUTIONS|CONFIDENTIAL 16
IC:25558-ATLANTA
IC
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR
d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.

HYVE SOLUTIONS|CONFIDENTIAL 17
BSMI RoHS
設備名稱： 伺服器 ，型號（型式）： ATLANTA17, ATLANTAB1, ATLANTAB2, ATLANTA13,
ATLANTA14, ATLANTA15, ATLANTA16, ATLANTA10,
AQUILADSF,
單元Ｕnit
限用物質及其化學符號
鉛Lead
(Pb)
汞
Mercury
(Hg)
鎘Cadmium
(Cd)
六價鉻
Hexavalent
chromium
(Cr+6)
多溴聯苯
Polybrominate
d biphenyls
(PBB)
多溴二苯醚
Polybrominate
d diphenyl
ethers (PBDE)
Motherboard主機板
－
○
○
○
○
○
Chassis/Plate
機箱/擋版
○
○
○
○
○
○
Power Supply
電源供應器
－
○
○
○
○
○
Cable/Connector
電線/連接器
－
○
○
○
○
○
Storage-HDD
儲存裝置-硬碟
－
○
○
○
○
○
Fans/Heatsink
風扇/散熱片
－
○
○
○
○
○
備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準
值。
備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
備考3.〝－〞係指該項限用物質為排除項目。
Type designation (Type)
Equipment name
Restricted substances and its chemical symbols
Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance
exceeds the reference percentage value of presence condition.
Note 2：“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference
value of presence.
Note 3：The “−” indicates that the restricted substance corresponds to the exemption.

HYVE SOLUTIONS|CONFIDENTIAL 18

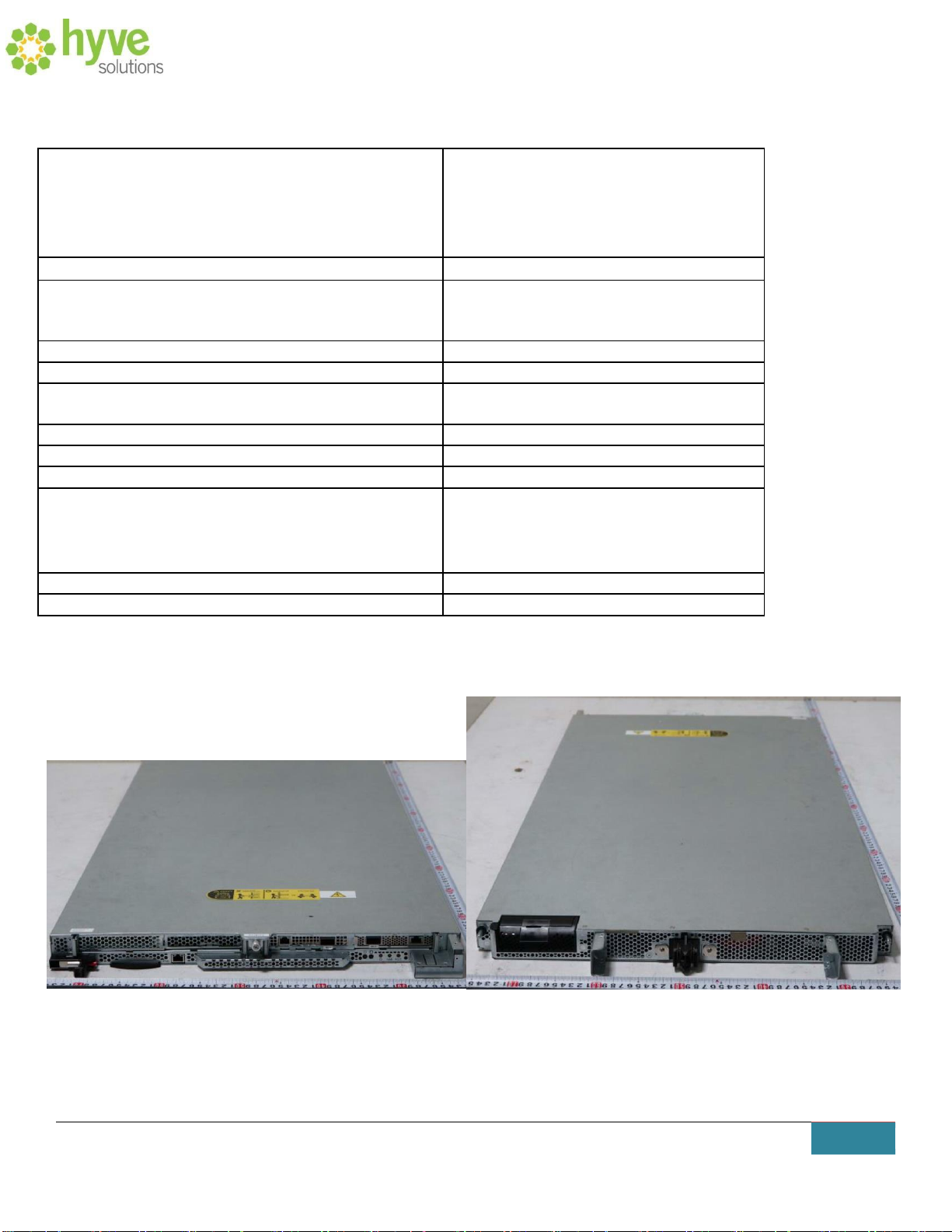

1.0 Model Specification Table
One Unit SERVER
MODLE NAME
ATLANTA17, ATLANTAB1,
ATLANTAB2, ATLANTA13,
ATLANTA14, ATLANTA15,
ATLANTA16 ,
AQUILADSF,ATLANTA10
M/B
MP-10033750-000
CPU
Xeon 8151 3.4G MAX4G,
LGA-3647(3647pins)
COUNT:2
DIMM
MTA36ASF4G72PZ-2G6E1S1*24
FAN
GF0412SS-03*10
SSD
PM883 240G SSD*1
PM983 7.68T*8
Card
K2X-AB*4
Card I/O
K2X-N
USB
USB 3.0 port*1
LAN
RJ45 MGMT PORT*1
(10 Mpbs/100Mpbs/1Gbps)
QSFP Port *2
RJ45 PORT*2(Used for Setting Function)
RF
NFC MODULE(13.56MHZ)
POWER input Form the external power supply
DC 12V/80A
The SERVER will be used the Rack.

HYVE SOLUTIONS|CONFIDENTIAL 19
I/O port
Part
Description
Mfr. P/N
RACK Powershelf
PSU
Delta PSU AC input :200-240V 9A 47-63Hz
DC Output :+12V 100A, +12VSB 2.5A
DPS-1200AB-14 A
VGA
PORT
RJ45 port(MGMT)
QSFP Port*2
USB 3.0 PORT
RJ45 Port
(Used for Setting Function)
RJ45 Port
(Used for Setting Function)

HYVE SOLUTIONS|CONFIDENTIAL 20
Rack View
When Power Shelf insert the RACK (INTO TO BUS Bar)
The Bus bar will have 12VDC
When server insert in the Rack Bus Bar, the one server will also get 12DV for trun on
