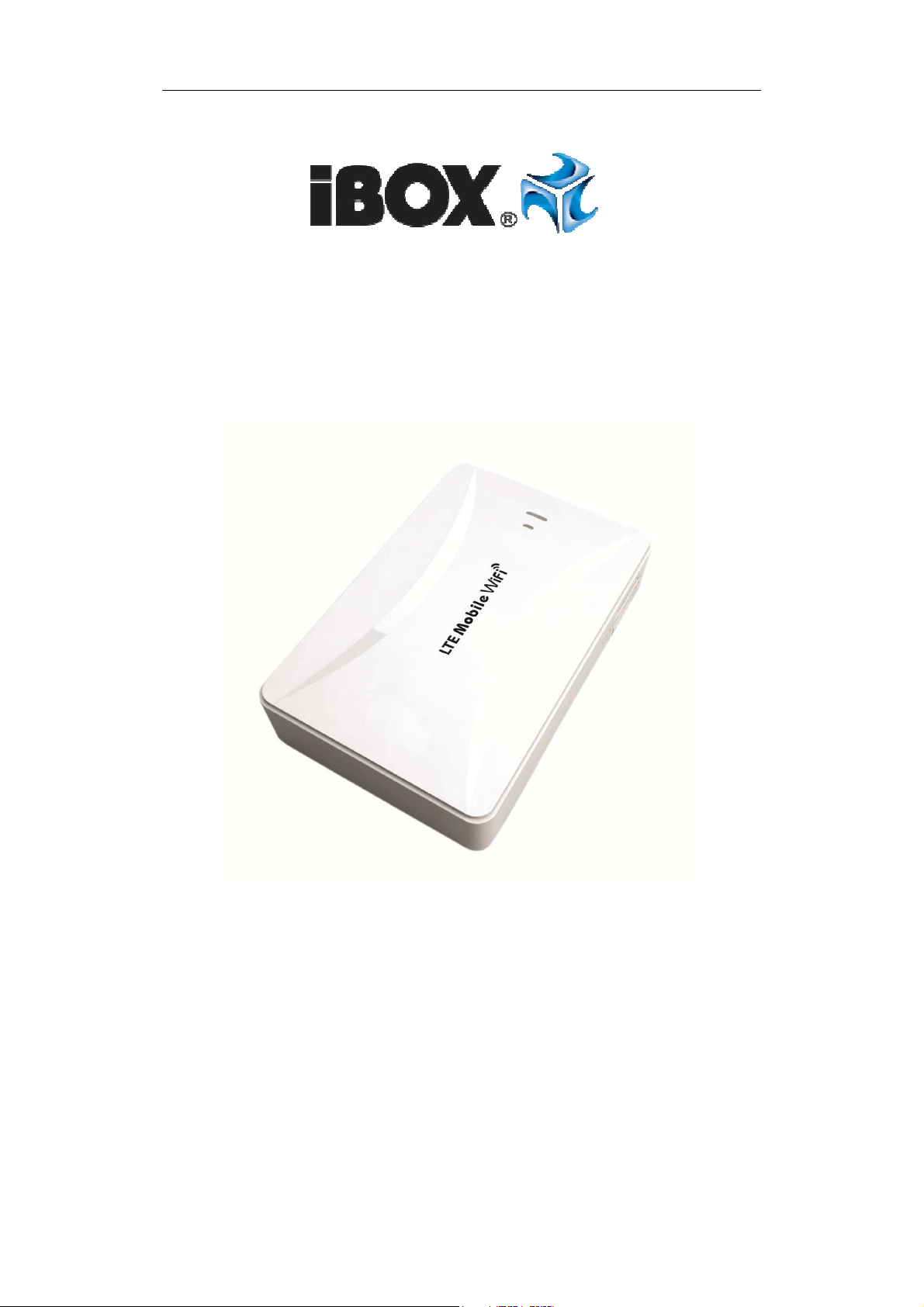

i-box ILRHMF960 User manual

iBOX LTE Mobile Router User Guide
www.ibox.eu
LTE Mobile Router
Installation Guide

iBOX LTE Mobile Router User Guide
www.ibox.eu
Appearance Description
1.Power Switch ON- -OFF
2. SIM ard Slot
3.WiFi Indicator
4. 3G/4G LTE onnection
5.External charging port
6. Reset hole
7. WAN/LAN
8.D charging port
9. harging indicator
10. Power indicator
11. Battery check button

iBOX LTE Mobile Router User Guide
www.ibox.eu
Description
Name Status Function Description
SIM ard
Slot For inserting SIM ard
Power
switch
ON start wireless router, switch to ON when access 3G, broadband
wireless
external charging mode. When charging the phone, it needs to
switch to
OFF turning off the wireless router
Battery
indicator
one light
on battery level is around 20%
two lights
on battery level is around 40%
three
lights on battery level is around 80%
four lights
on battery level is 100%, full power
System
indicator
Blue Blue light indicates network connection successfully.
Blue light flashing indicates dialing
Red 4G network is connected
Wi-Fi
indicator Flashing fastly means WiFi is transferring data
External
charging
port
USB Port is used for charging mobile phone or tablets; 5V/1A output
Reset hole
In the boot status, hold the R reset hole with a sharp object for 8 seconds. Let it go
after 8sthe router will restore the factory setting. All the configuration will be
cleared.
WAN/LAN It is for broadband network connection, and also the interface can be connected
with computer by network cable to access network
harging
indicator
When the router is under charging, the red light is on;It will be off when power is
full
D charging
port The port is for charging router; 5V/1A input

iBOX LTE Mobile Router User Guide
www.ibox.eu
LED Status
Item Name Status Description Function Introduction
1 Working
status
One blue
light,
one red light
Router
working
status
(1) the blue light is lit and the red is out, it means
3G or cable broadband has been connected to
internet;
(2) the blue light and red light are lit, it means 4G
is connected to internet ;
(3) the blue light is flashing slowly and the red one
is off, it means no SIM ard or the device didn't
connect to internet
2 Wifi
status one blue light
Wifi
working
status
the light is lit continuously, wifi is on;
the light is off, wifi is off;
the light is flashing, wifi data is transmitting
3 harging
indicator one red light
harging
working
status
it is charging, the red light is lit continuously;
It is charged, the red light is off
4
Power
level
indicator
four blue
lights
to show the
power level
represents the power level (probably) below 20%,
30%~45%, 60%~85%, 90%, four levels.
SIM Card Installation
1. Prepare the SIM ard which is in standard size, not the scissored mini card.
2. Put the SIM ard metal towards up and gently push the SIM ard to the SIM
Slot. It means installation successfully when you heard a sound of “ka”
Remove the SIM ard Operation
Gently push the SIM ard a little, then loose it completely, you can eject the SIM
ard
Scenario Description
1. 3G/4G Internet
The router supports 3G/4G wireless internet; it can transfer 3G/4G signal to 3G/4G
Wifi signal, make the wireless terminals like laptops, smart phones and tablets access
the network at the same time

iBOX LTE Mobile Router User Guide
www.ibox.eu
2. Fixed broadband internet access
onnect the router with ADSL modem, wired LAN or local area network or network
cable to achieve broadband internet access. It will transfer broadband signal to WiFi
signal. It is suitable for home and hotel broadband.
3. Power Bank. Router charging mobile phone
Router can be used as power bank and charge the smart phones, tablets.
harging process:
First, connect the smart phone and router by USB cable, switch to , the charging
starts. Output 5V/1A
Attention: Please don’t charge the router when it is charging the phone. If do them at
the same time, the battery life will be reduced. Some devices may be not be charged
when router is off, if so, please turn the router on, then charge them.
How to charge router
The red indicator is on when router is under charging; It will be off when the power is
full. 5V/1A or 2A charger will be recommended. It takes around 8 hours to make
router(5200mAh) full charged.

iBOX LTE Mobile Router User Guide
www.ibox.eu
Router onnection by Wi-Fi
Windows setting
lick the icon at the lower right corner of desktop, connect to the iBOX
hotspot, SSID: iBOX_XXXXXX The router has no encryption by default, double
click it to connect. Users can modify password on web management page.
 iOS setting
Select “Settings”-> “WLAN”, switch on WLAN and connect to the router WIFI
hotspot. SSID: iBOX_XXXXXX.
When a “√” shows in front of iBOX_XXXXXX, that means the terminal
connects to router successfully.

iBOX LTE Mobile Router User Guide
www.ibox.eu
 Android setting
Select “Settings”-> “WLAN”, switch on WLAN and connect to the router WIFI
hotspot. SSID: iBOX_XXXXXX.
Internet Setting
3G/4G internet access
1. Insert the SIM ard correctly
2. Turn on the router, it will connect 3G/4G automatically;
3. The blue light and red light are on, it means that 3G/4G connect successfully.
Smart phones and tablets can connect the router through WiFi and access internet.
Device IP address: 192.168.100.1
User name: admin
Password: admin
Broadband internet setting
1. onnect the broadband cable with router Ethernet port
2. For dynamic IP network, the router will get the IP address to access network
automatically without any setting. Usually, hotels and companies local area
network all have dynamic IP.
3. For the broadband, which have account and password. Please enter

iBOX LTE Mobile Router User Guide
www.ibox.eu
192.168.100.1 setting page, click “network>internet”, choose “ wired connection
mode”, then choose “ PPPOE”, and enter the correct account and password. The
router will restart.
4. Enter 192.168.100.1 again to check whether the broadband is connected
successfully.
Wireless encryption
Users can configure encryption by themselves. The router supports common WEP,
WPA-PSK/WPA2-PSK encryption standard. WPA-PSK is recommend. Detailed
process are as below:
1. onnect the router through wifi
2. Enter 192.168.100.1 setting page
3. lick the menu “ wireless network > wireless security”, choose “ WPA-PSK”
in the security mode. lick TLIP or AES in WPA list, type the password you
expected, then click confirm to finish the setting.
4. The new password is set up, wifi will be disconnected automatically. Users
need to refresh the network list and reconnect it.
AQ
1. Not detect the SIM ard
-check whether the SIM ard is installed properly
2. an not find router signal
-check the terminals’s WLAN whether is on
-check the distance between terminals and routers whether is far
-reset router
3. Already connected but fail to browse webpages.
-check whether the SIM ard is valid. If SIM ard is without balance, it is like this
situation.
4. Getting disconnected and internet slow
-check the device location and operator signal whether normal or not, if the signal is
weak, the network may be off.
-check the operating environment of the device. Poor ventilation can cause
overheating of the device
5. an not charge the mobile phone
-press T key to check the battery level.
-check the switch at or not
-try to change another USB cable

iBOX LTE Mobile Router User Guide
www.ibox.eu
For the safety of your data, we strongly suggest you turn on the
WiFi network security password encryption WPA2-PSK.
Please also setup configuration login user and password.
Instruction concerning environmental protection
Note : This device is labelled in accordance with European Directive 2002/96/WE and Polish Act on the Waste
Electrical and Electronic Equip ent (WEEE) with a WEEE sy bol (a crossed-out waste container).
This arking eans that this device, after beco ing out of use, cannot be placed together with other types of
household waste.
Note: this device cannot be placed together with unicipal waste !!! The product shall be disposed of in places
specially prepared for this purpose (separate collection).
Proper handling of waste electrical and electronic equip ent contributes to the avoidance of da aging
consequences for the health of the inhabitants and for natural environ ent which result fro the presence of
dangerous substances and i proper storage and processing of such devices and equip ent.
DECLARATION O CON ORMITY
I, the undersigned, a representative of the below entioned co pany:
Impet Computers Sp. z o.o.
ul. Marywilska 34
03-22 Warszawa
Hereby declare that the following product: iBOX Mobile router ILRHMF960
is co pliant with the European Union Directive 2004/108/EC, 2006/95/EC and Electro agnetic Co patibility Directive (2004/109/EC). The
following standards were applied:
EN 301 489-1 V 2.2.1(2012-09)
EN 301 489-17 V1.9.2(2011-09)
EN 300 328 V 1.7.1 (2006-10), EN 62311:2008
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
Warsaw, 30th Septe ber, 2014
Łukasz Do żalski
