Web Guide
WV-X86531-Z2
Ver 1.0

Contents
1. Unique features …………………………………………………………… 1
2. Set up ……………………………………………………………………… 2
2.1 Install on the ceiling ………………………………………………………… 2
2.1.1 Ceiling surface mount installation ………………………………………… 2
2.2 Wall pendant mount installation ……………………………………………… 2
2.3 Ceiling embedded mount installation ………………………………………… 2
2.4 Use the TILT adjusting lever to determine the shooting range …………… 3
2.4.1 Change the TILT adjustment angle ………………………………………… 3
2.4.2 Scope of shooting ………………………………………………………… 4
3. Connect to the camera …………………………………………………… 5
3.1 IP Setting Software ………………………………………………………… 5
3.2 Access the camera …………………………………………………………… 5
3.3 About live image pages ……………………………………………………… 8
3.3.1 Live image page in the multi part …………………………………………… 8
3.3.2 Live image page in the PTZ part …………………………………………… 9
4. Set the camera …………………………………………………………… 11
4.1 Check whether the object is of the appropriate size ……………………… 11
4.2 Hide some of the images …………………………………………………… 11
4.3 Adjust the image quality ……………………………………………………… 12
4.3.1 Set the light intensity control mode depending on the installation location and
installation area ……………………………………………………………… 12
4.3.2 Set white balance depending on the lighting environment you install …… 12
4.3.3 Sets night time black-and-white switching mode ………………………… 13
4.4 Recording setting (SD Memory Card) ……………………………………… 14
4.4.1 Install the SD Memory Card ………………………………………………… 14
4.4.2 Record using SD Memory Card …………………………………………… 14
4.4.3 Play back images stored on the SD Memory Card ………………………… 15
Contents
i

4.5 Set up events ………………………………………………………………… 15
4.5.1 Detect the movement of the object ………………………………………… 15
4.6 Set the integrateion between the PTZ and multi part ……………………… 16
4.6.1 AI-VMD and PTZ integration ……………………………………………… 16
4.6.2 Manual integration …………………………………………………………… 17
4.7 Enhance communication security …………………………………………… 17
4.8 Detect data falsification ……………………………………………………… 18
4.9 Set the resolution and frame rate …………………………………………… 18
4.10 Set the overlay image function …………………………………………… 18
4.11 Set the image stream ……………………………………………………… 19
4.11.1 About the Setting of Stream ……………………………………………… 19
4.11.2 About delivery volume control (bit rate) ………………………………… 19
4.11.3 Reducing Data Capacity with Smart Coding ……………………………… 20
4.12 i-PRO Configuration Tool (iCT) …………………………………………… 20
5. Set the camera (PTZ part) ……………………………………………… 21
5.1 Adjust the zoom/focus ……………………………………………………… 21
5.2 Hide some of the images …………………………………………………… 21
5.3 Display the angle, direction, magnification, etc. in the image ……………… 22
5.4 Set the camera operation …………………………………………………… 22
5.4.1 Limit the camera's operating range ………………………………………… 22
5.4.2 Move the camera automatically …………………………………………… 22
5.5 Identify sounds with AI ……………………………………………………… 24
5.6 Record sound ………………………………………………………………… 25
6. Setting Camera (Multi part) ……………………………………………… 26
6.1 Hide some of the images …………………………………………………… 26
7. Clean up …………………………………………………………………… 27
7.1 Cleaning of lenses …………………………………………………………… 27
7.2 Cleaning of Dome covers …………………………………………………… 27
8. Specifications ……………………………………………………………… 28
8.1 PC environment required …………………………………………………… 28
8.2 Image capture mode and Image capture size ……………………………… 28
Contents
ii

8.2.1 Resolution (PTZ part) ……………………………………………………… 29
8.2.2 Resolution (Multi part) ……………………………………………………… 30
8.2.3 Restrictions ………………………………………………………………… 30
8.3 DORI ………………………………………………………………………… 31
8.4 Delivery Performance (PTZ part) …………………………………………… 31
8.5 Delivery Performance (Multi part) …………………………………………… 32
8.6 About the Function Extension Software Available ………………………… 32
8.7 TILT adjusting lever ………………………………………………………… 33
8.8 Lamp ………………………………………………………………………… 34
8.9 Lighting of the lamp …………………………………………………………… 34
8.10 Button ……………………………………………………………………… 35
8.11 Cable ………………………………………………………………………… 36
8.12 MicroSD memory card slot ………………………………………………… 36
9. Other ……………………………………………………………………… 38
9.1 Initialize ……………………………………………………………………… 38
9.2 About 802.1X of this unit …………………………………………………… 38
9.3 Check the software version ………………………………………………… 38
9.4 Upgrade software …………………………………………………………… 39
9.5 Order of setting when adjusting image quality ……………………………… 39
9.6 Adjust brightness of the object (bright scene) ……………………………… 40
9.6.1 Adjust brightness …………………………………………………………… 40
9.7 Adjust the brightness of the object (dark scene) …………………………… 41
9.7.1 Adjust the maximum gain …………………………………………………… 41
9.7.2 Adjust the maximum exposure time ………………………………………… 41
9.8 Reduce white flickering and blacking on the screen ………………………… 42
9.8.1 Set Super Dynamic ………………………………………………………… 42
9.8.2 Set the back light compensation …………………………………………… 43
9.8.3 Set the high light compensation …………………………………………… 43
9.8.4 Adjust the adaptive black stretch ………………………………………… 44
9.8.5 Adjust the [Pedestal level] ………………………………………………… 44
9.9 Adjust the contrast of the object …………………………………………… 45
9.9.1 Adjust the contrast ………………………………………………………… 45
9.10 Reduce flicker ……………………………………………………………… 46
Contents
iii

9.11 Reduce the blur of an object (bright scene) ………………………………… 46
9.11.1 Set intelligent auto (motion priority level) ………………………………… 46
9.11.2 Adjust the maximum exposure time ……………………………………… 47
9.12 Redue the blur of an object (dark scene) ………………………………… 48
9.12.1 Adjust digital noise reduction ……………………………………………… 48
9.13 Sharpen the contour of the object ………………………………………… 48
9.13.1 Adjust the sharpness level ………………………………………………… 48
9.14 Adjust the color …………………………………………………………… 49
9.14.1 Adjust color density ……………………………………………………… 49
9.14.2 Adjust the white balance ………………………………………………… 49
9.15 Reduce object noise (bright scene) ………………………………………… 50
9.15.1 Adjust the sharpness level ………………………………………………… 50
9.16 Reduce object noise (dark scene) ………………………………………… 50
9.16.1 Adjust digital noise reduction ……………………………………………… 50
9.17 Troubleshooting …………………………………………………………… 51
9.18 Precautions pertaining to usage …………………………………………… 64
9.19 Disclaimer …………………………………………………………………… 66
9.20 Network security …………………………………………………………… 68
Contents
iv

・Only one LAN cable is needed for this camera.
・Some settings, such as IP addresses and administrator registrations, are required
for both the multi part and PTZ part.
1. Unique features
This unit is a Dome surveillance cameras used outdoors.
・ The PTZ camera (hereinafter referred to as the "PTZ" part) is mounted in the center, and
several Multi-directional cameras are mounted in the vicinity of the camera to adjust the tilt.
・ By configuring and coordinating the IP addresses of the multi part and PTZ part, the IP
addresses of the multi part and PTZ part can be linked and controlled.
・ The AI function reduces the load on the entire system by identifying objects (people/vehicles)
and analyzing images.
・ You can install up to six AI apps (four in the multi part and two in the PTZ part) freely.
The default IP address for each camera without a DHCP server.
1. Unique features
1

Please refer to the following manual for details of installation.
Installation Guide
2. Set up
2.1 Install on the ceiling
2.1.1 Ceiling surface mount installation
The URL of the movie is as follows.
https://youtu.be/9ZTSky907Mk
2.2 Wall pendant mount installation
The URL of the movie is as follows.
https://youtu.be/gA7UGfgKpEY
2.3 Ceiling embedded mount installation
The URL of the movie is as follows.
https://youtu.be/mlydWrxWycA
2. Set up
2.3 Ceiling embedded mount installation
2

・The factory shipping position is [M].
・Depending on the improvement of the product, the appearance may differ from the
actual product to the extent that it does not affect the product operation.
After adjusting the angle with the TILT adjusting lever, change the [Tilt adjustment
lever position] on the camera-side screen to apply the adjusted angle to the PTZ.
Positioning accuracy may be affected by clicking or centering movement.
2.4 Use the TILT adjusting lever to determine the shooting
range
The TILT adjusting lever allows you to change the TILT angle of all multi part cameras
simultaneously.
When operating the TILT adjustment lever, slide it to the right and left with the lever pinched and
raised slightly. The multi part cameras move in the TILT direction. For the TILT adjustment
lever, refer to the following.
→8.7 TILT adjusting lever
2.4.1 Change the TILT adjustment angle
The TILT adjustment lever can change the angle of the multi part cameras to the following three
levels. The angle of tilt of the camera relative to ceiling and horizontal conditions is shown.
Refer to the installation video for the TILT adjustment lever operation.
→2. Set up
・ [N](Near):47°
・ [M](Middle):40°
・ [F](Far):33°
(1) Slide the TILT adjustment lever to the right and left by lifting the lever with your finger.
・ Slide to the right to adjust to the angle of [N]. Use to shoot near areas.
・ Slide to the left to adjust to the angle of [F]. Use to shoot far areas.
2. Set up
2.4 Use the TILT adjusting lever to determine the shooting range
3

[F] [M] [N]
Shooting range Infinite (whole area) Radius 53.4 m（175.2 ft） Radius 20.6 m （67.6 ft）
Dead angle Radius of 2.4 m（7.9 ft） Radius of 1.6 m（5.2 ft） Radius of 0.8 m（2.6 ft）
[F] [M] [N]
Shooting range Infinite (whole area) Radius 15.3 m（50.2 ft） Radius 5.9 m（19.4 ft）
Dead angle Radius of 1.2 m（3.9 ft） Radius of 0.8 m（2.6 ft） Radius of 0.4 m（1.3 ft）
2.4.2 Scope of shooting
This section describes the range of shooting with each TILT angle.
2.4.2.1 Installation height: 6 m
2.4.2.2 Installation height: 3 m
2. Set up
2.4 Use the TILT adjusting lever to determine the shooting range
4

Refer to the following for details on the IP Setting Software.
→Click here for more information on the IP Setting Software
3. Connect to the camera
3.1 IP Setting Software
Cameras or recorders on the same network can be automatically detected and set up in the
network.
3.2 Access the camera
(1) Launch an IP Setting Software
・ The model number and MAC address of the detected camera are displayed.
・ The default setting for the [Network Settings] of the PTZ and multi parts is [DHCP].
(2) Double-click the camera's IP address
・ The browser starts and the administrator registration screen is displayed.
・ Double-click the IP address of the PTZ part and the IP address of the multi part.
Administrator registration is required for each camera.
3. Connect to the camera
3.2 Access the camera
5

(3) Enter administrator username and password
・ Enter the username and password in both the PTZ and multi parts.
・ When [Set both cameras] is checked, the information entered in either the PTZ part or the
multi part is set to both cameras.
3. Connect to the camera
3.2 Access the camera
6

(4) Set the language, date and time, and screen
・ You can set the language and date and time and change the background color of the screen
and the layout of the operation panel.
(5) Click [Set]
・ The Installation Settings window is displayed.
3. Connect to the camera
3.2 Access the camera
7

(6) Select the position of the TILT adjustment lever set when the camera is installed.
・ Live image pages are displayed.
3.3 About live image pages

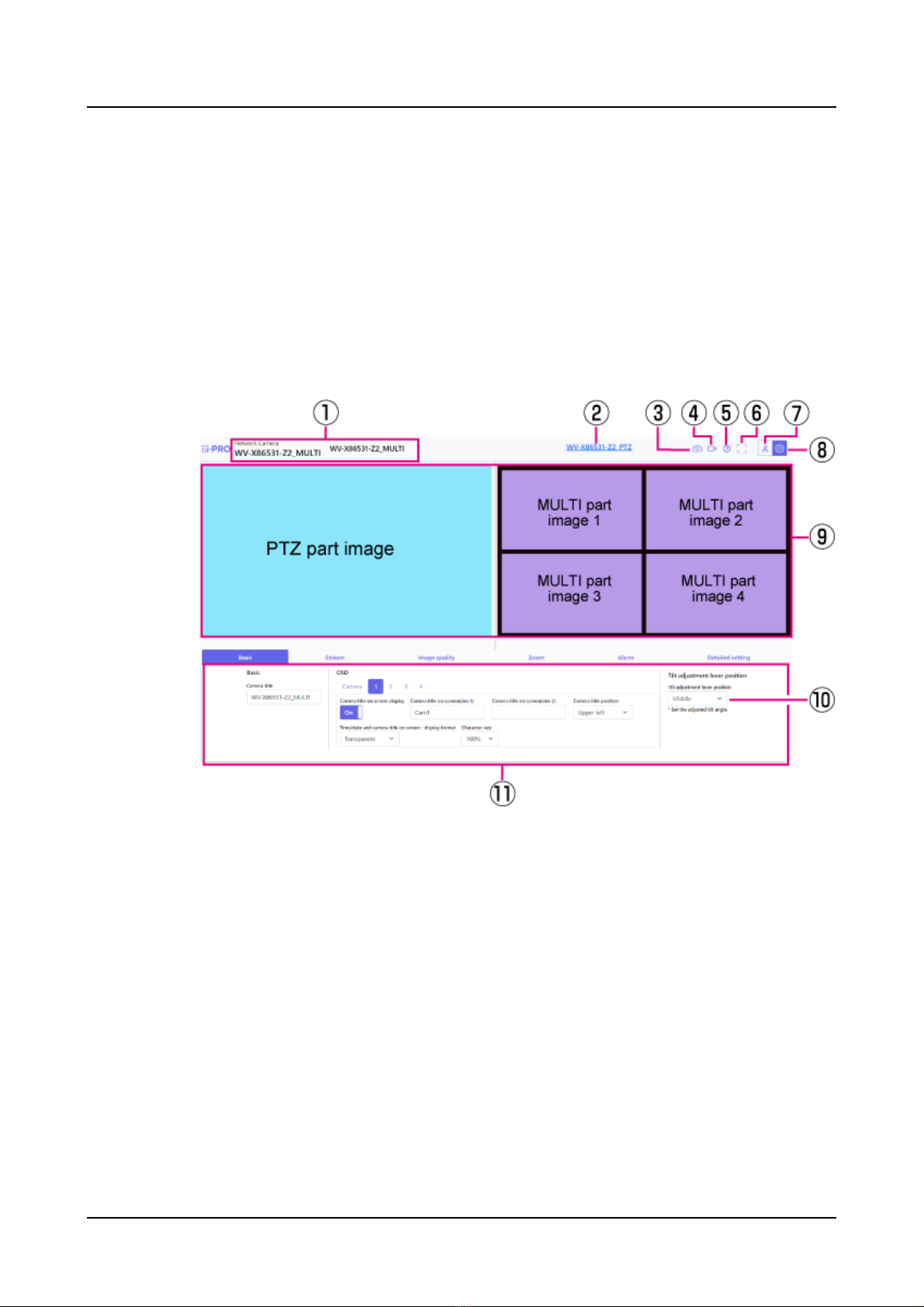

3.3.1 Live image page in the multi part
① The currently selected camera is displayed.
② PTZ part switching button
③ Snapshot button
④ Stream selection display button
⑤ Support button
⑥ Full Screen View button
⑦ Camera control panel display button
⑧ [Set] button
⑨ Main area
⑩ [Tilt adjustment lever position] can be used to change the position of the TILT levers.
⑪ Basic settings are available on the [Basic] tab.
3. Connect to the camera
3.3 About live image pages
8

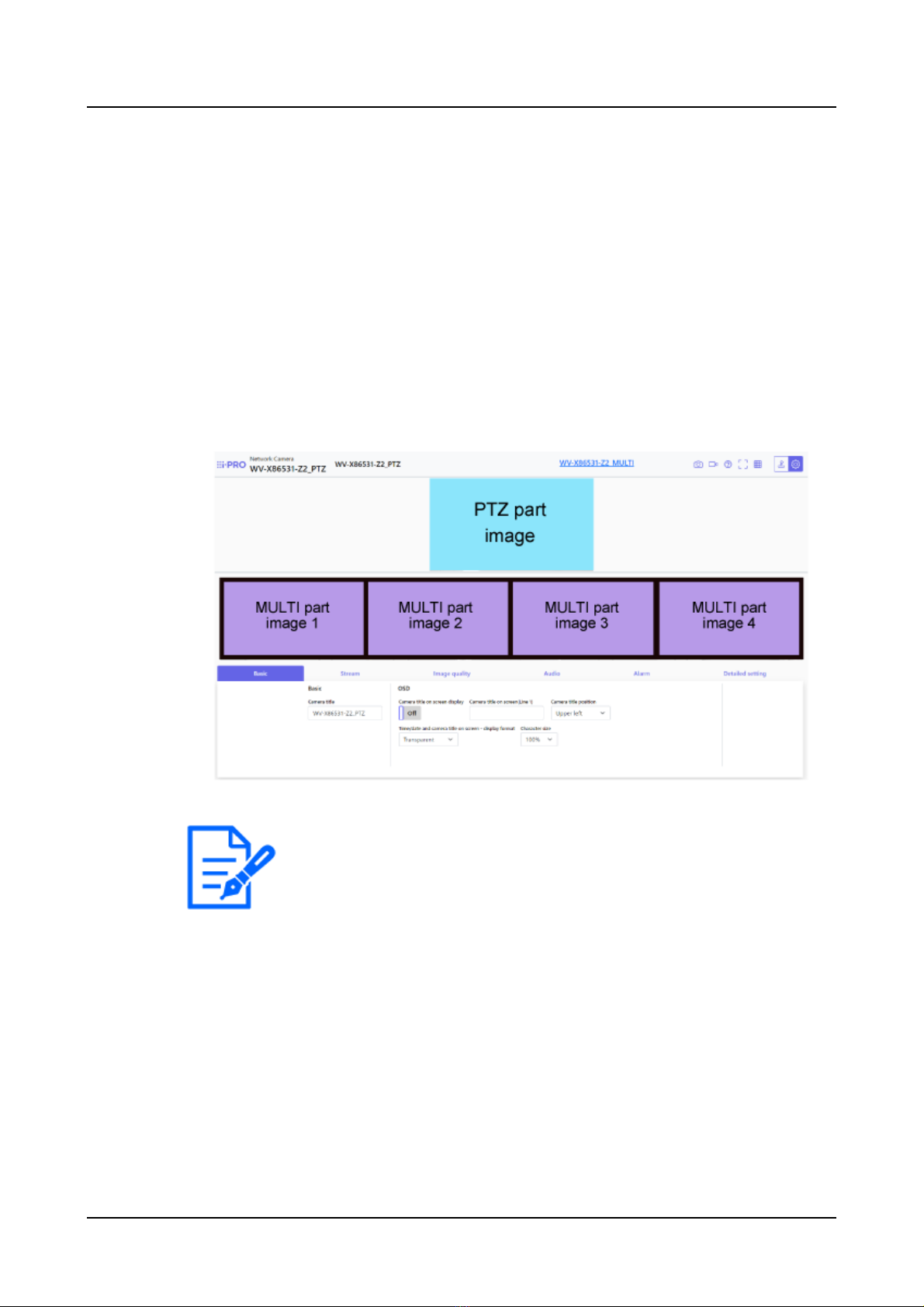

When the layout is [Up/Down] (multi part)
3.3.2 Live image page in the PTZ part
① The currently selected camera is displayed.
② Multi part switching button
③ Snapshot button
3. Connect to the camera
3.3 About live image pages
9

If you set the layout for both the PTZ and multi part live images, you should use
only one browser for viewing. If you use multiple browsers, the operation may
become unstable.
④ Stream selection display button
⑤ Support button
⑥ Full Screen View button
⑦ [Grid display] button
⑧ Camera control panel display button
⑨ [Set] button
⑩ Main area
⑪ Basic settings are available on the [Basic] tab.
When the layout is [Up/Down](PTZ part)
3. Connect to the camera
3.3 About live image pages
10

4. Set the camera
4.1 Check whether the object is of the appropriate size
When using our function extension software, you can check the number of grids to see if the size is
adequate to recognize the object.
→For more information about the recommended size of the extension software
4.2 Hide some of the images
You can set the area you do not want to display during shooting as a privacy zone.
・ See the following for how to set up the PTZ part.
→5.2 Hide some of the images
・ Refer to the following for the setting method of the multi part.
→6.1 Hide some of the images
4. Set the camera
4.2 Hide some of the images
11

[Fix shutter] is not used under normal circumstances.
4.3 Adjust the image quality
This section explains how to adjust the image quality when installing the camera.
4.3.1 Set the light intensity control mode depending on the installation location and
installation area
Use [Light control mode] to set the light intensity appropriate for the installation location and
area.
➣ Live image page setup panel>Clicking the [Image quality] tab enables you to set the image
quality.
(1) Select [Light control mode]
- For outdoor installation: Set [Outdoor scene] or [ELC].
- For indoor installation: Set [Indoor scene(50Hz)] or [Indoor scene(60Hz)].
50 Hz/60 Hz can be used differently depending on the region.
4.3.2 Set white balance depending on the lighting environment you install
Use [White balance] to set the white balances appropriate for the installation location and area.
➣ Live image page setup panel>[Detailed setting]>[Camera detailed setting]>[Image] or
[Image/Audio] in the Advanced menu on the left>[Image adjust] in the [Image quality] tab>
Click [Setup] to display the image quality adjustment setting screen.
(1) Select [White balance]
・ Select from [ATW1], [ATW2], and [AWC].
[ATW1]
Set the automatic color temperature tracking mode. The camera continuously checks the color
temperature of the light source and automatically adjusts the white balance.
operating range is about 2700 K to 6000 K.
4. Set the camera
4.3 Adjust the image quality
12

Colors may not be reproducible faithfully in the following conditions. In such cases,
set it to [AWC].
・Mostly dark colored objects
・Clear blue sky or the sun at dusk
・Object with very low illumination
[ATW2]
Set the automatic color temperature tracking mode. The camera automatically adjusts the white
balance under a sodium lamp.
The operating range is from about 2000 K to 6000 K.
[AWC]
Set the automatic white balance control mode. Since the light source is fixed, it is suitable for
shooting in a place where the lighting environment does not change.
The operating range is from about 2000 K to 10000 K.
4.3.3 Sets night time black-and-white switching mode
Use [Choose black-and-white] to set the mode suitable for night shooting conditions.
➣ Live image page setup panel>Clicking the [Image quality] tab enables you to set the image
quality.
(1) Select [D&N]
・ Select from [Off], [Auto1(Normal)], and [Auto2(IR Light)].
[Off]
This function is used for shooting colored images at night as well.
[Auto1(Normal)]
The color image and black-and-white image are automatically switched depending on the
brightness (illumination) of the image. Select this when IR-LED is not used.
[Auto2(IR Light)]
The color image and black-and-white image are automatically switched depending on the
brightness (illumination) of the image. Select this when using the IR-LED.
4. Set the camera
4.3 Adjust the image quality
13

Use the SD Memory Card formatted on this unit.
To remove the SD Memory Card, select [SD memory card] [Not use] from the
[Basic] > [SD memory card] tabs in the Advanced menu. Then, turn the power off
and remove the SD Memory Card.
4.4 Recording setting (SD Memory Card)
4.4.1 Install the SD Memory Card
(1) Remove the enclosure
(2) Insert a microSD memory card into the slot
4.4.2 Record using SD Memory Card
Set the schedule type to [SD memory recording] and record on an SD. This section describes the
procedures for turning [Save trigger] to [Manual save].
Refer to the following for how to mount the SD card.
→4.4.1 Install the SD Memory Card
➣ Live image page setup panel>[Detailed setting]>[Camera detailed setting]>[Display]>
Advanced Menu>[Basic]>When [SD memory card] is clicked, the SD Memory Card setup
page is displayed.
(1) Select [Recording format] streams
(2) Select [Save trigger] and click [Set].
(3) Click [Live] in the upper left corner and click the camera control panel button.
・ The camera control panel is displayed.
(4) Click [Start] on [Rec. on SD]
・ Start recording to the SD Memory Card manually.
・ You can stop recording by clicking [Stop]. After stopping, you can resume recording by
clicking [Start].
4. Set the camera
4.4 Recording setting (SD Memory Card)
14

・The SD Memory Card cannot be used when the imaging mode of the PTZ is [16:9
mode (60 pfs mode/50 fps mode)].
・There are separate SD Memory Cards and Setting windows for the multi and PTZ
part.
・Refer to the User manual for the event setup procedure.
・Refer to the User manual for instructions on how to configure Internet disclosure.
4.4.3 Play back images stored on the SD Memory Card
You can play back images stored on the SD Memory Card.
➣ Camera control panel of the live image page>Clicking [Playback of recording (Log disp.)]
displays the log list.
(1) Display the live image page and click the camera control panel button.
(2) Click the [Log/Play] [Start] button
・ The Log List screen is displayed in a separate window.
(3) Click the shooting date and time displayed below [Time]
・ The playback page is displayed and the saved image is played.
4.5 Set up events
You can set an alarm to detect the operation of an area, interference to the camera, and noise, or
set the operation when an alarm is detected.
➣ Live image page setup panel>[Detailed setting]>[Camera detailed setting]>[Set]>Advanced
Menu>[Easy Setup]>Clicking on the [Event action] tab displays the configuration page.
4.5.1 Detect the movement of the object
When an alarm is activated, the camera operates as configured. The alarm has a pattern that
detects the movement of the specified area or when the camera is blocked.
➣ Live image page setup panel>[Detailed setting]>[Camera detailed setting]>[Display]>
Advanced Menu>Clicking [Alarm] displays the configuration page.
4. Set the camera
4.5 Set up events
15
