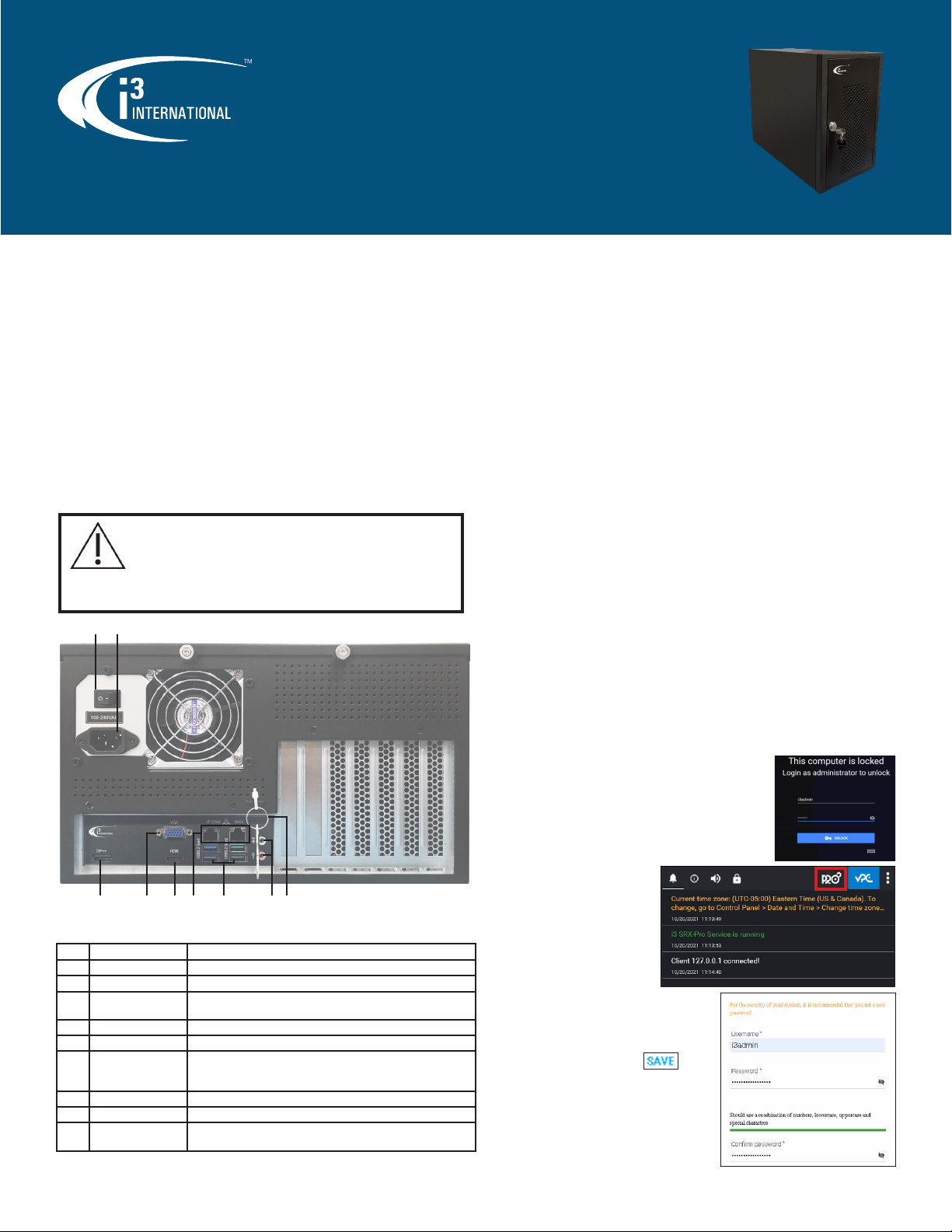

i3 International SRX-Pro Server User manual

i3-TRNG-DVR-UR_QSG.indd Rev. 220801
Thank you for purchasing i3 International’s UR-series NVR. Your UR NVR comes pre-
installed with i3’s flagship SRX-Pro software and i3Ai software. Purchase enough IP
licenses and i3Ai licenses for your desired solution.
SAFETY
When installing your UR-series NVR, be sure to:
• avoid excessive heat, such as direct
sunlight or heating appliances
• avoid contaminants (e.g. dust, smoke)
• strong magnetic fields
• avoid moisture and humidity
• avoid areas with mechanical vibrations
• avoid temperatures below 10°C (50°F) and
above 30°C (86°F).
• use VW-1 or FT-1 cables only
POWER SUPPLY
UR Power consumption requirements: 100~240VAC.
PACKAGE CONTENTS
Ensure that the items received match the following. In addition to this Quick Guide and the
UR NVR, the packing box includes:
1. USB keyboard + mouse (x1)
2. Power cable (x1) 3. DP++ to HDMI cable (x1) 4. Security label (x1)
INSTALLATION
UR-Ai series comes with a 4.5U tower chassis that can be wall- or rack-mounted with a
purchase of the optional mounting accessories.
Follow all safety precautions when selecting an installation location for your NVR.
Reminder: Use i3 approved HDD models only (Western Digital Gold and Ultrastar).
Tip: Ensure the NVR is within 1 meter (3 feet) from the UPS and the NVR and its
cables have sufficient space. The system must be placed on an even surface
(shelf or Rack mount).
1. Turn the Power Switch (#1) to the OFF position.
2. Plug the USB mouse and the USB keyboard into the USB ports (#3).
3. Plug the VGA (#4), DP++ (#5), or HDMI (via cable provided) monitor.
4. Plug IP cameras into a Gigabit Switch and connect to IP CAM RJ45 port (#6).
5. Use the RJ45 Ethernet port labeled WAN (#6) to connect NVR to the network.
6. Plug in the supplied power cable into the AC Power In port (#2) and connect the
NVR to an Uninterrupted Power Supply (UPS).
Note: Uninterrupted Power Supply usage is mandatory for the reliability and
longevity of your NVR. Failure to use UPS may void your factory warranty.
7. Return the Power Switch (#1) into the ON position. The NVR will then power on. If
not, press the Power button located on the front panel of the NVR.
RACK MOUNT INSTRUCTIONS
1. Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack environment may be greater than
room ambient. Therefore, consideration should be given to installing the equipment
in an environment compatible with the maximum ambient temperature (Tma)
specified by the manufacturer.
2. Reduced Air Flow - Installation of the equipment in a rack should be such
that the amount of air flow required for safe operation of the equipment is not
compromised.
3. Mechanical Loading - Mounting of the equipment in the rack should be such that a
hazardous condition is not achieved due to uneven mechanical loading.
4. Circuit Overloading - Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits might
have on overcurrent protection and supply wiring. Appropriate consideration of
equipment nameplate ratings should be used when addressing this concern.
5. Reliable Earthing - Reliable earthing of rack-mounted equipment should be
maintained. Particular attention should be given to supply connections other than
direct connections to the branch circuit (e.g. use of power strips).
FIRST STARTUP
Your UR NVR is running Windows 10 IoT OS and comes pre-
installed with the latest version of SRX-Pro software.
As part of the first startup, you will need to:
A. Set a new administrative password.
B. Ensure the Time Zone is configured correctly.
Set New Admin Password
When the NVR first boots up, you
will see the Windows Lock Screen
1. Unlock the NVR with default
credentials.
Username: i3admin
Password: i3admin
2. Click PRO icon in the SRX-Pro
monitor utility to open SRX-Pro Setup in a
web browser.
3. Set the new administrative password for
i3admin username and click .
Follow suggested password guidelines for a
strong password.
Keep your new password secure.
Note: Unmarked components are not in use.
No. Item Description
1Power Switch Power ON/OFF
2AC Power In AC Power in Port
3DP++ 1x Dual-Mode DisplayPort++ port (4K monitors
supported)
4VGA 1x VGA video output
5HDMI 1x HDMI port (4K monitors supported)
6Network Port 2x RJ45 10/100/1000 Mbps Ethernet interface IP CAM - connect to the IP Camera network
WAN - connect to the Internet (WAN) network
8USB 3.2 2x USB 3.2 Gen1; 2x USB 3.2 Gen2 interfaces
8Audio IN/OUT Audio Input / Output, Mic Level, 3.5mm
9Keys Front panel keys. Tip: Lock the front panel to restrict
access to storage hard drives.
i3Ai / SRX-Pro Server
UR5-Ai/URX-Ai
Quick Start Guide
12
3 4 5 6 8 79
CAUTION: Risk of Explosion if Battery is replaced by an Incorrect Type.
Dispose of Used Batteries According to the Instructions.
ATTENTION: Risque d’explosion si la batterie est remplacée par un type incorrect.
Mettre au rebus les batteries usagées selon les instructions.
Equipment is intended for installation in Restricted Access Area.
Les matériels sont destinés à être installés dans des EMPLACEMENTS À ACCÈS RESTREINT
The inside of the equipment is intended for service access only.

QUICK START GUIDE
i3 INTERNATIONAL INC. 1.866.840.0004
www.i3international.com
UR5-Ai / URX-Ai, i3Ai/SRX-Pro Server
ADJUST THE TIME ZONE
All NVR units sold by i3 international are pre-set to Eastern Time zone (UTC -5:00). If
your NVR is in a different time zone, you must set the correct time zone on the first
system start up.
If the NVR is later re-located to a different time zone, this setting must be changed
again. All previously-recorded data must be formatted after each time zone change.
Failure to do so may result in system malfunction.
To change your NVR time zone, unlock the NVR first, then Go to Start menu and type
Control Panel. In Control Panel, click Date and Time > Change time zone...
Set your NVR’s Time zone from the drop-down menu and click OK.
ADD VIDEO INPUTS to SRX-PRO v7
Make sure to set unique IP address to every IP camera/encoder before adding it to SRX-Pro
v7. Use i3’s ACT (Annexxus Configuration Tool) utility for i3 cameras and encoders. ACT is
pre-installed on your NVR.
1. Launch i3 Pro Setup from the Desktop or from the SRX-Pro Monitor.
2. Enter your administrator Username and Password and click LOGIN.
3. Click the Add tile.
4. If using SRX-Pro v.7.1, find your cameras in the list of UNASSIGNED CAMERAS.
You may need to click REFRESH.
If using SRX-Pro v.7.2 and above, click SEARCH and
wait until your cameras are discovered.
5. Enter correct login credentials for all devices with “Login failed” symbol
(if any).
Select all “Login failed” devices that share login credentials and click .
6. Enter device’s Username and Password and click
Green checkmark indicates that the camera/encoder is ready to be added.
7. Select all devices with a green checkmark and click .
Your cameras/encoders have now been added and are set to record based on Sensor +
Motion schedule.
Or
QR Code for Complete
User Manual and ACT
Scan this QR code or visit ftp.i3international.com to view
and download Annexxus Configuration Tool (ACT) and
additional documentation.
Contact our Technical Support team at: 1.877.877.7241 or
[email protected] if you have any questions
or concerns regarding camera installation or if you require
software services or support.
LINKING SRX-PRO SERVER to i3AI SERVER
When running i3Ai Server on the same NVR as the SRX-Pro Server, or on a
different unit on the same network, an active connection between the two must
be established.
1. In i3Ai Server, add one or more cameras and configure as needed. Make a note
of the camera’s IP address.
2. In SRX-Pro Setup, go to Cameras.
3. Use the search field to fine a camera already added to the i3Ai Server. Use
camera IP address, name, model or other identifying information.
4. Click on the camera thumbnail and
go to i3Ai setup tab.
5. Click on the Connect i3Ai toggle to
turn it ON.
LIVE VIDEO
Use Video Pilot Client application (pre-installed on your NVR) to view Live video and
to Search/Backup recorded video.
1. Launch i3 Video Pilot Client from the Desktop or from the SRX-Pro Monitor.
2. Mouse over localhost tile and click Connect.
3. Login using SRX-Pro administrative or user credentials
If using Guest account to view Live localhost video, you must Login before
being able to Search or Backup video. To protect the security of your system,
Logout when done.
Tip: To view Live video instantly using Guest account,
go to SRX-Pro Setup > Server > User
management > User groups and edit the Idle
group. In Permissions, expand Live - Search - Backup
drop-down and enable Live mode for all or
select cameras.
• Double-click on any channel to bring it into Full Screen mode.
• Hover over any channel to see on-screen control panel.
• Click on the screen division icon to change current display mode.
• Use the Search bar to quickly locate camera by camera name, model or IP.
Or
6. In i3Ai information,
A. If the i3Ai server is installed on
the same NVR as SRX-Pro server,
select Ai server (localhost).
B. If the i3Ai server is installed on a different unit on the network, click ADD,
fill out the i3Ai server connection information and click ADD again.
6B
6A
7. When done, click . Wait until the
Status changes to CONNECTED.
