iBell Tools EB60-69 User manual

1

2
1. GENERAL SAFETY WARNINGS _________________________
2. ELECTRIC BLOWER SAFETY WARNINGS _______________
3. PRODUCT OVERVIEW _________________________________
4. PRODUCT SPECIFICATIONS ___________________________
5. SETUP ________________________________________________
6. GENERAL OPERATION ________________________________
7. TROUBLESHOOTING __________________________________
TABLE OF CONTENTS
IBL EB 60-69
3
6
7
8
9
10
13

3
Do not operate blowers in explosive atmospheres, such as in
the presence of flammable liquids or gases
Keep work area well lit.Cluttered or dark areas invite accidents.
Keep children and bystanders away while operating a blower.
Distractions can cause you to lose control.
Do not abuse the cord. Never use the cord for carrying, pulling
or unplugging the blower. Keep it away from heat, oil, sharp
edges or moving parts.
Blower plugs must match the outlet. Never modify the plug in
any way. Modified plugs and un-matching outlets will increase the
risk of electric shock.
Avoid body contact with earthed or grounded surfaces. There is
an increased risk of electric shock if your body is earthed or
grounded.
Do not expose blowers to rain or wet conditions. Water entering
a blower will increase the risk of electric shock.
When operating a blower outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
GENERAL SAFETY WARNINGS
WARNING! Read all safety warnings, instructions,
illustrations and specifications provided with this product.
Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury. Save all warnings and
instructions for future reference.
WORK AREA SAFETY
ELECTRICAL SAFETY
IBL EB 60-69

4
Use personal protective equipment. Always wear eye protection.
Protective equipment such as a dust mask, non-skid safety shoes,
hard hat, or hearing protection used for appropriate conditions
will reduce personal injuries.
Stay alert, watch what you are doing and use common sense
when operating a blower. Do not use a blower while you are tired
or under the influence of drugs or alcohol. A moment of inattention
while operating blowers may result in serious personal injury.
Prevent unintentional starting. Ensure the switch is in the off-
position before connecting to power source and/or battery pack,
picking up or carrying the tool.
Do not overreach. Keep proper footing and balance at all times.
This enables better control of the blower in unexpected situations.
Dress properly, say no to loose clothing or jewellery. Keep your
hair, clothing away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected and
properly used.
Have your blower serviced by a qualified repair-person using
only identical replacement parts.This will ensure that the safety
of the blower is maintained.
When servicing a blower, use only identical replacement parts.
Follow instructions in the maintenance section of this manual. Use
of unauthorized parts or failure to follow maintenance instructions
may create a risk of shock or injury.
PERSONAL SAFETY
IBL EB 60-69
SERVICE

5
Do not force the blower. Use the correct blower for your
application. The correct blower will do the job better and safer at
the rate for which it was designed.
Do not use the blower if the switch does not turn it on and off.
Any blower that cannot be controlled with the switch is dangerous
and must be repaired.
Disconnect the plug from the power source and/or the battery
pack from the blower before making any adjustments, changing
accessories, or storing blowers. Such preventive safety measures
reduce the risk of starting the blower accidentally.
Store blowers out of the reach of children and do not allow
persons unfamiliar with the blower or these instructions to
operate the blower. Blowers could be dangerous.
Keep handles and grasping surfaces dry, clean and free from oil
and grease. Slippery handles and grasping surfaces do not allow
for safe handling and control of the tool in unexpected situations.
Even if you are operating this product in accordance with all the
safety requirements, potential risks of injury and damage remain.
The following dangers can arise:
Health defects resulting from vibration emission if the product is
being used over long periods of time or not adequately managed
and properly maintained.
Injuries and damage to property due to broken cutting attachments
or the sudden impact of hidden objects during use.
Danger of injury and property damage caused by other objects or
due to natural reactions or calamities.
USE AND CARE
IBL EB 60-69
RESIDUAL RISKS

6
This electric blower is a dual function device designed for blowing
and sucking in the around the garage, shop or home. It can be used
to remove small debris, dust, shavings, leaves, or blow dry water
on a smooth surface. Not recommended for rough, porous or
uneven surfaces. This device is not designed for industrial
applications. The device cannot be used for other purposes than
its intended use.
Always wear sturdy shoes and sufficient clothing during
operation. Do not wear loose clothing that can be sucked into
the suction tube.
Keep long hair away from air intakes. Always use personal
protective equipment, such as safety glasses and hearing
protection.
Never block suction inlet and outlet. Do not place the inlet or
outlet of the vacuum near eyes or ears when operating. Never blow
debris in the direction of bystanders.
Do not cross gravel paths or roads whilst your product is switched
on during blow/vac mode. Walk, never run with the product.
Do not collect cigarette ashes, freshly cut metals shaving, screws,
nails and the like.
Always be sure of your footing, particularly on slopes. Do not
overreach and keep your balance at all times.
Wear protective goggles while operating. To protect your feet and
legs while operating the appliance, always wear heavy duty
footwear and long trousers.
If operating an appliance in a damp location is unavoidable, use a
Residual Current Device (RCD) with a tripping current of not more
than 30mA protected supply. Use of an RCD reduces the risk of
electric shock.
To prevent dust irritation, the wearing of a face mask is
recommended.
Check thoroughly the area you are going to work on and remove
all items that can be sucked into the suction tube or blown away
by the air blower.
Do not begin working without air tubes, safety devices and
covers installed in place.
ELECTRIC BLOWER SAFETY WARNINGS
IBL EB 60-69

7

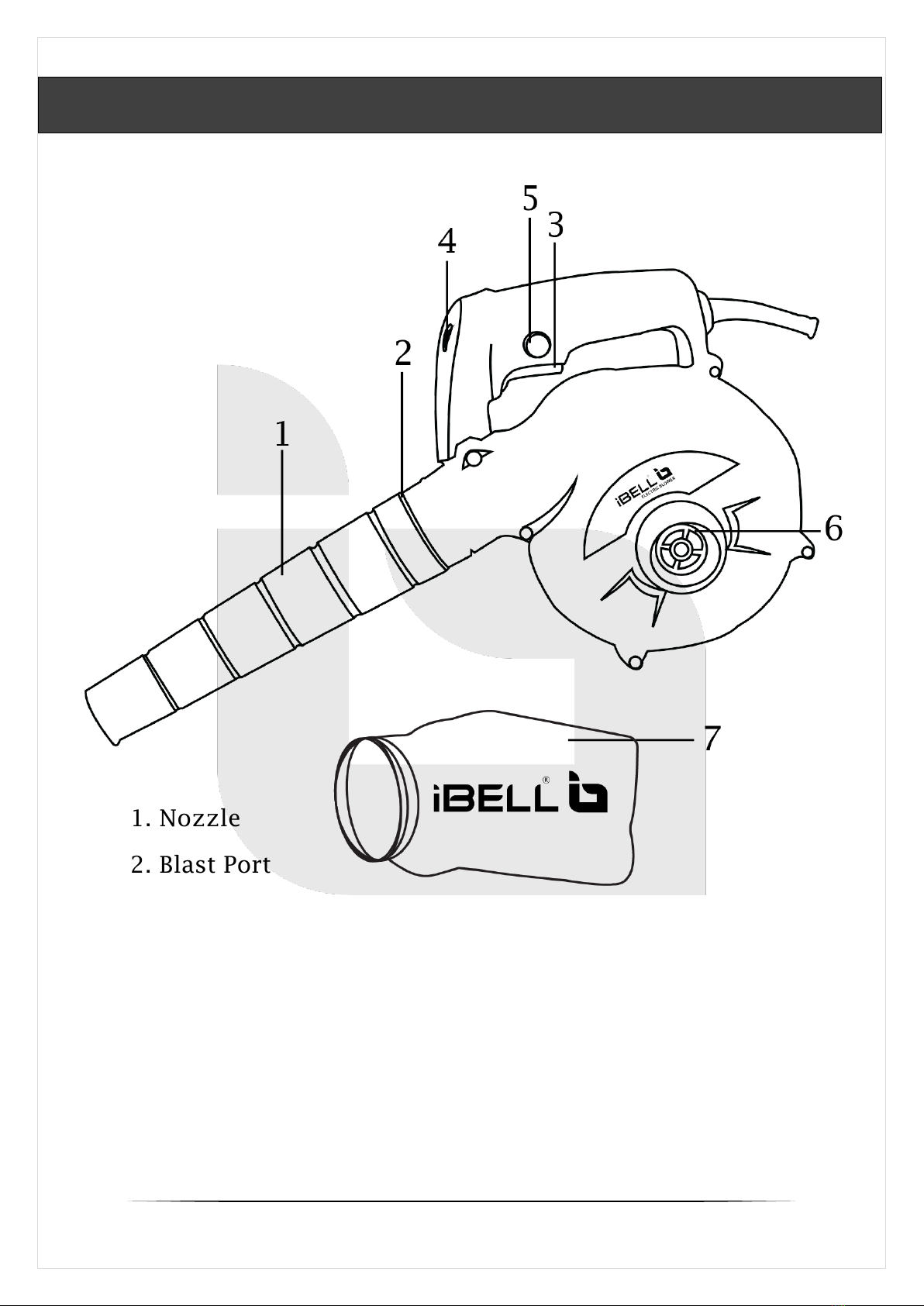

PRODUCT OVERVIEW
1. Nozzle
2. Blast Port
3. Trigger Switch
4. Variable Speed Knob
5. Lock-On Button
6. Suction Port
7. Dust Bag
IBL EB 60-69

8
Rated voltage
Rated Input Power
Rated no load speed
Weight
Blow rate
Protection class
On the product or on the packing box, the rating label and within
these instructions you will find among others the following symbols
and abbreviations. Familiarize yourself with them to reduce hazards
like personal injuries and damage to property.
: 230V~50Hz
: 600W
: 6000-14000 rpm
: 1.36 Kg
: 3.3 m3/min
: Class II
IBL EB 60-69
PRODUCT SPECIFICATIONS

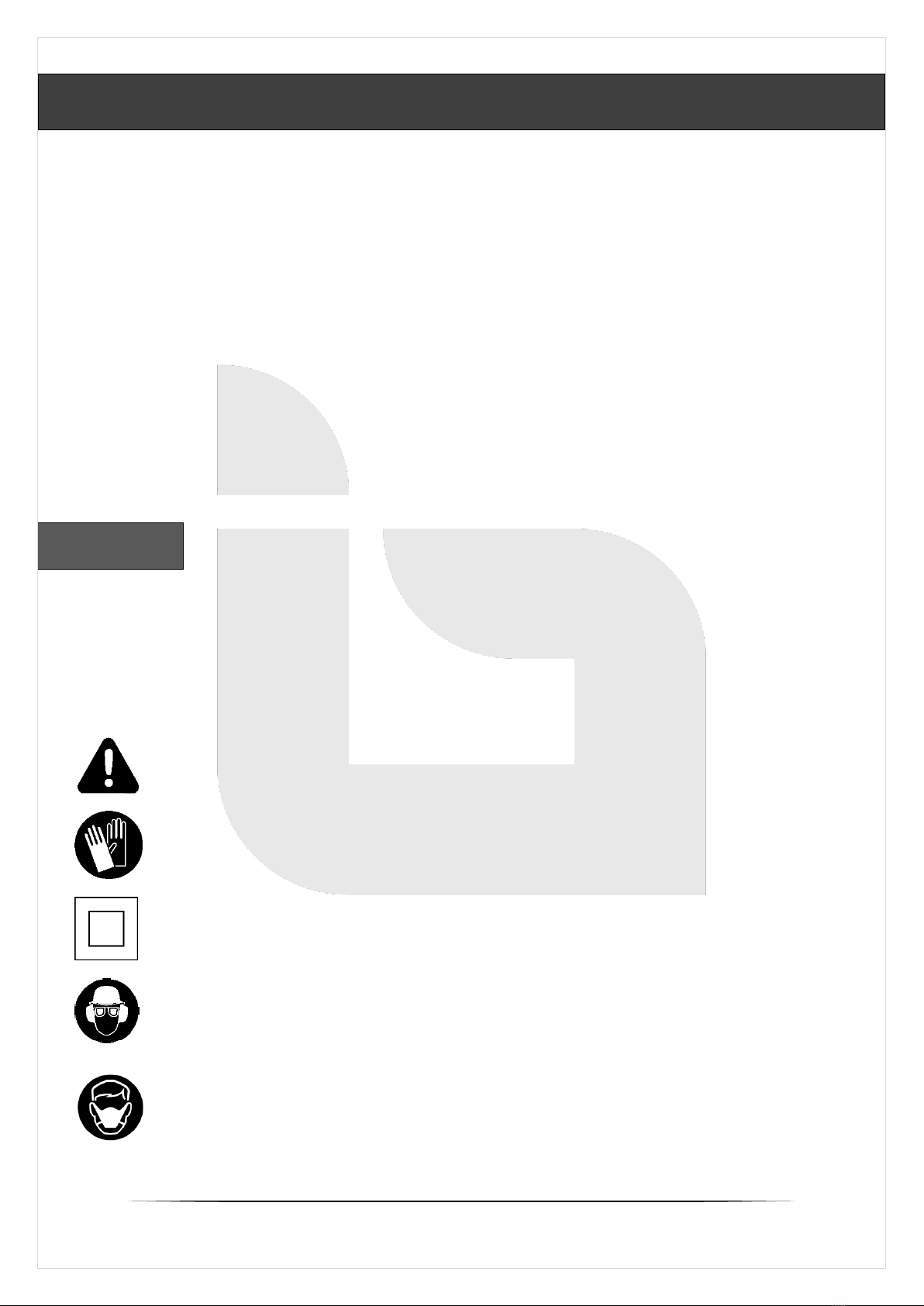

SYMBOLS
Caution / Warning
Wear protective gloves
This product is of protection class II. That means it is
equipped with enhanced or double insulation
Wear hearing and eye protection
Wear dust mask

9
Unpack all parts and lay them on flat, stable surface. Remove all
packing materials. Make sure the delivery contents are complete
and free of any damage. If you find that parts are missing or
show damage, do not use the product but contact your dealer.
Using an incomplete or damaged product represents a hazard to
people and property.
Ensure that you have all the accessories and tools needed for
assembly and operation. This also includes suitable personal
protective equipment.
The Electric blower is a dual function device designed for blowing
and sucking in the around the garage, shop or home. It can be
used to remove small debris, dust, shavings, leaves, or blow dry
water on a smooth surface. Not recommended for rough, porous
or uneven surfaces. This device is not designed for industrial
applications. The device cannot be used for other purposes
than its intended use.
For safety reasons it is essential to read the entire instruction
manual before first operation and to observe all the instructions
mentioned in it.
SETUP
UNPACKING AND ENSURING
WARNING! The product must be fully assembled before
operation! Do not use a product that is only partly assembled or
assembled with damaged parts! Follow the assembly instructions
step-by-step and use the pictures provided as a visual guide to easily
assemble the product! Do not connect the product to power supply
before it is completely assembled!
INTENDED USE
IBL EB 60-69

10
Check the product and as well as accessories for damage before
each use. Do not use the product if it is damaged or shows wear.
Double check that the accessories and attachments are properly
fixed.
Always hold the product on its handle. Keep the handle dry to
ensure safe support.
Switch the product off immediately if you are disturbed while
working by other people entering the working area. Always let the
product come to complete stop before putting it down.
Do not overwork yourself. Take regular breaks to ensure you can
concentrate on the work and have full control over the product.

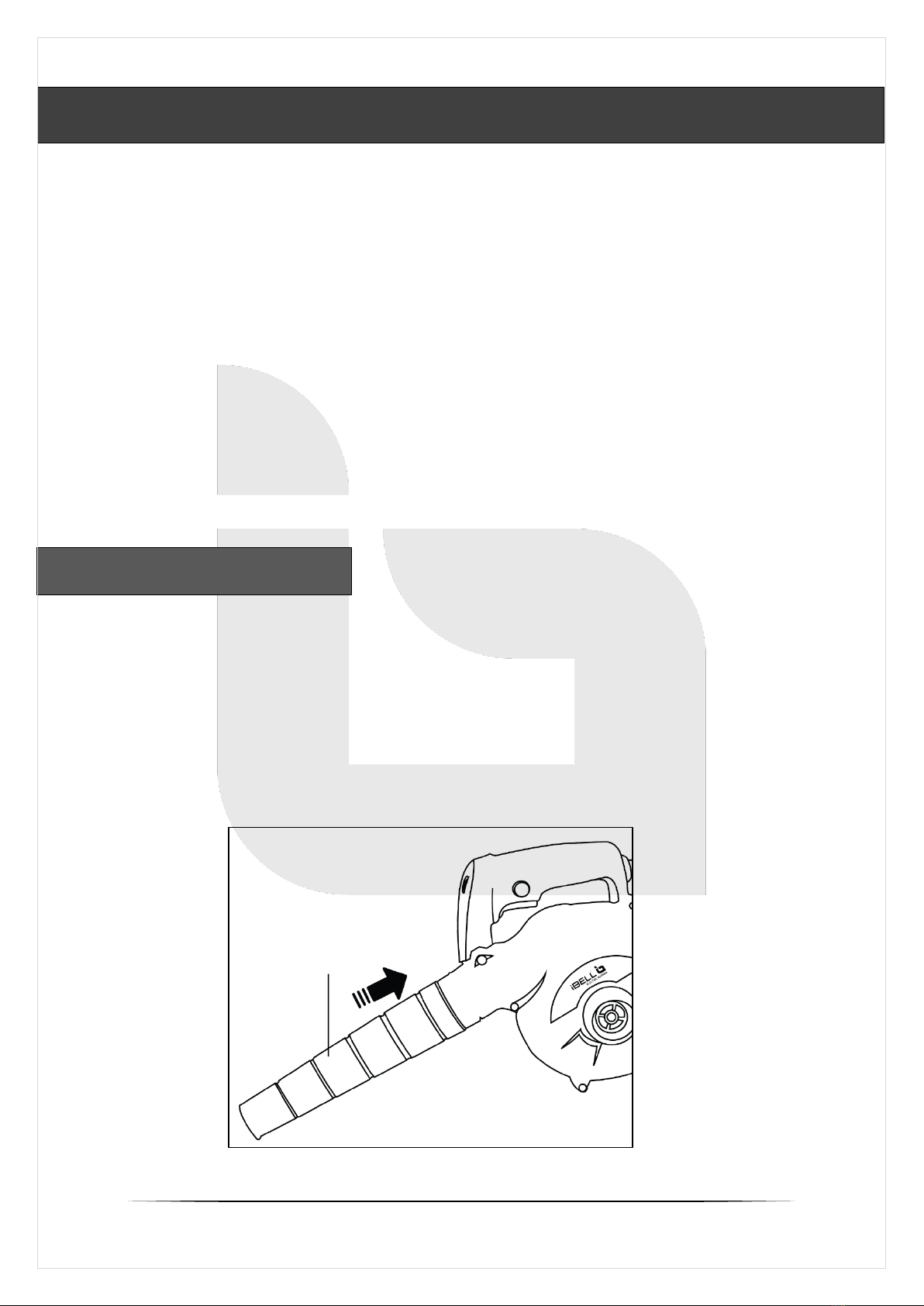

Mounting the nozzle for blowing operations:
Insert the pin located inside the Nozzle (1) into the notch
provided on the Blast Port.
To lock Nozzle in place, turn the Nozzle in the direction
indicated.
To remove Nozzle, turn the Nozzle in the opposite direction.
GENERAL OPERATION
BLOWING OPERATIONS
IBL EB 60-69
1

11
Mounting the nozzle and dust bag for dust collection:
For dust collection, mount the Dust Bag (7) at the Blast Port and
Nozzle at the Suction Port.
To remove Dust Bag and Nozzle (1), simply pull out by first
turning in the opposite direction.
Empty the Dust Bag frequently to ensure maximum dust
collecting efficiency.
To switch your Blower on, depress the Switch (3). To stop your
blower, release the switch.
Adjust the variable speed knob for different speed requirement.
When continuous operation is required, first depress the switch
and then the lock-on button (5) and release to disengage lock,
squeeze and release switch.
DUST COLLECTION
OPERATING THE BLOWER
IBL EB 60-69
7
1
3
5

12
Keep the product clean. Remove debris from it after each use and
before storage. Regular and proper cleaning will help ensure safe
use and prolong the life of the product. Clean the product with a
dry cloth. Use a brush for areas that are hard to reach.
Always store the product in a place that is inaccessible to
children. We recommend using the original package for storage
or covering the product with a suitable cloth or enclosure to
protect it against dust.
Before and after each use, check the product and accessories
(or attachments) for wear and damage. Make sure the screws
are properly tightened to be able to work safely. Use only original
accessories and original spare parts
If the power cord is damaged, replace it with another one which
has the same characteristics. Entrust this operation to a qualified
technician or a repair shop.
All defects should be repaired by service workshop authorized by
the manufacturer.
CLEANING AND STORAGE
MAINTENANCE AND CARE
WARNING! Always switch the product off, disconnect the product
from the power supply and let the product cool down before
performing inspection, maintenance and cleaning work! Only perform
repairs and maintenance work according to these instructions! All
further works must be performed by a qualified specialist!
IBL EB 60-69

13
Make sure there's power in the socket you have the blower
plugged into.
Unplug the blower and check that the impeller or fan has not
been jammed by a stick or other object so that it cannot turn.
When everything else checks out, there are only two possibilities
left. The first is that there is a thermal cut out on the blower. The
second is that the electric motor is not working.
REPLACEMENT OF CARBON BRUSHES.
Used, burnt or broken motor carbon brushes should be immediately
replaced. Both carbon brushes should always be replaced at the
same time.
Turn out the carbon brush plugs. Take out used
carbon brushes and remove any carbon dust
using compressed air.
Insert new carbon brushes. Carbon brushes
should slide smoothly into brush holders.
Fasten the carbon brush plugs. When the
carbon brushes are removed, the device should
be switched on for approximately 1-2 minutes,
so that carbon brushes can adapt to the motor.
Carbon brushes should be replaced only by a qualified person
using original spare parts.
TROUBLESHOOTING
WARNING! Only perform the steps described within these
instructions! All further inspection, maintenance and repair work must
be performed by an authorised service centre or a similarly qualified
specialist if you cannot solve the problem yourself!
IBL EB 60-69

14
Do not dispose this product by normal household waste, but take it to a collection
point and recycling of electrical and electronic equipment. This is indicated by the
symbol on the product, user manual or packaging. Re-use, material utilization or
other forms of old appliances, you make an important contribution in protecting our
environment.
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your Local Authority or local store for recycling advice.
CONTACT US
HiTech Machineries & Equipments
IV/540E, Thottumugham, P.O, Aluva
Ernakulam(Dist), Kerala, India- 683105
Toll Free : 1800 103 4090
Whatsapp : [phone]
Website : www.ibelltools.com
Email : [email protected]
