iBell IBL RV19-26 User manual

CAR TYRE INFLATOR
ROBOTIC VACUUM CLEANER
IBL RV19-26

1

2
1. INTRODUCTION _______________________________________
2. ROBOTIC CLEANER SAFETY INSTRUCTIONS ___________
3. PRODUCT SPECIFICATIONS ____________________________
4. PRODUCT OVERVIEW __________________________________
5. PRODUCT ASSEMBLY AND FUNCTIONS ________________
6. GENERAL OPERATION _________________________________
7. TROUBLESHOOTING __________________________________
TABLE OF CONTENTS
IBL RV19-26
3
4
6
7
15
22
25

3
A robotic vacuum cleaner is an autonomous vacuum cleaner that
has an intelligent programming which allows the machine to
clean autonomously without human control. Comparing to the
normal cleaners, it is quiet, vacuum on their own, requires less
space, can reach tight corners and have other cleaning types.
Its cleaning type includes auto mode for general cleaning,
scheduled mode, full-GO (maximum clean) mode, edge clean
for corners, spot cleaning mode for cleaning a particular zone,
and manual mode, allowing the user to steer the robot. It also has
a wet cleaning mode, making it altogether to give options of
sweeping, vacuuming and mopping damp or wet floors.
This has a universal turbo brush system which ensures it to
tackle multiple surfaces.
It has an anti-collision feature, with the help of anti-drop and
anti-bump sensors. If there are steps, open type balconies or
stairs in the working area, magnetic strips can also be used as a
virtual wall to prevent the machine from falling down or entering
into restricted areas or rooms.
It lasts up to *120 minutes of work (with full charge), it also
automatically docks and charges, and is always prepared to clean
the floor.
We can also control the unit using the app ‘Tuya Smart’and
‘Smart Life’(either by scanning the QR code or download on
Apple/Play store) over a WiFi connection from your phone or
connected home virtual assistants (Amazon Alexa and Google
Home), with the help of a Smart Home Hub or Gateway.
INTRODUCTION
IBL RV19-26

4
Before you connect the appliance, ensure the voltage rating on
the type plate corresponds to your mains voltage.
Do not remove the inner cover, there are no user serviceable
parts inside. Refer servicing only to a qualified personnel.
Do not operate this appliance with a damaged plug or cord, it
must be replaced by the manufacturer or its service agent.
Do not touch wires, sockets or power adapters when your
hands are wet. Do not remove the appliance from the mains
power supply by pulling the cord; pull the plug.
Do not push objects into any openings as damage to the
equipment and/or electric shock may occur.
If abnormal noise, smell, smoke or any other failure is discovered
during operation, turn OFF the product and unplug the power
plug, then contact the service centre for repair.
Do not use this appliance outdoors, especially in commercial or
industrial environments, as this is an indoor household product.
Do not use it in wet environment (like bathrooms and all). Water
could damage the circuit board.
Ensure the appliance is not too close to heat emitting
appliances or placed in direct sunlight.
Ensure it can operate freely (must not be blocked or
overturned) and make sure all doors leading outside are closed.
Clear all loose wires, candles, vases and fragile objects etc. that
are placed on the floor or furniture.
ROBOTIC VACUUM CLEANER SAFETY INSTRUCTIONS
WARNING! Read all safety warnings, instructions, illustrations and
specifications provided with this product. Failure to follow all
instructions listed below may result in electric shock, fire and/or
serious injury. Save all warnings and instructions for future reference.
IBL RV19-26
ELECTRICAL SAFETY
ENVIRONMENTAL SAFETY

5
Do not use this equipment for anything other than its
intended use. The appliance must be used in accordance with the
directions in this Operators Manual.
This equipment is not intended for use by people (including
children) with reduced physical, sensory or mental capabilities
or lack of experience or knowledge. They should be given
appropriate supervision and instructions to use the equipment by
a person responsible for their safety. Close supervision is
required when using this equipment near children or pets.
Never leave the equipment within the reach of young children or
pets, as they may find it as a toy and you know what’s gonna
happen next.
Before use, keep the floor clear and out of the clutter
(inclusive all fragile items, ropes, clothing, papers, and loose
wires on the floor). Roll up the floor length curtain and the
carpet, to avoid the appliance getting into and breaking down.
Please ensure that the dust box and dust filter screen are
installed correctly before using. Please do not place your hair,
clothes, fingers or other parts of your body too close to the main
brush or side brush of the product to avoid being wound.
Inform other members of the house when this product works
to prevent tripping. Do not put this product in a place where it is
easy to fall (on desks and chairs).
Never use the robot to clean up sparking cigarettes or burning
ashes, combustible or highly volatile liquids such as gasoline.
Do not use this to pick up spills of bleach, paint, or other
chemicals, or anything wet
Do not use the product when the suction port is blocked. Clean
up dust, cotton wool, hair, etc. at the suction opening to ensure
smooth air circulation at the suction opening.
Do not use in extremely hot or cold environments (above 40ºC or
below 0ºC). Store and operate your robot in room temperature
environments only.
To prevent the machine falling off the steps, please confirm the
minimum distance of 15cm.
Turn off the power and remove the battery from the appliance
if the unit will not be used for a long period of time.
OPERATIONAL SAFETY
IBL RV19-26

6
: 100-240V~50/60Hz
: 19V/0.6A DC
: 14.8V/2600mAh Li-ion
: 4-5 hrs
: 90-120 min
: ≤60 dB
: 250 ml
: 150 ml
: 2.5 kg
: 1300 Pa
Use only the original rechargeable battery and charging
station equipped with the appliance. Do not use damaged
charging seat. Do not use any un-rechargeable or different
type/model battery, which will cause malfunctions.
Please use the voltage and current specified on the appliance.
Do not charge the battery if the cable or plug of the battery is
damaged. Do not keep on using the equipped battery if the
packing cast is broken or the battery is leaking. Please handle
with rubber gloves to avoid making contact with skin.
Take out the battery pack before disposing of the unit. Do not try
to disassemble the battery.
IBL RV19-26
BATTERY AND CHARGING GUIDE
PRODUCT SPECIFICATIONS
Input Voltage
Output Voltage
Battery
Charging Time
Working Time
Noise Level
Dustbin Capacity
Water Tank
Weight
Suction power

7
PRODUCT OVERVIEW
IBL RV19-26
3
2
1
Top View:
1. Top cover
2. LED display
3. Start/Pause & Pairing
mode (2 functions)
4. Auto charging mode
(Home ‘Find’ mode)
Bottom View:
6. Power switch
7. DC input
8. Wheel
9. Side brush
10. Anti-falling sensor
11. Charging pole
12. Suction port
13. Water outlets
9
7
6
13
12
11
8
10
4

8
1. Standby/Wake up:
If the Robot stops working for more than
ten minutes, it will automatically enter
sleep mode. You can wake up the Robot by
pressing this and vice versa.
2. Auto cleaning mode:
Clean rooms automatically and adjusts
cleaning modes according to environment.
3. Auto charging (Refer page no. 13)
4. Directions:
For Manual Cleaning, moves forward/
backward/ left/ right.
5. Spot cleaning mode: Spiral Cleaning
6. Edge cleaning mode: Border Cleaning
7. Full go cleaning:
Automatic cleaning when charging finished.
8. Time setting
9. Strong power mode
10. Schedule setting
Mopping frame and cloth
Charging station
Adapter
(Refer the upcoming pages for detailed explanations on these modes)
IBL RV19-26
REMOTE CONTROL
1
2
3
4
5
6
7
8
9
10
ACCESSORIES
Side brushes
Mopping clothes

9
The Robot vacuum cleaner has built in Wifi module and firmware,
which support user control of the Robot cleaner via an application
‘Tuya Smart’ on your mobile phone as well as through connected
home automation device (Amazon Alexa and Google Home)

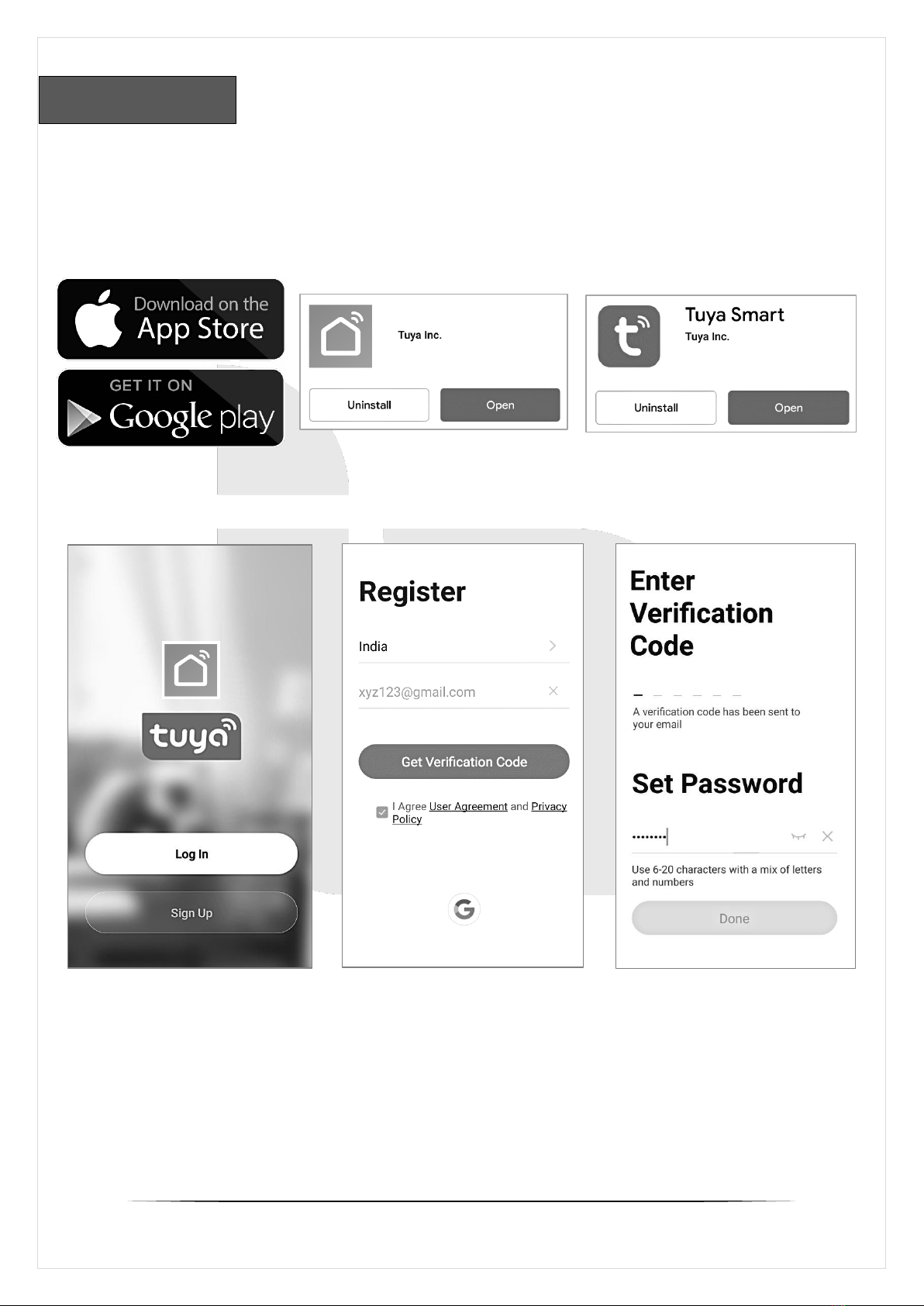

Download the app from App store/Google play or simply
scanning the above QR code.
Open the App and register an account with your email address, a
verification code would be sent, type it and set a password and you
are ready to log in.
To ensure successful pairing, we suggest you enable the access
such as Wifi, Location and Bluetooth.
APP CONTROL
IBL RV19-26
Smart Life
Smart Life

10

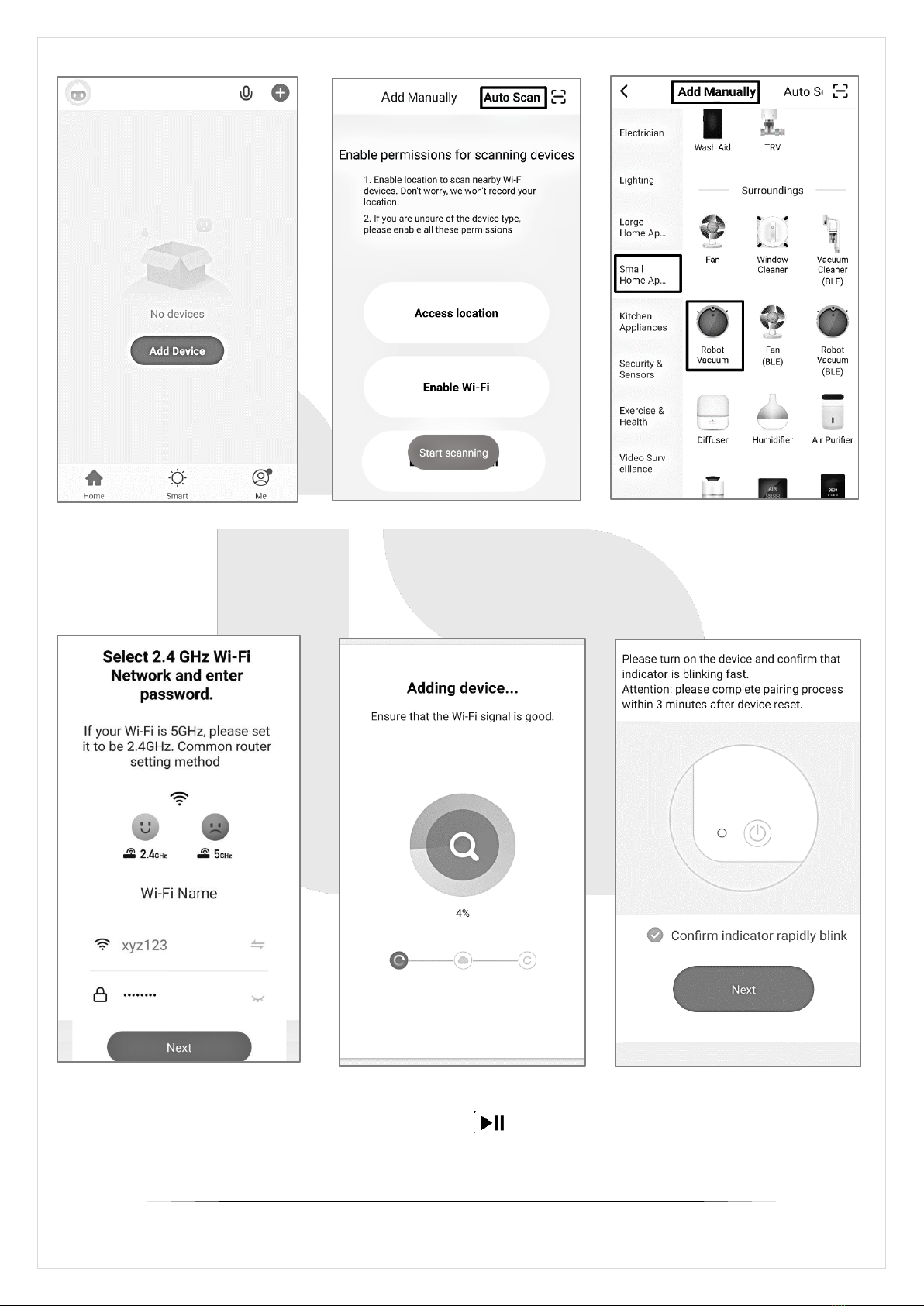

Tap on ‘Add Device’. Make sure the device is switched ON. You can
add your appliance by auto scanning or adding manually the robot
vacuum cleaner, selecting small home appliances.
Select your Wifi network there by connecting the device.
To start pairing the device, press mode on the device couple
of seconds, leaving it makes wifi symbol to blink rapidly,
making the pairing successful.
IBL RV19-26
Scan devices.
Register
on Cloud.
Initialize the
device.

11

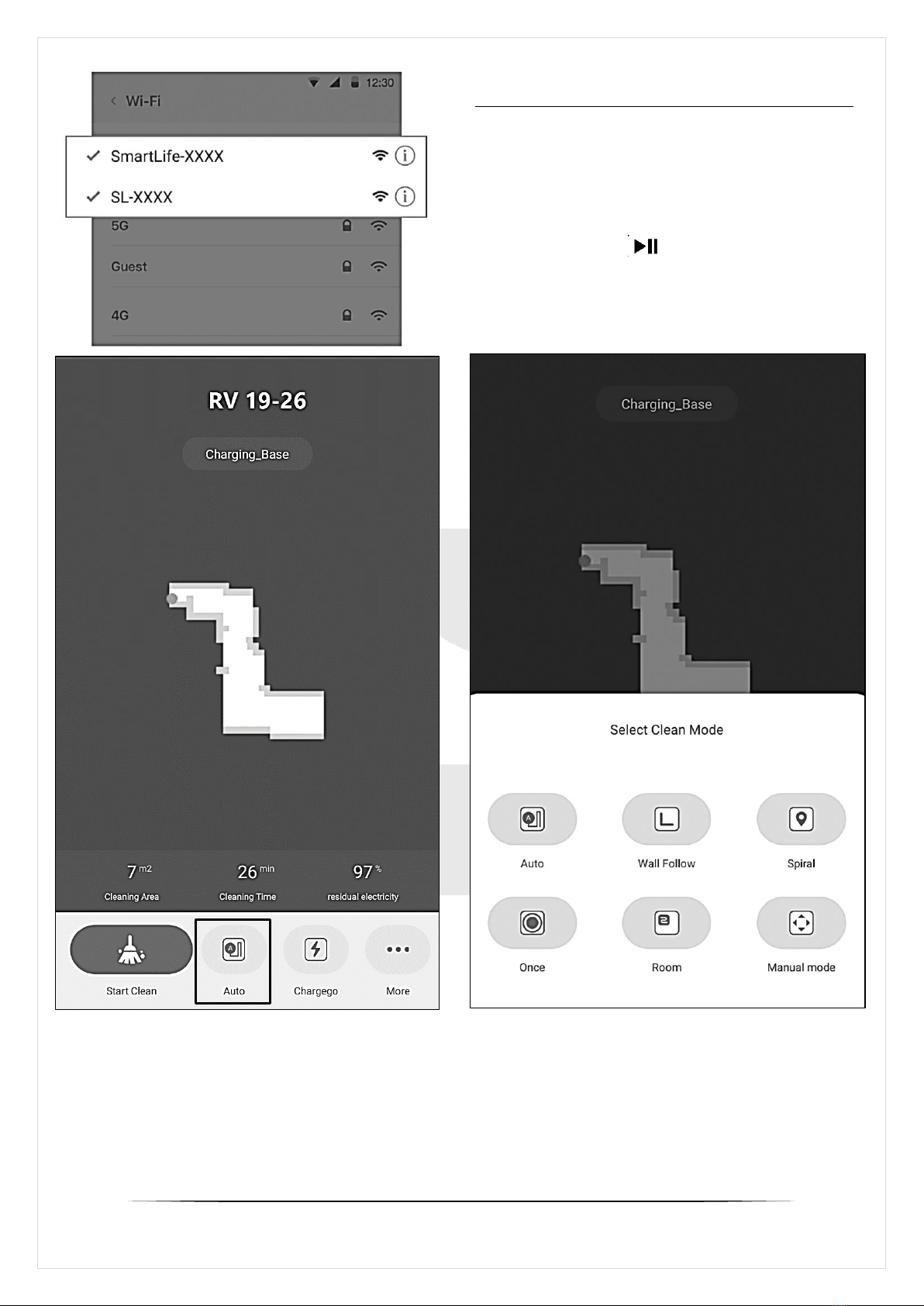

Once the device is added successfully, the cleaning control of
the app can operate the robot into different working modes by
pressing the ‘Auto’ mode.
Spiral option enables spot cleaning, Room option for single-room
sweep. By enabling the ‘Charge go’, it automatically finds the
charging dock to charge. ‘Wall Follow’ for edge cleaning.
Switching AP Mode to EZ Mode
If that does not work, as
alternative you could connect
your phone to the device’s
hotspot, through pairing by
pressing the for couple of
seconds.
IBL RV19-26

12
Manual control (direction) enables specific cleanings. In the ‘Settings
(more)’ you will find Full Go settings (which enables automatic
cleaning when charging finished) and Scheduling (time setting and
repeat modes).
IBL RV19-26
NOTE: Be calm and patient, it takes some time for the pairing, may be some
tries as well. It’s a stranger after all, give it some time to be friends with you.

13

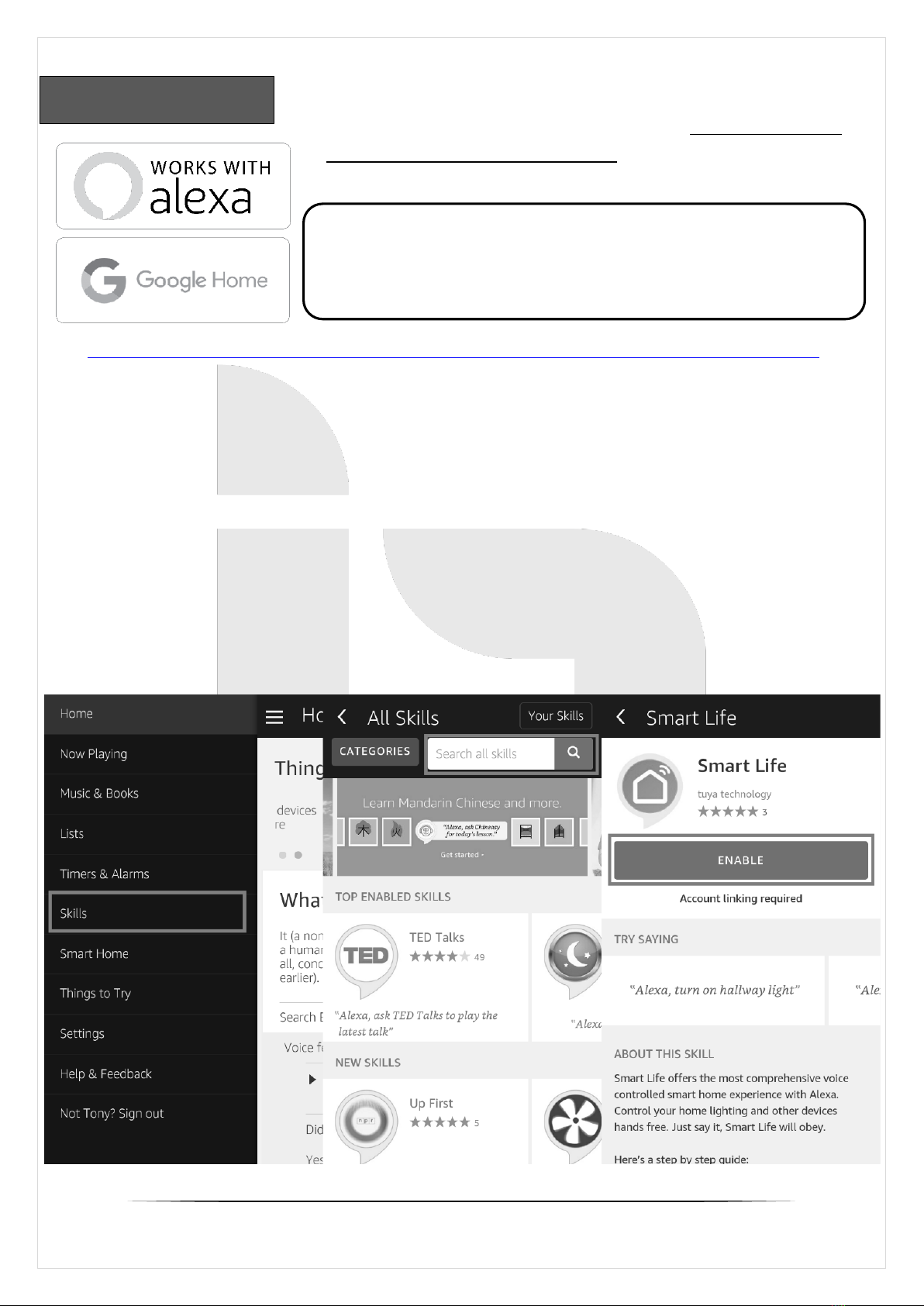

HOME ASSISTANT
We can also control the appliance using
connected virtual assistants (like Amazon
Alexa and Google Home) with the help of
our app control the Tuya Smart/Smart Life

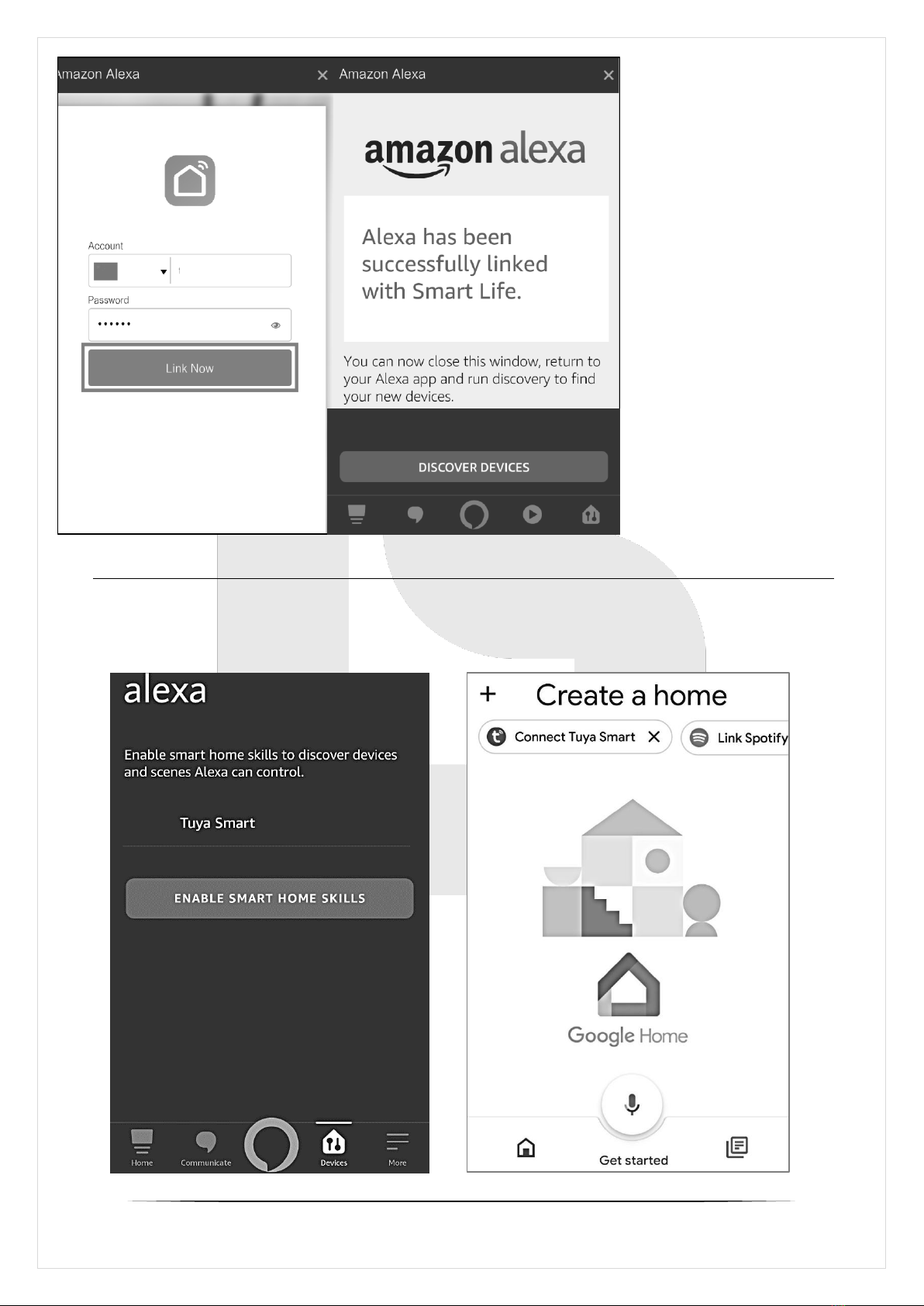

Once the robotic vacuum cleaner is connected to Wi-Fi, open
the Amazon Alexa or Google home app on your phone.
Tap the search icon or add devices to enable smart devices by
finding the 'Smart Life'/ ‘Tuya Smart’ on the skills directory.
Link your Smart life account by entering mail address and
password, Then add device i.e Discover new devices. (You’ll find
the vacuum cleaner section or clicking other devices)
Then click your device, the RV19-26.
After all the setup is done, dont be shy, try talking to the home
device to control the robot.
IBL RV19-26
NOTE: ASmart Home Hub or Gateway could
be essential for the robot to work with
the virtual home assistant devices.
https://www.amazon.in/Tuya-Inc-Smart-Life/dp/B01N1ZVI7M
Go along with the above link online to understand the details

14
Alexa, turn ON vacuum
cleaner
Ok google, ask Robot/RV19-26
to start cleaning.
Commands you can say to the robot would be something like these
IBL RV19-26

15
MANUAL CHARGING:
Connect the power adapter directly
to the DC input (7) of the robot
cleaner for charging. The LED
display will light up and a prompt
voice will be heard.
AUTO CHARGING:
During the cleaning process, the robot can sense that its power
is insufficient, it automatically finds the charging dock to charge.
Place the charging dock station
against a wall with a minimum
clearance of 1 meter at both sides
and about 1.5 meters in front of the
station. Connect the power adapter
to the DC input of the charging
station. The indicator light on the
charging station will be ON.
When the robot is in ‘Auto cleaning mode’, it will start to find
charging station when power is low.
When the robot is in other mode, press ‘Auto charging’ on the
robot or remote to let the robot start finding the charging station.
PRODUCT ASSEMBLY AND FUNCTIONS
CHARGING
NOTE: Before first use, charge the robot for over 6 hours.
Please note that there are no other obstacles near the
station, otherwise it might be hard for the robot to find the
charging station.
If not to be used for more than 3 months, charge the robot
for 12 hours, turn it off and store it in a cool and dry place.
IBL RV19-26

16

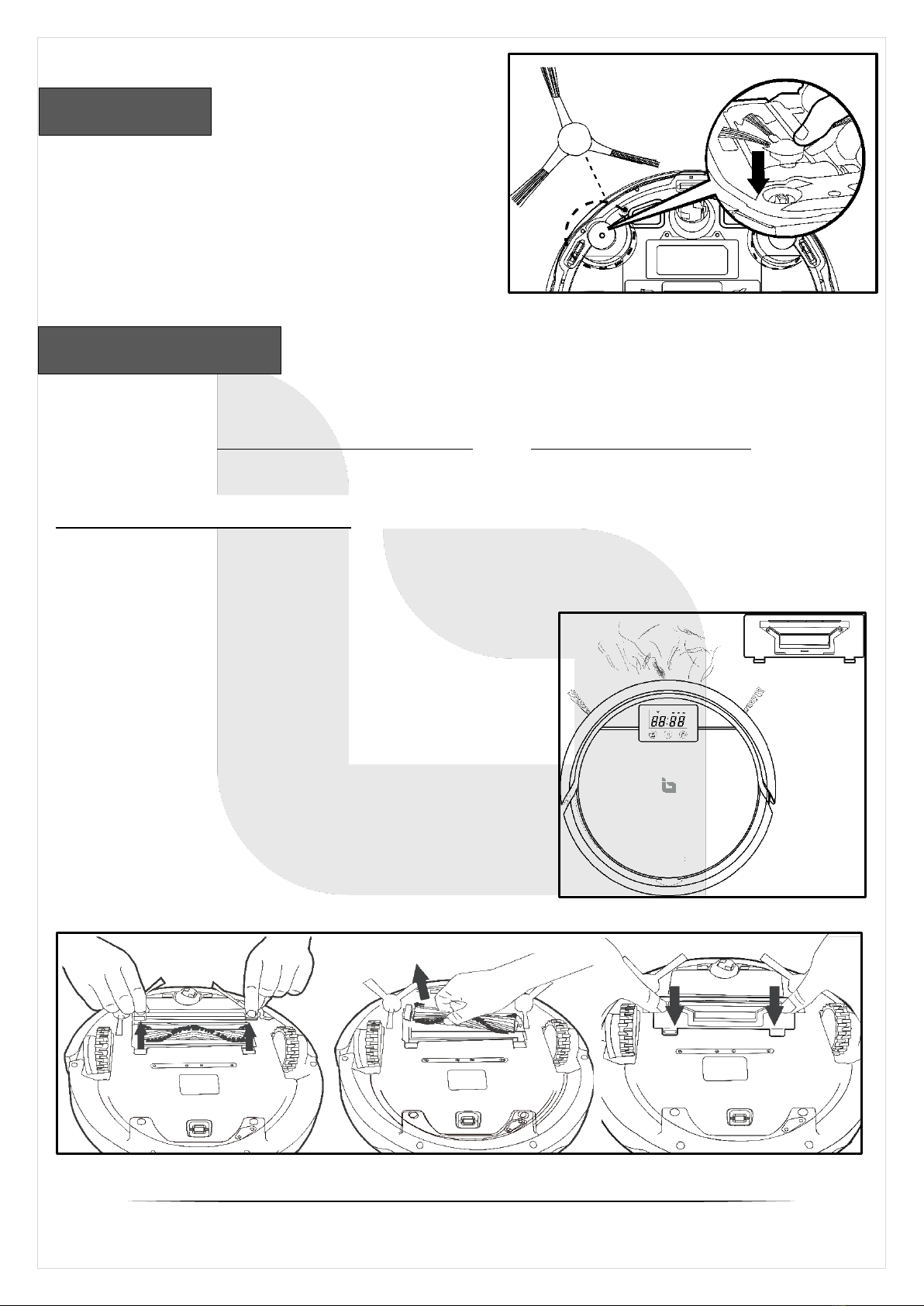

Attach the side brushes (9) to the
bottom of the robot by pressing
a brush and screwing it into each
slot according to the left and right
(L/R) position until it clicks.
The robot has two interchangeable suction options for your
convenience: Direct Suction Option and Main Brush Option
DIRECT SUCTION OPTION:
The best choice for daily cleaning is with the Main brush removed,
designed to pick up hair without tangling.
For installing direct suction, Turn the
robot over first.
Push the Main brush section and
remove the Main brush cover. Remove
the Main brush.
Line up the Direct suction option tabs
with the slots on the bottom of the
robot. Press until the component
clicks into place.
SIDE BRUSH
SUCTION OPTION
IBL RV19-26

17
MAIN BRUSH OPTION:
The best choice for deep cleaning is with a combination of the Main
Brush and strong suction. The Main brush option usually comes pre-
installed with the product.
For installing the main brush, Turn
the robot over.
Push the Direct suction option and
remove it. Insert the Main brush into
the bottom of the robot.
Line up the Main brush cover tabs
with the slots on the bottom of the
robot. Press until the component
clicks into place.
Turn the robot's Power Switch (6) to the ON/OFF position to power
ON/OFF. This is powered ON when it emits a musical sound and the
AUTO Mode Button stays illuminated (usually).
WARNING! The product must be fully assembled before
operation! Do not use a product that is only partly assembled or
assembled with damaged parts! Follow the assembly instructions
and use the picture provided in the above overview as a visual guide
to easily understand the various parts and assemble the product!
POWER ON/OFF
IBL RV19-26

18
According to different cleaning needs, this appliance has a variety
of cleaning mode to choose from. You can start various cleaning
modes through Robot, Remote control or Tuya Smart App.
AUTO CLEANING MODE:
This mode would be the most commonly used cleaning method, it
clean rooms automatically and adjusts its cleaning mode according
to the actual home environment.
This is the best mode
for everyday cleaning.
This mode usually
clean using the
cleaning pattern set in
the previous step.
Robot continues this
process until it has
cleaned an entire level
of your home. In this mode, if its battery gets low or finished the
cleaning cycle, it returns to the Charging station automatically.
Use the remote/app to increase the suction power of the robot
when in auto mode by pressing the ‘strong power mode’
Press the same to switch back to standard suction power.
SPOT CLEANING MODE:
When you select spot
cleaning, robot intensely
cleans a localized area by
spiralling outward about
1 meter in diameter and
then spiralling inward to
where it started.
This mode is applicable for an area of highly concentrated dirt or
dust, as it focuses on a specific area to clean.
When spot cleaning, robot boosts its vacuum power to provide
the best cleaning possible where you need it.
CLEANING MODES
IBL RV19-26

19
EDGE CLEANING MODE:
This is suitable for indoor corner cleaning, the robot cleans along
the perimeter of fixed objects (such as walls), and returns to the
charging seat after the edge cleaning is finished.
This is suitable after robot finishes cleaning the open areas of
your floor, to ensure that it has cleaned along walls and around
furniture legs.
MANUAL CLEANING MODE:
You can direct Robot manually to clean a particular area by using
the direction buttons on the remote control or using the app.
Pressing the direction buttons in the control can make robot cleaner
move forward, backward, turns left or right and by that way helping
to clean hard and left out areas.
IBL RV19-26
