INSTALLATIONS
MB877 User’s Manual 1
Introduction
Checklist
YourMB877 Pentium®4 motherboard package should include the items
listed below:
Your MB877package should include the items listed below.
•The MB877P4 Mini ITX Board
•This User’s Manual
•1 CD Containing Chipset Drivers And Flash Memory Utility
•ULI SATA/RAID Controller Driver
•Optional cables such as:
•1 Slim FDD Ribbon Cable
•1 IDE Ribbon Cable (40-Pin)
•1 COM Port Cable (For COM2/3/4)
•Serial ATA Cable

INSTALLATIONS
2MB877 User’s Manual
Product Description
TheMB877LGA775Pentium®4motherboard incorporatestheATI RS400
chipset that can utilize a single LGA775 processor of up to 3.8+GHz or
higher and supports FSB frequency of 400MHz/533Mhz (133MHz, and
200MHz HCLK respectively).
The ATI RS400 chipset is designed for use with the Pentium®4 processor
with1M Level2(CPUintegrated)cache. The integrated MCH component
provides the CPU interface, DDR2 interface, Hub Interface andPCI
Express interface.
Two dual channel DDR2 memory sockets supports DDR2 400/533/667
SDRAM DIMM modules with up to2GB in capacity.
TheMB877MiniITXmotherboard supportsCRT VGA interfaceaswell as
TV out.The board is designed with one Marvell 88E8052PCI Express
Gigabit LAN single controllers.The board also has AC97 6CH audio, 4
COM ports, UDMA 100, 4 USB ports, two serial ATA ports, watchdog
timer,4In/4 OutDigital I/Oand a PCI slot for expandability. Dimensions of
the board are 170mm x 170mm.
This board represents the perfect choice for thosewho want superior
performance for POS, kiosk, ATM, Web payphone, medical and other
embedded applications.

INSTALLATIONS
MB877 User’s Manual 3
Specifications
Product Name MB877
CPU Support Intel®Pentium®4
CPU Voltage 0.8375V~1.6V (VRD10.1)
System Speed Up to 3.8GHz+
CPU Operating
Frequency 400MHz/533MHz
Green /APM APM1.2
CPU Socket LGA 775
Chipset
Chipset
NB: ATI RS400
SB: ULi M1573
BIOS Award BIOS; Supports ACPI
Cache 1M Level 2 (CPU integrated)
VGA ATI RS400 built-in Mobility Radeon 9600(M10)
Graphic core. Supports AGP 8X,CRT.TV-out
PCI Express Gigabit
LAN Marvell 88E8052PCI Express Gigabit LAN single controller
Audio ULi M1573 Built-in Sound controller + AC97 Codec
ALC6556Channel(Line-in,Line-out,Mic.),On board
D-SUB connector
Memory type
2x DDR2 400/533/667 SDRAM DIMM module (without ECC function), Max. 2GB (Dual Channel)
LPC I/O 1. First I/O: Winbond 83627EHF: IrDAx1 Parallel
x1, COM1 (RS-232), COM2(RS-232), FDC
1.44MB (Slim type), Hardware monitor (3
thermalinputs, 8 voltage monitor inputs,VID0-5,
1 chassis open detection, 3 fan headers)
2. Secondary I/O: Fintek F81216 support COM3, 4
(RS-232)
RTC/CMOS Built in ULi M1573
Battery Lithium battery
Keyboard
Controller Built-in Winbond 83627EHF
IDE M1573 built in, IDE1 (40-pin/2.5mm pitch); supports
Ultra DMA 33/66/100
Serial ATA
connector ULi M1573 built-in two SATA ports
On board D-type
connector PS/2 Keyboard/Mouse,VGA (CRT), COM1, Printer, USBx2, RJ-45, Line-out, Line-in, Mic, TV-out
Power Connector ATX 24-pin
Expansion Slots 1 slot (supports 2 bus master)
USB2.0 Supports 4 ports (D-type CN. x2& pin header x2)
Digital I/O 4 In, 4 Out
Watchdog Timer Supports 256 segments(0,1,2…255. sec/min)
System Voltages +5V, +12V, -12V, 5VSB, -5V, 3.3V
Board Size 170 x170mm

INSTALLATIONS
4MB877 User’s Manual
Board Dimensions

INSTALLATIONS
MB877 User’s Manual 5
Installations
This section provides information on how to use the jumpers and
connectorson theMB877 in orderto set upa workablesystem.The topics
covered are:
Installing the CPU...................................................................................6
ATX Power Installation.........................................................................7
Installing the Memory............................................................................7
Setting the Jumpers................................................................................8
Connectors on MB877.........................................................................11
Watchdog Timer Configuration.........................................................21

INSTALLATIONS
6MB877 User’s Manual
Installing the CPU
The MB877 motherboard supports anLGA 775 processor socket for
Intel® Pentium® 4 processors.
TheLGA775processorsocket comeswithalevertosecuretheprocessor.
Refer to the pictures below, from left to right, on how to place the
processorinto theCPU socket.Please note that the cover of the LGA775
socketmustalwaysbeinstalledduringtransporttoavoiddamagetothe
socket.

INSTALLATIONS
MB877 User’s Manual 7
ATX Power Installation
The system power is provided to the motherboard with the ATX1 and
ATX_12V1power connectors. ATX1 is a 24-pin power connectorand
ATX_12V1is a 4-pin 12V power connector.
The 24-pin power connector can to be connected toa standard 20-pin
ATX power connector in a standard ATX power supply (Min. 400watt).
Note: The power supply 5VSB voltage must be at least 2A.
Installing the Memory
The MB877 motherboard supports two DDR2 memory sockets for a
maximum total memory of 2GB in DDR2 memory type. It supports DDR2
400/533/667wheninstalled with CPUs that have clock speeds of 533MHz.
The board provides dual channel functionality for its DIMM slots.
DIMM1is for one channel and DIMM2is for another channel.
Basically, the system memoryinterface has the following features:
Supports two 64-bit wide DDR2 data channels
Available bandwidth up to 3.2GB/s (DDR2 400) for single-channel
mode and 6.4GB/s (DDR2 400) in dual-channel mode.
Supports 128Mb, 256Mb, 512Mb, 1Gb DDR2 technologies.
Supports only x8, x16, DDR2 devices with four banks
Registered DIMMs not supported
Supports opportunistic refresh
Up to 16 simultaneously open pages (four per row, four rows
maximum)

INSTALLATIONS
8MB877 User’s Manual
Setting the Jumpers
Jumpers are used on MB877 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on MB877 and their respective functions.
Jumper Locations on MB877...................................................................9
JP1: COM3 RS232 +5V/+12V Power Setting........................................10
JP2: COM4 RS232 +5V/+12V Power Setting........................................10
JP4: Clear CMOS Contents ....................................................................10

INSTALLATIONS
MB877 User’s Manual 9

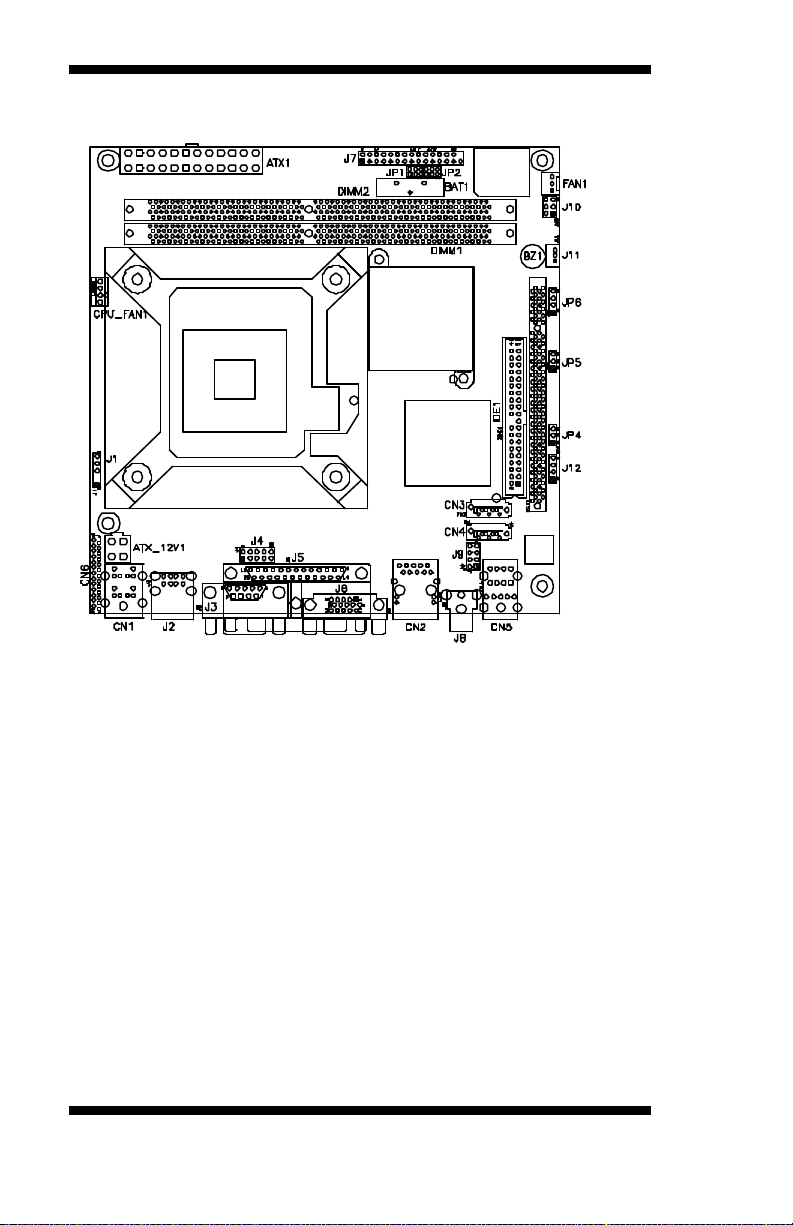

Jumper Locations on MB877
Jumper Locations on MB877....................................................................Page
JP1: COM3RS232 +5V/+12V Power Setting................................................10
JP2: COM4RS232 +5V/+12V Power Setting................................................10
JP4: Clear CMOS Contents ............................................................................10

INSTALLATIONS
10 MB877 User’s Manual
JP1: COM3 RS232 +5V/+12V Power Setting
JP1 Setting Function
Pin 1-2
Short/Closed +12V
Pin 3-4
Short/Closed Normal
Pin 5-6
Short/Closed +5V
JP2: COM4 RS232 +5V/+12V Power Setting
JP2Setting Function
Pin 1-2
Short/Closed +12V
Pin 3-4
Short/Closed Normal
Pin 5-6
Short/Closed +5V
JP4: Clear CMOS Contents
Note: the ATX-power connector should be disconnected from the
motherboard before clearing CMOS.
JP4Setting Function
Pin 1-2
Short/Closed Normal
Pin 2-3
Short/Closed Clear CMOS

INSTALLATIONS
MB877 User’s Manual 11
[
Connectors on MB877
TheconnectorsonMB877allowsyoutoconnectexternaldevicessuchas
keyboard,floppy disk drives, hard disk drives, printers, etc. The following
table lists the connectors on MB877 and their respective functions.
Connector Locations on MB877...........................................................12
ATX1: ATX Power Supply Connector................................................13
ATX_12V1: ATX 12V Power Connector.............................................13
DIMM1: Channel A DDR2 Socket........................................................13
DIMM2: Channel B DDR2 Socket........................................................13
PCI1: PCI Slots.........................................................................................13
CN1: PS/2 Keyboard and PS/2 Mouse Connectors ...........................14
CN2: RJ45 Connector..............................................................................14
CN3, CN4: Serial ATA (SATA) Connectors .......................................14
CN5:Line In, Line Out, Mic Connector................................................14
CN6: Floppy Drive Connector...............................................................15
J1: IrDA Connector.................................................................................15
J2: USB Connector (USB1/USB2).........................................................15
J3: Serial Ports (COM1, RS232)..............................................................16
J4: Digital I/O Connector (4 in, 4 out)...................................................16
J5: Parallel Port Connector.....................................................................16
J6: VGA CRT Connector.........................................................................17
J7: Serial Ports (COM2,3,4).....................................................................17
J8:TV-Out connector(RCA Jack)..........................................................18
J9: USB Connector (USB3/USB4).........................................................18
J10: System Function Connector..........................................................18
J11: Wake On LAN Connector..............................................................18
J12: CD-In Audio Connector.................................................................18
JP5: Power LED Connector....................................................................19
JP6: Speaker Connector..........................................................................19
CPU_FAN1: CPU Fan Power Connector............................................19
FAN1: System & Chassis Fan Power Connectors .............................19
IDE1: Primary IDE Connectors ..............................................................20

INSTALLATIONS
12 MB877 User’s Manual
Connector Locations on MB877
Connectors on MB877..............................................................................................................................Page
ATX1: ATX Power Supply Connector................................................................................................................13
ATX_12V1: ATX 12V Power Connector............................................................................................................13
DIMM1: Channel A DDR2 Socket........................................................................................................................13
DIMM2: Channel B DDR2 Socket........................................................................................................................13
PCI1: PCI Slots......................................................................................................................................................13
CN1: PS/2 Keyboard and PS/2 Mouse Connectors..............................................................................................14
CN2: RJ45 Connector............................................................................................................................................14
CN3, CN4: Serial ATA (SATA) Connectors........................................................................................................14
CN5:Line In, Line Out, Mic Connector...............................................................................................................14
CN6: Floppy Drive Connector..............................................................................................................................15
J1: IrDA Connector...............................................................................................................................................15
J2: USB Connector (USB1/USB2).........................................................................................................................15
J3: Serial Ports (COM1, RS232)............................................................................................................................16
J4: Digital I/O Connector (4 in, 4 out)...................................................................................................................16
J5: Parallel Port Connector...................................................................................................................................16
J6: VGA CRT Connector.......................................................................................................................................17
J7: Serial Ports (COM2,3,4)..................................................................................................................................17
J8:TV-Out Connector (RCA Jack) ........................................................................................................................18
J9: USB Connector (USB3/USB4).........................................................................................................................18
J10: System Function Connector...........................................................................................................................18
J11: Wake On LAN Connector.............................................................................................................................18
J12: CD-In Audio Connector.................................................................................................................................18
JP5: Power LED Connector..................................................................................................................................19
JP6: Speaker Connector.........................................................................................................................................19
CPU_FAN1: CPU Fan Power Connector............................................................................................................19
FAN1: System & Chassis Fan Power Connectors...............................................................................................19
IDE1: Primary IDE Connectors...........................................................................................................................20

INSTALLATIONS
MB877 User’s Manual 13
ATX1: ATX Power Supply Connector
Signal Name Pin # Pin # Signal Name
3.3V 13 13.3V
-12V 14 23.3V
Ground 15 3Ground
PS-ON 16 4+5V
Ground 17 5Ground
Ground 18 6+5V
Ground 19 7Ground
-5V 20 8Power good
+5V 21 95VSB
+5V 22 10 +12V
+5V 23 11 +12V
Ground 24 12 +3.3V
ATX1 is a 24-pin ATX power supply connector.
ATX_12V1: ATX 12V Power Connector
This connector supplies the CPU operation voltage
Pin # Signal Name
1Ground
2Ground
3+12V
4+12V
DIMM1: Channel A DDR2 Socket
DIMM1 is the first-channel DDR2 socket.
DIMM2: Channel B DDR2 Socket
DIMM2 is the second-channel DDR2 socket.
PCI1: PCI Slots

INSTALLATIONS
14 MB877 User’s Manual
CN1: PS/2 Keyboard and PS/2 Mouse Connectors
PS/2 Mouse
PS/2 Keyboard
Signal Name Keyboard Mouse Signal Name
Keyboard data 11Mouse data
N.C. 22N.C.
GND 33GND
5V 445V
Keyboard clock 55Mouse clock
N.C. 66N.C.
CN2: RJ45 Connector
CN3, CN4: Serial ATA (SATA) Connectors
TheSATAconnectors support serial ATA 150. Each connector can only
use one serial ATA hard disk. CN4 is port 1 and CN3 is port 2.
CN5:Line In, Line Out, Mic Connector

INSTALLATIONS
MB877 User’s Manual 15
CN6: Floppy Drive Connector
CN6 is a slim 26-pin connector and will support up to 2.88MB FDD.
Signal Name Pin # Pin # Signal Name
VCC 12INDEX
VCC 34DRV_SEL
VCC 56DSK_CH
NC 78NC
NC 910 MOTOR
DINST 11 12 DIR
NC 13 14 STEP
GND 15 16 WDATA
GND 17 18 WGATE
GND 19 20 TRACK
NC 21 22 WPROT
GND 23 24 RDATA
GND 25 26 SIDE
J1: IrDA Connector Pin # Signal Name
1+5V
2No connect
3Ir RX
4Ground5Ir TX
J2: USB Connector (USB1/USB2)
J2is a stacked USB port.
Pin # Signal Name
1Vcc
2USB-
3USB+
USB0
USB1 4Ground

INSTALLATIONS
16 MB877 User’s Manual
J3: Serial Ports (COM1, RS232)
Signal Name Pin # Pin # Signal Name
DCD, Data carrier detect 16DSR, Data set ready
RXD, Receive data 27RTS, Request to send
TXD, Transmit data 38CTS, Clear to send
DTR, Data terminal ready 49RI, Ring indicator
GND, ground 510 Not Used
J4: Digital I/O Connector (4 in, 4 out)
This 10-pin Digital I/O connector supports TTL levels and is used to
control external devices requiring ON/OFF circuitry.
Signal Name Pin # Pin # Signal Name
Ground 12+5V
Out3 34Out1
Out2 56Out0
IN3 78IN1
IN2 910 IN0
J5: Parallel Port Connector
J5 Parallel Port
Signal Name Pin # Pin # Signal Name
Line printer strobe 114 AutoFeed
PD0, parallel data 0 215 Error
PD1, parallel data 1 316 Initialize
PD2, parallel data 2 417 Select
PD3, parallel data 3 518 Ground
PD4, parallel data 4 619 Ground
PD5, parallel data 5 720 Ground
PD6, parallel data 6 821 Ground
PD7, parallel data 7 922 Ground
ACK, acknowledge 10 23 Ground
Busy 11 24 Ground
Paper empty 12 25 Ground
Select 13 N/A N/A
