INTRODUCTION
IP300 User’s Manual 1
Introduction
Product Description
The IP300 3.5-inch base board is designed for ETX CPU modules with
dimensions as an interface platform. It packs all the PC connectors for the
ETX CPU module to be a high-performance functional embedded board.
The IP300 includes the following features:
•Intel 82559 Ethernet controller
•Pin header for four USB ports
•PS2 keyboard/mouse connector
•VGA CRT connector
•36-bit LVDS connector (Hirose DF13)
•COM 1 D-Sub connector and pin header for COM2/3/4 ports
•Pin header for IDE and FDD connectors
•Pin header for parallel port connector
•PCI CardBus Socket
•CompactFlash Socket
•One PC/104 expansion connector
•6 PCB layers
•102mm x 146mm
PC/104 is an ISA interface that supports compact-form-factor PC/104
modules (3.6” x 3.8”). It supports self-stacking and pin-and-socket
connector. PC/104 features a standard form factor for Embedded
applications. It is reliable, small in size and has low power consumption.
Flexible mechanical configurations can be attained with PC/104.
Modules support various functions such as display, audio, GPS,
PCMCIA, fax/modem, Ethernet, SCSI, RS-232/422/485, digital I/O and
SSD.
The Compact Flash connector on board is for CompactFlash Type I
memory cards. A Compact Flash memory card is a solid state disk card
with a 50pin connector. The pins provide a connection between the
memory and the Compact Flash drive. Compact Flash cards are designed
with flash technology, a non-volatile storage solution that does not lose
its information once power is removed from the card. The cards contain
no moving parts and are extremely rugged, providing much greater
protection of data than conventional magnetic disk drives.

INTRODUCTION
2IP300 User’s Manual
Checklist
Your IP300 package should include the items listed below. Damaged or
missing items should be reported to your supplier.
•The IP300 Embedded Little Board
•This User’s Manual
•Optional cables such as:
•1 Audio Cable
•1 44-pin IDE Ribbon Cable
•1 44-pin to 40-pin IDE Ribbon Cable
•1 COM Port Cable
•1 Printer Port Cable
•1 PS/2 Keyboard/Mouse Cable
•2 USB Cables
•1 RJ45 LAN Cable or IBLD dual RJ45 Cable
•1 Power Cable for AT power
•1 Power Cable for ATX power
•1 34-pin FDD Cable

INTRODUCTION
IP300 User’s Manual 3
Board Dimensions

INTRODUCTION
4IP300 User’s Manual
This page is intentionally left blank.

INSTALLATIONS
IP300 User’s Manual 5
Installations
This section provides information on how to use the jumpers and
connectors on the IP300 in order to set up a workable system. The topics
covered are:
Setting the Jumpers...........................................................6
Connectors on IP300.......................................................10

INSTALLATIONS
6IP300 User’s Manual
Setting the Jumpers
Jumpers are used on the IP300 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on IP300 and their respective functions.
JP1: AT / ATX Power Select............................................................... 8
JP2: Master/Slave Select for CF Socket............................................. 8
JP3: Secondary LAN Enable/Disable ................................................. 8
JP6: Panel Voltage Select ................................................................... 8
J6, J12: RS232/RS422/RS485 (COM2) Selection........................... 9
J12: COM1/COM2 +5V/+12V Power Setting.................................. 9
JP8: COM3/COM4 +5V/+12V Power Setting ................................. 9
JP9: Microphone Bias Setting for ET863/ET815............................. 9

INSTALLATIONS
IP300 User’s Manual 7
Jumper Locations on IP300
Jumpers on IP300
JP1: AT / ATX Power Select
JP2: Master/Slave Select for CF Socket
JP3: Secondary LAN Enable/Disable
JP6: Panel Voltage Select
J6, J12: RS232/RS422/RS485 (COM2) Selection
JP8, J12: COM3/COM4 +5V/+12V Power Setting
JP9: Microphone Bias Setting for ET863/ET815
NOTE:
Before installing the ETX CPU module, make sure of the pin orientation
of both the ETX interface connectors and the ETX module connector
before plugging the module. Once the module is slightly plugged in, use
an even force to fully plug in the module.

INSTALLATIONS
8IP300 User’s Manual

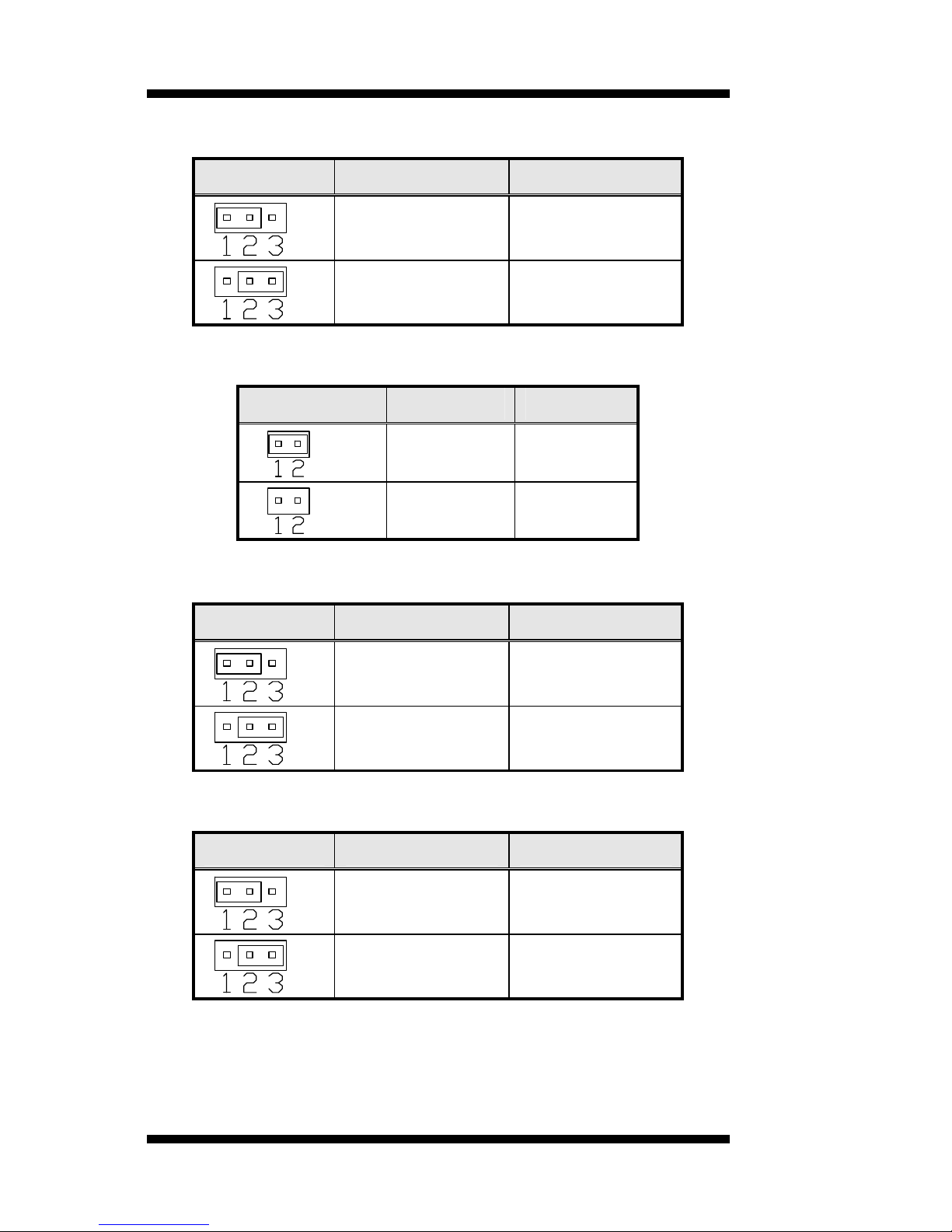

JP1: AT / ATX Power Select
JP1 Setting Function
Pin 1-2
Short/Closed AT Power
Pin 2-3
Short/Closed ATX Power
JP2: Master/Slave Select for CF Socket
JP2 Setting Function
Short/Closed Master
Open Slave
JP3: Secondary LAN Enable/Disable
JP3 Setting LAN2 Function
Pin 1-2
Short/Closed Enabled
Pin 2-3
Short/Closed Disabled
JP6: Panel Voltage Select
JP6 Setting LAN1 Function
Pin 1-2
Short/Closed 3.3V
Pin 2-3
Short/Closed 5V

INSTALLATIONS
IP300 User’s Manual 9

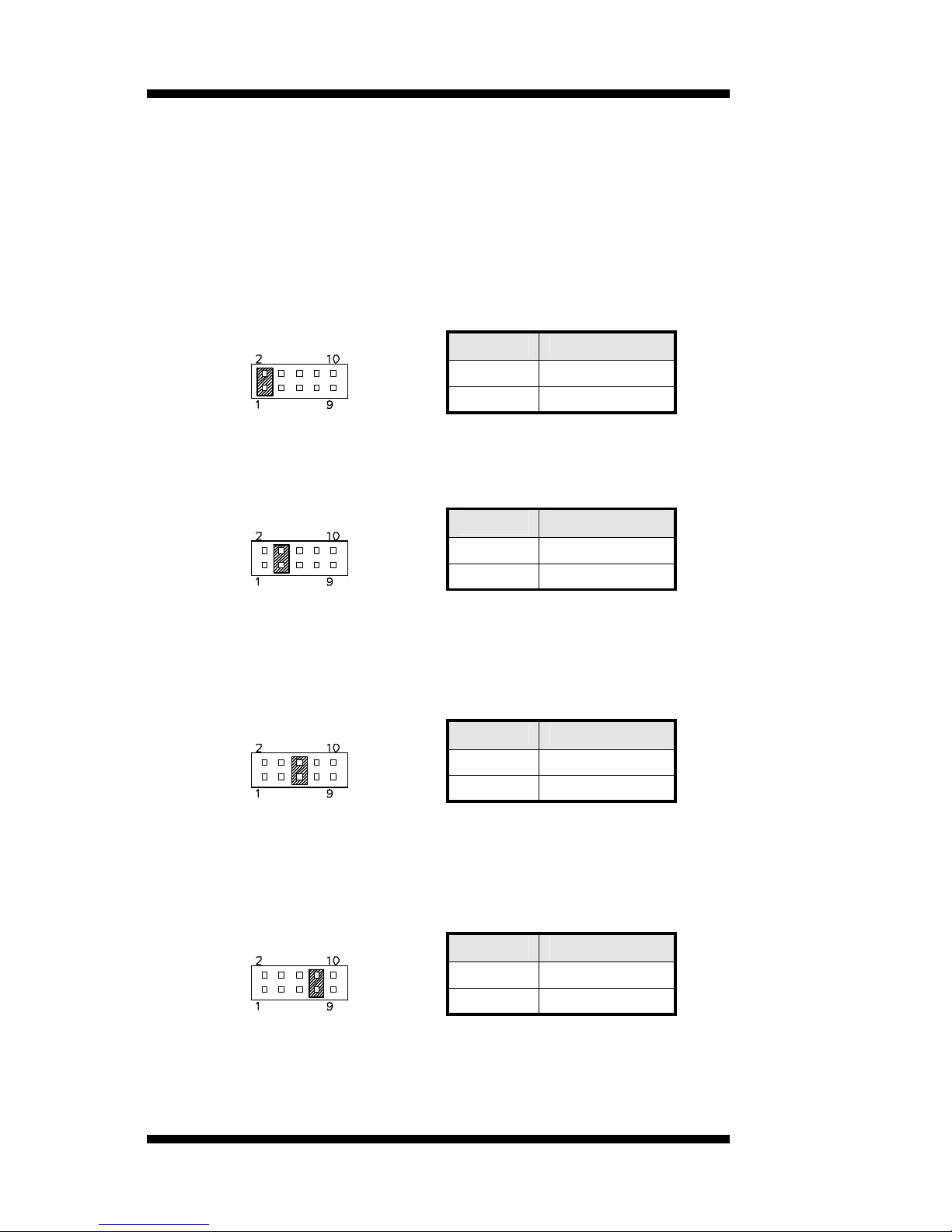

J6, J12: RS232/RS422/RS485 (COM1/2) Selection
J6 Function
RS232
RS422
RS485
J12: COM1/COM2 +5V/+12V Power Setting
J12 Function
+5V
+12V
JP8: COM3/COM4 +5V/+12V Power Setting
JP8 Function
+5V
+12V
JP9: Microphone Bias Setting for ET863/ET815
JP9 Setting Function
Short/Closed ET863
Open ET815

INSTALLATIONS
10 IP300 User’s Manual
Connectors on IP300
The connectors on IP300 allows you to connect external devices such as
keyboard, floppy disk drives, hard disk drives, printers, etc. The following
table lists the connectors on IP300 and their respective functions.
Connector Locations on IP300.............................................11
CON1A & CON1B: PC/104 Connector .............................12
J1: Main Power Connector...................................................13
J2: Floppy Drive Connector .................................................13
J3: IDE1 Connector ..............................................................14
J4: IrDA Connector...............................................................14
J5: 12V Fan Power Connector.............................................15
J17: 5V Fan Power Connector.............................................15
J8: Digital I/O Connector .....................................................15
J9: Parallel Port Connector ..................................................15
J10: System Function Connector .........................................16
J13: PCI Cardbus Connector................................................17
J14: Compact Flash Connector............................................17
J15: CD-In Audio Connector ...............................................17
J16: Audio Connector...........................................................17
J18, J19: USB0 and USB1 Connectors ...............................18
J20: LAN2 Connector...........................................................18
J21, J22: 1st and 2nd Channel LVDS Connector................19
J23: TV-Out Connector........................................................19
J24, J7: COM1 / COM2/3/4 Serial Ports............................19
J25: RJ45 Connector for LAN1...........................................20
J26: PS/2 Keyboard and Mouse Connector.........................20
J27: VGA CRT Connector ...................................................20
J29: IDE2 Connector............................................................21

INSTALLATIONS
IP300 User’s Manual 11
Connector Locations on IP300
Connectors on IP300
CON1A & CON1B: PC/104 Connector
J1: Main Power Connector
J2: Floppy Drive Connector
J3: IDE1 Connector
J4: IrDA Connector
J5: 12V Fan Power Connector
J17: 5V Fan Power Connector
J8: Digital I/O Connector
J9: Parallel Port Connector
J10: System Function Connector
J13: PCI Cardbus Connector
J14: Compact Flash Connector
J15: CD-In Audio Connector
J16: Audio Connector
J18, J19: USB0 and USB1 Connectors
J20: LAN2 Connector
J21, J22: 1st and 2nd Channel LVDS Connector
J23: TV-Out Connector
J24, J7: COM1 / COM2/3/4 Serial Ports
J25: RJ45 Connector for LAN1
J26: PS/2 Keyboard and Mouse Connector
J27: VGA CRT Connector
J29: IDE2 Connector

INSTALLATIONS
12 IP300 User’s Manual
CON1A & CON1B: PC/104 Connector
CON1A and CON1B are dual-in-line pin headers that support PC-104
modules. CON1A consists of 64 pins and CON2B has 40 pins.
CON1 CON2
Pin Signal Name
Pin Signal Name
Pin Signal Name
Pin Signal Name
A1 IOCHK B1 GND C1 GND D1 GND
A2 D7 B2 REST C2 SBHE D2 MEMCS16
A3 D6 B3 VCC C3 LA23 D3 IOCS16
A4 D5 B4 IRQ9 C4 LA22 D4 IRQ10
A5 D4 B5 -5V C5 LA21 D5 IRQ11
A6 D3 B6 DRQ2 C6 LA20 D6 IRQ12
A7 D2 B7 -12V C7 LA19 D7 IRQ15
A8 D1 B8 OWS C8 LA18 D8 IRQ14
A9 D0 B9 +12V C9 LA17 D9 DACK0
A10 IOCHRDY B10 GND C10 MEMR D10 DRQ0
A11 AEN B11 SMEMW C11 MEMW D11 DACK5
A12 A19 B12 SMEMR C12 D8 D12 DRQ5
A13 A18 B13 IOW C13 D9 D13 DACK6
A14 A17 B14 IOR C14 D10 D14 DRQ6
ZA15
A16 B15 DACK3 C15 D11 D15 DACK7
A16 A15 B16 DRQ3 C16 D12 D16 DRQ7
A17 A14 B17 DACK1 C17 D13 D17 VCC
A18 A13 B18 DRQ1 C18 D14 D18 MASTER
A19 A12 B19 REFRESH C19 D15 D19 GND
A20 A11 B20 CLK C20 KEY PIN D20 GND
A21 A10 B21 IRQ7
A22 A9 B22 IRQ6
A23 A8 B23 IRQ5
A24 A7 B24 IRQ4
A25 A6 B25 IRQ3
A26 A5 B26 DACK2
A27 A4 B27 TC
A28 A3 B28 BALE
A29 A2 B29 VCC
A30 A1 B30 OSC
A31 A0 B31 GND
A32 GND B32 GND

INSTALLATIONS
IP300 User’s Manual 13
J1: Main Power Connector
The J1 main power connector has the following pin assignments.
Pin # Signal Name
1+12V
2Ground
3Ground
4+5V
55VSB
6PS_ON
J2: Floppy Drive Connector
J2 a 34-pin header for the FDD connector.
Signal Name Pin # Pin # Signal Name
Ground 12RM/LC
Ground 34No connect
Ground 56No connect
Ground 78Index
Ground 910 Motor enable 0
Ground 11 12 Drive select 1
Ground 13 14 Drive select 0
Ground 15 16 Motor enable 1
Ground 17 18 Direction
Ground 19 20 Step
Ground 21 22 Write data
Ground 23 24 Write gate
Ground 25 26 Track 00
Ground 27 28 Write protect
Ground 29 30 Read data
Ground 31 32 Side 1 select
Ground 33 34 Diskette change

INSTALLATIONS
14 IP300 User’s Manual

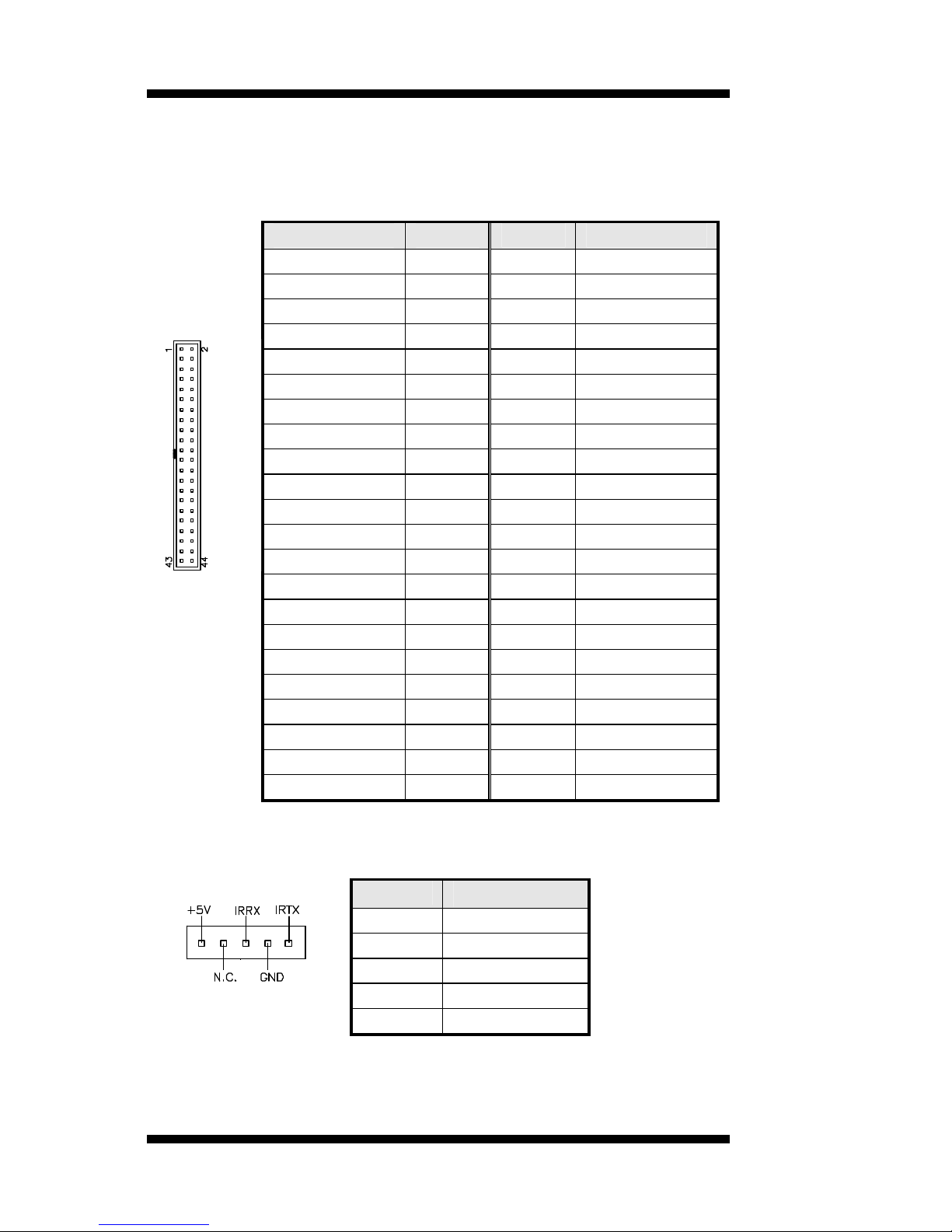

J3: IDE1 Connector
J3 is the IDE1 connector consisting of 44 pins headers. IP300 optionally
comes with a cable kit containing two IDE cables connecting these
connectors to your IDE devices.
Signal Name Pin # Pin # Signal Name
Reset IDE 12Ground
Host data 7 34Host data 8
Host data 6 56Host data 9
Host data 5 78Host data 10
Host data 4 910 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 14 Host data 13
Host data 1 15 16 Host data 14
Host data 0 17 18 Host data 15
Ground 19 20 Key
DRQ0 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IRQ14 31 32 No connect
Address 1 33 34 No connect
Address 0 35 36 Address 2
Chip select 0 37 38 Chip select 1
Activity 39 40 Ground
Vcc 41 42 Vcc
Ground 43 44 N.C.
J4: IrDA Connector
J4 is used for an optional IrDA connector for wireless communication.
Pin # Signal Name
1+5V
2No connect
3Ir RX
4Ground
5Ir TX

INSTALLATIONS
IP300 User’s Manual 15
J5: 12V Fan Power Connector
Pin # Signal Name
1Ground
2+12V
3NC
J17: 5V Fan Power Connector
Pin # Signal Name
1Ground
2+5V
3NC
J8: Digital I/O Connector
Signal Name
Pin # Pin # Signal Name
IN0 12+5V
IN1 34OUT0
IN2 56GND
IN3 78OUT1
GND 910 +12V
OUT2 11 12 OUT3
J9: Parallel Port Connector
Signal Name Pin # Pin # Signal Name
Line printer strobe 114 AutoFeed
PD0, parallel data 0 215 Error
PD1, parallel data 1 316 Initialize
PD2, parallel data 2 417 Select
PD3, parallel data 3 518 Ground
PD4, parallel data 4 619 Ground
PD5, parallel data 5 720 Ground
PD6, parallel data 6 821 Ground
PD7, parallel data 7 922 Ground
ACK, acknowledge 10 23 Ground
Busy 11 24 Ground
Paper empty 12 25 Ground
Select 13 N/A N/A

INSTALLATIONS
16 IP300 User’s Manual
J10: System Function Connector
J10 provides connectors for system indicators that provide light
indication of the computer activities and switches to change the computer
status. It provides interfaces for the following functions.
Hard Disk Drive LED Connector: Pins 1 and 2
This connector connects to the hard drive activity LED on
control panel. This LED will flash when the HDD is being
accessed.
Pin # Signal Name
1HDD Active
25V
Power LED: Pins 3 and 4
The power LED indicates the status of the main power
switch. Pin # Signal Name
3Ground
4Power LED
SMI/Hardware Switch: Pins 5 and 6
This connector supports the "Green Switch" on the control
panel, which, when pressed, will force the system into the
power-saving mode immediately.
Pin # Signal Name
5Ground
6Sleep
Reset: Pins 7 and 8
This connector connects to the reset switch button of the
system.
Pin # Signal Name
7Ground
8Reset
