Operator & Parts Manual
Three-Speed Air Mover
www.icecompanies.com
6010151
REV.02(06-2012)
IM3
INTERNATIONAL CLEANING EQUIPMENT

SAFETY PRECAUTION. . . . . . . . . . . . . . . . . . . . . . 2
MACHINE OPERATION & STORAGE. . . . . . . . . . . . . . . . . . . . . .3
MACHINE COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
SAFETY PRECAUTION(In Chinese). . . . . . . . . . . . . . . . . . . . . 8
MACHINE OPERATON & STORAGE(In Chinese). . . . . . . . . . . . . 8
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
WEAR&TEAR PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
ICE IM3 1
TABLE OF CONTENTS

SAFETY PRECAUTION
2 ICE IM3
OPERATOR
Carefully read and understand this manual before operating this machine.
This machine must be grounded!
This machine shall be grounded while in use to protect theoperator from electric shock.
Grounding provides a path of least resistance for electric current. This machine is equipped
with a cord having an equipment-grounding conductor and grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. Do not remove the ground pin under any circumstances.

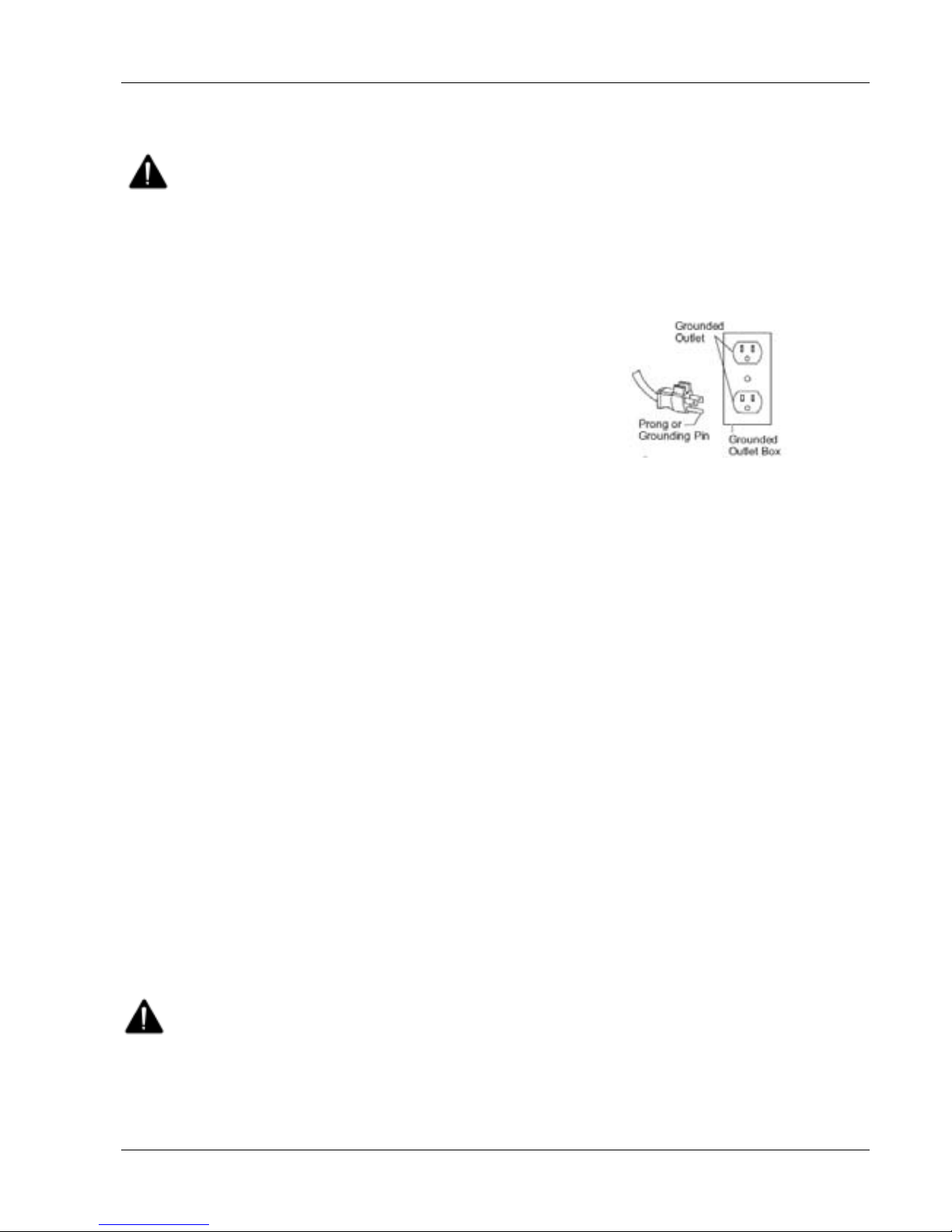

This machine is for use on a nominal 220-volt circuit
and has a grounding plug that resembles the plug
illustrated in Figure. Make sure that the machine is
connected to an outlet having the same conguration as
the plug. No adapter should be used with this machine.
This machine is intended for commercial use. It is constructed for use in an indoor environment
and is nor intended for any other use. Use only recommended accessories.
1. Do not operate machine:
– Unless trained and authorized. – Unless you have read and
– In ammable or explosive areas. understand the operators manual.
– With a damaged cord or plug – With the use of extension cords.
– If not in proper operating condition. – In outdoor areas and standing water.
2. Before operating machine:
– Make sure all safety devices are in place and operating properly.
3. When using machine:
– Do not run machine over cord. – Do not pull machine by cord or plug.
– Do not pull cord around – Do not unplug by pulling on the cord.
sharp edges or corners. – Do not stretch cord.
– Do not handle plug with wet hands. – Keep cord away from heated surfaces.
– Report machine damage or faulty
operation immediately.
To avoid electrical shock,please replace the power cord immediately if any damage is
being detected. The replacement must be performed only by an authorized person or
by our customer service center.
4. Before leaving or servicing machine:
– Turn off machine. – Unplug cord from outlet.
5. When servicing machine:
– Unplug cord from outlet. – Use manufacturer supplied or
approved replacement parts.

Operation of the Air Blower
ICE IM3 3
OPERATOR
Read operators manual thoroughly prior to operating or servicing
this machine.
BASIC OPERATION
1) Check machine for any obstructions in fan prior to operation.
If an item blocks the intakes of the blower, this will hurt the performance of the
blower, and could cause the motor to overheat.
2) Adjust machine to desired position for operation by either pulling it back to it’s preset
height adjustments, or by lowering the “kick stand” and setting the machine on the stand.
3) Plug power cord into a grounded outlet.
STORAGE
1) Unplug machine from power source and wrap cord on handle.
2) Store in upright position in a dry area (The machine can be stacked for storage).
MAINTENANCE
To keep the machine performing well for many years, please follow the following
maintenance procedures.
Always confirm that the machine is unplugged prior to performing any
maintenance or repairs.
1) Unplug machine as soon as you are done using it.
2) Wrap the power cord around the telescoping transport handle.
3) Check power cord for any damage. If any damage is detected, replace the cord
immediately.
4) Lubricate wheels with a water resistant lubricant every month
5) Check machine for loose or missing nuts and bolts, and replace as necessary.
6) Clean the outside of the machine with a mild cleaner.
Do not use an extension cord in conjunction with the standard power cord.
4) This machine has three power settings ,Turn the power knob to the desired speed. Low =
1, Mid = 2 & High = 3 (The machine can be stacked for reducing drying time).
5) To stop the machine at any time, simply turn the power knob to the “off” position.
Never stick any object into the air inlet vents or the air outlet vent.

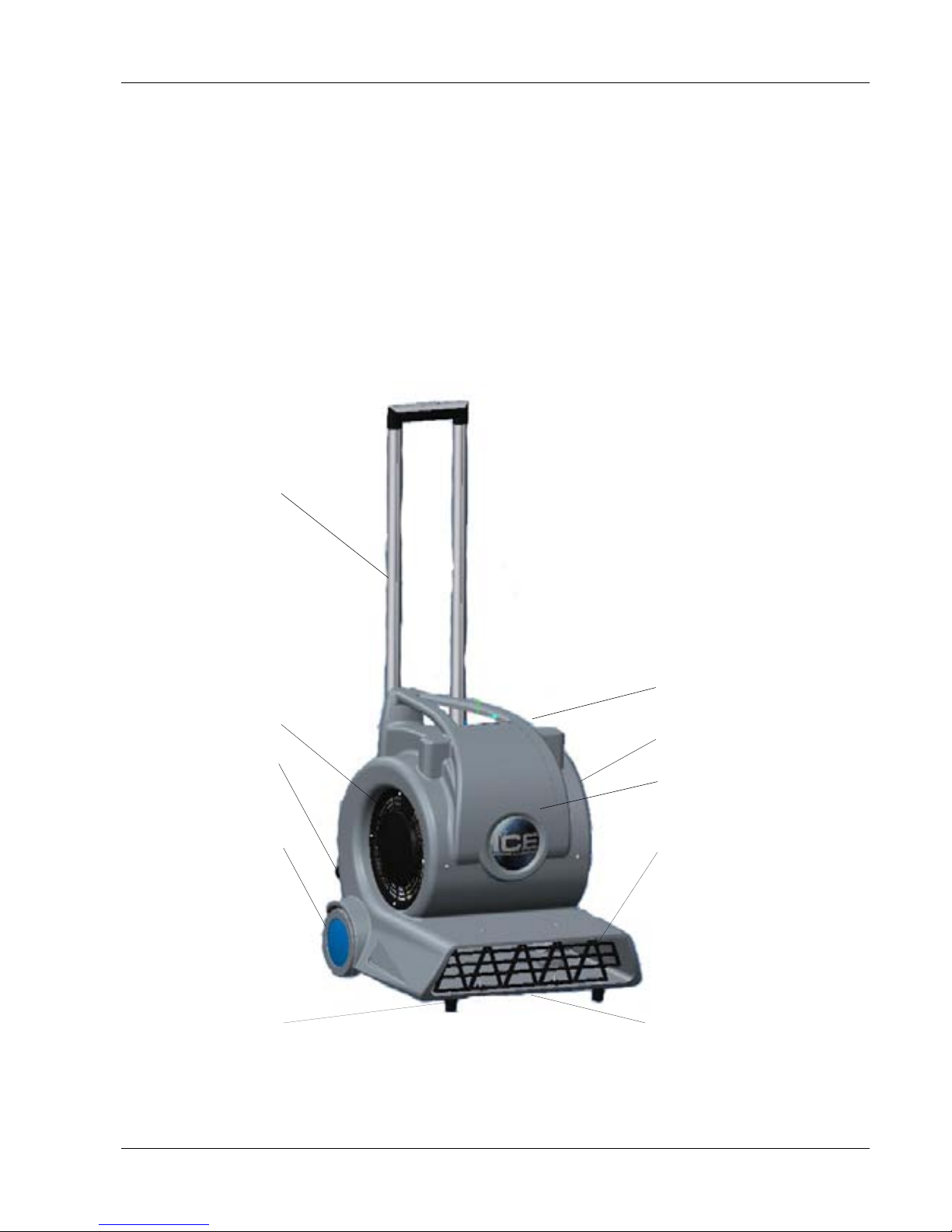

MACHINE COMPONENTS
4 ICE IM3
OPERATOR
1. Telescoping handle 2. Right net,intake
3. Rubber stand 4. 5" Wheel
5. Isolate foot 6. Front prop
7. Finger guard 8. Housing
9. Left net ,intake 10. Power switch
3
8
7
6
9
1
4
2
5
10

ICE IM3 5
OPERATOR

6 ICE IM3
OPERATOR
PARTS LIST
D I A
NO
PART
NUMBER DESCRIPTION NO REQ'D
1 1311216 Screw,Ph,ST4.2X16 8
2 6010112 Right Net,Vent,intake 1
3 1021616 Screw,Hex, M6X16 4
4 1411612 Washer, Lock,∅6 4
5 1432616 Washer,Plain,∅6X∅12X1.6 4
6 6010105 Clamp,Motor 1
7 1031830 Screw,Hex, M8 X30 1
8 6010103 Motor, 220V,3/4HP 3
9 1113810 Nut, Lock, M8 1
10 1311009 Screw,Ph,ST2.9 X9.5 1
11 6010120 Rotator, Switch 1
12 1214405 Screw, Fh, (8#*8)5/32"-32*8 2
13 6010147 Panel, Switch 1
14 1323210 Screw,Ph,ST4.2X9.5 4
15 6010131 Label, Switch 1
16 6010132 Switch 1
17 1662518 Rivet,∅4.8X18 4
18 4010316 Logo 1
19 1412309 Washer,Plain,∅3.4X∅9X0.8 8
20 1421512 Washer,Plain,∅5X∅12X1.5 11
21 6010107 Block,Stand,Right Front 1
22 6010114 Net,Vent,Outlet 1
23 6010109 Rubber,Block,Stand 2
24 6010110 Stand 1
25 6010108 Block,Stand,Left Front 1
26 1662320 Rivet,∅3.2X19 4
27 6010102 Impeller,9" 1
28 6010113 Left Net,Vent,intake 1
29 1534808 Screw,Socket HD, SET, M8X8 1
30 6010138 Cover,Wheel 2
31 1436019 Circlip,∅19 2
32 6010135 5" Wheel 2

ICE IM3 7
OPERATOR
PARTS LIST
D I A
NO
PART
NUMBER DESCRIPTION NO REQ'D
33 6010115 Axle 2
34 6010101 Housing 1
35 6010111 Sleeve,Rubber 2
36 1221525 Screw, Ph, M5 X25 4
37 6010116 Rubber, Stand 3
38 1113507 Nut, Lock, M5 2
39 1221420 Screw, Ph, M4 X20 1
40 1221515 Screw, Ph, M5 X15 2
41 6010133 Capacitor, 20uF,450V 1
42 1113304 Kep Nuts 3
43 6010125 Clamp, Capacitor 1
44 6010150 Serial Decal 1
45 6010144 Warning Decal 1
46 6010134 Telescoping Handle 1
47 1221520 Screw, Ph, M5 X20 1
48 1422300 Washer, Lock,Φ3 2
49 1221314 Screw, Ph, M3 X14 2
50 2320403 Strain Relief 1
51 6010142 Power Cord 1
52 6010140 Plate, Chamber 1

ICE IM3 9
OPERATOR
TECHNICAL DATA
Model IM3
Voltage 220V
Power 0.75HP(550W) thermally-protected
Current 4.2 A
Frequency 50Hz
Fan size 9.5"(24.1cm)
Speed 3
RPM(Flow Rate)
850(L) (2200CFM)
950(M) (2600CFM)
1150(H) (3200CFM)
Dimensions 55.4cm(L)X46.5cm(W)X52.2cm(H)
Weight 16kg
Length of Power cord 6.5m

10 ICE IM3
OPERATOR
Wiring Diagram
IM3
G/Y
Brown
Blue
50/60Hz
Phase
Power
Single
220V
Supply
Power
Supply
RVV 3X1.0
Cord
Yellow
Green
Red
Black
Brown
Capacitor
Brown

ICE IM3 11
OPERATOR
WEAR &TEAR PARTS
D I A
NO
PART
NUMBER DESCRIPTION NO REQ'D
1 6010135 5" Wheel 5" Wheel 2
