I-CAM 380/I-CAM 640 SERIES
QUICK START GUIDE
Edit Text Outlines
IndustryIndustry
2
©Copyright 2021, Infrared Cameras, Inc. - All rights reserved. The
contents of this document may not be reproduced in whole or in parts
without the written consent of the copyright owner.
Printed in the United States of America.
2105 W. Cardinal Dr.
Beaumont, TX 77705
(866) 861-0788
www.infraredcameras.com
THE MANUFACTURER RESERVES THE RIGHT TO ALTER THE
SPECIFICATIONS OF THE PRODUCT WITHOUT PRIOR NOTIFICATION. THE
MANUFACTURER ALLOWS HIMSELF THE RIGHT TO MODIFY WITHOUT
ANY PRELIMINARY OPINION THE TECHNICAL SPECIFICATIONS OF THE
PRODUCT. THIS MANUAL MAY CONTAIN TECHNICAL INACCURACIES OR
TYPOGRAPHICAL ERRORS.
NOTICE ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN
THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED
WITHOUT WARRANTY OF ANY KIND. NOTWITHSTANDING ANY OTHER
WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE ARE
PROVIDED “AS IS” WITH ALL FAULTS. ICI DISCLAIMS ALL WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE,
OR TRADE PRACTICE.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE
ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION
PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED
HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE
SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR ICI
REPRESENTATIVE FOR A COPY.
IN NO EVENT SHALL ICI BE LIABLE FOR ANY INDIRECT, SPECIAL,
CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT
LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING
OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF ICI HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
3

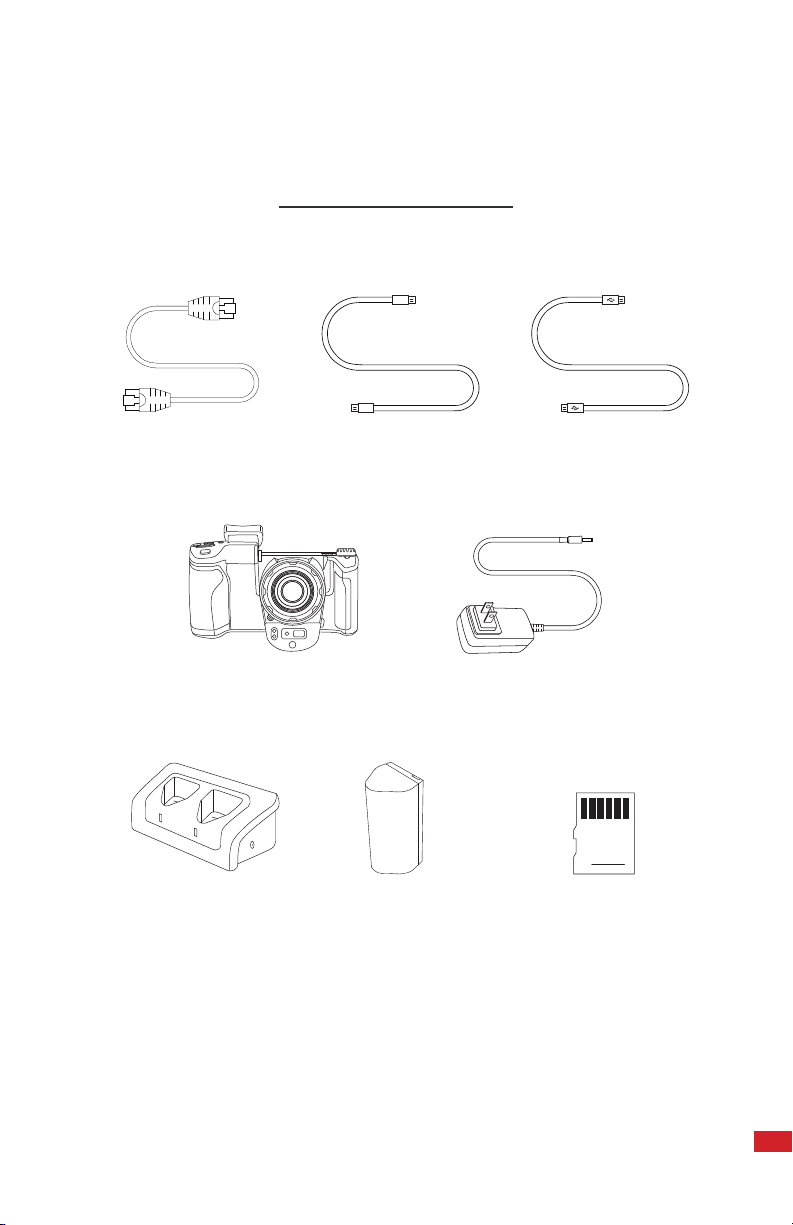

Package Includes
I-Cam Device
Battery x2
Power Adapter
ENSURE ALL SYSTEM EQUIPMENT AND COMPONENT ITEMS ARE
PRESENT BEFORE BEGINNING INSTALLATION
SD Card
HDMI Cable USB CableEthernet Cable
Charging Base
4

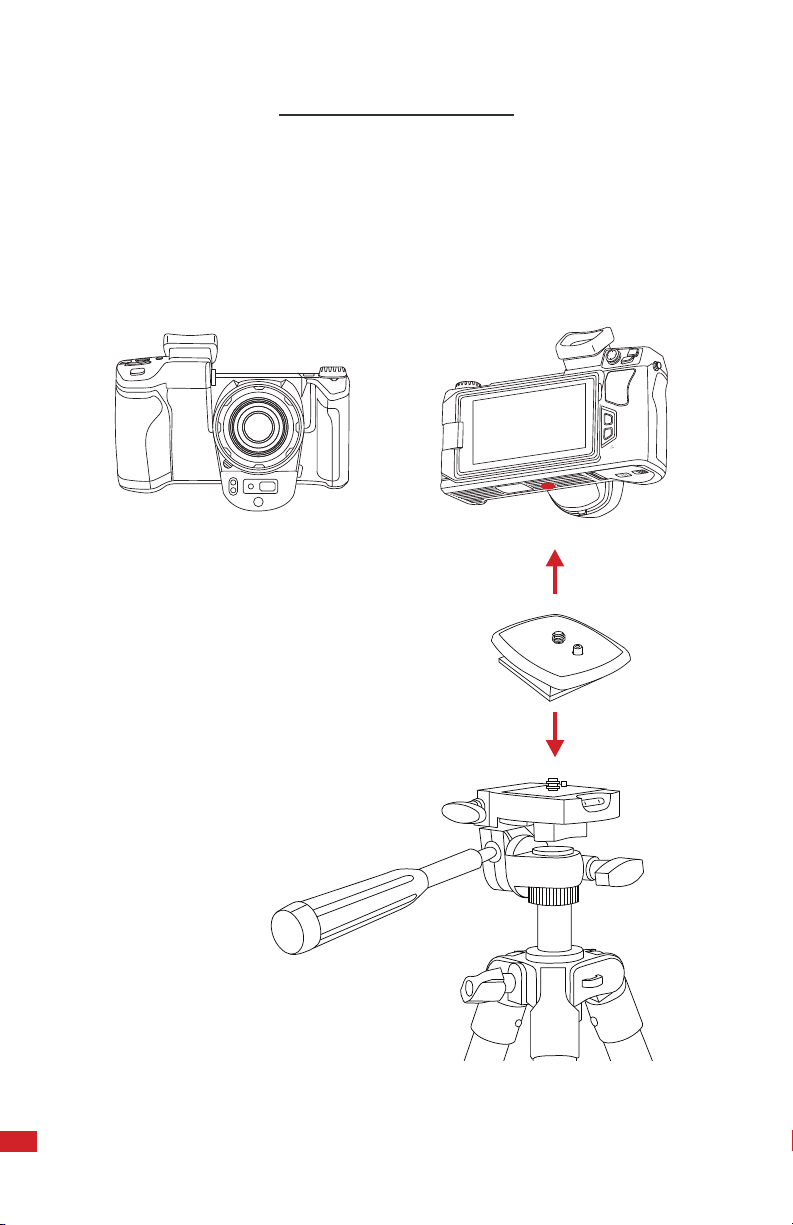

or Mount the fully charged device
to a tripod using the ¼”-20
mount located on the body.
The camera can be used as
a handheld device.
Set Up
A.
MAKE SURE TRIPODS DO NOT BLOCK THE DIRECT PATH OF
PERSON(S) TO BE IMAGED TO ENSURE THE EQUIPMENT WILL NOT
BE MOVED OR KNOCKED DOWN. USING A DIVIDING BARRIER WILL
HELP KEEP TRIPODS SEPARATE FROM THE PATH.
5
B.
Power on device.
TURN ON THE CAMERA BY PRESSING AND HOLDING THE POWER
BUTTON FOR AT LEAST TWO SECONDS.
PRESS AND HOLD THE POWER BUTTON FOR MORE THAN 5
SECONDS TO SHUT DOWN THE CAMERA.
THE THERMAL IMAGER NEEDS SUFFICIENT WARM-UP TIME
FOR THE MOST ACCURATE TEMPERATURE MEASUREMENTS
AND BEST IMAGE QUALITY. THIS TIME CAN OFTEN VARY BY
ENVIRONMENTAL CONDITIONS. IT IS BEST TO WAIT A MINIMUM
OF 10 MINUTES FOR THE DEVICE TO COMPLETELY WARM-UP.
6
D.
Ensure metal contacts are
aligned; then, push the battery
into the battery bay until battery
is secure under battery buckle.
MAKE SURE TO HOLD THE CAMERA FIRMLY IN BOTH HANDS
WHEN REMOVING OR REPLACING THE BATTERY.
DO NOT FORCE THE BATTERY INTO THE BATTERY BAY. IF USER
FEELS SIGNIFICANT RESISTANCE REMOVE THE BATTERY AND
ENSURE METAL CONTACTS ARE ALIGNED BEFORE TRYING TO
PLACE BATTERY INTO THE BATTERY BAY.
Battery Installation
B.
A.
Slide the battery bay latch lock. Slide the battery bay cover latch.
C.
Open the battery bay cover.
7
E.
To replace a battery held in the
battery bay push the battery
buckle. Battery will be ejected.
ENSURE BATTERY COVER IS PROPERLY CLOSED. IMPROPER
CLOSURE OF BATTERY COVER MAY EXPOSE THE BATTERY AND
INTERNAL ELECTRONICS TO ELEMENTAL DAMAGE.
F.
G. H.
Close the battery bay.
Slide the battery bay latch to
secure the battery bay cover.
For extra security slide the
battery bay latch lock.
8
Memory Card
DO NOT FORCE SD CARD INTO THE SLOT. THE SIDE OF THE CARD
WITH CONTACT PINS MUST BE INSERTED FIRST. IF THERE IS
RESISTANCE FLIP THE CARD AROUND AND TRY AGAIN.
D.
Insert the SD Card into the card
bay until a clicking sound is heard.
MAKE SURE TO HOLD THE CAMERA FIRMLY IN BOTH HANDS
WHEN REMOVING OR REPLACING THE MEMORY CARD.
C.
Open the battery bay cover.
B.
A.
Slide the battery bay latch lock. Slide the battery bay cover latch.
9
E.
Replace a memory card by pressing
downwards on the memory card until a
clicking sound is heard; then, release.
Memory card will be ejected.
ENSURE BATTERY COVER IS PROPERLY CLOSED. IMPROPER
CLOSURE OF BATTERY COVER MAY EXPOSE THE BATTERY AND
INTERNAL ELECTRONICS TO ELEMENTAL DAMAGE.
F.
G. H.
Close the battery bay.
Slide the battery bay latch to
secure the battery bay cover.
For extra security slide the
battery bay latch lock.
10
Charging Instructions: Option 1
A.
While a battery is inside the
device, plug the jack end of the
power adapter into the device.
CHARGE THE BATTERY FOR A MINIMUM OF 3 HOURS BEFORE
USING THE DEVICE.
ICI DOES NOT RECOMMEND CHARGING THE DEVICE WHILE IT IS
ON A TRIPOD. LAY DEVICE FACE DOWN ON A FLAT AND STABLE
DESK OR TABLE WHILE CHARGING.
ENSURE THE IMAGER IS NEAR ROOM TEMPERATURE BEFORE
CHARGING THE DEVICE. DO NOT CHARGE IN EXTREMELY HOT OR
COLD AREAS. THE BATTERY CAPACITY MAY BE DECREASED IF
CHARGED IN AN EXTREME TEMPERATURE ENVIRONMENT.
IF YOU DO NOT USE THE IMAGER FOR A LONG PERIOD OF TIME,
PUT THE DEVICE IN A COOL AND DRY ENVIRONMENT. THE
BATTERY WILL DISCHARGE OVER TIME; THEREFORE, THE IMAGER
SHOULD BE CHARGED OCCASIONALLY TO PREVENT DAMAGE TO
THE BATTERY OR THE DEVICE.
HDMI
B.
Plug power cord into a
110/120V electrical outlet.
11
B.
Plug power cord into a
110/120V electrical outlet.

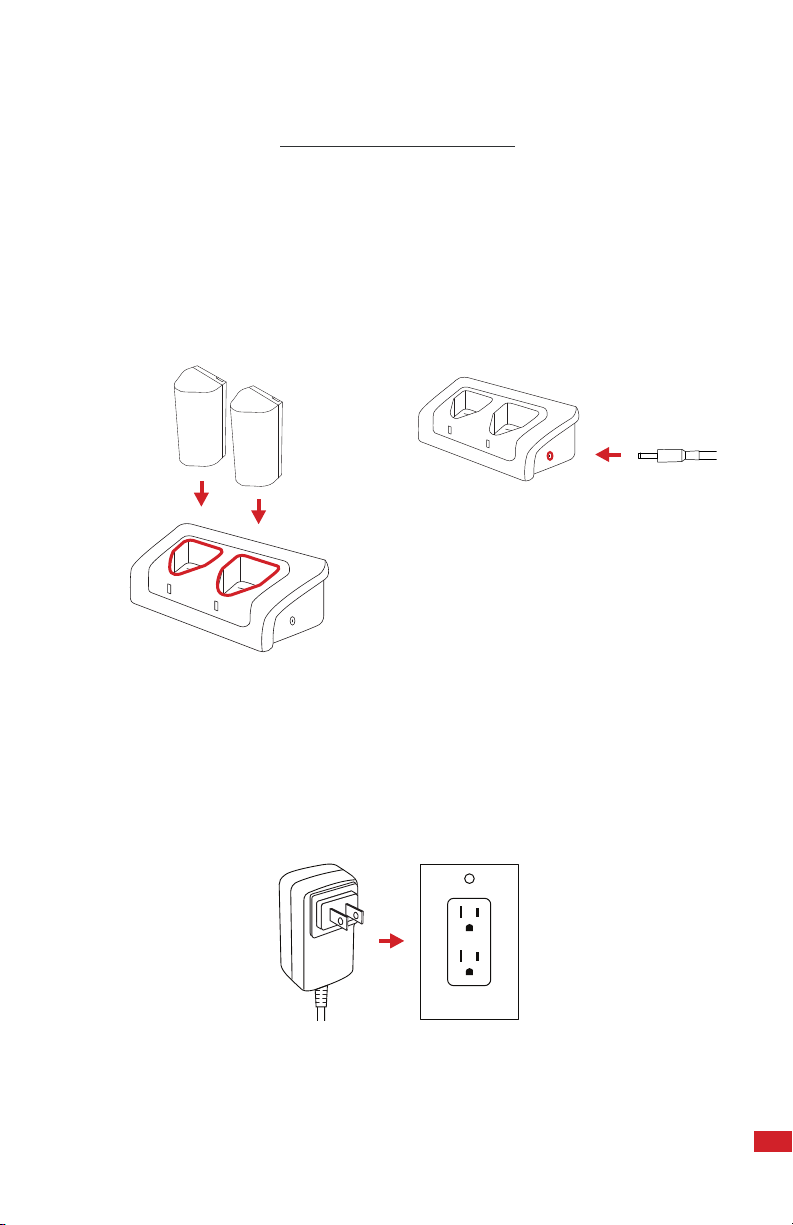

Charging Instructions: Option 2
A.
Insert batteries into the battery charger.
B.
Plug the jack end of the power
adapter into the battery charger.
REMOVE THE BATTERIES FROM THE DEVICE BEFORE CONTINUING
WITH THIS METHOD OF CHARGING.
WHEN THE BATTERY IS NOT PLACED IN THE CHARGER THE
INDICATOR LIGHT FLASHES. THE LIGHT TURNS RED WHEN THE
BATTERY IS PLACED AND CHARGING. WHEN THE BATTERY IS
FULLY CHARGED THE LIGHT TURNS GREEN.
12

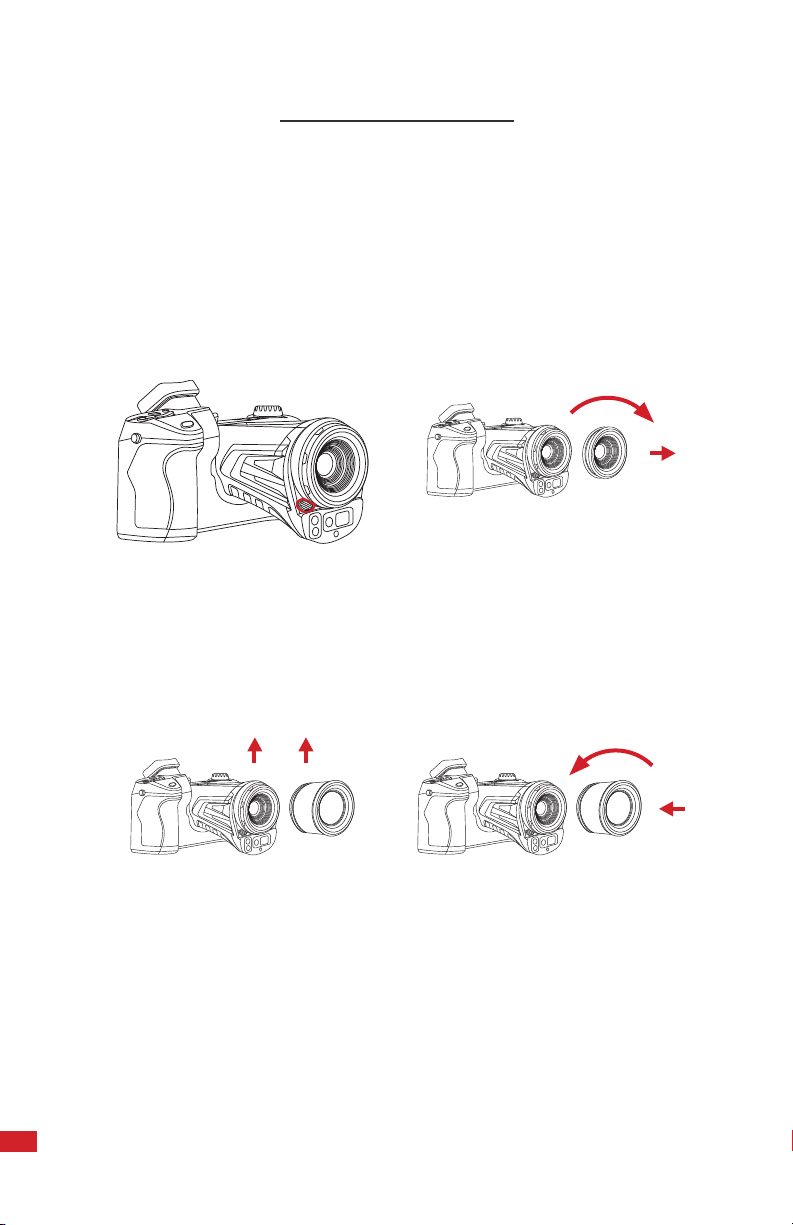

Lens Installation
DO NOT FORCE LENS INTO THE SLOT AS THREADS MAY STRIP. IF
USER FEELS SIGNIFICANT RESISTANCE REMOVE THE LENS AND
ENSURE U-SHAPED NOTCH IS UPWARDS AND THREADS ARE
ALIGNED; THEN, TURN THE LENS COUNTER CLOCKWISE.
C. D.
Align the lens threads with the
U-shaped notch upwards.
Rotate the lens counter clockwise
until a clicking sound is heard.
MAKE SURE TO HOLD THE CAMERA FIRMLY IN BOTH HANDS
WHEN CHANGING THE LENS.
A. B.
Press the lens changing button. Rotate the attached lens
clockwise to remove.
PLACE THE LENS IN ITS LENS CONTAINER WHEN NOT IN USE TO
AVOID DAMAGE TO THE LENS. AVOID DROPPING OR SMASHING
THE LENS TO AVOID LENS DAMAGE.
13
Infrared Cameras, Inc.
2105 W. Cardinal Dr.
Beaumont, TX 77705
Phone: Toll Free: International:
Website: www.infraredcameras.com
ICI manufactures complete systems and software. We can provide complete
engineering, software, and OEM solutions. Our Fortune 500 clients rely on us
for infrared equipment and thermography training (which we offer through the
Infrared Training Institute).
In addition to providing custom germanium, silica, and sapphire optics, we also
build windows for enclosures, as well as custom pan and tilt units. We can even
provide customizable explosion-proof systems.
Our knowledge and experience stems from years of using infrared imaging
and temperature measurement instruments to provide solutions to: managers,
engineers, scientists, inspectors and operators in space, power companies,
medical, pulp and paper, food industry, research and development, and various
process industries. You can see our products and services used in industrial,
commercial, and government applications worldwide. Originally named Texas
Thank you for your dedicated and continued support.
