Idatastasrt Hc1151a User manual

REVISION DATE

20161024

DOCUMENT NUMBER

NOTICE

The manufacturer will accept no responsability for any electrical damage resulting from

improper installation of this product, be that either damage to the vehicle itself or to the

installed device. This device must be installed by a certiﬁed technician. Please review the

Installation Guide carefully before beginning any work.

U.S. Patent No. 8,856,780

PRODUCT GUIDE

HC1151A

U.S. Patent No. 8,856,780

GETTING STARTED

WELCOME

NEED HELP?

Congratulations on the purchase of your iDataStart

HC solution. You are now a few simple steps away

from enjoying your new remote starter unit with

enhanced features.

Before starting your installation, please ensure that

your iDataStart HC module is programmed with

the correct ﬁrmware for your vehicle and that you

carefully review the install guide.

1 866 427-2999

[email protected]

idatalink.com/support

www.12voltdata.com/forum

www.facebook.com/groups/idatatech

TABLE OF CONTENTS

Box Contents 3

Tach Programming Procedure 4

Remote Programming Procedure 5

Valet Mode Programming Procedure 6

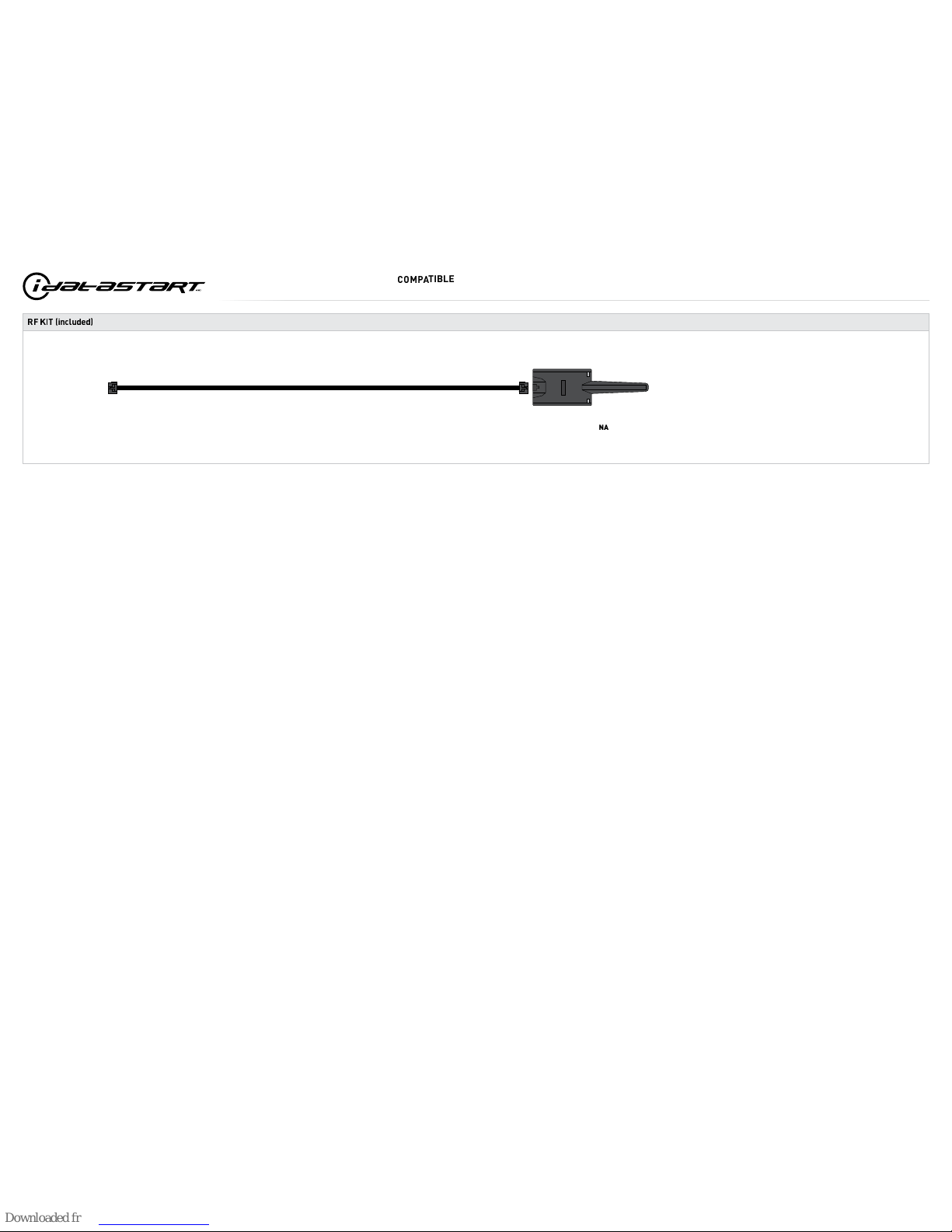

Compatible Accessories 7

Online Module Settings 9

Module Diagnostics 10

Remote Starter Error Codes 11

Module Reset Procedure 12

PAGE 2 OF 12

• 20161024

U.S. Patent No. 8,856,780

AUTOMATIC

TRANSMISSION

CUT LOOP

B 

NC - 4 PIN RED

TELEMATIC 2 - 4 PIN RED

TELEMATIC 1 - 4 PIN BLUE

NC - 3 PIN BLACK

PROGRAMMING BUTTON

USB

LED 1

LED 2

RF PORT/WEBLINK PORT - 4 PIN BLACK

HOOD SWITCHSTICKERS



01 ORANGE - ACCESSORY (+)

02 RED - POWER (30A)

03 PURPLE - STARTER (+)03 PURPLE - STARTER (+)

04 PINK/WHITE - PROG. RELAY #4 - IGNITION 2 (+) (DEFAULT)04 PINK/WHITE - PROG. RELAY #4 - IGNITION 2 (+) (DEFAULT)

05 PINK - IGNITION (+)

07 RED - POWER (30A)

08 BLACK - GROUND08 BLACK - GROUND

01 GREEN•BLACK DOT - LOCK (-) OUTPUT

02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT

03 RED/WHITE•BLACK DOT - TRUNK RELEASE (-) OUTPUT

04 GREEN/WHITE•BLACK DOT - ARM (-) OUTPUT04 GREEN/WHITE•BLACK DOT - ARM (-) OUTPUT

05 GREEN/BLACK•BLACK DOT - DISARM (-) OUTPUT05 GREEN/BLACK•BLACK DOT - DISARM (-) OUTPUT

06 BLUE/WHITE•BLACK DOT - GWR (-) OUTPUT

07 EMPTY07 EMPTY

08 WHITE/PURPLE•BLACK DOT - POC 1 - 2ND UNLOCK OTHER DOORS (-) OUTPUT

09 PURPLE/BLACK•BLACK DOT - POC 2 - RAP SHUTDOWN (-) OUTPUT09 PURPLE/BLACK•BLACK DOT - POC 2 - RAP SHUTDOWN (-) OUTPUT

10 WHITE/BLACK•BLACK DOT - POC 3 - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - POC 3 - HORN (-) OUTPUT

11 BROWN/BLACK•BLACK DOT - POC 4 - STARTER KILL (-) OUTPUT

12 WHITE•BLACK DOT - PARKING LIGHTS (-) OUTPUT

01 BROWN•SILVER DOT - BRAKE (+) INPUT

02 BLACK/WHITE•SILVER DOT - E-BRAKE (-) INPUT

03 PURPLE•SILVER DOT - DOOR (+) INPUT

04 GREEN•SILVER DOT - DOOR (-) INPUT

05 PURPLE/WHITE•SILVER DOT - TACH (-) INPUT

06 WHITE/BLUE•SILVER DOT - X-TRIGGER (-) INPUT

07 GRAY•SILVER DOT - HOOD (-) INPUT

08 BLUE•SILVER DOT - TRUNK (-) INPUT

09 GRAY/BLACK•SILVER DOT - GLOW PLUG (+) INPUT

10 EMPTY

FUNCTIONS DEFINED BY FIRMWARE

06 WHITE - PROG. RELAY #5 (10A) - PARKING LIGHTS (+) (DEFAULT)06 WHITE - PROG. RELAY #5 (10A) - PARKING LIGHTS (+) (DEFAULT)

M3 - 10 PIN WHITE

M2 - 12 PIN BLACK M5 - 6 PIN BLUE

M4 - 20 PIN BLACK

M1 - 8 PIN BLACK

BOX CONTENTS - 1 OF 1

1-WAY REMOTE

ANTENNA BUTTON

ANTENNA LED

RF PORT - 4 PIN BLACK

ANTENNA

CABLE

ANTENNA

AE

3 OF 12

• 20161024

U.S. Patent No. 8,856,780



S

S

OFF ACC ON STARTSTART

START

   ! " # $ #

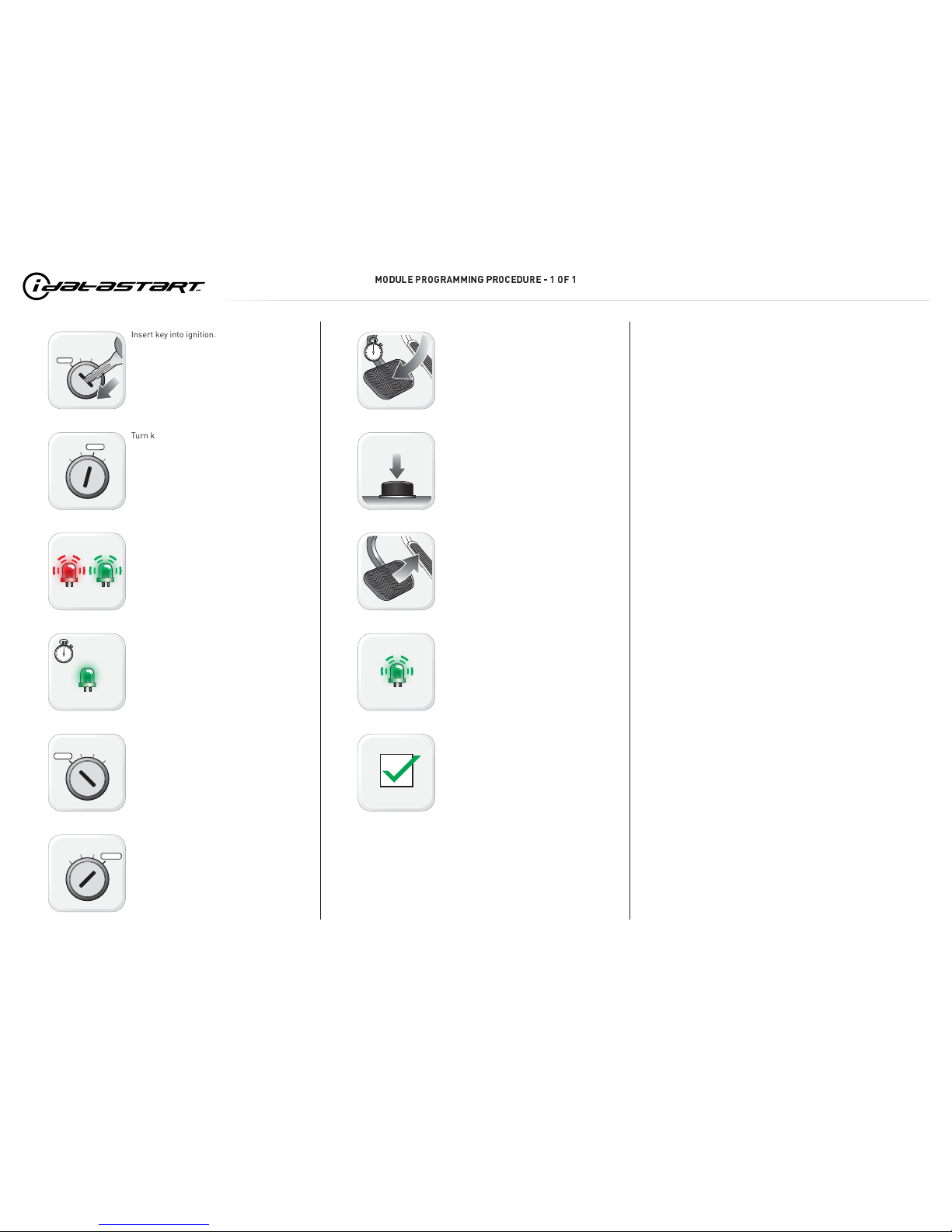

START vehicle for 15 seconds.

Press and hold the brake pedal.

Press and release the module’s programming

button. (OR if the remotes are already

programmed to the vehicle, press and hold the

start button of the remote for 2.5 seconds.)

Wait, LED 2 will ﬂash GREEN. (See the Module

Diagnostics page)

Release the brake pedal.

Module Programming Procedure completed.

PAGE 4 OF 12

• 20161024

U.S. Patent No. 8,856,780

01 [4x]

%&'(&%

)*+,*

OFF ACC ON START

-./0.-

12342

OFF ACC ON STARTOFF

_________________________________

567896 :58;5<77=>; :58?6@C56 D F 8G F

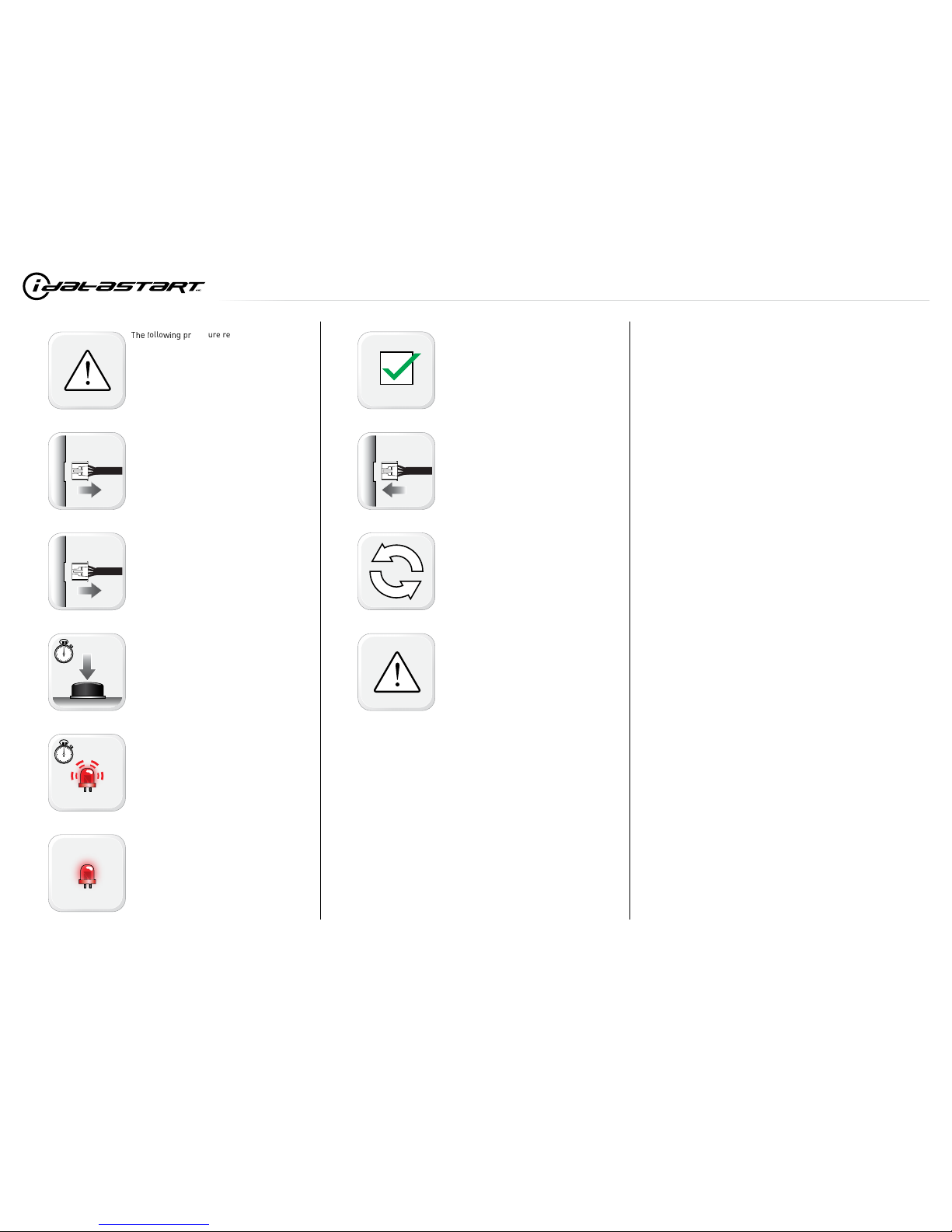

WARNING: Complete the module

programming procedure and tach

programming procedure before programming

the remotes. A maximum of four [4x] remotes

per system.

Set ignition to ON position.

Press and release the antenna button, then

press and hold the antenna button. The

antenna’s leds will turn solid BLUE.

Parking Light will ﬂash once [1x].

Press once [1x] on the LOCK button of each

remote.

The antenna’s leds will ﬂash BLUE once [1x]

for each successful pairing.

Release the antenna button. The antenna’s

leds will turn OFF.

Set ignition to OFF position.

Remote Programming Procedure completed.

To program an additional remote as second

vehicle mode: Follow steps 1 to 4. Press twice

[2x] on the “F” button then press once [1x] on

the LOCK button of the remote. Follow steps

6 to 9.

PAGE 5 OF 12

• 20161024

U.S. Patent No. 8,856,780

HIJKIH

LMNOM

OFF ACC ON START

PQRTQP

UVWXV

OFF ACC ON STARTOFF

YZ[\ ]^_[ `a^baY]]cdb `a^e[_fa[ g h ^i h

NOTE: In Valet Mode, the Remote starter is not

functional. Keyless entry, Lock and Unlock will

remain functional. See RF kit user manual for

alternate valet mode programming.

Time restriction. Complete next step within 7

seconds.

Cycle ignition ON twice [2x OFF/ON] rapidly.

Press and release the BRAKE pedal three

times [3x].

Parking Light will ﬂash once [1x] then will

ﬂash twice [2x].

Set ignition to OFF position.

Valet Mode Programming Procedure

completed.

To exit valet mode: repeat steps 1 to 5.

PAGE 6 OF 12

• 20161024

U.S. Patent No. 8,856,780

PAGE 7 OF 12

• 20161024

jklmnopqrs njjsttkupst v w k x y

MODULE

TELEMATIC BLUE PORT

*For SmartStart, use the module’s RED Telematic port.

(NC)

z{|{}~z z     

10 11 12 13 14 15 16

12345678

   ¡ ¢£¤

MOBILE DEVICE

PORT

OBDII CONNECTOR

4 PIN BLACK CABLE

MODULE

WEBLINK PORT

OBDII CONNECTOR

WEBLINK CABLE (required accessory sold separately)

WEBLINK CABLE

COMPUTER

USB PORT

4 PIN BLACK CABLE

MODULE

WEBLINK PORT

U.S. Patent No. 8,856,780

PAGE 8 OF 12

• 20161024

¥¦§¨©

TIBLE ACCESSORIES - 2 OF 2

4 PIN BLACK CABLE

MODULE

RF PORT

ª« ¬® ¯°±²³´µ¶µ·

ANTENNA

U.S. Patent No. 8,856,780

ONLINE MODULE SETTINGS - 1 OF 1

WEB PROGRAMMABLE MENUS DESCRIPTION

MENU 1 – Remote Starter RS related conﬁguration options

MENU 2 – Doorlock Options Convenience feature conﬁguration options

MENU 3 – Security Options Alarm activation and settings

MENU 4 – AUX function assignments Set transmitter AUX buttons controls

MENU 5 – Programmable outputs (POC) Set actions for programmable outputs

MENU 6 – Pulse Timer Output Conﬁguration (PTO) Set duration for pulse timer outputs (if used)

MENU 7 – Input Conﬁgurations Set inputs for Auto by ﬁrmware/Data/Analog

MENU 8 – Output Conﬁgurations Set outputs for Auto by ﬁrmware/Data/Analog

Programming options are avaible through Weblink and Weblink Mobile only.

PAGE 9 OF 12

• 20161024

U.S. Patent No. 8,856,780

MODULE DIAGNOSTICS - 1 OF 1

TEST MODULE

LED 1 STATUS

DIAGNOSTIC

I DURING MODULE PROGRAMMING

Flashing RED Missing/wrong information from ﬁrmware or vehicle.

Solid RED Module waiting for more vehicle information.

Flashing GREEN Additional steps required to complete module programming.

Solid GREEN then OFF Module correctly programmed.

OFF No activity or module already programmed.

II DURING TACH PROGRAMMING

1 GREEN ﬂash Tach signal programmed in Analog

2 GREEN ﬂashes Tach signal programmed in Data

3 RED ﬂashes No tach signal detected

4 RED ﬂashes System is in valet mode

5 RED ﬂashes Tach set for ‘VTS’. No tach programming required

6 RED ﬂashes Tach set for ‘assumed start’. No tach programming required

III DURING REMOTE START

Flashing RED Module incorrectly programmed.

Solid RED Module incorrectly programmed.

Flashing GREEN Module correctly programmed and operational.

Solid GREEN then OFF Reset in progress.

OFF Invalid ground when running status from remote starter.

IV WITH IGNITION OFF

Flashing RED Module incorrectly programmed or connected.

Solid RED Module not programmed. Waiting for more vehicle information.

Flashing GREEN False ground when running status from remote starter.

Solid GREEN then OFF Reset in progress.

OFF Module at rest and ready for a remote start sequence.

PAGE 10 OF 12

• 20161024

U.S. Patent No. 8,856,780

¸¹º»

TE STARTER ERROR CODES - 1 OF 1

REMOTE STARTER ERROR CODES:

NOTES

[X] NUMBER OF

PARKING LIGHT

FLASHES

DIAGNOSTIC

I WARNING: The following applies only when the parking

lights are connected and supported by the system.

¼½¾¿½À ÁÂ½½¿½¾Ã

02 Ke

Ä¿½ ¿¾½¿

¿Æ

½ÇÅ ÈÉ ÊÆË¿

¿Æ

½Ã

II After a remote starter failure, the parking lights will ﬂ ash

three [3x] times, then will ﬂ ash [X] number times to

indicate an error code. See table.

03 Door is open.

04 Trunk is open.

05 Foot brake is ON.

06 Hood is open.

07 The reservation is OFF. (Manual transmission only)

08 Tach failure.

09 The vehicle is moving (VSS).

10 System is in Valet Mode.

11 CAN communication failure

12 RS not synchronized. Start vehicle with OEM key for 15 sec before trying a new RS sequence.

13 Bypass problem.

REMOTE STARTER SHUTDOWN ERROR CODES:

NOTES

[Y] NUMBER OF

PARKING LIGHT

FLASHES

DIAGNOSTIC

I WARNING: The following applies only when the parking

lights are connected and supported by the system.

01 Engine tach signal is lost.

02 Emergency brake is lost.

II If the engine shuts down after a remote starter sequence:

Press and hold the Trunk button and the Start button at the

same time for 2.5 seconds when using a 1-WAY remote.

Press once [1x] on button “4” when using a 2-WAY remote.

The parking lights will ﬂash four [4x] times, then will ﬂash

[Y] number times to indicate an error code. See table.

03 Foot brake is ON.

04 Hood is open.

05 Engine RPM limiter is ON.

06 Glow plug timeout error.

07 Vehicle is moving (VSS).

08 N/A

09 N/A

10 Door is open.

11 CAN communication failure during RS sequence.

12 RS not synchronized. Start vehicle with OEM key for 15 sec before trying a new RS sequence.

13 Takeover is not allowed.

14 Shutdown error, board overheat protection.

PAGE 11 OF 12

• 20161024

U.S. Patent No. 8,856,780

MODULE RESET PROCEDURE - 1 OF 1

ÌÍÎ Ï

ollo

ÐÑÒÓ ÔÕ

ocedure resets the module

programming to the vehicle. It does not reset

any settings conﬁgured online.

Disconnect all connectors from module except

the M1 BLACK 8-pin connector and the M4

BLACK 20-pin connector.

Disconnect the M1 BLACK 8-pin connector

and the M4 BLACK 20-pin connector.

PRESS AND HOLD the module’s programming

button while connecting the M1 BLACK

8-pin connector and the M4 BLACK 20-pin

connector.

Wait, LED 1 will ﬂash RED. RELEASE

programming button.

LED 1 will turn RED for 2 seconds.

Module RESET completed.

Reconnect all connectors.

Repeat programming procedure.

Failure to follow procedure may result with a

DTC or a CHECK ENGINE error message.

PAGE 12 OF 12

• 20161024

U.S. Patent No. 8,856,780

20161107

REVISION DATE

ADS-RST-HK2-[HC1151A]

FIRMWARE

HC1151A

HARDWARE

ADS-USB (OPTIONAL)

ADS-WLM-AN1/ADS-WLM-AP1 (OPTIONAL)

DRONE MOBILE DR-2000 (OPTIONAL)

COMPATIBLE RF-KIT (OPTIONAL)

ACCESSORIES

DOCUMENT NUMBER

2008-2011 HYUNDAI ACCENT STD KEY AT

INSTALL GUIDE

NOTICE

The manufacturer will accept no responsability for any electrical damage resulting from

improper installation of this product, be that either damage to the vehicle itself or to the

installed device. This device must be installed by a certiﬁed technician. Please review the

Installation Guide carefully before beginning any work.

T001_W

HARDWIRE / COMPONENT LOCATOR - 1 OF 1

PAGE 2 OF 7

U.S. Patent No. 8,856,780 2008-2011 Hyundai Accent STD key AT

20161107

10 11 12 13

14 15 16 17 18 19 20 21 22 23 24 25 26

27 2928 30 31 32 33 34 35 36 37 38 39

1 2 3 4 5 6 7 8 9

123 4

8 9 10 11

5 6 7

16 17 18

12 13 14 15

123

456

T001_W

3 4 5 61 2

17 18 19 20

7 8

15 16

11 12 13 14

CUT LOOP FOR AUTOMATIC TRANSMISSION ONLYCUT LOOP FOR AUTOMATIC TRANSMISSION ONLY

HARDWIRE / WIRING DIAGRAM - 1 OF 1

STARTER (+) WHITE - 01

ACCESSORY (+) ORANGE - 03

04 GREEN/WHITE•BLACK DOT - ARM (-) OUTPUT

03 BROWN/RED03 BROWN/RED

04 BROWN/YELLOW04 BROWN/YELLOW

BRAKE (+) GREEN - 02

UNLOCK (-) YELLOW/BLACK - 16

LOCK (-) BLUE - 06

ARM (-) YELLOW/ORANGE - 35

DISARM (-) WHITE/BLACK - 33DISARM (-) WHITE/BLACK - 33

PARKING LIGHT (-) RED - 10

IMMOBILIZER (DATA) BLUE/BLACK - 15

IGNITION SWITCH (A)

I/P JUNCTION BOX (B)

DRIVER KICK PANEL (C)

12V (+) GREEN - 05

IGNITION (+) PINK - 06

TACH (AC) GREEN - 32

06 BLUE/WHITE•BLACK DOT06 BLUE/WHITE•BLACK DOT

08 WHITE/PURPLE•BLACK DOT

01 GREEN•BLACK DOT - LOCK (-) OUTPUT01 GREEN•BLACK DOT - LOCK (-) OUTPUT

02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT02 BLUE•BLACK DOT - UNLOCK (-) OUTPUT

03 RED/WHITE•BLACK DOT03 RED/WHITE•BLACK DOT

05 GREEN/BLACK•BLACK DOT - DISARM (-) OUTPUT05 GREEN/BLACK•BLACK DOT - DISARM (-) OUTPUT

07 EMPTY07 EMPTY

09 PURPLE/BLACK•BLACK DOT09 PURPLE/BLACK•BLACK DOT

11 BROWN/BLACK•BLACK DOT11 BROWN/BLACK•BLACK DOT

12 WHITE•BLACK DOT- PARKING LIGHT (-) OUTPUT12 WHITE•BLACK DOT- PARKING LIGHT (-) OUTPUT

01 BROWN•SILVER DOT - BRAKE (+) INPUT

02 BLACK/WHITE•SILVER DOT02 BLACK/WHITE•SILVER DOT

03 PURPLE•SILVER DOT03 PURPLE•SILVER DOT

04 GREEN•SILVER DOT04 GREEN•SILVER DOT

05 PURPLE/WHITE•SILVER DOT - TACH (AC) INPUT05 PURPLE/WHITE•SILVER DOT - TACH (AC) INPUT

06 WHITE/BLUE•SILVER DOT06 WHITE/BLUE•SILVER DOT

08 BLUE•SILVER DOT08 BLUE•SILVER DOT

09 GRAY/BLACK•SILVER DOT09 GRAY/BLACK•SILVER DOT

10 EMPTY10 EMPTY

01 EMPTY01 EMPTY

02 EMPTY02 EMPTY

05 BLUE/RED05 BLUE/RED

06 BLUE/YELLOW06 BLUE/YELLOW

07 EMPTY07 EMPTY

08 ORANGE08 ORANGE

09 YELLOW09 YELLOW

10 EMPTY10 EMPTY

11 GRAY/RED - IMMO. (DATA) VEHICLE SIDE11 GRAY/RED - IMMO. (DATA) VEHICLE SIDE

12 GRAY/YELLOW12 GRAY/YELLOW

13 GREEN/RED - IMMO. (DATA) CONNECTOR SIDE13 GREEN/RED - IMMO. (DATA) CONNECTOR SIDE

14 ORANGE/WHITE14 ORANGE/WHITE

15 BROWN15 BROWN

16 ORANGE/BLACK16 ORANGE/BLACK

17 PINK17 PINK

18 PURPLE18 PURPLE

19 RED19 RED

20 BLACK20 BLACK

01 GRAY/BLACK•BLUE DOT01 GRAY/BLACK•BLUE DOT

02 WHITE/BLACK•BLUE DOT - IMMO. (DATA) CONNECTOR SIDE02 WHITE/BLACK•BLUE DOT - IMMO. (DATA) CONNECTOR SIDE

03 GRAY/RED•BLUE DOT03 GRAY/RED•BLUE DOT

04 WHITE/RED•BLUE DOT - IMMO. (DATA) VEHICLE SIDE04 WHITE/RED•BLUE DOT - IMMO. (DATA) VEHICLE SIDE

05 GRAY•BLUE DOT05 GRAY•BLUE DOT

06 WHITE•BLUE DOT06 WHITE•BLUE DOT

07 GRAY•SILVER DOT - HOOD (-) INPUT07 GRAY•SILVER DOT - HOOD (-) INPUT

10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT10 WHITE/BLACK•BLACK DOT - HORN (-) OUTPUT

1: BLUE 42 PIN

HEADLAMP SWITCH (D)

1: BLUE

1: WHITE 42 PIN

3: BLACK

4: WHITE 16 PIN

2: GRAY

1: WHITE

HORN (-)

HOOD SWITCH

INSTALL THE SUPPLIED HOOD SWITCH IF THE VEHICLE IS NOT EQUIPPED WITH ONE.

04 PINK/WHITE

01 ORANGE - ACCESSORY (+)01 ORANGE - ACCESSORY (+)

02 RED - 12V (+)

03 PURPLE - STARTER (+)03 PURPLE - STARTER (+)

05 PINK - IGNITION (+)

07 RED - 12V (+)

08 BLACK - GROUND08 BLACK - GROUND

06 WHITE06 WHITE

M2 M5

PAGE 3 OF 7

U.S. Patent No. 8,856,780 2008-2011 Hyundai Accent STD key AT

20161107

OFF

ACC ON

START

OFF

ACC ON

START

OFF

ACC ON

START

OFF

ACC ON

START

✤✁✂✄☎ ✆ ✝ ✞✝✟✤✤✠✡✞ ✆✝☛☎✁✂✝☎ ☞ ✌ ✍ ✌

Insert key into ignition.

Turn key to ON position.

Wait, LED 1 will ﬂash RED and GREEN. This

may take up to 3 minutes.

Wait, LED 1 will turn solid GREEN for 2

seconds.

Turn key to OFF position.

START vehicle for 15 seconds.

Press and hold the brake pedal.

Press and release the module’s programming

button.

Release the brake pedal.

Wait, LED 2 will ﬂash GREEN.

Module Programming Procedure completed.

PAGE 4 OF 7

U.S. Patent No. 8,856,780 2008-2011 Hyundai Accent STD key AT

20161107

OFF

ACC ON

START

OFF

ACC ON

START

✎✣✏✑✒✚✑✓ ✔✓✒✕✑✖✗✓✑ ✘ ✙✎✖ ✏✑✛ ✘ ✜ ✒✢ ✜

All vehicle doors must be closed and locked

prior to remote start sequence.

Press unlock on OEM or aftermarket remote.

Insert key into ignition.

Turn key to ON position.

Press and release BRAKE pedal.

Take over procedure completed.

Failure to follow procedure will result in

vehicle engine shutdown.

PAGE 5 OF 7

U.S. Patent No. 8,856,780 2008-2011 Hyundai Accent STD key AT

20161107

INSTALLATION CHECKLIST - 1 OF 2

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area.

2 Close all vehicle doors, hood and trunk.

3Press the LOCK button once [1x] on the aftermarket keyfob.



Question 1: Do the doors lock?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

4Press the UNLOCK button once [1x] on the aftermarket keyfob.



Question 2: Do the doors unlock?

YES: Go to next step.



NO: Verify the remote programming, the RF connections and the wired door lock/unlock

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

5Press the TRUNK release button once [1x] on the aftermarket keyfob if supported.



Question 3: Does the trunk or hatch open/unlock?

YES: Close trunk or hatch and go to next step.



NO: Verify the remote programming, the RF connections and the wired trunk/hatch

connections as illustrated in the wiring diagram, if applicable. Repeat the test and call

technical support, if the problem persists.

6Press the AUX 1 button once [1x] on the aftermarket keyfob if supported.



Question 4: Does the driver side sliding door open?

YES: Press the AUX 1 button once [1x] to close the driver sliding door and go to next step.

NO: Verify the remote programming and the RF connections. Repeat the test and call

technical support, if the problem persists.

7Press the AUX 2 button once [1x] on the aftermarket keyfob if supported.



Question 5: Does the passenger side sliding door open?

YES: Press the AUX 2 button once [1x] to close the passenger sliding door and go to next step.

NO: Verify the remote programming and the RF connections. Repeat the test and call

technical support, if the problem persists.

8Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 6: Does the vehicle remote start?

YES: Go to next step.

NO: Verify the remote programming, the RF connections and check the remote start error

codes. Repeat the test and call technical support, if the problem persists.

9Press the START/STOP button once [1x] on the aftermarket keyfob to shut down vehicle.



Question 7: Does the vehicle shut down?

YES: Go to next step.

NO: Repeat step. If problem persists, press the brake pedal once [1x] to shut down the vehicle

and call technical support.

10 RAP and auto light shutdown test



Question 8: Did the radio, interior controls and headlights turn off within 60 seconds after

remote start shutdown?

YES: Go to next step.

NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the

test and call technical support if the problem persists.

11 Open hood.

12 If not already installed, afﬁx the mandatory orange warning sticker under the hood and

proceed to next step.

13 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.



Question 9: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood

switch, then repeat the test.

NO: Go to next step.

14 Close hood.

15 Enter vehicle and close the doors.

16 Press the START/STOP button once [1x] on the aftermarket keyfob to remote start vehicle.

17 Wait for the vehicle to start.

18 Press brake pedal.



Question 10: Does the vehicle shut down?

YES: Go to next step.



NO: The module does NOT detect the brake pedal signal. Press the START/STOP button once

[1x] on the aftermarket keyfob to shut down vehicle, check connection as illustrated in the

wiring diagram, if applicable, and call technical support.

19 Exit vehicle.

20 Installation checklist completed.

CHECKLIST - WITH AFTERMARKET KEYFOB

PAGE 6 OF 7

U.S. Patent No. 8,856,780 2008-2011 Hyundai Accent STD key AT

20161107

INSTALLATION CHECKLIST - 2 OF 2

CHECKLIST - WITH OEM KEYFOB

1 WARNING: Vehicle engine will start many times. Test in a well ventilated area.

2 Close all vehicle doors, hood and trunk.

3 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 1: Does the vehicle remote start?

YES: Go to next step.

NO: The module doesn't detect OEM remote lock button from the vehicle communication network. Check all connections, repeat the test and call technical support, if the problem persists.

4 Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down vehicle.



Question 2: Does the vehicle shut down?

YES: Go to next step.

NO: Repeat step. If the problem persists, press on the brake pedal once [1x] to shut down the vehicle and call technical support.

5 RAP Shutdown test



Question 3: Did the radio, interior controls, and headlights turn off within 60 seconds after remote start shutdown?

YES: Go to next step.

NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support, if the problem persists.

6 Open hood.

7 If not already installed, afﬁx the mandatory orange warning sticker under the hood and proceed to next step.

8 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.



Question 4: Does the vehicle remote start?

YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.

NO: Go to next step.

9 Close hood.

10 Enter vehicle and close the doors.

11 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.

12 Wait for the vehicle to start.

13 Press brake pedal.



Question 5: Does the vehicle shut down?

YES: Go to next step.

NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if

applicable, and call technical support.

14 Exit vehicle.

15 Installation checklist completed.

PAGE 7 OF 7

U.S. Patent No. 8,856,780 2008-2011 Hyundai Accent STD key AT

20161107
