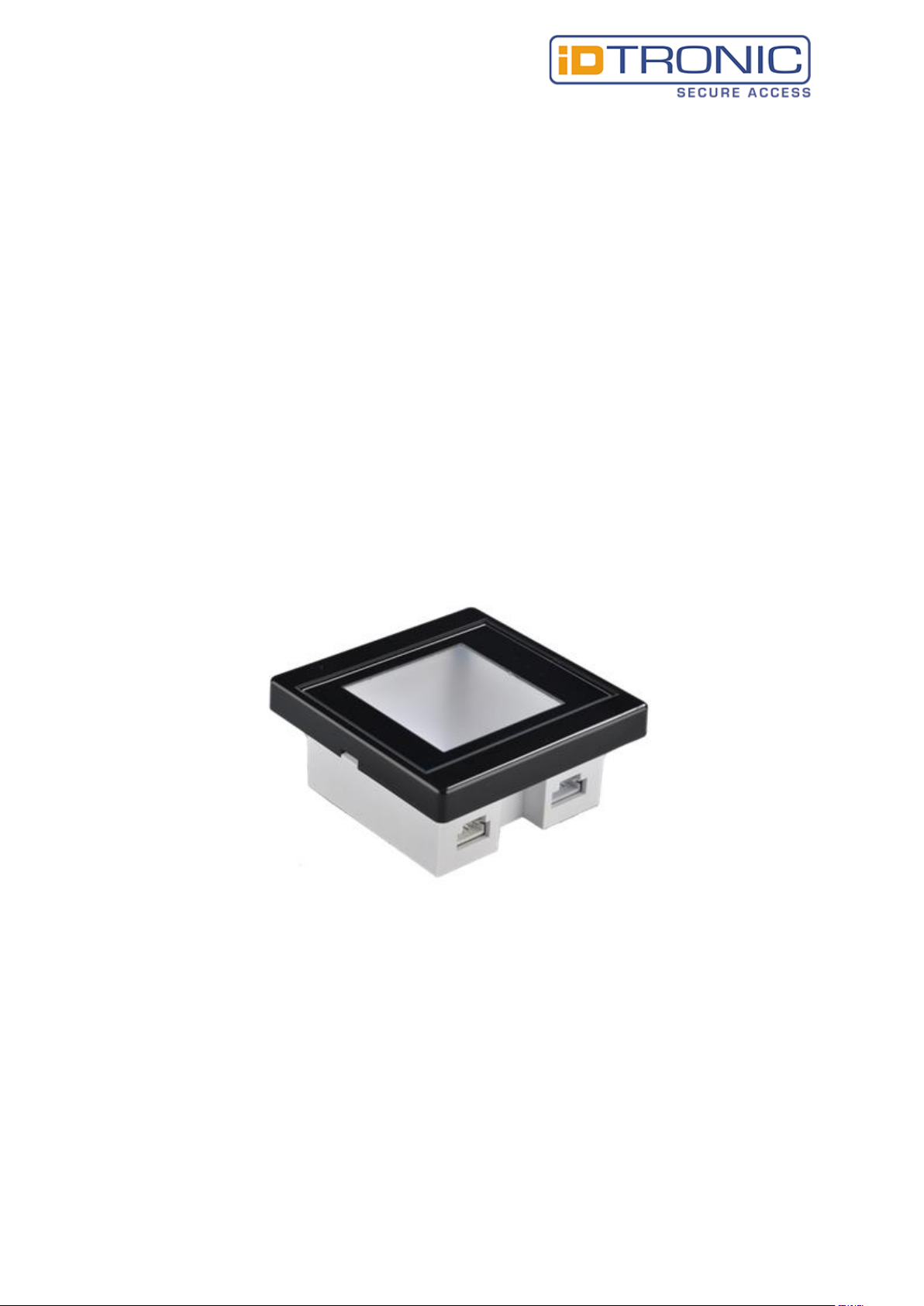

ID IDENT 1500

RFID and Barcode Reader

(USB/RSxxx/Wiegand)



Subject to change without prior notice Version 02
Copyright © 2022 iDTRONIC GmbH 2022-05-18 / MB
ID IDENT 1500 (MX86) User Manual EN v02.docx Page 2 of 18

Contents
Disclaimer................................................................................................................................................................ 3
Preface .................................................................................................................................................................... 4
Product Introduction........................................................................................................................................... 4
Product feature................................................................................................................................................... 4
Precautions ......................................................................................................................................................... 5
Product Parameters ................................................................................................................................................ 6
Apparent parameters.......................................................................................................................................... 6
Reading Parameters............................................................................................................................................ 7
Electrical parameters .......................................................................................................................................... 7
Interface parameters USB................................................................................................................................... 8
Interface parameters RS232 ............................................................................................................................... 8
Interface parameters RS485............................................................................................................................. 8
Interface parameters TTL ................................................................................................................................. 8
Interface parameters Wiegand......................................................................................................................... 9
Interface parameters WIFI ............................................................................................................................... 9
Wiring instructions................................................................................................................................................ 10
Pin definition..................................................................................................................................................... 10
USB/WIFI Wiring ............................................................................................................................................... 11
RS232 wiring...................................................................................................................................................... 12
Wiegand/TTL/RS485/WIFI wiring...................................................................................................................... 13
Product Configuration........................................................................................................................................... 14
Common Faults and Troubleshooting Methods ................................................................................................... 18
After the Wiegand output is configured, the scan code has no output:........................................................... 18
After adjusting to the secondary development mode, the product cannot connect to the configuration tool:
 .......................................................................................................................................................................... 18
Failed to output when scanning IDs:................................................................................................................. 18
Contact info........................................................................................................................................................... 18



Subject to change without prior notice Version 02

ID IDENT 1500 (MX86) User Manual EN v02.docx Page 3 of 18

Disclaimer

Before using the product, please read all the contents in this Product Manual carefully to ensure the

safe and effective use of the product. Do not disassemble the product or tear up the seal on the

device by yourself, or iDTRONIC will not be responsible for the warranty or replacement of the

product.

The pictures in this manual are for reference only. If any individual pictures do not match the actual

product, the actual product shall prevail. For the upgrade and update of this product, iDTRONIC

reserves the right to modify the document at any time without notice.

Use of this product is at the user's own risk. To the maximum extent permitted by applicable law,

damages and risks arising from the use or inability to use this product, including but not limited to

direct or indirect personal damage, loss of commercial profits, iDTRONIC. will not bear any

responsibility for trade interruption, loss of business information or any other economic loss.

All rights of interpretation and modification of this manual belong to iDTRONIC

Subject to change without prior notice Version 02

ID IDENT 1500 (MX86) User Manual EN v02.docx Page 4 of 18

Preface

Product Introduction

Thank you for using the ID IDENT 1500 QR code reader provided by iDTRONIC.

This product can realize QR code identification and RF card reading. Please read the user manual

carefully before use, you will appreciate its perfect function and simple operation method.

This product is mainly used for QR code identification and RF card reading.

The company does not assume responsibility for the property loss or personal injury caused by the

user’s abnormal operation.

Please design and develop the corresponding product according to the technical specifications and

reference in the manual. Also please pay attention to the general safety matters that should be taken

into account when using mobile products. Before the statement, the company has the right to

modify the contents of this manual according to the needs of technological development.

Product feature

•Strong reading ability:

It can recognize the QR code and one-dimensional code on the screen of the mobile phone,

support the enhanced engine mode, and can scan and read the code when the screen of the

mobile phone is dark.

•Paper code reading ability:

The main QR codes and various one-dimensional codes printed on the paper can also be

read.

•High speed reading:

Different mobile phone LCD screens generally have different contrast, colour, and degree of

reflection, which can be read as long as the code system is within the reading window.

•Easy to use:

Scanners can be configured using configuration tools to achieve optimal operation.

Subject to change without prior notice Version 02

ID IDENT 1500 (MX86) User Manual EN v02.docx Page 5 of 18

Precautions

•Dismantling and modification:

Please do not disassemble or modify the hardware of the product.

If the equipment is damaged thereof, the company will not be responsible for the warranty.

•Abnormal condition:

Keep away from fire. If you find unusual odor, overheat or smoke, please immediately turn

off the power switch and unplug the plug from the AC outlet, and contact the dealer where

you purchased the product or our customer service center.

•Drop damage:

If the product is damaged due to falling on the ground, please immediately turn off the

power and contact the dealer where you purchased the product or our customer service

center.

•Placement location:

Please do not place the product in an unstable or uneven place, so as to avoid the device

falling down and causing damage; please do not put the device in a place with large amount

of moisture or dust, so as to avoid causing electric leakage or fire.

•Please keep the illuminating glass lens clean. When wiping, use soft cotton or lens paper. Do

not wipe the window glass with detergent or dissolved liquid.

•Do not touch the window glass with abrasive substances, so as to avoid wearing the window

glass and affecting the reading effect.

Subject to change without prior notice Version 02

ID IDENT 1500 (MX86) User Manual EN v02.docx Page 6 of 18

Product Parameters

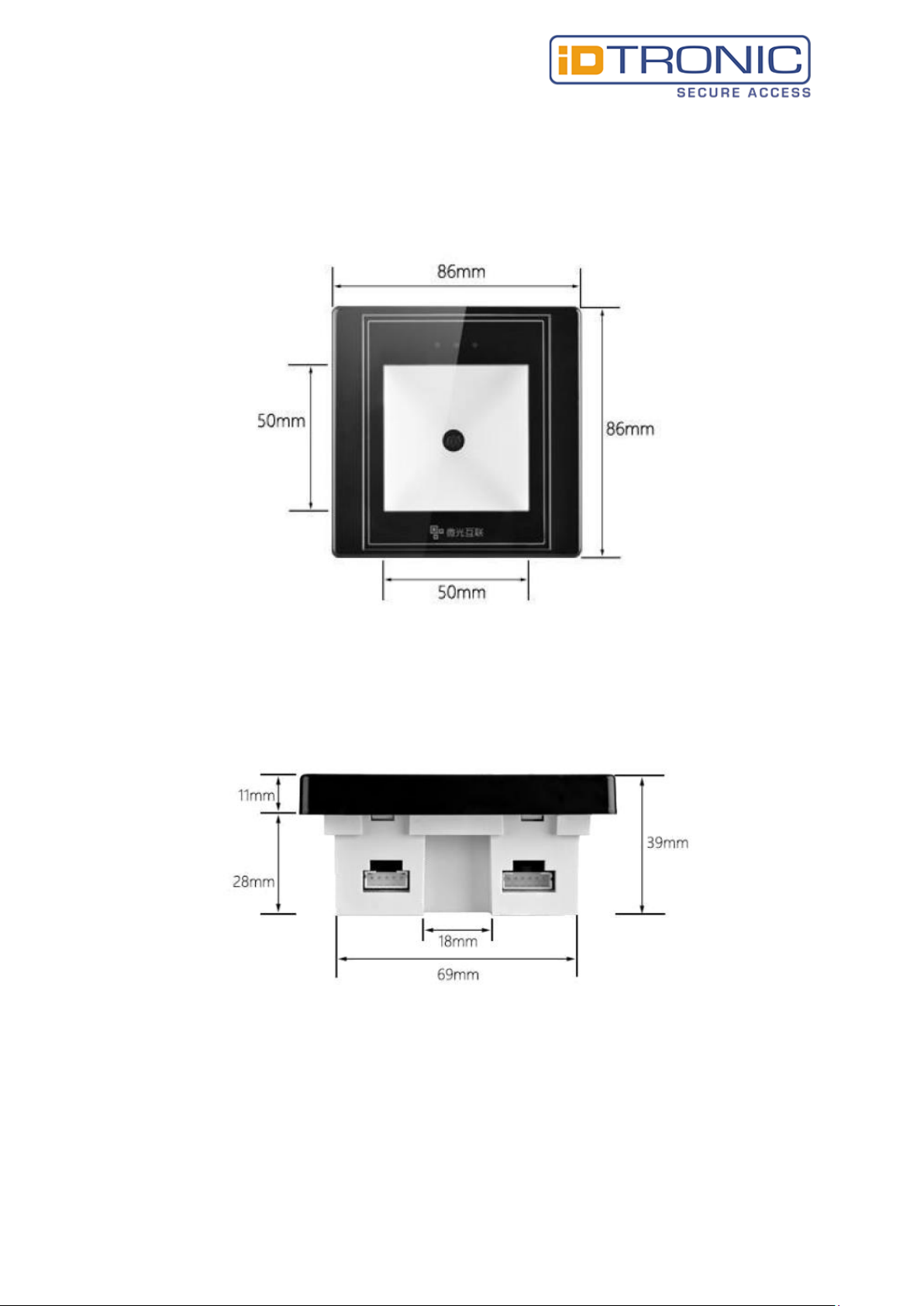

Apparent parameters

Vertical View

Side View

Subject to change without prior notice Version 02

ID IDENT 1500 (MX86) User Manual EN v02.docx Page 7 of 18

Reading Parameters

Reading parameters QR

Identification code

QR code: QR Code, Data Matrix, PDF417, etc.

One-dimensional cod：EAN-8,EAN-13,ISBN-10,ISBN-13,

UPC-E,UPCA,CODE39,CODE93.CODE128 etc;

Decoding support

All prints such as mobile phones, screens, and paper

Reading depth of field

0mm-100mm

Reading accuracy

≥5mil

Reading rate

15 /s

Reading speed

100ms each time (average), supports continuous reading

Reading direction

360 degrees

Reading parameters NFC

Identification card type

MifareClassic, MifareUltraLight, MifareDESFire

RF operating frequency

13.56MHz

Effective operating distance

<5cm

Reading rate

15 /s

Note:

The RF antenna is related to the environment. If there is metal around the product, the quality of

swiping card will be affected.

Electrical parameters

Electric parameter

Support interface

USB (HID Analog Keyboard, Custom HID)

RS485, RS232, TTL, WIFI, Wiegand

Light source

LED diffuse illumination: white light (adjustable brightness),

red light, green light, status light (configurable on),

blue indicator light

Image sensor

300,000 pixel CMOS sensor

Maximum resolution

640*480

Indicator

Buzzer, LED indicator

Operating temperature

-20 to 70 ℃

Storage temperature

-40 to 80 ℃

Humidity

Relative humidity 5%~95% (non-condensing, non-waterproof)

Ambient light

0〜100000LUX

Data cable

6pin cable, USB cable, DB9 cable

Power supply

VCC=4.7V-15V or VUSB=4.8-5.5V

working current

5V input voltage, USB output mode

150mA (average), 190mA (instantaneous maximum)

working current

5V input voltage, WIFI output mode

230mA (average), 330mA (instantaneous maximum)

Materials

Body: imported PC Top cover bottom cover: imported PC

Recognition Window: tempered glass

supported OS

Windows (XP, 7, 8, 10), Linux, Android, Mac, etc.

Subject to change without prior notice Version 02

ID IDENT 1500 (MX86) User Manual EN v02.docx Page 8 of 18

Interface parameters USB

Wiring type

USB Type-A to 5PIN 2.0mm terminal

Support interface

USB2.0 backward compatible, slave device

Theoretical bandwidth

480Mbit/s high-speed interface

Interface voltage

Protection standard

IEC 61000−4−2 Level 4 ESD Protection

Interface parameters RS232

Wiring type

DB9 to 6PIN 2.0mm terminal

Support interface

point-to-point

Baud rate

300 bps to 460800bps, default 115200bps

Interface voltage

±6V

Protection standard

±15kV Human Body Mode

±15kV IEC61000-4-2 Air Discharge Mode

±8kV IEC61000-4-2 Contact Discharge Mode

Interface parameters RS485

Wiring type

DB9 to 6PIN 2.0mm terminal

Support interface

Point-to-point or multi-machine communication

Baud rate

300 bps to 460800bps, default 115200bps

Interface voltage

0-3.3V

Protection standard

±18kV Human Body Mode

±13 kV IEC61000-4-2 Contact Discharge

+4 kV IEC61000-4-4 Fast Transient Burst

Interface parameters TTL

Wiring type

6PIN 2.0mm to 6PIN 2.0mm terminal

Support interface

TTL COMS

Baud rate

300 bps to 460800bps, default 115200bps

Interface voltage

3.3V

Subject to change without prior notice Version 02

ID IDENT 1500 (MX86) User Manual EN v02.docx Page 9 of 18

Interface parameters Wiegand

Wiring type

6PIN 2.0mm to 6PIN 2.0mm terminal

Support interface

Wiegand 26, Wiegand 34

Interface voltage

4.3V

Protection standard

±15 kV HBM protection

Interface parameters WIFI

Wiring type

6PIN 2.0mm to 6PIN 2.0mm terminal USB

Type-A to 5PIN 2.0mm terminal

Support interface

TCP/HTTP

Theoretical bandwidth

40Mbps

OPEN interface

3.3V (default high level at startup)

Subject to change without prior notice Version 02

ID IDENT 1500 (MX86) User Manual EN v02.docx Page 10 of 18

Wiring instructions

Pin definition

ID IDENT 1500 output 5-pin interface

Pin Nr.

Signal Name

I/O

Description

GND_EARTH

Shield ground, connect to USB shield

GND

Power ground

DATA +

Data +

DATA -

Data -

VUSB

USB power supply

ID IDENT 1500 output 6-pin interface

Pin Nr.

Signal Name

I/O

Description

INPUT

Serial logic level input

DATA0

OUTPUT

Wiegand data 0

OPEN

OUTPUT

Access control output

OUTPUT

Serial logic level output

DATA1

OUTPUT

Wiegand data 1

GND

Power ground

VCC

Power input

RS485-A

I/O

RS485 Level Driver IO

RS485-B

I/O

RS485 Level Driver IO

Subject to change without prior notice Version 02

ID IDENT 1500 (MX86) User Manual EN v02.docx Page 11 of 18

USB/WIFI Wiring

USB interface cable

USB-A plug

5-pin plug

shielded

wire

GND_EARTH

GND

DATA +

DATA -

VUSB

Subject to change without prior notice Version 02

ID IDENT 1500 (MX86) User Manual EN v02.docx Page 12 of 18

RS232 wiring

RS232 interface cable

DB9 plug

5-pin plug

GND

VCC

232-RX

232-TX

Subject to change without prior notice Version 02

ID IDENT 1500 (MX86) User Manual EN v02.docx Page 13 of 18

Wiegand/TTL/RS485/WIFI wiring

Wiegand/TTL/RS485/WIFI cable

Pin Nr.

Colour

Signal description

purple

RX/ DATA0/OPEN

yellow

TX/ DATA1

black

GND

red

VCC

brown

RS485-A

blue

RS485-B

Subject to change without prior notice Version 02

ID IDENT 1500 (MX86) User Manual EN v02.docx Page 14 of 18

Product Configuration

Use the IDENTconfig tool to configure the device, which can be download from our official website

(For more information about the configuration tool, please refer to the IDENTconfig user manual).

Configure the server address as the step shows:

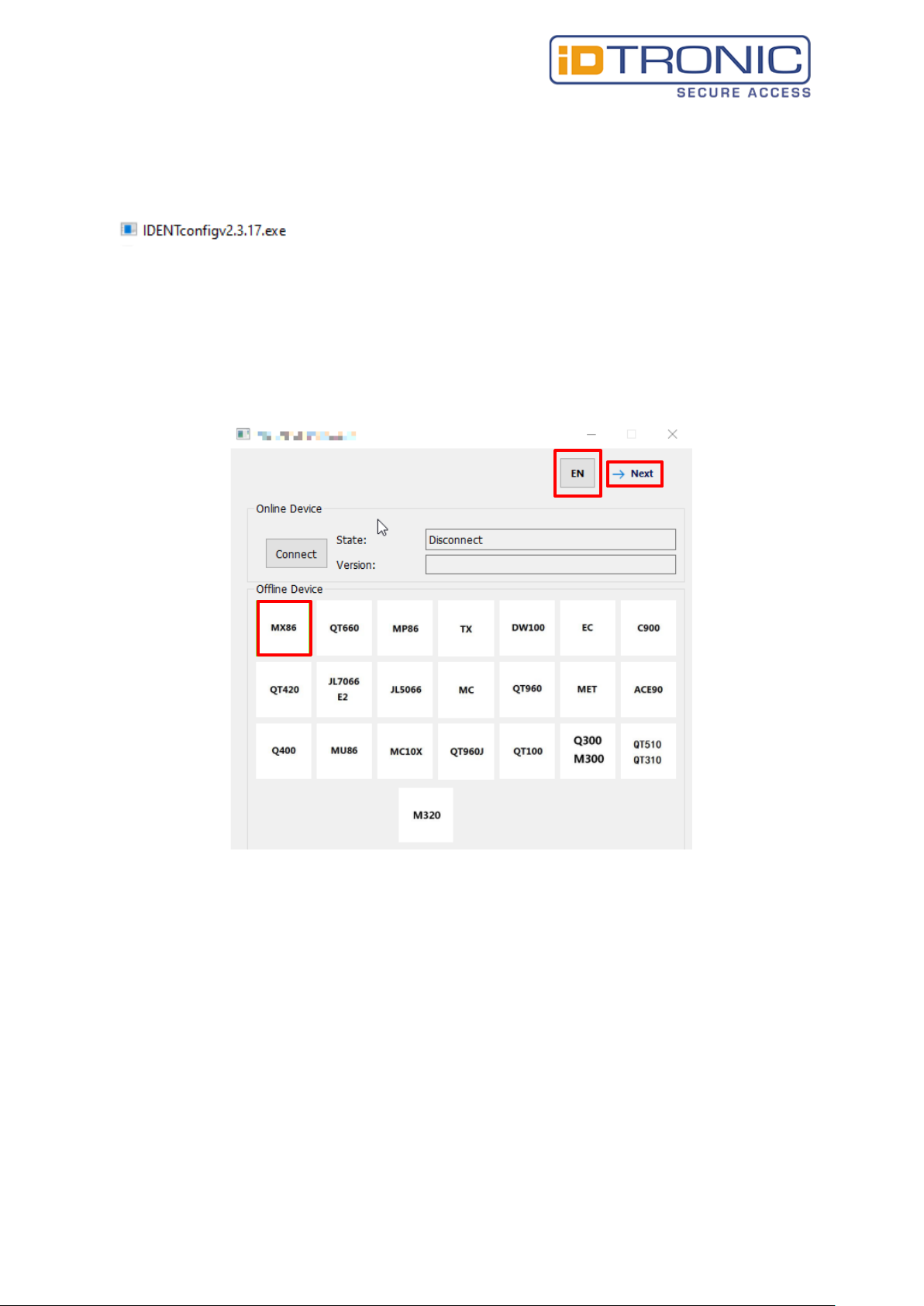

Step 1: select language and device

Subject to change without prior notice Version 02

ID IDENT 1500 (MX86) User Manual EN v02.docx Page 15 of 18

Step 2: select output method

(on RS485/RS232 and TTL devices you have to set baudrate, databit, check digit and stopbit)

Subject to change without prior notice Version 02

ID IDENT 1500 (MX86) User Manual EN v02.docx Page 16 of 18

Subject to change without prior notice Version 02

ID IDENT 1500 (MX86) User Manual EN v02.docx Page 17 of 18

Step 3: make the desired settings in each tab

when all settings have done,

click here to generate

configuration QR-code

use the scanner, scan it

and then power off

and restart the scanner

Subject to change without prior notice Version 02

ID IDENT 1500 (MX86) User Manual EN v02.docx Page 18 of 18

Common Faults and Troubleshooting Methods

After the Wiegand output is configured, the scan code has no output:

When at Wiegand 34 output, the scanner’s QR code output only supports 6-10 characters output, so

if the QR code information is less than 6 bits, complement 0 to the front bit to get 6 bits to generate

output. In addition, the Wiegand output only supports pure digital output. Please check whether the

scanned QR code/ID card content conforms to the specification.

After adjusting to the secondary development mode, the product cannot connect

to the configuration tool:

If you adjust the work mode from normal mode to secondary development mode that the secondary

development output mode does not match the output mode in the normal configuration, the

configuration tool cannot be connected after the configuration is saved. After adjusting the

configuration in the configuration tool, configure it by scanning the configuration QR code.

Failed to output when scanning IDs:

If you need to scan the ID card, you need to configure the output length to 4 in the NFC configuration

column of the configuration tool. Otherwise, it will not be output correctly.

Contact info

iDTRONIC GmbH

Ludwig-Reichling-Straße 4

67059 Ludwigshafen

Germany

E-Mail: info@idtronic-secureaccess.de

Web: www.idtronic-secureaccess.de

Phone: +49 621 6690094-0

Fax: +49 621 6690094-9

Other manuals for ID IDENT 1500

Table of contents

iDTRONIC ID IDENT 1500 User manual

Popular Barcode Reader manuals by other brands
