IFB 28QOLCD1 User manual

28QOLCD1 QUARTZ OVEN
10 IN ONE

CONTENT
SETTING UP YOUR QUARTZ OVEN
INTRODUCTION
CHAPTER 1
CHAPTER 2
CHAPTER 3
FUNCTIONS
CLEANING AND MAINTENANCE
CHANGING THE LIGHT BULB
USING YOUR OVEN
COOKING FUNCTIONS
TECHNICAL SPECIFICATIONS
SERVICE RECORD
WARRANTY
IMPORTANT SAFETY
INSTRUCTIONS
CHAPTER 4
CHAPTER 5
TROUBLESHOOTING GUIDE
ERROR CODE & POSSIBLE CAUSES
i
i
i
ON
01
02
04
05
06
11
11
12
12
13
13
16

Function Options
Function Indicator
Shade Setting or Temperature Setting
Timer
Turbo Convection Icon
1
2
3
4
5
Turbo Convection Selector Button
Time/Temperature Control Dial
Time/Temperature Selector Button
Two Rack Positions
Dehydrate Rack
Baking Pan
Pizza Pan
Removable Wire Rack
Removable Crumb Tray
Interior Light
Function Selector Dial
LCD Display
Light, (Start/Cancel), OFF Buttons
1
2
3
4
5
6
7
8
9
10
11
12
13
LCD DISPLAY
The A to Z of your Quartz oven
SETTING UP YOUR QUARTZ
OVEN
NAMES OF OVEN PARTS
AND ACCESSORIES
SET TIME
HR:MINS:SEC
TOAST
BAGEL
BAKE
ROAST
BROIL
PIZZA
COOKIES
REHEAT
K. WARM
DEFROST
DEHYDRATE
8888
88:888
SET TEMP
SET SHADE
PREHEATING
Remove the oven and all materials from the oven cavity. Keep
the packaging material. It may come in handy when shifting
residence.
Wipe the appliance clean using a damp cloth. Make sure to only
use mild, soapy water. Abrasive cleaners, scrubbing brushes
and chemical cleaners will damage the Quartz oven's coating.
Dry the unit thoroughly before using.
1
2
3
4
12
8
11
10
9
7
13
5
6
1
2
3
5
4
01

Note:
Do not immerse the appliance or its cord in water
The A to Z of your Quartz oven
To reduce the risk of fire, electric shock, injury to persons when
using your appliance, follow these basic precautions:
Remove the appliance's accessories from their packaging and
clean them by immersing in warm, soapy water and wiping dry
with a soft cloth. They can also be washed in the top rack of a
dishwasher.
Select a location for the Quartz Oven. It should be on a dry.
stable, even surface and in the vicinity of a power outlet.
Plug the Quartz Oven into the power outlet.
IMPORTANT SAFETY
INSTRUCTIONS
Read all instructions, product labels and warnings before using
the Quartz Oven.
Do not install and use a damaged machine. Before connecting
the machine, ensure that the connection data on the data plate
(voltage and frequency) match the main electricity supply. If in
any doubt, consult IFB Care.
This appliance generates heat during use. Do not touch its
surface when in it is in use as it may be hot. Always protect your
hands with non-slip oven mitts or similar heat resistant gloves.
To protect against electric shock, ensure the appliance, its
power cord and plug do not come in contact with water or any
other liquid.
This appliance can be used by children aged 8 years and above
and persons with reduced physical, sensory or mental capabili-
ties or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance
shall not be done by children unless they are older than 8 years
of age and supervised. Children less than 8 years of age shall be
kept away unless continuously supervised.
Keep the appliance and its cord out of reach of children younger
than 8 years.
If the cord is faulty, it must be replaced only an IFB approved
service technician to protect the user from danger.
Unplug the appliance from the power outlet when not in use and
before cleaning.
Do not pull the cord to disconnect the plug. Hold the plug itself.
Do not insert or remove the plug with damp hands.
Avoid using accessories not recommended by IFB as these may
cause injury.
This appliance is not designed for outdoor or commercial use.
Do not let the cord hang over the edge of the table or counter, or
come into contact with hot surfaces.
Do not place the appliance on or near wet surfaces, or
heat sources such as a hot gas stove, electric burner, heated
oven etc.
Be extremely careful when moving the appliance or removing
the pan when it contains hot oil or any other hot liquid. Always
protect your hands with non-slip oven mitts or heat
resistant gloves.
Do not use this appliance for any purpose other than its
intended use. Misuse may lead to injuries. This appliance is
intended for domestic counter-top use only.
Always ensure there is 6 inches space between the appliance
and the wall on all sides.
Always place the appliance on a dry, stable, level surface.
Oversized food items or metal utensils must not be placed in
the appliance as they may cause fire or electric shock.
Do not cover the appliance as it may lead to fire.
Do not place the appliance near flammable materials, including
curtains, towels, clothes etc.
Do not clean this appliance using metal scouring pads. Pieces
of the pads could break off and make contact with the electrical
components, causing electric shock.
Extreme caution should be exercised when using containers not
designated as oven safe.
Never place paper, cardboard, plastic, or any material that may
melt or ignite, in the appliance.
Do not cover the crumb tray or any part of the oven with metal
foil. This will cause overheating of the oven.
Empty the crumb tray after each use.
02

Some counter-tops and surfaces may not be designed to
withstand the prolonged heat generated by the appliance. Do
not operate the appliance on a finished wooden table. We
recommend placing a hopad or trivet under the appliance to
prevent possible damage to the surface. During initial use of
this appliance, slight smoke and/or odour may be detected.
This is normal with heating appliances and will not recur after
a few uses.
If the connection cable is faulty, it must be replaced only
by an IFB approved service technician to protect the user
from danger.
It is recommended that a separate circuit be used exclusively
for the appliance. Overloading the voltage of the circuit may
lead to fire.
The wires of the power cord are colour coded accordingly
GREEN and YELLOW = EARTH
BLACK =NEUTRAL
RED =LIVE
The glass door is made of tempered glass. Always inspect it for
chips, cracks or other damage. Do not operate the appliance if
the glass door s damaged.
Do not use this appliance in conjunction with a programmer,
timer, wireless plug adapter or outlet that allows remote
control. Do not connect it to a circuit that is regularly switched
ON and OFF.
The electrical safety of this appliance can only be guaranteed
when continuity is complete between the machine and an
effective earthing system, which complies with local and
national regulations. It is most important that a qualified
electrician regularly tests this basic safety requirement.
The manufacturer cannot be held responsible for the
consequences of an inadequate earthing system.
For safety reasons do not operate this appliance on an
extension cable. Extension leads do not guarantee the
required safety of the appliance. The appliance must be
earthed. Its cord is equipped with an earthed wire and plug.
The machine is built in accordance with current safety
requirements.
Unauthorised repairs could result in unforeseen dangers
for the user, for which the manufacturer cannot accept
responsibility. Only authorised IFB Care Service Personnel
should undertake repairs.
The machine is completely isolated from the electricity
supply only when it is switched OFF at the wall socket and the
plug is taken out. or it is switched OFF from the main source,
or the main fuse is taken out or MCB switched OFF.
Only genuine IFB original spare parts should replace faulty
components. Only when these parts are fitted can the safety
standards of the machine be guaranteed.
The A to Z of your Quartz oven
CAUTION
Note:
03

The A to Z of your Quartz oven Chapter 1
FUNCTIONS
ON
RACK POSITION
PREHEAT
RANGE - TEMPERATURE
TIME
Upper
No Shade 1-7 1:35 - 7:30
TOAST
Upper
No Shade 1-7 1:35 - 7:30
BAGEL
Lower
Yes 65-230°C Up to 1 hour
BAKE
Lower
Yes 65-230°C Up to 2 hour
ROAST
Upper
Yes 175-230°C Up to 2 hour
BROIL
Upper/
Lower
No 65-230°C Up to 1 hour
REHEAT
Upper/
Lower
No 65°C/78°C /93°C Up to 1 hour
KEEP WARM
Upper/
Lower
Yes 65°C/78°C /93°C Up to 1 hour
DEFROST
Upper
Yes 65-93°C Up to 4 hour
DEHYDRATE
Upper
Yes 65-230°C Up to 1 hour
PIZZA
Upper
Yes 65-230°C Up to 1 hour
COOKIES
04

Once the IFB Quartz Heat Counter-top Oven has been plugged
in, the LCD screen will illuminate and the START button LED
will flash.
The Function Options will be displayed on the LCD screen with
the Function Indicator on the default TOAST function.
Turn the Function Selector Dial to select one of the following
11 options: Toast, Bagel, Bake, Roast, Broil, Pizza, Cookies,
Reheat, Keep Warm, Defrost and Dehydrate. The Function
Indicator will scroll as the Function Selector Dial is turned.
There are default temperature settings available for functions
other than Toast and Bagel, whose temperature and time
settings may be adjusted based on your requirements.
Press the Time button for 3 secs to change the temperature
unit from Celsius to Fahrenheit
Once the desired function has been selected, use the
Time/Temperature Control Dial to select the desired cooking
temperature or shade (for TOAST and BAGEL functions).
Turn clockwise to increase and counter-clockwise to
decrease. Press the Time/Temperature button to confirm
USING YOUR OVEN
i
decrease. Press the Time/Temperature button to confirm
the setting.
Press the START button to begin preheating. PREHEATING will
be displayed on the LCD screen. Ensure the door is closed for
preheating. The oven does not preheat for the BAGEL and
TOAST functions. For these, food items maybe placed inside
the oven immediately after pressing the START button.
Once the oven is preheated, it will beep and PREHEATING will
disappear from the LCD screen.
You may set the timer before the oven begins preheating,
during preheating, or once preheating is complete. Press the
Time/Temperature button to change the Time/Temperature
Selector Dial to time selection. Turn the dial clockwise to
increase cooking time and counter-clockwise to decrease
cooking time. The maximum time setting is 4 hours. Maximum
time settings differ as per the function selected.
TOAST and BAGEL functions automatically set the time based
on the shade setting.
Once preheating is complete and the timer is set, put the food
into the oven, using the Wire Rack, Baking Pan, Pizza Pan or
Dehydrator Rack. When using the Baking Pan or Pizza Pan,
always place it on top of the Wire Rack.
Once the food is in the oven, close the door and press the
START button again. The Timer will begin counting down.
Press the TURBO CONVECT button for better air circulation
and crispier food, if needed.
Once the allotted time has expired, the oven will beep and
stop heating. The display will remain lit for some time and
then go off. You may press Cancel/OFF to turn OFF the display
before it times out.
Use oven mitts to carefully remove the food from the oven.
The back light of the LCD display will turn OFF after 90 secs
of inactivity. Press any button to wake up the appliance.
Press the Cancel/OFF button to turn OFF the oven.
Note:
TOAST and BAGEL functions automatically set the time based
on the shade setting.
Note:
The A to Z of your Quartz oven Chapter 1
05

TOAST
BAGEL
The A to Z of your Quartz oven Chapter 2
COOKING FUNCTIONS
For optimal results, place the wire rack in the upper
rack position.
Insert the wire rack in the upper rack position.
Place the food in the centre of the wire rack for more
even cooking.
Close the oven door.
Turn the Function Selector Dial to select the BAGEL function.
Once the function has been selected, use the
Time/temperature Control Dial to select the desired darkness.
Turn the Time/temperature Control Dial clockwise to increase
shade selection and counter clockwise to decrease.
Press the START button to begin the bagel cycle.
When the bagel cycle is complete, an audible alert will sound.
Open the oven door fully and remove the food carefully
using oven mitts.
Warning:
Cooked food can be very hot. Handle with care. Do not
leave the oven unattended.
1
2
3
4
5
6
7
For best results, place the wire rack in the upper rack
position. This function is ideal for sliced toast, English
muffins and frozen waffles.
Insert the wire rack into the upper rack position.
Place the food in the centre of the wire rack for more
even toasting.
Close the oven door.
Turn the Function Selector Dial to select the TOAST function.
Once the function has been selected, use the Time/
temperature Control Dial to select the desired shade (Shade
3, 4 or 5). Turn the Time/temperature Control Dial clockwise
to increase shade selection and counter-clockwise
to decrease.
Press the START button to begin toasting.
When the toasting cycle is complete, an audible alert
will sound.
Open the oven door fully and remove the food carefully using
oven mitts.
Warning:
Cooked food can be very hot. Handle with care. Do not
leave the oven unattended.
For darker toast, use a higher shade setting (Shade 6 or 7).
Please monitor while using a higher shade setting to prevent
the toast from burning.
Note:
1
2
3
4
5
6
7
Grill tray
Grill tray
06

For optimal results, place the wire rack in the lower rack
position.
Insert the wire rack into the lower rack position. Note that
certain baked items require upper rack placement.
Ensure the oven door is closed for preheating.
Turn the Function Selector Dial to select the ROAST function.
Once the function has been selected, use the
Time/Temperature Control Dial to select the desired cooking
temperature and time. Turn the Time/temperature Control Dial
clockwise to increase temperature and time and
counter-clockwise to decrease. Press the Time/Temperature
button to confirm the temperature and time settings.
Press the TURBO CONVECT button for better air circulation
and crispier food if needed. The turbo convection fan icon will
appear on the LCD screen. To cancel the convection setting,
press the TURBO CONVECT button again.
Press the START button to begin preheating. PREHEATING will
appear on the LCD screen.
Once preheating is complete, an audible alert will sound. The
START button will flash.
Carefully place the food in the centre of the wire rack for more
even cooking.
Close the oven door.
Press the START button to begin the Roasting cycle.
BAKE ROAST
1
2
3
Warning:
Cooked food can be very hot. Handle with care. Do not
leave the oven unattended.
The timer wont begin until until the START button is pressed
When the roasting cycle is complete, an audible alert
will sound.
Open the oven door fully and remove the food carefully using
oven mitts.
Note:
10
11
4
5
6
7
8
9
The A to Z of your Quartz oven Chapter 2
For optimal results, place the wire rack in the lower rack
position.
Insert the wire rack into the lower rack position. Note that
certain baked items require upper rack placement.
button to confirm the temperature and time settings.
Press the TURBO CONVECT button for better air circulation
and crispier food if needed. The turbo convection fan icon will
appear on the LCD screen. To cancel the convection setting,
press the TURBO CONVECT button again.
Press the START button to begin preheating. PREHEATING will
appear on the LCD screen.
Once preheating is complete, an audible alert will sound. The
START button will flash.
Carefully place the food in the centre of the wire rack for
more even cooking.
Close the oven door.
Press the START button to begin the Baking cycle
Warning:
Cooked food can be very hot. Handle with care. Do not
leave the oven unattended.
The timer wont begin until until the START button is pressed
When the baking cycle is complete, an audible alert
will sound.
Open the oven door fully and remove the food carefully using
oven mitts.
Note:
1
10
11
4
5
6
7
8
9
Ensure the oven door is closed for preheating.
Turn the Function Selector Dial to select the BAKE function.
Once the function has been selected, use the
Time/Temperature Control Dial to select the desired cooking
temperature and time. Turn the Time/Temperature Control
Dial clockwise to increase temperature and time and
counter-clockwise to decrease. Press the Time/Temperature
2
3
Grill tray Baking tray Grill tray Baking tray
07

For optimal results, place the wire rack in the lower rack
position.
Insert the wire rack into the lower rack position. Note that
certain baked items require upper rack placement.
Ensure the oven door is closed for preheating.
Turn the Function Selector Dial to select the BROIL function.
Once the function has been selected, use the
Time/Temperature Control Dial to select the desired cooking
temperature and time. Turn the Time/temperature Control Dial
clockwise to increase temperature and time and
counter-clockwise to decrease. Press the Time/Temperature
button to confirm the temperature and time settings.
Press the TURBO CONVECT button for better air circulation
and crispier food if needed. The turbo convection fan icon will
appear on the LCD screen. To cancel the convection setting,
press the TURBO CONVECT button again.
Press the START button to begin preheating. PREHEATING
willappear on the LCD screen.
Once preheating is complete, an audible alert will sound. The
START button will flash.
Carefully place the food in the centre of the wire rack for more
even roasting.
Close the oven door.
Press the START button to begin the Broiling cycle.
BROIL PIZZA
1
2
3
4
Warning:
Cooked food can be very hot. Handle with care. Do not
leave the oven unattended.
The timer wont begin until until the START button is pressed
When the broiling cycle is complete, an audible alert
will sound.
Open the oven door fully and remove the food carefully using
oven mitts.
Note:
10
11
5
6
7
8
9
The A to Z of your Quartz oven Chapter 2
Insert the wire rack in the lower rack position.
Ensure the oven door is closed for preheating.
Turn the Function Selector Dial to select the PIZZA function.
Once the function has been selected, use the
Time/Temperature Control Dial to select the desired cooking
temperature and time. Turn the Time/Temperature Control
Dial clockwise to increase temperature and time and
counter-clockwise to decrease. Press the Time Temperature
button to confirm the temperature and time settings.
Press the TURBO CONVECT button for better air circulation
and crispier food if needed. The turbo convection fan icon will
appear on the LCD screen. To cancel the convection setting,
press the TURBO CONVECT button again.
Press the START button to begin preheating. PREHEATING
will appear on the LCD screen.
Once preheating is complete, an audible alert will sound. The
START button will flash.
Carefully put the pizza on the pizza pan and place it in the
centre of the wire rack for more even cooking.
Close the oven door.
Press the START button to begin the Pizza cycle.
For optimal results, place the wire rack in the lower rack
position.
Warning:
Cooked food can be very hot. Handle with care. Do not
leave the oven unattended.
The timer wont begin until until the START button is pressed
When the pizza cycle is complete, an audible alert
will sound.
Open the oven door fully and remove the food carefully using
oven mitts.
Note:
10
11
5
6
7
8
9
1
2
3
4
Grill tray Baking tray Pizza tray
08

COOKIES REHEAT
The A to Z of your Quartz oven Chapter 2
For optimal results, place the wire rack in the upper rack
position.
Warning:
Cooked food can be very hot. Handle with care. Do not
leave the oven unattended.
The timer wont begin until until the START button is pressed
When the cooking cycle is complete, an audible alert
will sound.
Open the oven door fully and remove the cookies carefully
using oven mitts.
Note:
10
11
Insert the wire rack into the upper rack position.
Ensure the oven door is closed for preheating.
Turn the Function Selector Dial to select the COOKIES
function. Once the function has been selected, use the
Time/Temperature Control Dial to select the desired cooking
temperature and time. Turn the Time/Temperature Control
Dial clockwise to increase temperature and time and
counter-clockwise to decrease. Press the Time/Temperature
button to confirm the temperature and time settings.
Press the TURBO CONVECT button for better air circulation
and crispier food if needed. The turbo convection fan icon will
appear on the LCD screen. To cancel the convection setting,
press the TURBO CONVECT button again.
Press the START button to begin preheating. PREHEATING will
appear on the LCD screen.
Once preheating is complete, an audible alert will sound. The
START button will flash.
Place the cookies on the baking pan. Then, carefully place
the baking pan on the wire rack.
Close the oven door.
Press the START button to begin the Cooking cycle.
1
2
3
4
5
For optimal results, place the wire rack in the desired rack
position.
Insert the wire rack in the desired rack position.
Place the food on the oven-safe accessory. Carefully place
the accessory in the centre of the wire rack for more even
heating and close the oven door.
Turn the Function Selector Dial to select the REHEAT function.
Once the function has been selected, use the Time/Tempera-
ture Control Dial to select the desired cooking temperature
and time. Turn the Time/Temperature Control Dial clockwise
to increase temperature and time and counter-clockwise to
decrease. Press the Time/Temperature button to confirm the
temperature and time settings.
Press the TURBO CONVECT button for better air circulation
and crispier food if needed. The turbo convection fan icon will
appear on the LCD screen. To cancel the convection setting,
press the TURBO CONVECT button again.
Press the START button to begin the Re-heat cycle.
Warning:
Cooked food can be very hot. Handle with care. Do not
leave the oven unattended.
The timer wont begin until until the START button is pressed
When the reheat cycle is complete, an audible alert
will sound.
Open the oven door fully and remove the food carefully using
oven mitts.
Note:
6
7
1
2
3
4
5
Grill tray Baking tray
Grill tray Baking tray
09

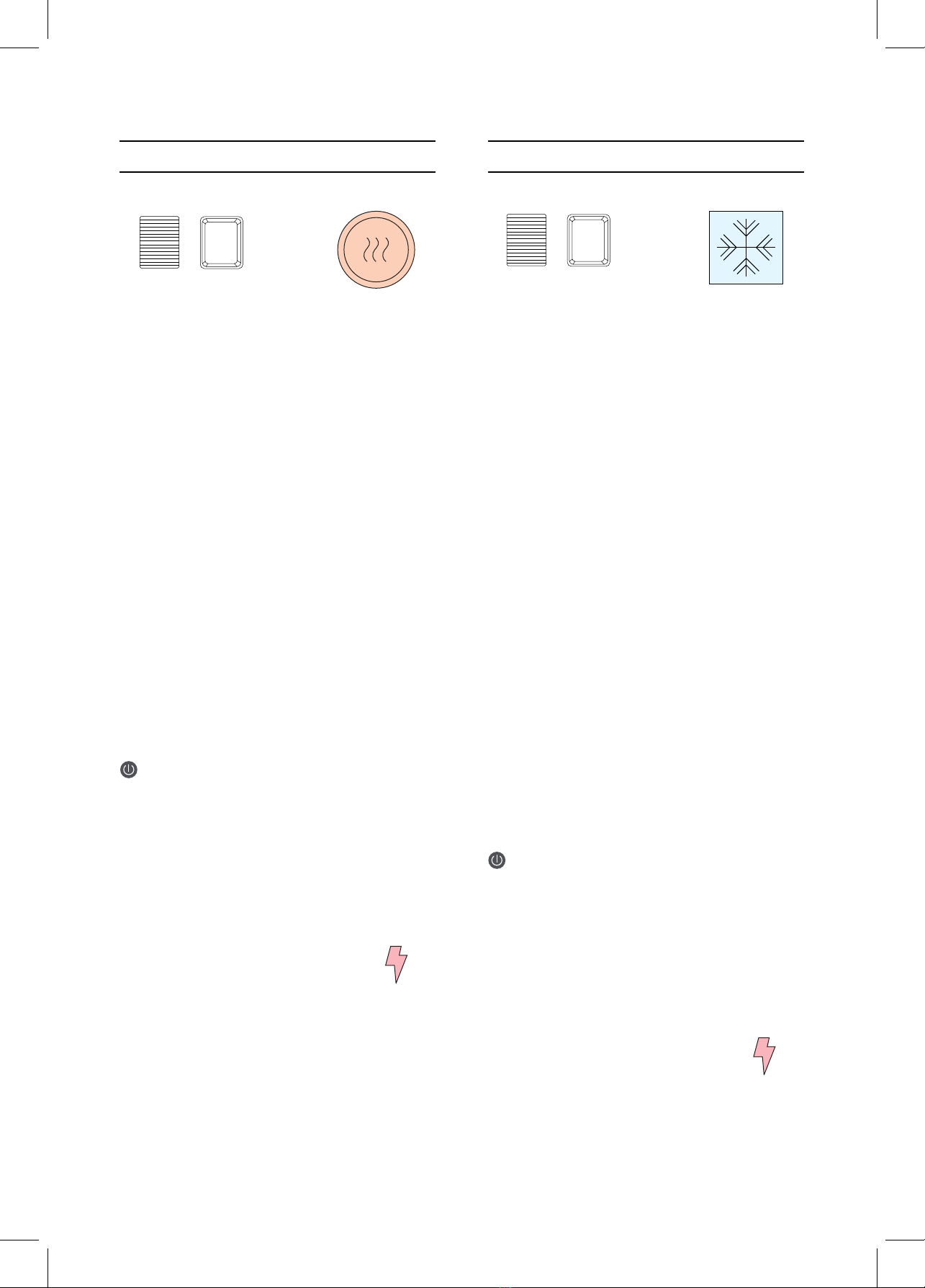

KEEP WARM DEFROST
The A to Z of your Quartz oven Chapter 2
For optimal results, place the wire rack in the desired rack
position.
Insert the wire rack in the desired rack position.
Close the oven door.
Place the food on the oven-safe accessory. Carefully place
the accessory in the centre of the wire rack for more even
heating and close the oven door.
Turn the Function Selector Dial to select the KEEP WARM
function. Once the function has been selected, use the
Time/Temperature Control Dial to select the desired cooking
temperature and time. Turn the Time/Temperature Control
Dial clockwise to increase temperature and time and
counter-clockwise to decrease.
Press the TURBO CONVECT button for better air circulation
and crispier food if needed. The turbo convection fan icon will
appear on the LCD screen. To cancel the convection setting,
press the TURBO CONVECT button again.
Press the START button to begin the Warming cycle.
Warning:
Cooked food can be very hot. Handle with care. Do not
leave the oven unattended.
The timer wont begin until until the START button is pressed
When the warming cycle is complete, an audible alert
will sound.
Open the oven door fully and remove the food carefully using
oven mitts.
Note:
7
8
1
2
3
4
5
6
For optimal results, place the wire rack in the upper rack
position.
Insert the wire rack into the upper rack position.
Ensure the oven door is closed for preheating.
Turn the Function Selector Dial to select the DEFROST
function. Once the function has been selected, use the
Time/Temperature Control Dial to select the desired cooking
temperature and time. Turn the Time/Temperature Control
Dial clockwise to increase temperature and time and
counter-clockwise to decrease.
Press the TURBO CONVECT button for better air circulation
and crispier food if needed. The turbo convection fan icon will
appear on the LCD screen. To cancel the convection setting,
press the TURBO CONVECT button again.
Press the START button to begin preheating. PREHEATING will
appear on the LCD screen.
Once preheating is complete, an audible alert will sound. The
START button will flash.
Carefully place the food in the centre of the wire rack for more
even roasting.
Close the oven door.
Press the START button to begin the Defrost cycle.
Warning:
Cooked food can be very hot. Handle with care. Do not
leave the oven unattended.
The timer wont begin until until the START button is pressed
When the defrost cycle is complete, an audible alert
will sound.
Open the oven door fully and remove the food carefully using
oven mitts.
Note:
10
11
1
2
3
4
5
6
7
8
9
Grill tray Baking tray
Grill tray Baking tray
10

Clean the appliance and its accessories after each use.
Before cleaning your oven, press the CANCEUOFF button to
turn OFF the oven. Unplug the cord and allow it to cool before
cleaning.
To clean the exterior of the oven, wipe it with a damp cloth
using mild, soapy water. Abrasive cleaners, scrubbing brushes
and chemical cleaners will damage the coating on this unit.
Attach the baking tray below the grill rack within the groves
provided while broiling, grilling, roasting, de-hydrating,
toasting or cooking any food items which can drip food
moistures or juices. These drippings can fall over quartz
heating tubes and can stain them. Consistent saturation of
food dripping on quartz tube can diminish their cooking
performance.
To clean the Wire Rack, Baking Pan, Dehydrate Rack, or Pizza
Pan, remove them from the oven and immerse them in warm,
soapy water. Wipe dry with a soft cloth or sponge.
These accessories may also be washed in the top rack
of a dishwasher.
Remove the Removable Crumb Tray and shake off any crumbs.
Wash with soapy water and dry thoroughly. Cleaning the
Crumb Tray often will avoid any accumulations.
Do not immerse the appliance in water.
Note:
CLEANING AND MAINTENANCE

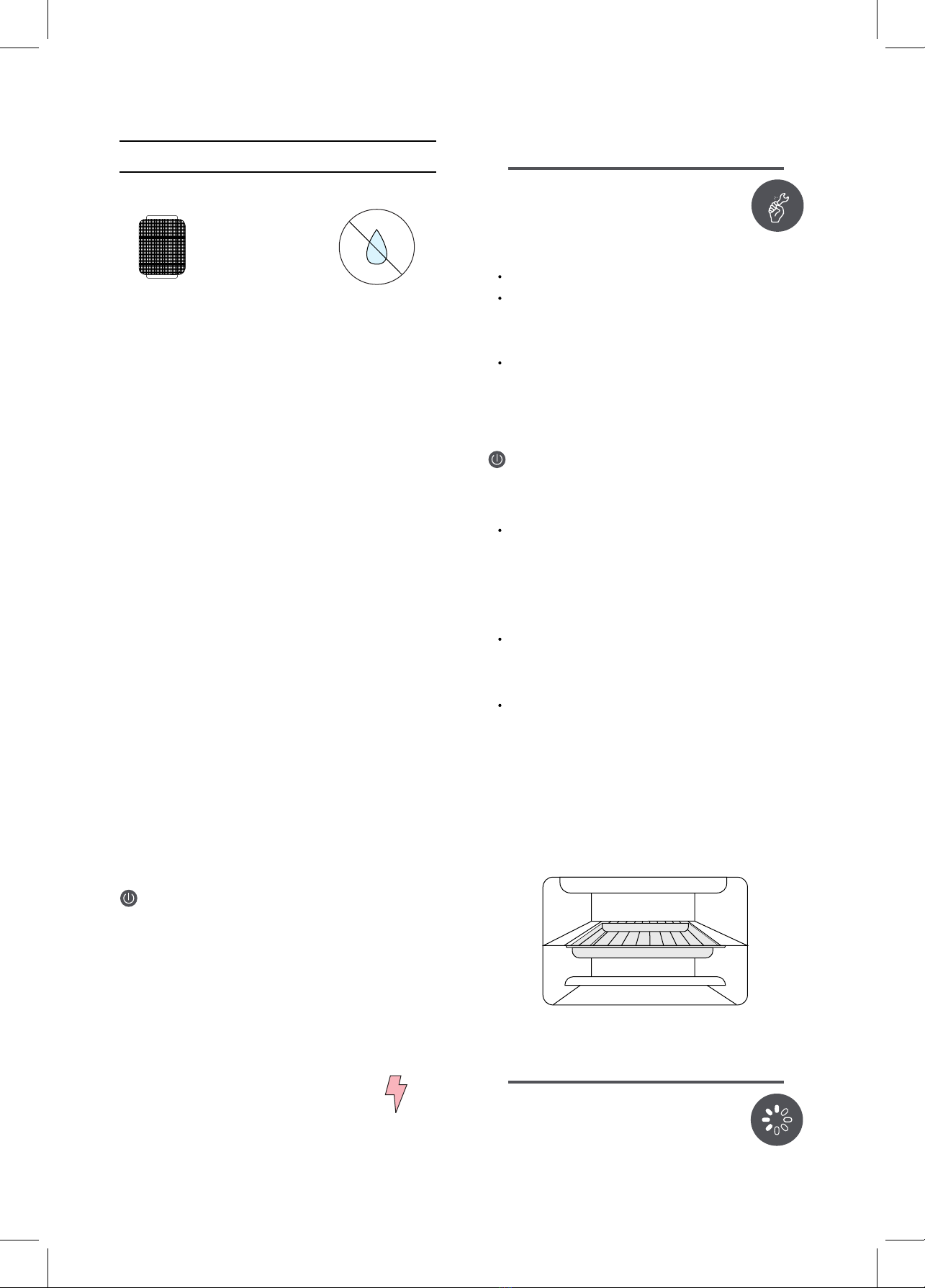

For optimal results, place the DEHYDRATE RACK in the upper
rack position.
Place the food evenly on the DEHYDRATE RACK in a single
layer and leave spaces between the pieces.
Insert the DEHYDRATE RACK directly into the upper rack
position.
Ensure the oven door is closed for preheating.
Turn the Function Selector Dial to select the DEHYDRATE
function. Once the function has been selected, use the
Time/Temperature Control Dial to select the desired cooking
temperature and time. Turn the Time/Temperature Control
Dial clockwise to increase temperature and time and
counter-clockwise to decrease.
Press the TURBO CONVECT button for better air circulation
and crispier food if needed. The turbo convection fan icon will
appear on the LCD screen. To cancel TURBO CONVECT option,
press the TURBO CONVECT button again.
Press the START button to begin preheating. PREHEATING will
appear on the LCD screen.
Once preheating is complete, an audible alert will sound.
The START button will flash.
Close the oven door.
Press the START button to begin the Dehydrate cycle.
DEHYDRATE
Warning:
Cooked food can be very hot. Handle with care. Do not
leave the oven unattended.
The timer wont begin until until the START button is pressed
When the De-hydrate cycle is complete, an audible alert
will sound.
Open the oven door fully and remove the food carefully using
oven mitts.
Note:
10
11
1
2
3
4
5
6
7
8
9
Chapter 2-3
The A to Z of your Quartz oven
Dehydrated rack
11
CHANGING THE LIGHT BULB

Chapter 4
The A to Z of your Quartz oven
TROUBLESHOOTING GUIDE
ERROR CODE & POSSIBLE
CAUSES
E1
ERROR CODE
Possible Causes:
The temperature does not rise more than 5ºC after 3 min of
power ON.
E2
ERROR CODE
Possible Causes:
The terminal of the temperature sensor is loose or the tempera-
ture sensor is damaged.
E3
ERROR CODE
Possible Causes:
The sensor temperature is higher than 260°C
PROBLEM
SOLUTION
Refer to 'Cleaning & Maintenance'. Food build-up inside
the oven, on heating elements and in the crumb tray can
sometimes cause a burnt smell.
Oven does not turn ON
Smoke or odour
Plug the oven into the electrical outlet.
Check that the power plug is securely inserted into the
outlet.
Insert the power plug into a different outlet.
Press the START button.
During initial use of this appliance, slight smoke and/or
odour may be detected. This is normal with heating
appliances and will not recur after a few uses.
Press the LIGHT button.
Change light bulb.
Make sure that the correct function has been selected.
The heating elements will cycle ON and OFF to maintain
proper heat.
Because this oven is smaller than a regular oven, it will
heat up faster and generally cook in short span of time.
The rack may be adjusted to accommodate different foods.
Oven light does not turn ON
Heating elements do not stay ON
Adjust the time and temperature settings.
Overcooked/undercooked food
Burnt smell
Press any button to wake up the appliance. The LCD screen
turns off after 90 secs of inactivity.
LCD display turns OFF
12
Remove all accessories from the oven.
Remove the cover of the interior light bulb by turning it
counterclockwise and remove the bulb.
Insert a new l 8Wl 20VG9 bulb as per instructions on the light
bulb's package. Replace the interior light bulb cover, turning
clockwise to tighten.
This should be done when the oven has been OFF for a while
and is no longer hot.
Note:

Chapter 5
The A to Z of your Quartz oven
TECHNICAL SPECIFICATIONS
Model
Voltage
Wattage
Capacity
Timer
Temperature
Power Cord Length
Net Weight
Dimensions (WxDxH) mm
28QOLCD1
230 V, 50 Hz
1400W
28 Litre
Up to 240 mins
230 °C
1 meter
8.79 Kg
475 X 398 X 296
i
13

Chapter 5
SERVICE RECORD i
COMPLAINT COMMENTS, ATTENDED BY DATE
14

Model :
Serial no :
Dealer's name :
Date of purchase :
Customer's name :
Address :
Phone :
Email :
WARRANTY
CUSTOMER COPY
15

IFB Industries Limited, (the Company) warrants to the original
domestic purchase of this Quartz Oven (appliance) that is free
from defects in workmanship and materials. During 24
months from the date of purchase, all parts of the Quartz
Oven; shall be replaced or repaired free of charge, upon
intimation to the Company. This warranty is subject to
limitations.
For any service under this warranty beyond city/ town/
municipal limits from the Company/uthorised service centre,
a fixed charge of Rs 250 will be collected from the customer
in addition to the actual to and fro charges by the shortest
route. Alternatively, the customer can bring the appliance to
the nearest service centre for carrying out the necessary
repairs, at the customer's own cost.
During the warranty period, whenever the appliance is shifted
from the original city of purchase to another city/town where
service is provided by the Company's authorised service
agent, a warranty transfer charge of Rs 3OO/- will be
collected from the customer by the Company's authorised
service agent. The above charges also include the
reinstallation of the appliance. However, in case of transfer to
a city where the Company provides direct service, a nominal
charge of only Rs 250/- will be collected from the customer
towards reinstallation. The Company, however, shall not
undertake the responsibility of shifting/transferring the
appliance from the location where the appliance was
originally installed.
This Warranty is issued subject to the jurisdiction of Kolkata
courts and/or other judicial/quasi judicial forums having
jurisdiction over the registered office of the Company,
This warranty is not valid in case of the following events:
If the warranty card is not fully and properly filled in and
signed at the time of purchase/installation by the Company's
authorised dealer/service engineer.
If the completed warranty card is not presented to the
authorised personnel at the time of service/repair
If the appliance in not used in accordance with
manufacturer's instructions given in the User Manual.
If the appliance has been serviced, repaired, opened or
tampered by any unauthorised personnel.
If defects arise or are caused by accidents, alteration, misuse,
neglect, abuse, substitution of original components with
spurious/non-genuine components, attack by household
pests/ rodents, fire, flood, earthquake, lightning and/or any
other acts of God/natural calamities.
If damages occur by improper electrical circuit outside the
appliance or by any defective electrical supply thereof.
If the machine serial number on the appliance is defaced,
missing or altered.
If the appliance is taken out of India
This warranty does not cover any type of painting, plating
including rusting etc or defects thereof.
This warranty does not cover normal wear and tear of parts.
Liability for consequential damages is neither accepted
nor implied.
Parts replaced or repaired under this warranty are warrantied
throughout the remaining of the original warranty period.
The Company is not liable for any delay in servicing due to
reasons beyond the control of the Company or any of its
authorised service centres.
This warranty is not applicable if the appliance is used
commercially at places such as hotels, hospitals, hostels etc.
WARRANTY CARD
LIMITATIONS OF WARRANTY
For all types of repairs/maintenance under Warranty, the
appliance shall be brought to the Company's nearest service
centre/authorised service centre.
Note:
1
a
b
c
d
e
f
g
h
2
3
4
5
6
7
8
9
10
16
