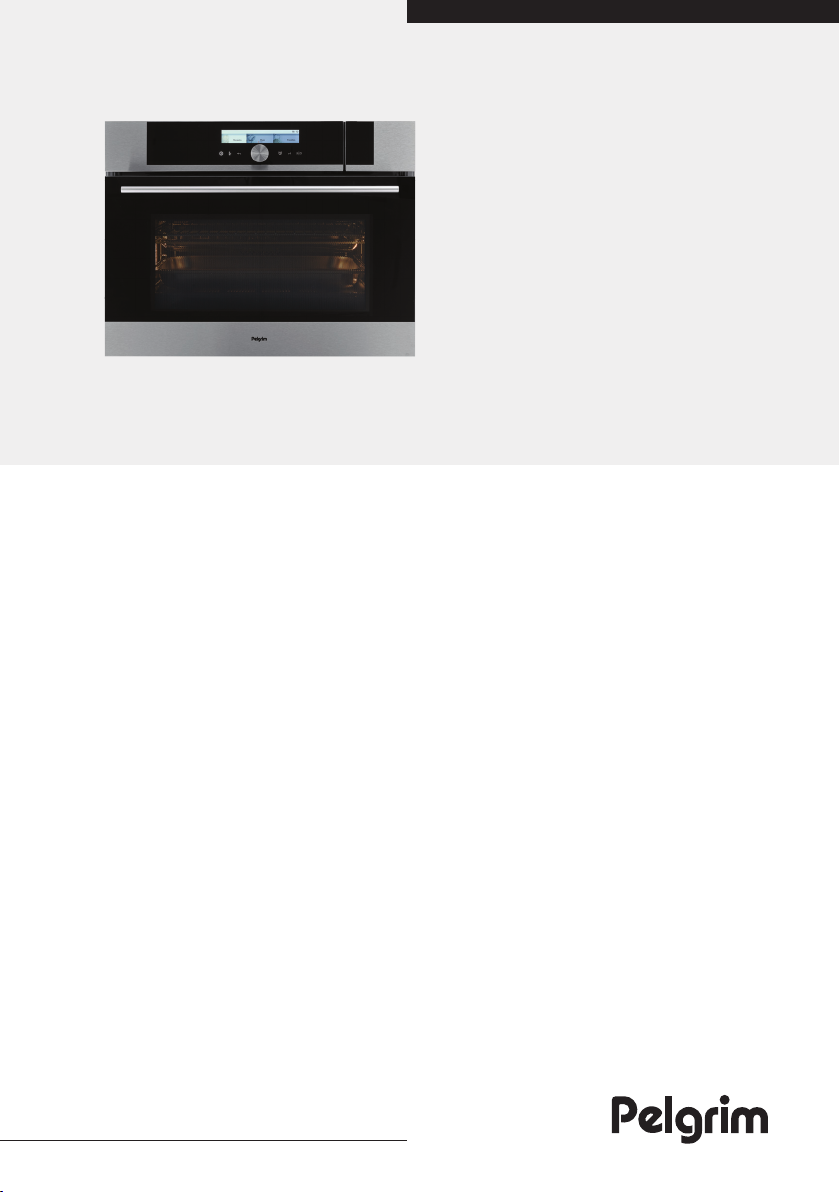

Pelgrim COS824RVS User manual

Instructions for use
Combined steam oven and microwave oven
COS824RVS
COS824MAT

We thank you for your
trust in purchasing our appliance.
This detailed instruction manual is
supplied to allow you to learn about
your new appliance as quickly as
possible.
Make sure you have received an
undamaged appliance.
Should you notice any transport
damage, please notify your dealer
or regional warehouse where your
appliance was supplied from.
The telephone number can be found
on the invoice or on the delivery
note.
Instructions for installation and
connection are supplied separately.
Important information
Tip, note
IMPORTANT SAFETY
INSTRUCTIONS
Instructions for safety are supplied separately.
CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM
FOR FUTURE REFERENCE.

3
CONTENTS
803704
2 IMPORTANT SAFETY INSTRUCTIONS
4 Before connecting the appliance
6 COMBINED STEAM OVEN AND MICROWAVE OVEN
9 Information on the appliance - data plate (depending on the model)
10 Control unit
12 BEFORE THE FIRST USE
12 Steam cooking
13 Filling the water tank
14 Microwave function

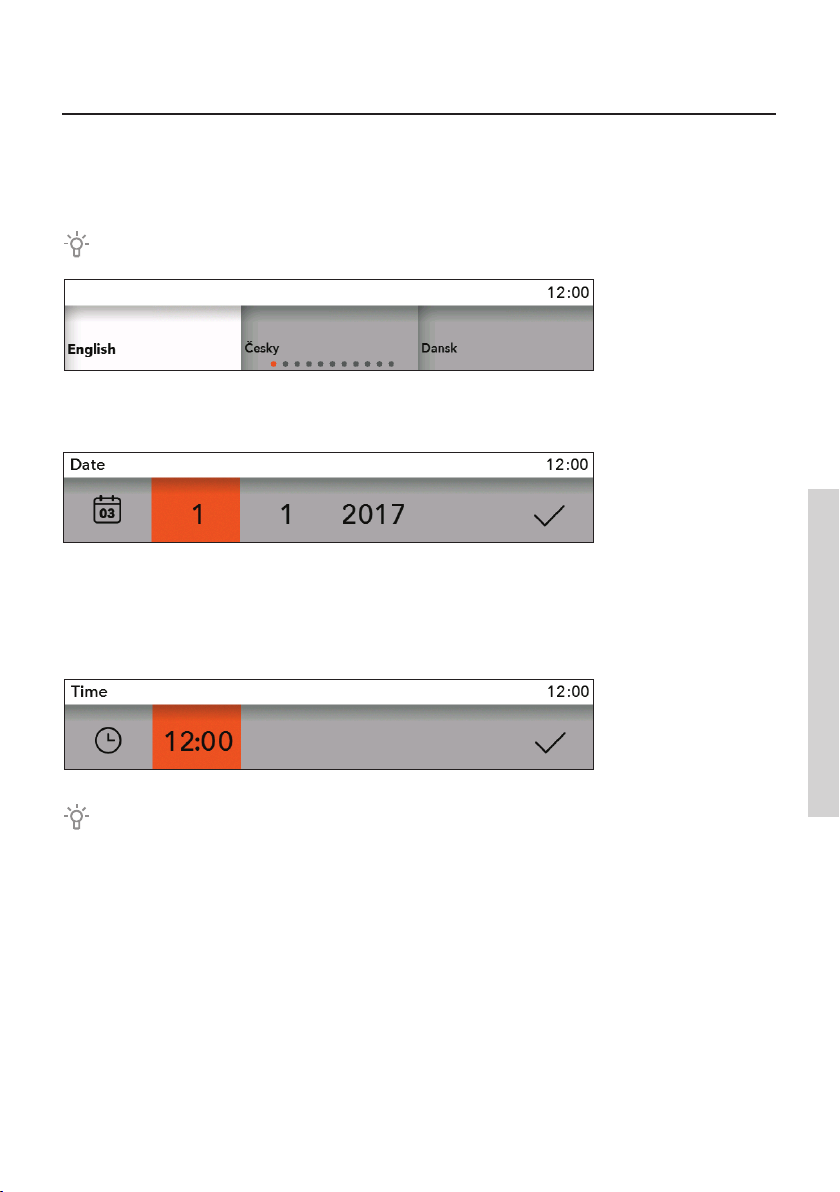

15 FIRST USE
16 Testing water hardness

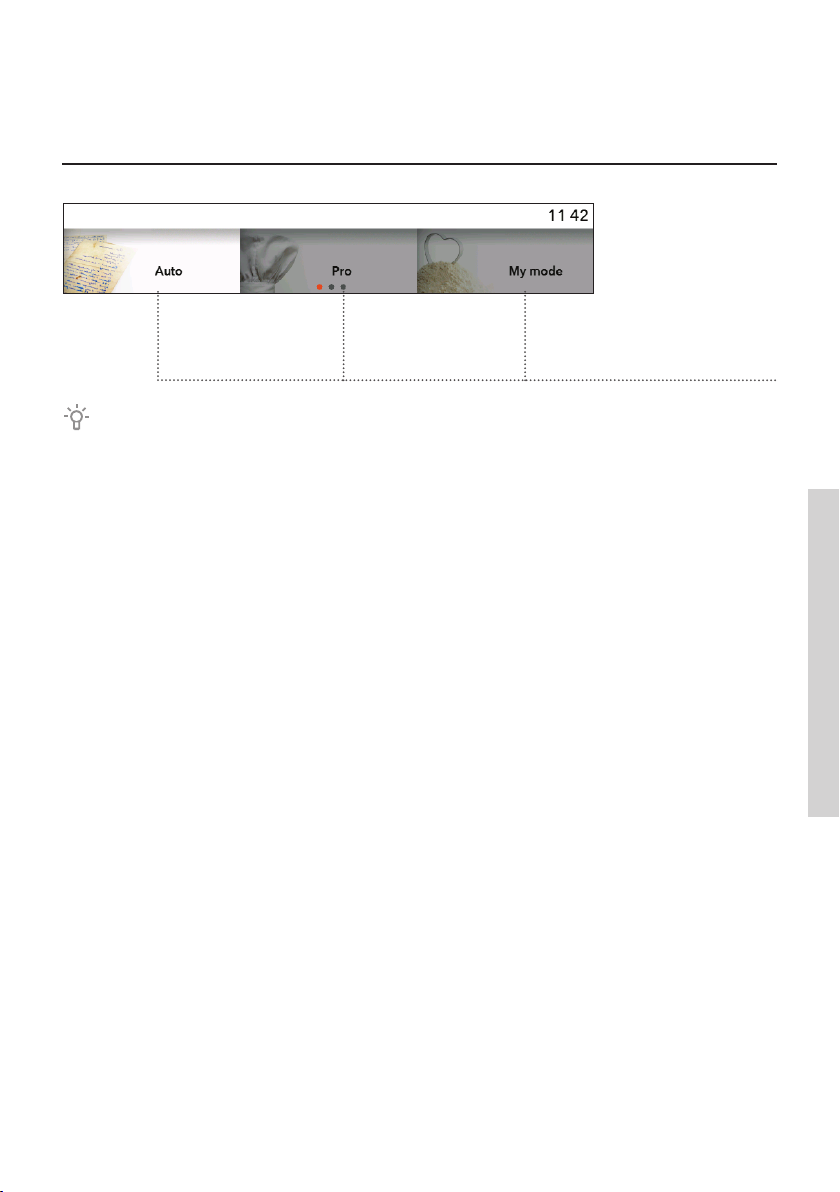

17 SELECTING THE MAIN MENUS FOR BAKING AND SETTINGS

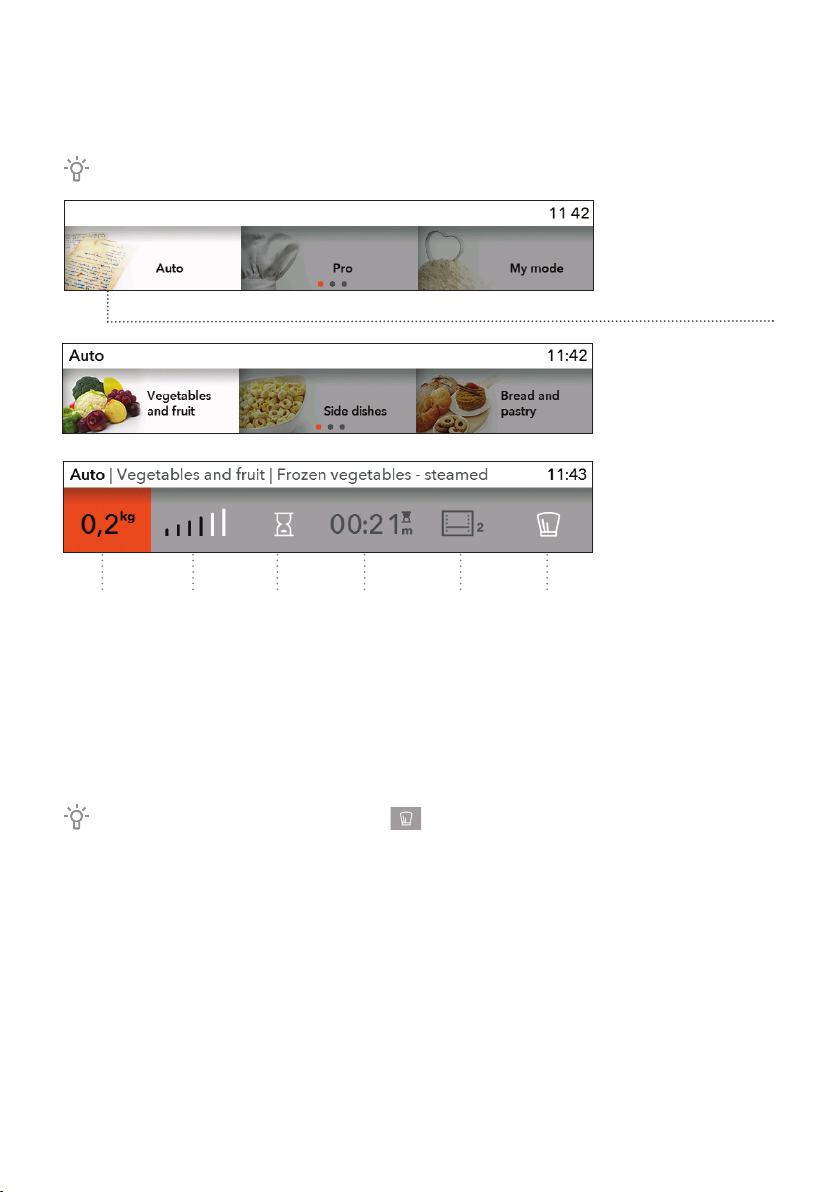

18 A) baking by selecting the type of food (auto; automatic mode)
20 B) baking by selecting the mode of operation (professional mode and
steam mode)
28 C) storing your own programme (my mode)
29 D) steam cooking (Steam – quick access to steam programs)
31 E) cooking with microwaves
32 START OF BAKING
32 END OF BAKING AND OVEN SHUT-OFF
33 SELECTING ADDITIONAL FEATURES
35 SELECTING GENERAL SETTINGS
37 MAINTENANCE & CLEANING
38 Conventional oven cleaning
39 Steam cleaning program (steam clean)
40 Cleaning the steam system
41 Cleaning the filter foam
42 Removing and cleaning the wire guides
43 Replacing the bulb
44 TROUBLESHOOTING TABLE
45 DISPOSAL
WARNINGS
INITIAL
PREPARATION
OF THE
APPLIANCE
SETTINGS AND
BAKING
CLEANING AND
MAINTENANCE
PROBLEM
SOLVING
INTRODUCTION

4
803704
Safe and correct use of the steam oven
Leave the appliance at room temperature for
some time before connecting it to the power
mains to allow all components to adapt to
room temperature. If the oven is stored at a
temperature near or below freezing point,
there is a danger for some components,
especially the pumps.
The appliance should not operate in an
environment with a temperature below 5
°C. Below this temperature, the appliance
may not operate correctly. If the appliance
is switched on in such conditions, the pump
could be damaged.
If the appliance does not work correctly,
disconnect it from the power mains.
Do not store items in the oven, which could
cause danger when the oven is switched on.
Do not use distilled water that is not suitable
for ingestion (e.g. distilled water for batteries,
to which acid is added).
When you open the oven door (with steam
systems) after the end or during steam
cooking, make sure to open the door to the
fully open position; otherwise, the steam from
the oven cavity could negatively affect the
control panel operation.
After the steam cooking is completed, there
is some residual steam in the oven. Open
the oven door carefully, as there is danger of
scalding with steam. Clean the oven once it
has cooled down to room temperature.
After the cooking process, the remaining
water in the steam system is pumped back
into the water tank. Therefore, the water
there could be hot. Be careful when emptying
the water tank.
To prevent the build-up of limescale, leave
the oven door open after cooking to allow
the oven cavity to cool down to room
temperature.
It is inadvisable to open the door during
the steam cycle, as this will increase power
consumption and formation of water
condensate.
BEFORE CONNECTING THE APPLIANCE
Carefully read the instructions for use before connecting the
appliance. Repair or any warranty claim resulting from incorrect
connection or use of the appliance shall not be covered by the
warranty.

5
803704
Safe use of the microwave oven
Metals such as stainless steel, aluminium and copper reflect microwaves. For that reason, do
not use metal cookware. Cookware which is designated as microwave-safe can be used safely.
For more information about suitable cookware, consult the following guidelines and always use
the glass baking tray on level 1 if you use the microwave function.
Cookware Microwave
safe Remarks
Aluminium foil  Can be used in small quantities to prevent certain parts
of the dish from overcooking. Arcing can occur if the foil is too close to
the oven wall or if too much foil is used.
Porcelain and
earthenware
Porcelain, earthenware, glazed earthenware and ivory porcelain are
usually suitable, unless they have a metal edge.
Disposable crockery
made from polyester
or cardboard
Frozen meals are sometimes packaged in disposable tableware.
Fast food packaging
• Polystyrene cups
• Paper bags or
newspaper
• Recycled paper
or metal edges



Can be used to warm up dishes.
Polystyrene can melt if it overheats.
Can catch fire.
Can cause arcing.
Glassware
• Oven dishes
• Fine glassware
• Glass jars



Can be used, unless it has a metal edge. Can be used to warm up
dishes or liquids.
Thin glass can break or shatter with sudden heating.
The lid must be removed. Only suitable for warming.
Metal Can cause arcing or fire.
Paper
• Plates, cups,
kitchen paper
• Recycled paper


For short cooking times and warming. For absorbing excess
moisture.
Can cause arcing.
Plastic Especially heat-resistant thermoplastic material. Other types of
plastic can warp or discolour at high temperatures. Do not use
melamine plastic. Only if boil-proof or ovenproof.
Must not be airtight. If necessary, prick it with a fork.
: Recommended
 : Be careful
: Not safe

6
Guides
- Cooking levels
Water tank door
Control unit
Oven door
Oven handle
803704
WIRE GUIDES
The wire guides allow preparation of the food on 4 levels (please note that the levels/
guides are counted from the bottom up).
Guides 3 and 4 are intended for grilling, and guide 1 is used with microwave systems when
food is prepared in a glass baking dish.
OVEN DOOR SWITCH
The switches deactivate oven heating, the fan, and the microwaves when the oven door
is opened during the cooking process. When the door is closed, the switches turn the
heaters and the microwaves back on.
COMBINED STEAM OVEN AND
MICROWAVE OVEN
(DESCRIPTION OF THE OVEN AND EQUIPMENT – DEPENDING ON
THE MODEL)
The figure represents one of the built-in appliance models. Since the appliances for which
these instructions were drawn up may have different equipment, some functions or
equipment may be described in the manual that may not be present in your appliances.

7
803704

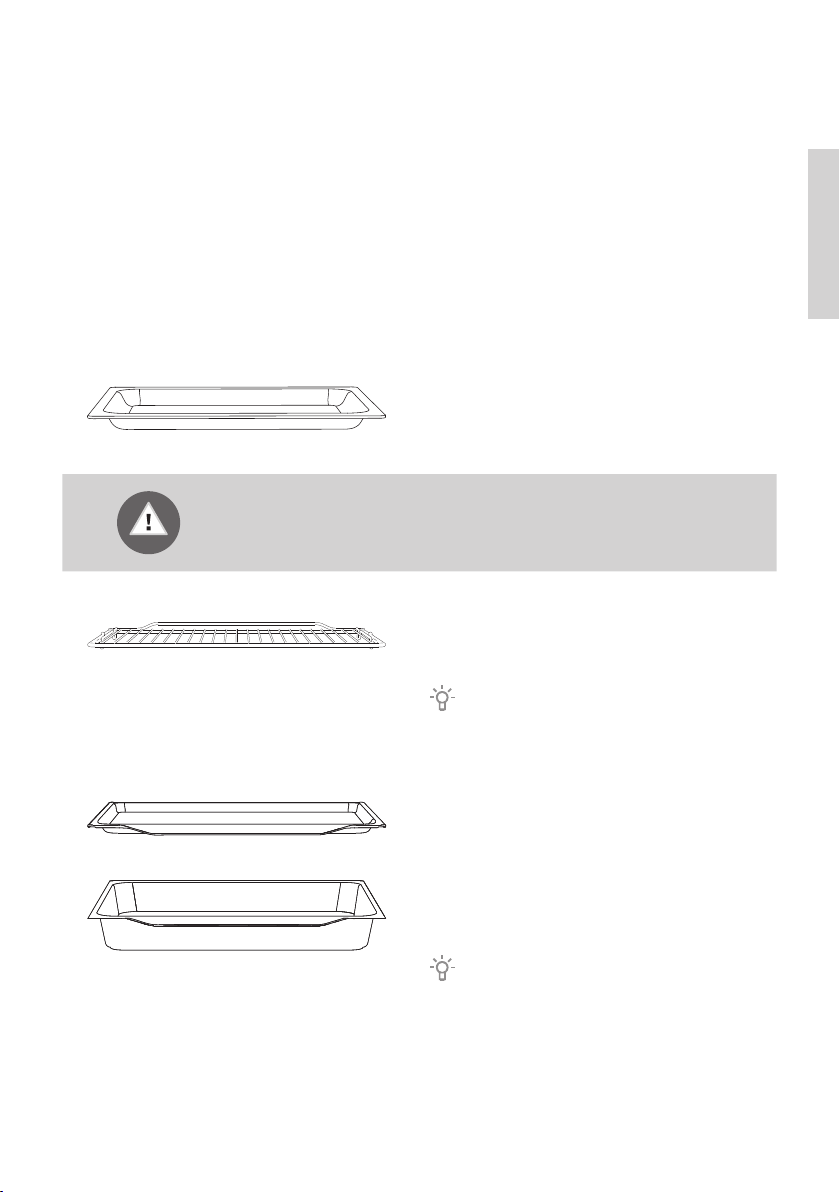

OVEN EQUIPMENT AND ACCESSORIES (depending on the model)
GLASS BAKING DISH is used for cooking
with all oven systems and for cooking with
microwaves. It can also be used as a serving
tray.
The GRID is used for grilling or as support
for a pan, baking tray or baking dish with
the food.
There is a safety latch on the grid.
Therefore, lift the grid slightly at the front
when pulling it out from the oven.
The SHALLOW BAKING SHEET is used for
baking pastry and cakes.
The DEEP BAKING TRAY is used for roasting
meat and baking moist pastry. It can also be
used as a drip tray.
Never place the deep baking tray in the
first guide during the cooking process, except
when grilling and you are only using the deep
tray as a drip tray.
Do not use the grid, deep baking tray, steam set or any other
metal parts with systems that include microwave operation!
COOLING FAN
The appliance is fitted with a cooling fan that cools the housing and the appliance control
panel.
EXTENDED OPERATION OF THE COOLING FAN
After the oven is switched off, the cooling fan continues to operate for a short while in
order to cool the oven. (Extended cooling fan operation depends on the temperature in
the center of the oven).

8
803704
As baking accessories heat up, their
form may change. This does not affect
their functionality and their original form
will be restored when they cool down.
STEAM SET (INOX) is used for steam
cooking. Place the perforated tray in the
middle level and the drip tray one level below.
The grid or the tray should always be
inserted into the groove between the two
wire profiles.
BAKING TRAY HOLDER makes it easier
to remove hot baking trays from the oven
after baking.
DESCALING AGENT or steam system
cleaning.
TEST PAPER STRIP for testing water
hardness.
The appliance and some of the accessible parts tend to heat up
during cooking. Use oven mitts.

9
803704
INFORMATION ON THE APPLIANCE - DATA
PLATE (DEPENDING ON THE MODEL)
The rating plate indicating the basic
information about the appliance is located
at the edge of the oven and it is visible
when the oven door is opened.
ASerial number
BCode
CType
DBrand
EModel
FTechnical data
GCompliance symbols

10
CONTROL UNIT
(depending on the model)
803704
1ON/OFF KEY 2OVEN LIGHTING ON/
OFF KEY 3BACK KEY
Touch briefly to
return to previous
menu.
Touch and hold to
return to main menu.
4KNOB for SELECTION and
CONFIRMATION
Select the setting by
rotating the knob.
Confirm your
selection by pressing
the knob.

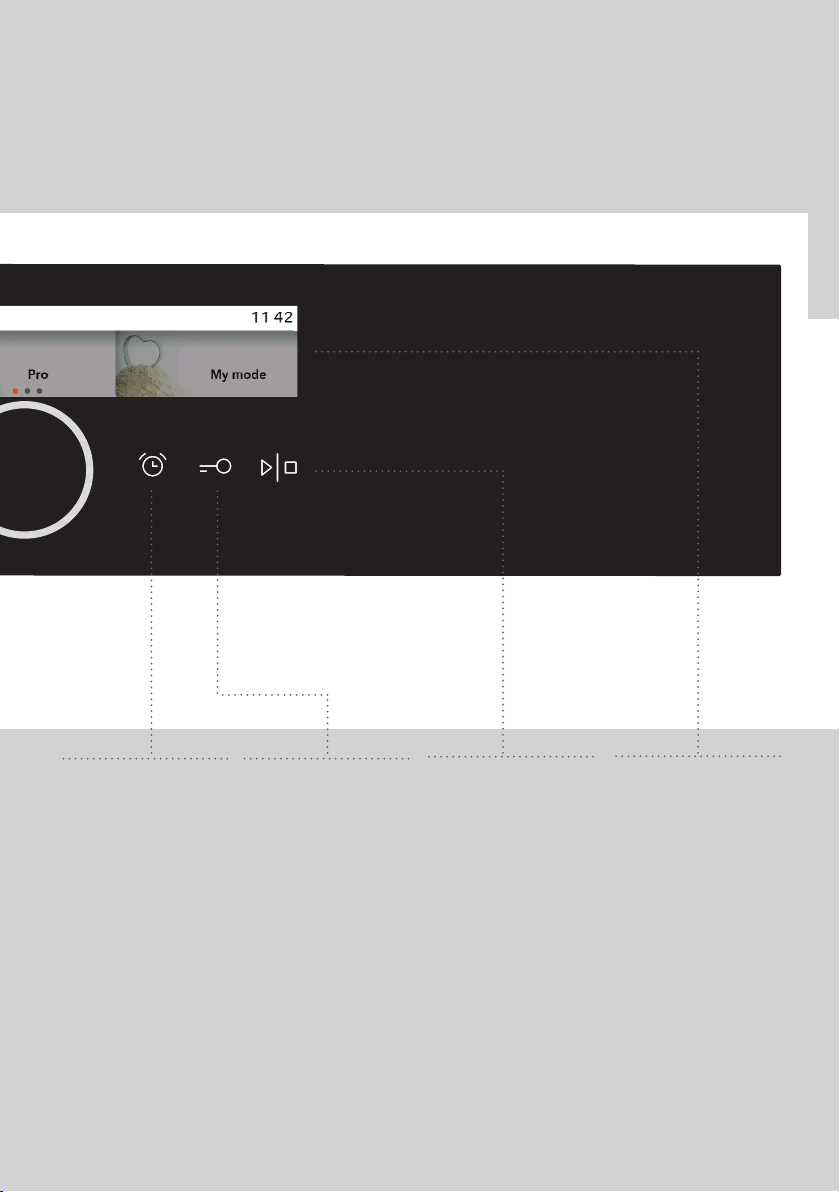

11
803704
5KITCHEN TIMER 6CHILD LOCK KEY 7START/STOP KEY
Touch: START
Touch during
operation: PAUSE/
STOP
8DISPLAY – displays all settings
NOTE:
The keys will respond better if you touch them with a larger area of your fingertip. Each
time you touch a key, this will be acknowledged by a short acoustic signal.

12
803704
BEFORE THE FIRST USE
Before the first use, remove all components, including any transport equipment, from the
oven. Clean all accessories and utensils with warm water and regular detergent. Do not
use any abrasive cleaners.
Before using the oven the first time, heat it without any food, in the system “upper
and bottom heater”, at the temperature of 200 °C for approximately one hour. The
characteristic smell of a “new appliance” will be emitted. Ventilate the room thoroughly
during the first use.
STEAM COOKING
Healthy and natural, steam cooking preserves the full flavour of foods. This cooking
method releases no odours.
Following are the advantages of steam cooking:
Cooking (braising, roasting) starts before the temperature inside the oven reaches 100°C.
Slow cooking (braising, roasting) is also possible at lower temperatures.
It is healthy: vitamins and minerals are well preserved because only a small share of them
is dissolved in the condensation water that touches the food.
There is no need to add any fat during the cooking process. The steam maintains the taste
of food. It does not add odours, nor the taste of the grill or the pan. Furthermore, it takes
nothing away because the food is not diluted in the water.
Steam does not spread the flavour or smell; therefore, meat or fish can be cooked
together with vegetables.
Steam is also suitable for blanching, defrosting and reheating or keeping the food warm.

13
803704
FILLING THE WATER TANK
The WATER TANK allows for independent water supply to the steam oven. The tank volume
amounts to approx. 1.3 litres (maximum water level – see marking). This amount of water
suffices for approximately 3 hours of cooking time with the longest steam cycle (hot air with
steam on "high" system).
Clean the water tank before the first use.
Always fill the water tank with clean and cool water from the
pipeline, bottled water without additives, or distilled water suitable
for use in cooking. Water poured into the water tank should be at a
temperature of 20°C(+/– 10°C).
1Press (on the spot with the sticker) to open the tank door.
The sticker can be removed later.
2Remove the water tank from the housing by pulling by the recessed part.
3Open the lid. Wash the tank with water. Re-assemble the tank. Before use, add
fresh water up to the MAX marking on the
tank.
4Push the water tank back into the housing to the final position (until you
hear a short click). Then, press the tank
door to close it.
After the cooking process, the
remaining water in the steam system is
pumped back into the water tank. The lid
and the water tank can be washed with
standard non-abrasive liquid cleaners or in
a dishwasher.

14
When food is exposed to microwaves, the molecules begin to move rapidly, thereby
generating heat.
The microwaves penetrate approximately 2.5 centimeters deep into the food. If the food
is thicker, the core of the food will be cooked by conduction, as in conventional cooking.
1
803704
MICROWAVE FUNCTION
Microwaves are used for cooking, roasting and defrosting food. They allow quick and
efficient cooking without changing the colour or shape of the food.
Microwaves are a type of electromagnetic radiation. Such radiation is commonly found in
our environment in the form of radio-electric waves, light or infrared rays. Their frequency
is in the 2450 MHz range.
Their behaviour:
- They are reflected by metals.
- They travel through all other materials.
- They are absorbed by water, fat and sugar molecules.
Never use or activate a microwave system if the oven is empty.

15
803704
FIRST USE
LANGUAGE SELECTION
Upon the first connection of the appliance to the power supply or after a prolonged period of
being disconnected, please set the desired language. The default language is English.
Confirm each setting by pressing the KNOB.
By pressing the
KNOB and turning
the knob, set the
DAY, MONTH and
YEAR. Turn the
knob and confirm
your selection with a
check mark.
Turn the KNOB and
set the CLOCK.
Confirm your
selection with a
check mark.
The oven also operates if you do not set the time of day, but in this case it is not
possible to set the timer features (see chapter SELECTING TIMER FEATURES).
After a few minutes of inactivity, the appliance goes into Standby mode.
CHANGING CLOCK SETTINGS
You can change the time of day when no timer function is activated (see chapter
SELECTING GENERAL SETTINGS).
Turn the KNOB and
select the desired
language. Confirm
your selection.
SETTING THE DATE
SETTING THE CLOCK

16
803704
Incorrect water hardness level setting could affect appliance
operation and useful life.

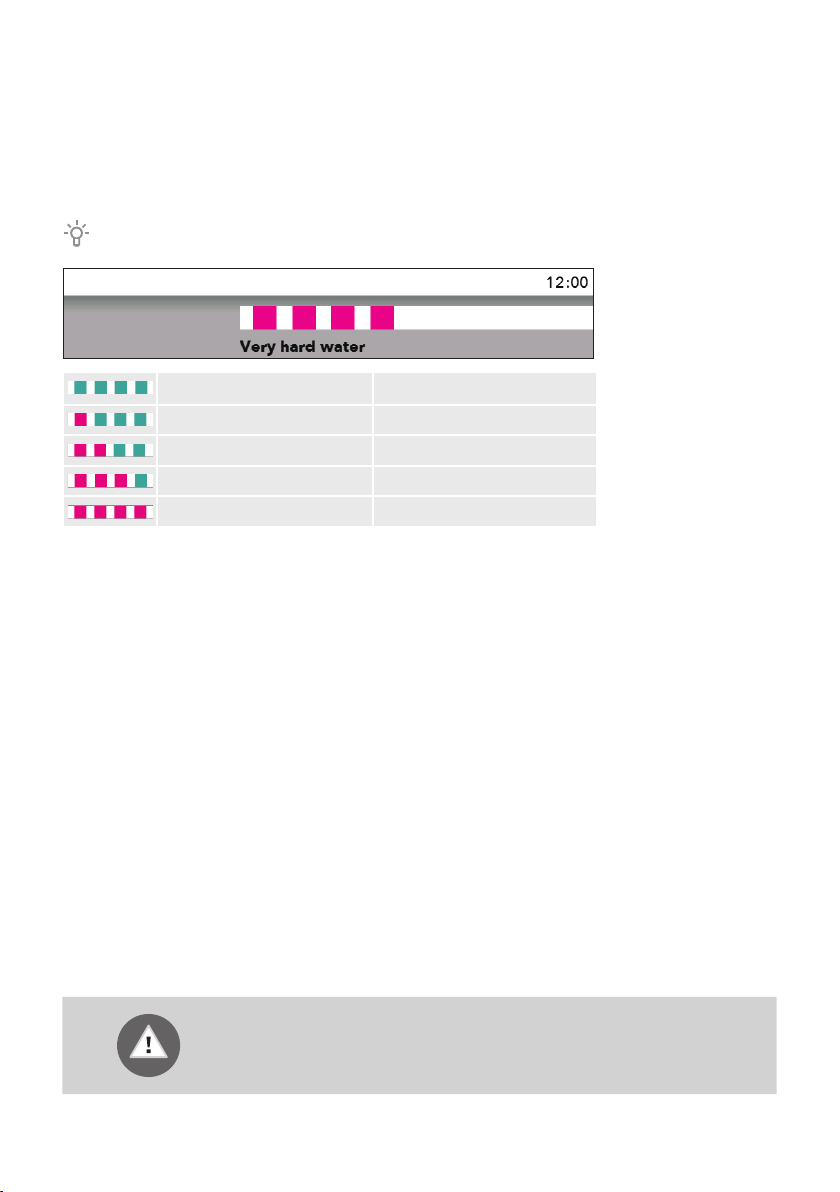

TESTING WATER HARDNESS
Water hardness test should be carried out before first use.
A strip will appear on the display with the sign "Very hard water".
Maximum water hardness is set as a factory default.
Soak the test paper
strip (supplied
with the appliance)
in water for one
(1) second. Wait
one minute and
observe the number
of stripes on the
paper. Enter the
information on the
number of stripes
into the appliance.
Rotate the KNOB
and confirm.
4 green stripes Very soft water
1 red stripe Soft water
2 red stripes Medium hard water
3 red stripes Hard water
4 red stripes Very hard water
CHANGING THE WATER HARDNESS SETTING
Water hardness can also be set in the menu CHOOSING THE GENERAL SETTINGS.

17
803704
SELECTING THE MAIN MENUS
FOR BAKING AND SETTINGS
Turn the KNOB and
select the name of
the menu. Confirm
the selection by
pressing the KNOB.
The NAME of the
selected menu
appears above.
A) Auto
In this mode, first select the type of dish and then the selected
food with automatic setting of the quantity, level of doneness and
end of operation.
The programme offers a variety of pre-set recipes, tested by chefs
and nutrition experts.
B) Pro
This mode offers a selection of dishes with factory pre-set values,
which you can modify.
C) My mode
This mode allows you to prepare dishes according to your wishes,
each time using the same steps and settings. You can save your
settings in the oven's memory and recall them the next time you
want to use them.
D) Steam
This is a natural way of cooking that retains a full flavour of the
food.
E) Microwaves
This mode is suitable for cooking, roasting, and defrosting of food.
Confirm each setting by pressing the KNOB.

18
803704
A) BAKING BY SELECTING THE TYPE OF
FOOD (auto; automatic mode)
Confirm each setting by pressing the KNOB.
Turn the KNOB
and select the
Auto. Confirm your
selection by pressing
the KNOB.
Select the type
of dish and the
selected food.
Confirm your
selection.
The pre-set values
are shown.
You can change
the quantity, level
of doneness and
delayed start (end of
baking).
1 quantity
2 level of doneness
3 delayed start
4 duration of baking
5 baking system and recommended level
6 professional (Pro) mode
If in the Automatic mode the symbol is selected, the programme switches to
Professional (Pro) mode (see chapter BAKING BY SELECTING THE MODE).
Touch the START/STOP key to start the baking process.
The display shows all the selected settings.
1234 56

19
803704
PREHEATING
Cooking procedures for some dishes in the Auto mode also include the preheat function
. When you select the food, the following notification will appear: "Selected program
includes preheat function." (Confirm your selection with the KNOB.) "Preheating
started." Do not insert the food yet. Actual and set temperature will alternate on the
display.
When the selected temperature is reached, the preheating process stops and an acoustic
signal is emitted. The following notification will appear on the display: "Preheating
complete." Open the door and insert the food. The program then resumes the cooking
process with selected settings.
When the preheat function is set, delayed start function cannot be used.

20
803704
BASIC SETTINGS
1 pre-heating
2 system (see table OVEN SYSTEMS)
3 temperature in the oven
ADDITIONAL SETTINGS
4 duration of baking (see chapter TIMER FUNCTIONS – DURATION)
5 Multiphase cooking (see chapter Multiphase cooking)
6 (steam injection) (see chapter STEAM INJECTION)
PREHEATING
Use the preheat function if you wish to heat the oven to the desired temperature as
quickly as possible. When this symbol is selected, the preheat function will be
activated and a notification will appear: "Preheating started." Do not insert the food yet.
Actual and set temperature will alternate on the display.
When the selected temperature is reached, the preheating process stops and an acoustic
signal is emitted.
The following notification will appear on the display: "Preheating complete." Open the
door and insert the food. The program then resumes the cooking process with selected
settings.
When the preheat function is set, delayed start function cannot be used.
B) BAKING BY SELECTING THE MODE OF
OPERATION (professional mode and steam mode)
Confirm each setting by pressing the KNOB.
Turn the KNOB and
select Pro. Confirm
your selection.
Select your own
basic settings.
1234 5
