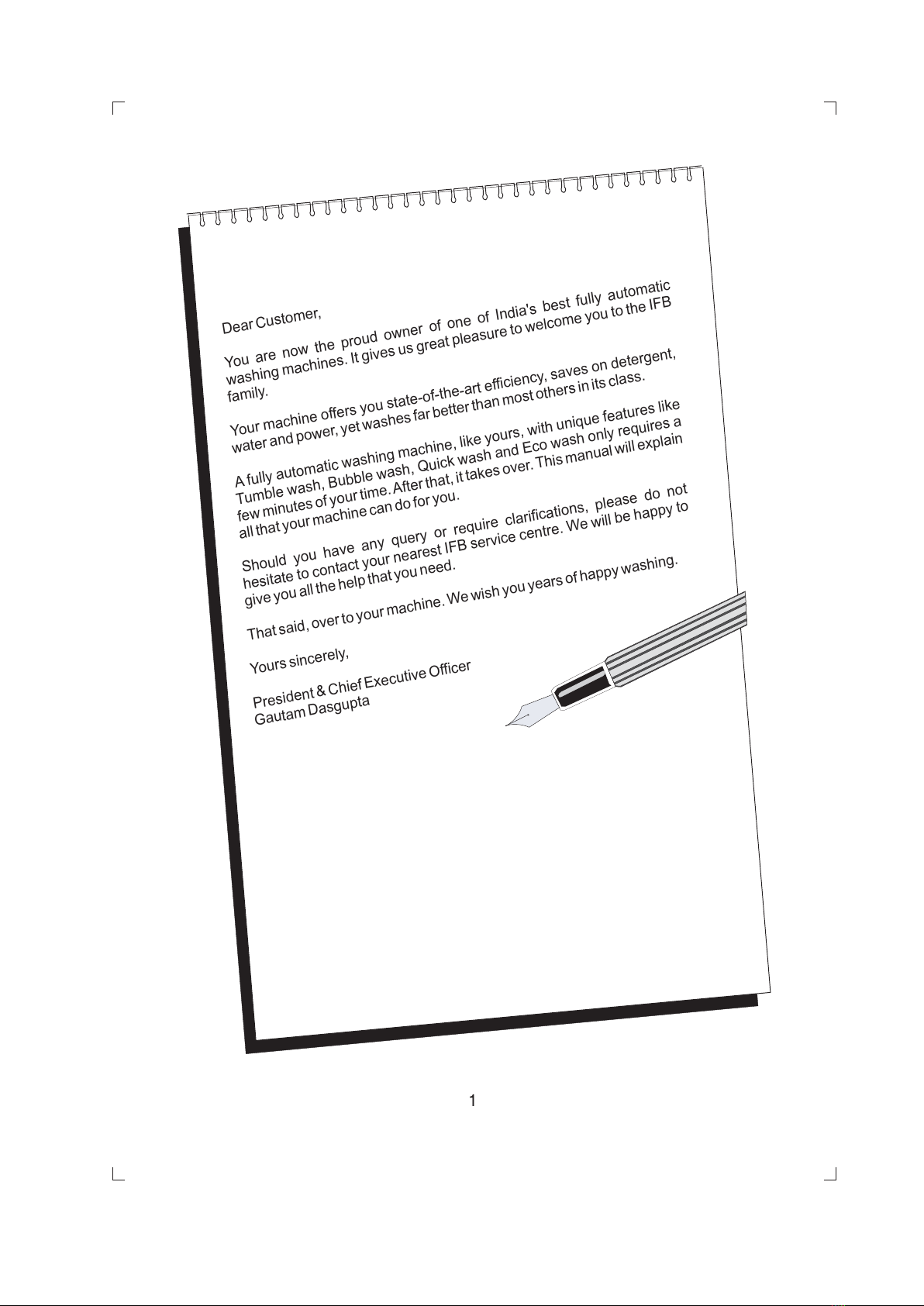

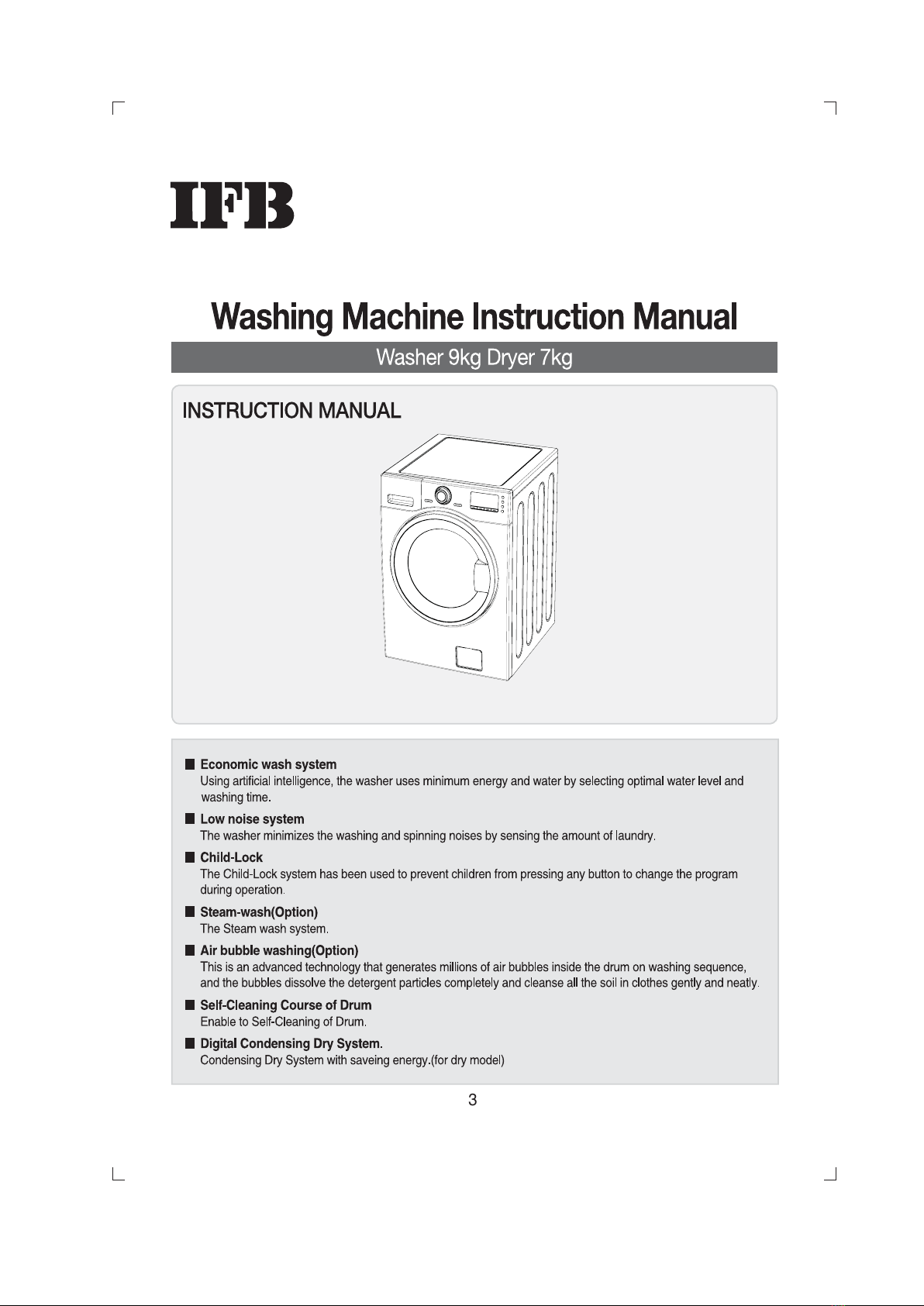

Dear Customer,
You are now the proud owner of one of India's best fully automatic
washing machines. It gives us great pleasure to welcome you to the IFB
family.
Your machine offers you state-of-the-art efficiency, saves on detergent,
water and power, yet washes far better than most others in its class.
A fully automatic washing machine, like yours, with unique features like
Tumble wash, Bubble wash, Quick wash and Eco wash only requires a
few minutes of your time.After that, it takes over. This manual will explain
all that your machine can do for you.
Should you have any query or require clarifications, please do not
hesitate to contact your nearest IFB service centre. We will be happy to
give you all the help that you need.
That said, over to your machine. We wish you years of happy washing.
Yours sincerely,
President & Chief Executive Officer
Gautam Dasgupta
All manuals and user guides at all-guides.com

3
All manuals and user guides at all-guides.com

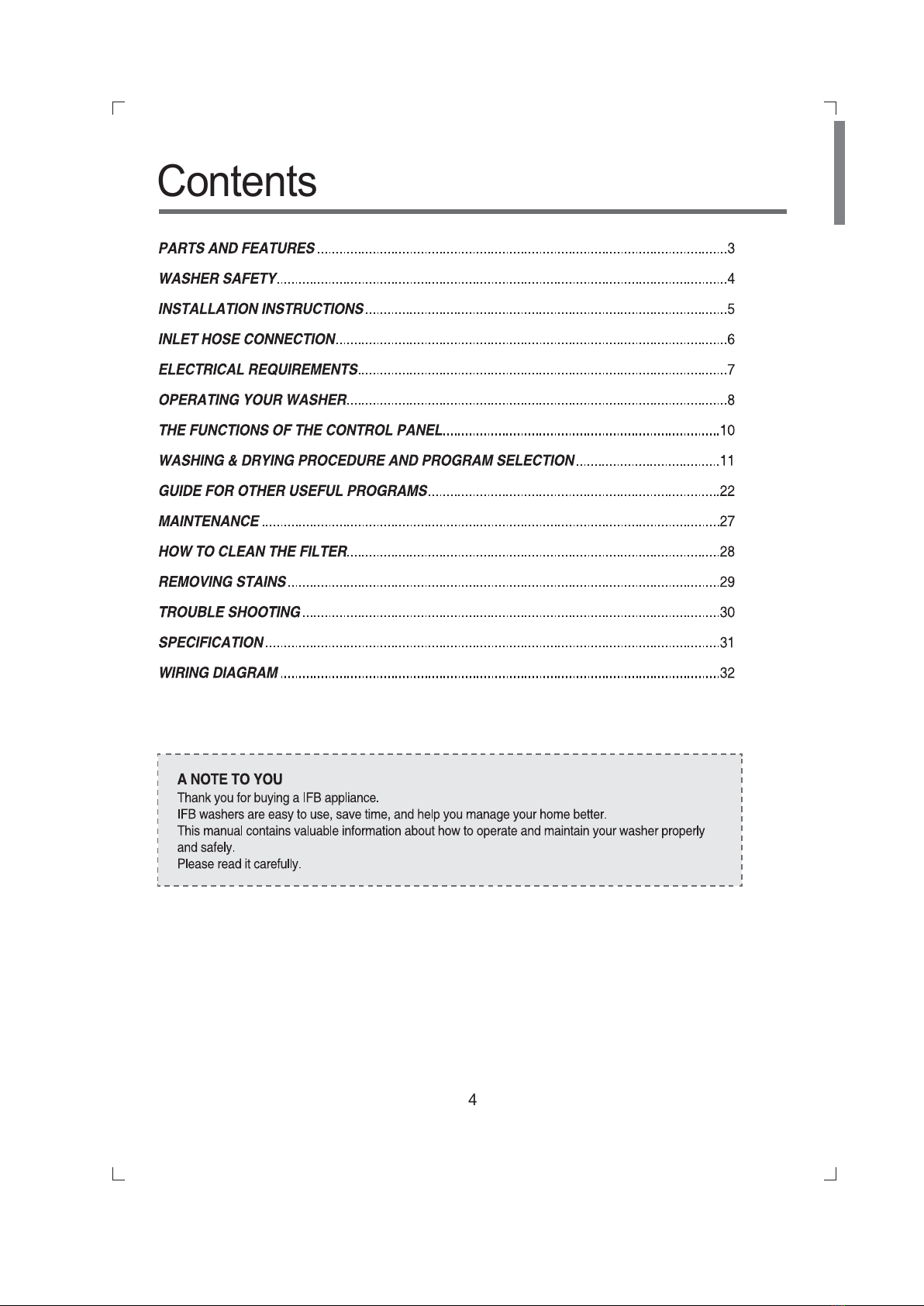

Contents
4
All manuals and user guides at all-guides.com

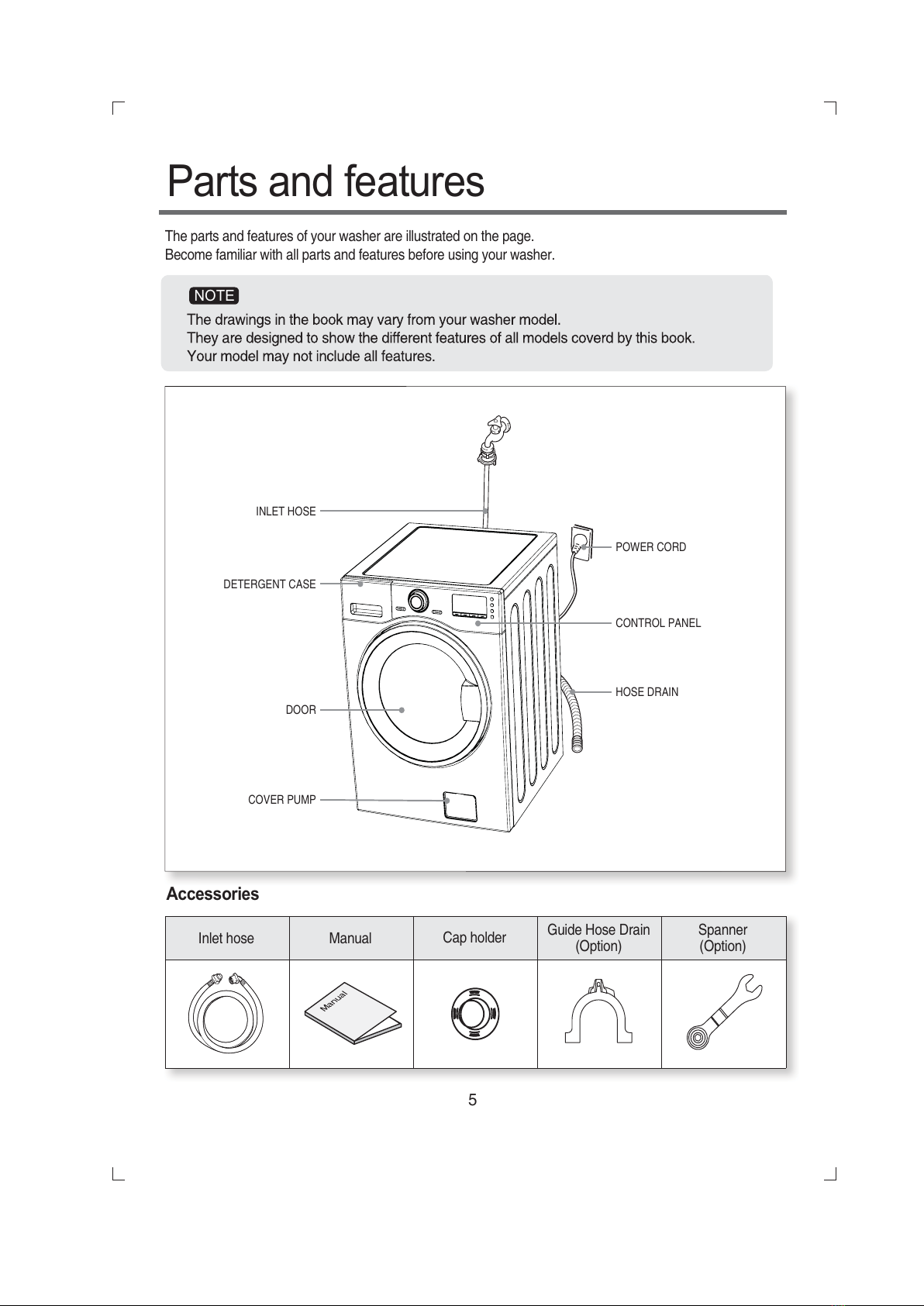

Parts and features
The parts and features of your washer are illustrated on the page.
Become familiar with all parts and features before using your washer.
INLET HOSE
DETERGENT CASE
DOOR
COVER PUMP
POWER CORD
CONTROL PANEL
HOSE DRAIN
Accessories
Inlet hose Manual Cap holder Guide Hose Drain
(Option)
Spanner
(Option)
5
NOTE
All manuals and user guides at all-guides.com

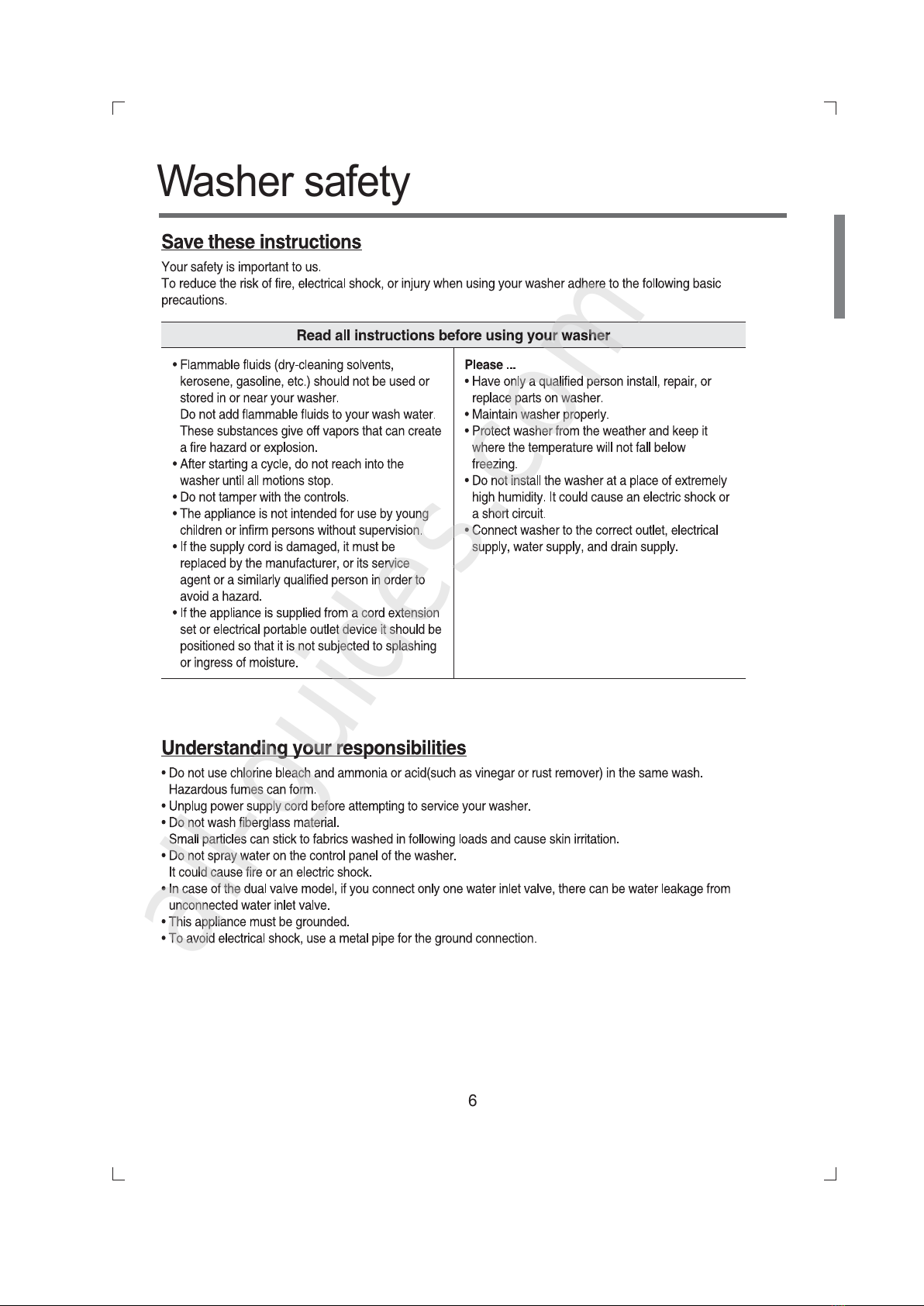

Washer safety
6
All manuals and user guides at all-guides.com
all-guides.com

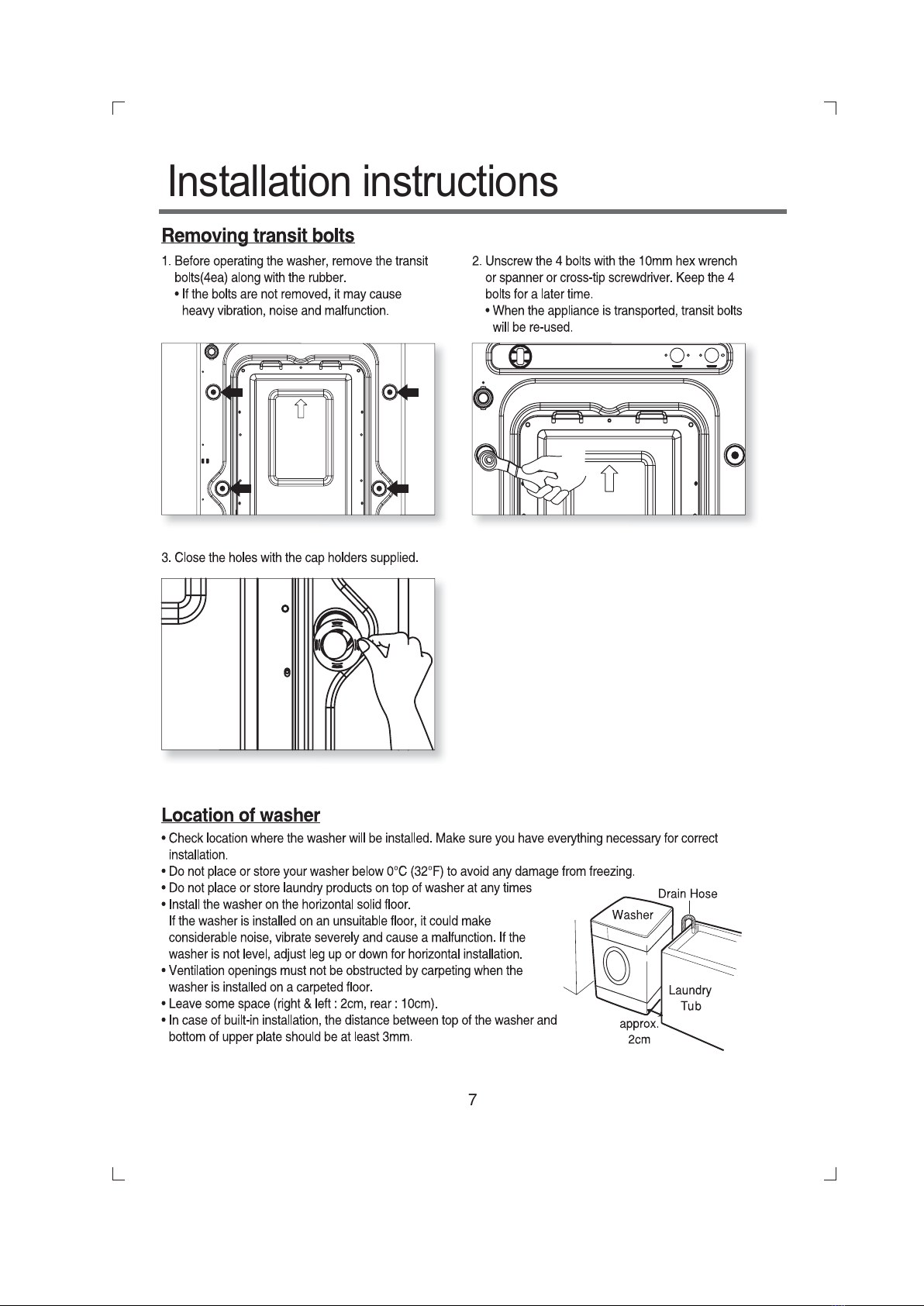

Installation instructions
7
All manuals and user guides at all-guides.com

Inlet hose connection
The washer should be connected to the water mains using new hose sets and old hose sets should not be
reused.
In using only one water tap or in case of only one water inlet valve, connect the inlet hose to the cold water
inlet valve.
Option : Be careful not to confuse hot water inlet and cold water inlet.
For Ordinary Tap
Pull down the collar of the inlet
hose to separate it from the
water tap adapter.
Loosen the four screws properly
in order to fit into water tap.
Fit the water tap adapter into
the water tap and tighten the
four screws evenly while
pushing up the adapter so that
the rubber packing can stick to
the water tap tightly.
Remove the tape, and screw
connector B into connector A
tightly.
Connect the inlet hose to the
water tap adapter by pulling
down the collar of the hose end.
Connect the inlet hose adapter
of the hose to the water inlet of
the washer by turning it
clockwise to be fixed tightly.
Connector
Rubber
Packing
Connector
Rubber
Packing
Connector
inlet
TAPE
Connector
Rubber
Packing
Connector
Rubber
Packing
Connector
inlet
Connector
Rubber
Packing
Connector
Rubber
Packing
Connector
inlet
Water tap Adapter B
Water tap Adapter A
Connector Rubber
Packing Connector
Rubber
Packing
Connector
inlet
Please check the rubber packing
present inside the inlet hose
adapter of the hose.
For Screw-Shaped Tap
Connect the inlet hose to the
water tap by screwing the
connector tightly.
Connect the connector- inlet
supplied if necessary.
Connect the inlet hose adapter
to the water inlet of a washer
andturnittobefixed.
Connector
Hose
inlet
Rubber
Packing
Hose
Connector
Connector
Connector
*Check the packing in the inlet
Rubber
Packing
8
All manuals and user guides at all-guides.com

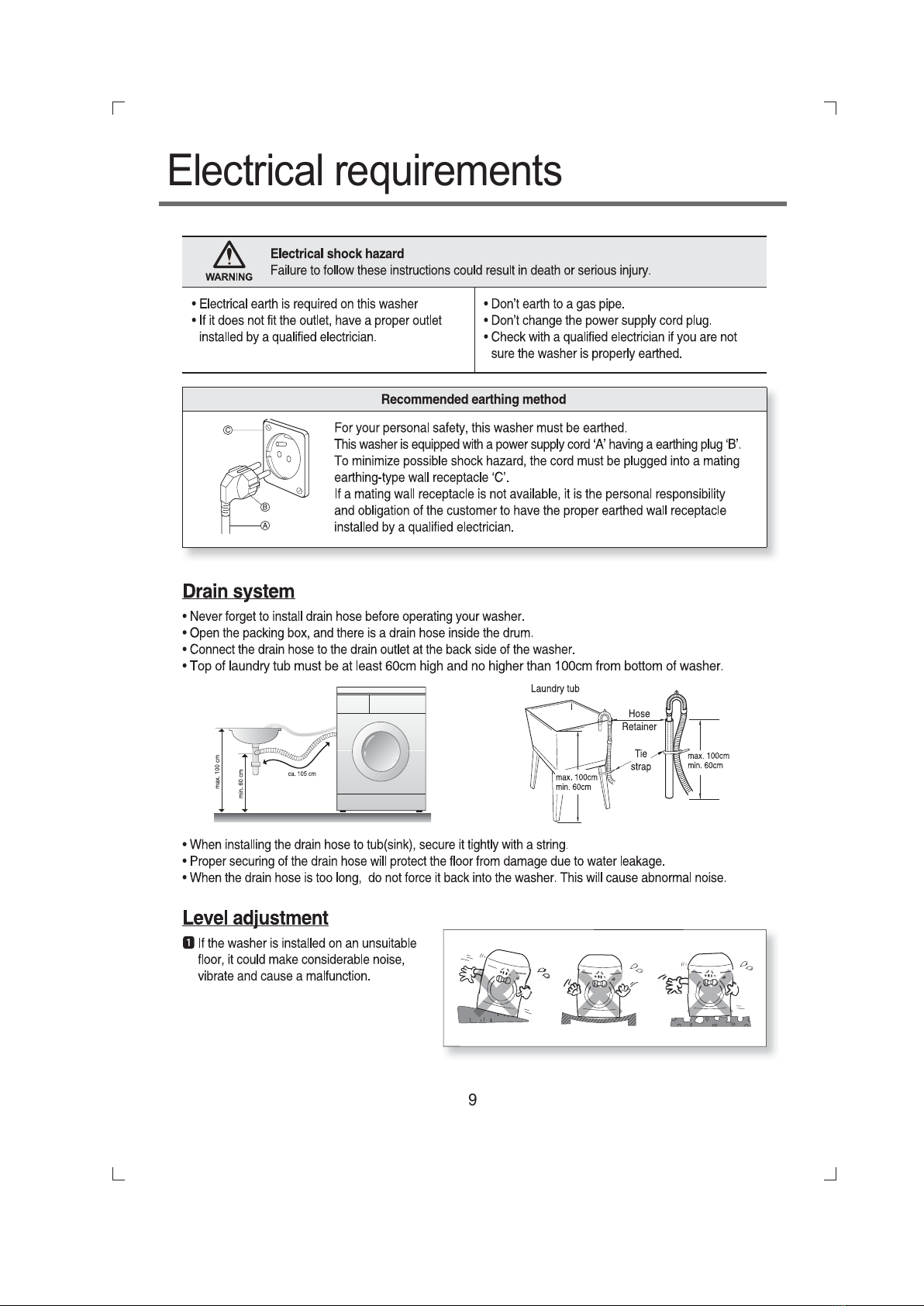

Electrical requirements
9
All manuals and user guides at all-guides.com

Electrical requirements
Operating your washer
10
All manuals and user guides at all-guides.com

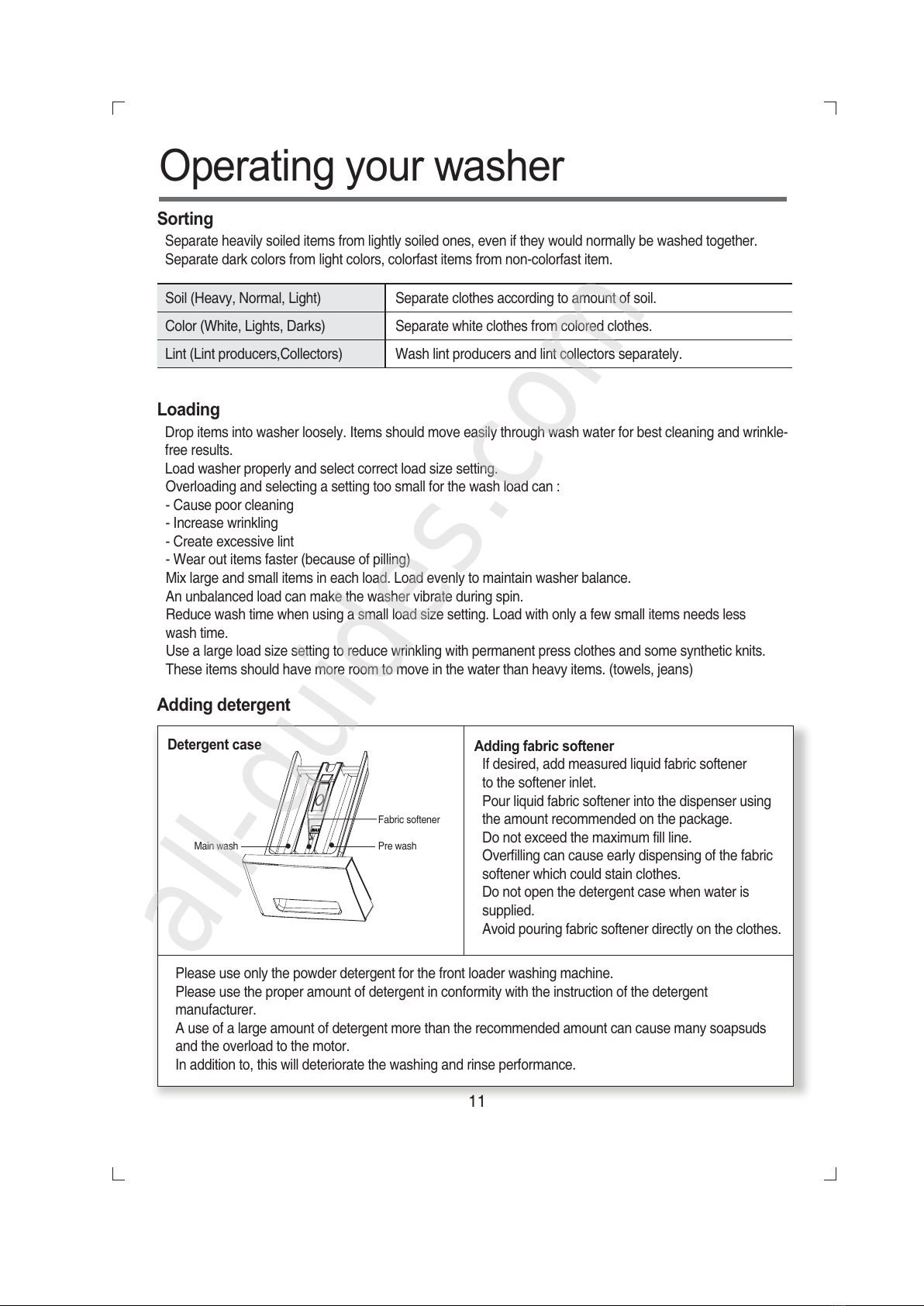

Operating your washer
Sorting
Separate heavily soiled items from lightly soiled ones, even if they would normally be washed together.
Separate dark colors from light colors, colorfast items from non-colorfast item.
Loading
Drop items into washer loosely. Items should move easily through wash water for best cleaning and wrinkle-
free results.
Load washer properly and select correct load size setting.
Overloading and selecting a setting too small for the wash load can :
- Cause poor cleaning
- Increase wrinkling
- Create excessive lint
- Wear out items faster (because of pilling)
Mix large and small items in each load. Load evenly to maintain washer balance.
An unbalanced load can make the washer vibrate during spin.
Reduce wash time when using a small load size setting. Load with only a few small items needs less
wash time.
Use a large load size setting to reduce wrinkling with permanent press clothes and some synthetic knits.
These items should have more room to move in the water than heavy items. (towels, jeans)
Adding detergent
Soil (Heavy, Normal, Light) Separate clothes according to amount of soil.
Color (White, Lights, Darks) Separate white clothes from colored clothes.
Lint (Lint producers,Collectors) Wash lint producers and lint collectors separately.
Detergent case Adding fabric softener
If desired, add measured liquid fabric softener
to the softener inlet.
Pour liquid fabric softener into the dispenser using
the amount recommended on the package.
Do not exceed the maximum fill line.
Overfilling can cause early dispensing of the fabric
softener which could stain clothes.
Do not open the detergent case when water is
supplied.
Avoid pouring fabric softener directly on the clothes.
Please use only the powder detergent for the front loader washing machine.
Please use the proper amount of detergent in conformity with the instruction of the detergent
manufacturer.
A use of a large amount of detergent more than the recommended amount can cause many soapsuds
and the overload to the motor.
In addition to, this will deteriorate the washing and rinse performance.
Main wash Pre wash
Fabric softener
11
All manuals and user guides at all-guides.com
all-guides.com

The functions of the control panel
12
All manuals and user guides at all-guides.com

Washing procedure and program selection
13
All manuals and user guides at all-guides.com

Washing & Drying procedure and program selection
14
All manuals and user guides at all-guides.com

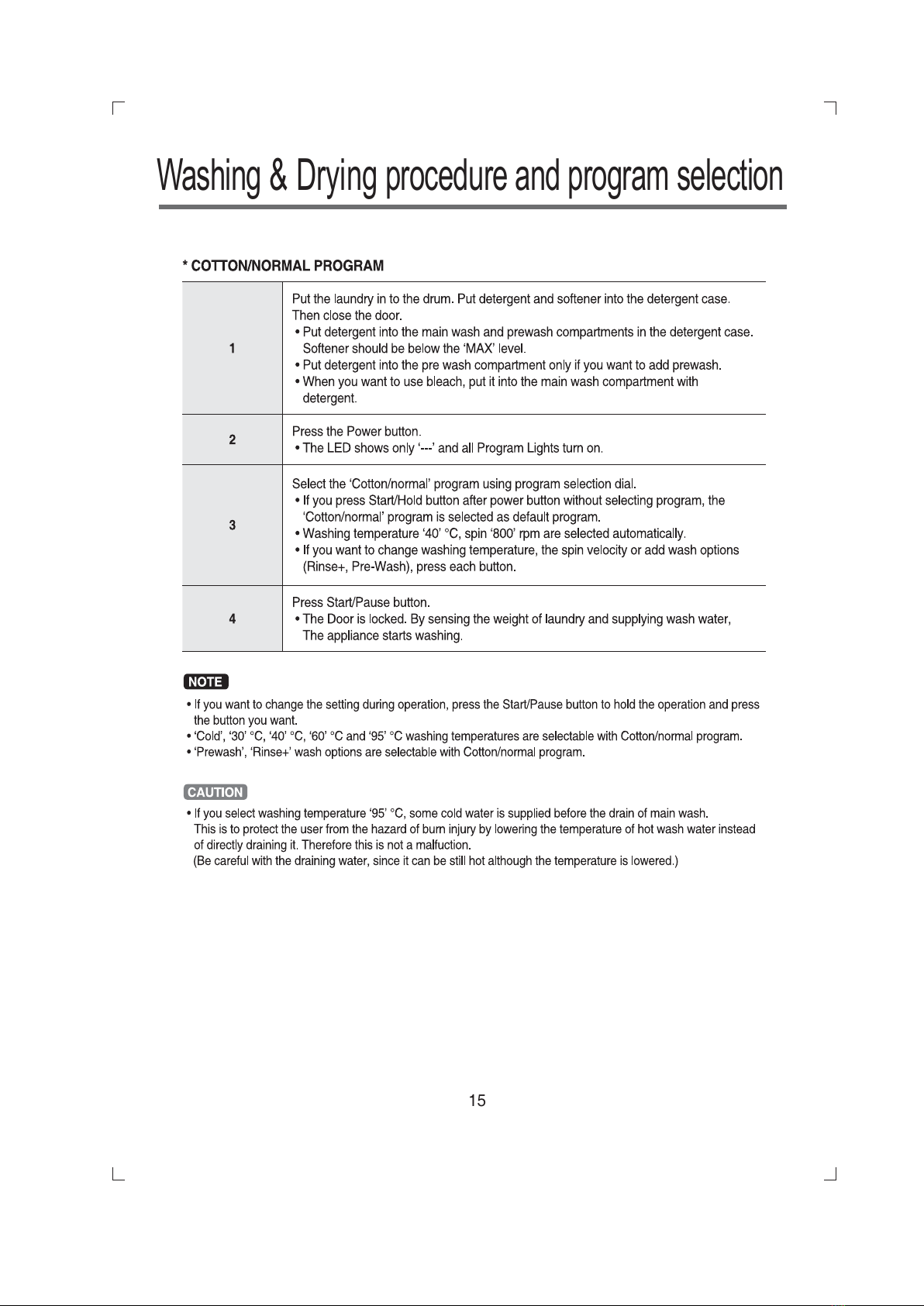

Washing & Drying procedure and program selection
15
All manuals and user guides at all-guides.com

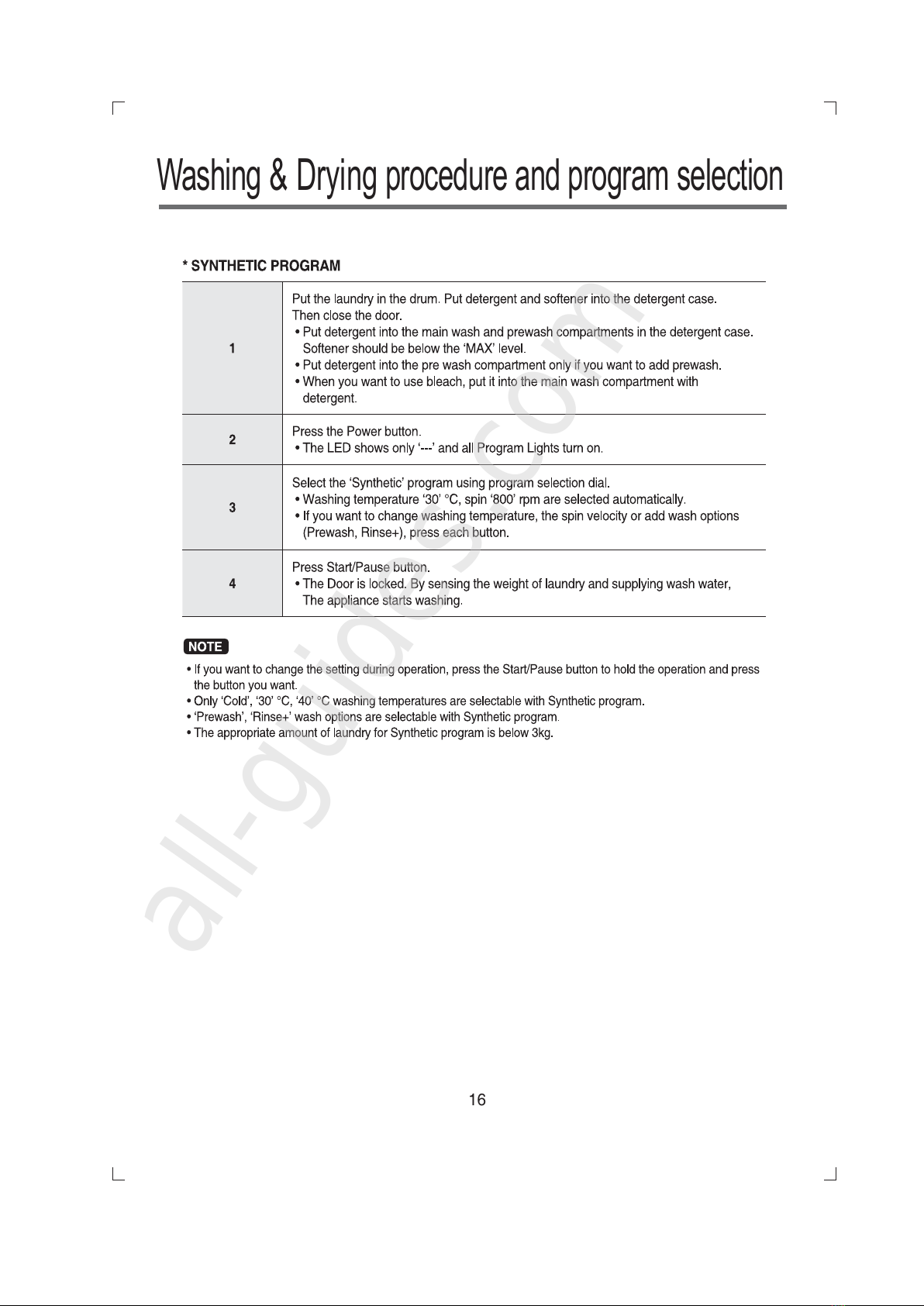

Washing & Drying procedure and program selection
16
All manuals and user guides at all-guides.com
all-guides.com

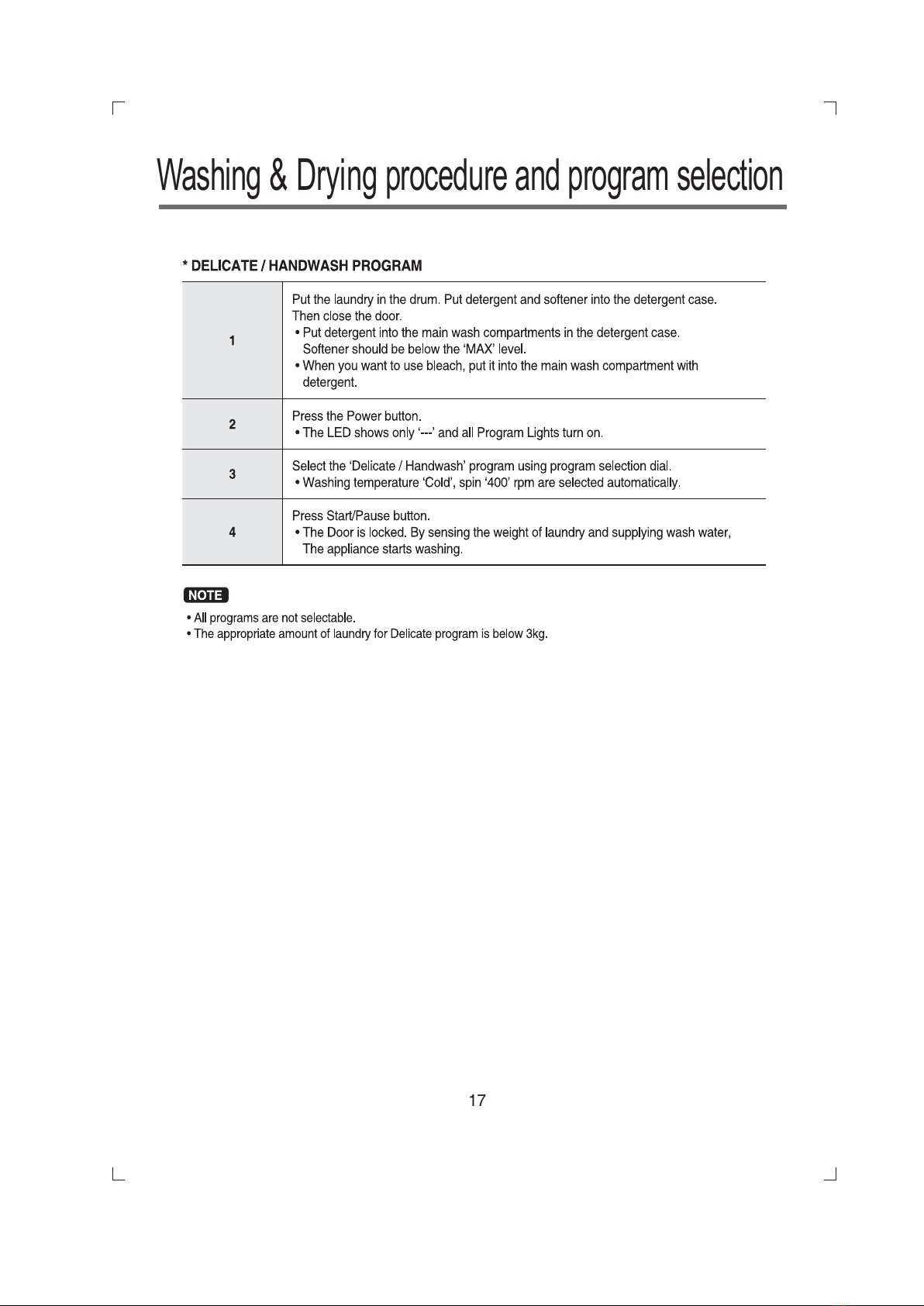

Washing & Drying procedure and program selection
17
All manuals and user guides at all-guides.com

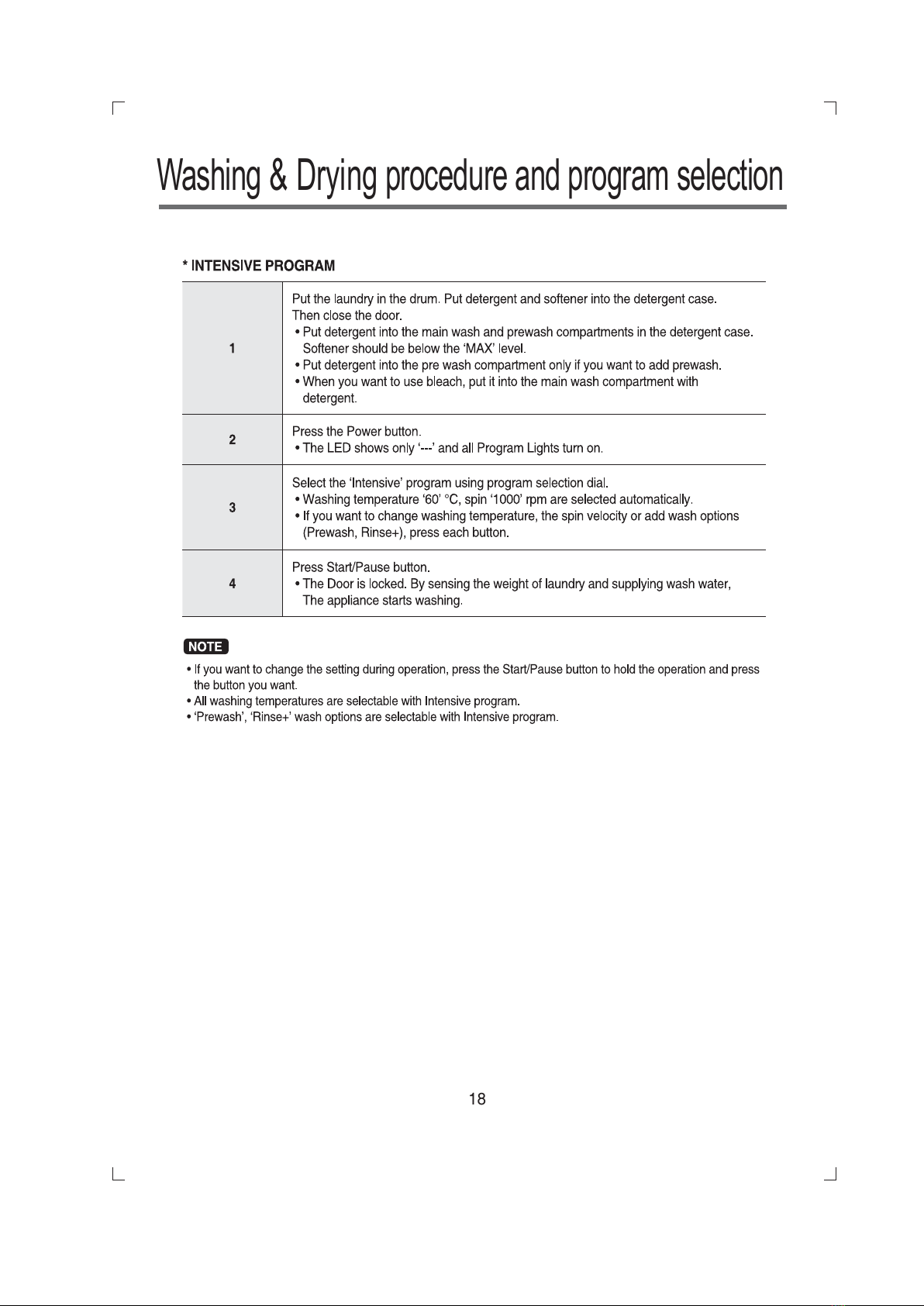

Washing & Drying procedure and program selection
18
All manuals and user guides at all-guides.com

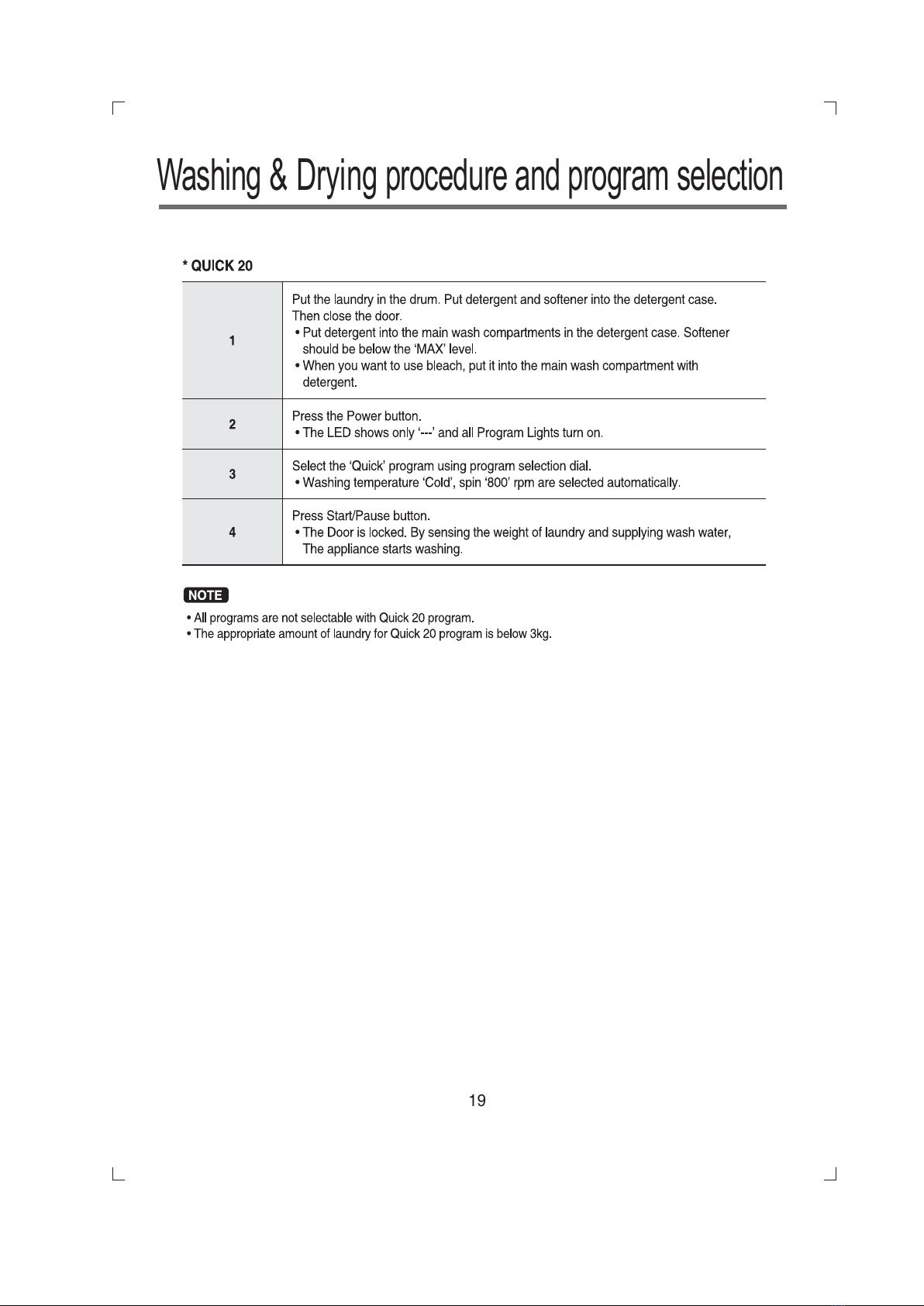

Washing & Drying procedure and program selection
19
All manuals and user guides at all-guides.com

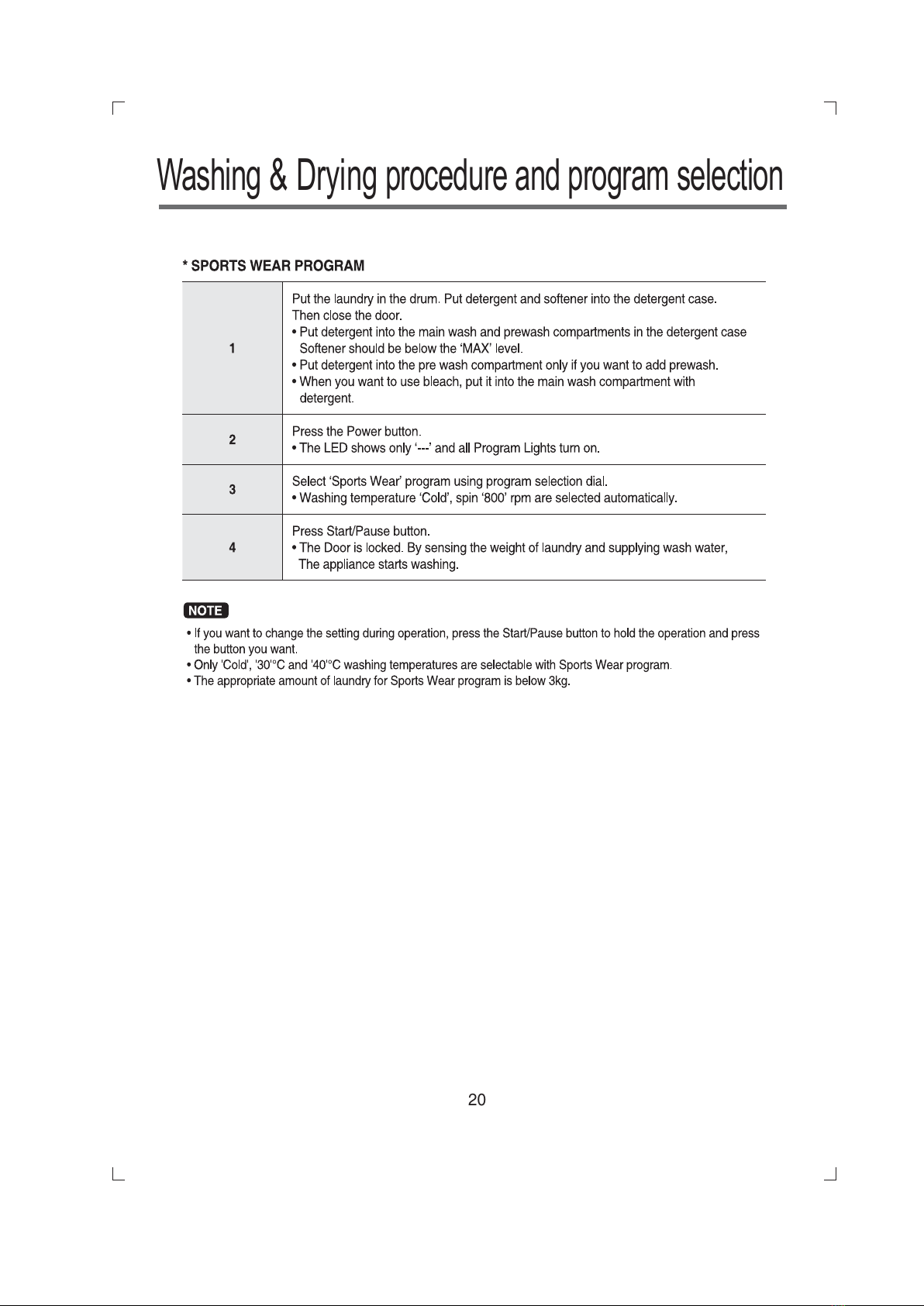

Washing & Drying procedure and program selection
20
All manuals and user guides at all-guides.com
