IFB Elite 5 Kg User manual

USE ONLY GENUINE IFB SPARES & ACCESSORIES
* Company shall not be responsible for defects arising due to usage of spurious parts and accessories
OPERATING MANUAL
Advancing the science of washing
ALSO FROM IFB
CLOTHES DRYER
CAPACITY - 5.5KG
MICROWAVE OVEN
CAPACITY - 17 to 30 LITERS
DISHWASHER
CAPACITY - 12 PLACE SETTING
IFB Industries Limited, Plot No. IND - 5, Sector - 1, East Calcutta Township, Calcutta - 700 078
Visit us at www.ifbappliances.com

ear s o r
D Cu t me
Arm we mehe interna ional fam of
wa lco to t t ily
I B ‘tumlstecgy ba ed hing achine
F b e wa h’ hnolo swas m
o s
wner .
ur washi machi is tr y ing eyo
Yo ng ne,ul go to b ur
fr edommn .I eq r st3 eco s our ein
e achi e t r ui esju 0snd ofy tim
loadingthe ricsds ting the o ramm .
fab an et pr g e
T e , ou e totall free to what ou please
her after y ar y do y.
was mach does n t neyo uper is n
This hing ine o ed ur s v io
any or T was iachine s odelle n the quem e his h ng m i mdouni
tum lwash’ copt fo uper or fab car and wash‘ b e ncers i ric e
pe fo mnc .
r r a es
As ou ead this anual y will u esn what t
y r m ou nd r ta dhis
wa hingm cand fo y
sachine o r ou.
Fny futher info m n, a e nta t y ra e t
or ar atio ple s co c ou ne rs
delo I S vice ntr
ear r FBs er Ce e.
3

CONTENTS

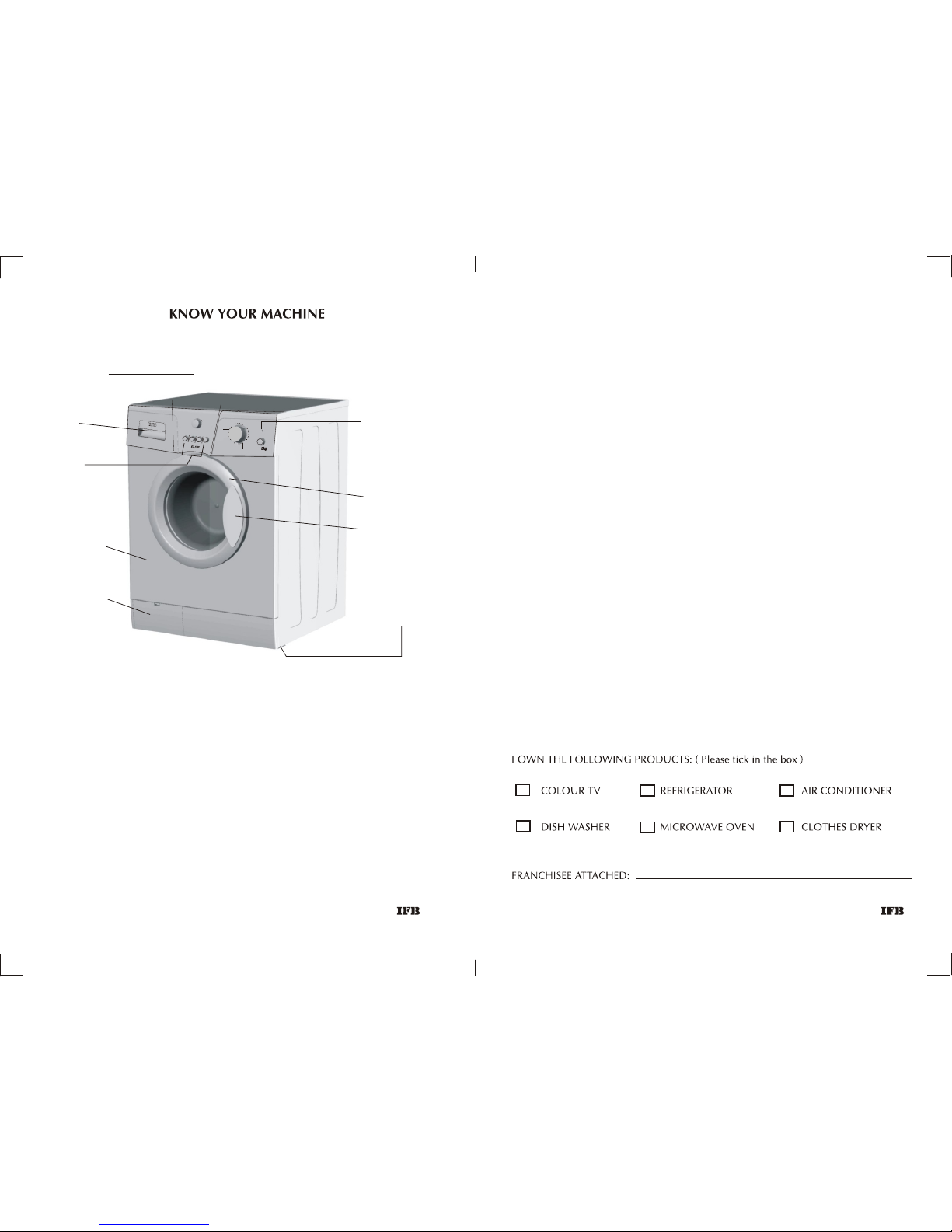

KNOW YOUR MACHINE 6
INSTALLATION 7
qPre Installation
qUnpacking
qSetting Up
qWater Inlet
qWater Outlet
qElectrical Connection
USING YOUR MACHINE 9
qControl Panel
qAutomatic Detergent Dispenser Tray
qSelector Buttons
qTemperature Selector Knob
qProgramme Selector Knob
qIndicator Lamp
qKinds of Wash Programmes
qProgramme Selection
qProgramme Selection Chart
OPERATION 19
qSorting of Garments
qLoading the Machine
qDetergent to be used and Quantity
qFabric Conditioner
qTreatment of Stains
qWash Load Guide and Capacity
qInternational Washing Symbols
qProgramme Run
qSwitching Off the Machine
qCheck Points
MAINTENANCE 24
qCoin Trap
qDrum
qSieves
qFrost Protection
qDraining During Emergencies
FAULT DIAGNOSIS 26
qWhy does it happen?
SAFETY PRECAUTIONS 27
TECHNICAL DATA 29
31 5
MODEL : ELITE 5KG SERIAL NO. WTEL5kgB
DEALER’S NAME :
CUSTOMER’S NAME :
ADDRESS :
PIN CODE :
TEL. NO. (Resi.) (Off.)
E-MAIL :
MOTOR SR. NO. :
DATE OF PURCHASE :
MODEL : ELITE 5KG SERIAL NO. WTEL5kgB
DEALER’S NAME :
CUSTOMER’S NAME :
ADDRESS :
PIN CODE :
TEL. NO. (Resi.) (Off.)
E-MAIL :
MOTOR SR. NO. :
DATE OF PURCHASE :

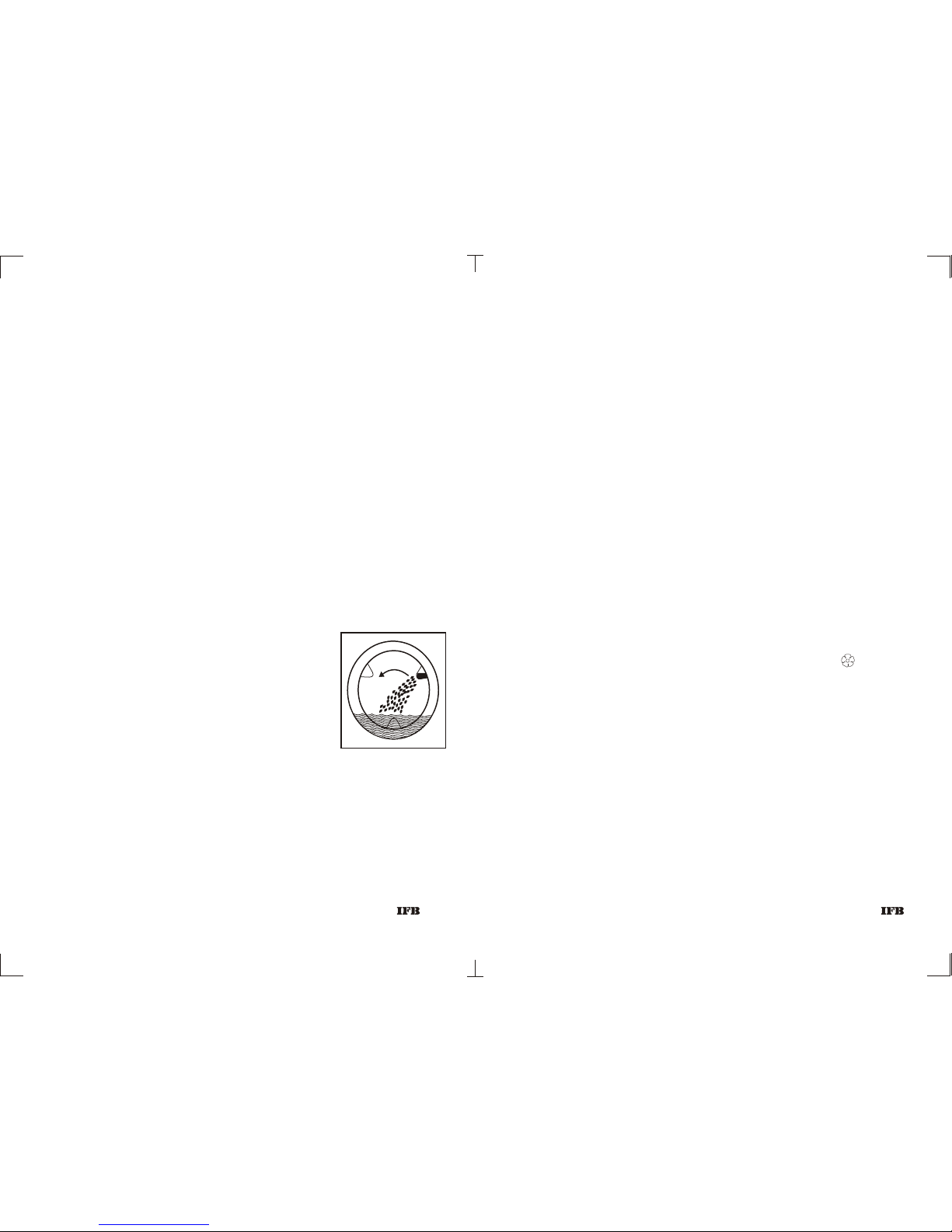

ADVANTAGES OF TUMBLE WASH
qMOST EFFECTIVE CLEANING AS THE CLOTHES PASS THROUGH
SOAPY WATER AND ALSO FALL ON SOAP SOLUTION IMPROVING
WETTING OF CLOTHES.
qRESEMBLES THE THUMPING AND RUBBING ACTION OF GENTLE
HAND WASH.
qUSES LESS WATER COMPARED TO TUB TYPE TOP LOADERS.
qLESS WATER MEANS LESS DETERGENT AND ELECTRICITY
CONSUMPTION.
qWASHING IS EFFECTIVE BY DETERGENCY, SOAKING, HEATING,
TUMBLING AND SQUEEZING.
qGIVES BETTER DRYING EFFECT BY SPINNING.
ADVANTAGES OF TUMBLE WASH
0
ptr
areC
Tmuee
30
40
05
60
70
85
95
Cd
ol
nN oi S p
DW S
Eo
c
06 0
800
Start
Prewash
Normal
Light
Quick
Rinse
LongSpin
Prewash
Rinse
Pump
ShortSpin
Synthetics/Polyester
Rinse
Woolens Cotton/Linen
Wash
Normal
Delicates
Additives
Additives
Additives
Adjustable Feet
for Levelling
Door Handle
Porthole Door
Start Button
Indicator Lamp
Programme
Selector Knob
Temperature
Control Knob
Detergent
Dispenser tray
handle
Special Powder
Coated
Galvanised
Steel Cabinet
Bottom Door
Selector
Buttons
6 30

WATER INLET
DRAIN
PIPE
WATER INLET
DRAIN
PIPE
WATER
SUPPLY
STOP
LOCK
REDUCER
MACHINE
WATER
INLET
1/2 3/4
1. Remove Carton.
2. Remove wooden base. Keep machine on floor
or trolley.
3. Place the machine at the site at which it is to be
installed.
4. Remove transit bolts.
5. Insert plastic caps provided into holes vacated and press till they click into
place.
6. Keep transit bolts carefully. They will be required in case you need to shift the
machine again.
7. For shifting and re-installation at a new site,please get in touch with our service
personnel.
8. Keep packaging material carefully. It comes handy while shifting residence.
9. PLEASE DO NOT OPERATE THE MACHINE TILL TRANSIT BOLTS HAVE BEEN
REMOVED.
INSTALLATION
1. Make sure there is a 16 amp. 3-pin electrical point preferably with a 16 amp.
fuse, within 1 meter of the machine. Make sure it has proper earthing.
2. Fixed plumbing is recommended for
the machine. The water inlet of the
machine has a collar with3/4”parallel
internal threads. The water supply
point with an external 3/4” parallel
thread should be available within1
meter of the machine’s location.
4. Please inform our service centre for installation and demonstration of the
machine once the points mentioned above have been completed.
3. Two options on the water inlet and drain
pipe connection are shown. In case these
possibilities do not exist for the drain pipe,
please arrange an additional length of pipe.
PRE-INSTALLATION
UNPACKING
TECHNICAL DATA
Dimensions(DxWxH) : 56 cm x 60 cm x 85 cm
Weight : 67 kgs
Capacity : 5 Kgs of dry clothes (cotton)*
Programmes : 30 Wash Care Programmes
Selector Buttons : Eco, Water Save Device (WSD), No spin,
spin speed selection
Motor Rating : 690 Watts max.
Spin Speed : 600 to 800
Heater Rating : 1.9 kW
Drum : Stainless Steel
0
Temperature Selection : Cold to 90 C
Drain Pump Rating : 30 Watts
Water Consumption : 45 liters for normal wash.
Power Consumption : 0.15 - 0.25 unit for cold wash
0
(Cotton Wash Programme) : 1.2 - 1.4 unit hot wash at 60 C
Connected Load : 2.35 KW Max.
Programme Duration : 36 to 132 minutes
Power supply : 220 - 240 V, Single Phase, 50 Hz
22
Water Pressure : 1 bar ( 1.03 kg/cm ) - 10 bar ( 10.3 kg/cm )
Specifications are subject to change without notice.
*Capacity depends on size, texture and combination of clothes
Depending on water pressure, Water hardness, Water inlet Temperature, Quantity
and type of textile, Detergents used, Degree of soiling, Ambient condition, selected
additional functions & power supply fluctuations the actual values given on or with
the machine can deviate from the declared standard values, as they are tested
according to the laboratory conditions
29 7

15. The machine should be ideally installed on the floor. It can be installed on
any suitable platform or trolley, if desired by the customer.
16. Clean the shell lower and detergent tray periodically by taking out the
detergent tray.
17. Prolonged use of water carrying impurities, salts etc. may result in scale
formation on the surfaces of the components that are exposed to water.
Periodical descaling using approved descaling agent is advisable for longer
life of the components.
SPECIAL NOTE
ONLY USE A DETERGENT RECOMMENDED FOR FRONT LOADING WASHING
MACHINES. A DETERGENT WHICH FOAMS EXCESSIVELY CAN DAMAGE THE
MOTOR AND DETERIORATE THE RINSE QUALITY.
INSTALL MACHINE IN A ROOM WITH ADEQUATE VENTILATION.AVOID A
ROOM WITH NO WINDOWS. THE BACK OF THE MACHINE SHOULD BE AT
LEAST 4 INCHES (100 mm )AWAY FROM THE WALL.
IF YOU USE A COVER OR TABLE CLOTH ON THE TOP LID, MAKE SURE
THAT THE VENTILATION SLOTS AT THE BACK ARE NOT COVERED OR
BLOCKED. THIS PRECAUTION WILL PROLONG THE LIFE OF
ELECTRICAL AND RUBBER COMPONENTS.
16 AMPS
X
X
WATER INLET
DRAIN
PIPE
1. MAKE SURE THAT THE MACHINE RESTS ON ALL
FOUR FEET ON A LEVEL SURFACE.Adjustable
screws are provided at the bottom to allow
levelling.
2. Loosen securing nut. Adjust the screw to change
level. Tighten securing nut to ensure that screw is
locked into place.
3. MACHINE SHOULD BE LEVELLED AGAIN IN CASE
IT IS MOVED TO A NEW SITE.
1. A drain pump is provided in the machine to pump out
used water.
2. The end of the outlet should be placed near a drain. If
necessary, it can be placed over the edge of a sink
at a maximum height of 1 mt. from the floor level.
3. Allow free flow of water from the outlet pipe.
1. Check that the electrical line can take the required
load.
2. Connect to a 220V, 50 Hz single phase AC supply.
3. Machine must be earthed properly before
operation. This can be done by using a 3 pin plug
and properly earthed socket of 16 ampere rating.
4. Ensure that there is a firm connection between the 3
pin plug and socket, else it may result in sparking and
subsequent failure of 3 pin plug.
5. Use of extension cord not recommended.
SETTING UPSETTING UP
WATER INLET
DRAIN
PIPE
1. Connect inlet hose to water tap/line.
2. Do not connect machine to a hot water supply.
WATER INLETWATER INLET
WATER OUTLETWATER OUTLET
ELECTRICAL CONNECTIONELECTRICAL CONNECTION
8 28

MOTOR NOISE
It is normal for noises to be heard while motor is running. However wash
load, belt tension and motor mounting bolt should be checked for specified
limits.
PUMP NOISE
It is normal for noises to be heard from the pump during the start-up and
final stage of draining.
SAFETY PRECAUTIONS
1. Ensure that the machine is properly balanced on four adjustable feet.
2. Ensure that the machine is connected to 3 pin socket with earth and 16
amps fuse.
3. The machine is tested with water during assembly for performance
checking. Condensed droplets of water may remain inside the drum. It is
0
advisable to run the machine without wash load at 60 C with detergent
for the first time after installation.
4. The programme knob should be turned clockwise only.
5. Programme selection must be done prior to switching on the machine. For
resetting of programme, switch off the machine,select the programme and
re-start. The programmer knob should not be Advanced Ahead Manually
once the programme is selected & Running, as it may affect the
performance of the machine due to excessive vibrations.
6. Press the START button to switch on the machine and release it to switch it
off.
7. Servicing should be handled by the Company’s authorized personnel
only.
8. The door can be opened only after 90 seconds when the wash cycle is
over or machine is switched off. This is a safety feature. The door
should not be forced open.
9. Check label on garments for determining conditions under which fabrics
are to be washed.
10. Use detergent recommended for washing machine.
11. Ensure that the electrical line on which the machine is used can take the
required load.
12. Check the inside of drum before loading the clothes.
13. Protect the machine from direct sunlight and do not splash water on
it. Clean with a damp cloth.
14. Keep your machine dry to avoid corrosion / rusting. Take special care to
wipe the machine after cleaning the coin trap.
0
Temperature C
30
40
50
60
70
85
90
No Spin
WSD
Eco
Cold
600
800
Start
Prewash
Normal
Light
Quick
Rinse
Long Spin
Prewash
Rinse
Pump
Short Spin
Synthetics/Polyester
Rinse
Woolens Cotton/Linen
Wash
Normal
Delicates
Additives
Additives
Additives
Detergent Dispenser Tray Selector Buttons
Temperature
Selector Knob
Programme Selector Knob
Start Button
CONTROL PANEL
Let’s take a look at the control panel and understand the working of each of its features. Each feature serve a
specify purpose in the complete operation of the machine.
27 9

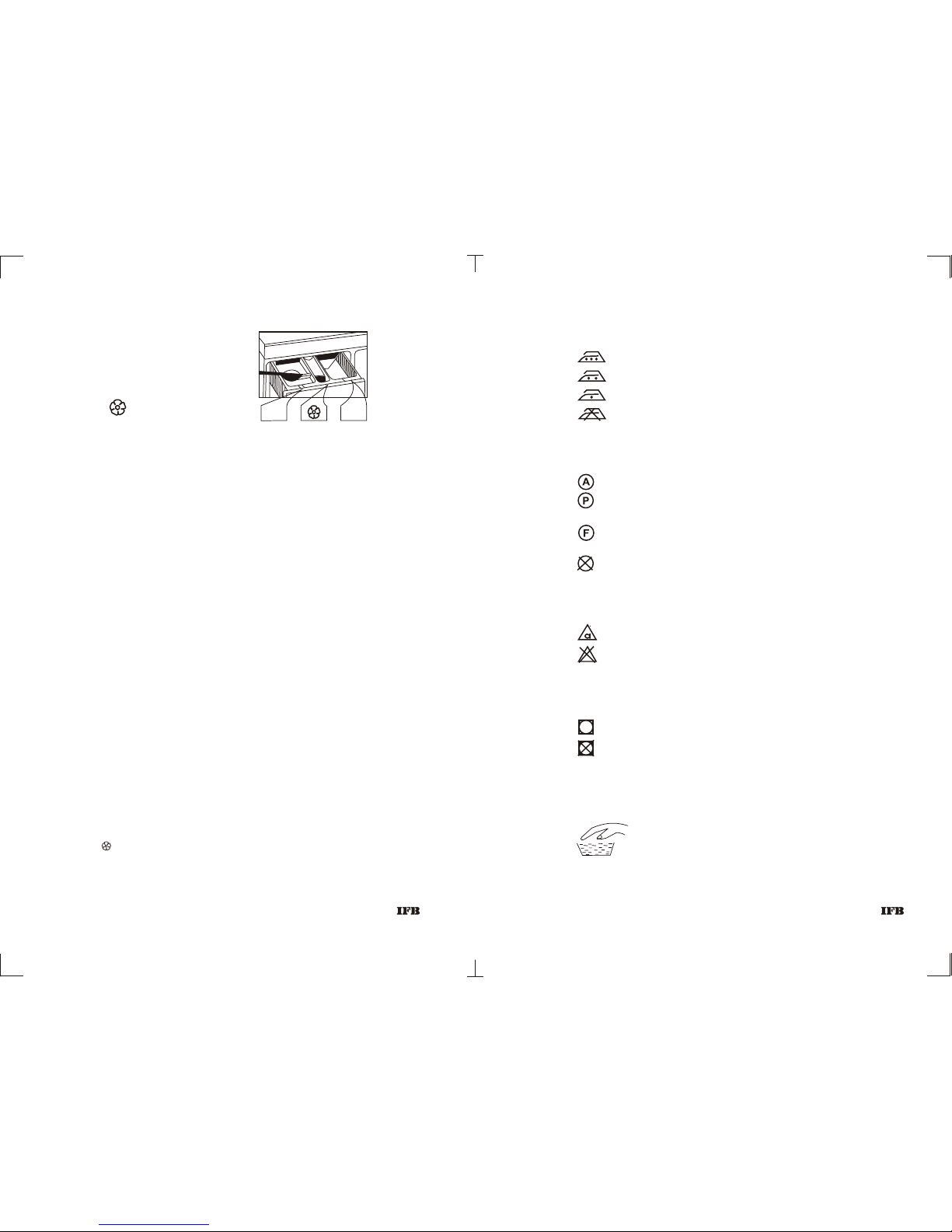

AUTOMATIC DETERGENT DISPENSER TRAY
Designed for automatic dispensing of detergent &
additives as required,which avoids manual filling at each
stage. The Detergent Dispenser Tray should be filled (with
detergent and additives) before the start of a programme.
The tray has three chambers.
1. Pre-wash chamber:(Marked-I), to be filled with
detergent in case a pre-wash programme has been
chosen or heavily soiled clothes are being washed.
2. Main wash chamber: (Marked-II), requires detergent
for every wash programme.
3. Fabric conditioner additives chamber: (Marked ),
to be used for additives only. It should be filled as per
instructions under “Operation”. The detergent tray
must be pulled out, filled as required and shut
before the machine is switched on.
SELECTOR BUTTONS
ECO Button
qThis option is for enviromental friendly and
energy saving operation of washing.
qWith Eco button pressed, the mechanical
tumbling action during wash is considerably
increased in such a way that at lower
temperature and power consumption the same
quality of wash is achieved as that with high
temperature and less mechanical tumbling
action. Refer ‘Programme Selection chart’
qIn cotton Wash Programme the Eco button gives
more vigorous wash action when pressed and
gentle wash action when released.
qIn EASY CARE programme the Eco button gives
medium vigorous wash action when pressed
and gentle wash action when released.
qThis button is not effective in woollen
programme.
FAULT DIAGNOSIS
WHY DOES IT HAPPEN?
INDICATOR LAMP DOES NOT GLOW.
qCheck if the machine is ON.
qCheck for loose connections in plug/socket.
WATER DOES NOT ENTER MACHINE/DETERGENT NOT
BEING FLUSHED INTO DRUM.
qCheck water supply
qPorthole door not firmly closed
qWater tap not turned on
qBent inlet hose
qSieve on inlet valve clogged
SUDS ESCAPING FROM DETERGENT DISPENSER TRAY.
qDetergent used is not a front loading washing machine detergent
qExcessive detergent used
WATER LEAKAGE FROM THE MACHINE.
qInlet/Outlet hose connection loose
qCoin trap cover or drain plug not screwed on properly
qInlet hose leaking
MACHINE DOES NOT DRAIN.
qOutlet hose end above 1 mtr. from floor level
MACHINE VIBRATES STRONGLY DURING SPINNING.
qMachine not levelled properly
qClothes not loaded as instructed
MACHINE DOES NOT START.
qCheck position of programme selector knob
qCheck water supply
qPorthole door not closed properly
qIndicator lamp not glowing
MACHINE DOES NOT SPIN.
qCheck if the No Spin button is pressed.
qwater not drained out completely
II I
10 26

DRUM
Rust Stains
Never leave metal items e.g. paper clips, safety pins etc. in
the drum as there is a danger of rusting. If there are any rust
stains remove with a non-chlorine agent. Special non-metal
sponges (never use steel wool) may also be used.
SIEVES
Cleaning of Water Connection Sieves, Filter
1. Turn off Taps. Disconnect Power supply to the machine.
Unscrew inlet hose from machine as well as from the tap
and drain out water from the hose.
2. Pull the sieve out the magnetic valve with a pair of flat nosed
pliers and clean under running water with a brush.
3. Fit Sieve back to the valve.
4. Remove the filter mesh from the tap end of the inlet hose
and clean under running water with a brush.
5. Fit the filter mesh back to inlet hose.
6. Screw inlet hose back to the machine and the tap. Ensure
that both the sieve and gasket are in place.
7. Turn on the tap.
Cleaning of Porthole Door Area:
qAfter every wash clean vapour off porthole door.
qLift the fold in the rubber gasket under porthole
periodically to remove lint and dirt preferably after every
wash.
FROST PROTECTION
If the machine is being operated in very cold temperature, all the water
should be drained out after use.
qLocate the drain hose and drain the water.
qDisconnect inlet hose from the tap and drain.
DRAINING DURING EMERGENCIES
In case of a long power failure during a programme run, the water
can be drained from the drum through the drain hose
qAllow the water in the machine to cool down sufficiently.
qLocate the drain hose and pull out the drain plug to drain water in a large
shallow container.
qBefore restarting machine, ensure that drain plug is fixed on drain hose
properly and coin trap water line is filled with water by running the machine
without any clothes or detergents.
qSpillage of water can rust the base plate. Draining through drain
hose prevents rusting.
WATER SAVE DEVICE Button (WSD)
“Water Save Device” button provides an option
for Reducing 15 -25% of water for Small laundry
of medium and less soiled clothes.
qDo not use this option in the case of Curtains,
Bedsheets, & extra delicate fabrics etc.
NO SPIN BUTTON
qWhen this button is pressed, the machine will not
spin during spinning duration and programme
continues further.
qDepending on circumstances and type of fabric, or to
reduce creasing this option should be used.
qIn addition it has an inbuilt anticrease action of
tumbling which takes place after final spin to reduce
creasing.
SPIN SPEED SELECTOR BUTTON
qThis button provides option for selecting lower spin
speed during cotton wash programme.
qClothes spin dry at 600rpm when button is pressed.
qIt is advantageous to use lower spin speeds when
high spin drying is not really required. It reduces
stress on fabrics and rotating parts.
START BUTTON
qTo switch ON the machine Press this button,
Indicator lamp will glow to indicate the machine
is powered.
qTo switch OFF the machine release the START
BUTTON Indicator lamp will glow OFF.
WSD
No Spin
Start Button
800
600
25 11

INDICATOR LAMP
qRed lamp glows when the machine is switched
ON and switches OFF when machine is
switched OFF.
TEMPERATURE SELECTOR KNOB
qTemperature to be set only if a hot wash is required,
otherwise there will be a cold wash in position
‘cold ‘.
00
qTemperatures can be selected between 30 C - 90 C
depending on fabric type.
qKNOB SHOULD NOT BE TURNED BEYOND
0
90 C IN THE CLOCKWISE DIRECTION.
Temperature C
30
40
50
60
70
85
90
Cold
12 24
1
3
Place a shallow container
near the bottom door. Pull
out the drain hose and
open the drain plug to
drain out the water from
the machine in the
container.
Before using the machine again,
run the machine without clothes
and detergent by selecting any
short wash programme. This will
ensure that the water system line
gets filled with water.
Alternatively pour two mugs of
water ( approx. 1.5 ltrs.) directly
into the drum.
Do not open the coin trap during
a programme run.
After draining out the
water through the drain
plug, open the coin trap by
rotating in anticlockwise
direction and remove the
foreign particles like coins,
pins, hooks, present if any.
Tighten the coin trap and
drain plug to their original
positions and close the
bottom door.
Open the bottom door,
which is detachable by
pressing the top portion of
it.
MAINTENANCE
COIN TRAP
2
Coin
Trap
Drain Hose
Drain Plug
Container

PROGRAMME RUN
Note:
qDuring the programme run the knob turns automatically in the clockwise
direction only. Manual setting/advancement should not be done during
programme run.
qWashing, Soaking Rinsing and Spinning can be seen through the porthole
door.
qAt any moment the position of the knob with respect to its start position
shows how far the programme has advanced.
qThe starting point is just beyond the thick line on the Facia.
SWITCHING OFF THE MACHINE
qThe wash ends automatically at the end of each programme at the thick line.
qTo switch the machine OFF release the START button.
qThe indicator lamp goes off.
qPorthole door can be opened after 90 seconds of switching off the machine.
qRemove clothes from inside the machine
qLeave door slightly ajar to dry out the inside of the machine.
CHECK POINTS
Before switching your machine ‘ON’check...
qThe machine is plugged in and switched on to a 220V, 50 Hz supply with
proper earthing.
qThe water inlet stopcock is fully open.
qThe hoses are not bent or twisted.
qDry clothes are loaded into the machine drum, and door is closed firmly
with a ‘click’.
qThe required amounts of detergents and fabric conditioner are filled in their
respective compartments.
qThe Water Save Device Button, spin speed selector Button, No spin button,
Eco button, is pressed if required.
qThe programme Selector knob is turned to the appropriate programme
position in a clockwise direction only. This is very important.
qThe Coin Trap/ drain hose is not open.
qStart Button is pressed.
qIf for any reason you wish to change the programme after the wash process
has begun - just switch OFF the machine - set the desired programme and
re-start.
qKnob should be Turned in Clockwise Direction.
qProgramme selection knob should be set only at the position as indicated
in the programme selection chart.
KINDS OF WASH PROGRAMMES
` There are 30 fully automatic programmes to suit different applications. To
select a programme, you must understand the three basic groups of wash
programmes.
1. Cotton Wash
qThe washing action is more vigorous / Gentle, for a longer duration, to
help clean clothes better.
qTo be used for whites , cottons and coloureds.
qNot to be used for woollens and delicate fabrics.
2. Easy Care
qThe washing action is less vigorous / Gentle and for a shorter duration.
qTo be used for easy care fabrics like polyester blends , etc.
3. Wool Programmes
qFor woollen and soft fabrics only.
qThis programme has a built - in Gentle wash function,irrespective of ECO
Button Selection.
qNo Spin drying takes place in this programme.
PrewashPrewash
NormalNormal
LightLight
QuickQuick
RinseRinse
Long SpinLong Spin
PrewashPrewash
RinseRinse
PumpPump
Short SpinShort Spin
Synthetics/PolyesterSynthetics/Polyester
RinseRinse
WoolensWoolens Cotton/LinenCotton/Linen
WashWash
NormalNormal
DelicatesDelicates
AdditivesAdditives
AdditivesAdditives
AdditivesAdditives
PROGRAMME SELECTOR KNOB
qTo select the right programme as per the fabric
being washed and extent of soilage.
qA choice of 30 programmes is available to
wash different kinds/loads of clothes.
qProgramme selection should be done before
the machine is switched ON.
qOnly one programme can be selected at a time.
qOnly the starting point in a programme
needs to be selected,thereafter the machine
runs through the cycle automatically.
23 13

Symbols on DD TRAY
Pre - Wash
Main Wash
Additive
PROGRAMME SELECTION
1.Cotton wash programmes (Linen)
STAGE 1 : Pre - Wash -
qThis cycle takes place before the main wash.
qTo be used for heavily soiled clothes, which are given a preliminary
wash.
qDetergent to be filled in compartment l (extreme right ).
qAt the end of this pre-wash the dirty water is pumped out automatically.
qIN CASE CLOTHES ARE NOT HEAVILY SOILED, THE “PRE-WASH”
CAN BE AVOIDED BY SETTING THE PROGRAMME SELECTOR KNOB
TO ANY OF THE MAIN WASH PROGRAMMES AS GIVEN BELOW
AND DETERGENT FILLED ONLY IN THE MAIN WASH CHAMBER
MARKED ll (EXTREME LEFT)
STAGE ll: Main Wash - NORMAL / LIGHT / QUICK
qMain wash starts with detergent being drawn from the extreme left
compartment of the detergent dispenser tray.
qClothes are soaked for 12 minutes.
qIF CLOTHES ARE NOR VERY DIRTY, THE MAIN WASH CAN BE
STARTED BY DIRECTLY SETTING THE PROGRAMME SELECTOR
KNOB AT LIGHT/QUICK TO REDUCE WASHING TIME & ENERGY
CONSUMPTION
qMain wash is completed with Intermittent short spins of 600 rpm max.
STAGE lll: Rinse
qAfter washing, the rinsing is done automatically. In the Cotton wash
your clothes are rinsed three times.
qFor most efficient rinsing intermittent short spins are provided in the
rinse programme at 600rpm max.
qFabric conditioner is drawn from the detergent dispenser tray marked
(middle chamber ) during the last rinse (Additives). If no conditioner
is added, the machine continues to rinse in ordinary water.
II I
I
II
14
IRONING
The number of dots indicate the maximum recommended temperature
0
Max 200 C,
0
Max 150 C,
0
Max 110 C,
Non - iron
DRY CLEANING
A circle symbolizes dry cleaning.
articles normal for dry cleaning in all solvents.
articles normal for dry cleaning in perchloroethylene,
white spirit, Solvent 113 and Solvent 11
article normal for dry cleaning in fluorocarbon 113 or
white spirit.
do not dry clean.
BLEACHING
A triangle symbolizes bleaching
bleaching
do not bleach
DRYING
A rectangle symbolizes drying
suitable for tumble-drying
do not tumble-dry
WOOL
Garments labeled as “ Machine Washable” can be washed in wool wash
0
cycle at a temperature of 40 C
22

STAGE IV : Spin Drying: - Long Spin
qClothes are loosened by tumbling to spread out & remove water.
qSpin drying takes place at 600 r.p.m. and then goes upto 800 r.p.m.
qIf spin speed selector button is pressed spin drying takes place only at
600rpm.
qAfter spinning, the clothes tumble for 6 Minutes to reduce creasing.
2. Easy Care Programme (Synthetics / Polyester)
qFor polyester blended fabrics like terrycots etc.
STAGE I : Pre-Wash:
qThe cycle takes place before the main wash.
qTo be used for heavily soiled delicate clothes.
qAt the end of the pre-wash the dirty water is pumped out automatically.
qIN CASE CLOTHES ARE NOT HEAVILY SOILED, THE PRE-WASH CAN
BE AVOIDED BY SETTING THE PROGRAMME SELECTOR KNOB TO
ANY OF THE MAIN WASH PROGRAMMES AS GIVEN BELOW
STAGE II: Main Wash : NORMAL / DELICATES
qMain wash starts with detergent being drawn from the extreme left
compartment of the detergent dispenser tray.
qClothes are soaked for 12 minutes.
qIf clothes are very lightly soiled, set the programme selector knob at
‘DELICATES’to reduce washing time and energy consumption.
qMain wash is completed with intermittent short spins of 600 rpm max.
STAGE III: Rinse
qAfter washing, the rinsing is done automatically. In this programme your
clothes are rinsed three times.
qFor most efficient rinsing intermittent short spins are provided in the
rinse programme at 600 rpm max.
qFabric conditioner is drawn from the detergent dispenser tray marked
(middle chamber) during the last rinse (Additives). If no conditioner
is added, the machine continues to rinse in ordinary water.
STAGE IV: Spin Drying : Short Spin
qClothes are loosened by tumbling to spreadout & remove water.
qSpin drying takes place at 600 rpm irresepective of spin speed selector
button position.
qSpinning is followed by anticrease cycle of 3 minutes tumble to reduce
creasing.
qAbsorbed stains can be removed by rubbing gently a pad containing a
suitable solvent over the stain from outer edge towards centre by
keeping stained cloth on absorbent fabric.
qBuilt up and compound stains may be removed by first carefully
brushing off stained area. Then rub gently with a pad containing solvent
from the back of fabric.
qIt is advisable to try out the solvent on hidden part of the garment to verify
its effect on cloth.
WASH LOAD GUIDE
D = Double S = Single
qThe chart indicates the average weight of clothes.
qThe recommended weight of your wash should not be
exceeded to ensure that your machine gives your clothes an
effective wash.
INTERNATIONAL WASHING SYMBOLS
Washing Wash Temp Action
0
Symbol Max C
95, 60, 40 normal
30 gentle
Do not machine - wash handwash
Do not wash in water
Sheets Pajama/Kurta 400gms Bedspread 3kg
Cotton (D) 1kg Shirt Blankets
(S) 500gms Cotton 280gms Wool 2.0kg
Others 200gms acrylic 1.5kg
Other than
Coton (D) 650gms Blouse: Sweaters(Wool) 400gms
(S) 400gms cotton 140gms other heavy weight 300gms
others 100gms light weight 150gms
Pillow slips: Sarees:
Cotton 110gms Cotton 650gms Cotton vests 100gms
others 85gms Synthetics 350gms Underslip 100gms
Panties 60gms
Bath towels 600gms Socks: Skits 200gms
Hand Towels 260gms long(2pair) 150gms Trousers 250gms
short(2pair) 85gms jeans 400gms
Tablecloths:
small 230gms
large 600gms Hankies (6) 85gms
Napkins(1doz)1.1kgs
Table Napkins (4) 150gms Lungi/Dhoti 200gms
21 15

DETERGENT TO BE USED AND QUANTITY
qThe best results will be achieved using correct amount of washing
machine detergent.
qApproximate quantities to be used:
Full load i.e. 5 kgs Detergents to be used as per directions
indicated by the manufacturer on their
package or with self-judgement
Half Load
i.e. 2.5 kg and below Use 20 to 25% less detergent.
qUse liquid detergent only when a single wash is required, or use liquid
detergent despenser tray available as Accessories.
qHard water and heavily soiled clothes require more than the
recommended quantity of detergents.
qDo not use dry cleaning Agents.
qFrequent use of insufficient detergent will be noticeable as follows:
- Washing appears grey or not properly clean
- Grey - brown stains form on the washing
qExcess use of detergent will result in
- Higher environmental pollution
- Generation of too much foam
- Scale builds up
- Affect Rinse Quality
FABRIC CONDITIONER
Fabric softner, Whitening, Enzyme, Disinfectants, bleaching, etc.
qFill in the middle chamber of detergent dispenser tray marked
qConditioner should be in liquid/solution form only (powders to be mixed
in water.)
qFabric softner gives a soft feel and smooth surface to fabrics.
qWhitener gives ‘Whitness’ to white clothes and brightness to coloured
clothes.
qEnzymes help to remove stains of sweat, blood etc.
qChlorine bleach is used for whites clothes and oxygen bleach is used for
coloured clothes.
qA strong bleaching agent is not recommended for direct use in the
washing machine.
qExtremely dirty areas in cloths can be pretreated with bleach and then be
loaded in the machine for a regular wash.
TREATMENT OF STAINS
qStains need to be treated immediately when they are fresh. Usually stains
are categorised as absorbed stains, built-up stains, and compound stains.
3.The Wool Programme : ( Woolen)
STAGE I : Wash
qThis programme starts directly with the main wash.
qThe programme has a built-in Gentle wash function.
qDetergent to be filled only in the main wash chamber marked II (extreme
left).
STAGE II : Rinse
qAfter washing, your clothes are rinsed three times.
qNo spin drying takes place.
qMachine stops after pumping at ‘PUMP’
qSwitch OFF the machine after the water is drained out.
Draining : PUMP
This programme is used to drain water out of the machine at any stage if
required.
qSwitch OFF the machine.
qRe-set the programme selector knob at point ‘PUMP’.
qSwitch ON the machine.
Exclusive spin drying programme:Long
Spin/Short Spin
qCan be used for spin drying hand
washed/wet clothes
qTurn the programme selector knob directly
to LONG SPIN / SHORT SPIN position after
loading the clothes .
qSelect the spin speed selector button according
to the material of the clothes.(eg.cotton-800
max, synthetic -600 max.)
qSwitch ON the machine.
A Unique shower system
Scoops on the inner drum pick up water and shower through perforated
fins on the laundry as the drum rotate. This ensure a thorough wetting of
the laundry. What’s more, the process requires less water and thus less
energy to heat it.
16 20

OPERATION
SORTING OF GARMENTS
qMachine to be used for machine washable fabrics only (Look for
wash symbols given on your garments.)
qWash woollens seperately only if label on garments permits it.
qNon-fast coloured should be washed with like colours only at lower
temperature.
qWash whites seperately from colours.
qNon - fast coloured to be washed at temperatures recommended by
manufacturer.
qCheck the pockets for any loose articles like coins,keys, keychains
etc. Remove these articles as these can damage the drum/tub.
qDo not mix clothes that give lint with clothes that attract lint (e.g lint
givers-woollens, socks, coarse cotton fabrics etc. Lint takers-
synthetic fibres and corduroys).
Cool down cycle
Hot water drained after Main wash cycle can be harmful for people and
environment .Hot water is cooled down by taking additional cold water
automatically, which also reduces concentration of detergent, thus
ensures better rinse quality and eco friendly environment.
Note:
IF THE LOAD OR MACHINE IS VERY MUCH UNBALANCED THE
MACHINE IN THE PROCESS OF BALANCING/DISTRIBUTING THE
LOAD MAY SUDDENLY STOP DURING SPINNING OR MAY SPIN AT
VERY LOW RPM IN ORDER TO TAKE CARE OF VIBRATION WHICH
MAY OCCUR UNDER SUCH CIRCUMSTANCE.
IN CASE ELECTRICITY/ WATER SUPPLY GOES OFF, THE MACHINE
STOPS AND STARTS AGAIN FROM THE SAME POINT,
AUTOMATICALLY, ON RESUMPTION OF ELECTRICITY / WATER
SUPPLY.
Recommendations for a mixed load:
For washing a varied mix of clothes i.e. cottons, rayon, polyester, etc. if
there is:-
- A predominance of cotton clothes - use the cotton wash programme
- A predominance of polyester/synthetic clothes -use easy care
programme
qThe washing procedure remains the same.
LOADING THE MACHINE
qOpen the front porthole door, place
garments loosely inside drum. For best
results load garments one by one.
qA wash load should preferably be a mix
of large and small clothes.
qTurn knitted garments inside out,
Remove loose hooks, rings and pins
found on curtains etc. If pins/hooks
cannot be removed tie a knot around
them with the garment itself.
qClose door and press till you hear a
‘click’. Ensure that no cloth is jammed
between door and rubber gasket of
frame.
qFor large garments like bed covers and
curtains etc. open out the garments and
hold from the centre to load.
qEnsure that volume of load allows the clothes to tumble freely in the
drum for best wash results.
qOver loading the drum will affect wash quality. It can also damage
the machine and clothes in the long run.
qRunning the machine under loaded may cause excessive vibration,
noise and damage.
19 17

PROGRAMME SELECTION CHART (EXECUTIVE ELITE 5 KGS)
1.you can refer to the detailed programme Chart given below 30 fully automatic wash programmes available with respect to fabric type, degree of soilage, wash cycle,
wash temperature and wash loads.
ADDITIONAL BUTTONS
TEMP
SELECT
0
MAX C
TYPE OF WASHING
(PLEASE NOT WASH CARE LABELS ON
GARMENTS)
COMPLETE
CYCLE TIME
(MINUTES)
MIN. WATER
CONSUMPTION
IN LITERS
With
Water Save
ECO
WSD NO
SPIN
SPIN SPEED
SELECTOR
WITH
ECO STD
WITHOUT
PRE-WASH
l ll
WITH
PRE-WASH
1. Prewash allllll60 90 Whites Heavily soiled cotton boil proof linen. 132 55
2. Normalwash all lll l60 90 Whites Medium soiled cotton or boil proof linen. 117 45
3. Prewash aIIIlll60 90 Whites Heavily soiled cotton or boil proof linen 132 55
4. Normalwash aII lll l60 90 Whites Medium soiled cotton or boil proof linen 117 45
5. Prewash aIIIlll l45 60 Normally soiled cotton or non boil proof linen 132 55
6. Prewash aIIIlll l45 60 Less soiled cotton or non boil proof linen 132 55
7. Normalwash aII NO ll l - 60 Normally soiled cotton or non boil proof baby 117 45
washing
8. Normalwash aII lll l45 60 Less soiled cotton or non boil proof baby washing 117 45
9. Prewash aIIIlll l45 55 Normally soiled cotton or blended linen coloureds 132 55
10. Normalwash aII lll l45 55 Normally soiled cotton or blended linen coloureds 117 45
11. Prewash aIIIlll l45 55 Less soiled cotton or blended linen which are 132 55
colour fast coloureds
12. Normalwash aII lll l45 55 Less soiled cotton or blended linen which are 117 45
colour fast coloureds
13. Light wash aII lll l45 45 Less soiled cotton fabrics (2.5 kg.max ) 84 45
14. Quick wash aII YES ll l 40 - Delicate cottons ( 2.5 kg.max ) 66 45
15. Rinse YES ll l - - Three effective rinses with short intermittent 45 35
spin followed by long spinning
16. Additives YES ll l - - Please refer fabric conditioner 24 11
17. Long Spin YES - - Draining of water & Extensive spinning of clothes 15 NIL
lfollowed by anticrease action
18. Prewash aIIIlll l40 60 Easy care fabrics of cotton, polyester or polyester 108 55
blends - very soiled
19. Normalwash aII lll l40 60 Above washing - less soiled 96 45
20. Prewash aIIIlll l30 50 Easy care fabrics of cotton polyester or polyester 108 55
blends - normally soiled
21. Normalwash II lll l30 50 Above washing - Less soiled 96 45
22. Delicates aII lll l30 40 Slightly soiled washing (once used towels, 60 5
synthetic garments, nighties ) ( 2 kg.max )
23. Prewash aI II YES NO ll40 - Synthetics curtains - heavily soiled 108 85**
24. Normalwash aII YES NO ll40 - Synthetic curtains - less soiled 96 70**
25. Delicates aII NO NO ll- 40 Slightly soiled washing (only once used or for 60 70**
extra delicate fabrics) ( 2 kg.max )
26. Rinse YES ll l - - Three effective rinses with short intermittent 39 35
spins followed by gentle spinning.
27. Wash aII qql q- 40 Woolens with machine washable labels, extra 36 70
delicate clothes which are not to be spin dried.
28. Rinse qql q- - Three deep rinses 24 55
29. Additivies qqq q- - Please refer fabric conditioner 12 17
30. Pump qqq - - Draining out water 3 NIL
PROGRAMME SELECTION
CHART
DETERGENT
IN CHAMBER
WO N
OLE
1.5 g. m
k ax C g
EAYAR 2 kaxS E .5. mT
CO ONkgaxT 5 . mIT
CAPAC Y
l- Option Available
q- Option Not Available
YES - Select Button
NO - Do not Select the Button
** - Water consumption without water save
Depending on water pressure, water hardness, water inlet Temperature, Quantity and type of textile,
Detergents used, Degree of soiling, Ambient condition, selected additional function & power supply
fluctuations the actual values given on or with the machine can deviate from the declared standard
values, as they are tested according to the laboratory conditions.
Water consumption excludes the quantity of water taken during cool down cycle.
