ENGLISH 4

ENGLISH 4
Read carefully and keep for
future reference.
This manual and the appliance
itself provide important safety
warnings, to be read and
observed at all times.
This is the safety alert
symbol.
This symbol alerts you to
potential hazards that can kill or
hurt you and others.
Failure to observe these
instructions may lead to risks.
The Manufacturer declines any
liability for injury to persons or
animals or damage to property
if these advices and precautions
are not respected.
Very young (0-3 years) and
young children (3-8 years) shall
be kept away unless continuously
supervised.
Childern from 8 years old and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge can use this
appliance only if they are
supervised or have been given
instructions on safe appliance
use and if they understand the
hazards involved. Children shall
not play with the appliance.
Cleaning and user maintenance
shall not be made by childern
without supervision.
WARNING! The appliance
and its accessible parts may
become hot during use.
Care should be taken to avoid
touching heating elements.
Young childern should be kept
away.
During and after use, do not
touch the heating elements or
interior surface of the appliance
- risk of burns. Do not allow the
appliance to come in contact
with cloths or other ammable
materials until all the components
have cooled down completely.
Do not heat or use ammable
materials in or near the oven.
Fumes can create a re hazard
Safetyinformation 4
Productdescription 8
Controlpanel 10
Dailyuse 10
Cleaningandmaintenance 16
Whattodoif... 18
Technicaldata 19
Installation 20
Electricalconnection 21
ElectricalconnectionforAustralia 22
Environmentalconcerns 23
IKEAGUARANTEE 24
SafetyInformation
Tableofcontents

ENGLISH 5
or explosion.
Do not remove the microwave
inlet protection plates located on
the side of the oven cavity walls.
WARNING!: It is hazardous
for anyone other than a
competent person to carry out
any service or repair operation
that involves the removal of a
cover which gives protection
against exposure to microwave
energy.
The appliance is designed solely
for domestic use for cooking
food.
This appliance is intended to
be used built-in. Do not use it
freestanding.
This appliance is intended for
heating food and beverages.
Drying of food or clothing and
heating of warming pads,
slippers, sponges, damp cloth
and similar may lead to risk of
injury, ignition or re.
CAUTION:The appliance is
not intended to be operated by
means of an external timer or
separate remote control system.
Do not use the appliance
outdoors.
Do not store explosive or
ammable substances such as
aerosol cans and do not place or
use gasoline or other ammable
materials in or near the
appliance: a re may break out
if the appliance is inadvertently
switched on.
Children should not perform
installation operations. Keep
children away during installation
of the appliance. Keep the
packaging materials (plastic
bags, polystyrene parts, etc.)
out of reach of children, during
and after the installation of the
appliance.
Use protective gloves to perform
all unpacking and installation
operations.
The appliance must be handled
and installed by two or more
persons.
WARNING: Do not use
extension leads, multiple sockets
or adapters. Do not connect the
appliance to a socket which can
be operated by remote control.
WARNING: The power cable
must be long enough for
connecting the appliance, once
tted in its housing, to the main
power supply.
The appliance can be operated
only if the door is rmly closed.
Overheated oils and fats catch
re easily. Always remain vigilant

ENGLISH 6
when cooking foods rich in fat,
oil or alcohol (e.g. rum, cognac,
wine).
Do not leave the appliance
unattended, especially when
using paper, plastic or other
combustible materials in the
cooking process. Paper can char
or burn and some platics can
melt if used when heating foods.
The appliance should not be
operated without food in the
cavity when using microwaves.
Operation in this manner is likely
to damage the appliance.
To ovid damage put a glass
of water inside. The water will
absorb the microwave energy
and the appliance will not be
damaged.
Never leave the appliance
unattended during food drying.
Do not use the appliance for
drying textiles, paper, spices,
herbs, woods, owers, fruit or
other combustible materials. Fire
could occur.
WARNING: Do not heat or cook
with sealed jars or containers in
the appliance.
The pressure that builds up inside
might cause them to explode,
damaging the appliance.
WARNING: If the appliance is
operated in the combination
mode, children should only
use the appliance under
adult supervision due to the
temperatures generated.
Do not use the appliance for
cooking or reheating whole
eggs with or without shell since
they may explode even after
microwave heating has ended.
If alcoholic beverages are used
when cooking foods (e.g. rum,
cognac, wine), remember that
alcohol evaporates at high
temperatures. As a result, there is
a risk that vapours released by
the alcohol catch re if coming
in contact with the electrical
heating element.
Use oven gloves to remove pans
and accessories, taking care not
to touch the heating elements.
If material inside/outside the
appliance should ignite or smoke
is observed, keep the appliance
door closed and turn off the
appliance. Disconnect the power
cord or shut off power at the fuse
or circuit braker panel.
Remove wire twist-ties from
paper or plastic bags before
palcing bag in the oven.
Do not use the appliance for

ENGLISH 7
deep-frying, because the
oil temperature cannot be
controlled.
WARNING: Overheating the
liquid beyond boiling point
can occur without evidence of
bubbling. This could result in a
sudden boil over of the hot liquid.
To prevent this possibility the
following steps should be taken :
1. Avoid using straight-sided
containers with narrow necks.
2. Stir the liquid before placing
the container in the appliance
and let the teaspoon remain in
the container.
3. After heating, allow standing
for a short time, stirring again
before carefully removing the
container from the appliance.
WARNING:After heating baby
food of liquids in a baby bottle
or in a baby food jar, always
stir and check the temperature
before serving.
WARNING: Do not remove
any cover. The door seals and
the door seals areas must
be regularly inspected for
damage. If these areas are
damaged the appliance should
not be operated until it have
been repaired by a qualied
technician.
WARNING: Never use steam
cleaning equipment.
WARNING:Do not use harsh
abrasive cleaners or sharp metal
scrapers to clean the appliance
door glass since they can scratch
the surface, which may result in
shattering of the glass.

ENGLISH 8
Productdescription
Accessories
Turntable support
x1
Glass turntable
x1
Steamer
x1
1
2
3
1 Control Panel
2 Cavity Lamp
3 Door

ENGLISH 9
Accessories
General
There are a number of accessories available
on the market. Before you buy, ensure they
are suitable for microwave use.
Ensure that the utensils you use are oven
proof and allow microwaves to pass through
them before cooking.
When you put food and accessories in the
microwave oven, ensure that they do not
come in contact with the interior of the oven.
This is especially important with accessories
made of metal or metal parts.
If accessories containing metal comes in
contact with the oven interior, while the oven
is in operation, sparking can occur and the
oven could be damaged.
Always ensure that the turntable is able to
turn freely before starting the oven.
Turntablesupport
Use the turntable support under the Glass
turntable. Never put any other utensils on
the turntable support.
- Fit the turntable support in the oven.
Glassturntable
Use the Glass turntable with all cooking
methods. It collects the dripping juices and
food particles that otherwise would stain
and soil the interior of the oven.
- Place the Glass turntable on the
turntable support.
Steamer
Use the steamer with the strainer in place
for such foods as sh, vegetables and
potatoes.
Always place the steamer on the Glass
Turntable.

ENGLISH 10
Controlpanel
Startprotection/Keylock
This automatic safety function is activated
one minute after the oven has returned to
“stand by mode“. (The oven is in “stand by”
when the 24-hour clock is displayed or if the
clock has not been set, when the display is
blank).
The door must be opened and closed
e.g. putting food into it, before the safety
lock is released. Else the display will show
“DOOR“.
Topauseorstopcooking
To pause cooking:
The cooking can be paused to check, turn
or stir the food by opening the door. The
setting will be maintained for 10 minutes.
To continue cooking:
Close the door and press the Start button
ONCE. The cooking is resumed from where
it was paused.
Pressing the Start button TWICE will increase
the time by 30 seconds.
If you don’t want to continue cooking:
Remove the food, close the door and press
the Stop button
A beep will signal once a minute for 10
minutes when the cooking is nished. Press
the Stop button or open the door to cancel
the signal.
NOTE: The oven will only hold the settings
for 60 seconds if the door is opened and
then closed after the cooking is nished.
Coolingdown
When a function is nished, the oven carries
out a cooling procedure. This is normal.
After this procedure the oven switches off
automatically.
Dailyuse

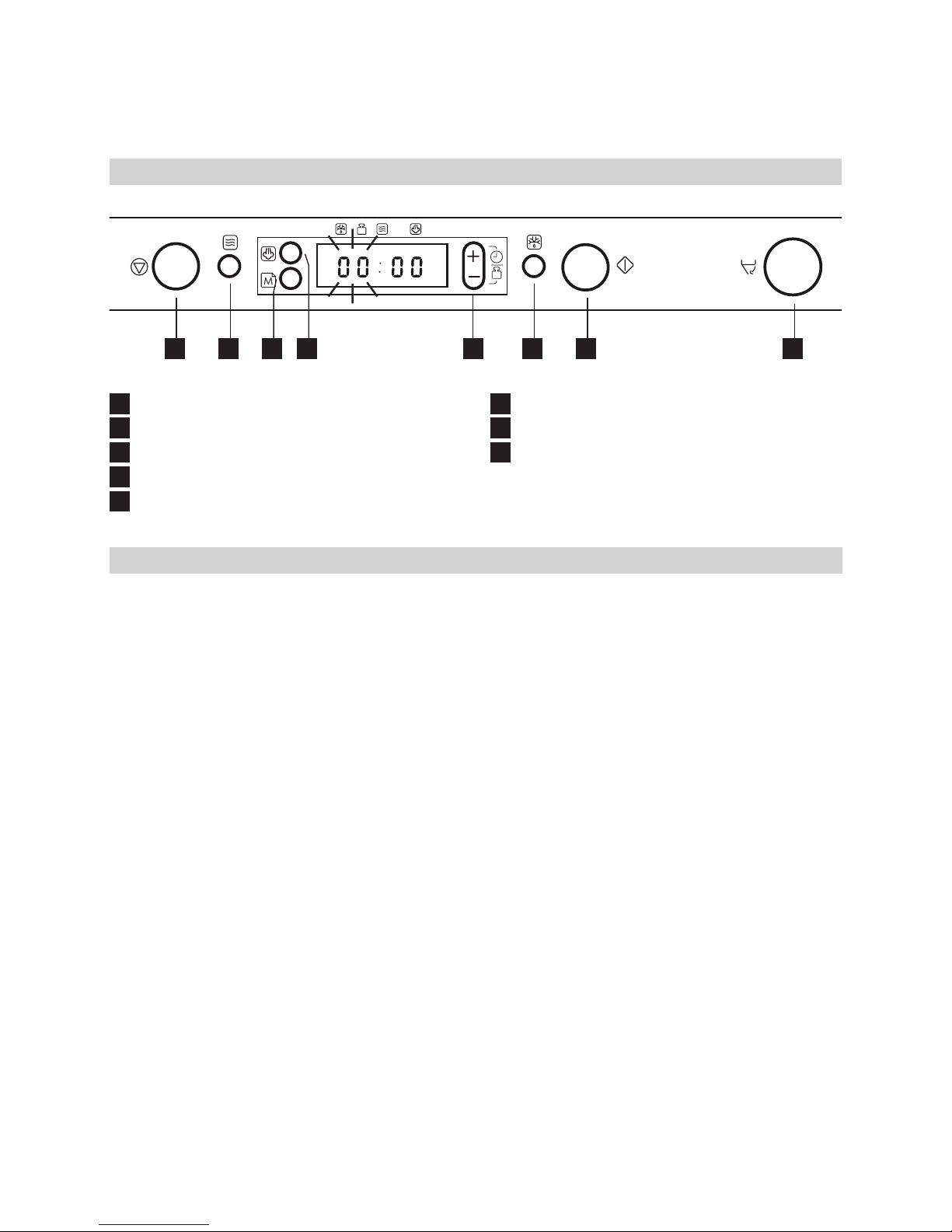

1 Stop button
2 Power button
3 Memo button
4 Steam button
5 + /- button
(use this button to set time or weight)
6 Jet Defrost button
7 Start button
8 Door button
(use this button to open the door)
864321 75

ENGLISH 11
Kitchentimer
Use this function when you need a kitchen
timer to measure exact time for various
purposes such as cooking eggs or letting the
dough rise before baking etc.
312
1. Press the +/- buttons to set the desired
length of the timer.
2. Press the power button repeatedly to set
the power to 0 W.
3. Press the Start button.
An acoustic signal will be heard when the
timer has nished to count down.
Clock
Keep the door open while setting the Clock.
This gives you 5 minutes to complete the
setting of the Clock. Otherwise, each step
must be accomplished within 60 seconds.
12 4 3 5
1. Press the Stop button (3 seconds) until
the left-hand digit (hour’s) icker.
2. Press the +/- buttons to set the hours.
3. Press the Start button. (The two right
hand digits (minutes) blink).
4. Press the +/- buttons to set the minutes.
5. Press the Start button again.
The Clock is set and in operation.
NOTE: When the appliance is rst plugged
in or after a power failure, the display is
blank. If the clock is not set, the display will
remain blank until the cooking time is set.
If you wish to remove the Clock from the
display once it has been set, simply press
the Stop button again for 3 seconds and
then press the Stop button once more.
To reinstate the Clock, follow the above
procedure.
Cookandreheatwithmicrowaves
Use this function for normal cooking and
reheating, such as vegetables, sh, potatoes
and meat.
312
1. Press the +/- buttons to set the time.
2. Press the power button repeatedly to set
the power.
3. Press the Start button.
Once the cooking process has been started:
The time can easily be increased in
30-second steps by pressing the Start
button. Each press increases the time with
30 seconds. You may also alter the time
by pressing the +/- buttons to increase or
decrease the time.
Pressing the power button may also change
the power level. The rst press will show you
the current power level. Press the power
button repeatedly to change power level.
All settings can be changed during cooking
if you so desire.

ENGLISH 12

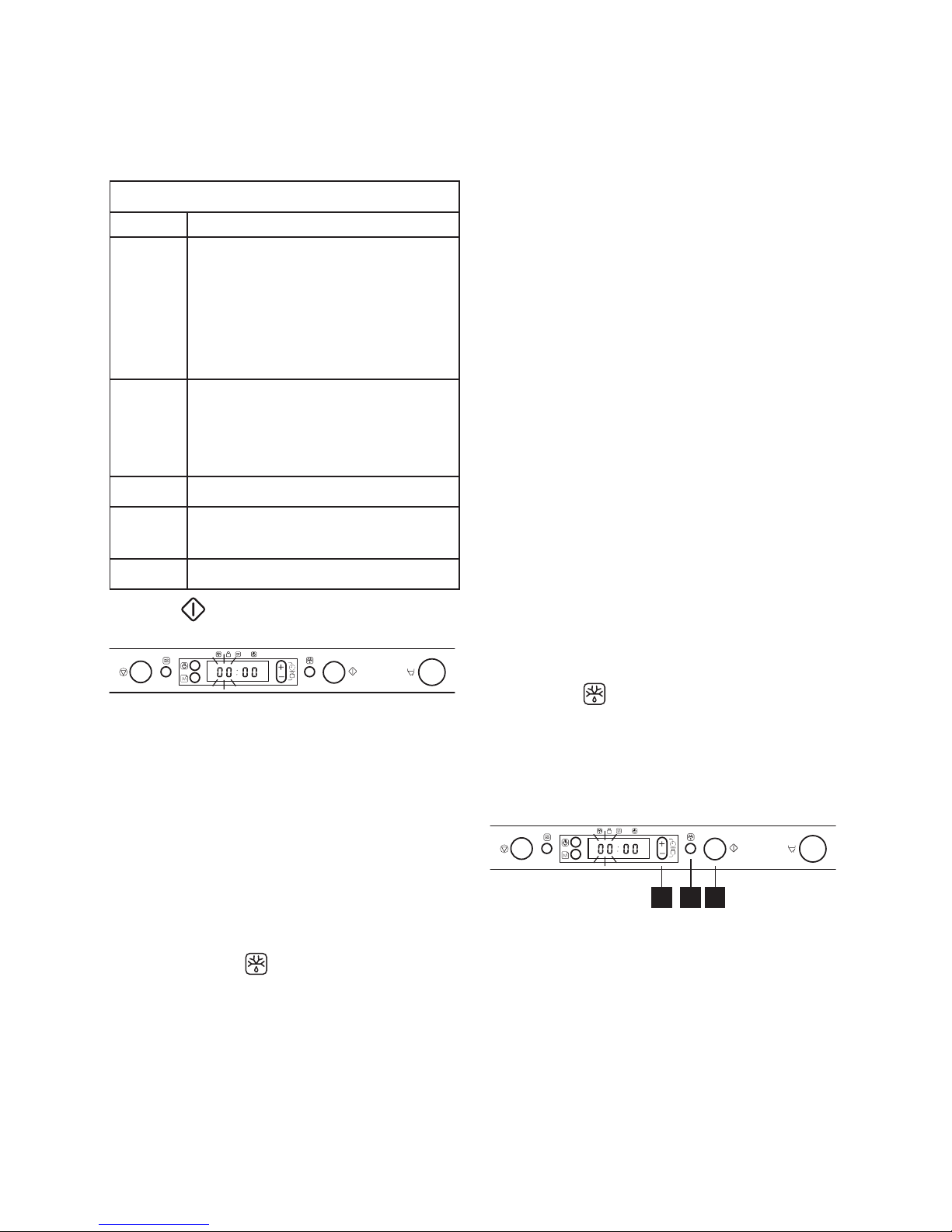

Powerlevel
Microwavesonly
Power Suggested use:
750 W
Reheating of beverages, water, clear
soups, coffee, tea or other food with
a high water content. If the food
contains egg or cream choose a
lower power.
Cooking of sh, vegetables, meat etc.
500 W
More careful cooking e.g. high
protein sauces, cheese and egg
dishes and to nish cooking
casseroles.
350 W Simmering stews, melting butter.
160 W
Defrosting. Softening butter, cheeses.
Softening Ice cream.
0 W When using the Timer only.
Jetstart
This function is used for quick reheating of
foods with a high water content such as;
clear soups, coffee or tea.
Press to automatically start with full
microwave power level and the cooking
time set to 30 seconds. Each additional
press increases the time with 30 seconds.
You may also alter the time by pressing the
+/- buttons to increase or decrease the time
after the function has started.
Manualdefrost
Follow the procedure for “How to cook &
reheat with microwaves” and choose power
level 160 W when defrosting manually.
Check and inspect the food regularly.
Experience will give you the times needed
for various amounts.
Frozen food in plastic bags, plastic lms or
cardboard packages can be placed directly
in the oven as long as the package has no
metal parts (e.g. metal twist ties).
The shape of the package alters the
defrosting time. Shallow packets defrost
more quickly than a deep block.
Separate pieces as they begin to defrost.
Individual slices defrost more easily.
Shield areas of food with small pieces of
aluminum foil if they start to become warm
(e.g. chicken legs and wing tips).
Turn large joints halfway through the
defrosting process.
Boiled food, stews and meat sauces defrost
better if stirred during defrosting time.
When defrosting it is better to under-thaw
the food slightly and allow the process to
nish during standing time.
Standing time after defrosting always
improves the result since the temperature
will then be evenly distributed throughout
the food.
Jetdefrost
Use this function for defrosting Meat, Fish &
Poultry ONLY.
Jet Defrost should only be used if the net
weight is between 100 - 2Kg.
2 31
1. Press the Jet Defrost button.
2. Press the + / - buttons to set the weight
of the food.
3. Press the Start button.
Midway through the defrosting process
the oven stops and prompts you to TURN
FOOD.
- Open the door.
- Turn the food.
- Close the door and restart by pressing
the Start button.

ENGLISH 13
NOTE:The oven continues automatically
after 2 min. if the food hasn’t been turned.
The defrosting time will be longer in this
case.
This function needs to know the net weight
of the food. The oven will then automatically
calculate the needed time to nish the
procedure.
- Frozen foods:
If the food is warmer than deep-freeze
temperature (-18°C), choose lower
weight of the food.
If the food is colder than deep-freeze
temperature (-18°C), choose higher
weight of the food.
Food Hints
Meat
(100 g - 2.0 Kg)
Minced meat, cutlets,
steaks or roasts.
Poultry
(100 g - 2.0 Kg)
Chicken whole, pieces
or llets.
Fish
(100 g - 1.5 Kg)
Whole, steaks or llets.
For food not listed in this table and
if the weight is lesser or greater than
recommended weight, you should follow
the procedure for “Cook and reheat with
microwaves” and choose 160 W when
defrosting.
Memory

1 2
The Memory function provides you with
an easy way to quickly recall a preferred
setting.
The principle of the Memory function is
to store whatever setting that is currently
displayed.
1. Press the Memo button.
2. Press the Start button.
How to store a setting:
1. Select any function and make the
nesseccary settings
2. Make the necessary settings
3. Press and keep the Memo button
pressed for 3 seconds until an acoustic
signal is heard. The setting is now
stored. You may reprogram the memory
as many times as you wish.
When the appliance is plugged in or after a
power failure, your Memo function will have
stored - 1 minutes and 750 W as default
setting.
Steam

3 4
1 2
Use this function for such food as vegetables
& sh.
Always use the supplied Steamer when
using this function.
1. Press the Steam button.
2. Continue to repeatedly press the Steam
button to set the food class.
3. Press the +/- buttons to set the weight of
the food.
4. Press the Start button.

ENGLISH 14
Place the food on the steam grid.
Add 100 ml (1dl) water in the bottom part of
the steamer.
Cover with the lid.
WARNING! The Steamer is designed to
be used with microwaves only!
Never use it with any other function at all.
Using the steamer in any other function may
cause damage.
Always ensure that the turntable is able to
turn freely before starting the oven.
Always place the steamer on the Glass
Turntable.
Cookingvegetables
Place the vegetables into the strainer.
Pour 100 ml water into the bottom part.
Cover with the lid and set the time.
Soft vegetables such as broccoli and leek
require 2-3 minutes cooking time.
Harder vegetables such as carrots and
potatoes require 4-5 minutes cooking time.
Food Hints
Potatoes / Root
vetables
(150 g - 200 g)
Use even sizes.
Cut the vetgetables
into even pieces.
Allow to stand for 1 - 2
minutes, after cooking.
Vegetables
(Cauliower and
Broccoli)
(150 g - 500 g)
Frozen
vegetables
(150 g - 500 g)
Allow to stand for 1 - 2
minutes after cooking.
Fish lets
(150 g - 500 g)
Distribute llets evenly
on the steamgrid.
Interlace thin parts.
Allow to stand for 1 - 2
minutes, after cooking.
WARNING:The appliance and its
accessible parts become hot during
use. Care should be taken to avoid touching
heating elements. Young childern should be
kept away.
During and after use, do not touch the
heating elements or interior surface of the
appliance - risk of burns. Do not allow the
appliance to come in contact with cloths
or other ammable materials until all the
components have cooled down completely.
WARNING:Do not heat or cook with
sealed jars or containers in the appliance.
The pressure that builds up inside might
cause them to explode, damaging the
appliance.
WARING: If the appliance is operated in
the combination mode, children should only
use the appliance under adult supervision
due to the temperatures generated.
WARNING : Overheating the liquid beyond
boiling point can occur without evidence
of bubbling. This could result in a sudden

ENGLISH 15
boil over of the hot liquid. To prevent this
possibility the following steps should be
taken :
1. Avoid using straight-sided containers with
narrow necks.
2. Stir the liquid before placing the container
in the appliance and let the teaspoon
remain in the container.
3. After heating, allow standing for a
short time, stirring again before carefully
removing the container from the appliance.
WARNING:After heating baby food of
liquids in a baby bottle or in a baby food
jar, always stir and check the temperature
before serving.

ENGLISH 16
Cleaningandmaintenance
Cleaning is the only maintenance normally
required.
Failure to maintain the oven in a clean
condition could lead to deterioration of the
surface that could adversely affect the life
of the appliance and possibly result in a
hazardous situation.
iIMPORTANT: do not use metal
scouring pads, abrasive cleansers,
steel-wool pads, gritty washcloths, etc.
which can damage the control panel, and
the interior and exterior oven surfaces. Use
a sponge with a mild detergent or a paper
towel with spray glass cleaner. Apply spray
glass cleaner to a paper towel.
Do not spray directly on the oven.
At regular intervals, especially if spill overs
have occurred, remove the turntable, the
turntable support and wipe the base of the
oven clean.
This oven is designed to operate with the
turntable in place.
iIMPORTANT: do not operate the
microwave oven when the turntable
has been removed for cleaning.
Use a mild detergent, water and a soft cloth
to clean the interior surfaces, front and rear
of the door and the door opening.
iIMPORTANT: do not allow grease or
food particles to build up around the
door.
For stubborn stains, boil a cup of water
in the oven for 2 or 3 minutes. Steam will
soften the marks.
iIMPORTANT: do not use steam
cleaning appliances when cleaning
your microwave oven.
Adding some lemon juice to a cup of water,
placing this on the turntable and boiling for
a few minutes can eliminate odors inside the
oven.
The Grill element does not need cleaning
since the intense heat will burn off any
splashes, but the cavity ceiling near it may
need regular cleaning. This should be done
with warm water, detergent and a sponge.
If the Grill is not used regularly, it should be
run for 10 minutes a month to burn off any
splashes.
Dishwashersafe
• Turntable support.
• Glass turntable.
• Crisp handle.
Carefulcleaning
The Crisp-plate should be cleaned in mild,
detergent water. Heavily soiled areas can
be cleaned with a scouring sponge and a
mild cleanser.
Always let the crisp-plate cool off before
cleaning.
iIMPORTANT: do not immerse or rinse
with water while the crisp-plate is hot.
Quick cooling may damage it.
i
IMPORTANT: do not use steel-wool
pads. This will scratch the surface.
During and after use, do not touch the
heating elements or interior surface of the
appliance - risk of burns. Do not allow the
appliance to come in contact with cloths
or other ammable materials until all the
components have cooled down completely.
The appliance must be disconnected from
the power supply before carrying out any
cleaning or maintenance operation.
Use protective gloves for cleaning and
maintenace operations.
Ensure the appliance is cooled down before
carrying out any cleaning or mainteinance
operation.

ENGLISH 17
WARNING: Do not remove any cover. The
door seals and the door seals areas must
be regularly inspected for damage. If these
areas are damaged the appliance should
not be operated until it have been repaired
by a qualied technician.
WARNING:Never use steam cleaning
equipment.
WARNING: Do not use harsh abrasive
cleaners or sharp metal scrapers to clean
the appliance door glass since they can
scratch the surface, which may result in
shattering of the glass.

ENGLISH 18
Problem Possiblecause Solution
The appliance does not work. The mains power supply
or the appliance is not
connected.
Check your fuses and ensure
that there is power avaliable.
The door isn’t closed. Open and then close the door
before you try again.
A message is displayed such
as: F2, F3C, F7 or Err2, Err3,
Err5.
The oven has
recognized that a fault
has occured in one of it’s
sensors or similar.
Disconnect and wait 10
minutes before reconnecting,
then try to operate the oven
once more. If the problem
persists: call service.
The food is unevenly heated. Very thin parts such as
chicken wingtips and
such are not shielded.
Shield the thinner parts with
aluminum foil.
The food was heated at
a power level too high.
Choose a lower power level.
The turntable has
stopped.
Check that the turntable and
turntable support is in place
and the food is well centered,
not touching the cavity walls.
Food isn’t turning. The turntable has
stopped.
Check that the turntable and
turntable support is in place
and the cavity bottom is
clean.
AuthorizedServiceCentre
Before calling the Authorized Service Centre:
1. See if you can solve the problem on your own (see the “What to do if ...” table).
2. Switch the appliance off and on again to see if the problem has disappeared.
If the fault persists after the above checks, contact IKEA Authorized Service Centre.
Always specify:
- the type of fault;
- exact type and model of appliance;
- the Authorized Service Centre number (the number given
after the word “Service” on the rating plate) located on
the inside edge of the oven cavity (visible when the door is
open);
- your full address;
- your telephone number.
If any repairs are required, please contact IKEA Authorized Service Centre (to guarantee
that original spare parts will be used and repairs carried out correctly).
Whattodoif...

ENGLISH 19
Technicaldata
Supply Voltage 230 V/50 Hz
Rated Power Input 1300 W
Fuse 10 A (UK 13 A)
MW output power 750 W
Outer dimensions (HxWxD) 348 X 595 X 320
Cavity inner dimensions (HxWxD) 187 X 370 X 290
The technical informations are situated in the
rating plate inside the appliance.
DatafortestheatingperformanceinaccordancewithIEC60705.
The International Electrotechnical Commission, SC. 59H, has developed a standard for
comparative testing of heating performance of different microwave ovens. We recommend
the following for this oven:
Test Amount Approx.time Powerlevel Container
12.3.1 750 g 10 min 750 W Pyrex 3.227
12.3.2 475 g 5 ½ min 750 W Pyrex 3.827
12.3.3 900 g 14 min 750 W Pyrex 3.838
13.3 500 g 2 min 40 sec Jet Defrost
NOTE: this information is only for the qualied technician.

ENGLISH 20
Mountingtheappliance
Follow the supplied separate mounting
instructions when installing the appliance.
Children should not perform installation
operations. Keep children away during
installation of the appliance. Keep the
packaging materials (plastic bags,
polystyrene parts, etc.) out of reach of
children, during and after the installation of
the appliance.
Use protective gloves to perform all
unpacking and installation operations.
The appliance must be handled and
installed by two or more persons.The
appliance must be disconnected from the
power supply before carrying out any
installation operation.
After unpacking the appliance, make sure
that it has not been damaged during
transport. In the event of problems, contact
the dealer or your nearest After-sales
Service.
After unpacking the appliance, make sure
that the appliance door closes properly.
In the event of problems, contact the dealer
or your nearest After-sales Service. To
prevent any damage, only remove the oven
from its polystyrene foam base at the time
of installation.
During installation, make sure the appliance
does not damage the power cable.
Installation
