IKEA UDDARP User manual

UDDARP GB
DE
IT
FR

Please refer to the last page
of this manual for the full list
of IKEA appointed Authorized
Service Centre and relative
national phone numbers.
Die vollständige Liste
aller autorisierten IKEA
Kundendienste sowie die
zugehörigen Telefonnummern
nden Sie auf der letzten Seite
in diesem Handbuch.
Consultare l’ultima pagina
di questo manuale dove è
riportato l’elenco completo
dei Centri Assistenza IKEA
con i relativi numeri telefonici
nazionali.
Consultez la liste complète
des centres d’entretien et de
réparation agréés IKEA ainsi
que des numéros de téléphone
nationaux correspondants à la
dernière page de ce manuel.
ENGLISH 5
DEUTSCH 21
ITALIANO 38
FRANÇAIS 54

5
Safety Information
Table of contents
ENGLISH
IMPORTANT TO BE READ AND OBSERVED
Before using the appliance, read these
safety instructions. Keep them nearby for
future reference. These instructions and
the appliance itself provide important
safety warnings, to be observed at all
times. The manufacturer declines any
liability for failure to observe these safety
instructions, for inappropriate use of the
appliance or incorrect setting of controls.
Very young children (0-3 years) should
be kept away from the appliance. Young
children (3-8 years) should be kept away
from the appliance unless continuously
supervised. Children from 8 years old and
above and persons with reduced physical,
sensory or mental capabilities or lack of
experience and knowledge can use this
appliance only if they are supervised or
have been given instructions on safe use
and understand the hazards involved.
Children must not play with the appliance.
Cleaning and user maintenance must
not be carried out by children without
supervision. Never open the door forcibly
or use it as a step.
PERMITTED USE
CAUTION: The appliance is not
intended to be operated by means of an
external switching device, such as a timer,
or separate remote controlled system.
This appliance is intended to be used
in household and similar applications
such as: sta kitchen areas in shops,
oces and other working environments;
farm houses; by clients in hotels, motels,
bed & breakfast and other residential
environments; areas for communal use in
blocks of ats or in launderettes.
Do not load the machine above the
maximum capacity (kg of dry cloth)
indicated in the programme table.
This appliance is not for professional
use. Do not use the appliance outdoors.
Do not use any solvents (e.g.
turpentine, benzene), detergents
containing solvents, scouring powder,
glass or general purpose cleaners, or
ammable uids; do not machine wash
fabrics that have been treated with
solvents or ammable liquids.
Do not dry unwashed items in the
tumble dryer.
Items that have been soiled with
substances such as cooking oil, acetone,
alcohol, petrol, kerosene, spot removers,
turpentine, waxes and wax removers
should be washed in hot water with an
extra amount of detergent before being
dried in the tumble dryer.
Items such as foam rubber (latex foam),
shower caps, waterproof textiles, rubber
backed articles and clothes or pillows
tted with foam rubber pads should not
be dried in the tumble dryer.
Fabric softeners, or similar products,
should be used as specied by the fabric
softener instructions.
The nal part of a tumble dryer cycle
occurs without heat (cool down cycle)
to ensure that the items are left at a
temperature that ensures that the items
will not be damaged.
Never stop a tumble dryer before the
end of the drying cycle unless all items are
quickly removed and spread out so that
the heat is dissipated.
Safety Information 5
About your new product 8
Product description 9
Control Panel 10
First Use 10
Daily use 11
Programmes 12
Functions 12
Programme Chart 13

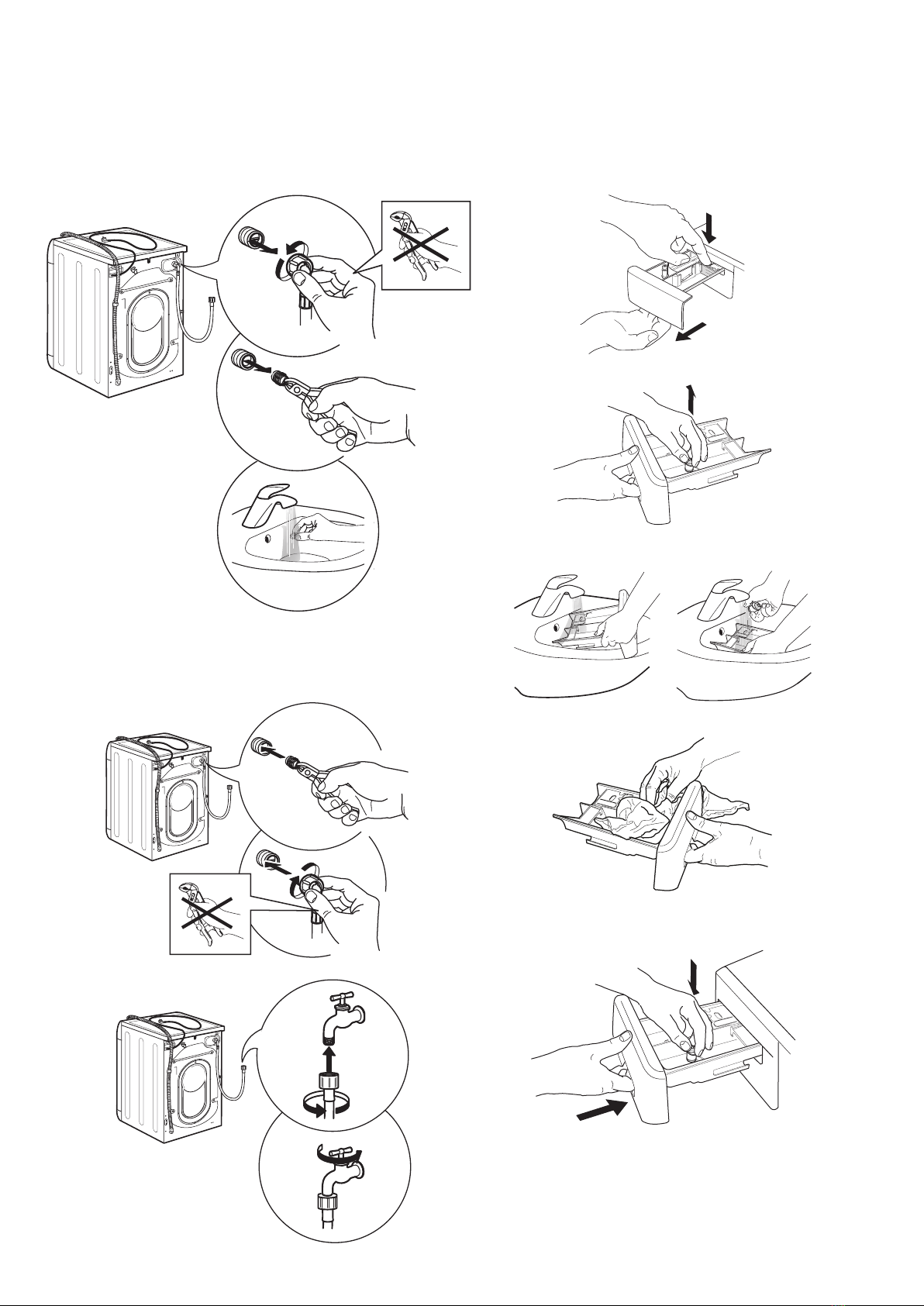

Cleaning and maintenance 14
Hints and Tips 17
What to do if... 18
After-Sales Service 19
Technical Data 19
Environmental concerns 19
IKEA GUARANTEE 20
GB

ENGLISH 6
During the drying phase, the door
tends to get quite hot.
Do not use the appliance to dry clothes
that have been washed with ammable
solvents (e.g. trichlorethylene).
Do not use the appliance to dry foam
rubber or similar elastomers.
Make sure that the water tap is turned
on during the drying cycles.
Remove all objects from pockets such
as lighters and matches.
INSTALLATION
The appliance must be handled and
installed by two or more persons - risk of
injury. Use protective gloves to unpack and
install - risk of cuts.
If you want to stack a dryer on top of your
washing machine, rst contact our Stores
or your specialist dealer to verify whether
this is possible. This is only possible if the
dryer is attached to the washing machine
by means of appropriate stacking kit
available through our Stores or your
specialist dealer.
Move the appliance without lifting it by
the worktop or top lid.
Installation, including water supply
(if any) and electrical connections and
repairs must be carried out by a qualied
technician. Do not repair or replace any
part of the appliance unless specically
stated in the user manual. Keep children
away from the installation site.
After unpacking the appliance, make sure
that it has not been damaged during
transport. Once installed, packaging
waste (plastic, styrofoam parts etc.) must
be stored out of reach of children - risk
of suocation. The appliance must be
disconnected from the power supply
before any installation operation - risk of
electric shock. During installation, make
sure the appliance does not damage the
power cable - risk of re or electric shock.
Only activate the appliance when the
installation has been completed.
Do not install your appliance where it
may be exposed to extreme conditions,
such as: poor ventilation, temperatures
below 5°C or above 35°C.
When installing the appliance make
sure that the four feet are stable and
resting on the oor, adjusting them as
required, and check that the appliance is
perfectly to level using a spirit level.
If the appliance is being installed on
wood or “oating” oors (certain parquet
and laminate materials), secure a 60 x 60
x 3 cm (at least) sheet of plywood to the
oor then place the appliance on top of
this.
Connect the water inlet hose(s) to
the water supply in accordance with the
regulations of your local water company.
The washing machine is tted with
transport bolts to prevent any possible
damage to the interior during transport.
Before using the machine, it is imperative
that the transport bolts are removed.
After their removal, cover the openings
with the 4 enclosed plastic caps.
Make sure that the ventilation openings
in the base of your washing machine
(if available on your model) are not
obstructed by a carpet or other material.
Use only new hoses to connect the
appliance to the water supply. The old
hose-sets should not be reused.
The supply water pressure must be in
the 0.1-1 MPa range.
Do not repair or replace any part of the
appliance unless specically stated in the
user manual. Use only authorized Stores.
Self or non-professional repair may lead
to dangerous incident resulting in live
or health threatening and/or signicant
property damage.
The spare parts for the household
machine will be available for 10 years
after placing the last unit on the market
as dictated by the European Ecodesign
regulation.

ENGLISH 7
ELECTRICAL WARNINGS
It must be possible to disconnect
the appliance from the power supply by
unplugging it if plug is accessible, or by
a multi-pole switch installed upstream of
the socket in accordance with the wiring
rules and the appliance must be earthed in
conformity with national electrical safety
standards.
Do not use extension leads, multiple
sockets or adapters. The electrical
components must not be accessible to
the user after installation. Do not use the
appliance when you are wet or barefoot.
Do not operate this appliance if it has
a damaged power cable or plug, if it is
not working properly, or if it has been
damaged or dropped.
If the supply cord is damaged, it must
be replaced with an identical one by the
manufacturer, its service agent or similarly
qualied persons in order to avoid a
hazard - risk of electric shock.
CLEANING AND MAINTENANCE
WARNING: Ensure that the appliance
is switched o and disconnected from
the power supply before performing any
maintenance operation. To avoid risk
of personal injury use protective gloves
(risk of laceration) and safety shoes (risk
of contusion); be sure to handle by two
persons (reduce load); never use steam
cleaning equipment (risk of electric
shock). Non-professional repairs not
authorized by the manufacturer could
result in a risk to health and safety, for
which the manufacturer cannot be held
liable. Any defect or damage caused from
non-professional repairs or maintenance
will not be covered by the guarantee,
the terms of which are outlined in the
document delivered with the unit.

ENGLISH 8
About your new product
Feature Desctiption
Sensor Technology Advanced sensors able to adapt resources detecting the amount and the type of load.
This allows to save up to 50%* on energy water and time. (*Comparison between
maximum load and 1Kg load on washer with sensors technology and Cotton 60°
program).
Fresh Plus End of cycle treatment. After the cycle ends, a perfect combination of gentle steaming
and tumbling starts, keeping the garments fresh for up to 6 hours.
This treatment reduces the risk of creases formation, and inhibits the proliferation of
the main bad odour sources
Steam Care A delicate steam-only program designed to refresh clothes, remove unpleasant odours,
relax bers and smooth creases.
Inverter Motor The motor reliability is ensured by the brushless technology and the inverter control
achieve high energy eciency.
Drum moves Drum moves frequency and duration are tailored to each type of washed items (fabrics,
colours and shape) ensuring care and performance.
Drying option Versatile drying options. Customize the drying cycles of your Washer Dryer with the a
set of versatile drying options.
Quick 45’ Wash & Dry Enjoy better results, faster. The 45 Minute program washes and dries 1 kg of laundry in
just 45 minutes, providing the excellent results you deserve, in less time.
Pause / Open the Door / Reload Simply press the “Pause” button if you wish to add or remove laundry, then press it
again to continue the programme.
Your new washing-machine / dryer is equipped with the following features to help you achieve perfect results.

ENGLISH 9
Product description
1Top
2Detergent dispenser
3Control panel
4Door handle
5Door
6 Water lter - behind kick panel
7Removable kick panel
8Adjustable feet (2)
2
7
5
6
1
8
4
3
B
A
DETERGENT DISPENSER
1. Main wash compartment
• Detergent for the main wash
• Stain remover
• Water softener
2. Prewash compartment
• Detergent for the prewash
3. Softener compartment
• Fabric softener
• Liquid starch
Pour softener or starch solution into the compartment
without exceeding the “MAX” level.
4. Release button (press to remove tray for cleaning)
Preferably use the partition Awhen washing with a liquid
detergent for washing, to ensure that the correct quantity of
detergent is used (the partition is included in the bag containing
the instructions).
Move the partition into slot Bwhen using detergent powder.

ENGLISH 10
1ON/OFF button
2Programme selector
3Start/Pause button
4Temperature button
5Fresh Plus button
6Dry Only button/Lock button
7Drying settings button
8Display
9Start delay button
10 Spin speed button
1 2 345
78
9
10
6
First Use
See the section DAILY USE for instructions on selecting and
starting a programme.
FIRST CYCLE OPERATION
Remove any manufacturing debris:
• Start the programme without adding any laundry (with
empty drum).
• Select the “Cotton” programme with a temperature setting
of 60°C.
• Pour a small quantity of detergent powder into the main
wash compartment of the detergent dispenser (maximum
1/3 of the quantity the detergent manufacturer recommends
for lightly soiled laundry).
• Start the programme without loading the washer dryer
machine (with empty drum).
Control Panel
DISPLAY INDICATORS
Fresh Plus This indicator will light up
• after you press Fresh Plus button.
Start delay This indicator will light up
• after you press Start delay button.
Key lock
This indicator will light up
• after the “Key lock” function is activated, which is done by pressing the
6 key for 3 seconds.
Mixed
White
Cotton
Eco 40-60
Delicates
Synthetics
Steam Care
Spin & Drain
Wash & Dry 45’
Wash & Dry 90’
Wool
Quick 30’
Rinse & Spin
Cotton 20°C
8Kg/5Kg
The options/functions are not available with all washing programmes and an option/function can
exclude another one, in these case the appliance doesn’t allow an incompatible setting.

ENGLISH 11
Daily use
1. Load laundry
2. Close door
3. Open water tap
Check that the washer dryer is connected
correctly to the water mains. Open the water tap.
Switching on the washer dryer machine
Press button ; the lamp ashes slowly.
4. Selecting a programme and customising a cycle.
The following functions are possible with this appliance:
• Wash only
• Wash and dry
• Dry only
Wash only
Select the required programme with the “Program selector” dial.
The washing machine automatically displays the default
temperature setting and then the duration of the washing cycle.
Adjust the temperature and/or spin speed settings if needed
with the relative buttons.
• Press button “Temp°” to cycle through progressively
lower temperature settings until cold wash is set (“- -“)
shown on display.
• Press button “Spin speed” to cycle through progressively
lower spin speed settings until the spin cycle is turned o
(“0” shown on display).
• Pressing the button again sets the highest possible setting.
• Select the required options (if necessary).
• Press the button to select the option; the respective button
lamp illuminates.
• Press the button again to cancel the option; the lamp
extinguishes.
If the selected option is not compatible with the
programme set, an error warning tone sounds and the indicator
lamp ashes three times. The option is not selected.
Wash and dry
To wash and dry a load with no interruption between the wash
and dry cycles, make sure that the load does not exceed the
maximum permissible drying load for the selected programme
(see the column “Max. load for drying cycle” in the Programme
chart).
1. Follow the instructions given in the paragraph “Wash
Only” to select and, if necessary, customise the required
programme.
2. Press “Drying settings” to select the required drying mode.
Two drying modes are available: automatic or timer.
Automatic drying with selectable levels:
In automatic drying mode, the washer dryer machine dries the
laundry until the set level of dryness is reached.
Pressing button “Drying settings” once automatically selects the
highest drying level available for the selected programme.
Press the button again to reduce the drying level.
The following levels are available:
Wardrobe : laundry is completely dry and ready to be put
away in the wardrobe without ironing.
Hanger : laundry is left slightly damp to minimise creasing.
Garments must be hung to air dry completely.
Iron : garments are left reasonably damp to make ironing
easier.
Timer drying mode:
Press button “Drying settings” repeatedly to set timer drying
mode. After cycling through all the automatic drying levels,
continue pressing button “Drying settings” until the desired time
is displayed. Values from 210 to 30 minutes are settable.
To wash a load of laundry larger than the maximum permissible
load for drying (see the column “Max. load for drying cycle”
in the Programme chart), remove a few garments once the
washing cycle has nished before starting the drying cycle.
Proceed as follows:
1. Follow the instructions given in the paragraph “Wash
Only” to select and, if necessary, customise the required
programme.
2. Do not include a drying cycle.
3. Once the washing cycle is nished, open the door and
remove a few garments to reduce the load. Now follow the
instructions for “Dry only”.
N.B.: always allow a cooling down period after drying before
opening the door.
When using the two preset cycles “Wash & Dry 45’” and “Wash &
Dry 90’”, it is not necessary to select and start a drying cycle.
Dry only
This function is used to simply dry a wet load washed previously
in the washer dryer or by hand.
1. Select a suitable programme for the laundry you want to dry
(e.g. select cotton to dry wet cotton laundry).
2. Press button “Dry only” to dry without a wash cycle.
3. Press “Drying settings” to select the required drying mode.
Two drying modes are available: automatic or timer.
Automatic drying with selectable levels:
In automatic drying mode, the washer dryer machine dries the
laundry until the set level of dryness is reached. Pressing button
“Drying settings” once automatically selects the highest drying
level available for the selected programme. Press the button
again to reduce the drying level.
The following levels are available:
Wardrobe : laundry is completely dry and ready to be put
away in the wardrobe without ironing.
Hanger : laundry is left slightly damp to minimise creasing.
Garments must be hung to air dry completely.
Iron : garments are left reasonably damp to make ironing
easier.
Timer drying mode:
Press button “Drying settings” repeatedly to set timer drying
mode. After cycling through all the automatic drying levels,
continue pressing button “Drying settings” until the desired time
is displayed.
Values from 210 to 30 minutes are settable.
N.B.: always allow a cooling down period after drying before
opening the door.
5. USING THE CORRECT AMOUNT OF DETERGENT
Pull out the tray and pour detergent into the relative
compartments as described in “Detergent dispenser”.
This is only necessary when using a wash only or a wash + dry
programme.
6. DELAYING THE START OF A PROGRAMME
• To set the selected programme to start at a later time (Max
24h), press the button to set the desired delay time.
• The symbol lights on the display when this fuction is
enabled. To cancel the delayed start, press the button again
untile the value ‚‘‘0‘‘ is shown on the display.
7. STARTING A PROGRAMME.
Press the START/PAUSE button.
The relative indicator lamp illuminates with a “beep”, the door
locks and the door open symbol extinguishes.
To change a programme while a cycle is in progress, press
START/PAUSE (conrmation “beep”) to pause the washer dryer
(the START/ PAUSE lamp ashes amber slowly); then select the
required cycle and press START/PAUSE (conrmation “beep”)
again.
Prepare the laundry, following the
recommendations given in the section “HINTS
AND TIPS”.
Open the door and load the laundry into the
drum, without exceeding the maximum load
capacities indicated in the Programme Chart.
Pressing until the latch audibly locks,
and check that there is no laundry
trapped between the door glass and
the rubber seal.

ENGLISH 12
To open the door while a cycle is in progress, press START/
PAUSE; the door may be opened if the symbol lights.
Press the START/PAUSE button again to resume the programme
from where it was paused.
8. CANCELLING A RUNNING PROGRAMME (IF NECESSARY)
Press and hold the button a count down is shown in the
display until the washer dryer stops.
If the water level and temperature are low enough, the door
unlocks and may be opened.
The door remains locked if there is water in the drum. To unlock
the door, switch the washer dryer on, select the SPIN & DRAIN
programme and turn the spin function o by setting the spin
speed to 0. The water is emptied and the door unlocks at the
end of the programme.
9. SWITCHING THE WASHER DRYER OFF AT THE END OF A
PROGRAMME.
At the end of the cycle, the message “END” is shown on the
display. The door can only be opened when the symbol
lights. Check that the door unlocked symbol is lit, then open the
door and take out the laundry.
Press to switch the washer dryer o. To save energy, if the
washer dryer is not switched o manually with the button, it
turns o automatically approximately 10 minutes after the end
of the programme.
Leave the door ajar to let the interior of the washer dryer dry.
Programmes
Follow the directions indicated in the garment wash symbols.
MIXED
For washing lightly to normally soiled resilient garments in
cotton, linen, synthetic bres and mixed bres.
WHITE
For washing normally to heavily soiled towels, underwear, table
and bed linen, etc in resilient cotton and linen. Only when the
temperature is selected at 90°C the cycle is provided with a
prewash phase before main washing phase. In this case it is
recommended to add detergent both, in the prewash and main
wash sectionwash section.
COTTON
For washing normally to heavily soiled towels, underwear, table
and bed linen etc. in resilient cotton and linen.
ECO 40-60
For washing normally soiled cotton garments. At 40°c and 60°C,
this is the standard cotton programme and the most ecient in
terms of water and energy consumption.
DELICATES
For washing particularly delicate garments.
Preferably turn garments inside out before washing.
SYNTHETICS
For washing normally soiled garments made from synthetic
bres (such as polyester, polyacrylic, viscose etc.) or cotton/
synthetic blends.
STEAM CARE
For refreshing garments, neutralised unpleasant odours and
relaxing the bres by delivering steam into the drum.
The garments will be damp at the end of the cycle.
SPIN & DRAIN
Spins the load then empties the water. For resilient garments.
RINSE & SPIN
Rinses and then spins. For resilient garments.
QUICK 30’
For washing lightly soiled garments quickly: this cycle lasts only
30 minutes, saving time and energy.
Maximum load 4,5 Kg.
COTTON 20°C
For washing lightly soiled cotton garments, at a temperature of
20°C.
WOOL
All wool garments can be washed using programme ‚“Wool“
even those carryng the “hand-wash only “ label.
For best results, use special detergents and do not exceed max
kg declaration of laundry.
WASH & DRY 45’
For washing and drying lightly soiled cotton and synthetic bre
garments quickly. This cycle washes and dries a laundry load of
up to 1 Kg in just 45 minutes.
WASH & DRY 90’
For washing and drying cotton and synthetic bre garments
quickly.
This cycle washes and dries a laundry load of up to 1 Kg in just
90 minutes.
Functions
Selectable directly by pressing the relative button.
If the selected function is not compatible with the
programme set, an error warning tone sounds and the

selected.
FRESH PLUS
If associated with wash cycles, this function increases their
performances by generating steam to block proliferation of
the main sources of unpleasant odours inside the appliance
(exclusively for the wash). After the steam phase, the machine
runs a delicate cycle with slow drum rotations.
When the Fresh Plus function is associated with drying cycles, it
prevents stubborn creases from stabilising on garments, thanks
to slow drum rotations.
The Fresh Plus cycle starts at the end of the wash or drying
cycle and continues for maximum 6 hours; it can be interrupted
at any time by pressing any button on the control panel, or by
turning the knob. Wait roughly 5 minutes before opening the
door.
START DELAY
To set the selected programme to start at a later time, press the
button to set the desired delay time. The symbol lights on
the display when this fuction is enabled. To cancel the delayed
start, press the button again untile the value ‚‘‘0‘‘ is shown on the
display.
LOCK BUTTON
To lock the control panel, press and hold the button “Dry only”
for approximately 3 seconds. the symbol lights on the
display to indicate that the control panel is locked (with the
exception of the button). This prevents unintentional changes
to programmes, especially with children near the machine.
If any attempt is made to use the control panel, the symbol
ashes on the display.
To unlock the control panel, press and hold the button “Dry
only” for approximately 3 seconds.

ENGLISH 13
Sensor technology - the sensor technology adapts water, energy and programme duration to your wash load.
For wash programmes with temperatures above 50°C, we recommend using powder detergent rather than liquid, and following
the directions given on the detergent package.
* By selecting the cycle and excluding the spin cycle, the washer-dryer will drain only.
*** After programme end and spinning with maximum selectable spin speed, in default programme setting.
The cycle duration indicated on the display or instruction manual is an estimate based on standard conditions. The actual duration
may vary in relation to several factors, such as the temperature and pressure of the incoming water, ambient temperature, amount
of detergent, load quantity and type, load balancing and any additional options selected.The values given for programmes other than
the Eco 40-60 programme are indicative only.
1)Eco 40-60 (Wash) - Test wash cycle in compliance with EU Ecodesign regulation 2019/2014.
The most ecient programme in terms of energy and water consumption for washing normally soiled cotton laundry.
Note: spin speed values shown on the display can slightly diers from the values stated in the table.
4)Eco 40-60 (Wash & Drying) - Test wash and drying cycle in compliance with EU Ecodesign regulation 2019/2014.
To access “wash and dry” cycle select “Eco 40-60” wash programme and set option level to „ “. The most ecient programme
in terms of energy and water consumption for washing and drying normally soiled cotton laundry. At the end of cycle the garments
can be immediately stored to the cupboard.
For all testing institutes:
2) Long cotton cycle: set programme at temperature 40°C.
3) Long synthetics cycle: set cycle at a temperature of 40°C.
Maximum load 8 kg
Power input in o mode 0.5 W / in left-on mode 8 W Detergents and additives Recommended detergent
Residual
dampness % (***)
Energy
consumption kWh
Total water lt
Laundry
temperature °C
Wash cycle
Temperatures Max
spin
(rpm)
Drying
Max load for
washing (kg)
Max load for
drying (kg)
Duration
(h : mm)
Prewash
Wash
Fabric softener
Powder
Liquid
Setting Range
MIXED 40°C - 40°C 1000 8.0 5.0 0:39 – – – – – –
WHITE 60°C - 90°C 1400 8.0 5.0 2:45 (90°) - 49 0.90 90 55
 40°C - 60°C 1400 8.0 5.0 3:55 – 49 1.40 105 45

(WASH) 40°C 40°C
1351 8.0
5.0
3:30 – 53 0.77 54 33
1351 4.0 2:45 – 53 0.65 52 36
1351 2.0 2:10 53 0.45 37 33
DELICATES 30°C - 30°C - 1.0 1.0 1:20 – – – – – –
 40°C - 60°C 1200 4.0 4.0 2:55 – 35 0.8 55 43
STEAM CARE – – – - 2.0 - 0:20 – – – – – – – – –
SPIN & DRAIN * – – 1400 8.0 5.0 0:10 – – – – – – – – –
RINSE & SPIN – – 1400 8.0 5.0 0:55 – – – – – – – –
 30°C - 30°C 800 - 4.5 - 0:30 – – 71 0.20 45 27
 20°C - 20°C 1400 8.0 5.0 1:50 – – 49 0.16 90 22
WOOL 40°C - 40°C 800 2.0 2.0 1:25 – – – – – –
 30°C 30°C 1400 1.0 1.0 0:45 – – – – – –
 30°C 30°C 1200 2.0 2.0 1:30 – – – – – –

(WASH&DRYING) 40°C 40°C 1351 5.0 5.0 9:10 0 3.30 70 34
1351 2.5 2.5 5:10 0 1.69 50 33
Selectable/optional – Not selectable/applicable Required quantity Optional quantity
Programme Chart

ENGLISH 14
Programme / Functions
compatibility Functions
Spin Start Delay Fresh Plus Dry Only Drying setting
Mixed
White
Cotton
Eco 40-60
Delicates
Synthetics
Steam Care
Spin & Drain
Rinse & Spin
Quick 30’
Cotton 20°C
Wool
Wash & Dry 45'
Wash & Dry 90'
Cleaning and maintenance
For any cleaning and maintenance, switch o and unplug the
washing machine.
Do not use ammable uids to clean the washing machine.
CLEANING THE OUTSIDE OF THE WASHING MACHINE
Use a soft damp cloth to clean the outer parts of the washing
machine.
Do not use glass or general purpose cleaners, scouring powder
or similar to clean the control panel – these substances might
damage the printing.
CHECKING THE WATER SUPPLY HOSE
Check the inlet hose regularly for brittleness and cracks. If
damaged, replace it by a new hose available through our After-
Sales Service or your specialist dealer.
Depending on the hose type:
If the inlet hose has a transparent coating, periodically check
if the colour intensies locally. If yes, the hose may have a leak
and should be replaced.
For water stop hoses: check the small safety valve inspection
window (see arrow). If it is red, the water stop function was
triggered, and the hose must be replaced by a new one.
For unscrewing this hose, press the release button (if available)
while unscrewing the hose.
CLEANING THE MESH FILTERS IN THE WATER SUPPLY HOSE
1. Close water tap and unscrew the inlet hose.
2. Clean the mesh lter at the hose’s end carefully with a ne
brush.

ENGLISH 15
3. Now unscrew the inlet hose on the back of the washing
machine by hand. Pull out the mesh lter from the valve on
the back of the washing machine with pliers and carefully
clean it.
4. Insert the mesh lter again. Connect the inlet hose to
water tap and washing machine again. Do not use a tool to
connect the inlet hose. Open the water tap and check that all
connections are tight.
CLEANING THE DETERGENT DISPENSER
1. Remove the detergent dispenser by pressing on the release
button and at the same time pulling out the detergent
dispenser.
2. Remove the insert from the softener compartment.
3. Clean all parts under running water, removing all detergent
or softener residues.
4. Wipe the parts dry with a soft cloth.
5. Reinstall the detergent dispenser and push it back into the
detergent compartment.
1
2

ENGLISH 16
CLEANING THE WATER FILTER / DRAINING RESIDUAL WATER
Switch o and unplug the washing machine before cleaning
the water lter or draining residual water. If you used a hot
wash programme, wait until the water has cooled down before
draining any water.
Clean the water lter regularly, to avoid that the water cannot
drain after the wash due to obstruction of the lter.
If the water cannot drain, the display indicates that the water
lter may be clogged.
1. Remove the kick panel:
using a screwdriver, do that which is shown in the following
gure.
2. Container for the drained water:
place a low and wide container under the water lter in
order to collect the residual water.
3. Drain the water:
slowly turn the lter counter-clockwise until all the water
has come out. Allow the water to ow out without removing
the lter. Once the container is full, close the water lter by
turning it clockwise. Empty the container.
Repeat the procedure until all the water has been drained.
4. Remove lter:
lay a cotton cloth beneath the water lter, which can absorb
a small amount of rest water. Then remove the water lter
by turning it out anticlockwise.
5. Clean the water lter:
remove residues in the lter and clean it under running
water.
6. Insert the water lter and reinstall the plinth:
reinsert the water lter again by turning it in clockwise
direction. Make sure to turn it in as far as it goes; the lter
handle must be in vertical position. To test water tightness
of the water lter, you can pour about 1 liter of water into
the detergent dispenser.
Then reinstall the plinth.

ENGLISH 17
Sort your laundry according to
Type of fabric/care label (cotton, mixed bres, synthetics, wool,
handwash items).
Colour (separate coloured and white items, wash new coloured
items separately).
Delicates (wash small items – like nylon stockings – and items
with hooks – like bras – in a cloth bag or pillow case with zip).
Empty all pockets
Objects like coins or lighters can damage your laundry as well as
the drum.
Follow the dosage recommendation / additives
It optimizes the cleaning result, it avoids irritating residues
of surplus detergent in your laundry and it saves money by
avoiding waste of surplus detergent.
Use low temperature and longer duration
The most ecient programmes in terms of energy consumption
are generally those that perform at lower temperatures and
longer duration.
Observe the load sizes
Load your washing machine up to the capacity indicated in the
“PROGRAMME CHART” table to save water and energy.
Noise and remaining moisture content
They are inuenced by the spinning speed: the higher the
spinning speed in the spinning phase, the higher the noise and
the lower the remaining moisture content.
WASH SYMBOLS ON GARMENT LABELS
The value given in the tub symbol is the maximum temperature
possible for washing the garment.
Normal mechanical action
Reduced mechanical action
Much reduced mechanical action
Hand wash only
Do not wash
Hints and Tips
SAVING ENERGY AND PROTECTING THE ENVIRONMENT
• Keeping within the load limits indicated in the programme
chart will optimise energy, water and detergent
consumption and reduce washing times.
• Do not exceed the detergent quantities recommended by
the detergent manufacturer.
• Save energy by using a 60°C instead of a 90°C wash
programme, or by using a 40°C instead of a 60°C wash
programme. We recommend using the Eco 40-60
programme for cotton garments, which is longer but uses
less energy.
• To save energy and time when washing and drying, select
highest spin speed available for the programme to reduce
the residual water remaining in the garments at the end of
the wash cycle.

ENGLISH 18
What to do if...
Your washing machine is equipped with various automatic safety and feedback functions.
They enable failures and needed maintenance to be detected and indicated accordingly.
These failures are frequently so minor that they can be removed within a few minutes.
Problem Possible causes / Solutions:
The washing machine does not turn on. • The plug is not inserted into the electrical outlet, or not enough to make contact.
• There has been a power failure.
• The door is not fully closed.
The wash cycle does not start. • The “ON/OFF” button has not been pressed.
• The “Start/Pause” button has not been pressed.
• The water tap is not open.
• A “Start delay” has been set.

water (the message “h2o” is shown on the
display). “Beep” sound every 5 seconds.
• The water intake hose is not connected to the tap.
• The hose is bent.
• The water tap is not open.
• The mains water supply has been shut o.
• There is not enough pressure.
The washing machine loads and drains
water continuously.
• The “Start/Pause” button has not been pressed.
• The drain hose has not been installed at 65 to 100 cm from the ground.
• The end of the drain hose is immersed in water.
• The drain connector on the wall does not have an air vent.
• If the problem persists after having performed these checks, close the water tap,
shut o the washing machine, and call the After-sales service. If the dwelling
is located on one of the uppermost oors of a building, a siphon eect can
sometimes occur, thus causing the washing machine to load and drain water
continuously. Special anti-siphon valves are available on the market to prevent
these types of problems.
The washing machine does not drain or
does not spin.
• The programme does not include the draining function: with certain
programmes it must be activated manually.
• The drain hose is bent.
• The drain line is obstructed.
The washing machine vibrates excessively
during the spin cycle.
• At the time of installation, the drum was not properly unblocked.
• The washing machine is not level.
• The washing machine is squeezed between furniture and the wall.
The washing machine leaks water • The water intake hose has not been tightened properly.
• The detergent dispenser is clogged.
• The drain hose has not been properly fastened.
The machine is locked and the display

F-..).
• Shut o the machine, disconnect the plug from the outlet, and wait about 1
minute before turning it back on.
• If the problem persists, call the After-sales service.
Too much foam is formed. • The detergent is not compatible with the washing machine (it must bear the
wording “for washing machines”, “for hand washing and washing machines”, or
something similar).
• The dosage was excessive.
Door is locked, with or without failure
indication, and the programme does not
run.
• Door is locked in case of power breakdown. Programme will continue
automatically as soon as the mains is available again.
• Washing machine is in a standstill. Programme will continue automatically after
the origin of the standstill does not persist anymore.

ENGLISH 19
Before contacting the After-Sales Service:
1. See if you can solve the problem yourself with the help of
the suggestions given in the “What to do if ...” table.
2. Switch the appliance o and back on again it to see if the
fault persists.
If after the above checks the fault still occurs, contact IKEA
Authorized Service Centre.
Always specify:
• a brief description of the fault;
• the type and exact model of the appliance;
• the service number (number after the word Service on the
rating plate);
• your full address;
• your telephone number.
If any repairs are required, please contact IKEA Authorized
Service Centre (to guarantee that original spare parts will be
used and repairs carried out correctly).
xxxxxxxxxxxx xxxx
After-Sales Service
Technical Data
TRANSPORT AND HANDLING
Never lift the washing machine by holding it at the worktop.
1. Pull out the mains plug, and close the water tap.
2. Make sure that door and detergent dispenser are properly
closed.
3. Disconnect the inlet hose from the water tap, and remove
the drain hose from your draining point. Remove all rest
water from the hoses, and x them so that they cannot get
damaged during transport.
4. Ret the transport bolts. Follow the instructions for
removing the transport bolts in the “Installation Guide” in
reverse order.
Do not transport the washing machine without having xed
the transport bolts.
Disposal of packaging materials
The packaging material is 100% recyclable and is marked with
the recycle symbol .
The various parts of the packaging must therefore be disposed
of responsibly and in full compliance with local authority
regulations governing waste disposal.
Disposal of household appliances
This appliance is manufactured with recyclable or reusable
materials.
Dispose of it in accordance with local waste disposal regulations.
For further information on the treatment, recovery and recycling
of household electrical appliances, contact your local authority,
the collection service for household waste or the store where
you purchased the appliance. This appliance is marked in
compliance with European Directive 2012/19/EU, Waste Electrical
and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help
prevent negative consequences for the environment and human
health.
The symbol on the product or on the accompanying
documentation indicates that it should not be treated as domestic
waste but must be taken to an appropriate collection center for the
recycling of electrical and electronic equipment.
Environmental concerns
Product Dimension Width (mm) 595
Height (mm) 845 - 855
Depth (mm) 572
Water connection
Water supply Cold
Water tap 3/4” threaded hose connector
Minimum water supply pressure 100 kPa (1 bar)
Maximum water supply pressure 1000 kPa (10 bar)
Voltage Rating [V / Hz / A] 220-240 V / 50 Hz / 10 A

ENGLISH 20
How long is the IKEA guarantee valid?
This guarantee is valid for ve years from the original date of
purchase of your appliance at IKEA. The original sales receipt,
is required as proof of purchase. If service work is carried out
under guarantee, this will not extend the guarantee period for
the appliance.
Who will execute the service?
IKEA service provider will provide the service through its own
service operations or authorized service partner network.
What does this guarantee cover?
The guarantee covers faults of the appliance, which have been
caused by faulty construction or material faults from the date
of purchase from IKEA. This guarantee applies to domestic use
only. The exceptions are specied under the headline “What is
not covered under this guarantee?” Within the guarantee period,
the costs to remedy the fault e.g. repairs, parts, labour and
travel will be covered, provided that the appliance is accessible
for repair without special expenditure. On these conditions the
EU guidelines (Nr. 99/44/EG) and the respective local regulations
are applicable. Replaced parts become the property of IKEA.
What will IKEA do to correct the problem?
IKEA appointed Service Provider will examine the product
and decide, at its sole discretion, if it is covered under this
guarantee. If considered covered, IKEA Service Provider or its
authorized service partner through its own service operations,
will then, at its sole discretion, either repair the defective
product or replace it with the same or a comparable product.
What is not covered under this guarantee?
• Normal wear and tear.
• Deliberate or negligent damage, damage caused by failure
to observe operating instructions, incorrect installation or by
connection to the wrong voltage, damage caused by chemical
or electrochemical reaction, rust, corrosion or water damage
including but not limited to damage caused by excessive
lime in the water supply, damage caused by abnormal
environmental conditions.
• Consumable parts including batteries and lamps.
• Non-functional and decorative parts which do not aect
normal use of the appliance, including any scratches and
possible color dierences.
• Accidental damage caused by foreign objects or substances
and cleaning or unblocking of lters, drainage systems or
soap drawers.
• Damage to the following parts: ceramic glass, accessories,
crockery and cutlery baskets, feed and drainage pipes, seals,
lamps and lamp covers, screens, knobs, casings and parts of
casings. Unless such damages can be proved to have been
caused by production faults.
• Cases where no fault could be found during a technician’s visit.
• Repairs not carried out by our appointed service providers
and/or an authorized service contractual partner or where
non-original parts have been used.
• Repairs caused by installation which is faulty or not according
to specication.
• The use of the appliance in a non-domestic environment i.e.
professional use.
• Transportation damages. If a customer transports the product
to his home or another address, IKEA is not liable for any
damage that may occur during transport. However, if IKEA
delivers the product to the customer’s delivery address, then
damage to the product that occurs during this delivery will be
covered by IKEA.
• Cost for carrying out the initial installation of the IKEA
appliance.
• However, if an IKEA appointed Service Provider or its
authorized service partner repairs or replaces the appliance
under the terms of this guarantee, the appointed Service
Provider or its authorized service partner will reinstall the
repaired appliance or install the replacement, if necessary.
• This does not apply within Ireland, customer should contact
the local IKEA dedicated after sales line or the appointed
Service Provider for further information. (just for GB)
These restrictions do not apply to fault-free work carried out by
a qualied specialist using our original parts in order to adapt
the appliance to the technical safety specications of another EU
country.
How country law applies
The IKEA guarantee gives you specic legal rights, which cover
or exceed all the local legal demands. However these conditions
do not limit in any way consumer rights described in the local
legislation.
Area of validity
For appliances which are purchased in one EU country and
taken to another EU country, the services will be provided in
the framework of the guarantee conditions normal in the new
country.
An obligation to carry out services in the framework of the
guarantee exists only if the appliance complies and is installed
in accordance with:
• the technical specications of the country in which the
guarantee claim is made;
• the Assembly Instructions and User Manual Safety
Information.
The dedicated AFTER SALES for IKEA appliances
Please don’t hesitate to contact IKEA appointed Authorized
Service Centre to:
• make a service request under this guarantee;
• ask for clarications on installation of the IKEA appliance in
the dedicated IKEA kitchen furniture;
• ask for clarication on functions of IKEA appliances.
To ensure that we provide you with the best assistance, please
read carefully the Assembly Instructions and/or the User Manual
before contacting us.
How to reach us if you need our service
Please refer to the last page of this manual for
the full list of IKEA appointed Authorized Service
Centre and relative national phone numbers.
In order to provide you a quicker service, we

on this manual. Always refer to the numbers listed

assistance for. Please also always refer to the IKEA
article number (8 digit code) and 12 digit service
number placed on the rating plate of your appliance.
SAVE THE SALES RECEIPT!
It is your proof of purchase and required for the guarantee
to apply. The sales receipt also reports the IKEA name and
article number (8 digit code) for each of the appliances you
have purchased.
Do you need extra help?
For any additional questions not related to After Sales of your
appliances please contact your nearest IKEA store call centre.
We recommend you read the appliance documentation carefully
before contacting us.
IKEA GUARANTEE
