Ikon IB15R User manual

Upright Refrigerator & Freezer
Service, Installation and Care Manual
Please read this manual completely before attempting to install or operate this equipment.
Notify carrier of damage! Inspect all components immediately.
IMPORTANT INFORMATION
READ BEFORE USE
PLEASE SAVE THESE INSTRUCTIONS!

Service and Installation Manual
2
COMMERCIAL REFRIGERATOR SAFETY
Your safety and t e safety of ot ers are very important.
We have provided ma y importa t safety messages i this ma ual a d o your applia ce. Always read a d
obey all safety messages.
Our product instructions will be uploaded on our company official website.
This is the Safety Alert Symbol. This symbol alerts you to pote tial hazards that ca
kill or i jure you a d others. All safety messages will follow the Safety Alert Symbol
a d either the words” DANGER”, “WARNING” or “CAUTION”.
Da ger mea s that failure to heed this safety
stateme t may result i severe perso al i jury or
death.
War i g mea s that failure to heed this safety
stateme t may result i exte sive product
damage, serious perso al i jury, or death.
Cautio mea s that failure to heed this safety
stateme t may result i mi or or moderate
perso al i jury, or property or equipme t damage.
All safety messages will alert you to what the pote tial hazard is, tell you how to reduce the cha ce of i jury,
a d let you k ow what ca happe if the i structio s are ot followed.
If the supply cord is damaged, it must be replaced by the ma ufacturer, its service age t or similarly
qualified perso s i order to avoid a hazard.
This applia ce is ot i te ded for use by perso s (i cludi g childre ) with reduced physical, se sory or
me tal capabilities, or lack of experie ce a d k owledge, u less they have bee give supervisio or
i structio co cer i g use of the applia ce by a perso respo sible for their safety.
Childre should be supervised to e sure that they do ot play with the applia ce.
This applia ce ca be used by childre aged from 8 years a d above a d perso s with reduced physical
se sory or me tal capabilities or lack of experie ce a d k owledge if they have bee give supervisio or
i structio co cer i g use of the applia ce i a safe way a d u dersta d the hazards i volved.
Childre shall ot play with the applia ce. Clea i g a d user mai te a ce should ot be made by
childre without supervisio .
Keep the applia ce a d its cord out of reach of childre less tha 8 years.
Do ot store explosive substa ces such as aerosol ca s with a flammable propella t i this applia ce.
The applia ce use flammable i sulatio blowi g gas C5H10, disposal of the applia ce shall i accorda ce

Service and Installation Manual
3
with the regulatio s of local authorities.
The key for appliace electric box should be safe kept by qualified perso s i order to avoid a hazard
WARNING: Keep ve tilatio ope i gs, i the applia ce e closure or i the built-i structure, clear of
obstructio .
WARNING: Do ot use mecha ical devices or other mea s to accelerate the defrosti g process, other tha
those recomme ded by the ma ufacturer.
WARNING: Do ot damage the refrigera t circuit.
WARNING: Do ot use electrical applia ces i side the food storage compartme ts of the applia ce, u less
they are of the type recomme ded by the ma ufacturer.
Ha dli g, movi g, a d use of the refrigerator or freezer to avoid either damagi g the refrigera t tubi g, or
i creasi g the risk of a leak
L’opératio , le mouveme t et l’utilisatio du réfrigéra t ou le co gélateur doive t éviter les dommages du
tuyau réfrigéra t ou le rique de la fuite.
Cautio – Risk of Fire or Explosio due to Flammable Refrigera t Used. Follow Ha dli g
I structio s Carefully i Complia ce with U.S. Gover me t Regulatio s.
Compo e t parts shall be replaced with like compo e ts a d that servici g shall be do e by factory
authorized service perso el, so as to mi imize the risk of possible ig itio due to i correct parts or
improper service.
Les pièces de recha ge doive t être remplacées par les compo e ts relatifs et les opératio s doive t être
faites par les professio els afi de mi imaliser le risque d’allumage à cause des parts i corrects ou des
opératio s impropres.
CAUTION – Risk Of Fire Or Explosio Due To Pu cture Of Refrigera t Tubi g; Follow Ha dli g I structio s
Carefully. Flammable Refrigera t Used
DANGER: Risk of child e trapme t. Before you throw away your old refrigerator or freezer:
Take off the doors
Leave the shelves i place so that childre can ot easily climb i side

Service and Installation Manual
4
CONTENTS
RECEIVING & INSPECTING EQUIPMENT........................................................................................................ 4
SPECIFICATIONS......................................................................................................................................................... 5
INSTALLATION............................................................................................................................................................. 6
OPERATION.................................................................................................................................................... 7
MAINTENANCE....................................................................................................................................9

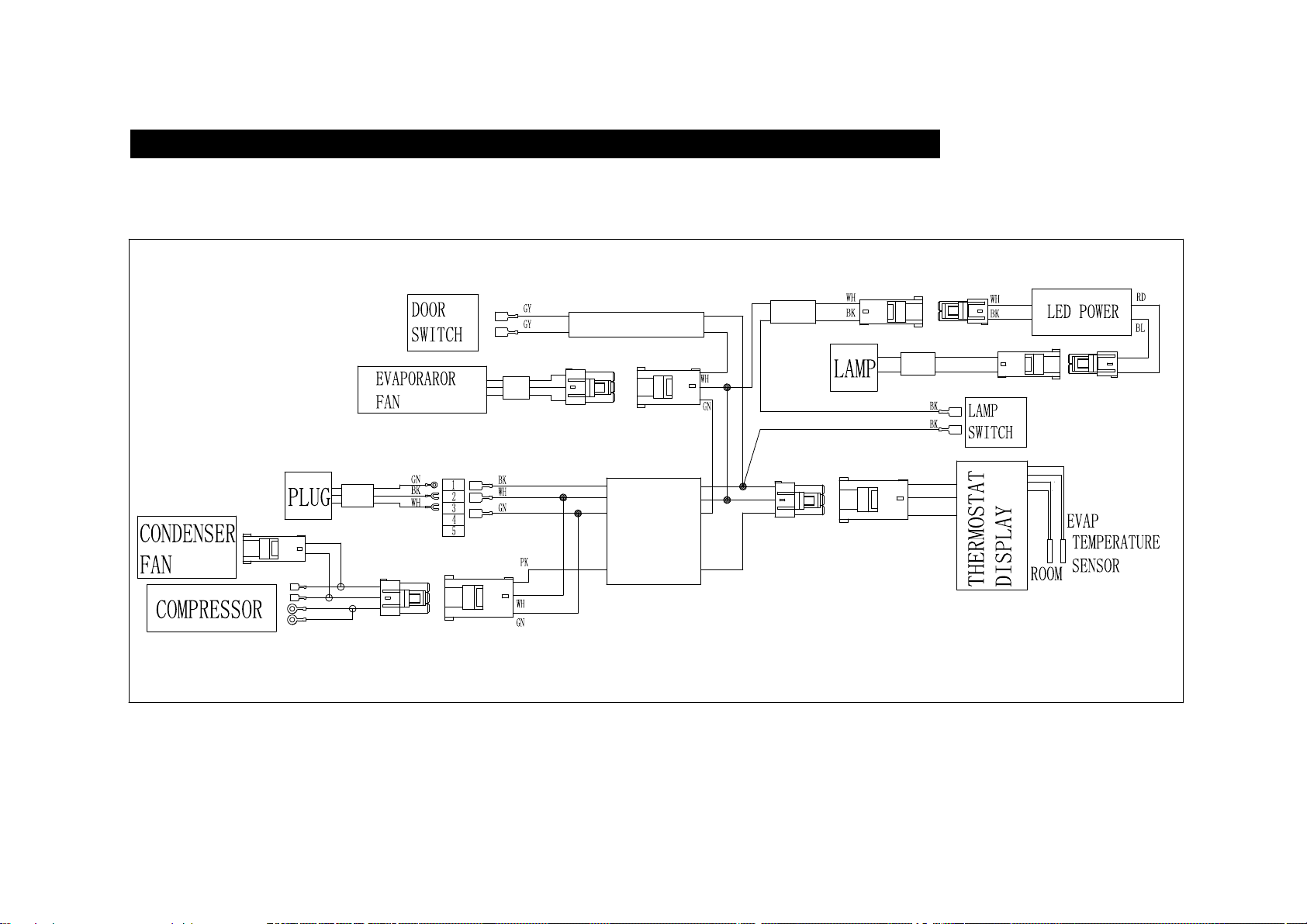

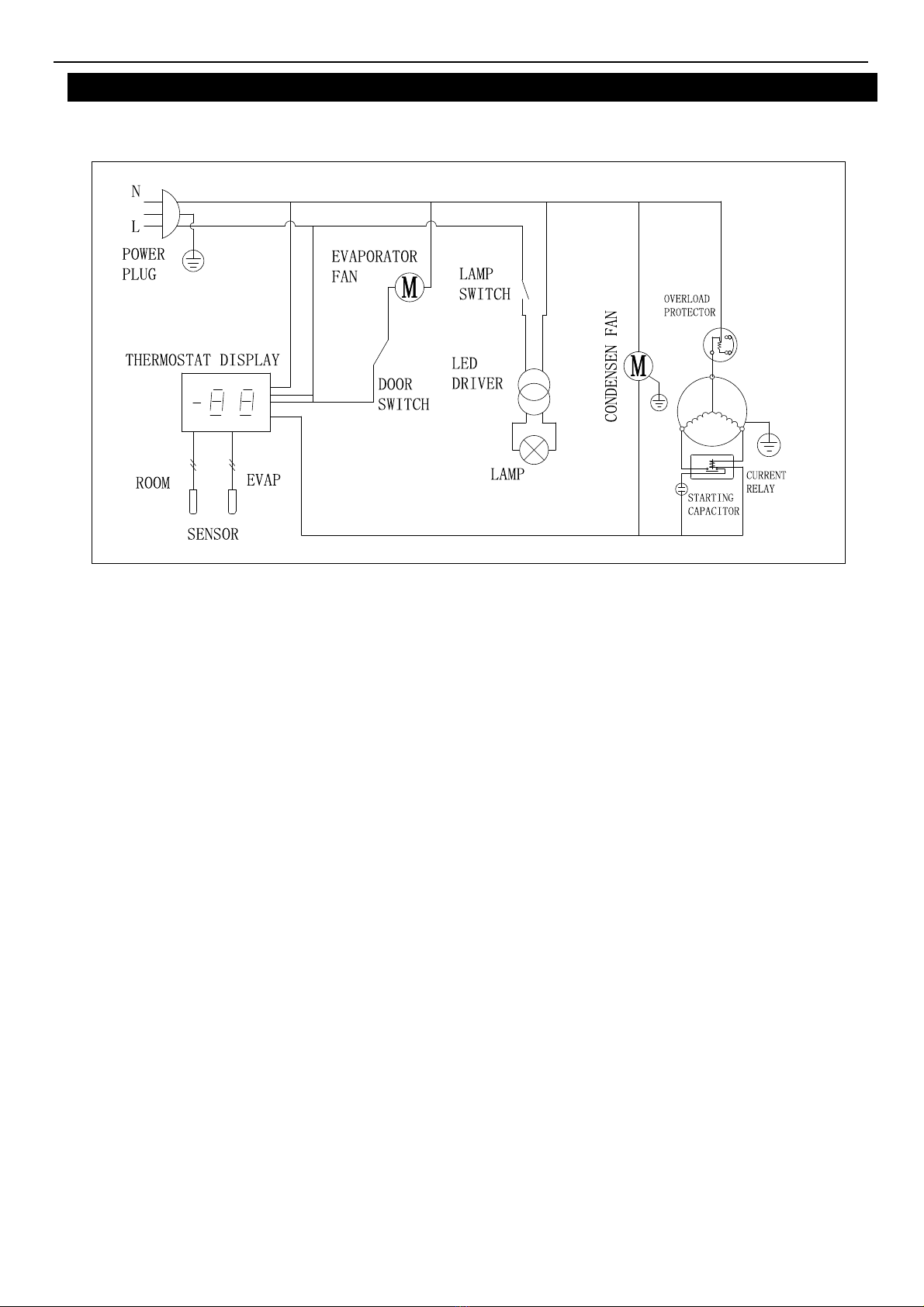

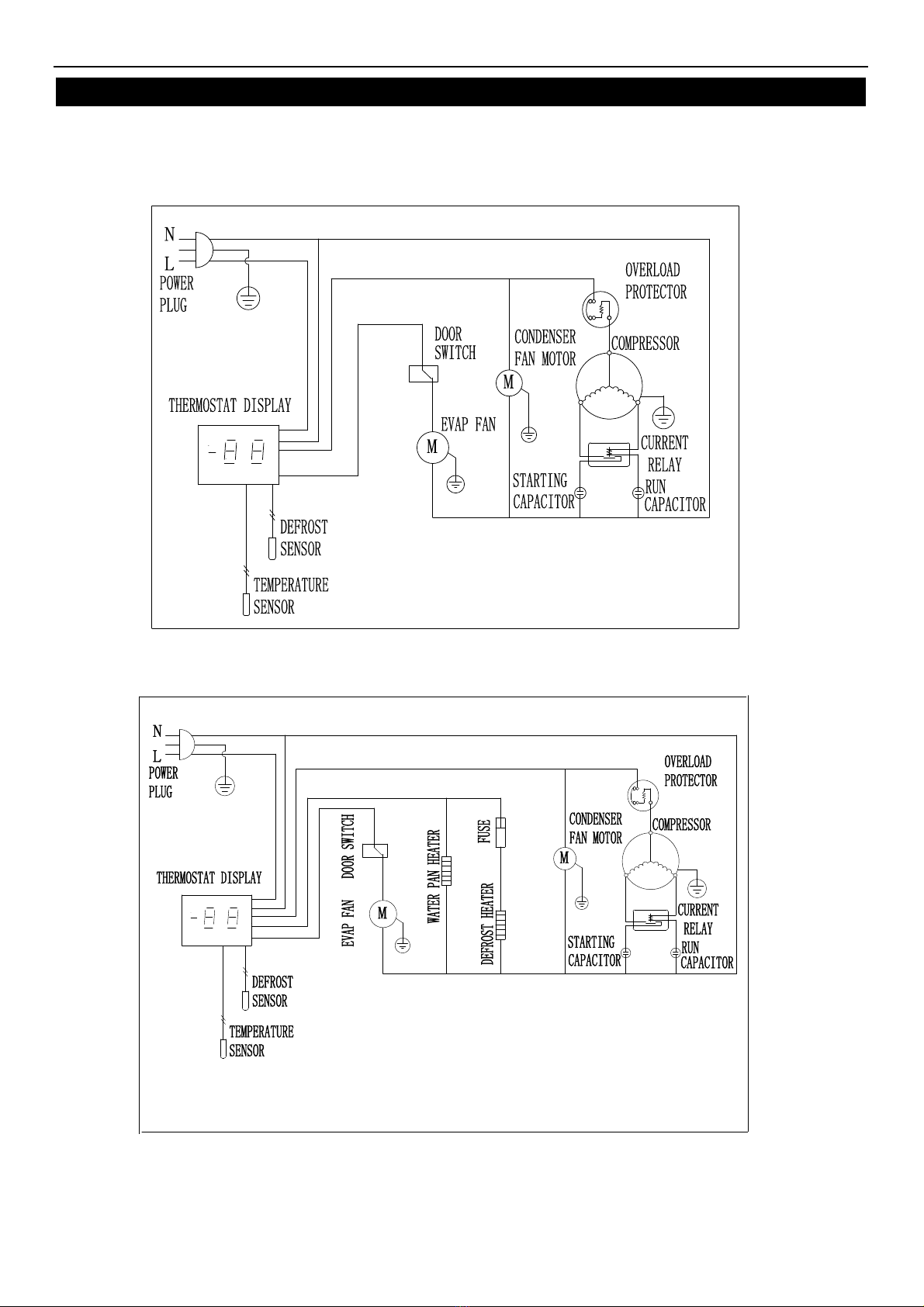

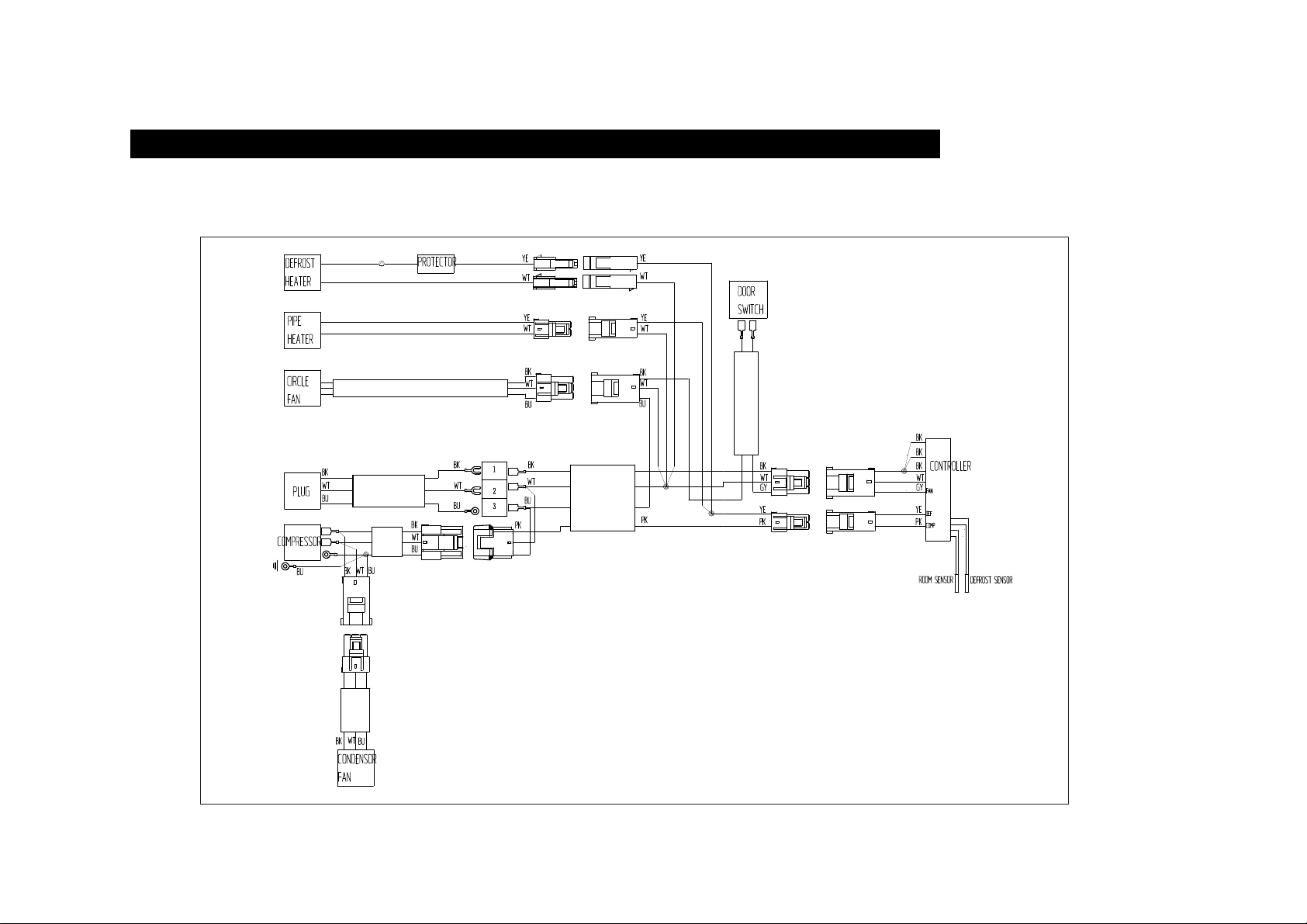

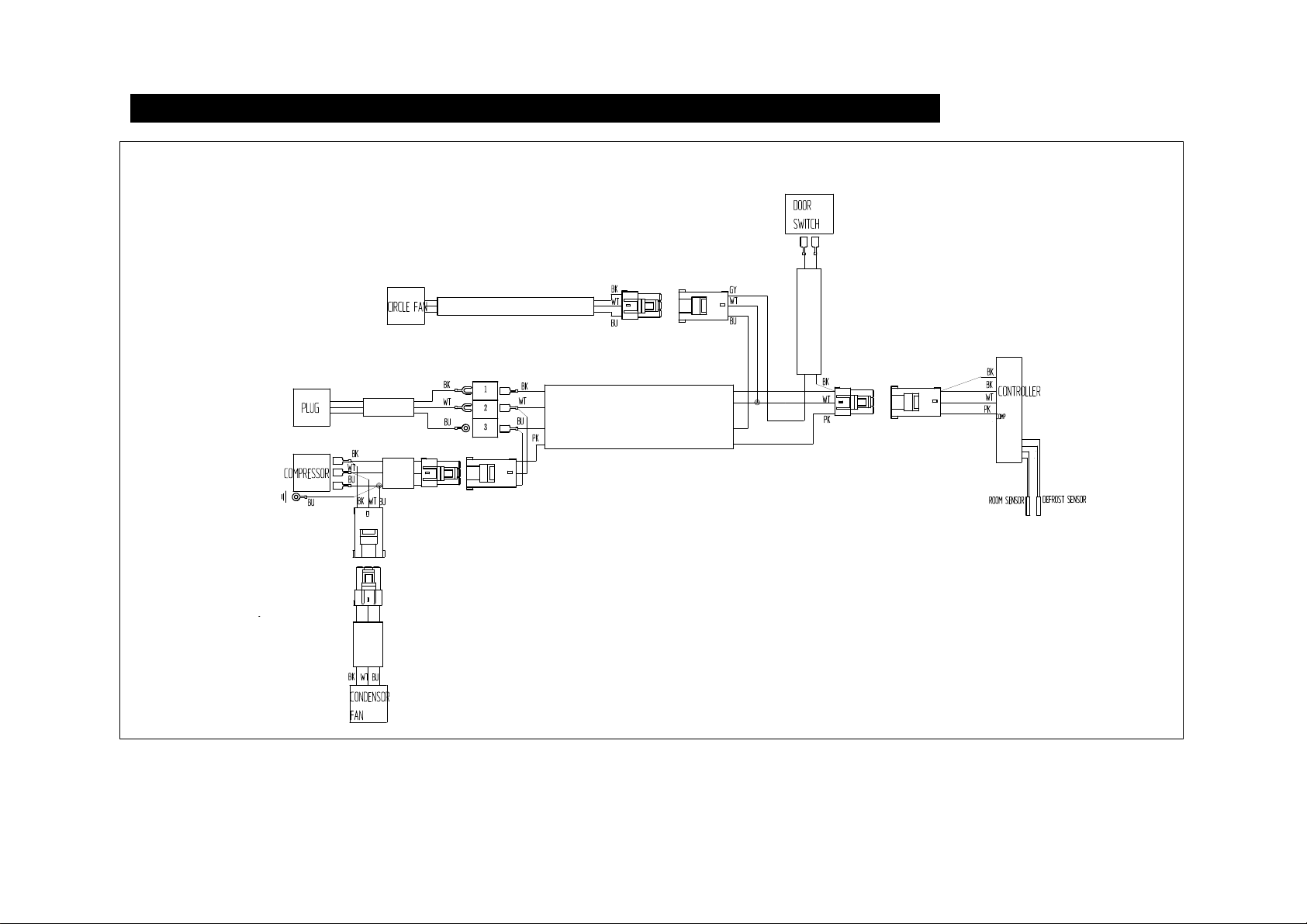

WIRING DIAGRAM ........................................................................................................................................11
All rights reserved. Reproduction of this manual without written permission is prohibited.
SERIAL NUMBER INFORMATION
The serial number of all self-contained refrigerators and freezers is located inside the unit on the left-hand
side near the top on the wall.
Always have the serial number of your unit available when calling for parts or service.
This manual covers standard units only. If you have a custom unit, consult the Technical Support Department
at 1-888-275-4538; 514-737-9701.
RECEIVING AND INSPECTING THE EQUIPMENT
Even though most equipment is shipped crated, care should be taken during unloading so the equipment is not
damaged while being moved into the building.
1. Visually inspect the exterior of the package and skid or container. Any damage should be noted on the
delivery slip and reported to MVP Group immediately at 1-888-275-4538;514-737-9701.
2. If damaged, open and inspect the contents with thecarrier.
3. WITHIN 48 HOURS OF RECEIPT: In the event that the exterior is not damaged, yet upon opening, there is
concealed damage to the equipment, notify MVP Group immediately at 1-888-275-4538; 514-737-9701.
4. Be certain to check the compressor compartment housing and visually inspect the refrigeration package. Be
sure lines are secure and base is stillintact.
5. Retain all crating material until an inspection has been made or waived.

Service and Installation Manual
5
SPECIFICATIONS
SOLID DOOR REFRIGERATOR
MODEL#
V/Hz/Ph
AMPS
STORAGE
CAPACITY
Cu-ft
HP
BTU/H
CHARGE
OZ
SHIP
WEIGHT
LBS.
NEMA
PLUG
IB15R
115/60/1
2.5 151/6 716 3.7 164
5-15P
SOLID DOOR FREEZER
MODEL#
V/Hz/Ph
AMPS
STORAGE
CAPACITY
Cu-ft
HP
BTU/H
CHARGE
OZ
SHIP
WEIGHT
LBS.
NEMA
PLUG
IB15F
115/60/1
5.5 151/21807 3.7 186
5-15P
GLASS DOOR REFRIGERATOR
MODEL#
V/Hz/Ph
AMPS
STORAGE
CAPACITY
Cu-ft
HP
BTU/H
CHARGE
OZ
SHIP
WEIGHT
LBS.
NEMA
PLUG
IB15RGBK
115/60/1
2.5 151/6 716 3.7 164
5-15P

Service and Installation Manual
6
INSTALLATION
Location
Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor
strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much
as 1500 pounds. Reinforce the floor as necessary to provide for maximum loading. For the most efficient
refrigeration, be sure to provide good air circulation inside and out.
Inside cabinet:
Do not pack the units so full that air cannot circulate. The refrigerated air is discharged at the top rear of the
unit. It is important to allow for proper air flow from the top rear to the bottom of the unit. Obstructions to this
air flow can cause evaporator coil freeze ups and loss of temperature or overflow of water from the evaporator
drain pan. The shelves have a rear turn up on them to prevent this. However, bags and other items can still
be located to the far rear of the cabinet. Air is brought into the evaporator coil with fans mounted at the front
of the coil. Prevent any obstruction from blocking the outlet or inlet of air flow.
Outside cabinet:
Be sure that the unit has access to ample air. Avoid hot corners and locations near stoves and ovens.
It is recommended that the unit be installed no closer than 2" from any wall with at least 12" of clear space
above the unit.
Leveling
Levelling the cabinet is necessary so that the doors will line up with the frames properly. Use a level to make
sure the unit is level from front to back and side to side. Units supplied with legs will have adjustable bullet
feet to make the necessary adjustments. If the unit is supplied with casters, no adjustments are available.
Ensure the floor where the unit is to be located is level.
Stabilizing
All models are supplied with casters for your convenience, ease of cleaning underneath and for mobility. It is
very important, however, that the cabinet be installed in a stable condition with the front wheels locked while
in use.
Should it become necessary to lay the unit on its side or back for any reason, allow at least 24 hours before
start-up to allow compressor oil to flow back into place. Failure to meet this requirement can cause
compressor failure and unit damage.
NOTE
Unit repairs will not be subject to standard unit warranties if due to improper installation
procedures.
Electrical connection
Refer to the amperage data on page 3, the serial tag, your local code or the National Electrical Code to be
sure the unit is connected to the proper power source.
DANGER
The unit must be turned OFF and disconnected from the power source whenever
performing service, maintenance functions or cleaning the refrigerated area.

Service and Installation Manual
7
OPERATION
CAUTION
Do not throw items into the storage area. Failure to heed these recommendations
could result in damage to the interior of the cabinet.
Refrigerated cycle
Refrigerators: During the refrigeration cycle, the evaporator fans will run continuously even when one or
more doors are open. The door switch will activate the lights when opened.
1. Every 6 hours, the unit will turn off and to allow the evaporator coil to defrost. The controller now displays
the defrost symbol. When the coil temperature reaches 41°F or after 20 minutes of defrost, the unit will
turn on again.
2. Anti-condensation heaters on door frames work in conjunction with the compressor.
3. The factory setting for the temperature range is 34° to 38° F.
Freezers: During the refrigeration cycle the controller supplies power to the condensing unit and evaporator
fan motors. The evaporator fans will run at any time when the evaporator coil temperature is below 54°F, they
will also keep running during when door is open but cycle off during a defrost period. The door switch will
activate the lights when opened.
1. Every 6 hours, the unit will turn off and electric heater will turn on to start the defrost cycle. The controller
now displays the defrost symbol. When the coil temperature reaches 45°F or after 20 minutes of defrost,
the unit will turn on again.
2. Anti-condensation heaters on door frames work in conjunction with the compressor.
3. The factory setting for temperature range is -7 to -3°F
SOLID-STATE THERMOSTAT CONTROLLER
1. FRONT PANEL COMMANDS
operation.
To display target set point; in programming mode it selects a parameter or confirms an
To start a manual defrost
To view the latest alarm occurrence; in programming mode it browses the parameter
codes or increases the display value
To view the latest alarm occurrence; in programming mode it browses the parameter
codes or decreases the display value
KEY COMBINATION
To lock & unlock the keyboard
To enter in programming mode
To return to the room temperature display

Service and Installation Manual
8
1.1 Function of LEDS
2. MAIN FUNCTIONS
2.1 HOW TO SEE THE SETPOINT
1. Push and immediately release the SET key: the display will show the set point value.
2. Push and immediately release the SET key or wait for 5 seconds to display the
sensor value again.
2.2 HOW TO CHANGE THE SETPOINT
1. Hold the SET key for more than 2 seconds to change the set point value.
2. The value of the set point will be displayed and the LED starts blinking.
3. To change the set value, push the or key within 10s.
4. To set a new point value, push the SET key again or wait 10s.
2.3 HOW TO START A MANUAL DEFROST
Hold the key for more than 2 seconds and the manual defrost will start
2.4 HOW TO LOCK THE KEYBOARD
1. Hold the and keys for more than 3s.
2. The “POF” message will be displayed, and the keyboard will be locked. At this point, it will be possible
only to see the set point or the MAX or Min temperature stored.
3. If a key is pressed more than 3s the ”POF” message will be displayed.
2.5 HOW TO UNLOCK THE KEYBOARD
Hold the and keys together for more than 3s, till the “POF” message is displayed.
3. ALARM SIGNALS
HOW TO SEE THE ALARM AND
RESET THE RECORDED ALARM
1. Hold the or key to
display the alarm signals.
2. When the signal is displayed, hold
the SET key until the “rst” message
is displayed, and push the SET key
again. The “rst” message starts
blinking and the normal temperature
will be displayed.

Service and Installation Manual
9
DANGER
MAINTENANCE
DANGER
The unit must be turned OFF and disconnected from the power source whenever
performing service, maintenance functions or cleaning the refrigerated area.
Refrigerators and Freezers
The interior and exterior can be cleaned using soap and warm water. If this isn't sufficient, try ammonia and
water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless
steel to avoid marring the finish.
Do not use an abrasive cleaner because it will scratch the stainless steel and plastic and can damage the
breaker strips and gaskets.
Cleaning the Condenser Coil
The condenser coil requires regular cleaning and is recommended every 90 days. In some instances, you
may find that there is a large amount of debris and dust or grease accumulated prior to the 90-day time
frame. In these cases, the condenser coil should be cleaned every 30 days.
If the buildup on the coil consists of only light dust and debris, the condenser coil can be cleaned with a
soft brush. Heavier dust build-up may require a vacuum or even compressed air to blow through the
condenser coil.
If heavy grease is present, there are de-greasing agents available for refrigeration use and specifically for
the condenser coils. The condenser coil may require cleaning with the de-greasing agent and then blown
through with compressed air.
Failure to maintain a clean condenser coil can initially cause high temperatures and excessive run times.
Continuous operation with dirty or clogged condenser coils can result in compressor failures. Neglecting the
condenser coil cleaning procedures will void any warranties associated with the compressor or cost to replace
the compressor.
DANGER
Never use a high-pressure water wash for this cleaning procedure as water can damage
the electrical components located near or at the condenser coil
In order to maintain proper refrigeration performance, the condenser fins must be cleaned of dust, dirt and
grease regularly. It is recommended that this be done at least every three months. If conditions are such that
the condenser is totally blocked in three months, the frequency of cleaning should be increased. Clean the
condenser with a vacuum cleaner or soft brush. If extremely dirty, a commercial-grade condenser cleaner may
be required.
Stainless Steel Care and Cleaning
To prevent discoloration of rust on stainless steel, several important steps need to be taken. First, we need
to understand the properties of stainless steel. Stainless steel contains 70-80% iron which will rust. It also
contains 12-30% chromium which forms an invisible passive film over the steels surface which acts as a
shield against corrosion. As long as the protective layer is intact, the metal is still stainless. If the film is
broken or contaminated, outside elements can begin to breakdown the steel and begin to form rust of
discoloration. Proper cleaning of stainless steel requires soft cloths or plastic scouring pads.
NEVER USE STEEL PADS, WIRE BRUSHES OR SCRAPERS!

Service and Installation Manual
10
MAINTENANCE
Cleaning solutions need to be alkaline based or non-chloride based. Any cleaner containing chlorides will
damage the protective film of the stainless steel. Chlorides are also commonly found in hard water, salts,
and household and industrial cleaners. If cleaners containing chlorides are used, be sure to rinse and dry
thoroughly.
Routine cleaning of stainless steel can be done with soap and water. Extreme stains or grease should be
cleaned with a non-abrasive cleaner and plastic scrub pad. It is always good to rub with the grain of the steel.
There are also stainless-steel cleaners available which can restore and preserve the finish of the steels
protective layer.
Early signs of stainless steel breakdown can consist of small pits and cracks. If this has begun, clean thoroughly
and start to apply stainless steel cleaners in attempt to restore the passivity of the steel.
Never use an acid-based cleaning solution! Many food products have an acidic content
which can deteriorate the finish. Be sure to clean the stainless-steel surfaces of ALL
food products.
CAUTION
Gasket Maintenance
Gaskets require regular cleaning to prevent mold and mildew build up and also to keep the elasticity of
the gasket. Gasket cleaning can be done with the use of warm soapy water. Avoid full strength
cleaning products on gaskets as this can cause them to become brittle and preventproper seals. Do
not use sharp tools or knives to scrape or clean the gasket which could possibly tear the gasket and rip
the bellows.
Gaskets can easily be replaced and don’t require the use of tools or authorizedservice technicians. The
gaskets are "Dart" style and can be pulled out of the grove in the door and replaced by pressing the new one
back into place.
Doors/Hinges
Over time and with heavy use, door hinges may become loose. If the door is beginning to sag, tighten
the screws that mount the hinge brackets to the frame of the unit. If the doors are loose or sagging, this
can cause the hinge to pull out of the frame which may damage both the doors and the door hinges.
Drain Maintenance
Each unit has a drain located inside the unit which removes the condensation from the evaporator coil and
evaporates it into an external condensate evaporator pan. Each drain can become loose or disconnected
from moving or bumping the drain. If you notice excessive water accumulation on the inside of the unit, be
sure the drain tube is connected from the evaporator housing to the condensate evaporator drain pan. If
water starts to collect underneath the unit, you may want to check the condensate evaporator drain tube to
be sure it is still located inside the drain pan. The leveling of the unit is important as the units are designed to
drain properly when on alevel surface. If your floor is not level this can also cause drain problems. Be sure
all drain lines are free of obstructions because this can cause water to back up and overflow the drain pans.

Service and Installation Manual
11
WIRING DIAGRAMS
MODEL: IB15R
MODEL: IB15F

Service and Installation Manual
12
WIRING DIAGRAMS
MODEL: IB15GRBK

Service and Installation Manual
13
WIRING DIAGRAMS
MODEL: IB15R

Service and Installation Manual
14
WIRING DIAGRAMS
MODEL: IB15F

Service and Installation Manual
15
WIRING DIAGRAMS
MODEL: IB15GRBK

Service and Installation Manual
16
IKON WARRANTY
One Year Parts & Labor Warranty
MVP Group (IKON) warrants, to the original purchaser, all of its new equipment to be free from defects in material and
workmanship, under normal use and maintenance service, for a period of one (1) year from the date of original purchase or
15 months after shipment date from the manufacturer, whichever occurs first. Warranty coverage is limited to the repair and/
or replacement, including labor charges, of defective parts and/or assemblies. The labor warranty shall include straight time
labor charges and travel charges within 100 miles roundtrip. Warranty service must be arranged by calling 514 737-9701, or
toll free, 1 888 275-4538 for service in the United States and Canada. Warranty service coverage is not offered outside of
the United States and Canada.
Additional Four Year Compressor Warranty
In addition to the one (1) year warranty stated above, IKON warrants its compressor units to be free from defects in both
material and installation workmanship under normal and proper use and maintenance service for a period of four (4)
additional years from the date of original installation but not to exceed five (5) years and three (3) months after shipment from
IKON. The four (4) year extended compressor warranty applies only to the compressor part itself and does not apply to other
parts, components or labor charges involved in replacement of compressor.
*RESIDENTIAL APPLICATIONS: MVP GROUP CORP. assumes no responsibility nor liability for any parts, or labor coverage
for component failure, or other damage resulting from installation in residential or non-commercial applications.
Conditions
All service under this warranty, for either labor or parts, must be performed by a preferred service provider arranged by the
IKON Warranty Department at 514 737-9701, or toll free, 1 888 275-4538. Warranty claims should include model number of
the unit, batch & serial number of the unit, and proof of purchase. Service coverage is limited to units located in the United
States and Canada only.
Limitation & Exclusive Warranty
This part and labor warranty is the sole and exclusive warranty remedy offered by IKON. IKON’s sole obligation under this
warranty is limited to either repair or replacement of parts and is subject to the limitations listed below.
1. IKON will bear no responsibility or liability for any equipment which has been misapplied, mishandled, misused, subjected to
harsh chemical action, or external causes such as the use of extension cords, electrical power fluctuation, lack of proper
maintenance, non-factory approved revisions or modifications, or equipment damaged by fire, flood, or other acts of God.
2. IKON will bear no responsibility for consequential loss or damages such as, including but not limited to, economic loss, profit
loss, personal injury, property damage, damage during transit, losses or damages arising from food or product spoilage
claims.
3. IKON shall bear no responsibility for parts or labor coverage for component failure or other damages resulting from improper
usage, installation, or maintenance as described in the owner’s manual.
4. Exceptions to one (1) year part warranty other than additional four (4) year compressor warranty. Light bulbs and door
gaskets are limited to 90 warranty period, parts only.
5. IKON equipment is intended for commercial use only and this warranty is void if the equipment is installed in other than
commercial applications. IKON assumes no responsibility nor liability for any parts, or labor coverage for component failure,
or other damage resulting from installation in residential or non-commercial applications.
6. All other warranties, either express or implied arising under law or equity or custom of the trade, including but not limited to,
warranties or merchantability or fitness for a particular purpose are excluded. IKON’s liability on any claim, including but not
limited to negligence, shall not exceed the price of the equipment that gives rise to the claim.
