iLive ITDE2288 User manual

21.5" LED HDTV + DVD
User’s Guide for Model ITDE2288 v2108-01
For the most up-to-date version of this User’s Guide, go to www.iliveelectronics.com

2

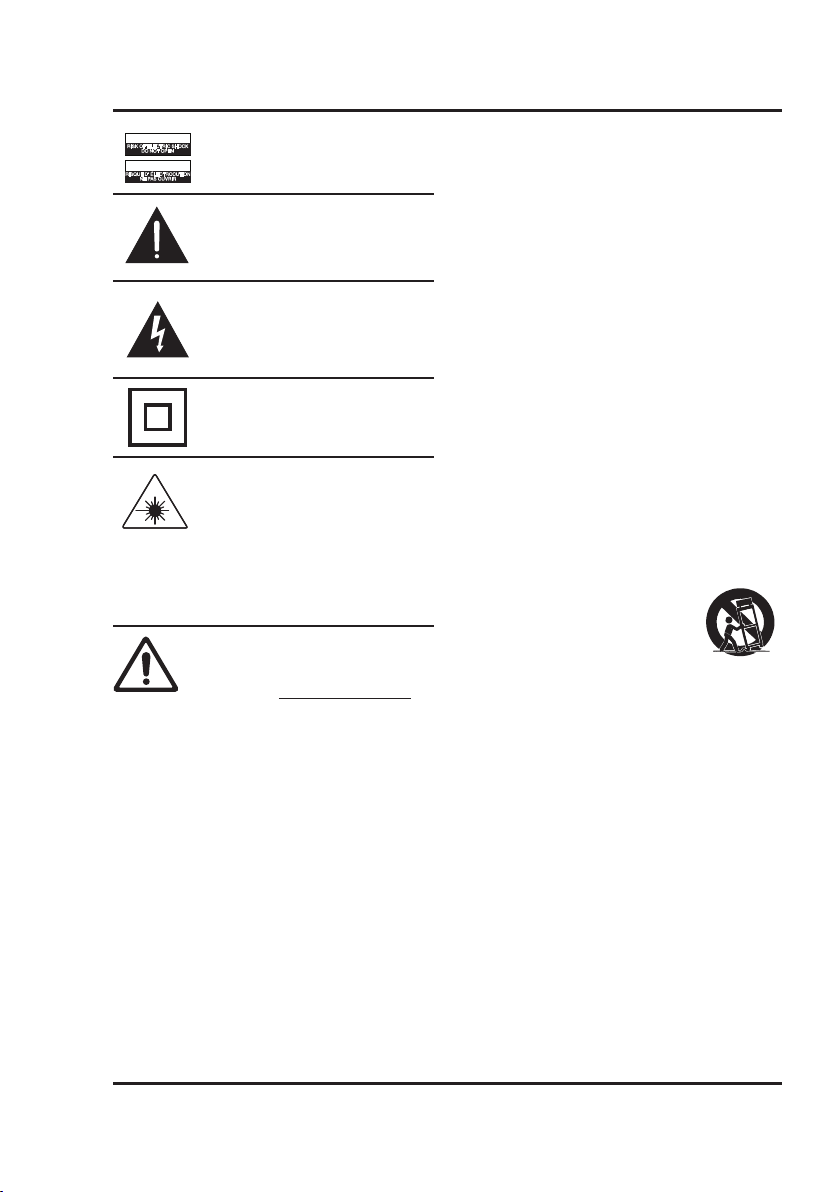

Safety Instructions & Warnings
Important Safety Instructions
• Read these Instructions.
• Keep these Instructions.
• Heed all Warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers)
that produce heat.
• Do not defeat the safety purpose of the polarized or
grounding - type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. When the provided
plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
• Only use attachments/accessories specied by the
manufacturer.
• Unplug this apparatus during lightning storms or when
unused for long periods of time.
• Refer all servicing to qualied service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
• Use only with a cart, stand, tripod, bracket,
or table specied by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
WARNING: Never place a television set in an unstable location.
A televisions set may fall, causing serious personal injury or
death. Many injuries, particularly to children can be avoided by
taking simple precautions such as:
• Using cabinets or stands recommended by the manufacturer
of the televisions set.
• Only using furniture that can safely support the television set.
• Ensuring the televisions set is not overhanging the edge of
the supporting furniture.
• Not placing the televisions set on cloth or other materials that
may be located between the televisions set and supporting
furniture.
• Educating children about the dangers of climbing on
furniture to reach the televisions set or its controls.
If your television set is being retained and relocated, the same
considerations as above should be applied.
NOTE: When choosing where to place this TV that there is a
chance of staining and marks on the surface. As with any rubber
compound made with oils, the feet could cause marks or staining
where the feet rest.
WARNING: To reduce the risk of electric
shock, do not remove cover (or back). No
user-serviceable parts inside. Refer servicing
to qualied service personnel.
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
This symbol indicates that this product
incorporates double insulation between
hazardous mains voltage and user accessible
parts.
The lightning ash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of un-insulated
“dangerous voltage” within the product’s
enclosure that may be of sufcient magnitude
to constitute a risk of electric shock to persons.
This product utilizes a Class 1 laser to read
Compact Discs. This laser Compact Disc
Player is equipped with safety switches to
avoid exposure when the CD door is open and
the safety interlocks are defeated. Invisible
laser radiation is present when the CD Player’s
lid is open and the system’s interlock has failed
or been defeated. It is very important that you
avoid direct exposure to the laser beam at
all times. Please do not attempt to defeat or
bypass the safety switches.
WARNING : This product can expose you to
chemicals including lead, which is known to
the State of California to cause cancer and birth
defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov.
This product meets and complies with all
Federal regulations.

3
FCC Warnings
Warning: Changes or modications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Additional Warnings and Precautions
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
• Mains plug is used as disconnect device and it should remain
readily operable during intended use. In order to disconnect
the apparatus from the mains completely, the mains plug
should be disconnected from the mains socket outlet
completely.
• CAUTION: Use of controls or adjustments or performance
of procedures other than those specied may result in
hazardous radiation exposure.
• WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
• WARNING: Use of this unit near uorescent lighting may
cause interference regarding use of the remote. If the unit is
displaying erratic behavior move away from any uorescent
lighting, as it may be the cause.
• WARNING: Shock hazard - Do Not Open.
• Caution and marking information is located at the rear or
bottom of the apparatus.
• WARNING: To reduce the risk of re or electric shock,
do not expose this apparatus to rain, moisture, dripping, or
splashing.
• Objects lled with liquids, such as vases, shall not be placed
on the apparatus.
• CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
• WARNING: There is a danger of explosion if you attempt
to charge standard Alkaline batteries in the unit. Only use
rechargeable NiMH batteries.
• Battery shall not be exposed to excessive heat such as
sunshine, re or the like.
• Keep new and used batteries away from children. If the
battery compartment does not close securely, stop using the
product and keep it away from children.
• If you think batteries might have been swallowed or
placed inside any part of the body, seek immediate medical
attention.
• Do not mix old and new batteries.
• Completely replace all old batteries with new ones.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable
(ni-cad, ni-mh, etc) batteries.
• Batteries should be recycled or disposed of as per state and
local guidelines.

4
Table of Contents
Your 21.5" HDTV + DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Specications
Includes
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connecting the Stand
Power
Remote Batteries
Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
TV Controls & Inputs
Remote

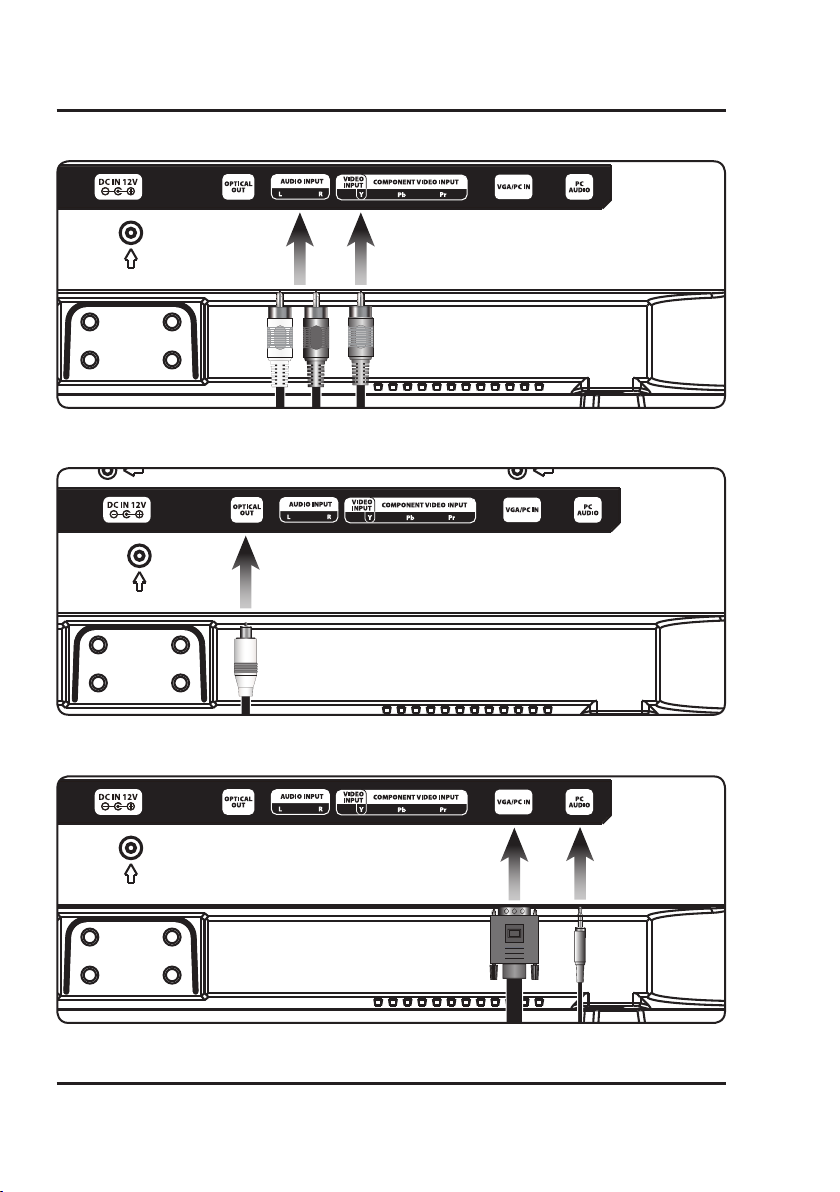

Connecting Devices to Your TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connecting Cable/TV Antenna
Connecting HDMI
Connecting Component (YPbPr) Video/Audio
Connecting Composite Audio/Video
Connecting Optical Audio
Connecting a Computer
Connecting Audio Output
DVD & CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Playing a DVD or CD
Programming a DVD or CD
DVD Setup Menu

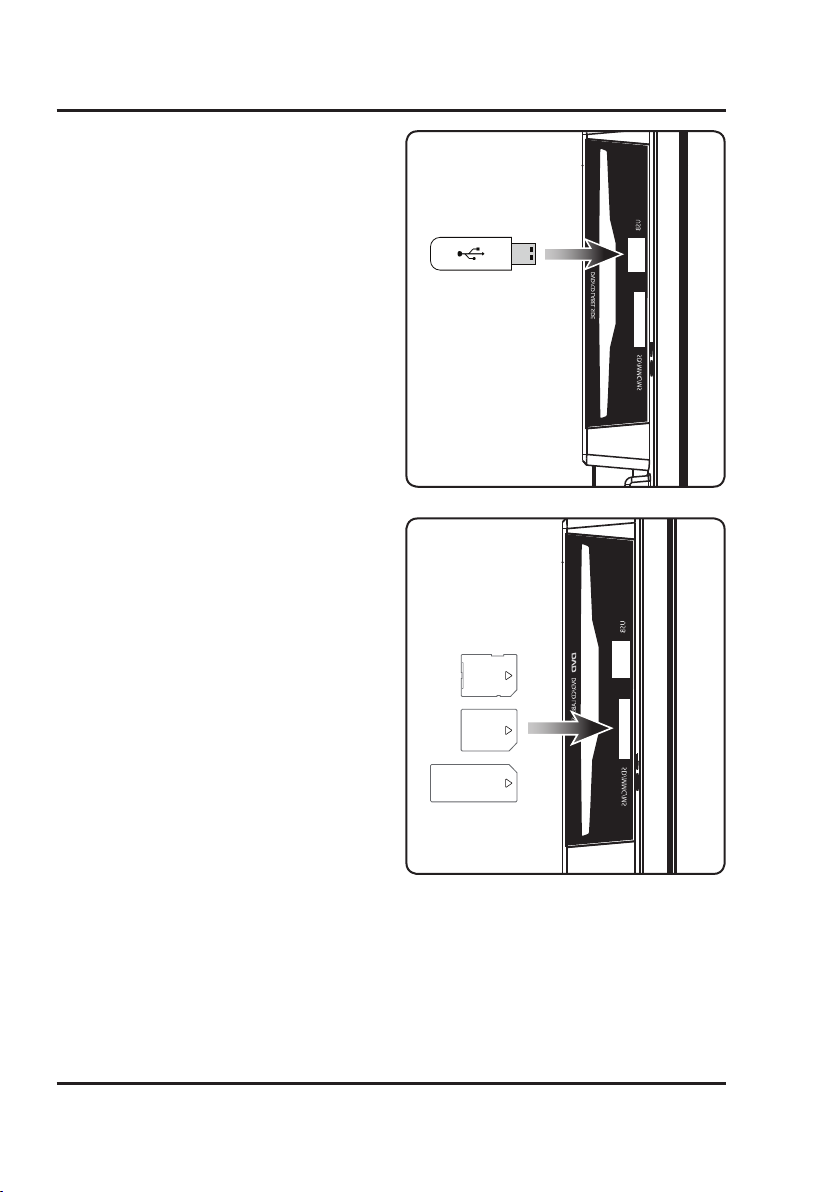

USB & Memory Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Using a USB Thumb Drive
Using a Memory Card
Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Auto Scanning for Channels
Parental Controls (V-Chip)
Setting Favorites
Viewing Favorites
Setting the Clock
Mounting to a Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
VESA Specications
Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Contact Information
Warranty
International Support

5
Your 21.5" HDTV + DVD
Specifications
• 1080p Full HD
• 1920 x 1080 native resolution
• DVD player: DVD, DVD±R/RW supported
• CD player: CD, CD-R/RW, JPEG CD
• Built-in stereo speakers
• Inputs: RF, HDMI, Component/Composite Video,
RCA Stereo Audio, VGA/PC, 3.5mm Audio
• Outputs: Optical Audio, 3.5mm Audio
• USB port: supports JPEG image/MP3 audio/
MPEG1,2 & 4 video files
• SD/MMC/MS memory card reader: supports JPEG
image/MP3 audio/MPEG1,2 & 4 video files
Includes
• Remote control and 2 AAA batteries
• Removable stand
• AC/DC power adapter
• User's Guide
Setup

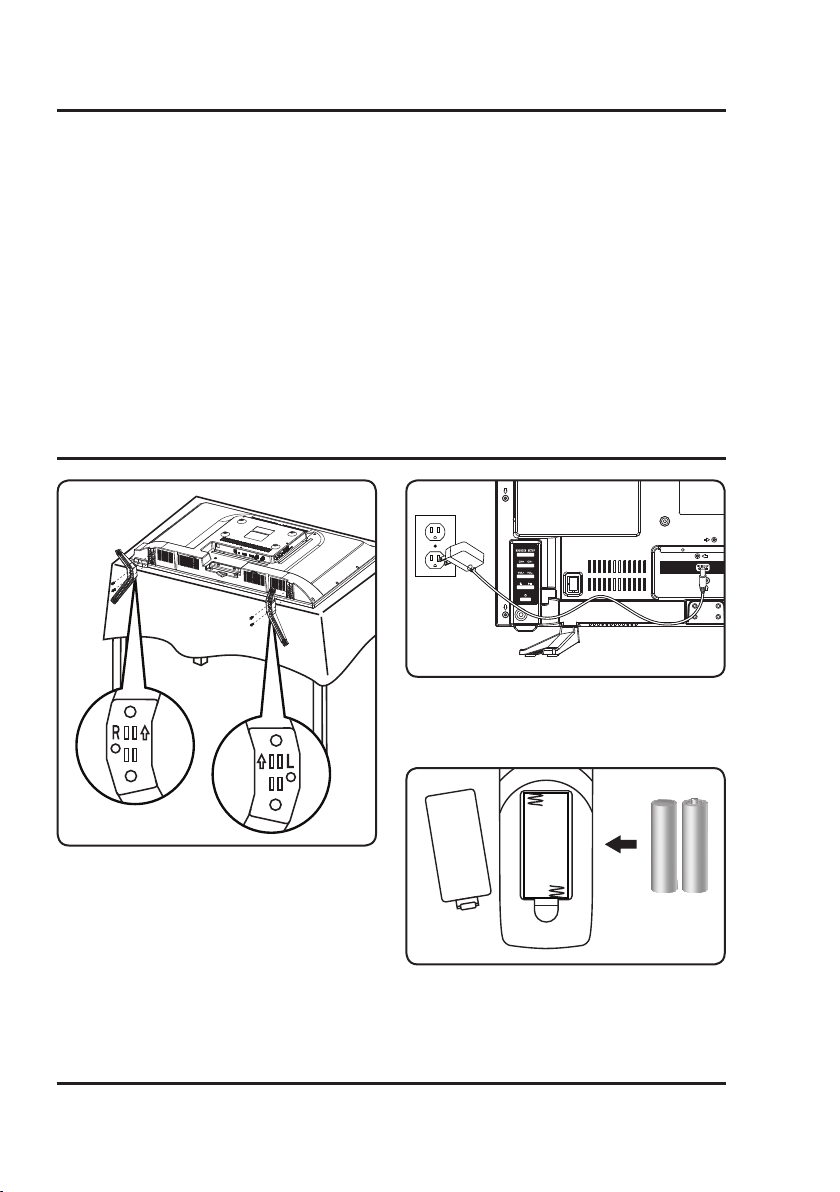

Remote Batteries
Requires 2, AAA-size batteries (included)
Connecting the Stand
When placing TV on flat surface, be careful not to push,
scratch, or otherwise damage the front of the TV and
LCD screen. Using a phillips-head screwdriver, tighten
the screws by hand. Using a power drill could damage
the TV stand.
Power
Plug the AC/DC power adapter (included) into the DC
power input on the TV and a standard power outlet.

6

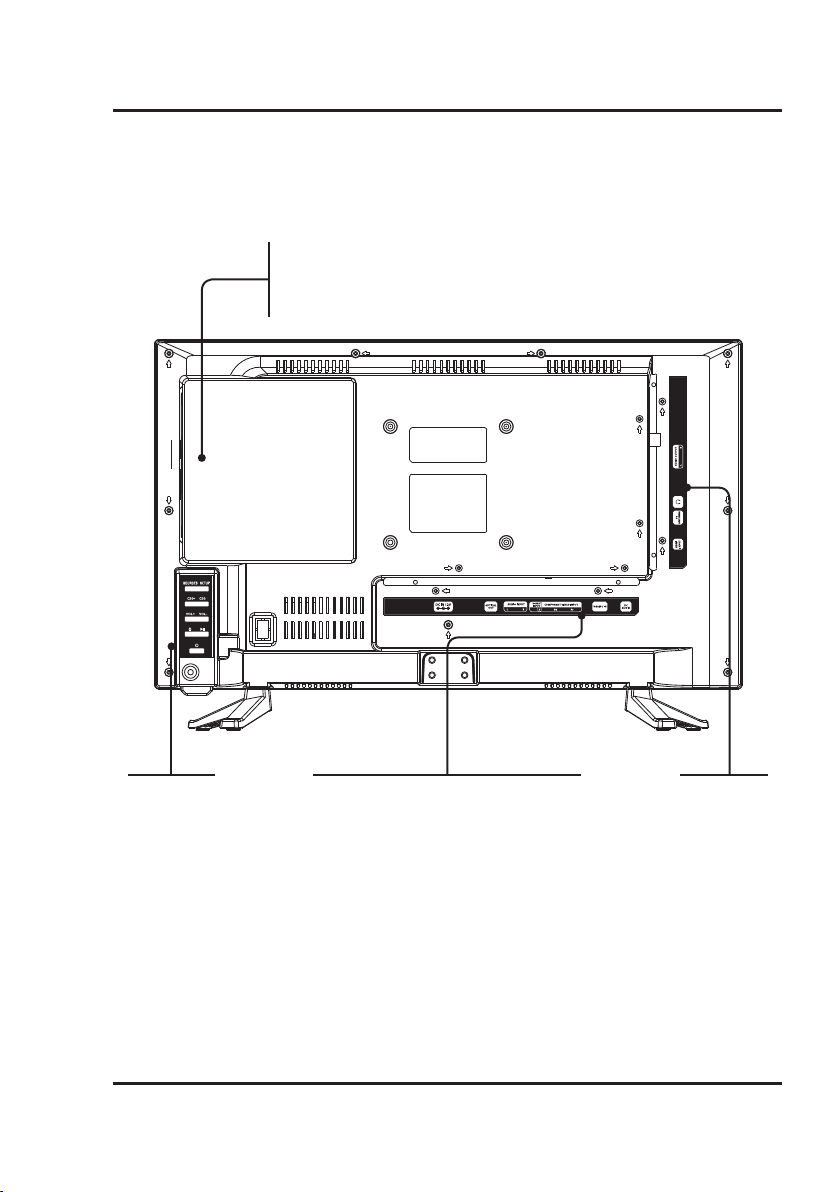

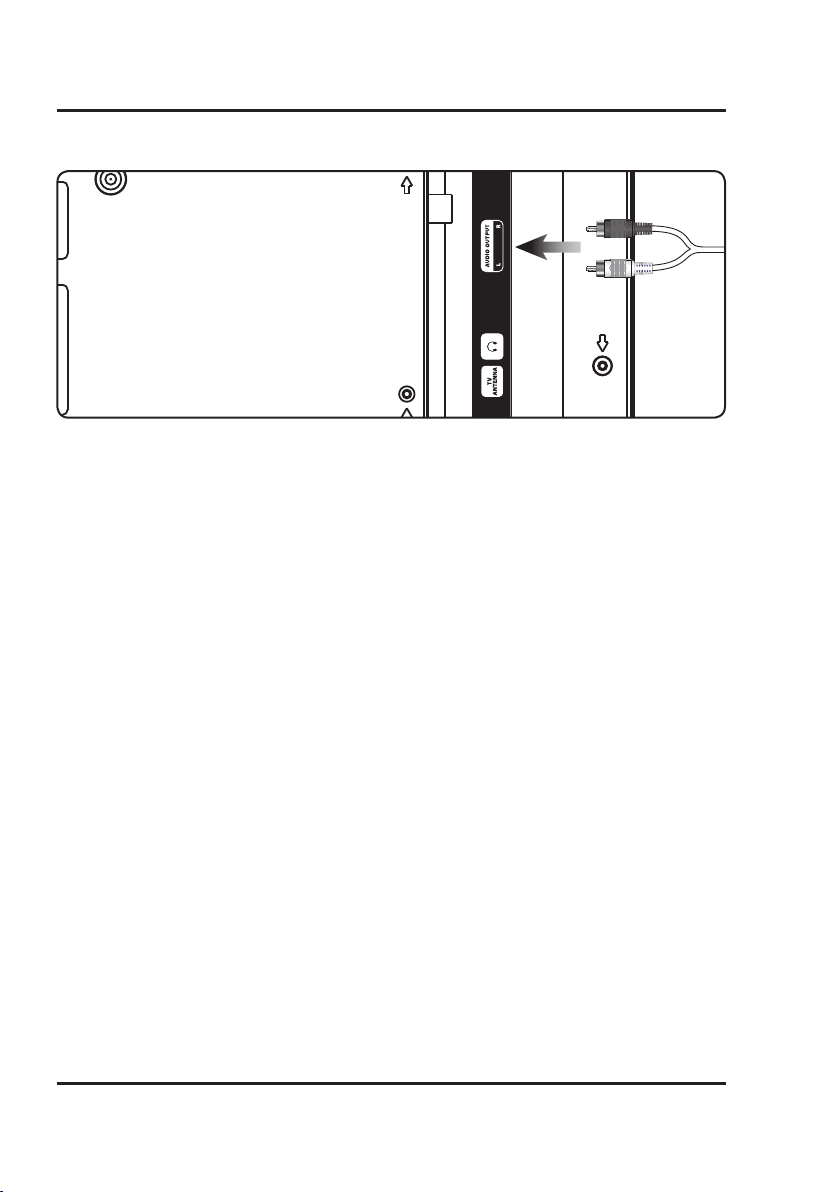

TV Controls & Inputs
NOTE: Some pixels may be visible on the screen, appearing as tiny red, green, blue or black spots. This is normal and is
not a defect on the TV and does not negatively affect the performance or picture quality.
Orientation
Optical Audio
Output
Stereo
Audio Input
Composite
Video Input (Y)
Component
Video Input
(Y/Pb/Pr)
VGA/PC Video Input
PC Audio Input
(3.5mm)
HDMI
TV Antenna/
Cable Input
Headphone Jack
3.5mm
Audio Output
Source/Setup
Channel +/-
Volume +/-
Eject/Play/Pause
Power ON/OFF
CD/DVD Player
USB Port
Memory Card Port

7

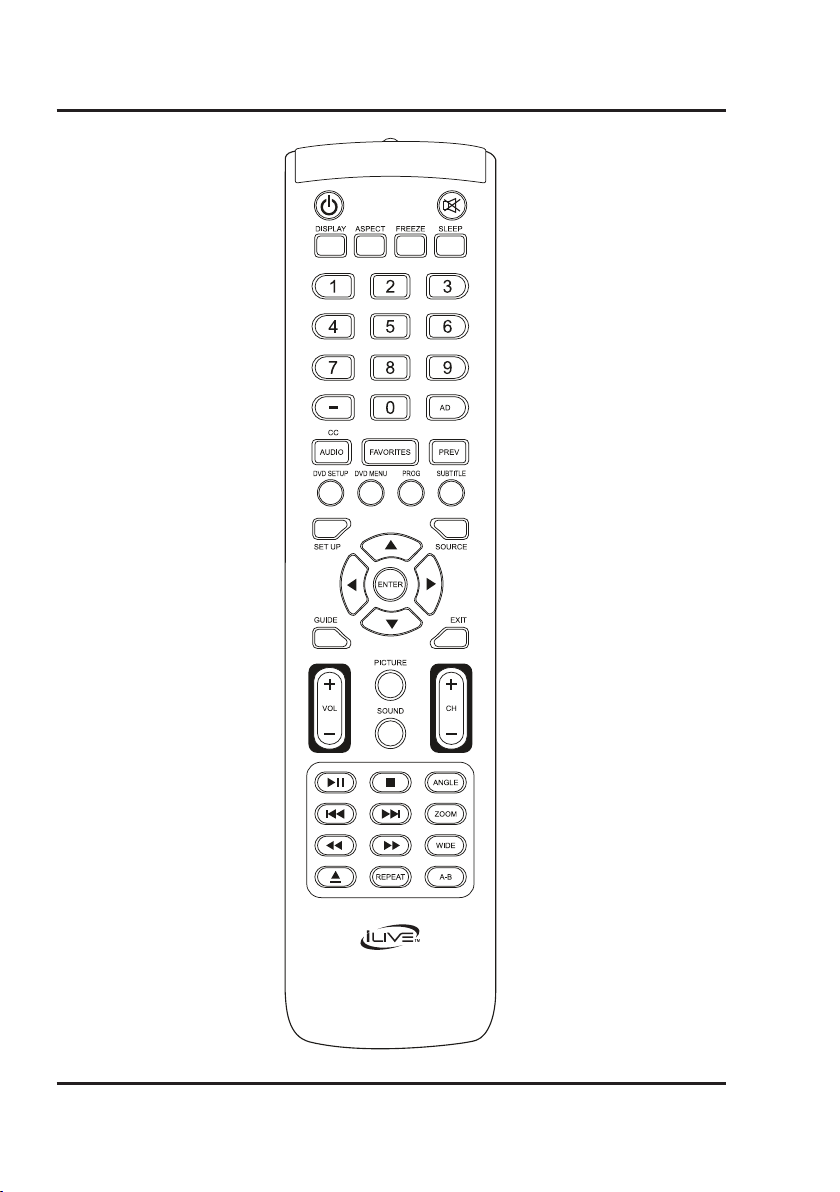

Remote
Power
Press to power the television
ON or OFF.
Display
Press to view the on-screen
display.
Aspect
Press to adjust the aspect ratio
between ZOOM, WIDE, CINEMA,
and NORMAL.
Number Keypad
Use to enter channel or track
numbers.
CC/Audio
For TV play, press to turn closed
captioning ON or OFF.
For DVD play, press to adjust
audio settings for the DVD.
DVD Setup
Change settings for a loaded
DVD.
DVD Menu
Press to access a loaded DVD’s
menu.
Setup
Press to view the television setup
menu.
Guide
In TV mode, press to view the
on-screen television guide.
Volume ±
Press to adjust the audio level of
the television.
Press to adjust picture settings.
Play/Pause
Press to play or pause playback.
Stop
Press to stop playback.
Skip Back/Forward
Press to skip between chapters
or tracks.
Reverse/Fast Fwd
Press to search through a chapter
or track.
Eject
Press to eject a loaded disc.
Repeat
Press to repeat the current
selection or track.
Mute
Press to mute audio.
Freeze
Press to freeze or unfreeze the
current frame in TV mode.
Sleep
Press to set the sleep timer.
After the set time has expired
the television will automatically
power OFF.
Favorites
Press to access your saved
channels.
Prev
In TV mode, press to switch to
the previous channel.
AD
Press to enter the Audio
Description and Text-to-Talk
(TTS) settings menu (intended
for hearing and visually impaired
users).
Prog
Press to program a loaded disc to
play titles, chapters, or tracks in a
specified order.
Subtitle
Press to turn subtitles ON or OFF.
Source
Press and use the Arrow/Enter
buttons to select the source.
Arrows/Enter
Press to make selections in the
on screen menus.
Exit
Press to exit the current on-
screen menu.
Sound
Press to adjust the sound
between STANDARD, MUSIC,
USER, MOVIE, and SPORTS. The
user mode can be customized
by accessing Sound Settings in
the menu.
Angle
Press to view alternate angles on
supported DVDs.
Zoom
Press to zoom in or out on
supported media files or discs.
Wide
Press to switch between 4:3 LB,
4:3 PS, and 16:9.
A-B
Create a repeating loop on a CD,
DVD, or media file.
Press to set A point (start), press
again to set B point (end).
Press a third time to cancel.

8
Connecting Cable/TV Antenna
Required: cable/antenna wire (not included).
1. Connect the Cable/Antenna wire to the input on the television.
2. Press the Source button to switch to TV mode.
3. Press the Setup button to access the setup menu.
4. Press the Arrow () buttons to highlight the Channel icon, and press the Enter button.
5. Press the Arrow () buttons to highlight Air/Cable. Press the Arrow () buttons
to select AIR or Cable.
6. Press the Arrow () buttons to highlight Auto Scan. Press the Enter button to begin scanning
for available channels.
Connecting HDMI
HDMI offers superior sound and picture quality when compared to Composite or other connection types, and is the
easiest way to connect your media devices to the television.
Required: a device that supports HDMI and a HDMI cable (not included).
1. Connect the device’s HDMI output to an HDMI input on the television.
2. Press the Source button to switch to the connected input HDMI.
Connecting Devices to Your TV
Connecting Component (YPbPr) Video/Audio
Required: component video (green, blue, red) and RCA stereo (red, white) cables (not included).
1. Connect the audio output on your media device to the corresponding color coded audio input on the
television with stereo RCA cables.
2. Connect the video output on your media device to the corresponding color coded video inputs on the
television with a Component Video cable.
3. Power the television on and press the Source button to switch to the connected input YPbPr.

9
HDMI
Connecting Cable/TV Antenna- Rear View
Connecting HDMI - Rear View
Connecting Component (YPbPr) Cables - Rear View

10
Connecting Optical Audio
Required: a receiver with a Digital Optical Input and a Digital Optical Audio Cable (not included).
1. Connect the Digital Optical Audio Cable from the Optical Output on the television to the Input
on the receiver.
2. Set the receiver to accept the Optical Input source from the television.
Please Note:
Home theater audio systems may label the Digital Optical Out source differently, such as “PCM”,
or “Digital Audio Input”. Please consult your system’s user manual in order to select the correct
input source.
If there is no sound, be sure the Digital Audio Output is set to PCM (under the screen in TV Setup).
Connecting Devices to Your TV
Connecting Composite Audio/Video
Required: composite video (yellow) and RCA stereo (red,white) cables (not included).
1. Connect the video output on your media device to the corresponding color coded video inputs on the television
with a Composite Video cable.
2. Connect the audio output on your media device to the corresponding color coded audio input on the television
with stereo RCA cables.
3. Press the Source button to switch to the connected input AV.
Connecting a Computer
Required: a PC with a VGA output, and a VGA cable (not included).
1. Connect the computer’s VGA output to the VGA/PC Input on the television.
2. Press the Source button to switch to the PC Mode.
3. Audio from the connected PC can be input to the television through the TV’s PC Audio Input by using
a 3.5mm audio cable (not included).

11
Connecting Optical Audio - Rear View
Connecting Composite Audio/Video- Rear View
Connecting a Computer- Rear View

12
Connecting Audio Output
Required: RCA audio cable (not included)
1. Connect a RCA audio cable to the Audio Output on the television and an RCA audio input on an external
stereo system.
2. Adjust the external stereo systems source to the input used in step one.
3. Audio played through the unit will now be heard through the connected stereo system.
IMPORTANT:
The Audio Output sends a fixed audio volume level to any connected audio device.
To adjust the volume you must change it from the connected device.
ADJUSTING THE VOLUME OF THE TV WILL HAVE NO EFFECT.
Connecting Devices to Your TV

13
Connecting Audio Output - Rear View

14
Playing a DVD or CD
Note: This unit is not compatible with MP3 CDs.
1. Insert a DVD or CD into the slot-load disc drive, with the label side facing the rear of the television. Once a
DVD or CD is loaded into the television, the TV will automatically switch to DVD mode
2. Press the Play/Pause button on the remote or TV to begin playing the loaded disc.
DVD Setup Menu
In DVD mode, press the DVD Setup button to access the DVD setup menu. Press the DVD Setup button to exit the
DVD setup menu.
Programming a DVD or CD
1. While a DVD or CD is playing, press the Program button on the remote.
2. Using the Number Keypad enter in the chapters or tracks in the order you want them to play.
3. Highlight the on-screen Start button using the Arrow buttons and press the Enter button.
4. The programmed chapters and tracks will now play in the designated order.
5. To cancel a program, press the Stop button twice.
DVD & CD
•
D
I
S
C
B
A
C
K
•
D
I
S
C
B
A
C
K
•
D
I
S
C
B
A
C
K

15
SDMMC
MS
Using a Memory Card
1. Load an SD, MMC, or MS memory card on the side
of the television.
2. Press the Source button on the remote to switch
to SD mode.
3. Use the Arrow and Enter buttons to select and
play content from the connected SD, MMC, or MS
memory card.
Using a USB Thumb Drive
1. Load a USB thumb drive into the USB Port
on the side of the television.
2. Press the Source button to switch to USB mode.
3. Use the Arrow and Enter buttons to select and
play content from the connected USB thumb drive.
USB & Memory Cards

16
Parental Controls (V-Chip)
1. Press the Source button to switch to TV mode.
2. Press the Setup button.
3. Press the Arrow () buttons to highlight Lock, and press the Enter button.
4. Enter the default passcode to access the Lock preferences. The default passcode is 0 0 0 0.
5. From this menu, you can lock out specific ratings from the United States rating system or the Canadian
rating system by accessing the V-CHIP settings. You can also lock the buttons on the television or lock
specific sources from access.
Setting Favorites
1. Press the Source button to switch to TV mode.
2. Press the Setup button to access the setup menu.
3. Press the Arrow () buttons to highlight the Channel icon. Press the Enter button.
4. Press the Arrow () buttons to highlight the Favorites icon. Press the Enter button.
5. Use the Arrow () buttons to select the desired channels and then press the Enter button.
Viewing Favorites
1. Press the Source button to switch to TV mode.
2. Press the Favorites button to view a list of your saved favorites.
Setting the Clock
1. Press the Setup button to access the setup menu.
2. Press the Arrow () buttons to highlight the Time icon, and press the Enter button.
3. Press the Arrow () buttons to highlight Time Zone, and press the Arrow () buttons to select your
current time zone.
4. Press the Arrow() buttons to highlight Auto Clock, and press the Arrow() buttons to turn auto clock on
or off. When the correct time zone is set, auto clock will automatically set your clock and date for you.
5. To set the time and date manually, turn Auto Cock off, highlight Clock, and use the Arrow and Enter buttons to
manually set the time and date.
Settings
Auto Scanning for Channels
The Auto Channel Scan must be run before any channels can be viewed on the television. Initial channel scanning
process may take up to 15 min.
1. Press the Source button to switch to TV mode.
2. Press the Setup button to access the Setup menu.
3. Press the Arrow () buttons to highlight the Channel icon, and press the Enter button.
4. Press the Arrow () buttons to highlight AIR/Cable, and press ()to select AIR.
5. Press the Arrow () buttons to highlight Auto Scan, and press the Enter button to begin scanning
for available channels.

17
100mm
100mm
VESA Specifications
• 100mm x 100mm spacing (wth. x ht.)
• M4 bolt pattern and thread pitch
A 10 to 15mm long bolt is recommended, depending on the thickness of the wall bracket selected.
WE STRONGLY RECOMMEND HAVING THIS TELEVISION MOUNTED PROFESSIONALLY.
Mounting to a Wall

18
International Support
To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit
the support section at: www.iliveelectronics.com
Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes,
visite la sección de apoyo en: www.iliveelectronics.com
Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des
questions fréquemment posées, consultez la rubrique d’assistance sur: www.iliveelectronics.com
Contact Information
Website: www.iliveelectronics.com
Email Support: [email protected]
Email Parts: [email protected]
Phone Support: 1-888-999-4215
Warranty
For Warranty Information and the most up-to-date
version of this User’s Guide, go to:
www.iliveelectronics.com
Customer Support
Copyright © 2018 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of
their respective owners. Specifications are subject to change without notice.
Protect for Today
Sustain for Tomorrow
Made
Green
