RCA RLEDV2238A-B User manual

22” LED Television TV with DVD
MODEL: RLEDV2238A-B

1
Contents
Caution
Safety Information
Unit and Accessories
Introduction
1. Front View
2. Rear View
4. Remote Control
Basic Operation
OSD Menu
1. Picture menu
2. Audio menu
3. Time menu
4. Setup menu
5. Lock menu
6. Channel menu
Simple Troubleshooting
2
3
4
5-9
5
6
8-10
11
12-18
12
13
14
15
16
17-18
27
28
Contents
3. Instruction for Wall Mount 7
DVD Operation 19-26

2
Caution
Caution
is intended to alert the user to the presence of un-insulated "dangerous
to constitute a risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling centre.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live
in!
This unit complies with America Safety directives.
This unit complies with FCC directives.
CERTIFIED TO CSA STD. C22.2 No.60065
3124140
D
V
E
E
R
I
F
I
lntertek
EP 4005700
ENERGY
PERFORMANCE
VERIFIED
RENDEMENT
ENERGETIQUE
VERIFIE
This unit complies with Canada Energy efficiency directives.

Electrical safety
Physical safety
power
3

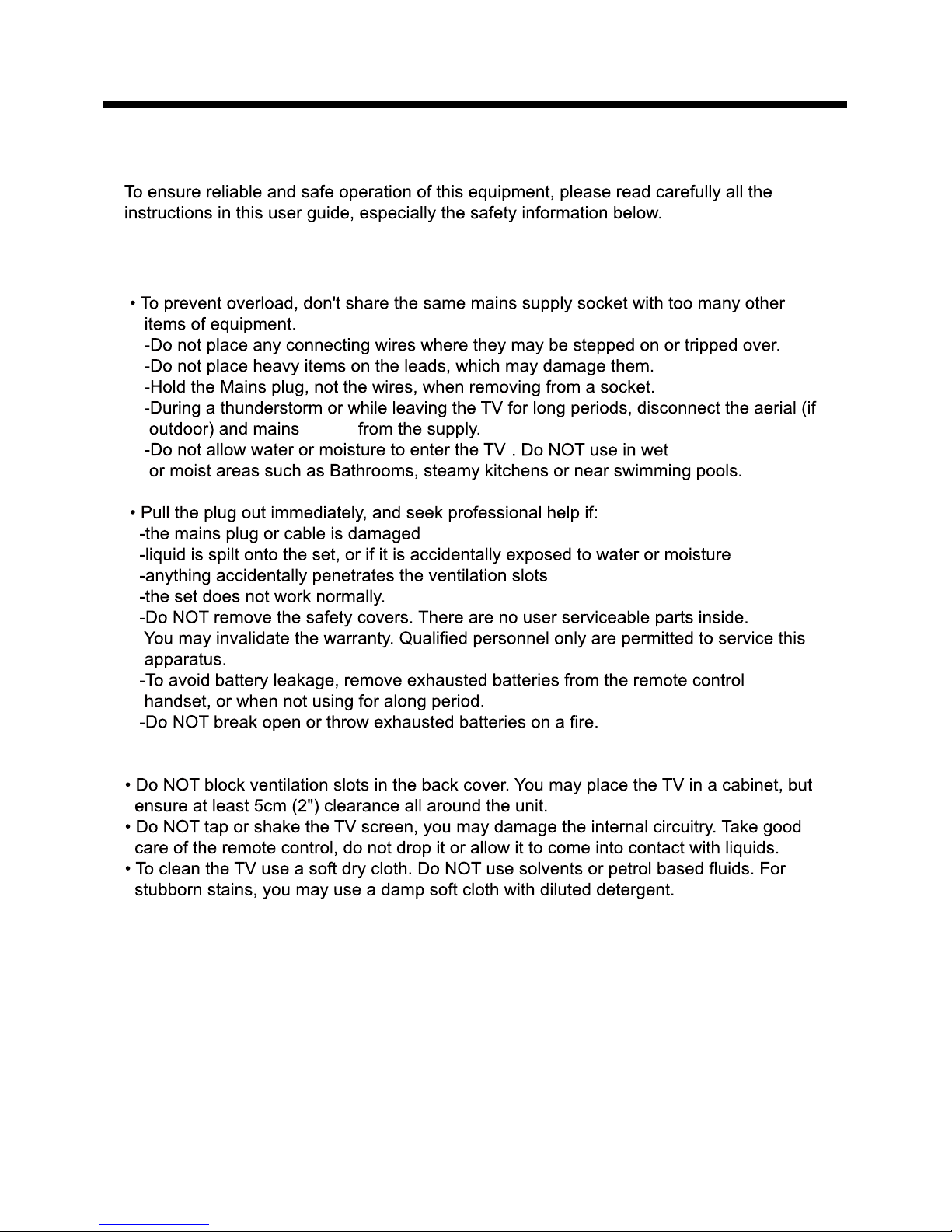

Safety Information
Safety Information

Remote control
Batteries: 2xAAA
4
TV set
User's manual

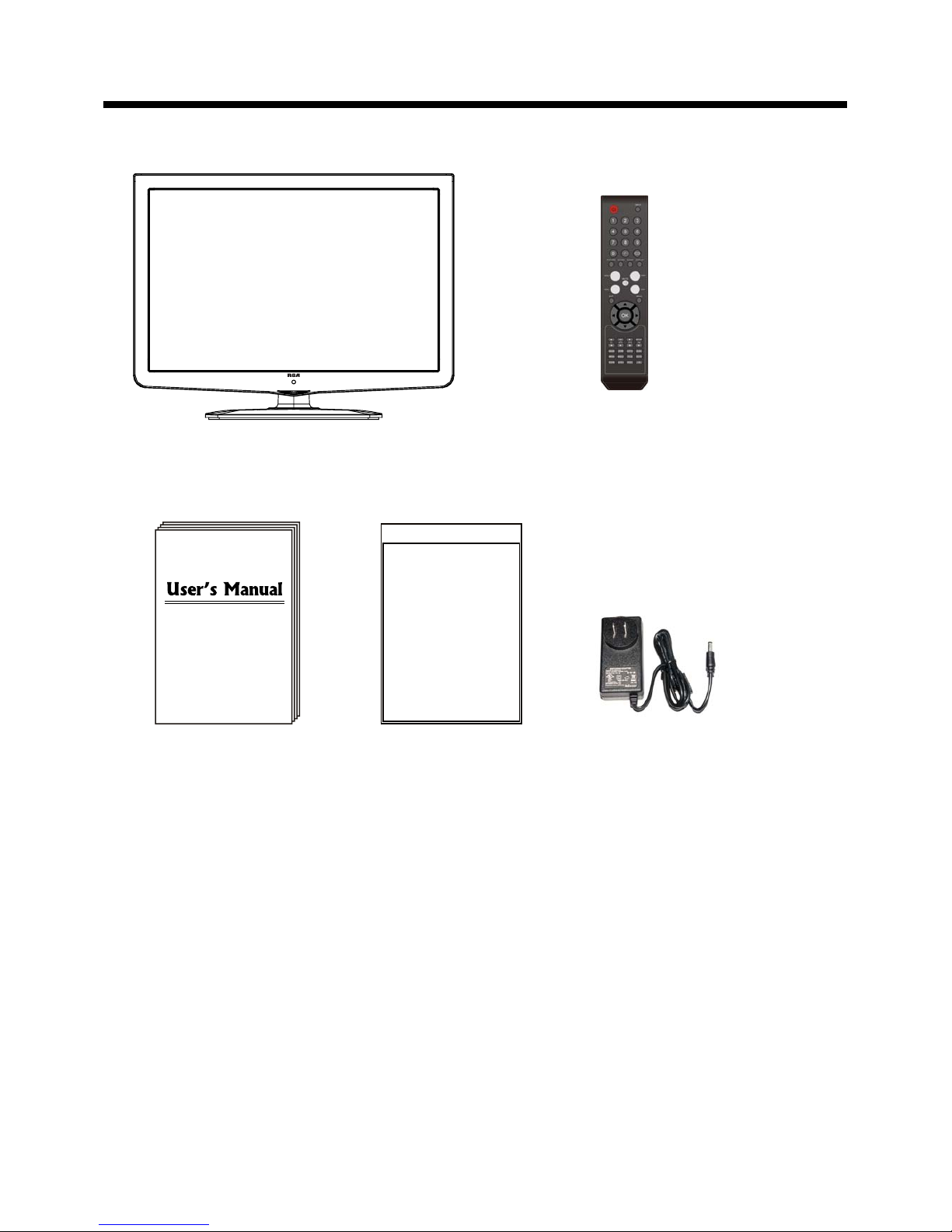

Unit and Accessories
Unit and Accessories
Instructions for fixing stand
Instructions for
fixing stand AC Cord

INPUT: Press to display the input source menu.
MENU: Press to display the OSD menu,
press again to exit the menu.
CH+/-: Press to scan through channels.
VOL+/-: Press to adjust the volume.
POWER:
PLAY: Play/pause the disc playing.
EJECT: Eject the disc.
Turn on/standby the TV set.
Introduction
1. Front View
Power Indicator
Remote Control window (Keep clear)
Please insert a 12cm disc
according to the silk
INPUT MENU CH+ CH- VOL+ VOL- PLAY EJECT POWER
5
Introduction
1). (IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby)LED Indicator: Press POWER to turn on and off.
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
2). The functions of the buttons:
The effective receiving range for the signal is 5-8 metres from the front of the remote
control window, and 300to the left or right side and 200above or below the remote control
window.
Press INPUT button on the TV set or remote control to
display the input source menu, and use CH+/- button on
the TV set or / button on remote control to select the
input source, press OK button on the remote control to
enter.
Note: Before you select the input source, make sure the
connections are prepared.
TV
AV
Component
HDMI1
HDMI2
VGA
DVD

PC AUDIO
USB
(for Service）
POWER
Headphone out: Connect it to your headphone or audio equipments
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
COAX : Digital audio output.
: Connect it to the HDMI output of video device.
HDMI1/2
L/R in :Connect them to the audio output terminal of the external devices.
(shared with YPbPr)
VIDEO : Connect it to video output of video device.
USB for Service : For service use only.
YPbPr :Connect them to theYPbPr video output terminal of the external devices.
POWER:
PC AUDIO
Connect the supplied AC adapter.
6
Introduction
2. Rear View

100mm
100mm
3. Instruction for Wall Mount
-
- Do not mount your RCA TV at more than a 15 degree tilt.
- Always use two people to mount the TV to a wall.
- Do not install your Wall Mount Kit while your TV is turned on. It may result in
personal injury due to electric shock.
The wall mount kit (not included) with your purchase allows you to mount your
RCA TV on the wall. For detailed information on installing the wall mount, refer
to the instructions provided by the wall mount manufacturer. It is strongly
recommended to contact a technician for professional assistance for wall mount
installation. RCA is not responsible for any damage to the product or injury to
yourself or others resulting from the wall-mounting.
- 4 pcs of type M4 screws are required for installing the wall mount bracket to
your RCA TV. Do not use screws that are longer than 10 mm. Screws that
are too long may cause damage to the inside of the TV set.
- Do not fasten the screws too tight for this may damage the TV or cause the
TV to fall, resulting in personal injury. RCA is not liable for these kinds of
incidents
Dimensions for Mounting Hole Pattern
This RCA TV is compatible with a 100mm x 100mm mounting hole pattern.
7
Introduction

Universal Remote Code:11359
Universal Remote Control not included.
POWER
Press to turn the TV on/standby
INPUT
Press to display the input source
menu
To select the program directly.
e.g.:
Select channel 5,
press “5” button.
Select channel 62
press “6” button, and press “2”
button in 2 seconds.
Select channel 152
press “1” button, and press “5”
button, then press “2” button
in 2 seconds.
select channel “5-1”,
press “5” then “-/--” and “1”.
NUMBER BUTTONS
Return to the previous channel viewed.
MUTE
Press to mute the sound.
Press again or press VOL+ to
unmute.
DISPLAY
Press to enter the EPG menu
directly.
Press repeatedly to cycle
through the available video
picture modes.
SOUND
Press to cycle through the
different sound settings.
SLEEP
Press to setup the sleep time
CH+/-
Channel/Program +/-
VOL+/-
Volume +/-
MENU
Press to display the OSD menu.
EXIT
Press to exit form the OSD menu.
Allows you to navigate the
on-screen menus and adjust the
system settings to your
preference.
THUMBSTICK OK )
CC
Press to display the closed caption.
MTS
Press to select the audio channels.
FAV
Press to display teh favorite
channels list.
EPG
Press to enter the EPG menu
directly.
PICTURE SOUND SLEEP DISPLAY
INPUT
VOL+
VOL-
EXIT
MUTE
MENU
OK
CH+
CH-
123
456
789
0
CC MTS EPG FAV
SETUP
TITLE ANGLE GOTOMENU
REPEAT INTRO A-B
PROGRAM

LANGUAGE
ZOOM
SUBTITLE
SLOW
8
Introduction
4. Remote Control
The remote control is using Infra-Red(IR). Point it towards the front of the LED TV. The remote
control may not work correctly if it is operated out of range or out of angle.

Introduction
9
PICTURE SOUND SLEEP DISPLAY
INPUT
VOL+
VOL-
EXIT
MUTE
MENU
OK
CH+
CH-
123
456
789
0
CC MTS EPG FAV
SETUP
TITLE ANGLE GOTOMENU
REPEAT INTRO A-B PROGRAM

LANGUAGE
ZOOM
SUBTITLE
SLOW
INTRO
If you play CD,it will scan program
with 15 S.
A-B
Select and play the preferable
paragraph of DVD program by
pressing this key twice at the
beginning and end of it.
REPEAT
Repeat playing the title or chapter.
PROGRAM
Select DVD picture program.
ANGLE
Select DVD picture angle.
ZOOM
Adjust picture size in DVD mode.
DVD next chapter.
DVD previous chapter.
SUBTITLE
Select DVD disc subtitle.
SLOW
Play DVD programs at slow speed.
Stop DVD program.
DVD eject.
Play/Pause DVD program.
DVD fast reverse.
DVD fast forward.
SETUP
DVD system setup.
LANGUAGE
Select DVD disc language.
MENU
DVD play list/Disc menu
TITLE
GOTO
DVD title.
Play your favorite title/chapter/track.
Number buttons for DVD.
Pressing “-/--”button to display
“SELECT 10+”, and press a
number button to play the program.
DISPLAY( In DVD)
Press to display the current mode’s
information.

10
Introduction
Installing Batteries
1. Open the battery compartment cover on the back of the remote control.
2. Insert two 1.5V AAA size batteries observing the polarity markings inside the battery
compartment. Don’t mix different types or used batteries with new ones.
3. Close the cover.
- The remote control should be operated within 30 feet(7m) and 300to the left and right of the
IR receive at the front of the LED TV.
- Used batteries should be disposed properly.

button to select the function item, press button to adjust/setup,
11
Power on/off
1. -To turn on the Switch
Press POWER button on the TV or remote control.
-To turn off the TV
Press POWER button on the TV or remote control.
Input Source select
Press INPUT button on the TV set or remote control to display input
source menu, and use CH+/- button on the TV set or Ĥ0ĥ!button
on remote control to select the input source, press OK button on the
remote control to enter.
Note: Before you select the input source, make sure the
connections are prepared.
Basic OSD Menu operation
Use /
Ĥ
/
ĥ
Ĥ ĥ
ĥ
button to select the main menu, and press button to enter the submenu.
In the submenu, use /
ĥ
Ĥĥ
or press button to enter the submenu.
* (Press MENU button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)
Note1: Only when you input the suitable signal, the relevant items can be activated
Note2: Please operate the OSD menu according to hint on the bottom of the banner.
Main menu
Audio
Time
Setup
Lock
Channel Submenu
(Setup menu
for example)
Hint---you should operate the OSD menu according to the hint.
Press MENU button to display the OSD menu as below:
Basic Operation
TV
AV
Component
HDMI1
HDMI2
VGA
DVD

OSD Menu
12
1. Picture menu
Description
Picture mode: Select between Standard, Dynamic, Mild, SportsˈUser and Power Saving.
You may select the picture mode directly by pressing the PICTURE button on the remote
control.
Contrast: Control the difference between the bright and dark regions of the screen picture.
Brightness: Adjust brightness of the picture.
Color: Adjust color of the picture.
Tint: Control the fresh tones to make them appear natural.
Sharpness: Set the amount of fine detail in the picture.
Color Temp.: Select between Normal, Cool and Warm.
Note: when select the "Power Saving", the machine is in energy-saving status.
OSD Menu

13
2. Audio menu
Description
Sound Mode: Select your desired picture mode as follow: Flat, Music, Movie, Sports and User
You may select the sound mode directly by pressing the SOUND button on the remote control.
Bass: Low frequency intensity.
Treble: High frequency intensity.
Balance: Left and right stereo audio channels balance.
Surround: Activate or deactivate the Surround function.
SPDIF Type: Allows you to select between PCM and RAW.
Audio Language: Select audio language.
Setup Lock
12
6
Time Channel
Sound Mode
Bass
Treble
Balance
Surround
SPDIF Type
Audio Language
Flat
English
MoveSelect Exit
MENU
50
50
50
Off
PCM
Picture Audio
OSD Menu

14
Description
3. Time menu
Sleep timer: You may set the automatic shutdown timer choosing from 5 to 240 minutes, or
deactivate this function.
Time zone: Select between Pacific, Alaska, Hawaii, Eastern, Central and Mountain.
Daylight Saving Time: Select between On and Off.
Clock: User can not change time manually during DTV mode, for time is from signal source
directly.
OSD Menu

15
Description
4. Setup menu
Menu Language: Select OSD menu language.
Transparency: Turn on or off the transparency menu function.
Zoom Mode: Select the zoom mode between 16:9, 16:9 zoom, 4:3, 4:3 zoom just scan.
Noise reduction: Select the noise reduction mode between Strong, Off, Weak and Middle.
PC SETUP: If the video input signal comes from your
PC, you may adjust the V-Position, H-Position, Clock,
Phase or even perform an Auto adjustment.
Closed Caption:
CC Mode: Allow you to select the CC Mode among: On, Off and CC on Mute.
Basic Selection: Allow you to select the basic selection among: CC1, CC2, CC3, CC4,
Text1, Text2, Text3 and Text4.
Advanced Selection: Allow you to select the advanced selection among: Service1, Service2,
Service3 Service4, Service 5 and Service 6.
Option: Use thumbstick buttons to operating in option menu as your desire.
XVS: Activate/deactivate the automatic dynamic brightness function.
Restore Default: Restore all settings in SETUP menu to factory settings.
OSD Menu

16
Description
5. Lock menu
You must enter the password to gain access to the Lock menu. The default password is 0000.
You may modify the following options:
Change password: Change the password, you must enter the new password twice to confirm it.
Note: Do not forget the password.
System Lock: Allow you to turn on or off the system lock. If deactivated, the functions described below
don’t work.
This option menu allows you to lock any TV channel or adjust the Movie rating filter.
US:
TV: Use buttons to select the desired rating
and press button to block or unblock rating.
MPAA: The Movie rating (MPAA) is used for original
movies rated by the Motion Picture Association of
America (MPAA) as broadcasted on cable TV and not
edited for television.
Use button to select N/A, G, PG, PG-13, R,
NC-17 or X.
Ĥ0ĥ
Ĥ0ĥ
ĥ
Canada English: Select among: E, C, C8+, G, PG,
14+ and 18+.
Canada French: Select among: E, G, 8ans+, 13ans+,
16ans+ and 18ans+.
G: General Audiences. Movie is appropriate for all ages.
PG: Parental Guideance Suggested. May contain material not
suited for younger viewers.
PG-13: Contains content that may not be appropriate for viewers
under the age of 13.
R: Restricted. Contains adult content, no one under 17 admitted
without parent.
NC-17: No one 17 and under admintted.
X: Adults only.
Canada:
Reset RRT: Allow you to reset the RRT setting.
OSD Menu

17
Description
6. Channel menu
Air/Cable: Allow you to select antenna between Air and Cable.
If you selet “Cable”, the following items(Favorite, Show/Hide, Channel NO, Channel Label and
DTV Signal) are unable to use.
Auto Scan: Enter the Auto Scan menu to start auto scan.
If you select “Cable” as input signal in Antenna item, allows
you to select Cable System among: Auto, STD, IRC and HRC.
Use button to highlight the “Start to Scan”, then press
button to search the channels automatically.
The receivable channels will be stored automatically.
When searching channels, press MENU to stop.
µ
ĥ
ĥ
µ
ĥ
If you select “Air” as input signal in Antenna item, you
can press button to search the channels automatically.
The receivable channels will be stored automatically.
When searching channels, press MENU to stop.
NOTE: It will take a while to auto scan in NTSC or ATSC
mode, please wait patiently.
Use / button to highlight the desired item, then press
OK button to add or remove the highlighted channel as
favorite.
ĥ
ĥ
Favorite: Allow you to add these channels which you desired
as the favorite channels.
OSD Menu

Channel No.: Show and select the channel.
Channel Label: Allow you to setup a label for the channel.
Press / button to select the position of the table, and press / button to select the
words.
DTV Signal: Show the quality of digital signal: good, Normal, Bad.
18
Show/Hide: Allow you to show or hide the channels.
Use / button to highlight the desired item, then press
OK button to show or hide the highlighted channel.
ĥ
ĥ
ĥ
ĥ
ĥ
ĥ
OSD Menu
