Haier L15C10B User manual

USER'S MANUAL
LCD TV RECEIVER
Please read thismanual carefully before
using your televisionand keep thismanual
In a goodplace for futurereference.
MODEL:
L1510A-C, L15C10A, L1920A-C,
L1910A-C, L19C10A, L1510B-C,
L15C10B, L1910B-C, L19C10B,
L1911W-C,L19C11W, L2011W-C,
L20C11W, L1912W-C,L19C12W,
L2012W-C,L20C12W

To users:
Thank you for using our LCD-TV.
Before connecting the LCD-TV and turning the power on, please
read this book carefully. Please keep this book for later use. When it
was loss of function by electrostatic shock, please switch the on/off
button for restoring the function.
CONTENT
Safety Notice Items...................................................................................
Front Panel Controls..................................................................................
Connection Options...................................................................................
Remote Control Key Functions...................................................................
Remote Control ......................................................................................
Installing Batteries..................................................................................
Connection Instructions.............................................................................
Grounding..............................................................................................
External equipment Connections..............................................................
Antenna Connection.............................................................................
VGA Input.............................................................................................
YPbPr Input...........................................................................................
S-VIDEO Input....................................................................................
SCART Input.......................................................................................
HDMI Input.........................................................................................
Basic Operating Instructions.......................................................................
Turn on the LCD-TV.................................................................................
Audio Control..........................................................................................
Mute......................................................................................................
Select the TV Channel You Want...............................................................
Picture Mode...........................................................................................
Program Swap.........................................................................................
Program Scan.........................................................................................
Menu Operations.......................................................................................
Picture Menu Options...............................................................................
Picture Menu Options Continued...............................................................
Audio Menu Options................................................................................
Audio Menu Options Continued................................................................
Function Menu Options.............................................................................
Function Menu Options Continued.............................................................
Adjust Menu Options................................................................................
Tuning Menu Options..............................................................................
Tuning Menu Options Continued..............................................................
TELE TEXT...............................................................................................
Basic Playback..........................................................................................
Advanced Playback...................................................................................
Special Function Playback.........................................................................
JPEG DISC PLAYBACK............................................................................
SCREEN SAVER FUNCTION....................................................................
DVD System SETUP...................................................................................
General Setup Process.............................................................................
General Setup Page...................................................................................
Preferencel Page.....................................................................................
Playable Discs..........................................................................................
Disc Protection and DVD Characteristics.....................................................
Troubleshooting Guide...............................................................................
Specifications...........................................................................................
1
2
3
4
5
5
6
6
6
6
7
7
8
9
9
10
10
10
10
11
11
11
11
12
12
13
13
14
15
16
17
18
19
20
22
23
24
24
24
25
25
25
27
29
30
31
32

Safety Notice Items
Incorrect usage will cause fire or electric shock. To prevent this, please do
as required when you are installing, using and cleaning this machine. To insure
your safety and extend the life-span of LCD-TV, please read the following items
carefully before using:
lPlease read and understand all the instructions before operation;
lPlease keep the book for later use;
lPlease comply with the warning instructions on the machine and in this book
strictly;
lPlease comply with the instructions provided;
lPlease do not use additional devices that are not recommended by
manufacturer:
lBefore operation, please make sure that the operating voltage of your unit is
normal;
lDo not placethe unit on unstable, dusty and humid places;
lNever put theunit in direct sunlight or near heat sources;
lAllow enough space for proper ventilation;
lPlease keep water away from the LCD-TV . If water comes in contact with the
LCD-TV, disconnect the power cord from the power source, then wipe the set
with a dry soft cloth;
lDo not remove the back cover. If services were need, please refer to qualified
Personnel

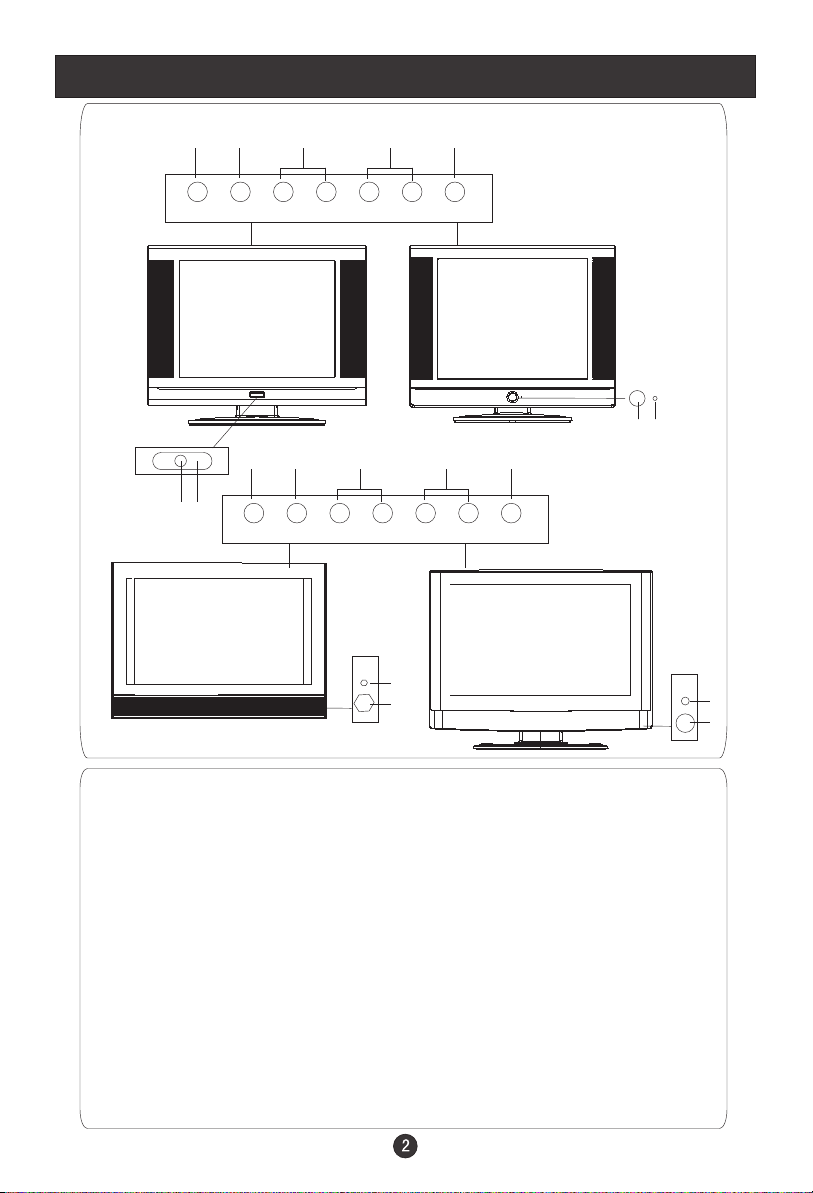

Front Panel Controls
Control Panel Function
67
TV/AV MENU VOL- VOL+ CH- CH+ POWER
2345
1. Power supplyswitch
2.TV/AV Select the inputsignals: PC
3. MENU Press to select the main menu
4. VOL- Volume down/ Left orientation to adjustthe item in the OSD
VOL+ Volume up / Right orientation to adjust the item/Press to enter
5. CH- TV channel down / to select the item in the menu
CH+ TV channel up / to select the item in the menu
6. Power indicator
Illuminates red in standby mode, illuminates green when the display is
turned on
7.Remote Sensor Receivingremote control sends the infrared remote
signal.
/COMPONENT/DVD/HDMI/TV/
SCART/SVIDEO
1
6
7
L1911W-C,L19C11W,
L2011W-C,L20C11W
L1510A-C, L15C10A, L1920A-C,
L1910A-C, L19C10A
TV/AV MENU VOL- VOL+ CH- CH+ POWER
23451
6
7
L1510B-C,
L15C10B, L1910B-C, L19C10B,
6
7
L1912W-C,L19C12W,
L2012W-C,L20C12W

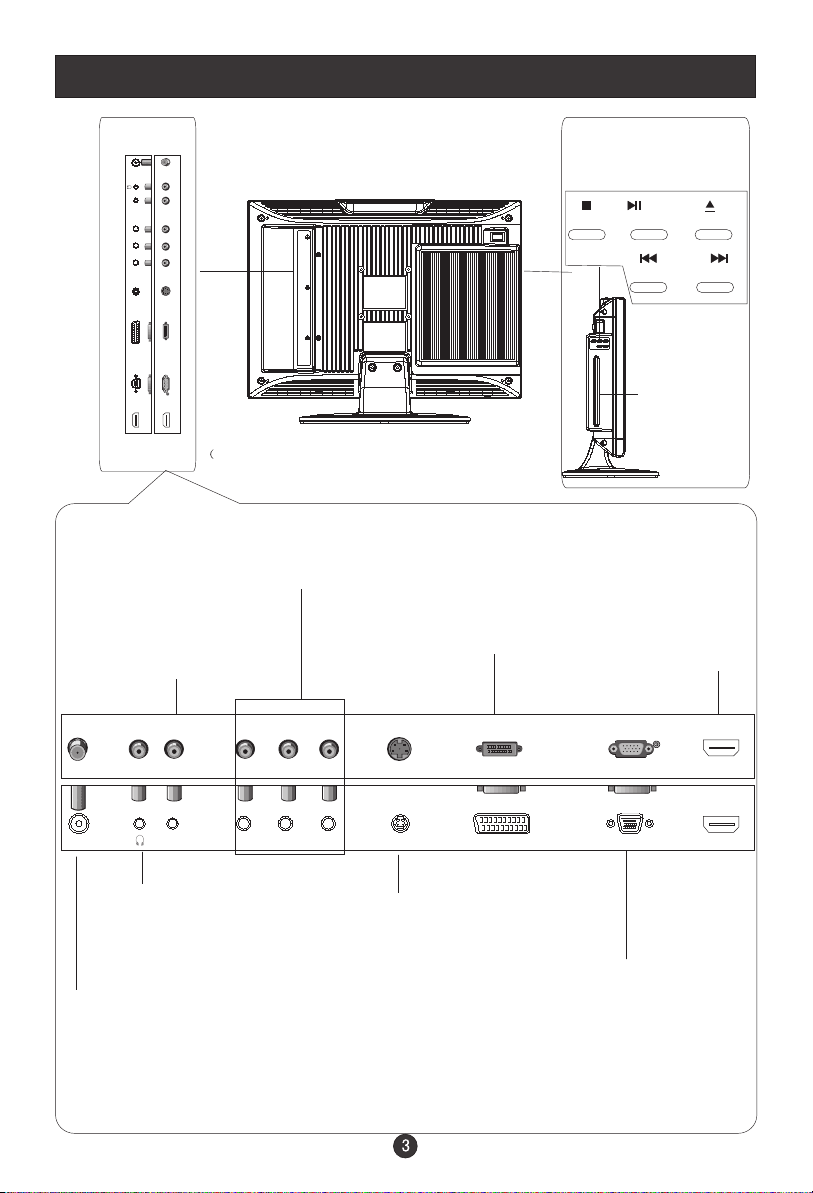

Connection Options
The figure is just for reference, please see the real.
And the AC power supply switch is on the back of the set)
DVD
STOP PLAY/PAUSE OPEN/CLOSE
PREV NEXT
DVD insert
COMPONENT Input
Connect a component
video/audio
device to thesejacks
VGA Input
Connect to theVGA
15PIN analog output
connector of thePC
display card forPC
display purpose
S-Video Input
Connect S-Video out
from an S-Video device
to the jacks.
Antenna Input
Connect cable or
antenna signals to
the TV, either direc-
tly or through your
cable box.
Earphone port
VGA /COMPONENT/
SVIDEO Audio Input
Connect the PC output
connector from aPC to
the audio inputport
SCART
Connect to the DVD/
VCR/broadcasting
receiver or other
equipment
ANT IN Y
Pr S-VIDEO TV SCART VGA IN
AUDIO IN Pb HDMI
HDMI
Connect to HDMI
output of other
equipment
ANT IN Y
Pr S-VIDEO TV SCART VGA IN
AUDIO IN Pb HDMI

Remote Control Key Functions
When using the remote control, aim it
towards the remotesensor on the TV
Stand By
DVD Open/close
DVD 10+
Scan
Zoom
Mute
Swap
Call Screen Display
Program Number
TV/AV and some other source Exchange
Digital Selector
TV/DVD
Volume/Channel Selection
MENU
DVD Audio
Picture Mode
DVD STOP
Tune Menu Button
DVD SETUP
DVD PAUSE/STEP
DVD FAST REVERSE
DVD FAST FORWARD
DVD MENU
DVD NEXT
DVD PREVIOUS
DVD REPEAT
DVD PLAY/ENTER
DVD A-B REPEAT
DVD Cursor Move button
DVD SLOW
DVD ANGLE
DVD SEARCH
DVD PROGRAM
DVD TITLE/PBC
DVD SUBTITLE
DVD CALL
TELETEXT BUTTONS
Exit Screen Display
Fast text coloured buttons
/
Buttons on the remote control
UP
DOWN
LEFT RIGHT
POWER ZOOM OPEN/CLOSE
SCAN SWAP CALL MUTE
1234
5678
9900-/---/--
TV/AV
TV/DVD
P+
P-
V- V+
MENU
AUDIO P.STD
STOP SETUP PAUSE/STEP
REV FWD .PREV NEXT
D.MENU REPEAT A-B
PLAY/ENTER SLOW
ANGLE TITLE/PBC SEARCH
SUBTITLE D.CALL
10+
PROGRAM
TUNE
PICTURE SOUND TIME FUNCTION
EXIT
/

Remote Control Key Functions

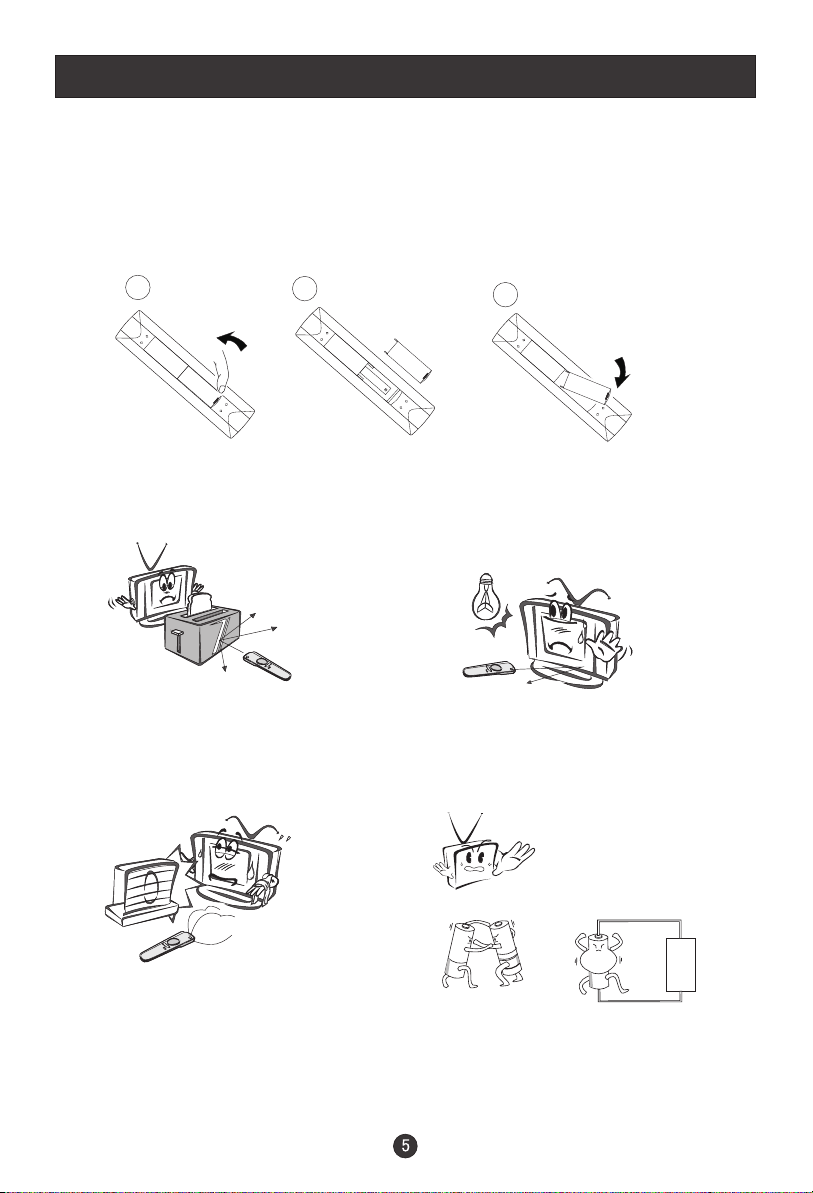

Installing Batteries
3
2
1
1.Slide open thecover of the battery compartment onthe back ofthe remote
control.
2.Load twoAA alkaline batteries in thecompartment. (plus andminus poles to
respective mark)
3.Replace the coverof the battery compartment.
Precautions
Make sure that there is no
obstacle between theremote
controller and televisionset.
As strong light may interfere the
signals, change yourposition to
operate the remote controller if
the television cannot be turned
on or off as youexpect.
Keep the remote controller
away from heat source or
humid area toensure
effective performance of
the remote controller.
Make sure that two AA1.5V alkaline
batteries are loaded. The batteries
must be of the same type. The batteries
must be located properly. The batteries
are not rechargeable.

Connection Instructions
Ensure that you connect the grounding / earth wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connectingit to telephone wires, lighteningrods, or gaspipes.
Grounding
External Equipment Connections
Antenna Connection
- Antenna or Cable Service with a Cable Box Connections
- For optimum picture quality, adjust antenna direction if needed.
Multi-family Dwellings/Apartments
(Connect to wallantenna socket)
wall antenna
socket
VHF antenna
UHF antenna
outdoor
antenna
Single-family Dwellings /Houses
(Connect to walljack for outdoorantenna)
Be careful notto bend thebronze
wire when connectingthe antenna.
To improve picture quality in a poor
signal area, purchase and install a
signal amplifier.
If the antenna needs to be split for two
TV s, install a 2-Way Signal Splitter
in the connections.
If the antenna is not installed properly,
contact your dealer for assistance.
NOTE: All cables shown are just for example.
RF coaxial wire(75 ohm)
ANT IN
ANT IN

Connection Instructions
You can use your LCD-TV as a monitor for your personal computer using a VGA
cable (not supplied).

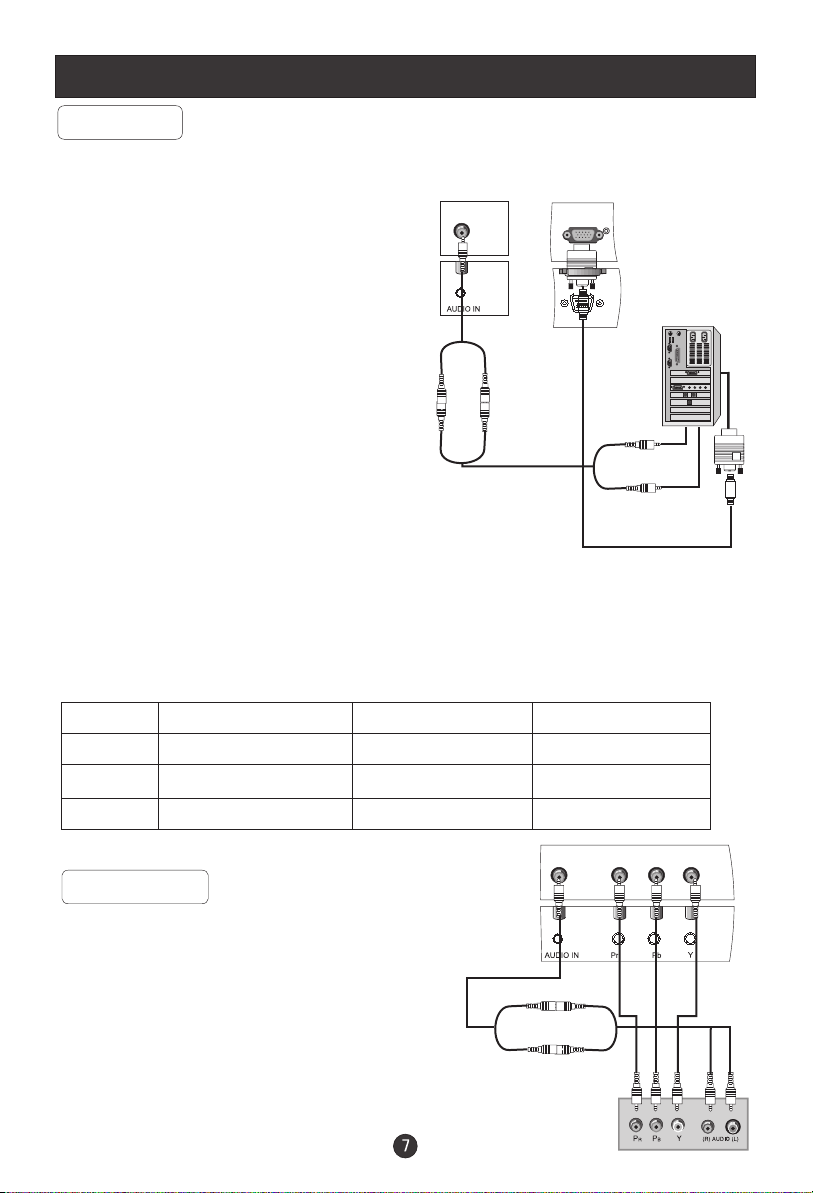

VGA Input
Connection and use steps:
1.Read the userguide supplied with
your computer and ensure that it has
a VGAconnector;
2.Make sure that the power of the LCD
-TV and thePC are off;
3.Connect a Dtype 15-pin VGAinterface
cable ( not supplied ) to the VGA video
interface connector on the PC. Then
connect the other end to the PC video
interface connector on the back of the
LCD-TV.Tighten the screwson the VGA
connectors once they are firmly
connected;
4.Turn on the power ofthe LCD-TV first,
and then turn on the power of the PC;
5.Press the TV/AV button to set the video
input mode ofthe LCD-TV to PC-RGB;
6.Check the image on your TV. There may be noise associated with the resolution,
vertical pattern, contrast or brightness in PC mode. If noise is present, change
the PC mode to another resolution, change the refresh rate to another rate or
adjust the brightness and contrast on the menu until the picture is clear. If the
refresh rate of the PC graphic card can not be changed,change the PC graphic
card or consult the manufacturer of the PC graphic card.
Frame frequency (Hz)Line frequency (Khz)
VGA
SVGA
XGA
640*480 31.5KHz 60Hz
800*600 37.9KHz 60Hz
1024*768 48.4KHz 60Hz
Resolution
Mode Resolution
Note: Allabove listed aresubject to VESACriteria.
YPbPr Input
How to connect
Connect the DVD video outputs (Y, PB, PR)
to the COMPONENT(Y, Pb, Pr) IN jacks on
the TV and connect theDVD audio outputs
to the AUDIO IN jacks on the TV,as shown
in the figure.
NOTE: If your DVD player does not have
component video output,use S-Video.
How to use
1. Turn on the DVD player, insert a DVD.
2. Use the TV/AV button on theremote control toselect
VGA IN

Connection Instructions
COMPONENT (If connected to SVIDEO,select the SV external
input source.)
3. Refer tothe DVD player's manual for operating instructions.
Component Input ports
To get better picture quality, connect a DVD player to the component
input ports as shown below.
S-VIDEO Input
Connection and use steps:
1.Read the user guide supplied with your AV devices and ensure that it has
S-Video connectors;
2.Make sure that the power of the LCD-TV and the AV device are off;
.Turn on the power of the LCD-TV first ;
and then turn on the power of the AV
device;
4.Press the TV/AV button to set the video
input mode of the LCD-TV to SVIDEO
mode .
Connection Option 1
Set VCR output switch to 3 or 4 and then
tune TV to the same channel number.
Connection Option 2
1. Connect the audio and Svideo cables
from the VCR's output jacks to the TV
input jacks, as shown in the figure.
2. Insert a video tape into the VCR and
press PLAY on the VCR. (Refer to the
VCR owner s manual.)
3
- To avoid picture noise (interference), leave an adequate distance between the
VCR and TV
.
VCR
1
2

Connection Instructions
SCART Input
1.Link the scartterminal of some other equipment,
such as DVD, to the TV SCART input terminal
of the television.
2.Press TV/AV to select SCART mode.
3. Press Play button on external equipment for
program play.
HDMI
HDMI
HDMI Input
How to connect
Connect the cablesfrom the externalequipment's
output jacks tothe TV input jacks, asshown in the figure.
How to use
1. Select theinput source byusing the TV/AV
button on theremote control.
2. Operate thecorresponding external equipment.
Refer to externalequipment operating guide.
SCART
External equipment
Note: The audio cableincluded with theTV should be used whenconnected with PC/
COMPONENT/S-VIDEO.
One side connectedwith theAUDIO IN terminalon the TV and the other side with right and
left track connectedwith the correspondingterminals of otherequipment.

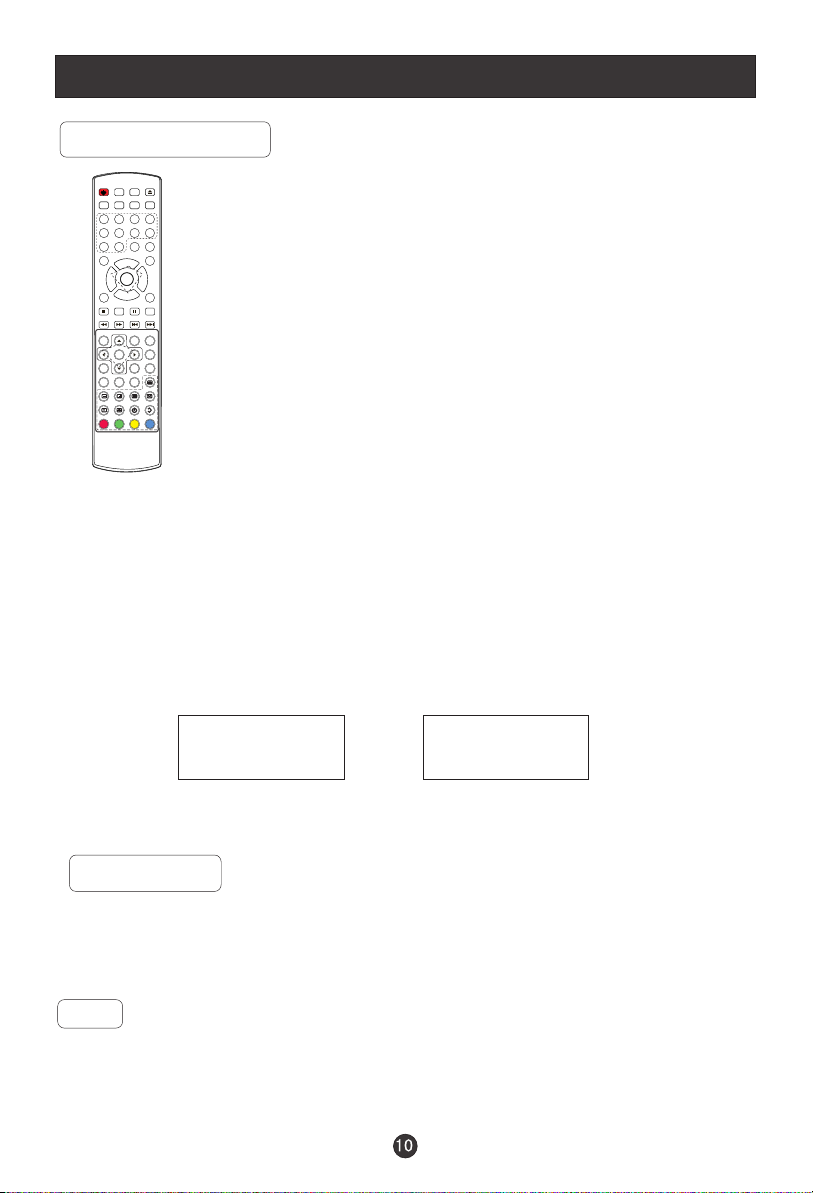

Basic Operating Instructions
Turn on the LCD-TV
Switch on the power button on the back of the set and the TV
will in standby mode. When the POWER button on the remote
control is pressed and the LCD-TV is turned on, the indicator
light on the front of the LCD-TV changes from red to green.
When the LCD-TV is turned off using the POWER button, the
LCD-TVwill go into standby mode and the indicator light turns
red.
Note:
The display of the input mode
will disappear inabout 8 seconds.
You can also turn on the TV from standby mode by pressing
the digits(1-9) orP+/- .
Switch AmongDifferent Inputs: PC/COMPONENT/DVD/HDMI/TV/SCART/SVIDEO
Each time you press the TV/AV button, TV, SCART , PC, COMPONENT,
SVIDEO,HDMI, will appear on the screen in the order.
Note:
The display of the input mode will disappear in about 8 seconds.
Each time you press the TV/DVD button, the current signal input and DVD will
appear on the screen in the order.( When from DVD to other inputs, the DVD may
operate about 10minutes)
Audio Control
1.Press the V+ button to increase the volume. A number will appear on
screen indicating the volume level.
2.Press the V- button to decrease the volume. A number will appear on
screen indicating the volume level.
Mute
1.Press the MUTE button to mute the sound temporarily. A mute icon
appears on the screen.
2.Press the MUTE button again or V+/V- to restore the sound.
The mute icon disappears.
POWER ZOOM OPEN/CLOSE
SCAN SWAP CALL MUTE
1234
5678
9900-/---/--
TV/AV
TV/DVD
P+
P-
V- V+
MENU
AUDIO P.STD
STOP SETUP PAUSE/STEP
REV FWD .PREV NEXT
D.MENU REPEAT A-B
PLAY/ENTER SLOW
ANGLE TITLE/PBC SEARCH
SUBTITLE D.CALL
10+
PROGRAM
TUNE
PICTURE SOUND TIME FUNCTION
EXIT
The display will appear on the screen when the TV is turned on the first time:
(Different displays for different countries, please seethe real set)
AUTO SEARCH
UNITED KINGDOM
NO
Press V+/- to adjust amongFRANCE, UNITED KINGDOM and OTHER just
according to the country you are in, P+/- to select the option and MENU to confirm.
YES
or
AUTO SEARCH
OTHER
NO YES
FRANCE

Basic Operating Instructions
Select the TV Channel You Want
You can use the number keys on the remote control to directly select TV
channels.
The LCD-TV can store up to 100 channels , and you can press the keys on the
remote control or on the panel to make a selection.
1. if you want to choose any channel from 0 to 9, please press the -/-- button
Until -is indicated on the screen and then press the relevant key on the
remote control. for example: if you want to choose channel 8, just press the
Key number 8.
2.If you want to choose a channel bigger than 9, please press the -/-- button
until -- is indicated on the screen. Enter the two digits of the channel
number you want to watch.. for example: select channel 16
Note: if you want to choose one digit channel in this condition, you should press
0 first and then one digit number key.
Picture Mode
Press P.STD button on the remote control for menu display . For desired mode as
follows:
PERSONAL STANDARD MILD FRESH
Program Swap
1
2
3
Suppose the channel number you used just now is 8 and the channel number you
are using is 18 (as shown in the figure).
If you want to return to the last watched program channel 8, you can simply press the
SWAP button.
If you want to return to channel 18, press the button again. Through this function, you
can easily change between the channel you are using and the channel you used last time.
Program Scan
1 Press the SCAN button to scan through all the memorized TV channels. The scan will
pause for about 2 seconds on each channel.
2 If you want to stop the function during auto scanning, simply press the SCAN button
again.

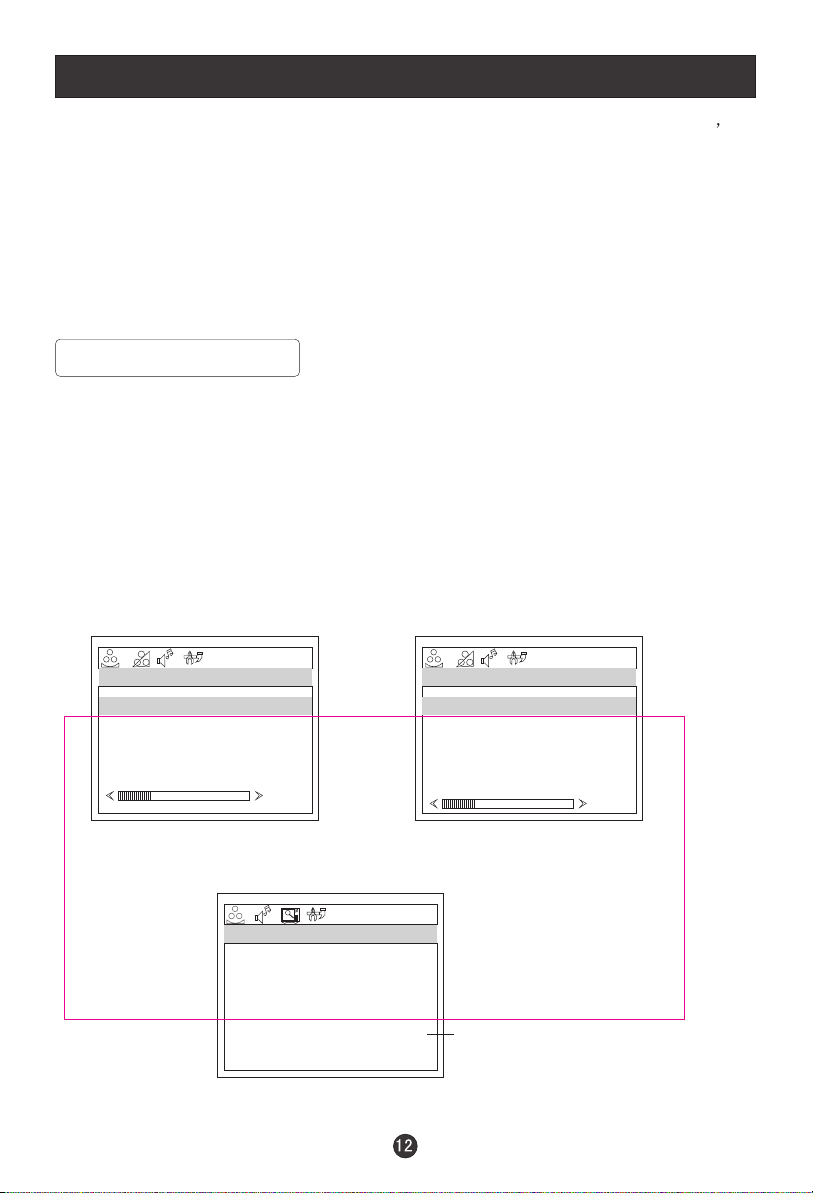

Menu Operations
Picture Menu Options
1. Press MENU button to display the main menu, and V+/V-to select the
main menu .
2. Press P+/P- to scroll through the options
3. Press V+/V- buttons to make changes to the parameters
4. Press the EXIT button to exit the menu
* In thismanual, the OSD (On Screen Display) may be different from your TV s
because it isjust an exampleto help you with the TV operation.
Press TV/AV or TV/DVDto select the input source, and the menu in the different
source is different.
Picture quality can be adjusted for any input separately .
The picture qualityon the screen can be adjusted as follows:
1. Press MENU button and V+/V- until the followingmenu appears
on the screen.
2. Press P+/P- button to enterthe picture menuand to go up and down to
select the desired option .
TV/SVIDEO SCART MENU/DVD/
Note: Sign ontop of themenu in thismanual may bedifferent from the real
PC MENU
BRIGHTNESS
CONTRAST
SHARPNESS
COLOUR TEMP.
30
30
30
2
COLD
BRIGHTNESS
CONTRAST
SHARPNESS
H.POSITION
V.POSITION
COLOUR
30
30
30
2
30
HDMI/COMPONENT MENU
0
0
BRIGHTNESS
CONTRAST
SHARPNESS
NOISE REDUCE
HUE
COLOUR
50
50
2
50
OFF
Only available inNTSC system
50

Menu Operations
3.Press V+/V- button to increase and decrease the level to adjust the
selected option toyour preference .
4. Repeat step 2 and step 3 until desired picture quality has been achieved .
Function:
:Adjust the brightness of the picture . By increasing the level, it
will add more light to dark parts of the picture and by decreasing the level ,it will
add more dark to light parts of the picture.
: Adjust the contrast of the picture . The image becomes higher as
the number increase.
: Adjust the amount of the detail enhancement , the image
sharpness rises as the number increases (By increasing the level, it will show
cleaner and clearerimages and by decreasing the level, it will makepicture
smoother).
COLOUR : PressV+/V- to adjust the colour
NOISE REDUCE:Adjust the quality of the picture by selecting OFF,LOW,MID,HIGH.
: Adjustthe tone of the picture . Appear andbe adjusted onlyunder NTSC
mode
: Press to select the colour temperature from
H.POSITION : Picture horizontal adjust
V.POSITION : Picture verticalposition adjust .
BRIGHTNESS
CONTRAST
SHARPNESS
HUE
COLOUR TEMP. WARM/NORMAL/
COLD
.
Picture Menu Options continued
Audio Menu Options
Sound can beadjusted for any input as follows:
1. Press MENU and V+/V- button until the following menu appears on
the screen
VOLUME
BALANCE
BASS
TREBLE
AUDIO MODE
AVL
AUDIO
50
50
50
50
VOICE
OFF

Menu Operations
Audio Menu Options continued
You can adjust sound options to the levels you prefer.
2. Press P+/P- button to enterthe audio menuand to go up and downto
select the desired option .
3.Press V+/V- button to increase and decrease the level to adjust the
selected option toyour preference .
4. Repeat step2 and step 3 until desired sound quality hasbeen achieved ..
Function :
: Adjustthe volume of your TV
: Adjust the balance of the audio output from left to right . When
indication value of balance increases toward +50 , sound of the left speaker
becomes weaker . When indication value of balance decreases toward -50 ,
sound of the right speaker become weaker .
: Adjust the bass of the sound . Can only be adjust under mode .
: Adjust the treble of the sound . Can only be adjust under
mode .
: Press V+/V- to select among and
.
: Automatic Volume Limit Control reduces the effect of the large volume by
the same volume of all the channels .
VOLUME
BALANCE
BASS PERSONAL
TREBLE PERSONAL
AUDIO MODE PERSONAL, VOICE, MUSIC
THEATRE
AVL

Menu Operations

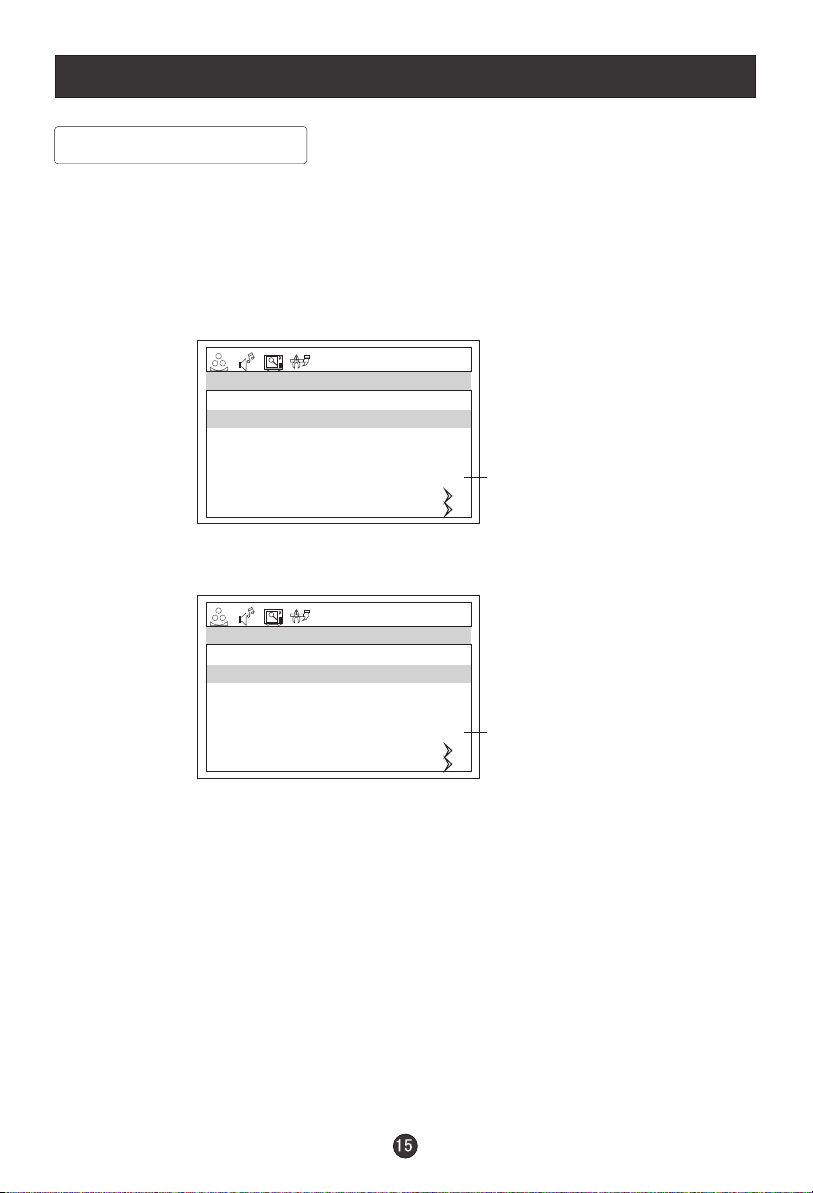

Function Menu Options
Menu Language Selection:
The menus canbe shown on the screen in the selected language.First select
your language.
1.
2. Press P+/P- button to select .
3. Press V+/V- button to select your desired language.
From this point on, the on-screen menus will be shown in the language of your
choice.
Press MENU and V+/V- button until the following menu appears on the screen
LANGUAGE
1. Press MENU button and V+/V- until the followingmenu appears
on the screen.
2. Press P+/P- button to enterthe sound menu and to go up and downto
select the desired option .
3.Press V+/V- button to increase and decrease the level to adjust the
selected option toyour preference .
4. Repeat step 2 and step 3 until desired picture quality has been achieved .
Functions:
1. : Display currentmode . There are
to display
2. : To switch the teletext languages.
3. To select or ..
INPUT SOURCE
TXT LANGUAGE
TXT EAST/WEST: EAST WEST
PC , COMPONENT ,
DVD ,HDMI ,TV, SCART, SVIDEO
INPUT SOURCE TV
LANGUAGE ENGLISH
TXT LANGUAGE PAN EUROPEAN
TXT EAST/WEST EAST
BLUE SCREEN ON
DISPLAY MODE 4:3
RESET
CHILD LOCK
FUNCTION
Only available forthe special series
INPUT SOURCE TV
LANGUAGE ENGLISH
TXT LANGUAGE PAN EUROPEAN
TXT EAST/WEST EAST
BLUE SCREEN ON
DISPLAY MODE 4:3
RESET
CHILD LOCK
FUNCTION
Only available forthe special series

Menu Operations
Function Menu Options Continued
4. : To select the display mode between and
5. :
6. : Press V+ to reset some settings to the factory default .
7. CHILD LOCK:Press V+ to enter it and the following appears on the screen:
DISPLAY MODE 4:3 FULL SCREEN
BLUE SCREEN
RESET
To set , the screen will be in blue screen after 3 seconds
if there is no signal.
If password is correctly entered, the CHILD LOCK menu will be entered. If the
password is notcorrectly entered, you will be required to reenter the password
and the cursorwill stay at the first place. CHILD LOCKmenu is as follows:
(The initial passwordis 0000.)
On
PASSWORD:
- - - -
PASSWORD
CHILD LOCK OFF
CHILD LOCK
PASSWORD: The password can be changed.Press P+/- to select PASSWORD
and V+ to enter. The screen will display NEW PW: ----, then enter the new
password and thescreen display CONFIRM PW: ----, if the same password
is entered correctly twice, the old password will be changed.
CHILD LOCK: PressP+/- button to select it. Press V+/- button to set on or off mode.
If lock on mode is set, child lock is inactivated automatically. In such case, buttons
on the television is useless and only buttons on remote control can be used, if child
lock button(button on the television) is pressed, the screen will display
. The child lock mode can be resumed by entering lock set menu,
set child lock on .
CHILD LOCK

Menu Operations
Adjust Menu Options
1. Press MENU and V+/V- button until the following menu appears on the
screen
ADJUST
AUTO SYNC.
PHASE
CLOCK
H. POSITION
V. POSITION
Note: This menuonly appears in PC mode .
2. Press P+/P- button to enterthe adjust menu and to go up and downto
select the desired option
3.Press V+/V- button to increase and decrease the level to adjust the
selected option toyour preference .
4. Repeat step 2 and step 3 until desired quality has been achieved.
Functions:
: Is opted for adjustment of picture locationfrequency and phase
parameters .
AUTO SYNC
50
50
50
50
PHASE : Removes any horizontal distortion and clears or sharpness the displayed
characters .
CLOCK :Adjust the TFT-LCD to match the PC input source
H.POSITION : Picture horizontal adjust
V.POSITION : Picture verticalposition adjust .

Menu Operations
Tuning Menu Options
1. Press MENU and V+/V- button until the following menu appears on the
screen
Note: This menuonly appears in TV mode .
2. Press P+/P- button to enterthe tuning menu and to go up and downto
select the desired option .
3.Press V+/V- button to increase and decrease the level to adjust the
selected option toyour preference .
4. Repeat step2 and step 3 until desired quality has beenachieved ..
Functions:
1.TUNING PROGRAM: Press V+ to enter it and the TUNING PROGRAM menu
appears:
CHANNEL : Press V+/V- to change the TV channel .
EDIT NAME: Press V+ toenter it , then press V+/-to select the position you want to
edit and pressP+/- to input the emblemsuch as character and so on.(There are 8
position for youto edit totally)
COLOUR SYSTEM : Select the TV color system from AUTO,PAL,SECAM.
SOUND SYSTEM : Select the TV standard system from DK,I,L/L',BG.
(L' may benot available in some countries)
TUNING PROGRAM
COUNTRY UNITED KINGDOM
AUTO SEARCH
TUNING
CHANNEL 1
EDIT NAME
COLOUR SYSTEM AUTO
SOUND SYSTEM DK
SKIP OFF
AFC ON
FINE TUNE
EXCHANGE
MANUAL SEARCH
TUNING PROGRAM
143.65MHZ
Only for somecountries
