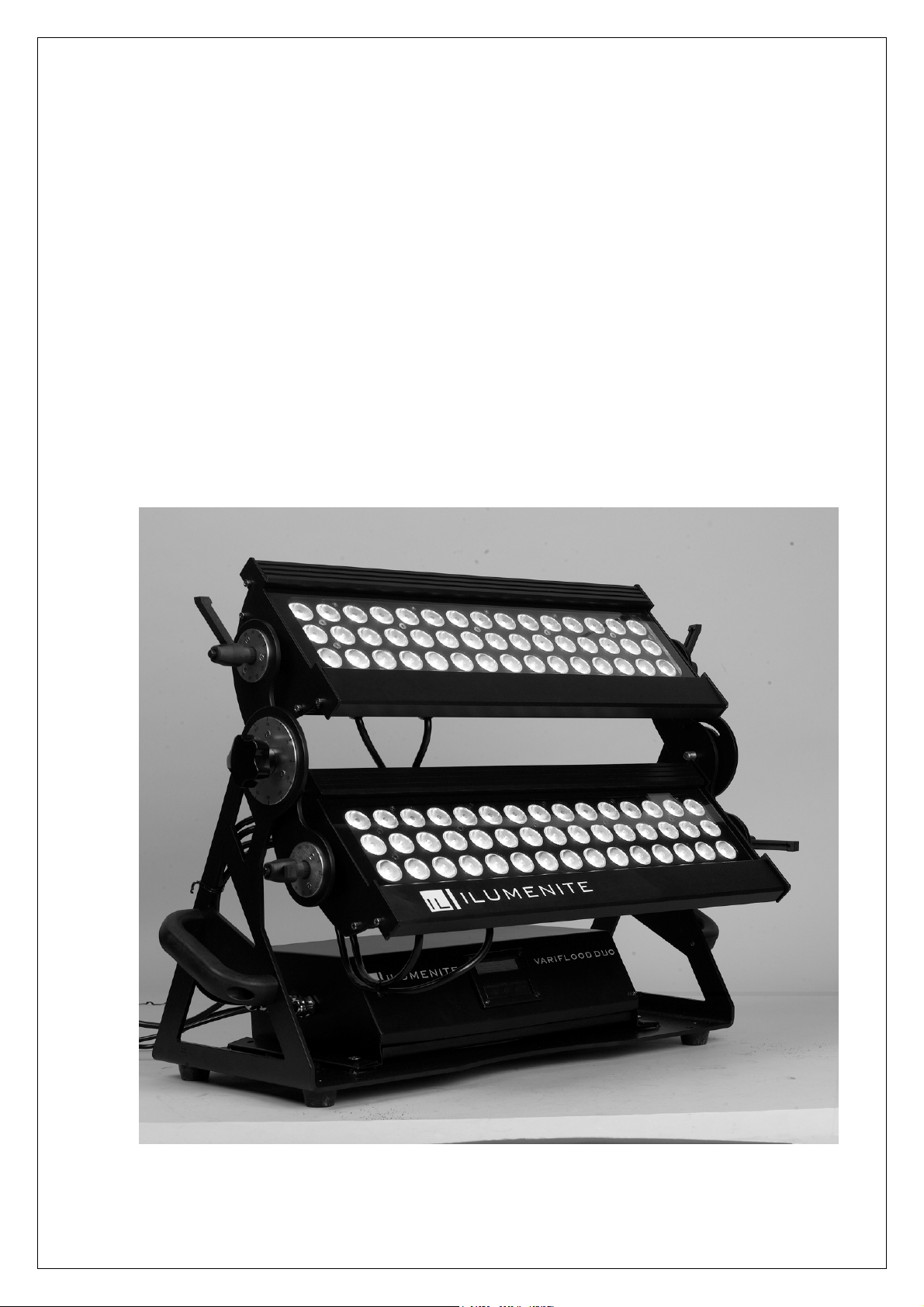

Ilumenite ILDW-4090583-00D-19 User manual

High Power LED Wash
ILDW-4090583-00D-19
(Outdoor White)
User Manual
Page1 of16

Page 2 of 16
Index
1. Introduction ----------------------------------------------------------------------------------------17
Main Function --------------------------------------------------------------------------------------17
Menu -------------------------------------------------------------------------------------------------17
Setting------------------------------------------------------------------------------------------------17
Beam Angle -----------------------------------------------------------------------------------------17
2. 2. Specification--------------------------------------------------------------------------------------18
3. Warnin------------------------------------------------------------------------------------------------18
4. Installation and Setting-----------------------------------------------------------------------------18
5. Operation Instruction-------------------------------------------------------------------------------20
Panel Instruction ----------------------------------------------------------------------------------20
Menu -------------------------------------------------------------------------------------------------20
Linking and Input & Output Instruction --------------------------------------------------------23
6. DMX Mode/Linking Mode------------------------------------------------------------------------23
7. Maintenance-----------------------------------------------------------------------------------------25
Troubleshooting ------------------------------------------------------------------------------------25
Clearance and Maintenance-----------------------------------------------------------------------25

Page 3 of 16
Ⅰ、Introduction
Welcome to using the high power LED washer from Neo-Neon. The light takes the high
power LED technology, with long lifespan and high IP rating. It has temperature protection
function. The each head of the VARIFLOOD DUO can be controlled separately. The
operation interface is easy to operate and user-friendly, which is achieved by key and
5*7LED matrix. It is suitable for the entertainment, decorative, architecture illumination
industry.
zMain Function
＊ Adjust the brightness linearly
＊ Strobe effect adjustable
＊ Set all kinds of specifications manually
＊ 180 degree rotatable
＊ English Menu, digital tube brightness adjustable
＊ Over- heat protestion
＊ Auto Test Mode
＊ Record LED Running Time
＊ Can edit 3 programs with 30 scenes in total
＊ Time Switch
zControl Mode
＊ DMX-512
＊ Stand-alone program
＊ Install the independent running programs everyday during one week
＊ Drive 30 pieces of fixtures through the Master/Slave mode
＊ Install the DMX address of the fixture
zConfiguration:
90 PCS 3W White LED
zAngle:
＊ The adjustable angle for double heads: 0°---120°
＊ The adjustable angle for single head: 0°---90°
＊ The angle of this item：5°

Page 4 of 16
Ⅱ、Technical Specification
D DM MX X 5 51 12 2 A AN ND D F Fo ou ur r c ch ha an nn ne el ls s
L
LE ED D B Be ea am m A An ng ge el l: : 1 12 20 0° °
A
Al ll l d di im m : :0 0- -1 10 00 0% %
P
Po ow we er r c co on ns su um mp pt ti io on n : :3 30 00 0W W
V Vo ol lt ta ag ge e： ：A AC
C9 90 0- -- -2 26 65 5V V 5 50 0/ /6 60 0H Hz z
D Di im me en ns si io on n：
：L660XW250XH496MM
W We ei ig gh ht t： ：25.25KG(including the connecting line and the accessorie)
Ⅲ、Security Warning:
zPlease read the user manual carefully before using and abide by the operation
introduction
zThe fixture should be connected with the earth linked power supply, and the power
voltage should be matched with the rated voltage
zThe fixture is not attached with any accessory and just can choose the accessory which
belongs to the manufacture
zThe operating temperature should be not above 40℃and not below -20℃
 If there are some problems, please ask the professional for repair
Note:
When the power plug is not earth linked, please add grounding connection to the housing so
as to avoid the damages of the accumulated static and charge.
Ⅳ、Installation and Setup

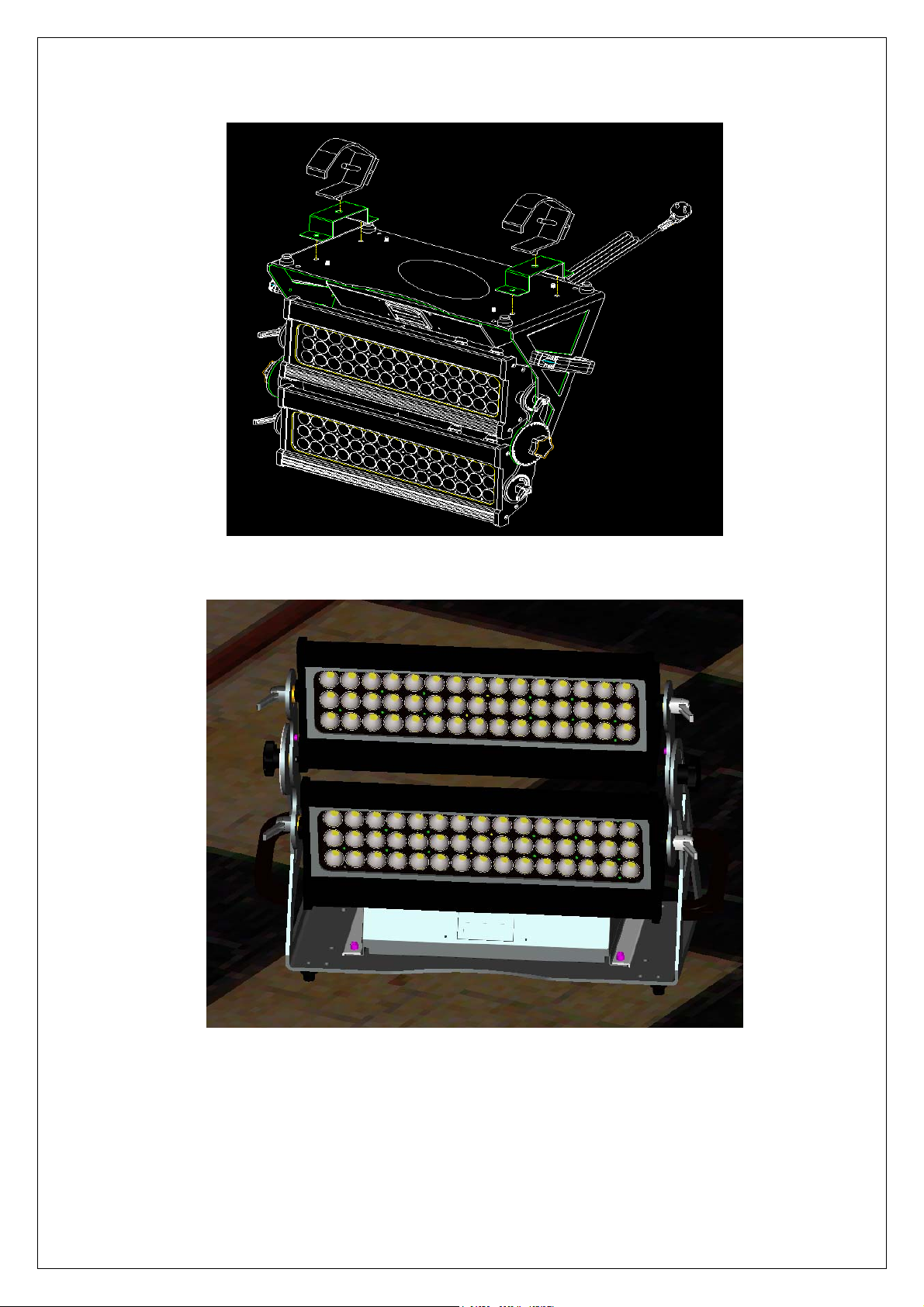

ⅰThe sketch map of hanging and installing
The product can be locked on the truss by the lock nip: at first, put the nip into the truss and
then screw down and adjust the screw.

2、This product can be laid on the flat ground by the rubber cushion under the bracket of the
fixture shown as below:
ⅲ、You can pull out the screw used for securing the power supply and then take out the
power supply crust. The effect picture is illustrated as below:。
Page 5 of 16

Ⅴ、The operation instruction
. The panel instructionⅰ
1
2 3 4
1：LED Matrix display 3：Down
2：enter 4：Up
Ii Menu Instruction
No Item Content Content
of main
menu
Change the
content Sub-menu Sub-menu options How to enter
submenu
functions
1 Address A001 Press
Enter
Button
Press
Up/enter
Set up the
DMX
starting
channels
2 Boost boost Press
Enter
Button
OFF
Boost off
Page 6 of 16

Page 7 of 16
3 White_0
Led
Run Hour
W0_H Press
Enter
to show
Up/enter
Delete
Operating
time of the
White LED
on lower
head）
4 White_1
Led
Run Hour
W1_H Press
Enter
to show
Up/enter
Delete
Operating
time of the
White LED
on top
head）
5 Signal signal Press
Enter
to show
Unchangeable
Choose
DMX
6 brightness bright Press
Enter
to show
Up/enter
Change
Adjust the
brightness
of the
screen
7 Display Flip
Or Not DSPFLI Press
Enter
to show
Up/enter
Change
Adjust the
positive or
opposite
display
8 Dmx delay Dmxdl Press
Enter
to show
Up/enter
Change
Set up the
period for
the wash
with no
DMX
signal
YEAR
M/D
H:M
9 Time time √
WEEK
Press
Enter for
2 or 3
seconds
to
confirm
Set up the
inner time
of the wash
10 Factory
Parameters FACT
Recover
the
parameter
11 Previous
Parameters PREV
Recover
the
parameter
previously
set up
12 TEST White √White
Temp113 Temperature
Temp2
Press
Enter
to show
Up/enter
Change √
Test the
color
temperature
of RGB on
the wash
14 Master Press
Enter
to show
Up/enter
Change
Set up the
way of
operating
on Master
or Slave
unit

Page 8 of 16
15 Slaver SlavID Press
Enter
to show
Up/enter
Change
Set up the
Slave
Number
in
Master/Sl
ave Mode
16 Schedule
Enable or
not
Sched Press
Enter
to show
Up/enter
Change
To see
whether it
runs as
scheduled
or not
17 Program
Run Pgrun Off
1,2,3
Program
Selection
Prog
SCENE
FIXT
shutt
Dim
W0
W1
mac
tm_h
tm_m
tm_s
fd_h
fd_m
fd_s
18 Program Set Pgset √
SCNRUN
Press
Enter for
2 or 3
seconds
to
confirm
Edit the
operating
program
event
program
day
start
end
19 Schedule Schedu √
enable
Press
Enter for
2 or 3
seconds
to
confirm
Edit Time
Event

ⅲ：Function Instruction:
1. 1. Reset after it is connected to power supply and below are steps to control RGB light.
When it is connected to the power supply, the system is initialized. The reset interface of the display
shows as below drawing. After two seconds, it will enter into the operation mode the last time it has
run.
2. DMX/Linking Mode
2.1 DMX Operation Instruction:
Step One: When HELLO is shown and flicker. Press Up button to enter the main menu MASTER.
Set MASTER to OFF.
Step Two: Come back to the main menu for DMX address setting, such as A001. After connected
to the controller, the fixture is under DMX control.
2.2 DMX Pin Assignment
Male and Female DMX pin assignment: Pin1 = Gnd Pin2 = Dmx- Pin3 = Dmx+
2.3 DMX Connection Chart：
Page 9 of 16
Init…
HELLO
HELLO
MASTR=OFF
In Dmx Out
Fixture 1
DMX Controller
Dmx out In Dmx Out
Fixture 2
In Dmx Out
Fixture 3
A001

（Note Distribution Under DMX control）
Channel
Name Value Function Description
0-3 Off
4-6 On
7-59 Strobe (20~1Hz)
1 Shutter/Strobe
others On
2 Dim 0-255 All dim Channel
3 W0 0-255 White Brightness of the Top Head
4 W1 0-255 White Brightness of the lower Head
1> SLavID. Menu Setting
Instruction：
Steps：When the display shows HELLO, the dot flickers. Then
press UP/DOWM for a short second until the display switch to
the main menu SLAVID. Then press MODE for a short time. It
will show submenu XX（01-39），flicking. Press UP/DOWN to
change the ID of this product. After selection, press MODE for a
short time，the display will return to main menu SLAVID.
Note：
The setting of main menu SLAVID is valid under
auto and DMX mode. If you want to know more explicitly about it,
you can read the Fix menu setting.

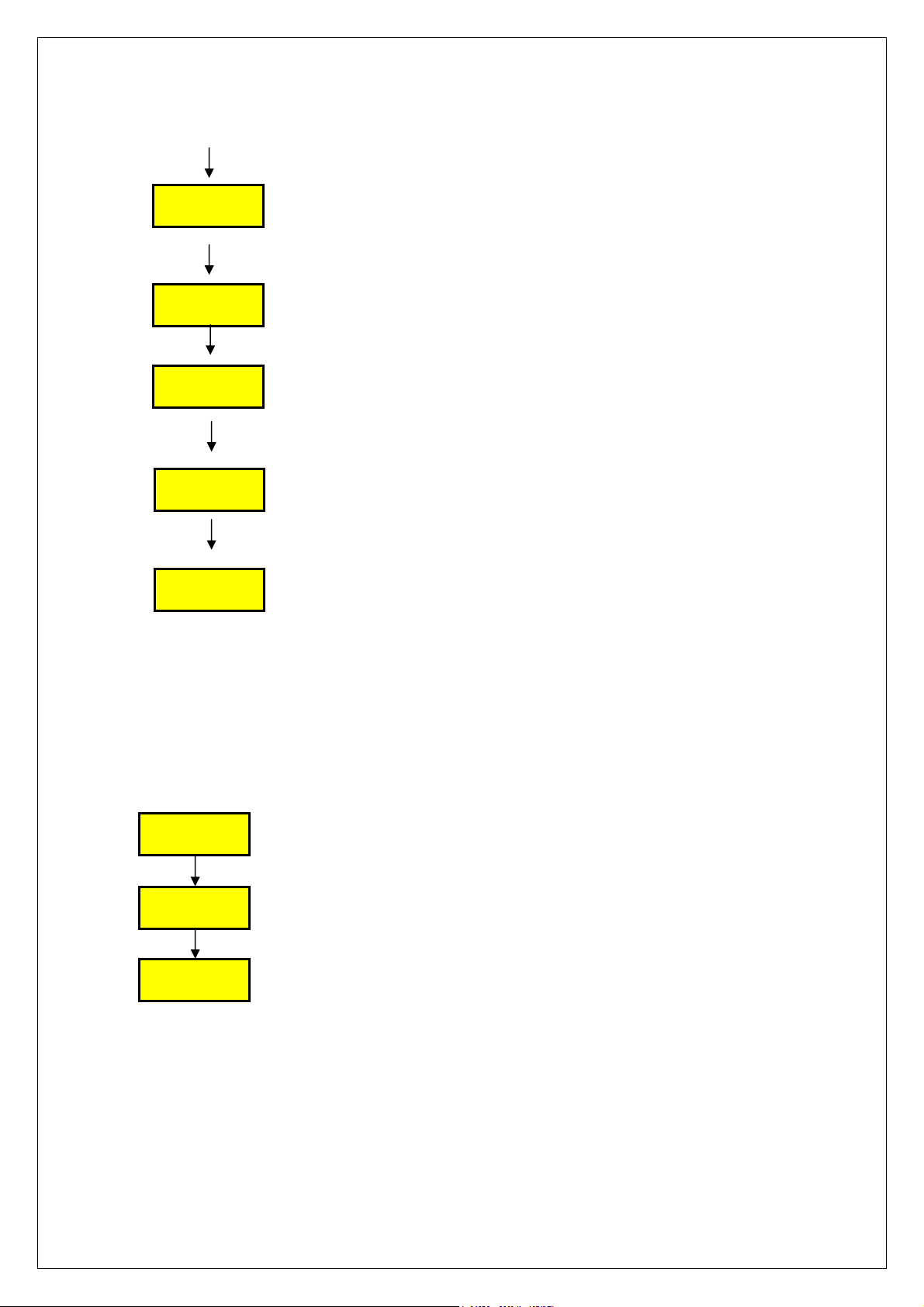

2> Fixt. Menu Setting:
Instruction：
Step One: When the display shows HELLO , the dot flicker. Then Press
UP/DOWN button for a short second until PGSET is set..
Then press MODE button until PRog is showed.
StepTwo:PressUP/DOWNbuttonuntilFixtisshowed.Thenpress
ENTER button for a short while., the display will show ALL or ODD or
ENEN or MASTER or SLV01-SLV29, the dot flicker. Choose one of them
and press Mode to go back to Fixt display. Then Press MODE button until
PGSET is showed. .
Note：
1. When the display of the master unit shows Fixt =ALL, it indicates that
Page 10 of 16
HELLO
PGSET
PRog.
Fixt.
HELLO
SLAvID
XX(1-39)

the master is running normally. Whatever the Fixt value of the slave units
shows, they will receive the data from the master unit.
2：When the Fixt value of the master is ODD, the program
of the master will run normally under the condition that
the SLAVID value of the master is odd number. The
slave fixture will receive data from the master under the
condition that the SLAVID of the slave is odd
.3：When the Fixt value of the master is EVEN, the program
of the master will run normally under the condition that
the SLAVID value of the master is even number. The
slave fixture will receive data from the master under the
condition that the SLAVID of the slave is even.
4：When the display of the master fixture shows Fixt=
MASTER. This indicates that it runs normally.
Whatever the Fixt value of the slave is, it will not receive
the data from master fixture.
5：When the display of the host computer shows Fixt= SLV01
（XX=（01-29）, the master runs normally.
The slave fixture will receive data from the master under
the condition that the Fixt value of the slave fixture is
SLV01.
When the display of the host computer shows Fixt= SLV02
（XX=（01-29））, the master runs normally.
The slave fixture will receive data from the master under
the condition that the Fixt value of the slave fixture is
SLV02.The rest will be deduced by analogy.
。
三．TSET Mode：
Instruction：
Step 1：When the main menu shows HELLO and flickers, press
UP/DOWN button for a short second to switch to main menu TEST., then
keep on pressing ENTER until submenu White is showed.
Step2：Press ENTER button，then you can see the white LED of both
heads start to fade. Press MODE button for a short second, the white LEDs
will be off.
Step3：After testing, press ENTER button for a longer time until the display
shows TEST.
Page 11 of 16
ALL
ODD
SLvxx
HELLO
TEST
WHITE
EVEM
MASTR

Ⅳ．AUTO MODE：
Step1：When the display of the main menu shows HELLLO, the dot flicks. Then press
UP/DOWN for a short second until the master is on.
Step2：Press ENTER to switch to main menu and then switch to submenu PGRUN
(OFF, 1 ,2, 3) OFF means it does not work，1 represents that it operates in the first program.
2 represents that it operates in the second program. 3 represents that it operates in the third
program.
Step3：Press ENTER for a short time and exit to main menu. Switch to PGSET, and
then press MODE for a longer time until the display shows PROG. The value of PROG
ranges from 1 to 3. 1 stands for the program which needs to be edited is program1. 2 stands
for the program which needs to be edited is program2. 3 stands for the program which needs
to be edited is program3.Take the PROG=1 as example, every program can used to set 10
scenes the most, 1 the least each of which needs to set 18 parameters。Detailed as below:
Step4：Switch to submenu SCENE (1-10), at first you set 1.
Step5：Switch to submenu FIXT. = ALL，（about the FIXT has been introduced
above）.
Step6：Switch to submenu SHUTT（0-255）. You set it to 80.You can set the below
value according to your own demand.
Shutt (0-255): detailed parameter as below
Shutt（0-3）: all leds are off；
Shutt（4-6）: ON
Shutt（7-59）: Strobe (20~1Hz)；
Shutt（60-255）: ON
Page 12 of 16
HELLO MASTR PGRUN PGSET
PROG. SCENE FIXT. SHUTT
DIM W0 W1 MAC
TM-H TM-M TM-S FD-H
FD-M FD-S SCRUN

Step7：Switch to submenu DIM0.This value cannot be set 0. The value is 255(the total
brightness of light head ).
Step 8：Switch to submenu W0 (0-255). Any value is OK. Set Value 255 for the white LED
brightness of the top head
Step 9：Switch to submenu W1（0-255）Any value is OK，Set Value 255 for the white LED
brightness of the lower head
Step 10：Back to sub-value MAC（0-255），Set 255（0-7）or（88-255）then the value W0, W1
is valid. If not, it will run the inner W value.
MAC（0-7）: Value W0, W1 is valid；
MAC（8-31）: Fade Mode Last for five seconds
MAC（32-55）: Fade Mode No time to remain
MAC（56-255）: The setting of W0,W1 is valid
Step 11：Switch to submenu TM-H（0-23），The start value is 0 here, which is used to
record running hours.
Step 12: Switch to submenu TM-M (0-59), the start value is 0 here, which is used to record
running minutes.
Step 13: Switch to submenu TM-M (0-59), the start value is 0 here, which is used to
record running seconds.
Step 14: Switch to submenu FD-H (0-23), the start value is 0 here, which is used to
record fading hours.
Step 15: Switch to submenu FD-M(0-59), the start value is 0 here, which is used to
record fading minutes.
Step 16：Switch to submenu FD-S (0-59), the start value is 4,which is used to used to
record fading seconds.
Step 17: Switch to Switch to submenu SCRUN, when the display shows ON. This
indicates that the set can run. When the display shows OFF, the parameter set is
invalid.
Step 18: The first scene of the first program is finished. Then switch to submenu SCENE
(1-10). At first you select scene 2.Follwing the above step 4 to step 17, totaling 13
parameters. You can set the quantity of scene (maximum: 10 minimum: 1) according
to your own requirement.
5．Timing Operation Modes：
Page 13 of 16
HELLO MASTR PGRUN SCHED.
SCHEDI EVENT PROG. DAY

Instruction：
Step1：When the display shows HELLO, the dot flicks. Then press UP/DOWM for a short
second. And then switch to main menu and set it ON.
Step 2: Press Enter Button for a short second and back to main menu, switch to main menu
PGRUN and set it OFF.
Step 3: Press Enter Button for a short second and back to main menu, switch to main menu
SCHED and set it ON.
Step 4: Press Enter Button for a short second and back to main menu, switch to main menu
SCHEDI. Then Press MODE for a longer time until the display shows EVENT (1-36). It can edit 36
pieces of time events for maximum. When the value is 1, edit event 1 operating parameter.
Step5：Switch to submenu PROG.（1，2，3）, which indicate that the program event1 run, is
shown, totaling 3, three programs under auto mode. You choose program1 here.
Step6：Switch to submenu DAY to ensure which day this event runs. You can choose from
Monday to Sunday.
DAY=MON：indicates that this event can only run on Monday；
DAY=TUE：indicates that this event can only run on Thursday；
DAY=WED：indicates that this event can only run on Wednesday；
DAY=THU：indicates that this event can only run on Thursday；
DAY=FRI：indicates that this event can only run on Friday；
DAY=SAT：indicates that this event can only run on Saturday；
DAY=SUN：indicates that this event can only run on Sunday；
DAY=ALL：indicates that this event can only run from Monday to Sunday.
Step7：Switch to submenu START to ensure when the event starts run. The time is set at 08：00.
Step8：Switch to submenu END to ensure when the event ends. The time is set at 23：00.
Step9：Switch to submenu ENABLE = ON, which represent that the time is valid.
Step10：When you repeat the steps 4 to steps 9, you can make other events run at scheduled time.
(Remark：Set SCRUN of main menu PGSET =ON)
ⅶ Temperature protection Mode：
When the temperature of the fixture is higher than 50℃，the brightness will decrease
correspondingly. When the temperature of the fixture is higher than 80℃, the fixture will be
off automatically. After the light cool off to 70℃, it will light up again.
. Daily MaintenanceⅥ
Trouble Shooting
Trouble Reasons Trouble Shooting
Page 14 of 16
START END ENABL

Page 15 of 16
No power supply
Check whether the power
supply is turned on and the
power cable is connected
well.
One or many of fixtures do
not work
The fuse is burnt.
Turn of the power supply.
Then change into the same
type of power supply.
If the power supply is burnt
continuously, there may
have some problems with
the power cable. Please
ask professional staff to
repair.
The data connecting is
wrong or uncompleted
Check, repair or change the
data cable and check
whether it is connected well
and the signal input of the
first fixture is connected
with the output of the
controller
Whether it is in Master
mode Set it in slave mode under DMX Mode
Wrong address Check the address and set
uniformly
There is a piece of fixture
whose connector can not
work normally
After pulling the input and
output signal cable out of
the fixture and connect
each other directly. Then
check whether there is a
problem with the fixture. If it
works well after connecting,
it proves that there is a
problem with the signal
connector of the fixture.
According to the method---
trouble shooting, then
select the broken fixture
and ask the professional
staff to repair.
The replacement is normal
but the controller can not
work well or there is no
feedback
The signal output of the
controller is not matched with
the connector of the signal
receiving(PINS2—3 is wrong)
）
Dial the polarity switch of
the controller to “PHASE”,
and exchange the address
of PIN2—3
Cleaning and Maintaining
Although we have already strengthened the credibility of the product in design, we
always continue to keep the high level of quality and try our best to extend the lifetime
of the product. We should maintain the product regularly and confirm the light to show
itself under the best situation, which is necessary.
I、The cleaning of the fixture.

Page 16 of 16
II、The cleaning maintaining of the lens
To ensure the optimum effect of the fixture, please clean each lens or the reflecting
configuration. Please use the soft cotton cloth with little lotion to clean lens and protect
the lens from damage.
III、The regular examine of the cables
Check the connecting cable, cloth cable and ground cable to ensure the security of the
fixture of usage.
