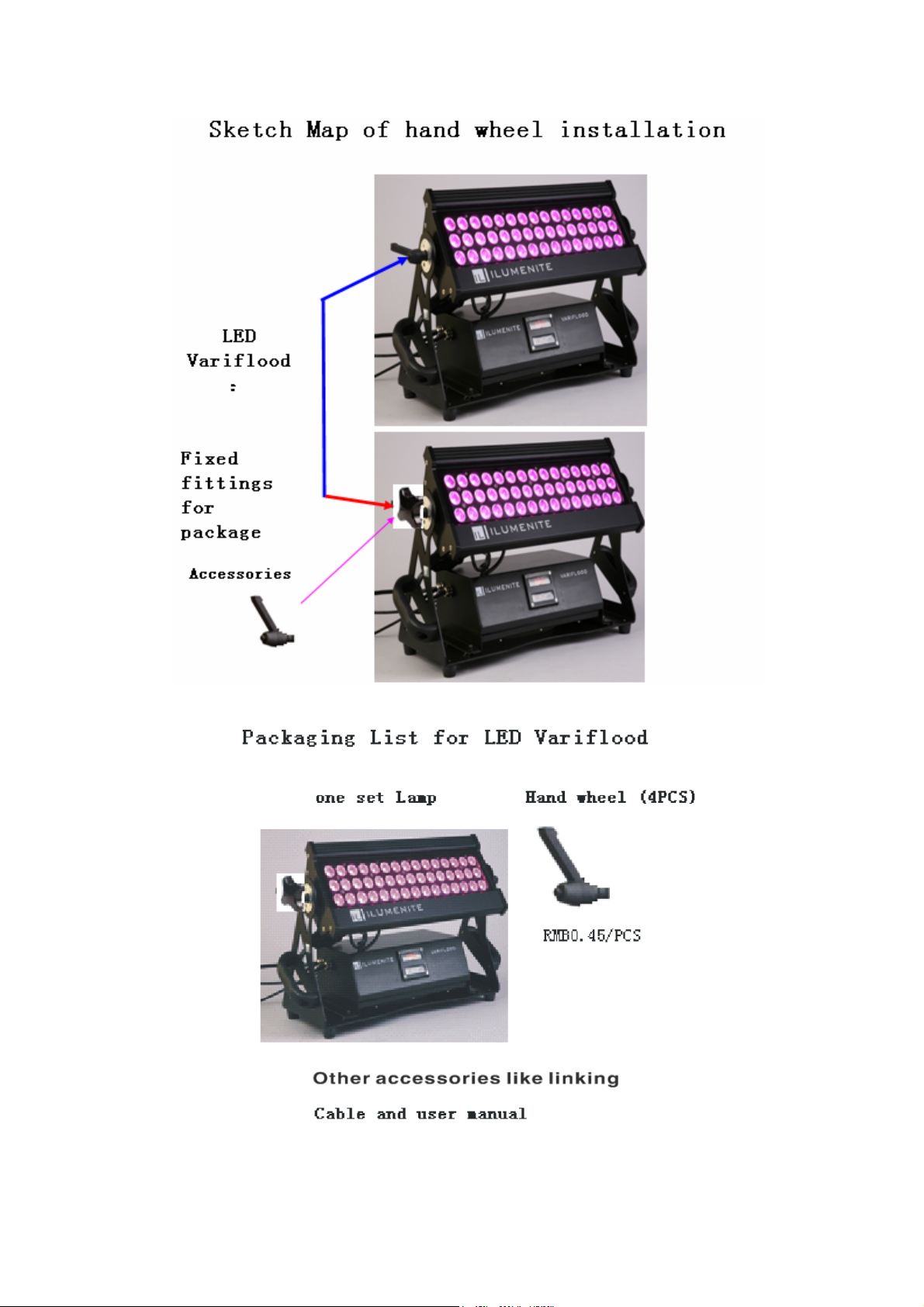

8. Sketch Map of hand wheel installation-------------------------------------------------------------19
Page 22 of 36

1. Introduction
Welcome to using the high power LED washer of Neo-Neon. The light takes the high power LED technology, with
long lifespan and high IP rating. It has the high power red, matched with the green and blue balanced. It can make all
kinds of vivid illumination effects, along with DMX receiving and auto mode. The operation interface is easy to
operate and user-friendly, which is achieved by key and 5*7LED matrix. It is suitable for the entertainment,
decorative, architecture illumination industry.
zMain Functions:
＊R,G,B mixed colors and can make all kinds of colors
＊ Adjust the brightness linearly
＊ The adjustable strobe effect
＊ The prefabricated colors and the “rainbow” effect
＊ Install all kinds of specification by hand
＊ Show the function of 180 degrees overturning
＊ English manual system an the adjustable brightness of the digital displaying tube
＊ The safeguarding function of over-heat
＊ Auto Test Mode
＊ Record the running time of the different colorful LED
＊ Record the total running time of the fixture
＊ Can edit three pieces of programs, 10 acts of each program for maximum
＊ Can edit 36 pieces of time events, each event can randomly install the running start and end time of the
included programs.
zThe approaches to controlling
＊ DMX-512
＊ Run alone through installing the inner programs
＊ Install the independent running programs for everyday during one week
＊ Drive 30 pieces of fixtures through the Master/Slave mode
＊ Install the DMX address of the fixture
zConfiguration:
45 pieces of 3 in 1---3W LED
zAngle:
＊ The adjustable angle for single head: 0°---180°
＊ The angle of the lens 25°
＊ Other angles available ：10°、40°、60°
2、Technical Specification
Page 23 of 36

zDMX-512 Controlling, 8 pieces of channels
zThe RGB mixed colors is 255 grades
zThe beam angle: 22.5°
zThe luminous flux: 2115.51LM
zThe maximum brightness: 11942.74Cd
zThe total adjustable brightness: 0-100%
zPower：121.7W
zThe power input: AC88--265V 50--60Hz
zDimension: L685XW250XH311MM
zWeight: 15KG(including the connecting line and the accessories)
zIP rating: IP65(lamp cap) IP67(Power Supply Case)
3、Security Warning:
zPlease read the user manual carefully before using and abide by the operation introduction
zThe fixture should be connected with the power supply attached the ground line, and the power voltage should
be matched with the fixed voltage
zThe fixture is not attached with any accessory and just can choose the accessory which belongs to the
manufacture
zThe operating temperature should be not above 40℃and not blew -20℃
zIf there are some problems, please ask the professional for repairing.
zWe change our packaging of four hand wheels used for position into four smaller ones for safety when
packaging and transportation. The four hand wheels will be packaged and complimented away with the lamp. If
the customer needs them, we will change back.
Note:
zWhen the power plug is not connecting the dependency, please connect the housing with the ground to avoid the
damages of the static and charge to the product.
4、Installation and Setup
一、 The sketch map of hanging and installing
The product can be locked on the truss by the lock nip: at first, put the nip into the truss and
then screw down and adjust the screw.
Page 24 of 36

二、 This product can be laid on the flat ground by the rubber cushion under the bracket of the fixture
shown as below:
三、 You can pull out rubber cushion under the bracket and secure the fixture on the truss through M6X20
bolt. he screw used for securing the power supply and then take out the power supply crust. The
effect picture is illustrated as below:
Drawing 1
Page 25 of 36

四. The followed Effect drawing is Multiple Variflood mounted on a fixing truss.
Drawing 2
四、 Adjustment
when usage
Please loosen handle at both
side of the lamp and adjust
projection to
appropriate angle then
lock it through adjusting the
two handles.
5、The operation instruction
一. The panel instruction
1
2 3 4
1：LED Matrix display 3：down
2：enter 4：up
一、 Menu instruction
No Title
Content Content of main
menu
Change
the
content
Submenu Submenu
options How to enter
submenu
functions
1 Address A001 Press
enter
key
Up/enter
Change Set up the
DMX
channels
Rblac
Gblac
Bblac
2 Balance balance
√
Enable
Press enter
for 2-3seco Set up RGB parameter
Page 26 of 36

3 Boost boost Press
enter
key
OFF Boost off
4 White Led
Run Hour R_H Press
enter
key
Up/enter
Change The time of
red led display
5 Green Led Run
Hour G_H Press
enter
key
Up/enter
Change The time of
red green
display
6 Bule
Run Hour B_H Press
enter
key
Up/enter
Change The time of
red blue
display
7 Signal signal Press
enter
key
No
Change Choose DMX
8 brightness bright Press
enter
key
Up/enter
Change Adjust the
b
rightness of
the screen.
9 Display Flip
Or Not DSPFLI Press
enter
key
Up/enter
Change Adjust the
positive or
opposite
display
10 Dmx delay Dmxdl Press
enter
key
Up/enter
Change Set up the
time period
for the wash
with no
DMX signal
YEAR
M/D
H:M
11 Time time √
WEEK
Press enter
for 2-3seco Set up the inner time of
the wash
12 Factory
Parameters FACT Recover the parameter
13 Previous
Parameters PREV Recover the parameter
previously set
up
Red
Green
Bule
CTC
14 Test test √
All
Press enter
for
2-3seconds
Test on the
color
temperature of
RGB on the
wash
Page 27 of 36

shutt
Dimer
15 Temperature temper Press
enter
key
Up/enter
Change Show the
temperature
on the head of
wash .
16 Master Press
enter
key
Up/enter
Change Set up the
way of
operating
17 Slaver SlavID Press
enter
key
Up/enter
Change Set up the
slave number
when the
slave machine
runs
18 Schedule
Enable or not Sched Press
enter
key
Up/enter
Change To see
whether it
runs as
scheduled or
not
19 Program Run Pgrun
Choose the
programming
Prog
SCENE
FIXT
shutt
dimer
R
G
B
mac
tm_h
tm_m
tm_s
fd_h
fd_m
fd_s
20 Program Set Pgset √
SCNRUN
Press enter
for
2-3seconds
Edit the
programming
of the wash
21 Schedule
√
event Press enter Edit the
Page 28 of 36

program
day
start
end
Schedu
enable
for
2-3seconds timing
Pgset submenu function instruction：
zPgset Press ENTER for 2-3 seconds, then enter the next programming. Every programming has
the following parameter：
（1）、SCEN：choose the ready to edit scene 1-10。
（2）、FIXT：When the master runs, the scene includes the following slave number: All、odd
number、even number、single slave machine。
（3）、shutter：Edit the strobe. It can strobe fast. gradually on and off instantly、on fast and off
gradually, strobe randomly.
（4）、dimmer：edit the scene brightness。
（5）、R=000/ G=000/ B=000:R，G，B of all kinds LED’s brightness。
（6）、mac：choose the inside effect。
（7）、tm_h、tm_m、tm_s：running time, hour, minute and seconds。
（8）、fd_h、fd_m、fd_s：FADE timr ，hour, minute and second。
（9）、SCNRUN：to see whether the scene works or not。
Press the enter key 2-3 seconds to save the edited programming.
SCHEDU Submenu function instruction：
every event has the following parameter setup：
（1）、event：choose the event to be edited.
（2）、program：choose the programming included in the event.
（3）、day：confirm when the incidents to run, from Monday to Sunday.
（4）、start：confirm at which o’clock the event is going to run.
（5）、end：confirm at which o’clock the event will end.
（6）、enable：to check whether the event works or not。
二、The way of connection for multiple units and the instruction for input and output connector

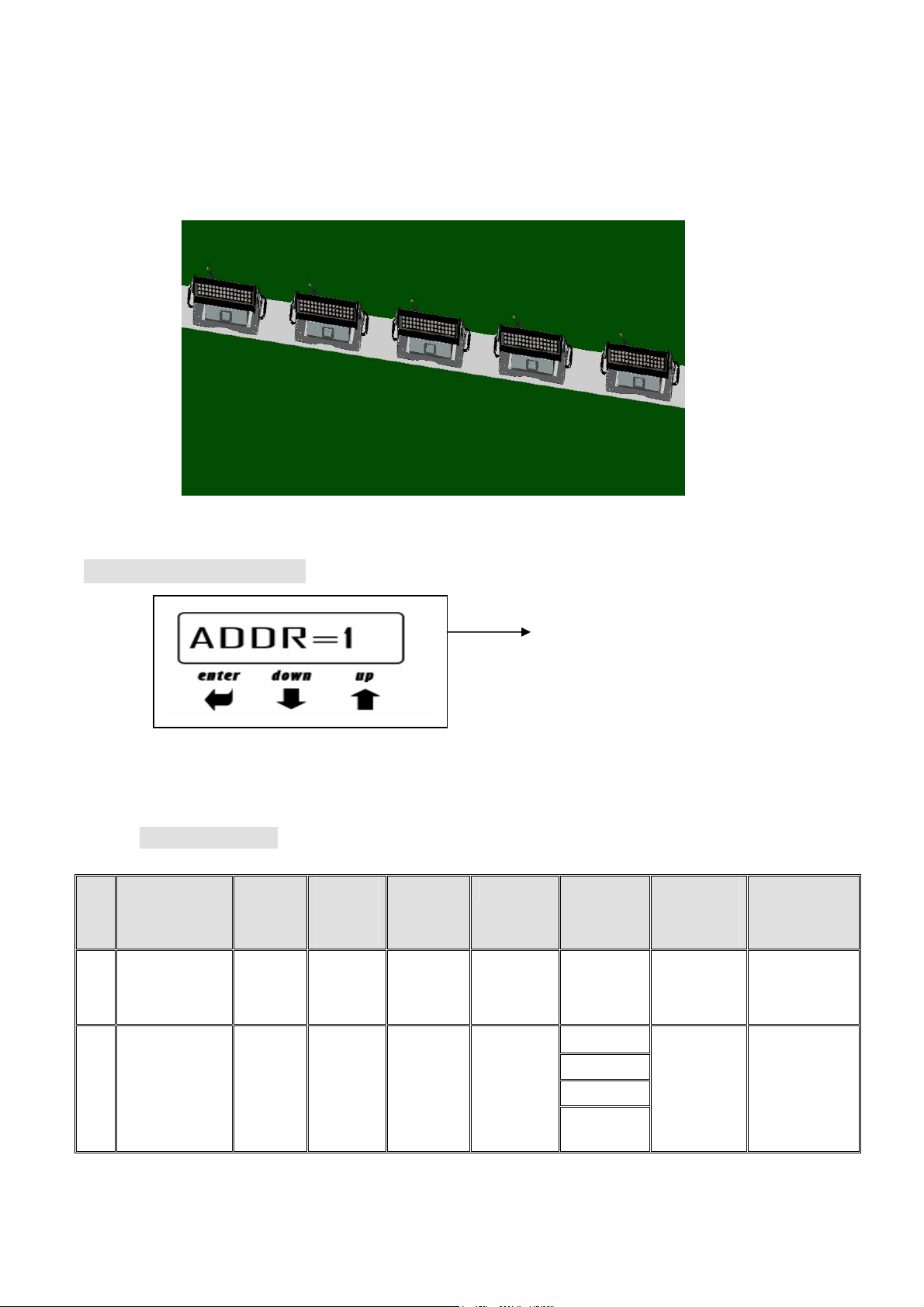

I. The diagram of connecting multiple units
II. The instruction for input and our put of 3pin and 5pin:
PIN1 GND ground wire 、PIN2 - COLD signal negative、IN3 + HOT signal positive
Page 29 of 36

6、The distribution under the DMX control
N
O
Numerical value Function description
0-3 off
4-6 on
7-59 strobe(20~1Hz)
60-69 Strobe on
70-78 Strobe off
79-87 Randomly strobe(from fast to slow)
1 Shutter/Strobe
others open
2 Dimmer 0-255 Total brightness adjustment
3 R0-255 The value of the red brightness
4 G0-255 The value of the green brightness
5 B0-255 The value of the blue brightness
0-19 Off 6 Color
temperature 20-255 +2000 k° to -2000 k°
0 - 7 No effect
8 - 15 Rainbow slow mode-5 seconds
16 – 23 Rainbow medium speed mode-5 seconds
24 - 31 Rainbow fast speed mode-5seconds
32 - 39 Rainbow slow speed mode-no time to remain
40 - 47 Rainbow medium speed mode - no time to remain
48 - 55 Rainbow fast speed mode - no time to remain
56 - 63 Rainbow very slow mode - no time to remain
64 - 70 Slow speed random colors
7 Macro Channel
71 The installed color function
Page 30 of 36

72 - 79 Medium speed random color
80 - 87 Fast speed random color
0-63 Forbid white balance
64-189 Open the white balance
190-250 Forbid white balance
8 White balance
control
251-255
Restore the white balance color
(Set White Balance Control channel in the value of220.Set
up RGB channel parameter and reset Macro channel 71，
White Balance Control channel is255 for 4seconds)
Channel distribution diagram：
7、Daily Maintenance
一、 Trouble Shooting
Trouble Content Reasons Trouble Shooting
There is no reflect for one or
many pieces of units No power supply Check if the power supply is turned on and the power cable
is connected well.
The replacement is normal but
the controller can not work well
or there is no feedback
The data connecting is wrong or
uncompleted Check, repair or change the data cable, check if it is
connected well and the signal
input of the fixture is connected
with the output of the controller
Page 31 of 36

Check if it is the master mode It is installed the slave mode
under the DMX mode
The installation of the address
code is wrong Check the address code and
install them totally
There is a piece of fixture whose
connector can not work normally After drawing the signal cable input and output out of the
fixture and connect each other
directly, then check if there is a
problem with the fixture. If it can
work after connecting, it proves
that there is a problem with the
signal connector of the fixture.
According to the way--- trouble
shooting, then select the broken
fixture and ask the professional
to repair.
The signal output of the controller
is not matched with the connector
of the signal receiving(PINS2—3
is wrong)
Dial the polarity switch of the
controller to“PHASE”, and
exchange the address of
PIN2—3
二、 Cleaning and Maintaining
Although we have already strength the credibility of the product in design, we always continue to
keep the high level of quality and try our best to extend the lifetime of the product. We should
maintain the product regularly and confirm the light to show itself under the best situation, and it is
necessary.
I、The cleaning of the fixture.
II、The cleaning maintaining of the lens
In order to confirm the optimum effect of the fixture, please clean each lens or the reflecting
configuration. Please use the soft cotton cloth with little lotion to clean lens and protect the lens from
damage.
III、The regular check of the cables
Check the connecting cable, cloth cable and ground cable and confirm the security of the fixture foe
using.
Page 32 of 36

Page 33 of 36
