ILVE IVBIX8 User manual

IVBIX8/IVSIX8
15 place settings
Alt function
Auto program

Reviewing the section on troubleshooting Tips will help
you solve some common problems by yourself.
Dear Customer,
Please carefully read this manual before using the
dishwasher, it will help you use and maintain the
dishwasher properly.
Pass it on to any subsequent owner of the appliance.
This manual contains sections on safety Instructions,
Operating Instructions, Installation Instructions and
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
development and updating of the product, may
make modifications without giving prior notice.
If lost or out-of-date, you can receive a new user
manual from the manufacturer or responsible
vendor.
Keep this manual for future reference.
If you cannot solve the problems by yourself,
please ask for help from a professional technician.
Dishwasher Features......................................... ...3
................................... ................ 7
Recommendations for loading and unloading
the dishwasher

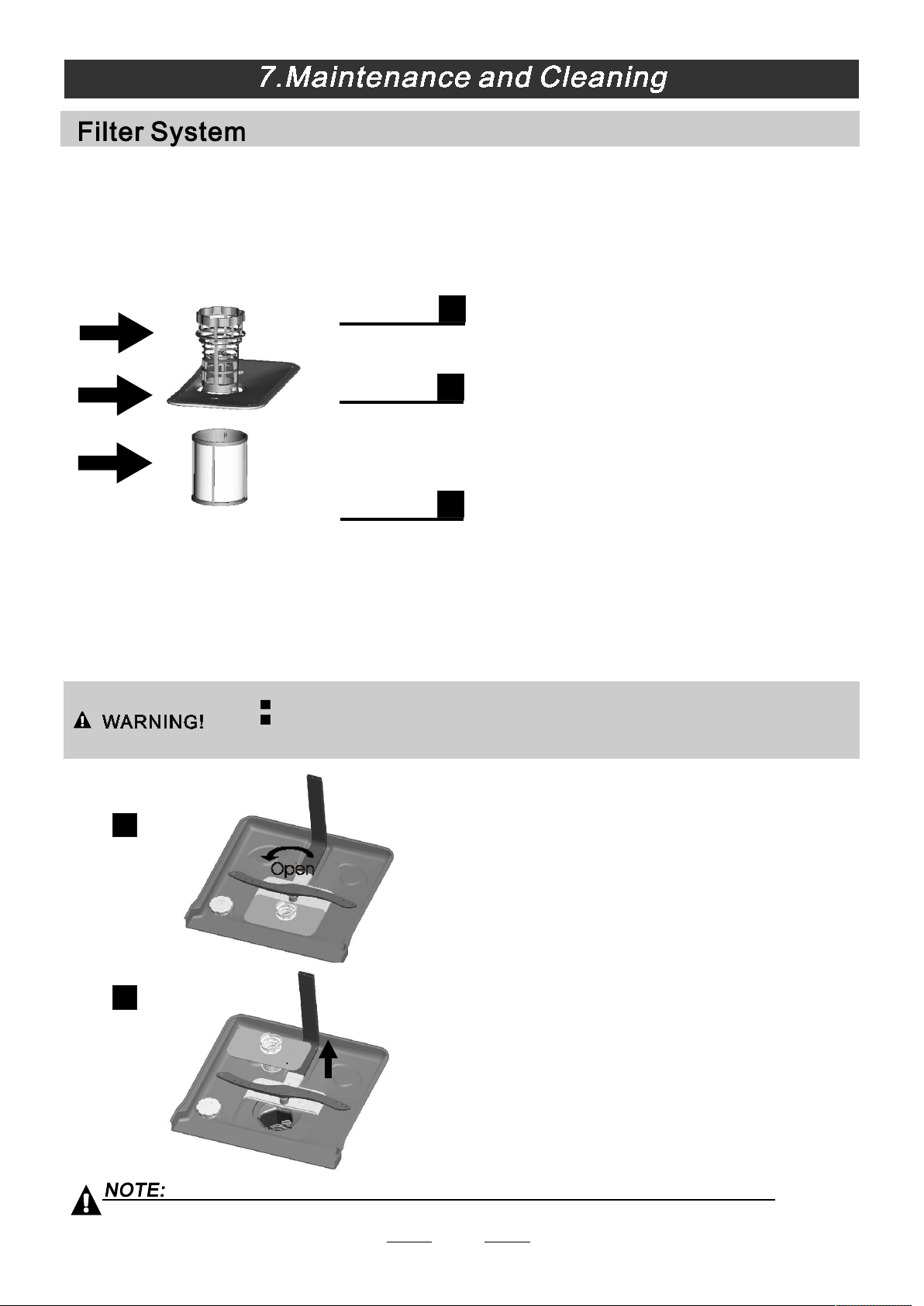

Filter System...................................................... 11

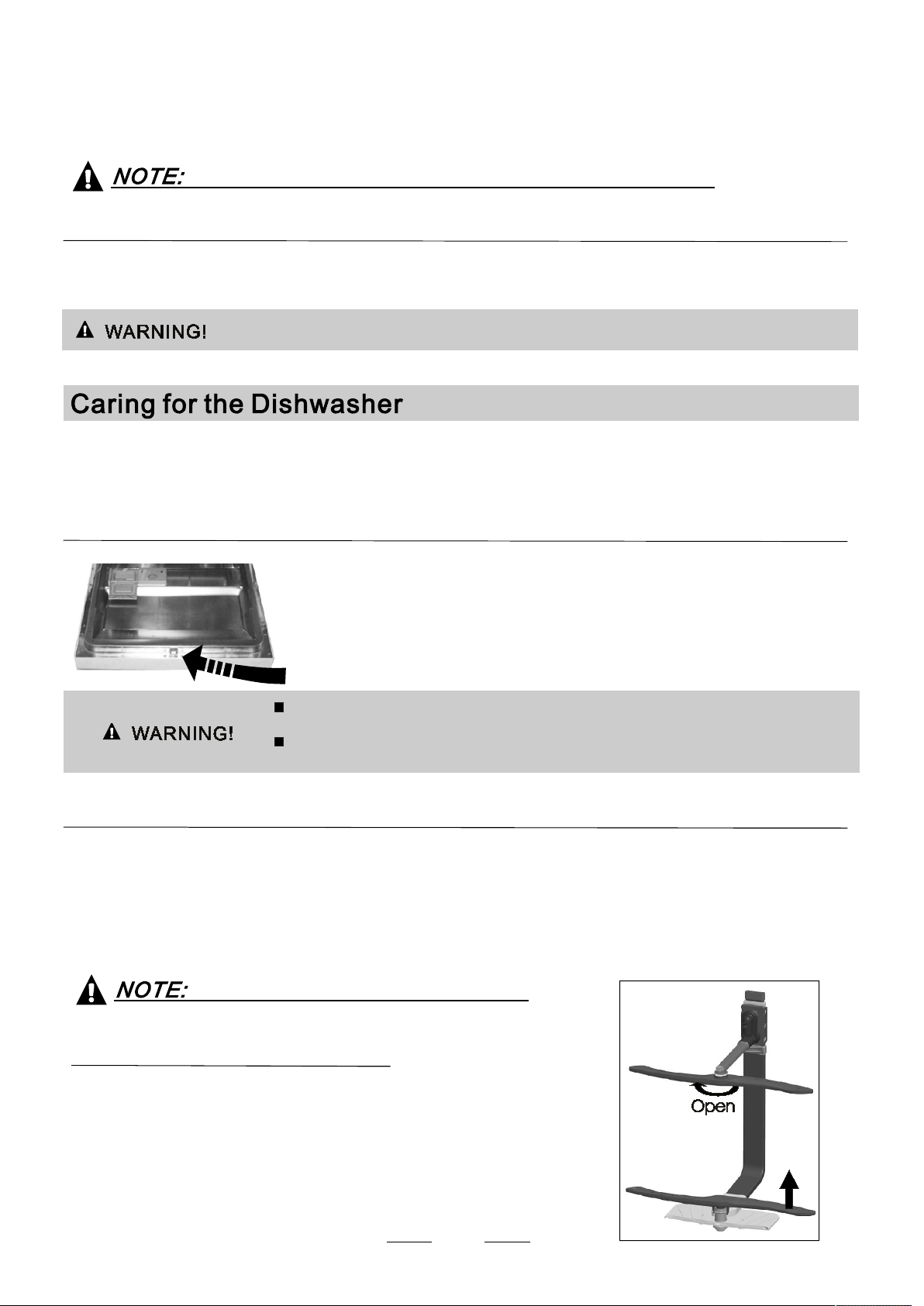

Caring for the Dishwasher.......................... .........12.
A. Filling the Rinse Aid Dispenser......................... 4
B. Detergent .......................................................5

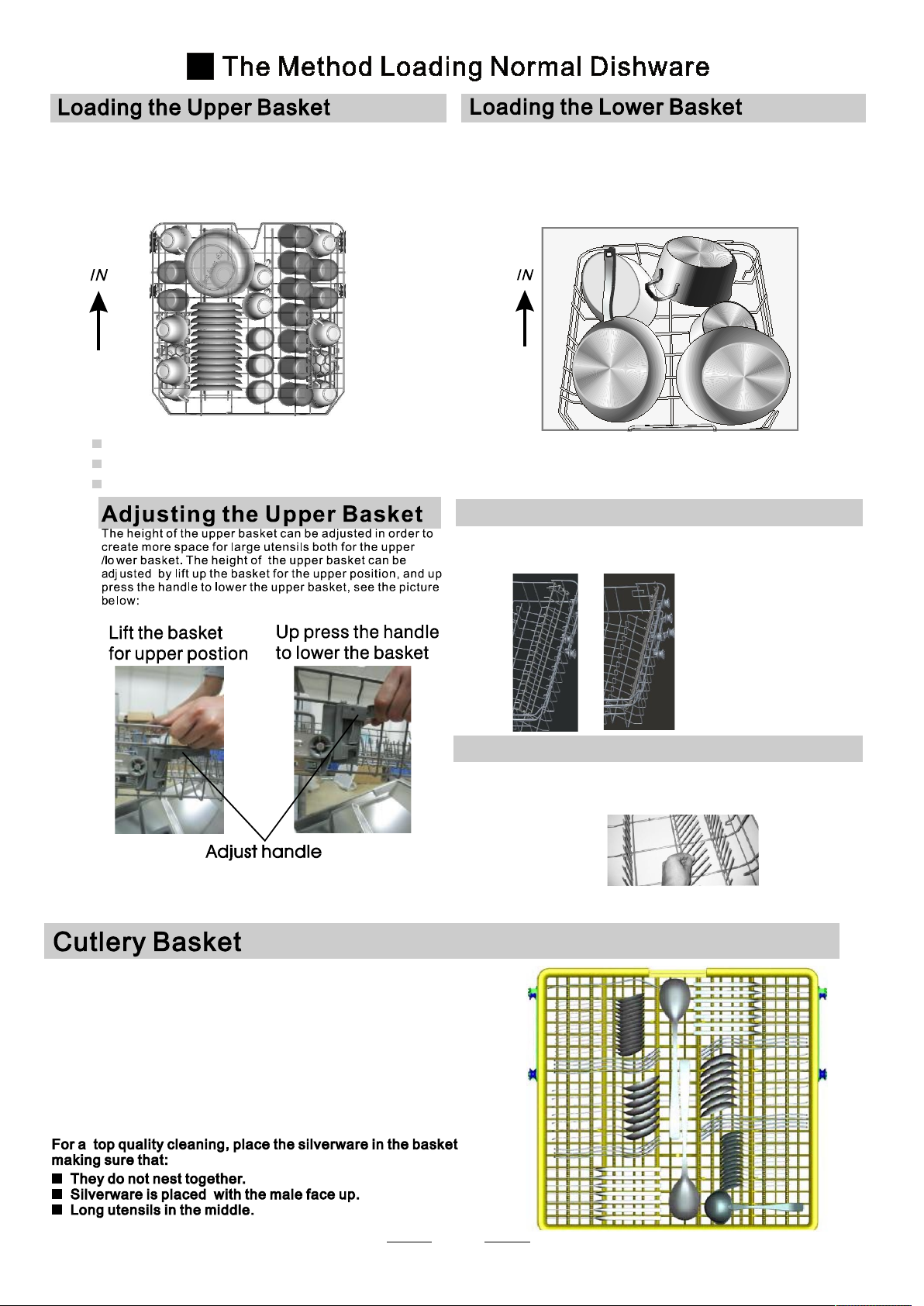

Loading the upper .....................................8Basket
Loading the Lower .....................................8Basket
Wash Cycle Table..................................................9
Turning on the Appliance......................................9
...... ..................10
Changing the Program mid-cycle ..
At the end of the Wash Cycle................................10
Before calling for service............................... ......20.
Error codes.................................... ...................21.
Technical information.................................. ......22..
Control Panel........................................................3
....................................... 13Installation preparation

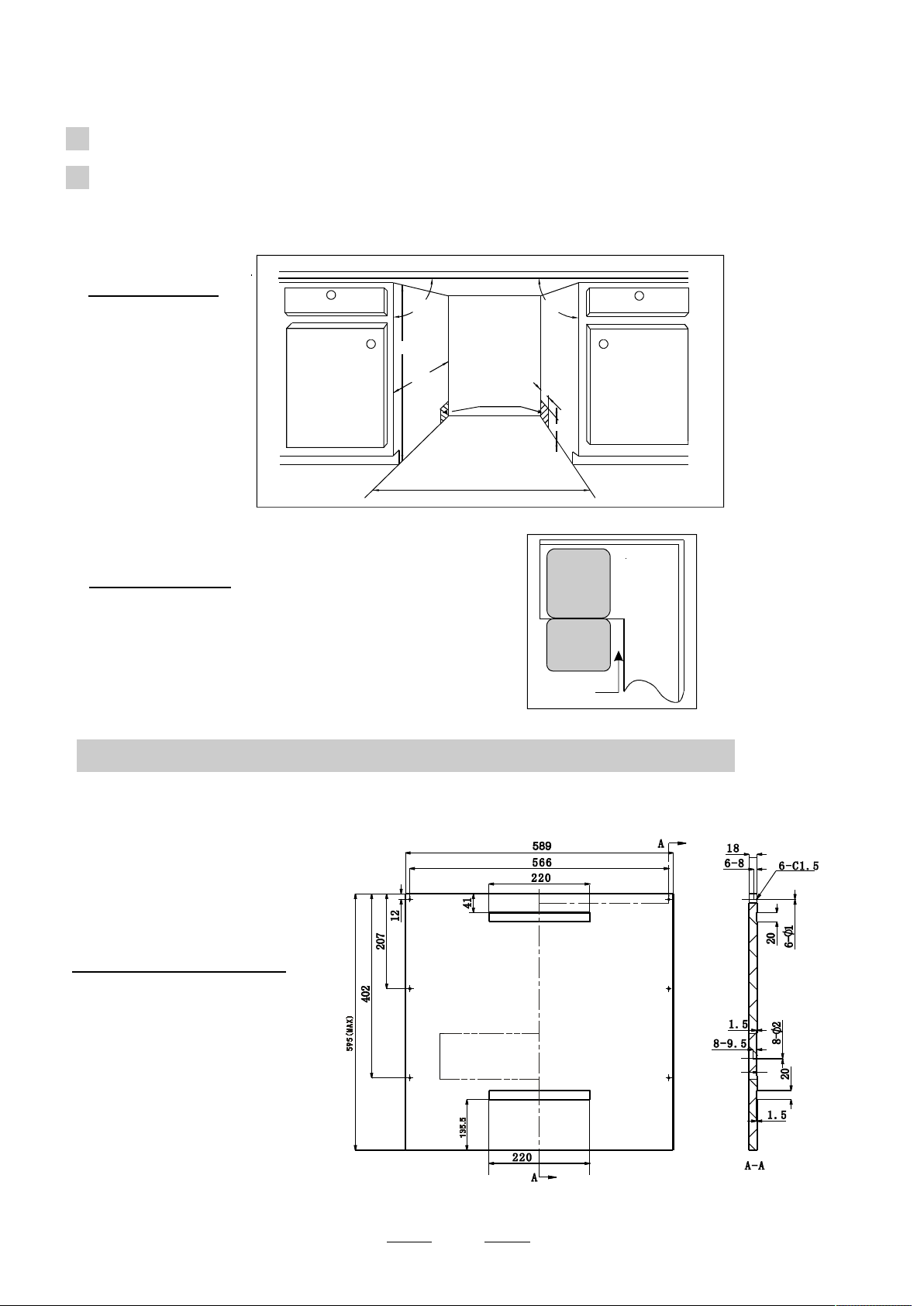

........14Aesthetic panel's dimensions and installation
...................16Tens ion a dju stm e nt of th e do or sp ring
................................... 16Connection of drain hoses
.............................. 17Dishwasher installation steps
About Electricity Connecting................................18
Cold Water Connection....................................... 19

1-1
This appliance is intended to be used in household and similar
applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
For EN60335-1
This appliance is not intended for use by persons(including children )with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
For IEC60335-1
This appliance is for indoor use only, for household use only. To protect
against the risk of electrical shock, do not immerse the unit, cord or plug in
water or other liquid.
Please unplug before cleaning and maintenance the appliance .Use a soft
cloth moisten with mild soap, and then use a dry cloth to wipe it again .
（）
（）
When using your dishwasher,
follow the precautions listed below:
This appliance must be earthed. In the event of a malfunction or breakdown,
earthing will reduce the risk of anelectric shock by providing a path of least
resistance of electric current. This appliance is equipped with a cord having
an equipment-earthing conductor and a earthing plug.
The plug must be plugged into an appropriate outlet that is installed and
earthed in accordance with all local codes and ordinances.
Improper connection of the equipment-earthing conductor can result
in the risk of an electric shock. Check with a qualified electrician or service
representative if you are in doubt whether the appliance is properly earthed.
Do not modify the plug provided with the appliance; If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.

1-2
Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
Do not operate your dishwasher unless all enclosure panels are properly in place.
Open the door very carefully if the dishwasher is operating, there is a risk of water
squirting out.
Do not place any heavy objects on or stand on the door when it is open. The
appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the
basket with their points down or placed in a horizontal position.
Do not wash plastic items unless they are marked dishwasher safe or the
equivalent. For plastic items not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
Children should be supervised to ensure that they do not play with the appliance.
The door should not be left open, since this could increase the risk of tripping.
Do not tamper with controls.
The appliance is to be connected to the water mains using new hose sets and
that old hose-sets should not be reused.
The maximum number of place settings to be washed is 15.
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is 0.04MPa.
If the supply cord is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order to avoid a hazard.
During installation, the power supply must not be excessively or dangerously
bent or flattened.
Some dishwasher detergents are strongly alkaline. They can be extremely
dangerous if swallowed. Avoid contact with the skin and eyes and keep children
away from the dishwasher when the door is open. Check that the detergent
receptacle is empty after completion of the wash cycle.

1-3
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international
abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene, e.g. padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel .
Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a
recycling centre. Therefore cut off the power supply cable
and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper
and should be disposed in the waste paper collection for
recycling.
By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
For more detailed information about recycling of this
product, please contact yourlocalcityofficeandyour
household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted
municipal waste. Collection of such waste separately for
special treatment is necessary.

2
For detailed operating method read the corresponding content on the instruction manual.
With each wash cycle.
Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel (if provided).
Check the rinse aid level
Load the baskets
Select a program
T urn on the water tap ,close the door . The machine will start working at once.Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid
handling the dishes and utensils while they are still hot and more susceptible to break.
The dishes will also dry better. First start unloading the lower basked.
Changing the programme
Adding forgotten dishes
in the dishwasher.
To l o a d t h e b a s ke t s, r e f e r t o t h e s e c t i on e n t it l e d L o a d in g t h e D i s h wa s h e r B a s k et s .“”
Touc h the Programme Button until the selected programme lights up.
(Seethe sectionentitled Operationinstruction )“”
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Look out for hot steam
when opening the door!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance Open the door, the On/Off button to switch on the appliance .
touch
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door, the dishwasher will start running again.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2.Open the door.
3. T the for more than 3 seconds to cancel the running program.
4. Select a new program.
5. Close the door, the dishwasher will start running again.
Program Buttonouch
When the working cycle has finished, the buzzer of the dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off Button.
Since the appliance is standing by, it will power off automaticly after 30 minutes without any operation.

before using it for the first time.
To get the best performance from your dishwasher, read all operating instructions
6.Program functions, only one function can be selected in
acycle:
3.Alt function button: Dual zone wash function, press
the button to select either upper basket or lower basket
loaded, and the response indicators will light on.
Extra Drying, improve the drying efficiency.
Power Wash, improve the cleaning efficiency.
Express, reduce the program time.
4.Screen- Show the program time and delay time;
Eg: Program time
Delay time
2. Program Buttons-touch to select the Program,
corresponding indicator will be lightened;
Auto
Intensive
Heavy
ECO
Glass
90Min
Rapid
Soak
5.Status Indicators :
Faucet is not open
Rinse detergent need to be refilled
Program ending
1. Power Button- touch on and off.
7. Delay Button;
Upper basket
Lower basket
10 11
Back View
1
2
3
4
5
6
7
89
Front view
Lower basket
Dispenser
Cup shelf
Spray arms
Filter assembly
Inlet pipe connector
Drain pipe
Upper basket
Cutlery rack
To p s p ra y a rm
1Inner pipe
5
6
7
8
9
10
12
11
3
2
4
12
Adjuster
Increase +
Reduce -

4
Before using your dishwasher for the first time:
A. Fill the rinse aid dispenser
B. Detergent
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume of the rinse aid container is about 110ml.
Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3/4full
1/2full
1/4full-Shouldrefilltoeliminatespotting
Empty
When to Refill the Rinse Aid Dispenser
Unless the rinse-aid warning light on the control panel is on, you can always estimate the amount from the color
of the optical level indicator "C "located next to the cap. When the rinse-aid container is full, the indicator
will be fully dark. The size of the dark dot decreases as the rinse-aid diminishes. You should never let
the rinse aid level be less than 1/4 full.
""
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Carefully pour in the rinse-aid into its dispenser, whilst avoiding it to overflow.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
1
2
3
during the next wash. Don't forget to replace the cap before you close dishwasher door.
Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming

5
Adjusting Rinse Aid Dispenser
The rinse aid dispenser has six settings.Always start with the dispenser
set on "3". If spots and poor drying are a problem, increase the amount of rinse
aid dispensed by removing the dispenser lid and rotating the dial to "4". If the
dishes still are not drying properly or are show spots, adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "3".
(Factory value is "3".)
Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or
knife blades.
The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the
dishwasher. Most of the commercial quality detergents are suitable for this purpose.
Proper Use of Detergent
Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser until you're ready to wash dishes.
Warning!
Based on their chemical composition, detergents can be split in two basic types:
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to
ensure the complete removal of detergent residuals.
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than
Conventional dishwasher. Generally, only one tablespoon of detergent is needed for
anormalwashload.Moreheavilysoileditemsneedmoredetergent.Alwaysaddthe
detergent just before starting the dishwasher, otherwise it could get damp and will not
dissolve properly.
Concentrated Detergent
Detergent Tablets
Detergent Dispenser
conventional, alkaline detergents with caustic components
low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate. Thus the water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. In this case please choose a program with a higher temperature.
°
Detergents
There are 3 sorts of detergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Without phosphate and without chlorine

Dishwasher detergent is corrosive!
Take care to keep it out of reach of children.
Always add the detergent just before starting each wash cycle.
Only use branded detergent aid for dishwasher.
If the lid is closed: press release button. The lid will spring open.
Amount of Detergent to Use
Detergent tablet
Detergent powder
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
The place of main wash cycle detergent placed.
The place of pre-wash cycle detergent placed.
Please observe the manufacturers dosing and storage
Recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in Detergent
You find inf orma ti on ab ou t the am oun t of det er ge nt for t he single pro gra mme on page 9.
Please aware, that according to the level soiling and the specific hardness of water differences are possible.
Please observe the manufacturer's recommendations on the detergent packaging.
compartment.Press down the lid (1) until it clicks shut (2).
If you are using detergent in tablet form, read the manufacturer
recommendations on the packaging in order to determine where the
If your dishes are only moderately dirt. You may be able to use less deterget
,
tablets should be placed inside the dishwasher (e.g. In cutlery
basket, detergent compartment, etc).
Make sure that the lid on the detergent compartment is closed,
even if you are using tablets.

7
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not
temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Some types of glasses can become
dull after a large number of washes
Silver and aluminum parts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
Are not suitable Are of limited suitability
Dishes and items of cutlery must not lie inside one another, or cover each other.
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
To avoi d da mage, gl as se s sh ou ld not t ou ch one anothe r.
Load large and difficult to clean items in the lower basket.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that
water cannot collect in the container or a deep base.
Consider buying utensils which are identified as dishwasher-proof.
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further
information from the detergent manufacturers.
For particular items, select a program with
To pr event da mag e, d o not ta ke g la ss a nd cu tle ry o ut o f the d is hwa she r im med ia tel y
after the programme has ended.
the lowest possible temperature.
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary from your model.)
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tip over.
4.All utensils are placed in the way that the spray arms can rotate freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To pre ve nt wat er dr ip pin g fro m th e up pe r bas ket i nto t he lo we r ba ske t, we r eco mme nd th at yo u
empty the lower basket first,followedbytheupper basket.

The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
tea cups and saucers, as well as plates, small bowls
and shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they will
not get moved by the spray of water.
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
Folding Spikes of Lower Basket
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Folding back the cup shelves
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Cutlery should be placed in the cutlery rack separately
from each other in the appropriate positions, and do
make sure the utensils do not nest together, this may
cause bad performance.
8

Means: Rinse-aid dispenser needs to be filled.
()
Starting a cycle wash
Draw out the lower and upper basket, load the dishes and push them back. It is load the lower
basket first, then the upper one (see the section entitled Loading the Dishwasher ).
Pour in the detergent (see the section entitled Detergent and Rinse Aid ).
Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification
of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
Open the door, touch the power button, and the On/Off light will turn on.
To u c h t h e p r o g r a m B u t t o n , t h e w a s h p r o g r a m w i l l b e c h a n g e d a s f o l l o w i ng d i r e c t i o n :
recommended to
“”
“”
ECO->Glass->90min->Rapid->Soak->Auto->Intensive->Heavy->ECO;
1
2
3
4
5
If a program is selected. Then close the door, the dishwasher begins to start.
*:Thisprogramisthetestcycle.Theinformationforcomparabilitytest
in accordance with ,as follows:
AS/NZS 2007.1
AS/NZS 2007.1
Capacity: 15 setting
Position Upper basket: upper wheels on rails
Rinse aid setting: 6
PI:0.49W; Po:0.45W.
Open the door slightly 50mm to assist in drying of the dishes after every wash.
Intensive
Heavy
Rapid
33.75g
20g
To rin se dis hes th at yo u plan
to wash later that day
Soak
15 0.02 4.5
For heavily soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
For heaviest soiled crockery,
such as pots, pans,casserole
dishes and dishes that have
been sitting with dried food on
them for a while.
Ashorterwashforlightly
soiled loads that do not
need drying.
Prewash 50
Wash 60
Rinse
Rinse
Rinse 70
Drying
（℃）
（℃）
（℃）
Prewash(45 )
Wash (55 )
Rinse
Rinse (65 )
Drying
℃
℃
℃
Prewash
Wash (45 )
Rinse(45 )
Drying
℃
℃
Wash (45 )
Rinse
Rinse (55 )
℃
℃
(55 )℃
Wash 65
Rinse
Rinse (65 )
Drying
（ ℃）
℃
Prewash
(*AS/NZS 2007.1)
For normally soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
standard daily cycle.
Glass
Pre-wash
wash(40 )
Rinse
Rinse(60 )
Drying
℃
℃
For lightly soiled crockery
and glass
11~15
0.9~1.3
150
Pre-wash (45 )
Autowash(45-55 )
Rinse
Rinse (65 )
Drying
℃
℃
℃
Auto sensing wash, lightly,
or heavily soiled crockery,
with or with out dried-on food
Auto
185
195
175
30
1.1
0.641
1.5
0.7
19
15
11.8
12.5
90 131.15
130 0.75
15
(1 piece)
5/28.75g
For lightly soiled
that need quick wash.
plates and
pans
(1 piece)
5/28.75g
5/28.75g
5/28.75g
5/28.75g
(1 piece)
(1 piece)
(1 piece)
(1 piece)

10
Premise:
Acyclethatisunderwaycanonlybemodifiedifithasonlybeenrunning forashorttime.Otherwise,the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
Open the door, the Program button , the machine will be in standby state,
then you can change the program to the desired cycle setting (see the section entitled " Starting a
wash cycle ).
touch more than 3 seconds
"
1
2
A forgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the door
completely.
2
3
Open the door a little .
14
5The dishwasher will start running again.
It is dangerous to open the door mid-cycle,
as hot steam may scald you.
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they
are still hot and more susceptible to break. They will also dry better.
Switching Off the Dishwasher
The program light is on but is not blinking, only in this case has the program ended.
1.Open the door.Switch off the dishwasher by pressing the ON/OFF button.
2.Turn off the water tap!
Open the door carefully.
Hot dishes are sensitive to minutes before removing from
the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
shocks. The dishes should cool down for around 15
Unloading the dishwasher
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
It is normal for the dishwasher to be wet inside.
When you open the door during washing, the will stop blinking and the dishwasher
will mooing every minute unless you close the door.
LED display“”
If you open the door , the machine will pause. The LED display will
stop blinking and the buzzer will mooing every minute unless you close the door . After
you close the door ,the machine will keep on working after 10 seconds.
during a wash cycle “”

The filter prevents larger remnants of food or other objects from getting inside the pump.
The residues may block the filter, in this case they must be removed.
The filter system consists of a coarse filter,a flat (Main filter)
And a microfilter(Fine filter).
Food and soil particles trapped in this filter are pulverized by a
special jet on the lower spray arm and washed down drain.
Larger items, such as pieces of bones or glass, that could block
the drain are trapped in the coarse filter. To remove the items
caught by the filter, gently squeeze the tap on the top of this
filter and lift out.
This filter holds soil and food residues in the sump area and
prevents them from being redeposited on the dishes during wash cycle.
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1
Filter assembly
The filter efficiently
For best performance and results, the filter must be cleaned regularly. this reason, it is a good idea to
remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and
cup under running water. To remove the filter device, pull the cup handle in the upward direction.
removes food particles from the wash water, allowing it to be recycled during the cycle.
For
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the appliance
and damage dishes and utensils.
Step 1 Turn the：filter counterclockwise,
Step 2 lift the filter assy up：
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.
11
1
2

12
The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Winterzing
1.Cutofftheelectricalpowertothedishwasheratthesupplysource.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.
please take frost protection measures on the dishwasher in winter. Every fter washing cycles,
please operate as follows
time a
：
Cleaning the Filter
Cleaning The Door
To clea n th e coa rse f ilt er and th e fine filt er, use a cleaning br ush. Rea ssemb le the fil ter part s (see p ag e 15) and
reinsert them in the dishwasher, positioning them in their seat and pressing downwards.
When cleaning the filters, Otherwise, the filters could be
contorted and the performance of the dishwasher could be decreased.
do not knock them.
To clean the edge around the door, you
To av oid pe ne tra tio n of wa ter into t he d oo r lo ck an d el ec tri ca l com po nen ts, d o not
use a spray cleaner of any kind.
should only use a soft, ward and damp
cloth.
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electrical components.
Abrasive agents or some paper towels should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
Cleaning the Spray Arms
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessary to clean the spray arms regularly for hard
water chemicals will clog the spray arm jets and bearings.
-Aftereachcycle,checkforanydebrisinthefiltertoavoidfutureblockage.
- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and
clean the filters under running water.
Remarks:
The entire filter assembly should be cleaned once a week.
To re move th e lo wer spra y arm , pu ll ou t th e sp ray a rm u pw ard .
To re move th e up per sp ray a rm, h ol d th e nut , ro ta te th e ar m
clockwise to remove it.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.

It is recommend that you run a wash cycle with the
dishwasher empty and then remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
seals to last longer and prevent odours from forming
within the appliance.
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, it can be
positioned on its back.
One of the factors that cause odours to form in the
dishwasher n the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
is remaining food strapped i
Before cleaning or performing maintenance, always
remove the plug from the socket.
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Only use a cloth with warm soapy water.
To rem ove s pot s or st ain s fro m the s urf ac e of t he
interior, use a cloth dampened with water an a little
vinegar, or a cleaning product made specifically for
dishwashers.
Remove the Plug
No Solvents or Abrasive Cleaning
Moving the Appliance
Seals
After every wash, turn off the water supply to the
appliance and leave the door slightly open so that
moisture and odours are not trapped inside.
After Every Wash
When not in use for a Timelong
13
The installation of the pipes
and electrical equipments
should be done by professionals.
Electrical Shock HazardDisconnect electrical power
beforeinstalling dishwasher.
Failure to do so can result in death or electrical shock.
The installation position of dishwasher should be near the existing inlet and drain hoses and
power cord.
One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of
the dishwasher.
Installation preparation
Note: please check the accompanying installation accessories(hook for aesthetic panel,screw)
●

Please carefully read the installation instruction.
Illustrations of cabinet dimensions and installation position of the dishwasher
Preparations should be made before moving the dishwasher to the installation place.
Choose a place near the sink to facilitate the installation of inlet and drain hoses
(see figure 1).
If dishwasher is installed at the corner of the cabinet, there should be some space
(illustrated in figure 2) when the door is opened.
2
1
Minimum space when
the door is opened
【】Figure2
Cabinet dimensions
【】Figure1
Cabinet
Dishwasher
Door of
dishwasher
Minimum space of 50mm
1The aesthetic wooden panel could be processed according to the Figure 3.
●Aesthetic panel's dimensions and installation
Less than 5mm
between the top
of dishwasher and
cabinet and the
outer door aligned
to cabinet.
90 °90 °
600 mm
820mm
100
580mm
80
Space between cabinet
bottom and floor
Electrical, drain and
water supply line
entrances
14
The aesthetic panel should
be processed in accordance
with the illustrated dimensions
【】Figure3
(Unit: mm)

Installation of aesthetic panel
【】Figure4a
2Installthehookontheaestheticwoodenpanelandputthehookintotheslotoftheouterdoor of
dishwasher(see figure 4a). After positioning of the panel , fix the panel onto the outer door by
screws and bolts(See figure 4b) .
15
Installation of aesthetic
wooden panel
【】Figure4b
.takeawaythefour
short screws
.pinupthefourlong
screws
1
2

Tension adj u s tment
of the door spring
【】Figure5
Ten s i on ad j ustme n t of th e d oor sp r i ng
●
Connection of drain hoses
●
The door springs are set at the factory to the proper tension for the outer door.
If aesthetic wooden panel are installed, you will have to adjust the door spring tension.
Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable
(see figure 5).
Door spring tension is correct when
the door remains horizontal in the
fully opened position yet rises
to a close with the slight lift of a
finger.
，
16
Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to
avoid bending or crimping it. The height of the drain pipe must be less than 1000mm.
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
φ40mm
B
【】Figure6
