ImageWorks Panoura X-ERA Guide

Panoura X-ERA
Pan-Only Installation and Assembly Quick
Guide

ImageWorks Proprietary –Confidential Information
These instructions serve as supplemental assembly guidance of
the Panoura. They are not meant to replace the installation
manual, but rather serve to complement it.
If there are any questions, please do not hesitate to contact us
914-592-6100
5/24/2019
2
Summary

ImageWorks Proprietary –Confidential Information
1. Division of Responsibility
2. Packaging Contents
3. Tooling Required
4. Install Column
5. Attaching the Main Top Section
6. Attach Chinrest
7. Final Leveling Critical Adjustment
8. Install Handswitch
9. Connecting PC Cables
10. Install Covers
5/24/2019
3
Agenda

Operator Responsibilities before
installer arrives
•Floor is level
•Desired location for
equipment is identified and
has adequate space*
•Location has adequate power
and data sources*
•Scanner PC is connected to
Internet and imaging
software loaded
•Location for PC/monitor
identified and any specialized
PC/monitor mounting or
shelving is complete
•Conduit and pull cables
installed at any location
where wiring is desired
behind walls
•Location of handswitch
identified within appropriate
distance*
•Mounting Wall backing plate
or equivalent installed.
Installer Responsibilities
•Column is secured to the
floor and to the wall
•Column is level in both
axis (checked with level)
•C-arm is hung on column
and unit is assembled
•Top of C-Arm frame is
level
•Handswitch is hung in
desired location with
cabling run and
connected to the unit
•The 2 Ethernet cables are
run and connected
between unit and PC
•Double check of
packaging for missed
items**
•Disposal of packaging
•Wall and area are clean
and aesthetics are
pleasing to the office
ImageWorks
Responsibilities
•Alignment and
Calibration
•Assemble all
covers
•Final Testing and
Quality Assurance
•Staff training
*refer to pre-install checklist for requirements
**some items are commonly missed in packaging so please inspect thoroughly
1. Division of Responsibility

ImageWorks Proprietary –Confidential Information
5/24/2019
5
1. Division of Responsibility
Before Installation occurs, office must assure PC is
ready for alignment and integration:
•Install imaging software that office will plan to use
(e.g. Dexis, Eaglesoft, Apteryx, Evasoft, etc)
•PC is connected to network and has internet access
NOTE: These items above will be needed to fully integrate the unit
and train the staff. It’s recommended to check these items
BEFORE starting installation, so that if they are not done, office
can work on completing this in parallel with installation.

ImageWorks Proprietary –Confidential Information
Basic Pan arrives in two boxes containing:
1. Column, Components, hardcopy Install Manual.
2. Main C-Arm Assembly, Sensor and Components
5/24/2019
6
2. Package Contents
The Scanner PC arrives in two boxes containing:
1. PC with preinstalled software & USB license
dongle.
2. Monitor.

ImageWorks Proprietary –Confidential Information
•No.2 Phillips screwdriver (both normal and short)
•Allen wrenches (1.5 -8 mm)
•Box wrench (5.5 mm)
•Box/Open End Wrenches (5.5 -19 mm)
•Cutting tool such as nippers
•Tool for working with electrical terminals (precision
screwdriver, etc.) (blade: 3.5 x 0.5 mm)
•Power drill (Hammer drill if installing into masonry)
•Masonry drill bits (4 mm bit for pilot holes, 12.5 mm bit for
anchor bolts)
•Digital Volt Meter
•Level and tape measure
5/24/2019
7
3. Required Tools (hardware is metric)

ImageWorks Proprietary –Confidential Information
5/24/2019
8
Unbox the
Support Column
Unit
4. Install Column

ImageWorks Proprietary –Confidential Information
4. Install Column
5/24/2019Dental Fix
9

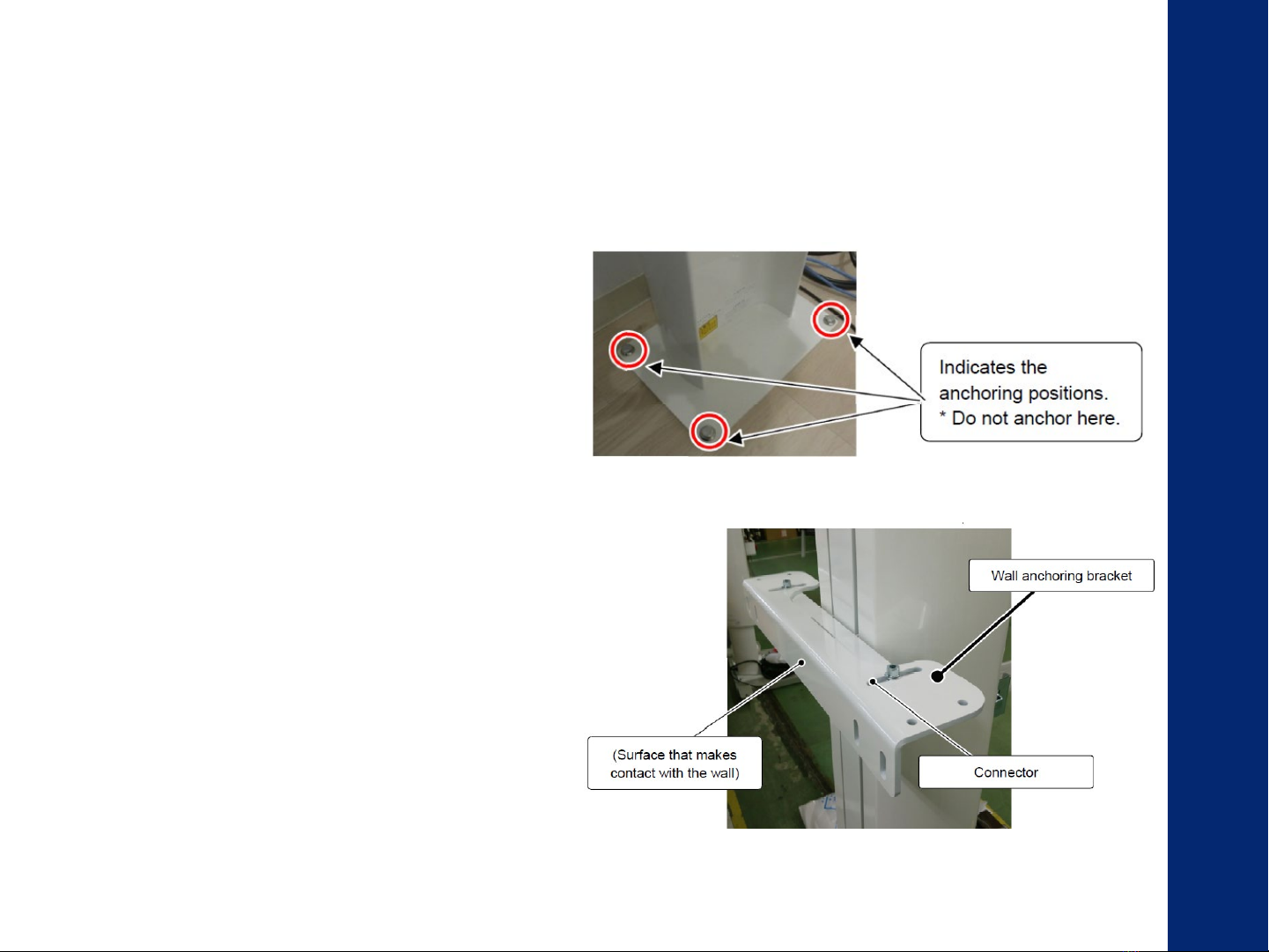

Determine the anchoring location of
the support column, and temporarily
set the support column on the
floor. DO NOT ANCHOR YET.
Only Anchor after performing
the Leveling procedure.
Tighten the connectors of the wall
anchoring bracket. Tighten them
at the same position on both the
left and right sides.
* To ensure an allowance for
adjustment after the angle is
adjusted later, tighten the wall
anchoring bracket
in the middle of the connectors as
shown in the following diagram.

ImageWorks Proprietary –Confidential Information
5/24/2019
10
4. Install Column (Initial Level Adjustment)

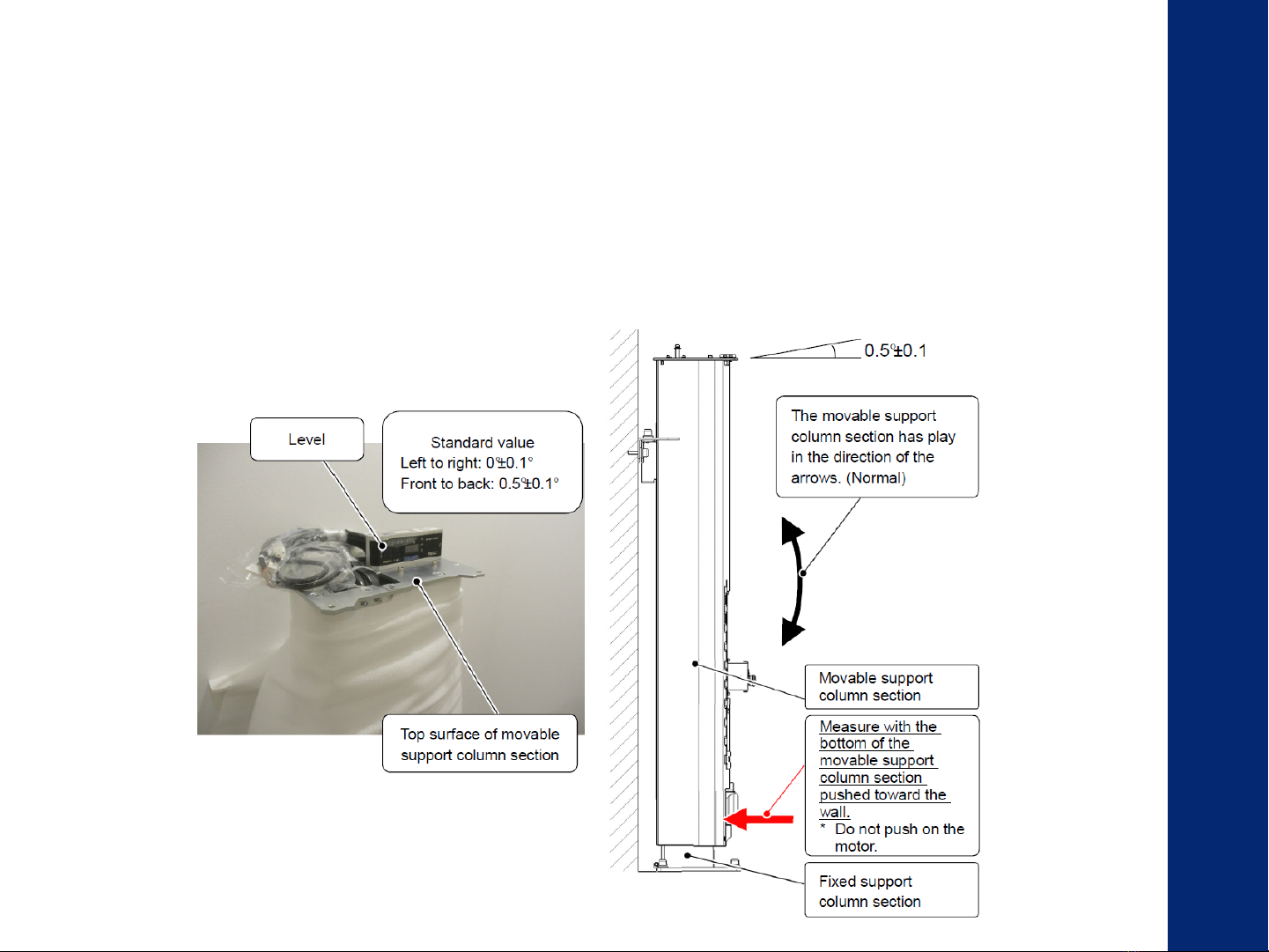

Place the level on the top surface of the movable support column section, and check
the angle in the front to-back direction and the right-to-left direction.
* The movable support column section has been designed to be stable when the
main top section is attached. When checking horizontality, push the bottom of the
movable support column section against the wall to make it the same state.

ImageWorks Proprietary –Confidential Information
5/24/2019
11
4. Install Column (Initial Level Adjustment)
Adjust horizontality to be
between +0.4°to +0. 6°as a
guide. Adjust the angle by
slipping the included
adjustment shims under the
base plate.
Temporarily anchor the wall
anchoring bracket to the
wall with the four anchor
bolts or lag screws.
* The following two types of
lag screws are included.
Select the screws according
to the condition of the
wall.
• 8×38 mm • 8×65 mm
Tighten the screws while
carefully checking that there
is no deviation in the left-to-
right angle.

ImageWorks Proprietary –Confidential Information
5/24/2019
12
4. Install Column
Concrete Floor anchoring
•Determine the position to install the main unit, and drive the anchor bolts in the
anchor hole positions.
•Anchor the support column to the floor with 4 hexagon socket head bolts.
Non-Concrete Floor anchoring
•Determine the position to install the main unit, and drill pilot holes in the anchor
hole positions.
•Anchor the support column to the floor with 4 lag screws.

ImageWorks Proprietary –Confidential Information
5/24/2019
13

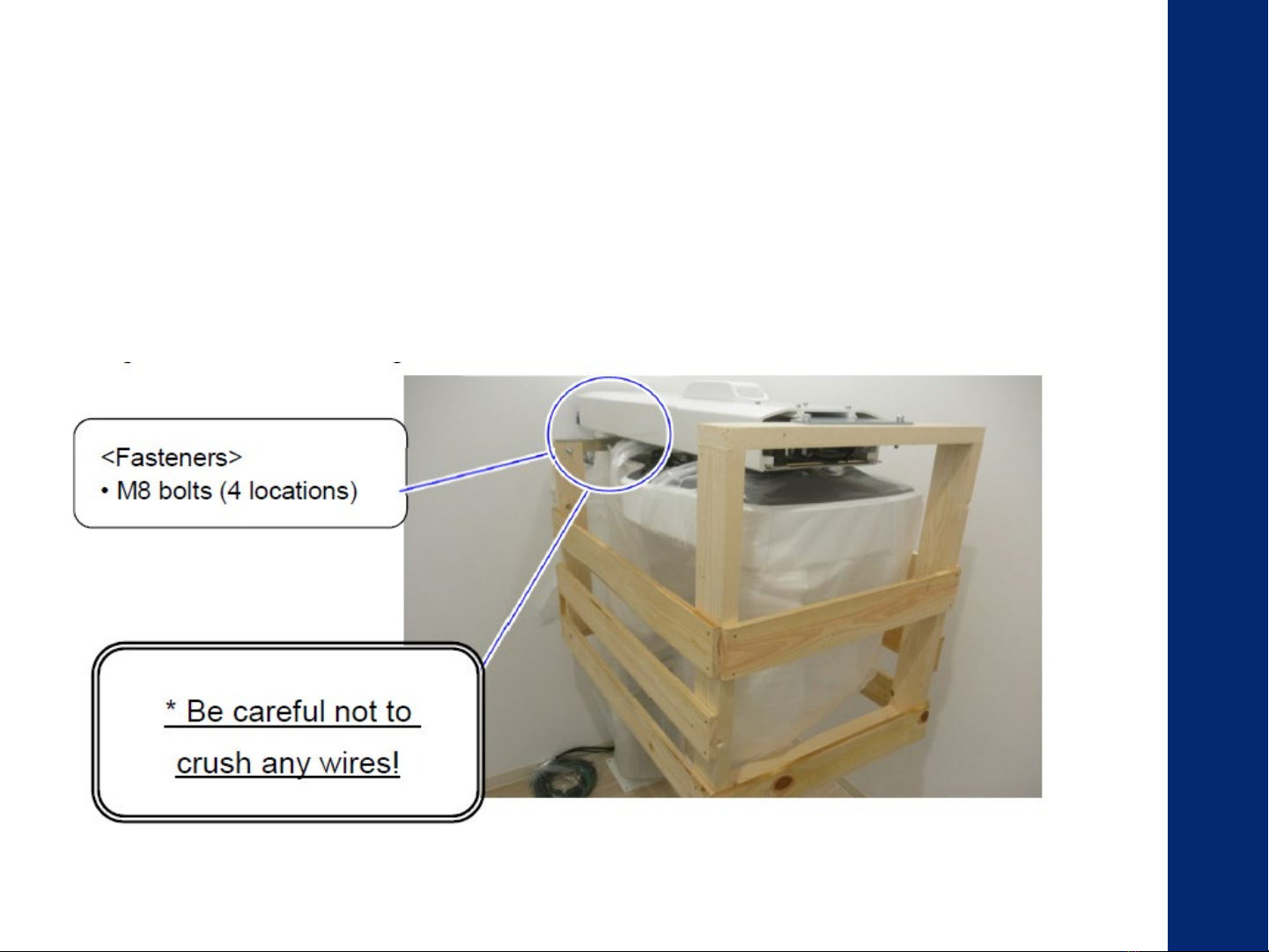

Remove main top section and the wooden frame from the
cardboard box.
5. Attaching the Main Top Section
IMPORTANT: This component is heavy and fragile. Strongly
recommend 3 people, 2 to lift and hold and a third to attach bolts
when mounting to column.

ImageWorks Proprietary –Confidential Information
5/24/2019
14
5. Attaching the Main Top Section

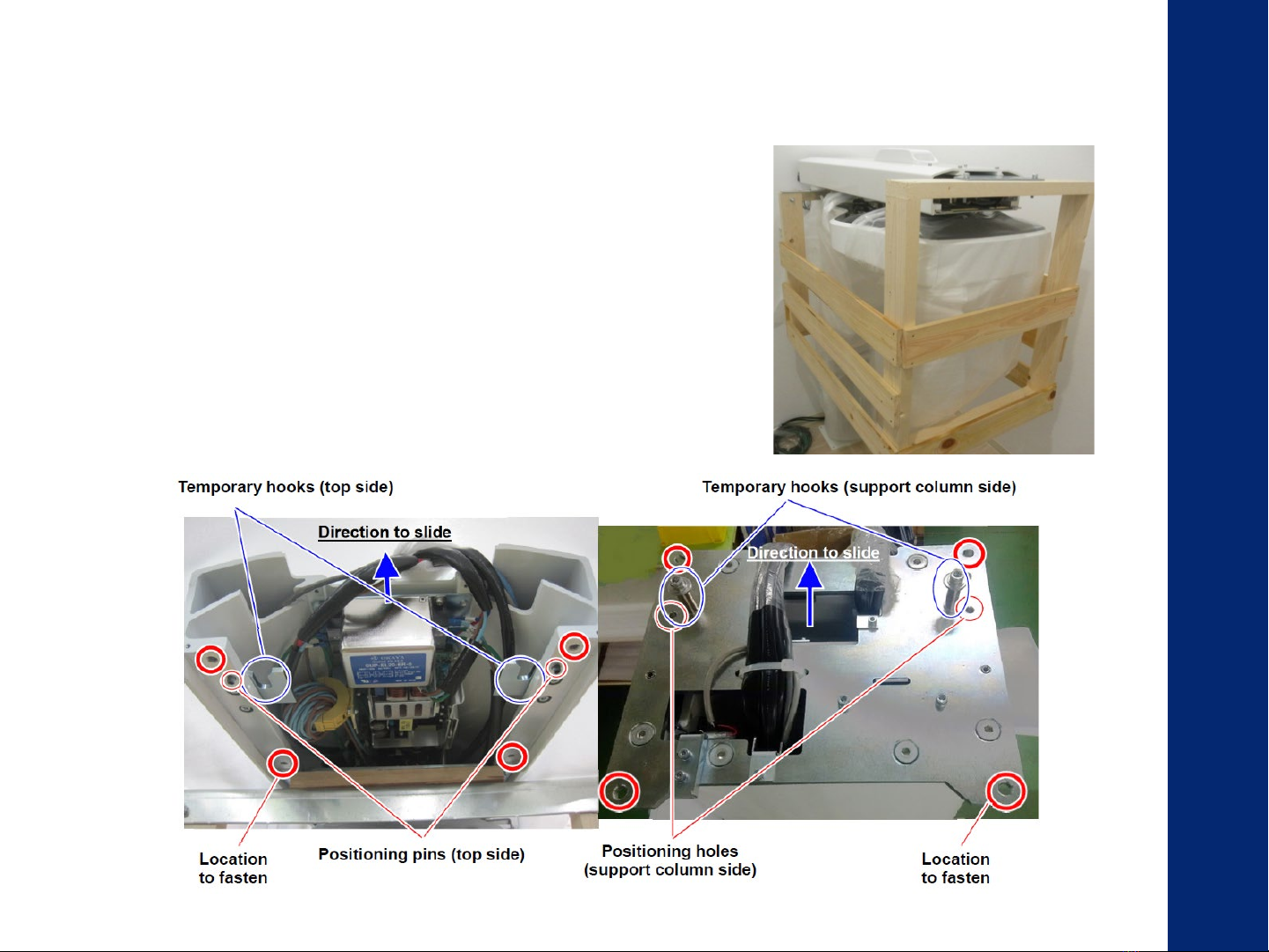

Attach the main top section together with the wood
frame to the support column section.
To do so, first set the main top section on the top
surface of the support column section, and then
slide the main top section toward the wall until the
temporary hooks are hooked.
After the temporary hooks are hooked, tighten the
bolts until the positioning pins (support column
side) fit into the positioning holes on the top frame.
* Tighten the bolts starting from the wall side.

ImageWorks Proprietary –Confidential Information
5/24/2019
15
5. Attaching the Main Top Section
Remove the wood frame.
Remove the packing bracket (indicator lights section).

ImageWorks Proprietary –Confidential Information
5/24/2019
16
5. Attaching the Main Top Section
Unscrew the screws on the packing bracket (to prevent
rotation), and rotate the arm.
Remove the packing bracket (bottom of main top section).

ImageWorks Proprietary –Confidential Information
5/24/2019
17
5. . Attaching the Main Top Section
Remove the packing
bracket (top of arm
section).
Remove packaging
on the arm section.
Be sure to remove
the styrofoam for
cushioning during
transport
inserted between
the sensor cover
and arm section
cover.

ImageWorks Proprietary –Confidential Information
5/24/2019
18
5. Attaching the Main Top Section
Connect the support column section and main top section connectors.

ImageWorks Proprietary –Confidential Information
5/24/2019
19
5. Attaching the Main Top Section

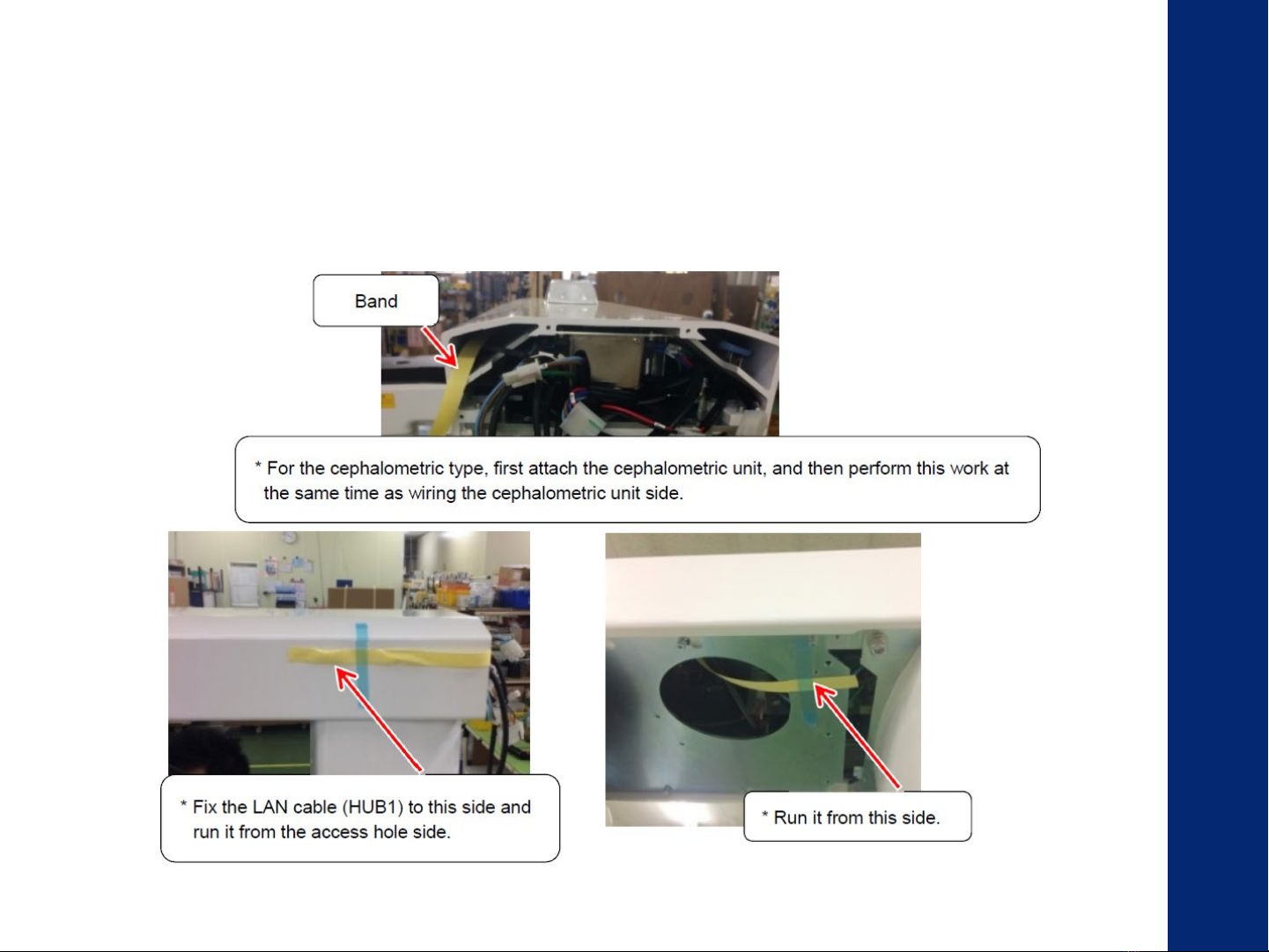

How to run the LAN cable (HUB1)
When running the LAN cable (HUB1), use the yellow bands attached to
the equipment when it is in the packaging.

ImageWorks Proprietary –Confidential Information
5/24/2019
20
5. Attaching the Main Top Section
Loosen the fasten screws for the main control board mounting plate,
and then pull it forward.
Connect the
connectors to the
indicator lights
section, and then
attach it to the
main unit
