IME Kerlink Wirnet iStation Series User manual

WirnetTM iStation - LoRaWAN® gateway for the Internet of Things
Quick Start Guide
Thank you for choosing Kerlink.
We are proud to be part of your project.
For ecological reasons, this guide has been printed on recycled paper
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
04-12-19

www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
04-12-19

1. Need help?
• In order to provide the most updated technical documentation, as well as considering and saving the
environmental resources, Kerlink is providing preferably “Online documentation”.
• Kerlink is gathering all the technical information on a Wiki: http://wikikerlink.fr/
- If your don’t have yet your Wiki login/password please request them to [email protected]om (note that
the“Product ID” of one of your products will be required).
- How to find the “Product ID”? Please look at the Wirnet iStation sticker placed on the right side of the case.
• On the Wiki, Kerlink is proposing a comprehensive set of documents and information for self-help:
- Setup of Wirnet™ iStation Gateway: Connection to the gateway, Firmware update, Packet Forwarder installation,
Packet Forwarder configuration.
- System Management: Connection, login and credentials, KerOS REST API, …
- Network Management: Backhaul configuration, Firewall, IPsec / OpenVPN.
- LoRa Features, KerOS customization, Support and resources (FAQ, Troubleshoot the gateway …)
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
04-12-19

Application Notes: (from end of November 2019) for questions related to generic engineering rules
AN-KLK03355 - Improving radio coexistence performance of LoRaWAN gateways
AN-KLK03356 - LoRaWAN gateways coverage optimization
AN-KLK03357 - LoRaWAN gateways installation recommendations
AN-KLK03358 - LoRaWAN gateways lightning protection
•For any Warranty or Maintenance related request (Trouble shooting, help …),
If purchased from a Distributor, please contact the distributor directly for Level1 support
If purchased from Kerlink directly, please open an “Assistance Request” via our ticketing tool called OTRS
(Open-source Ticket Request System)
If you don’t have yet your OTRS login/password, please request them to [email protected]om (note that the
Product Id or any serial number of one of your products will be required).
Access to Kerlink “Technical Support team” for Maintenance Services is conditioned to a valid Maintenance
contract.
• For any other question related to our product, please contact our distributor or Kerlink [email protected] or + 33
2 99 12 29 00.
2 Manufacturer
• Kerlink, 1 Rue Jacqueline Auriol 35235 Thorigné-Fouillard, France
Tel.: [phone] –Fax: [phone]
www.kerlink.com
3 Safety
• Please, read these instructions carefully and look at the equipment to become familiar with the device before
trying to install, operate, or maintain it.
• The following special messages may appear throughout this documentation or on the equipment to warn of
potential hazards or to call attention to information that clarifies or simplifies a procedure.
-Refers to a critical situation.
-In case of non-compliance, it may result in property damage
-Refers to useful information during manipulations.
4 Package Contents
-Only use the Wirnet™ iStation for its intended use "Normal conditions of
use".
-Maintenance and repair must be carried out by qualified personnel
authorized by the manufacturer.
-The enclosure of the Wirnet™ iStation must not be opened by
CUSTOMER .
-The Wirnet™ iStation should only be used with accessories or spare parts
supplied by your reseller.
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
04-12-19

Remarks:
• The straps for mounting on a pole are not included, the width should not exceed 14mm.
• The screws for mounting on a wall are not included, the diameter of the screws must be 6mm.
• The covers have to be screwed at their maximum to ensure waterthightness (USIM and LED/buttons)
© Copyright photo - Kerlink - all right reserved
5 Markings
Symbol
Description
Symbol
Description
Wirnet iStation
Type of Equipment
QR code
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
04-12-19

48V 140mA
(PoE)
42-57V 200mA
(DC)
Power supply information
CE marking indicating that the product
complies with current European
directives or other marking marking
depending on the country
Board ID
Serial number of board
Marking indicating that the product
complies with RoHS directives
Final product ID
Serial number of product
Do not dispose of with domestic waste
MAC ADDR
MAC address
Product must be installed on a nonflammable
substrate (UL94V0). Refer to
the installation instructions
Refer to the installation instructions
before powering up
IP 67
Indice of protection

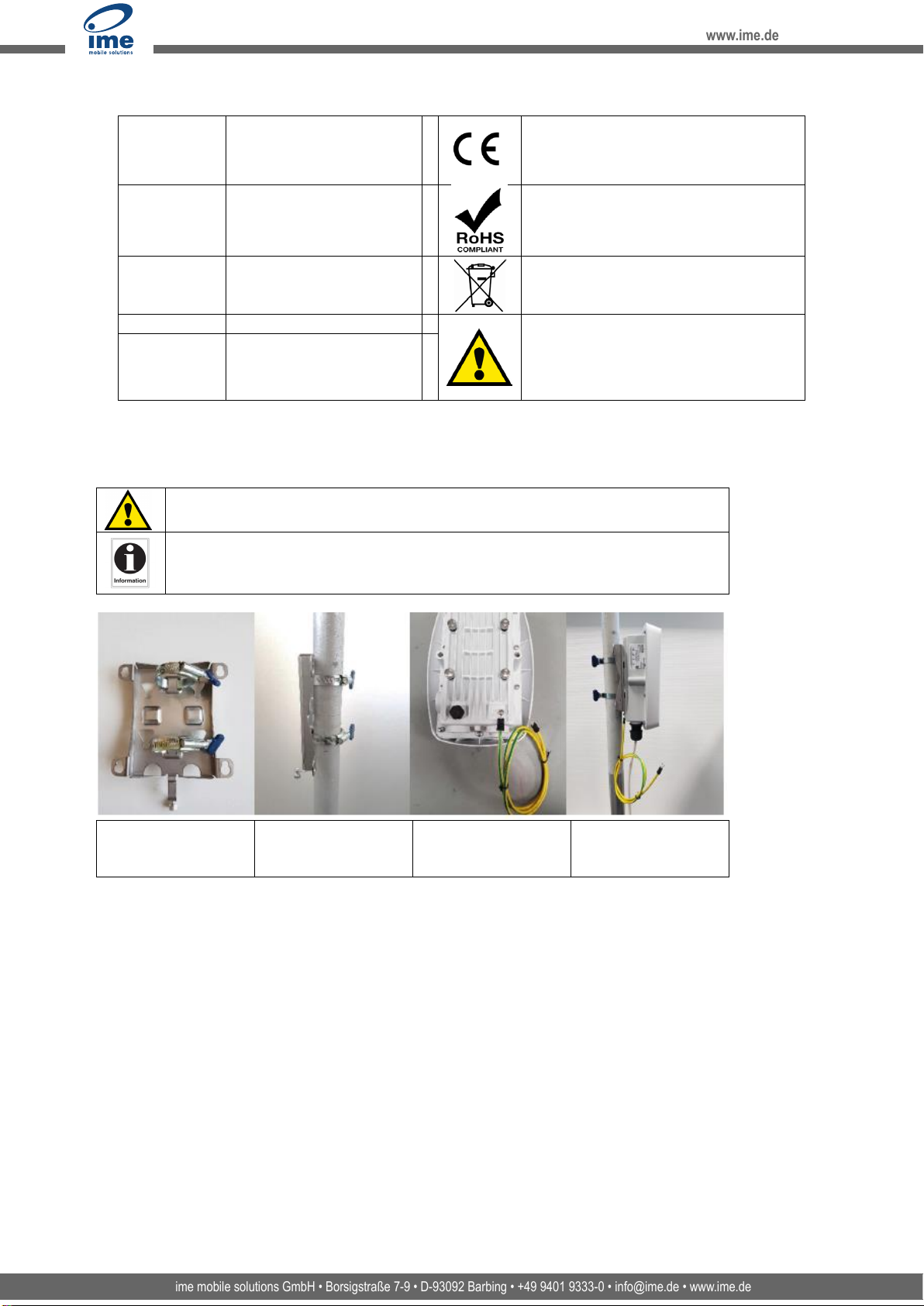

6 Installation of Wirnet™ iStation
6.1 Mounting of the enclosure
-When installing the product, the ground connection must always be
made first.
The Wirnet™ iStation enclosure can be mounted on a pole by strapping (see the
following example), any concrete pedestal, concrete wall or any non-flammable
surface (UL94-V0).
Gateway support
(Strapping not
included)
Installation support on
a pole with strapping
Mandatory ground
connection on the
Wirnet iStation™
Installation the
Wirnet™ iStation on
the support
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
04-12-19

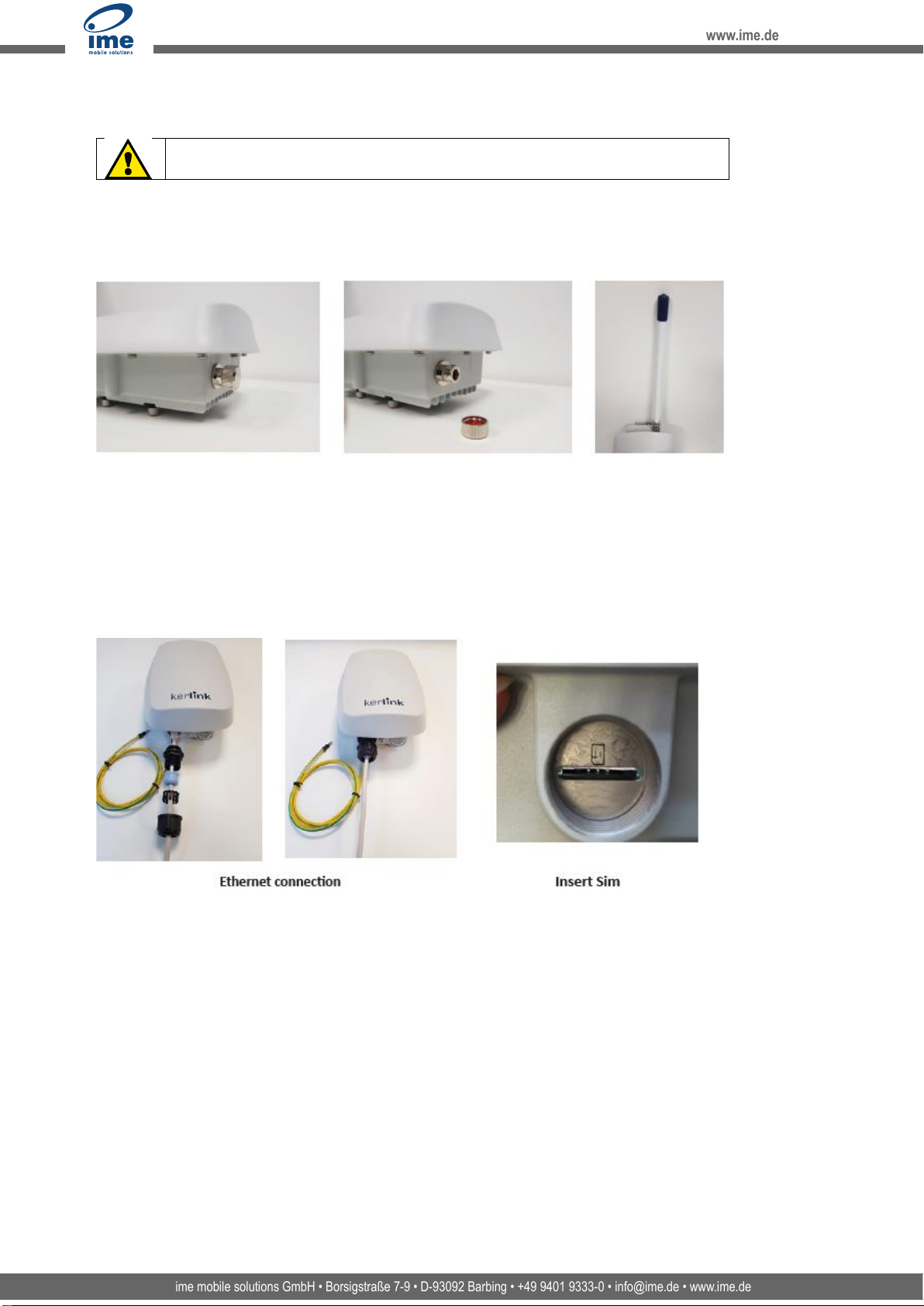

6.2 Setting connections
Before setting all connections, ensure that the power supply is not connected to
the mains supply.
GNSS, 3G/4G and LoRa antenna are integrated. An external optionnal LoRa antenna can be added by
opening
the n°3 (please refer on the chart page 3) button and then screw the antenna directly or via a cable.
Once the Wirnet™ iStation is installed, you can select up to 2 technologies to set up the access to Internet
for the data backhaul:
• Ethernet connection, requiring an Ethernet access through a dedicated RJ45 cable (not included)
• 3G/4G cellular connection, requiring an USIM (not included) and a data subscription (not included)
Note that both configurations can be used in parallel. For example, RJ45 Ethernet with a 3G / 4G link as a
backup.
Regarding the
power supply, the following equipments can be used:
• End-Span or Mid-Span at least a 15W PoE (Power over Ethernet) (not included)
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
04-12-19

The Ethernet cable is not provided and must consist of two RJ45 T 568A (or
568B) plugs on
each side.
KERLINK recommends using a cable with the following characteristics:
• Category: 6A
• Shielding: STP (U/FTP) or SSTP (S/FTP)
• Section conductors: AWG26
• External jacket: LSZH or PUR
• Maximum length: 100 meters
• Cable gland 6.6-8.6mm.
Operating temperature range: -40°C to +60°C
Altitude max. < 2000m / hygrometry 95% non-condensing
6.3 First connection
• A push-button is available on the bottom of enclosure.
• The ON/OFF/RST button must be pressed during 1s to generate a SW reset of the product.
• Note that a long press for 5s turns off the gateway.
Once the power is “On”, please check the LED status and start the SW configuration.
The iStation should power on, showing:
• a solid green LED (Power LED, under the power button),
• accompanied by a red LED (Status LED =operations status) starting solid, then blinking during bootup.
For more information on the « Quick start of Wirnet™ iStation Gateway, please consult the Kerlink Wiki:
http://wikikerlink.fr/wirnet-productline/doku.php?id=wiki:quickstart:quickstart_istation
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
04-12-19

7 Declaration of Conformity
7.1 Wirnet™ iStation 868
Simplified EU Declaration of Conformity
Hereby, Kerlink, declares that the radio equipment type Wirnet™ iStation 868 is in compliance with Directive
2014/53/EU.
The full text of the EU Declaration of Conformity is available at the following internet address:
www.kerlink.com/support
In Europe, the Wirnet™ iStation 868 station must comply with the ERC 70-03 requirements regarding duty cycle and
maximum EIRP. They are summarized in the following table
ERC 70-03
Frequency (MHz)
Power
Duty Cycle
h5
865-868
14dBm ERP
1%
h6
868-868,6
14dBm ERP
1%
h
869,4-869,65
27dBm ERP
10%
The power supply of the Wirnet™ iStation 868 must be a limited source of power. Note
that:
If the LoRa antenna is changed, the output power must be adjusted to take into
account the gain of the antenna in order to not overrule the ERC 70-03
recommandation.
Some countries in Europe may have specific frequency ranges, EIRP and duty cycles
regulations.
Check the local regulations before installing and commissioning the Wirnet™ iStation
868.
For other countries, outside Europe, check the frequency range, the maximum EIRP and
duty cycle allowed.
7.2 Wirnet™ iStation 915
The Wirnet™ iStation 915 will be compliant with both FCC and IC regulations.
The associated FCC and IC identifiers of the Wirnet™ iStation 915 are:
Model: Wirnet™ iStation 915 Model: EG25G
FCC ID: 2AFYS-KLK915WIIS Contains FCC ID: XMR201903EG25G
IC: 20637-KLK915WIIS Contient IC: 10224A-201903EG25G
7.3 Wirnet™ iStation 923
The Wirnet™ iStation 923 complies with the directive 2014/53/EU relating to radio equipment (RED) and is
certified for the following countries:
Country
Label, identification and comments
Australia / New Zealand
On going
Japan
On going
Indonesia
On going
Singapore
On going
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
04-12-19

The power supply of the Wirnet™ iStation 915 must be a limited source of power. Note
that:
Any change or modification of this equipment not expressly authorized by Kerlink may
cause, interference and void the FCC authorization to operate this equipment.
This device complies with Industry Canada’s license-exempt RSSs.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation of the device.
Some conditions have to be respected to maintain the FCC and IC compliance of the
devices in the USA
and Canada. Please contact your reseller to have details.
For other countries, check the specific regulations regarding maximum EIRP and duty
cycle allowed.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help
This equipment complies with RSS102’s and FCC radiation exposure limits set forth for an
uncontrolled environment under the following conditions:
1.. This equipment should be installed and operated such that a minimum separation distance of
20cm is maintained between the radiator (antenna) and user’s/nearby person’s body at all times.
2. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Cet équipement est conforme aux limites d’expositions de la CNR102 applicables pour un
environnement non contrôlé aux conditions suivantes:
1. Cet équipement devra être installé et fonctionner de telle manière qu’une distance minimale
de séparation de 20 cm soit maintenue entre la partie rayonnante (l’antenne) et l’utilisateur / les
personnes à proximité à tout moment.
2 Cet émetteur ne doit pas être co-localisé ou opérer en conjonction avec toute autre antenne
ou émetteur.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the
following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR
d’Innovation,
Sciences et Développement économique Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible
d’en compromettre le fonctionnement.
This device must be professionally installed.
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
04-12-19

8 Disposal / recycling
Do not dispose of the product with household waste. For proper disposal, contact a waste disposal
company. The product packaging (cardboard and liners) can be removed with used paper.
9 Warranty
The Wirnet™ iStation is not warranted by Kerlink in case the enclosure is opened, modified,
painted, branded out, outligned by CUSTOMER for any reason. Feel free to contact us for a
guideline for the branding.
10 Accessories and Professional Services
For additional information, on available accessories and Professional Services please contact your reseller.
11 Give us your feedback
Your shopping and operational experiences are very important to us.
We would like to invite you to leave review on our products and services.
We will appreciate your time and efforts.
We would be very proud to get any photo of your gateway installation. Can you share them to
[email protected]
12 Find us in Social Media
We would like to hear from you: any tips, any news to share ?
@kerlink_news
Kerlink
Kerlink channel
We stay at your disposal for any help on your project.
Yours sincerely.
Kerlink Team
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
04-12-19
