D-Link Airspot DSA-3100 User manual

1
This product can be set up using
any current web browser, i.e.,
Internet Explorer 6 or Netscape
Navigator 6.2.3.
DSA-3100
Hotspot Gateway
5V DC, 3A Power Adapter
©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
specifications subject to change without notice. DSA-3100. 05192003
Before You Begin
Check Your Package Contents
CD-ROM (containing Manual and Warranty)
RS232 Console Cable
Using a power supply
with a different voltage
rating will damage and void
the warranty of this product.
If any of the above items are missing, please contact your reseller.
Part No. IG-BDSA-3100
This Quick Installation Guide (QIG) provides basic instructions for installing the
DSA-3100 and establishing connectivity to computers on the network. This guide will
also show you how to connect the DSA-3100 to other devices on your network.
DSA-3100 Wireless Service Gateway
3 Ethernet Cables
2Cat5 UTP Straight-Through, 1Cat5 UTP Crossover cable.

2

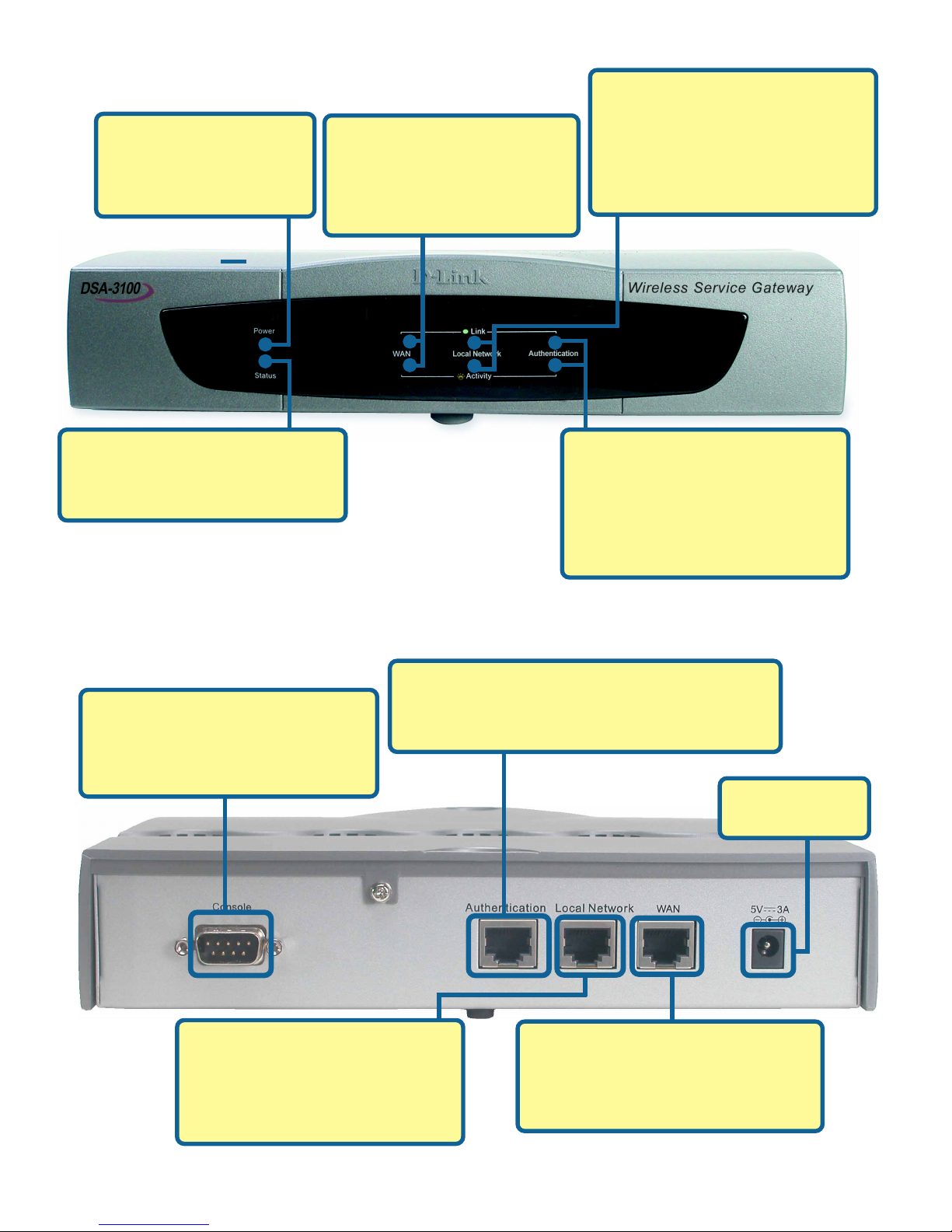

POWER LED – a solid
light indicates a proper
connection to the power
supply.
WAN LED – a solid light
indicates connection on the
WAN port. The LED below
blinks during data transmis-
sion.
LOCAL NETWORK LEDs – a
solid light on the port indicates
a connection from the Local
Network port for a Private
Network. The LED below blinks
during data transmission.
AUTHENTICATION LEDs – a
solid light on the port indicates
a connection from the
Authentication port for a Public
Network. The LED below blinks
during data transmission.
STATUS LEDs – a solid light on
the port indicates a connection
to an Ethernet network.
Product Overview (Front)
WAN Port – The port that
connects to your WAN connection
providing Internet access to the
Local and Managed Networks.
CONSOLE Port –For resetting to
factory defaults, or reconfiguring
the device. For Advanced users
only!
AUTHENTICATION Port (Public LAN or
WLAN with Access Point) – Connects to a
switch or AP.
LOCAL AREA NETWORK Port
(Private LAN) – Connects to a
switch for a private network.
Does not require Authentication
to access the Internet.
Product Overview (Back)
Receptor for
Power Adapter.

3

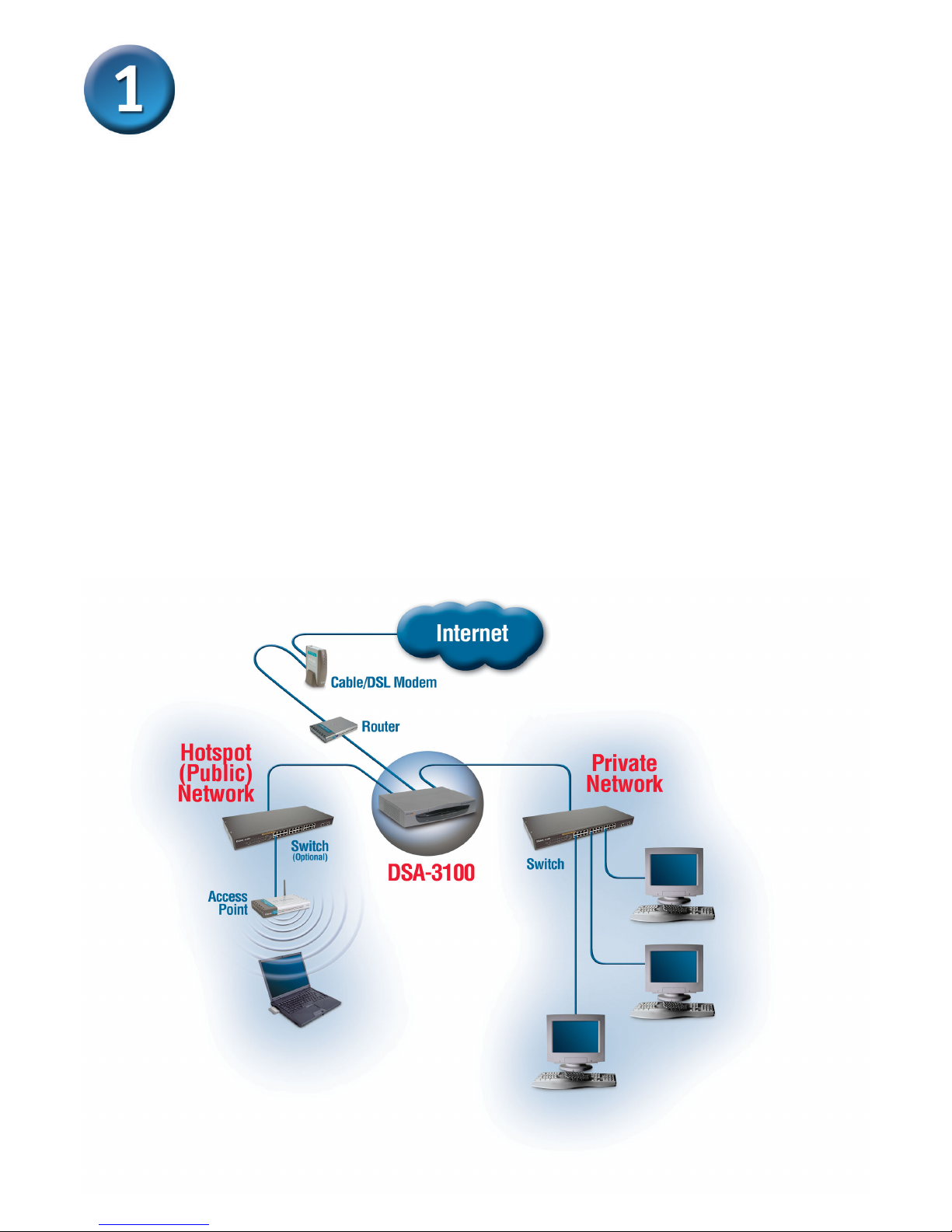

A. Ensure that the DSA-3100 is powered ON.
B. Authentication Port (Public WAN / WLAN) Connection.
Please use a Straight-through Ethernet cable to connect the DSA-3100 to a
switch or a wireless access point to provide public access to your broadband
connection. The Authentication LED light will illuminate to indicate a proper
connection. If the Authentication LED does not illuminate, please check the
device’s physical connections.
C. Insert an Ethernet cable to the Local Network (Private LAN) port on the back
panel of the DSA-3100. Connect the other end of the Ethernet cable to a switch.
If the Local Network LED illuminates, it means you have a proper connection.
D. Insert an Ethernet cable into the WAN port on the back panel of the DSA-3100.
Connect the other end to a router or directly to a high speed cable or DSL
modem. If the connection is live, then the WAN LED will illuminate.
Connecting The DSA-3100 To Your
Network

4
Once you have logged in, the Home
screen will appear.
Click Run Wizard
Using The Setup Wizard

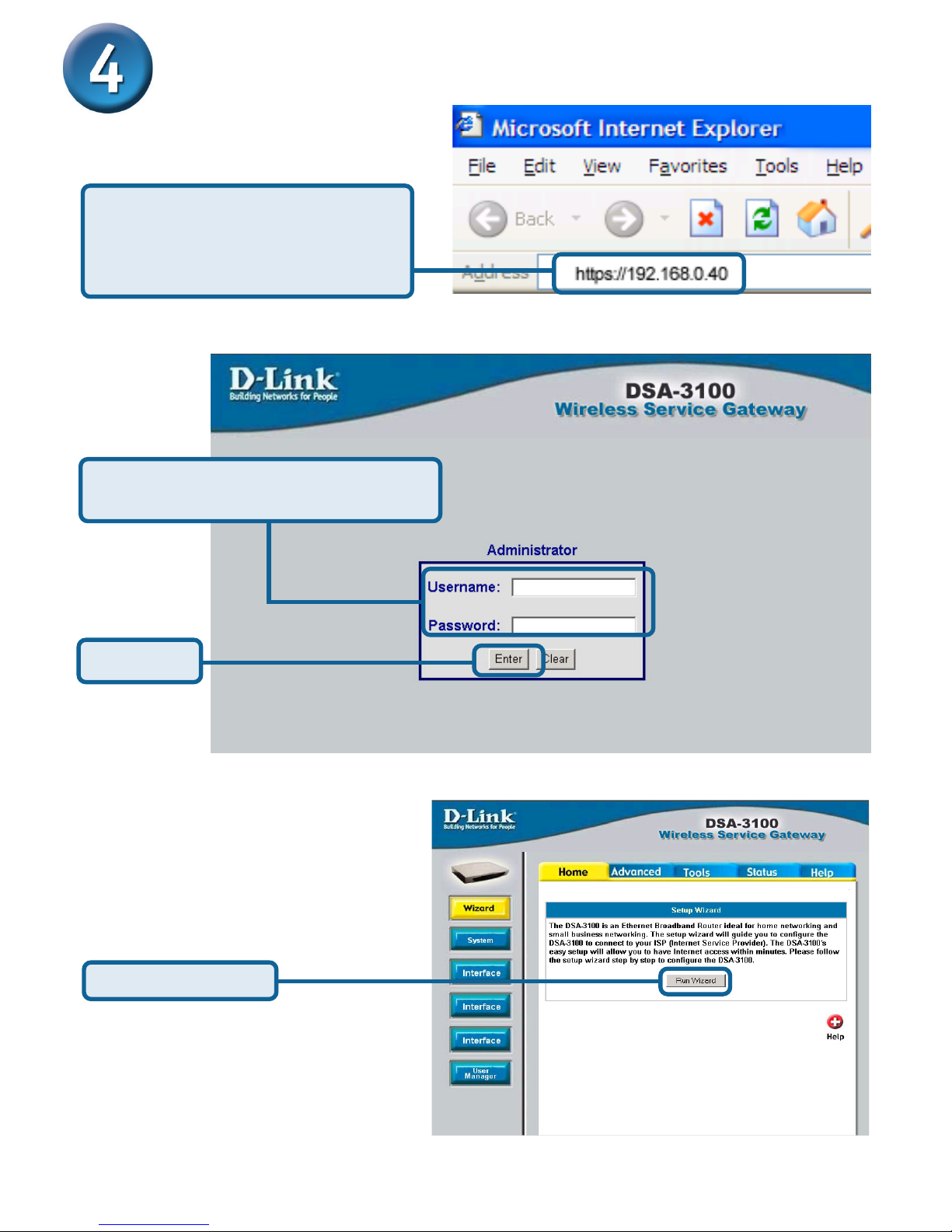

Open your Web browser and
type “https://192.168.0.40” into
the URL address box. Then press
the Enter or Return key.
Click Enter
Type “admin” for both the username
and the password.

5

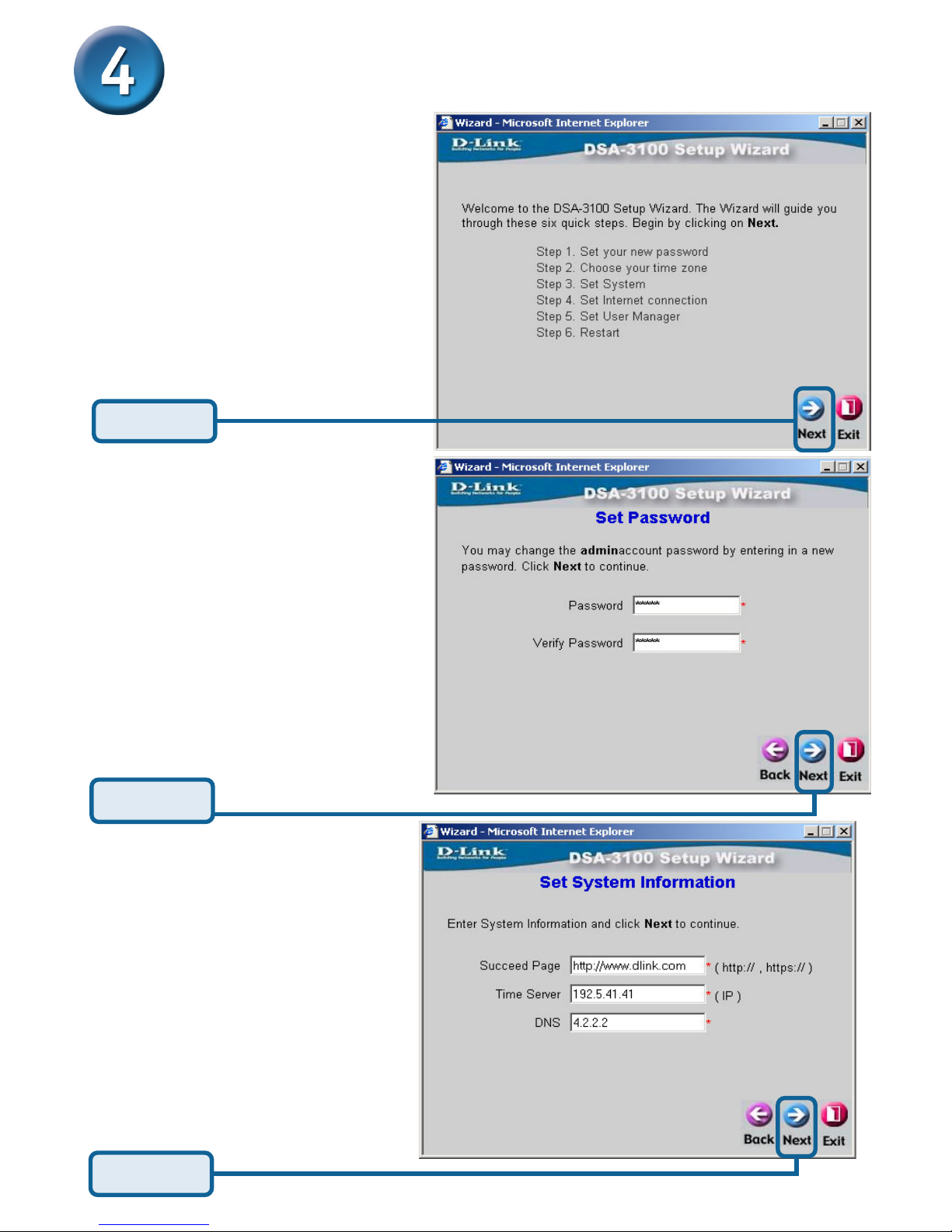

The Setup Wizard (continued)
You will see the following screens
Set up your new password.
You have the option to
establish a password.
Click Next
Click Next
Set System Information in the
fields provided to you. The
Succeed Page is the URL that
you are directed to when you
have been successfully
Authenticated. The Time
Server and Domain Name
Server (DNS) may be required.
Click Next

6

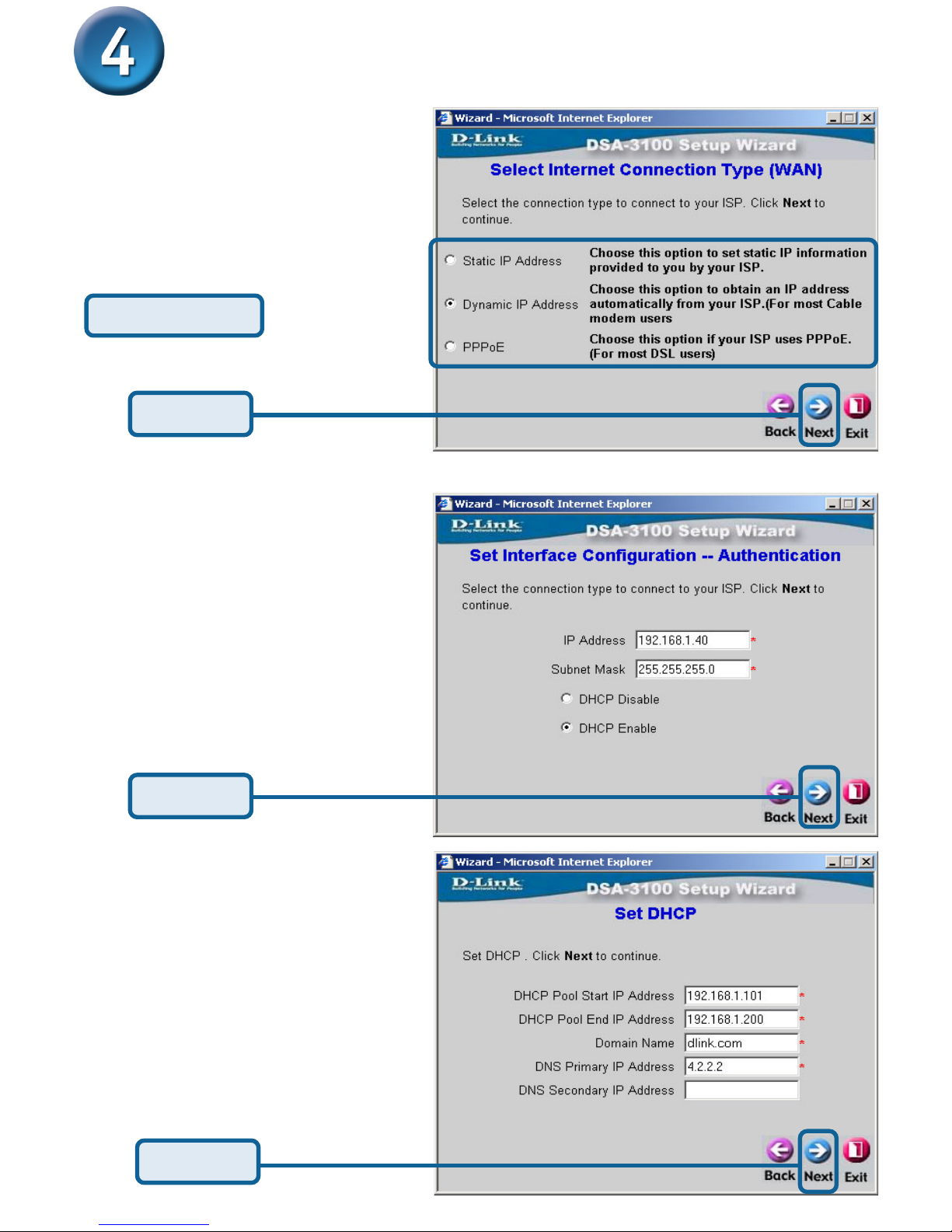

If you selected Dynamic IP
Address, this screen will
appear:
The Setup Wizard (continued)
Set Interface Configuration -
Authentication. You will be
prompted to enter the settings for
the Managed “Public” Network. You
may also switch the DHCP Server
ON or OFF.
Click Next
At this point, the setup wizard
will ask you for your Internet
connection type. If you have a
Dynamic or PPPoE connec-
tion, you will be brought to the
corresponding page.
Click Next
Enter the settings in the fields
provided to setup the distribu-
tion of IP Addresses to clients
on your network.
Click Next
Select an Option

7
The Setup Wizard (continued)

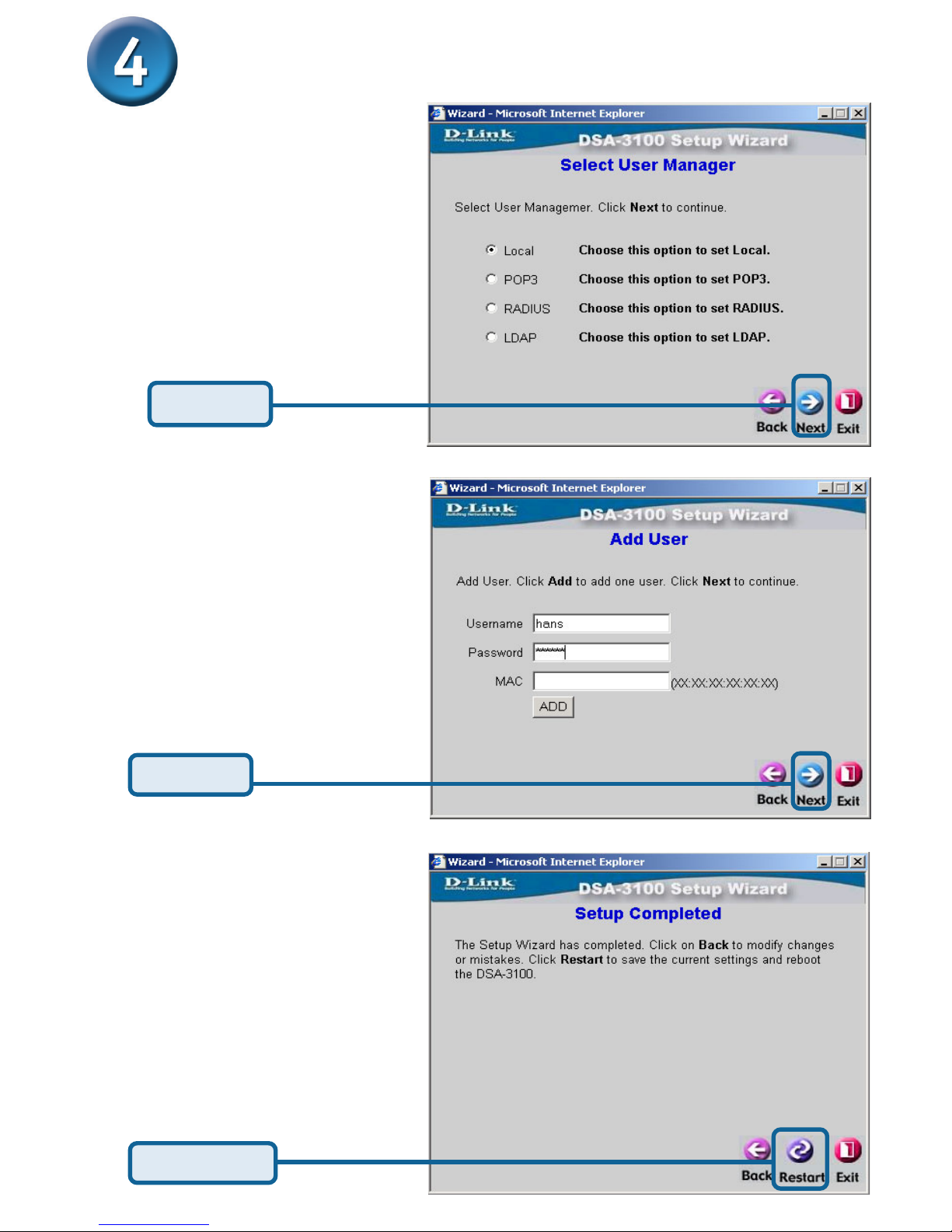

Select the User Manager you
wish to use based on the
Authentication type are you are
using. In this Quick Installation
Guide we will be using “Local”
user database. The DSA-3100
also supports POP3, RADIUS
and LDAP for authentication.
Click Next
Next you will be given the
chance to Add a User. You
can bind User Accounts to a
MAC Address if you wish to.
Press ADD after entering the
information. Repeat this step
to add more users to the
DSA-3100.
Click Next
Click Restart
After Restarting the DSA-3100,
the basic setup for the unit is
complete. Please refer to the
User Manual for other advanced
settings.

8
