iMeditron iMed11 User manual

1
iMeditron® Smart Glasses for Sitting Posture Training
Instructions
version 1.1
Thank you for choosing iMeditron® Smart Glasses. This manual gives you a brief introduction to the
basic functions and operation of this product. However, with the continuous updating of new
functions of software and hardware, when you receive the actual product, there may be new
functions or functional upgrades that are not covered by this manual. Please forgive the
inconvenience. Welcome to contact us through the official website and customer service in time to
solve any problems in your use.
Please read the instructions first.
1. Before using this product, please read the instructions carefully. Please use the instructions
correctly so as not to cause unnecessary trouble.
2. This description is based on the default settings of Eye-loving Smart Glasses.
3. Understanding that the schematic pictures in this note may not conform to the appearance of the
products actually received.
4. Please keep the instructions properly for future operation and maintenance.
5. The following design and specifications are subject to change without notice.
App

2
Basic parameters：
·Product name: iMeditron ® Smart Glasses
·Product model: iMed11/12/13/16
·Connection mode: Bluetooth 4.0 BLE, RF2.4G
·Working mode: acceleration sensor, ultraviolet and ambient light sensor, distance sensor, etc.
·Battery: lithium polymer 60mAh
·Charging interface: Micro USB, 5V (typical)
·Input current: fast charging 45 mA (typical), 65 mA (maximum), trickle charging: 6mA (typical)
·Power consumption: 80μW (dormant) to 60mW (alarm while working)
·Main material: plastic titanium (TR90)
·Weight: less than 19 grams (excluding lenses)
·Inch: see frame printing logo, such as 52 x 17 x 135 C1
·Waterproof grade: IP53
·Working temperature:-10~60 ℃, it is recommended that it be used in the range of 0~45 ℃ to
obtain the best performance and life.
·Working humidity: 10~85%
·Phones that support Bluetooth 4.0 Android 4.4 or iOS 9.0 and above
Product Accessories：
·instructions
·Micro USB charging line
·spectacles case
·Glasses cloth
Description of harmful substances：
This table is based on SJ/T11363: harmful substances or elements in the component do not contain
or contain less than the GB/T 26572 limit, then note "0"; if the content exceeds the limit
requirements specified in the GB/T 26572 standard, it is marked as "×".

3
Use special attention:
The best use scenarios are reading and writing under indoor lighting. Other scenarios are used as
usual, but please note:
·Don't wear it in swimming, bathing, rainstorm, etc.
·Do not operate buttons when it rains or sweats too much during exercise
·It is not recommended to wear it in vigorous and antagonistic sports.
·Not suitable for long-term use or preservation under high humidity and high temperature
·When not in use, please put them in the glasses case and keep them properly.

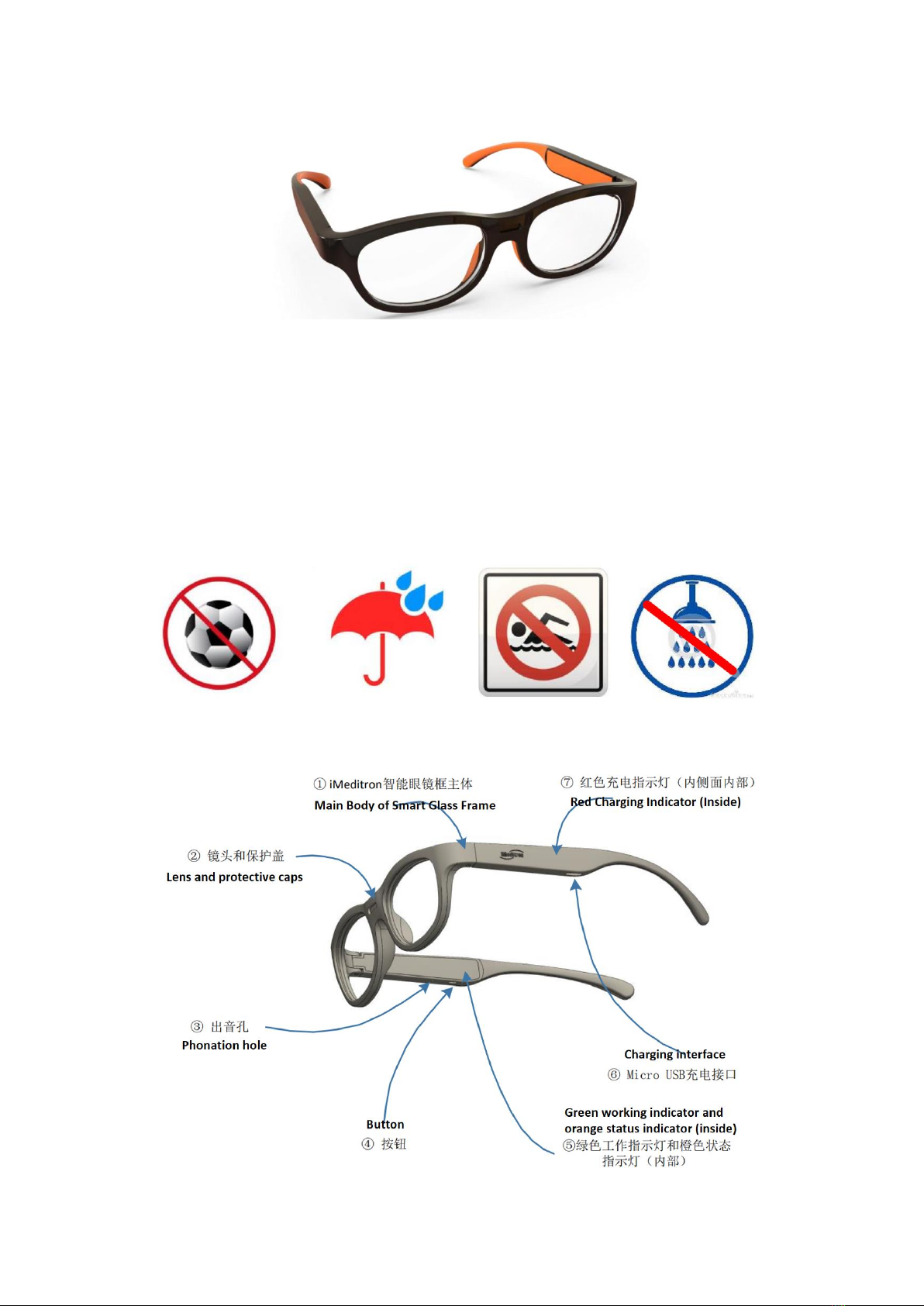

Component and interface description：

4

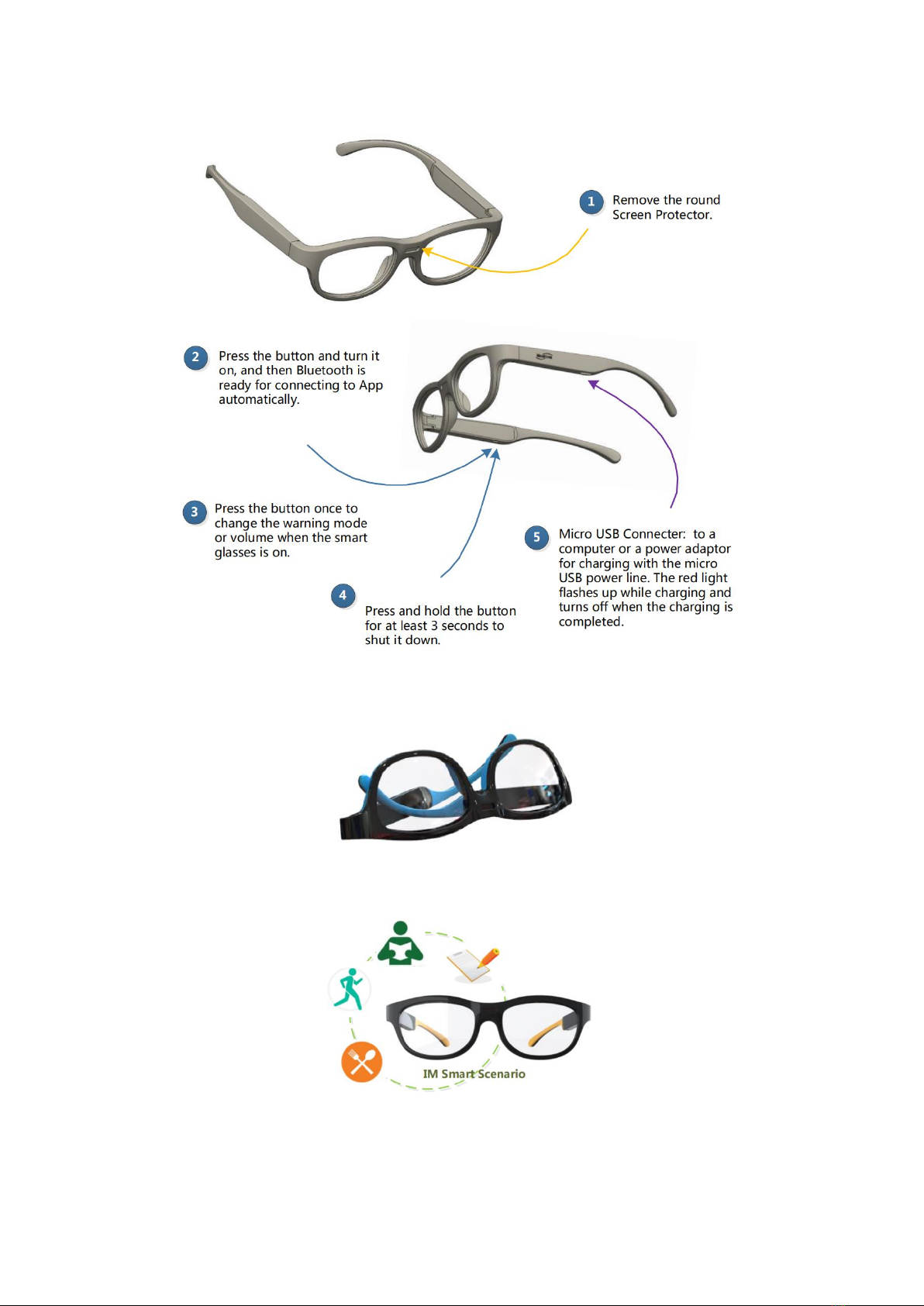

Boot guidance and usage instructions：

5
Reminder：
Inverted smart glasses will allow them to quickly enter dormancy mode, thus prohibiting alarm and
power saving.
Initial use, will feel smart glasses response is relatively slow, that is because the product's "IMSS
intelligent scene" algorithm in order to avoid too frequent alarm, so as not to distract your
attention!

6
Instructions for use (continued)：
Switch reminders and increase or subtract volume: press the button to feel the vibration feedback
of smart glasses. Each time the button is pressed, the iMeditron Smart Eye circulates as follows:
Alarm default value（As technology progresses, the following parameters or data may be
inconsistent with the actual product you get, please understand）：
The alarm of iMeditron intelligent glasses is based on the multi-sensor data fusion algorithm.
After the user uses the scene intelligently, the alarm is prompted according to whether the
measured number meets the regular conditions. The general principles are as follows:
·Visual distance: 30 cm, can be personalized modification in App according to the actual height and
arm length of the user;
·Lighting environment: 100Lux, can be modified in App;
·Head skew: 12 °, which can be modified in App;
·The angle of bow is 38 °, which can be modified in App.
·Continuous eye use: 45 minutes, can be modified in App;
·Sit-in time: 45 minutes, can be modified in App;
·Alarm prompt delay time: according to the sensitivity setting, divided into high, medium and low
three grades, can be modified in App.
Battery charging instructions:
When the battery is insufficient, the voice will broadcast "please charge". When the power
runs out, the orange indicator will twinkle for 3 seconds or completely unable to turn on. At this
time, the charger or computer USB line should be connected to charge the machine (because the
current is very small, most portable battery can not charge it).When the charger is inserted, the red
indicator lights up to indicate that it is charging, and when filled, the red charger indicator lights go
out（Charging or not matching with the charger in use may not extinguish the red indicator even if
the battery is full. This is a trickle charging characteristic, and the normal phenomenon does not
affect the use of the battery）.
Warm hint:
1. In order to improve the charging efficiency, please charge in the shutdown state.
2. Please make sure the charger and power plug are powered on.
3. The full charging time takes about 2 hours.

7
Operation and status description：
device status
User operation
Indicator light
Vibrator
Voice horn
blue tooth
1.turn on
Button
shutdown
state
Short push
button
Orange, green
indicator flashing
Vibration in
quiet and
vibration
mode
Broadcast
"Voice Mode"
in Voice Mode
Start
broadcasting, no
connection shut
down in 3 minutes
Dormant
state
shake
Low / no
electricity
USB insertion
The red indicator
light is on, and the
orange and green
indicator lights are
flashing
Broadcast
"Welcome to
use" in Voice
Mode
Start
broadcasting, no
connection shut
down in 3 minutes
2.turn off
（hand/auto）
regular work
Button press
for 3 seconds
Orange, green
indicator lamp
blinking 1s
Sleep
without use
for 3 minutes
The power
supply is less
than 3.6v
Orange, green
indicator lamp
blinking 1s
3.Switching
alarm mode
（Vibration,
voice, quiet）
Short push
button
The green indicator
flashes once
Switch to
vibration
mode
Switch to voice
volume 1~5 in
sequence,
another press
enter quiet
mode,
continue
pressing again
to enter
vibration mode
4.charge
(a battery)
USB charging
line plug in
The red light is
always on and goes
out when it is full of
electricity.
Start
broadcasting, no
connection shut
down in 3 minutes
USB charging
line
unplugged
The red LED goes
out and goes to
sleep
Bluetooth off
5.Low electric
quantity
The yellow indicator
flashes every half
hour

8
App and Bluetooth connection：
1. Use WeChat and other software to scan the App QR code of the instruction manual. Then
choose to open it in the browser. Download app, then install it.
2.Enter the mobile phone setup interface and turn on Bluetooth
3.Turn on the smart glasses button switch, if it has been turned on, you need to turn it off before
rebooting
4.Open app, app will automatically find and connect smart glasses, if the system appears Bluetooth
matching request information, please confirm the permission, after successful connection, default
display of main functions and data.
（P.S. if the Bluetooth connection is not successful and the App boundary is gray, please follow the
above steps to repeat the operation!）

9

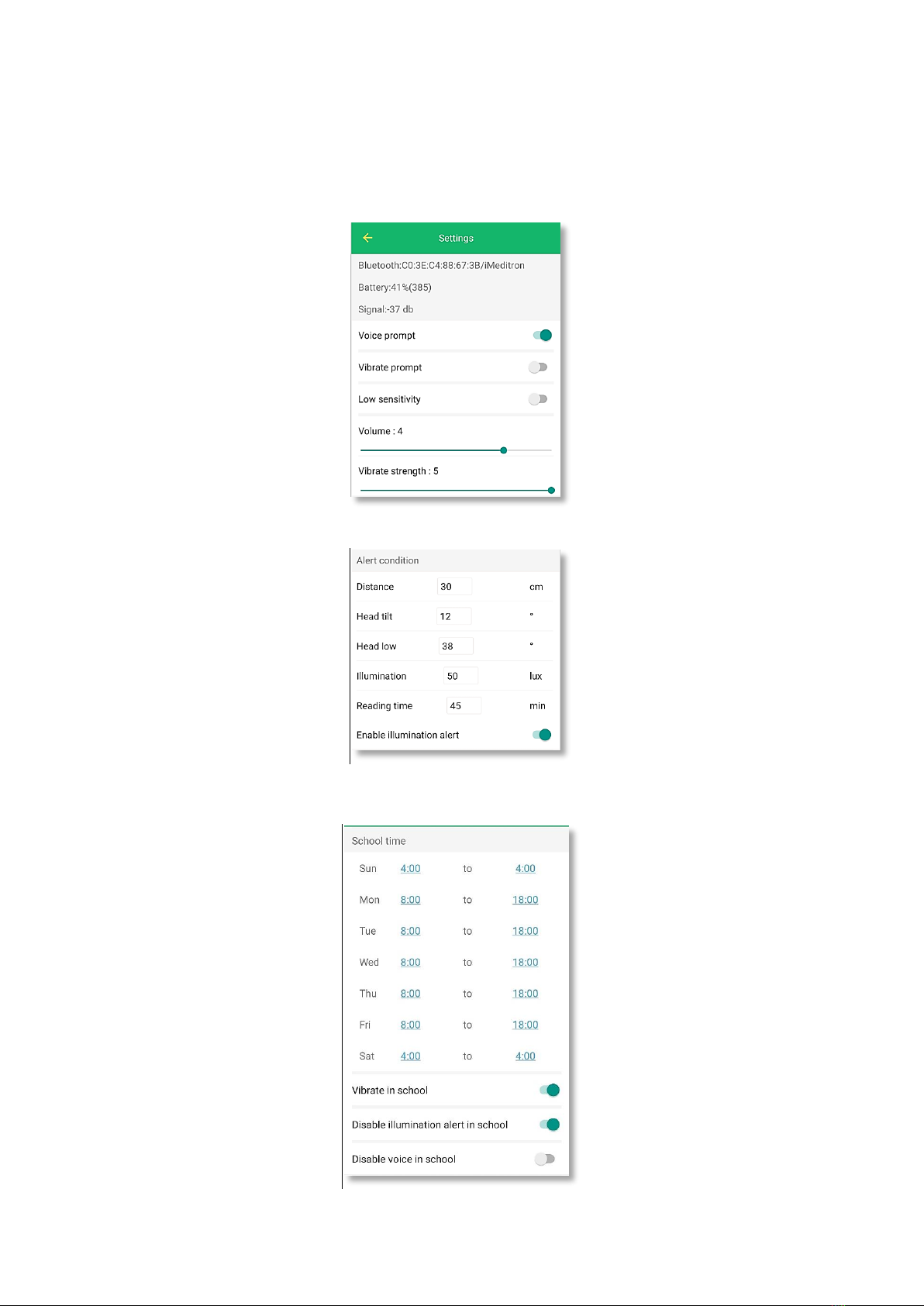

App settings：
·You can set the display and reminder mode of the state of electricity and so on.
·You can set the sensitivity of smart glasses.
·Reminder conditions can be personalized
·Schooling Time Setting（Vibration reminder is adopted by default, and sound reminder is
forbidden）.

10

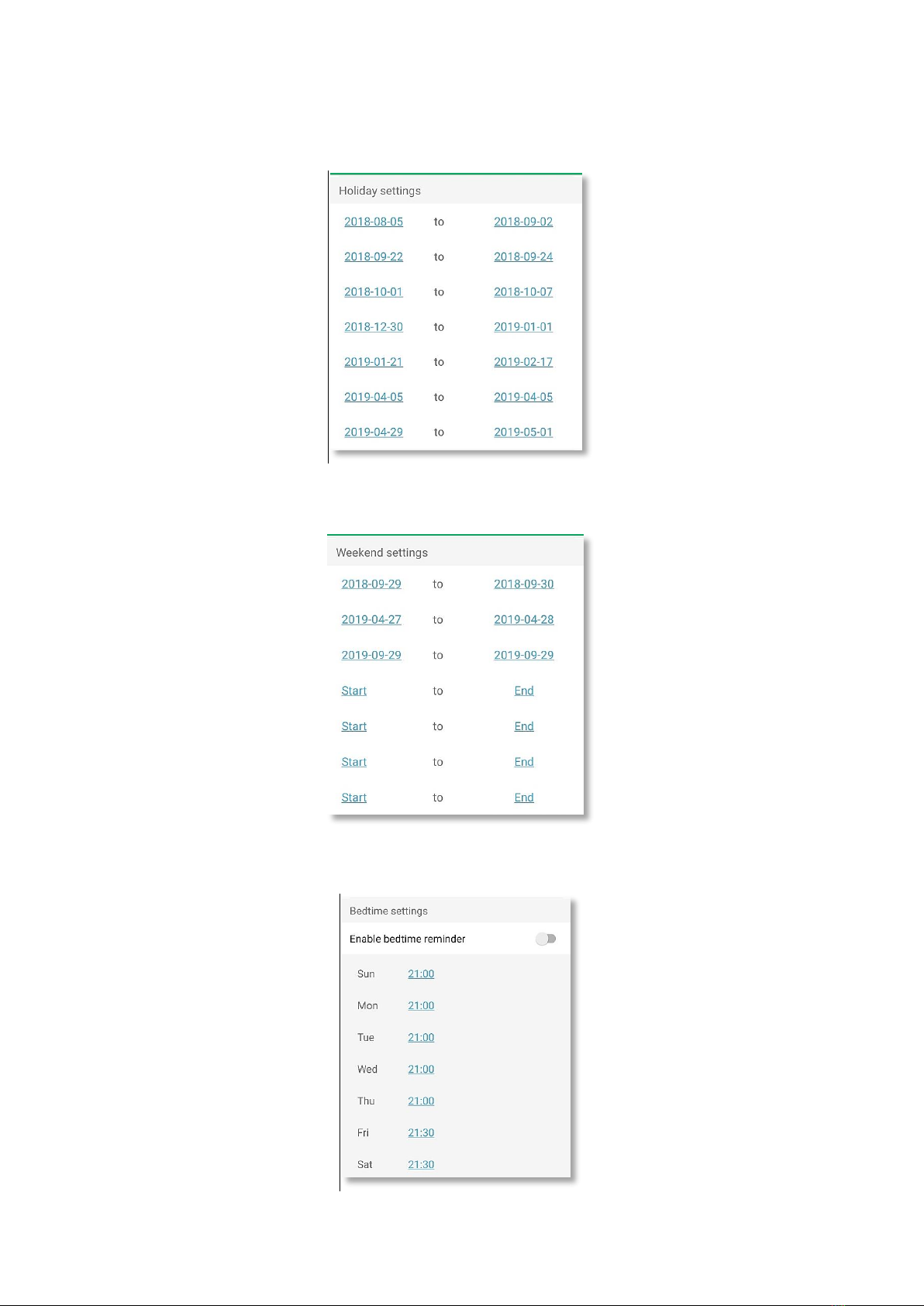

·Holiday time setting（The role of school settings and weekend class settings during holidays is
blocked）.
·Weekend Class Time Setting（Vibration reminder is adopted by default, and sound reminder is
forbidden）.
·Sleep reminder settings.

11
Product failure and handling table. ：
Fault phenomenon
Terms of settlement
1
Shell cracks due to
manufacturing
defects themselves
Contact customer service and enter the after-sales service
process after confirmation.
2
Orange light
flickering
Method 1. Press the button for 3 seconds to shut down and
restart.
Method 2. After being placed for a period of time, the
charger automatically restarts.
3
Orange light is always
on
Method 1. Connect App and upgrade it in the air.
Methods 2 and 3. The same way of orange light flashing was
used.
4
Green light is always
on
Use the same way as orange light flicker.
5
The charging red
light is not on
Method 1. It may be that the battery is completely emptied
after a long time of storage and can be recovered after a
period of recharge.
Method 2. It may be that the USB interface is wiped and
cleaned with pure alcohol due to bad contacts such as stains,
or that a USB cable or a charging power supply is replaced.
6
When charging for a
long time, the
charging red light is
always on
Reasons 1. The battery has reached its service life after a long
time of use. Contact customer service and enter the
after-sales service process after confirmation.
Reasons 2. Charging in boot state;
Reason 3. Charging in shutdown state does not match the
charger used. At this time, charging can be stopped as long as
the charging time reaches two hours. Although the indicator
light is always on, the actual battery is full.
7
Button not working
properly.
Contact customer service, confirm and enter the after-sales
service process; or switch working status through App.
8
The battery ran out
quickly
Shut down and recharge several times to ensure that each
recharge time exceeds 2 hours.
9
Unable to connect to
App via Bluetooth
Method 1. Ensure that the mobile phone or tablet computer
system meets the version requirements, and turn on the
Bluetooth switch;
Method 2. Restart the Bluetooth switch of mobile phone or
tablet computer, turn off the smart glasses and then turn on.
10
When reading /
writing, no alarms or
alarms are too
frequent
Method 1. Reboot after shutdown.
Method 2. Connect App and set appropriate alarm
parameters in App.
Method 3. Connect App and install operation guidelines in
App to re-calibrate the sensor for smart glasses.
Method 4. Connect App and upgrade it in App.

12
Safe use：
When using or charging iMeditron smart glasses:
1. Put iMeditron smart glasses or accessories out of reach of young children and pets. Young
children or pets may inadvertently damage these things, or swallow small parts to suffocate;
2. Keep iMeditron smart glasses in the product protection standard (IP53), not to be worn in the
case of swimming, bathing, rainstorm and other water conditions, and operate buttons in the case
of raining and sweating more;
3. Do not store and use in high temperature environment beyond the permission of this product.
High temperatures can shorten the life of electronic devices, damage batteries, bend or melt some
plastic parts.
4. Do not store and use in low temperature environment beyond the permission of this product.
Low temperature will affect the normal operation of electronic devices and batteries, and when the
normal working temperature is restored, the moisture may form in the product to damage
components and electronic circuit boards.
5. Take it lightly and put it back into the eyeglasses box when not in use. Rough use may damage the
internal circuit board.
6. Do not use water, irritating chemicals, detergents or detergents to clean eye-loving smart glasses
directly. Soft cloth can be dipped lightly in detergent or alcohol solution without harmful substances
to wipe iMeditron smart glasses.
7. Do not paint iMeditron smart glasses. Paint will block, stain lens glass, block moving parts and
hinder normal use.
8. Don't put iMeditron smart glasses around heating equipment. For example, the inside or upper
part of a microwave oven, oven or radiator. Eye-loving smart eyeglasses contain batteries and other
devices, which can explode when overheated.
9. iMeditron smart glasses have light sensors and light indicators. Do not shoot too close to human
or animal eyes. Otherwise, it may damage the eyes.
10. Do not try and replace any parts in iMeditron smart glasses by yourself. If smart glasses,
batteries, chargers or accessories are not working properly, please send the product and warranty
certificate to the nearest qualified maintenance department.
Warranty clause：
From the date of sale of the product:：
1. Within 7 days, a performance failure described in the Product Failure and Processing Table can
not be recovered after self-treatment. Consumers can choose to return, exchange or repair.
2. Within 15 days, a performance failure described in the "Product Failure and Processing Table"
occurs and can not be recovered after self-treatment. Consumers can choose to exchange goods or
repair.
3. Within 12 months, a performance failure described in the Product Failure Table can not be
recovered after self-treatment. Consumers can choose to repair or replace products of the same
type and specifications at the expense of the repairman.

13
Tips：
It is suggested that you retain the original package for at least 15 days from the date of signing and
receiving, and have obtained complete warranty service. In addition, according to the provisions of
the three-package clause of national electronic products, damage or loss caused by man-made
destruction, force majeure, non-use according to safe conditions of use, etc. It is not covered by the
warranty clause.
Copyright description:：
·The copyright of this manual is owned by Sichuan iMeditron Vision Care Intelligent Tech Co., Ltd.
This manual is protected by international copyright law.
·The final interpretation of this specification belongs to Sichuan iMeditron Vision Care Intelligent
Tech Co., Ltd.
·The function, structure and intelligent algorithm of this product are protected by national and
international patent law.
·Distribution shall not be reproduced in any form without the permission of the Company
四川爱目视光智能科技有限公司 中国制造
Sichuan iMeditron Vision Care Intelligent Tech Co., Ltd.
销售与服务电话(Service & Sales Hotline:)：([phone]
生产地址：四川省自贡市大安区聚新路88号西南智能终端制造产业园12栋
ADDRESS OF MANUFACTURING SITE: No.88 Juxing Rd. Da‘an Dist, Zigong, Sichuan Prov.
四川爱目视光智能科技有限公司保留对本产品及商标的解释权
COPYRIGHT © SICHUAN IMEDITRON VISION CARE INTELLIGENT TECH CO.，LTD ALL RIGHTS RESERVED.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC WARNING STATEMENT
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment. This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
