imilab CMSXJ22A User manual

Webcam
User Manual
1.Lens
5.MIC
3.Signal indicator
2.Power indicator
4.Multi-function bracket
Setting up your webcam

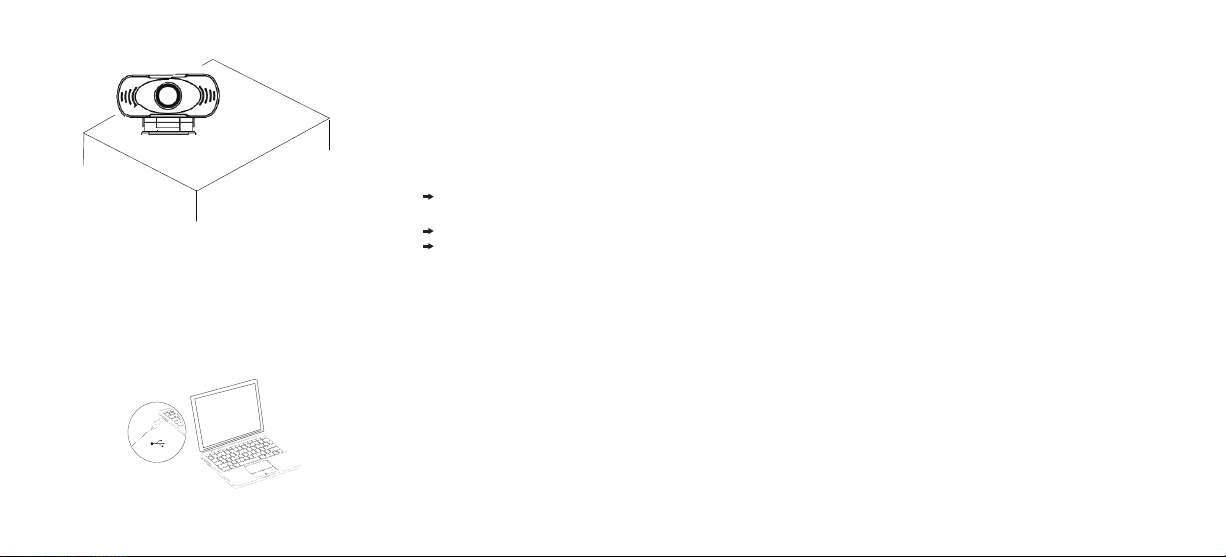

1.Place your webcam
For placement on a monitor
Designed for the way you like to make a video call, place the
webcam where you want it-on the monitor or the desktop.
Grasp the webcam as shown and open clip base with your
other hand.
Mount the webcam,making sure the foot on the clip base is
flush with the back of your monitor.
01
03
02
75.8
32.0
32.0
27.7
4
1
2
（unit:mm)
3
5
Specifications
Image Sensor 1/2.7 2MP
Best image range 1.5-5 meters
Lens 3.6MM
Encoding format MJPEG
Video resolution 1920*1080
Video frame rate 30FPS
Microphone shape Built-in microphone
Pickup distance 5 meters
Audio encoding format PCM
Audio bit rate 32kbp
Size 109L*40W*167H(mm)
power supply USB direct power DC5V
Installation method Can be placed horizontally on TV, TV cabinet

Getting start with video calling
Q&A:
2.Connetct your webcam
To take advantage of video calling, both you and the person
you call must install video-calling application such as Skype,
Yahoo! @Messenger, windows Live@Messenger or Gmail.
As well as a USB camera and video calling application,both
callers need;
Q:How do I know if my camera is recognized by the operating
system?
A: Connect the camera in any USB2.0/3.0 port. Once the
camera is connected, it takes few more moments before the
camera is recognized. To ensure the camera has installed
correctly, check the following;
Under Control Panel>System and Security>Device Manager.
Q: How do I know if my video calling application can use
my webcam?
A: All video application have an option setting to review the
audio and video device. Using the video application
review the followings:
The Audio selection to ensure the USB2.0 camera
Microphone is selected.
If not change the selection to the USB2.0 camera.
The Video selection to ensure the USB2.0 camera is
selected.
If not change the selection to the USB2.0 camera.
Plug your webcam into USB interface of PC or TV STB.
Wait about 1 minute, webcam will install automatically.
USB
A computer with speaker(or a headset)and a
microphone (your webcam has built-in microphone);
A broadband Internet connection(e.g. DSL, T1 or cable);
Please check your preferred video calling application
requirements.(Requirements may vary between
different applications but usually a minimum of 2Mbps
upload speed is required);
