OWNER's INSTRUCTIONS MANUAL
MESA SQUARE PROPANE FIREPIT TABLE
User's Guide and Instruction Manual
ITEM # 532761
Thanks for shopping with Improvements® !
If you have questions regarding this product, call
1-800-642-2112 Mon.-Fri. 9:00-5:00 EST (Ohio)
and ask for our product specialists, or e-mail:
[e-mail]
See many more products on the Internet!
www.ImprovementsCatalog.com
Made in China
1116
To order, call
1-800-642-2112
West Chester, OH 45069
ImprovementsCatalog.com
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 1 of 24

LIMITATION OF WARRANTY AND LIABILITY
NOTICE: Read this Limitation of Warrantyand LiabilityBefore Using This
Product. If the Terms Are Not Acceptable, Return theProduct at Once,
Unopened, and the Purchase Price Will Be Refunded.
It is impossible to eliminate all risks associated with the use of this product. Such
risks arise from weather conditions, the manner of use or application, or other
unknown factors, all of which are beyond the control of the Seller and Manufacturer.
These risks can cause bodily injury or death, ineffectiveness of the product, and
damage to other property. Seller and Manufacturer do not agree to be an insurer of
these risks you agree to accept these risks.
Seller and Manufacturer warrant that this product is reasonably fit for the purpose
stated in the Owner’s Instructions Manual, subject to the inherent risks described
above, when used in accordance with the Owner’s Instructions Manual under normal
conditions. Seller and Manufacturer provide no other express or implied warranty of
fitness or of merchantability or any other express or implied warranty
In no event shall Seller or Manufacturer be liable for any incidental, consequential, or
special damages resulting from the use or handling of this product. Buyer’s or user’s
bargained-for expectation is for home use of the product in accordance with the
Owner’s Instructions Manual and under normal conditions and that is the exclusive
remedy of the user or buyer and the exclusive liability of Manufacturer or Seller, for
any and all claims, losses, injuries or damages (including claims based on breach of
warranty or contract, negligence, tort or strict liability) resulting from the use or
handling of this product, shall be the return of the purchase price of the product or, at
the election of Manufacturer or Seller, the replacement of the product
Any claim by buyer or user of this product shall be filed within one (1) year of the date
of injury or damage or the claim will be barred. Buyer and user waive any right to file
any class action claim for product defect, design defect, or failure to adequately warn
of product hazards or safe installation.
This Limitation of Warranty and Liability may not be amended by any oral or written
agreement.
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 2 of 24

FOR OUTDOOR USE ONLY !
If you smell gas and/or hear a gas hissing sound:
1. Immediately, SHUT OFF gas to the appliance.
2. Extinguish ALL open flames.
3. If odor continues,keep away from the appliance and immediately call your Gas
Supplier or Fire Department.
DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity
of this unit and or anyother appliance.
An LP Gas tank notconnected for use shall notbe stored in the vicinity ofthis or
any other appliance.
Improper installation, adjustment, alteration, service or maintenance can cause
injuryor damage to property.
Read and understand the Owner’s Manual thoroughly before installing or
servicing this Fire Table / Column.
If the information in this Owner's Manual is NOT followed exactly, a fire or
explosion may result and cause property damage, personal injury or loss of life.
Save this Owner's Manual and these instructions for future use.
If you are assembling this unit for someone else,give this Owner's Manual to them to read.
CARBON MONOXIDE HAZARD.
This appliance can produce carbon monxide which is odorless.
Using it in an enclosed space cankill you.
Never use this appliance in an enclosed space such as inside a camper, tent, car
or home.
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 3 of 24

Part A. SAFETY INFORMATION
Before you assemble or operate this unit, please readcarefullythis entire Owner's Manual.
Failure to do so may result in afire, explosion, injury ordeath.
The installation of this unit must adhere to localcodes or either the National Fuel
Gas Code, ANSI Z223.1/NFPA54, OR CAN/CGA-B149.1, National Gas and Propane
Installation Code.
•THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY!
This product shall be used outdoors, in a ventilated space and shall not be used in any enclosed area.
• This unit isto beused with LP Gas / Propane Gas only !
(Propane Gas tank isnot attached and not delivered with thisunit.
Propane and Gas Tank is sold separately).
• Do not attacha remotegas supply to thisunit.
• This unit is NOT intended for Natural Gas.
• Converting thisunit to Natural Gas isdangerous and not recommended.
The conversion of thisunit shall void the manufacturer warranty.
• Do not use any solidfuel or charcoal for this unit.
•When igniting this unit, exercise caution as some gas pooling from the Burner maycause the flame to
flare that could cause injury.
• LP GAS WARNING : Do not use more than 1/4 inch depth of lava rocks / pumice stones above the burner
holes.
Excessive use of lava rocks / pumice stones, will suffocate the flame.
•If the Propane Gas Tank is leaking gas, you can smell, hear a hiss, or sense a leak at the source.
Do the following:
1. Disconnect the Propane Gas tank.
2. DO NOT attempt to fix the problem yourself.
3. Move yourself and all persons away from the immediate area.
4. Only when everyone is at a safe distance away from the Fire Table /Column, contact your Gas
Supplier orFire Department forhelp.
• Applying too much Propane Gas may result in gas pooling and will NOT burn.
Allowfreshair into the unit sothat the remaining gas mayescape.
• DO NOT use a flame to check for gas leaks.
• The maximum inlet supply pressure: maximum Gas supply 11 inch w.c. (2.74kPa)
•Use LP propane tanks with the following dimensions: diameter 12 in, height18 in - capacity 20lbs.
• You must use a Propane Gas Tank that has a collar to protect the Gas Valve.
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 4 of 24

• DO NOT fill tank over 80% full.
• The tank system must be setup for vapor withdrawal.
• STOP using if anypartof the Propane Gas Tank is damaged.
Rustand dents in tank maybe hazardous and should be inspected bya Gas Supplier.
• DO NOT burn anything other than the provided materials for this Fire Table.
•Keep away from the unit for the first20 minutes after igniting your unit for the first time,as lava rocks /
pumice stones could pop outand cause injury.
Should anyrocks pop out, discard them.
• Always ensure that lava rocks / pumice stones are completely dry before use.
Failure to do so will cause them to crack or pop.
• DO NOT operate unit until all parts are fullyassembled.
• DO NOT paint or color any part of this Fire Table / Column.
• Unit may be hot whilein use, DO NOT attempt tomove it whilein use.
• Never leave this Fire Table / Column unattended whilein use.
• This unit is NOT intended for cooking.
•Keep all flammable items away and DO NOT use any other fireplace cover for this unit.
•Keep a safe distance to avoid burning skin or clothing.
• DO NOT sit or resthands or feeton this Fire Table /Column.
•Never place handsor fingers onto upper portion of this unit while in use.
•Keep all electricalcords and fuel supply hose away from heated surfaces.

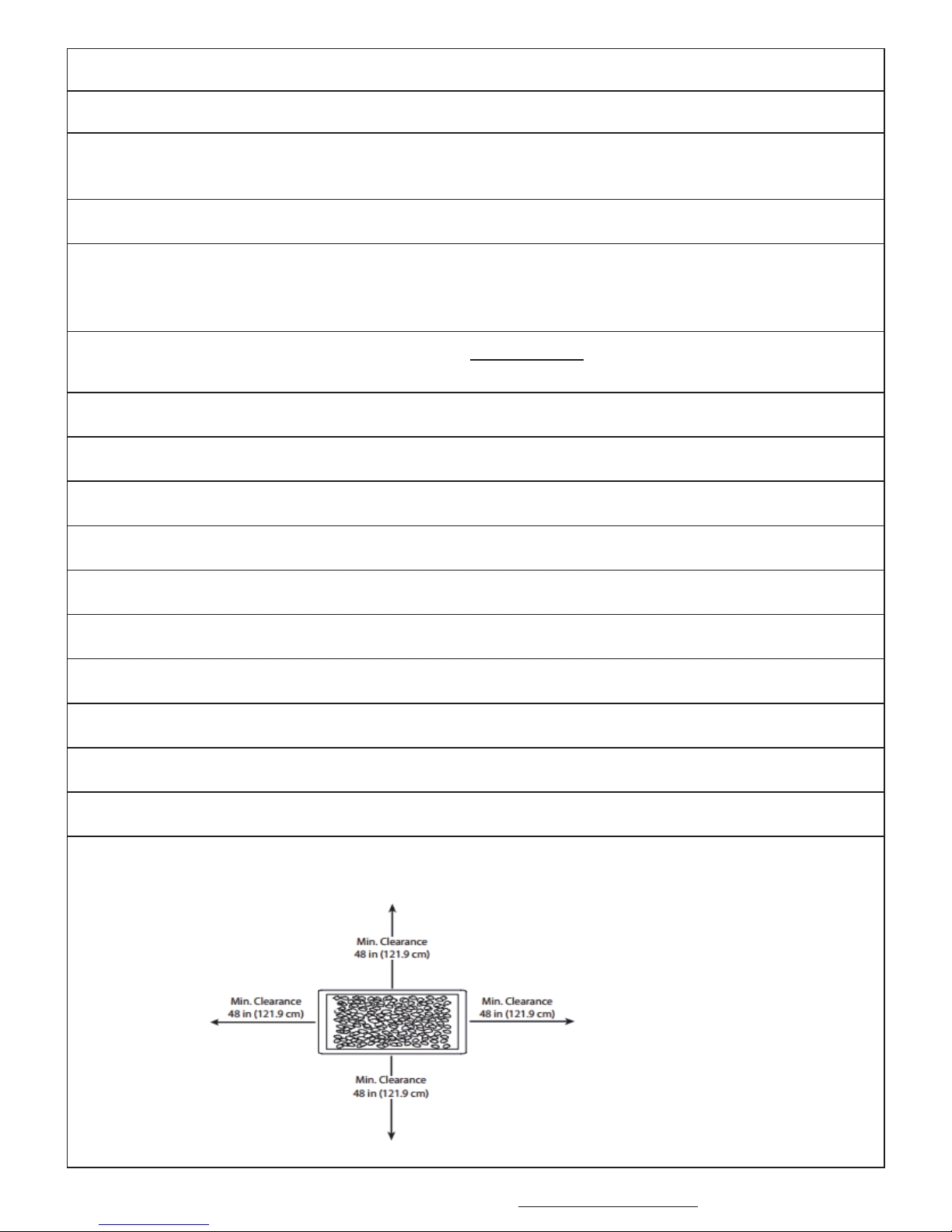

•Combustible material should NOT be within 72 inches of the top of the unit, and within 48 inches around
the entire unit.
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 5 of 24

•Keep the appliance area clear and free from combustible material, gasoline and other flammable vapors
and liquids.
• If the flame goes out while burning, turn the gas valve off.
Wait 5 minutes before repeating the initial lighting procedure.
Once you have a flame started, hold down the control knob for 1 minute.
• DO NOT add water into the unit.
• DO NOT operate unit if anypart has been under water.
Immediately call for a Qualified Service Technician to inspect the appliance.
Where necessary, secure Qualified Service Technician to replace part(s) of the Control System and any
gas control parts that has been under water.
• DO NOT disconnect any part whilethe unit isin use.
• DO NOT store a spare Propane Gas Tank on ornear this unit.
• If the Fire Table /Column is placed indoors for storage,detach the Propane GasTank and leave the tank
outdoors.
This unit is for outdoors use ONLY.
• DO NOT operate on a boator vehicle.
This unit can only be used on anystationaryoutdoor flat surface ONLY
• Always remove protective cover before operating (where applicable) and /oruse of yourFire Table /
Column.
• DO NOT set the Protective Cover (E) over the unit until the Fire Table /Column is turned off and
completely cooled down (where applicable).
•Check for leaks after notusing the unit for long periods of time.
•Children mustnever operate this Fire Table /Column.
Children must be supervised AT ALL TIMES while near this Fire Table / Column.
•The maximum gas supply pressure is 250psi.
• All installation and repair should be done bya Qualified Service Technician.
This unit should be inspected annually and cleaned regularly.
• Inspect all elementsof this Fire Table / Column before each use.
If there is damage, the Burner must be replaced.
•Be aware of the hazards ofhigh temperatures and stay away from the unit to avoid anyburns or injury.
•Thegas supply tank should be constructed and marked with the specifications for the LP Gas tanks of
the U.S. Department ofTransportation or the NationalStandard of Canada CAN/CSA-B339,LP Gas tanks,
spheres and tubes for Transportation ofDangerous Goods and Commission.
•The LP Gas tank must have a listed overfilling prevention device and a QCCI or Type I, LP Gas tank
connection.
•This heating appliance should NOT beused on plastic, artificial wood desks or any desk.
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 6 of 24

•Children and adults should be alerted to the hazards ofhigh surface temperatures and should stay away
to avoid burns or clothing ignition.
•Young children MUST BE carefullysupervised atall times when they are in the area of this appliance.
• Clothing orother flammable materials shall NOT behung from the appliance orplaced on ornear the
appliance.
• Any guard or other protective device removed for servicing the appliance shall be replaced prior to
operating and use of this appliance.
• Installation and repair(s) should be done bya Qualified Service Technician.
The appliance should be inspected before use. If you suspect there are issues,contacta Qualified
Service person.
More frequent cleaning maybe required as necessary.
It is imperative that the control compartment, burners and circulating airways of the appliance are kept
clean.
When APPLICABLE:
•Keep gas tank at least5 feetaway from unit when lit (if external tank).
• Allow Fire Burner/ Column to cool down completely before placing on lid.
•Keep the hose away from anypathways to eliminate anyaccidental damage (if external tank).
• DO NOT use Fire Table / Column whilelidisinstalled.
Always remove the lid while Fire Table / Column isin use.
Use only the Regulator (12/19) and Hose( 12) assembly provided with this unit.
Replacement parts must be supplied directly by manufacturer.
Inspect the Burner (08 ) before use of this unit.
If the Burner (08) shows any kind of damage, DO NOT operate the appliance.
For assistance with repair or replacement of the Burner (08) or any other parts,
NOTE: You must follow all steps to properly assemble this Fire Table / Column.
Make sure the Gas Valve is turned “OFF” before assembling.
DO NOT attempt to assemble without proper tools.
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 7 of 24

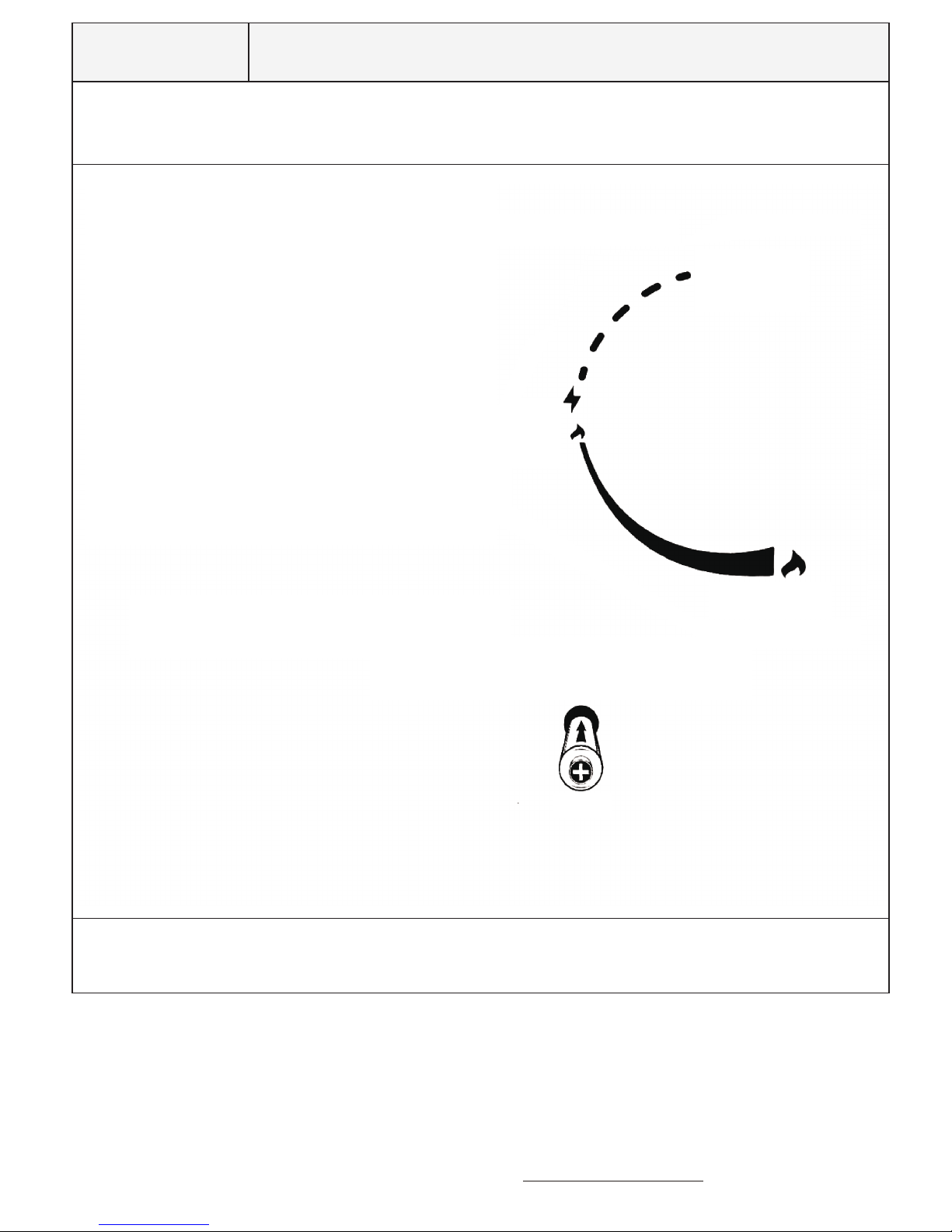

Part BIGNITOR CONTROL BOARD
Herebelow is an exact visualdisplay of the Operation Tablet as found on your Fire Table /Fire Column.
Read carefullybefore using.
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 8 of 24
TURNING OFF
1) Push and turn the Control Knob clockwise to the ”OFF” position.
2) Turn the gas off at its source (cylinder or quick connect).
IGNITER PUSH
AAA
HIGH
OFF
LOW
CAUTION
Gas supply must be turned off at the gas source when this appliance is not in use.
LIGHTING INSTRUCTIONS
1) Read operating instructions before lighting.
2) Burner Control Knob must be in “OFF” Position.
3) Make sure that the fuel supply is properly connected and open
at the tank. (Read owner’s manual).
4) Push and hold lgniter Button to create sparks.
5) While holding the lgniter Button, push and trun the Control Knob
to the “LOW” position to light the burner.
6) If ignition does not occur in 5 seconds, push and turn the
Control Knob to ”OFF”, wait 5 minutes and allow gas to dissipate.
7) Once the burner is lit, continue to hold the knob in
for another 20 seconds and release;
8) If ignitor will not light burner, instead please use a long
match or extended butane lighter.

Part C
User's Guide to Parts and Accessories of The Regulator,
Charge Valve of the Cylinder and Stelps to Connecting the
Gas Tank to the Fire Table/Column.
This Safety Information passage holds information that:
1 )shows you the Regulator (pre-connected to the Fire Table /Column )
2 ) the Charge Valve of the Gas Tank and its relevantValves.
There are Fire Table /Column thatholds the Gas Tank INTERNALLYand EXTERNALLY.
The Owner / User must know all the different parts : Charge Valves and Regulator.
This picture shows differentparts of the Charge Valve of the Gas Tank and the Regulator (12/19 )is pre-
connected to the Fire Table /Column.the differentcomponents and parts of the Gas Tank and the Fire
Table /Column Regulator,as showon the picture to the left here.
Pic. A : Shows the Charge Valve of the Cylinder with
the differentValves and Coupling Nut, these forms
the top of the Gas Cylinder.
Pic. B :Shows the Regular pre-connected to a hose.
This Regulator is pre-connected to the Fire Table /
Column.
There are 2 kindsofFire Table / Column.
Type 1 :Fire Table /Column that has an internalhousing for Gas Tank Cylinders, where the Gas Tank is
held inside the Table /Column.The Gas Tank is held and bound in place inside the FIre Table /Column
with the Metal Ring and locked down with a Wing Screw / Nut.
Type 2 :Fire Table /Column thathas the Gas Tank externally visible, whereby the hose shall be NO
SHORTER than 5 feet.
In some cases,some Customers purchases separate Gas Tank Holder to hold the Gas Tank. In this case,
the 5 feetdistance between the Fire Table /Column to the Gas Tank applies too.
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 9 of 24

Part D
Part E.
Load the Gas Tank / Gas Cylinderas indicated by the bold
black arrow.
Place the Tank / Cylinder gently and snugly into the Metal
Stand.
Position the Wing Screw / Nut in place.
Turn the Wing Screw until fully tightens into the Nut.
The Gas Tank / Gas Cylinder is nowsecured in place.
User's Guide : Connecting the Fire Table / Column tothe Gas
Cylinder.
This nextstep guides you to connect the Fire Table /Column Regulator to the Gas Cylinder.
Step 1 :Plug the Black Coupling Nuton the Regulator to
the Cylinder Valve.
Step 2 : Turn the Black Coupling Nut, fully CLOCKWISE
until fully locked into the position.
Step 3 :Check for Leaks by: Brush some soap and water
mixture on all connections.
Turn the gas supply on;if extra large bubbles form on any
connection there may be a leak. If you smell gas or a leak
is discovered, IMMEDIATELYturn the gas valve off,
disconnectPropane Gas tank.
Do not use the appliance until the leak is repaired

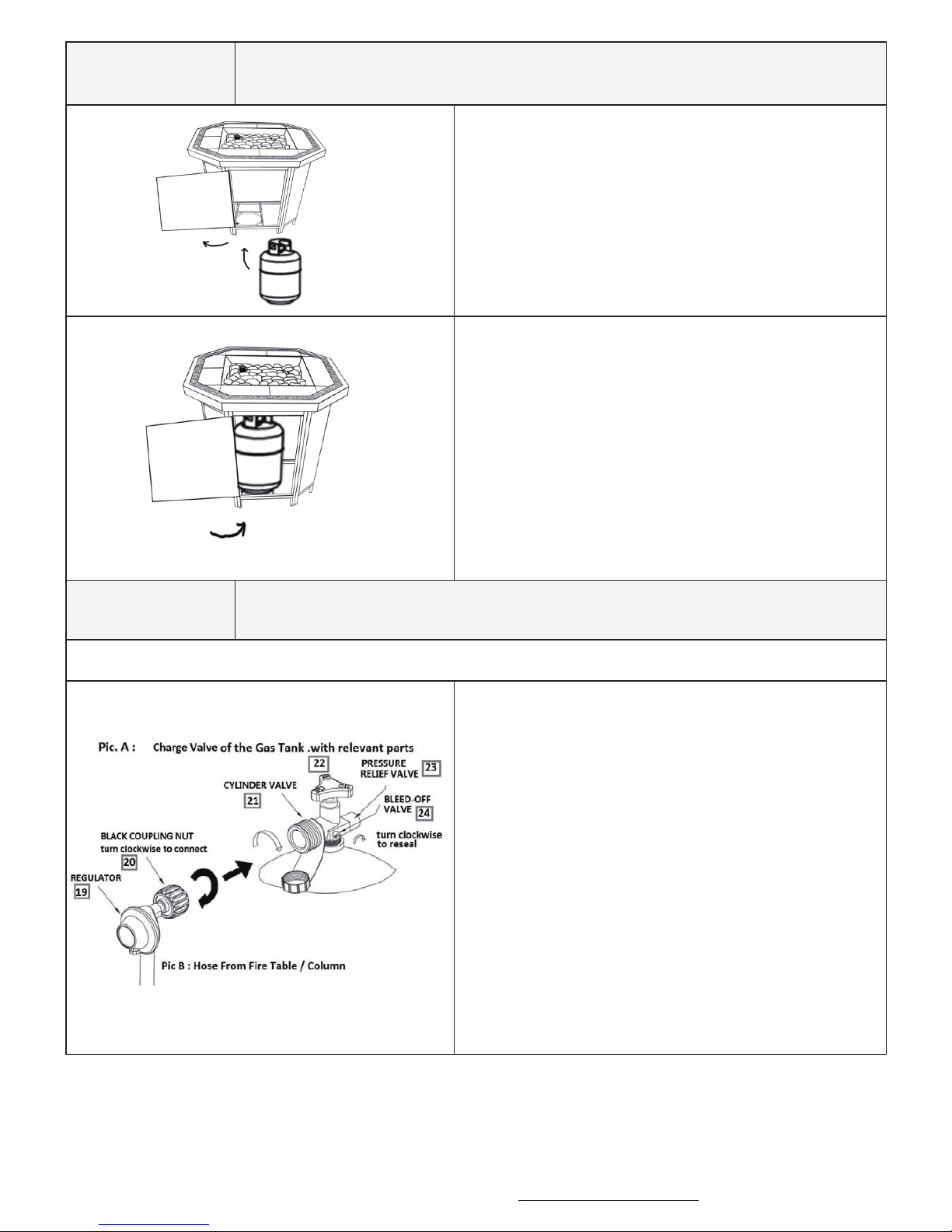

User's Guide : Loading ofGas Tank into the Fire Table / Column.
The Fire Table /Column has a Door. Open the Door
Inside, you will see a Metal Stand with pre-attached Wing
Screw / Nut.
Proceed to Unscrewthe Wing Screw / Nut
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 10 of 24

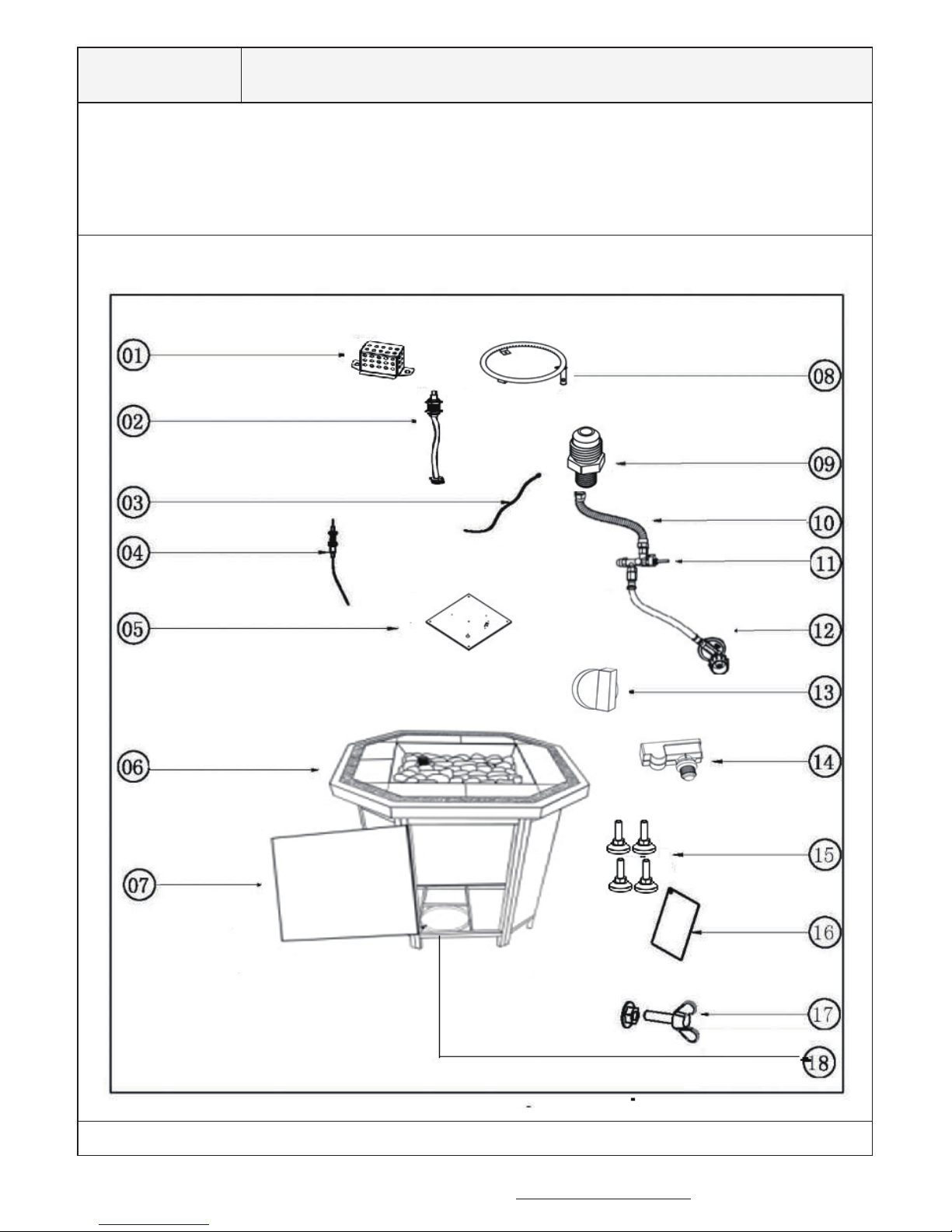

Part F. FIRE TABLE / COLUMN PARTS INTRODUCTION
YourFire Table / Column is delivered pre-assembled wherebythere is no assemblyactions needed. Herebelow
is an introduction to all the parts that forms your Fire Table / Column.
Each part is different and holds its own function.
DO NOTattempt to change and or remove anypart(s) thereof.
In the event of servicing and or operational issues, contact Qualified Services Technical Support and or seek
Qualified Service Technician.
This line art belowdemonstrates the internal components of the Burner.
For your conveneince all of the above components are individuallydesribed herebelow.
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 11 of 24

Item Picture Description Qty
01 Guard 1
02 Thermocouple 1
03 Ground Wire 1
04 Ignition Pin 1
05 Burner Plate 1
06 Main Frame of Fire Table 1
07 Door 1
08 Burner Ring 1
09 Nozzle 1
10 Corrugated Pipe 1
11 Switching Valve 1
12 Regulator Valve with Gas
Hose 1
13 Control Knob 1
14 Ignitor 1
15 Foot 4
16 CSAWarning Label 1
17 Wing Screw with Nut 1
18 Metal Stand 1
Tabulated here beloware the description to all parts as shown in above Picture .
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 12 of 24

Part G.
Item Picture Description Qty
ALava Rocks 1 box
B Battery(AAA) 1
C Panel with door 1
D Panel with window 1
EPVC Cover 1
F Panel F 1
G Panel G 1
TH op 1
I Metal Stand 1
LabelPicture Description QTY
①
Bolt (M6*10MM)
19
②
Screwdriver
1
User's Guide Parts and Accessories of Fire Table / Column.
Tabulated herebelow is the User's Guide to various Parts and Accessories to form your complete Fire Table
/Column.
Before you start to assemble this product, make sure all parts are present.
Compare parts with package contents list.
If anyparts are missing ordamaged,DONOT attempt to assemble the product.
CONTENTS
Before Beginning Assembly:
Hardware
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 13 of 24

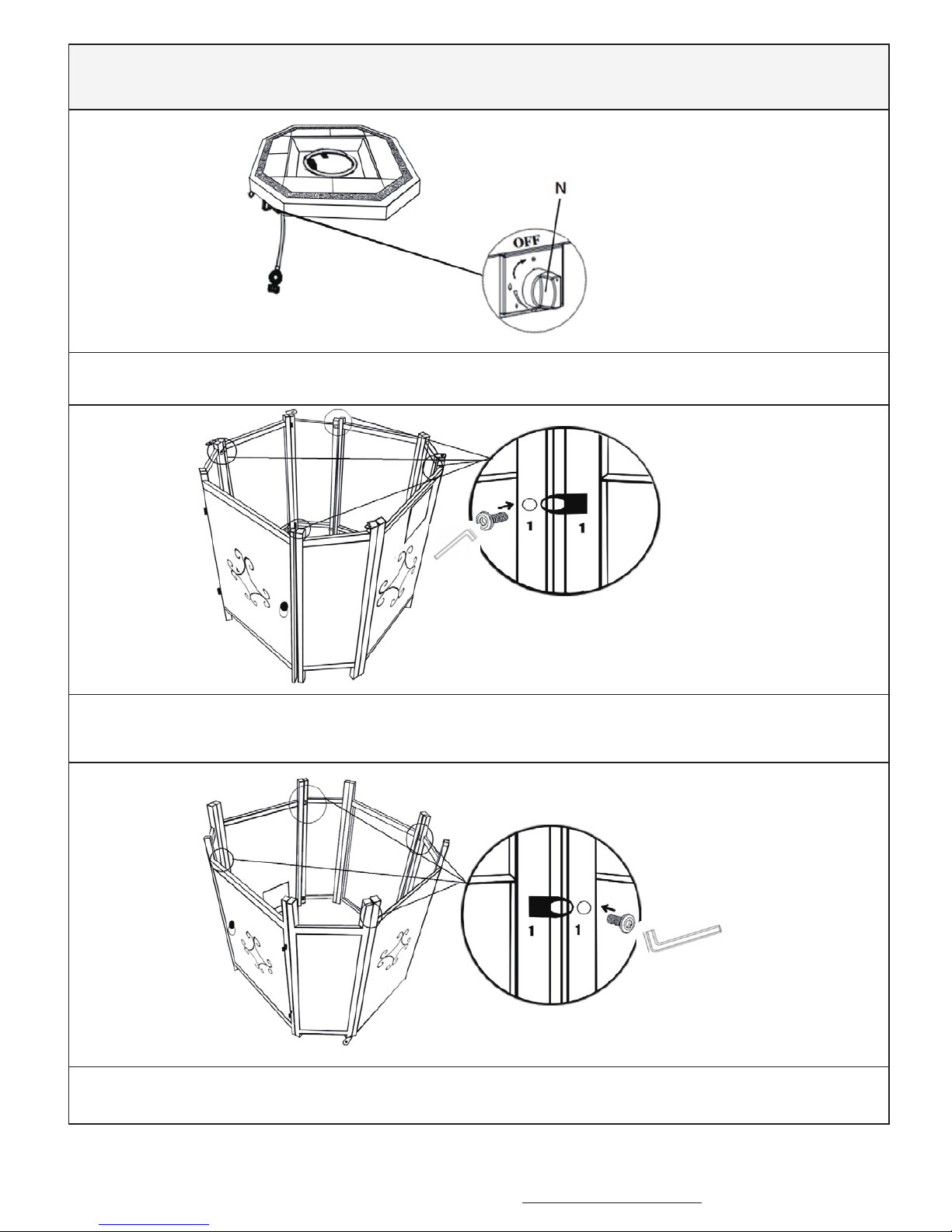

ASSEMBLY INSTRUCTIONS
2. Attach Panel (C), (D) ,(F) and (G) together using 4pcs M6x10 screws. Match 1 with 1 , 2 with 2 , 3 with 3 , 4
with 4. Do not fullytighten Bolts.
1. Check that the controlknob (N) for the gas supply system is turned to the “OFF” position
before starting any assembly.
3.Turn over , Fixed the bottom part using 4pss of Bolts(01) with Screwdriver(02)
Pls do notfully tighten.
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 14 of 24

7.Turn overthe Fire Table
4.Attach metal stand to metal base, the round ring at the side of door , Fix it using 4 pcs of Bolts(01) with
Screwdriver(02). Tighten all Bolts
5.Put the metal base on the bottom of top, make sure the metal box contact with the window of the panel.Fix the metal
box with windowusing 2pcs ofBolts(01) with Screwdriver(02). And tighten the Bolts .
6.Fixed the metalbase with topusing 4pcs of Bolts(01)with Screwdriver(02). And tighten the Bolts
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 15 of 24

Part I.USER'S INSTRUCTIONS
3. Place 20 lb. Propane Gas Tank (not included) into the Metal Stand (18).
Make sure the Propane Gas Tank is placed completely into the Metal Stand (18 ).
Turn the preassembled Wing Screw (17) in a clockwise direction in to the Nut (17) to secure the Propane Gas
Tank tightly.
Tabulated herebelow are the basic steps to help you light and use yourFire Table / Column.

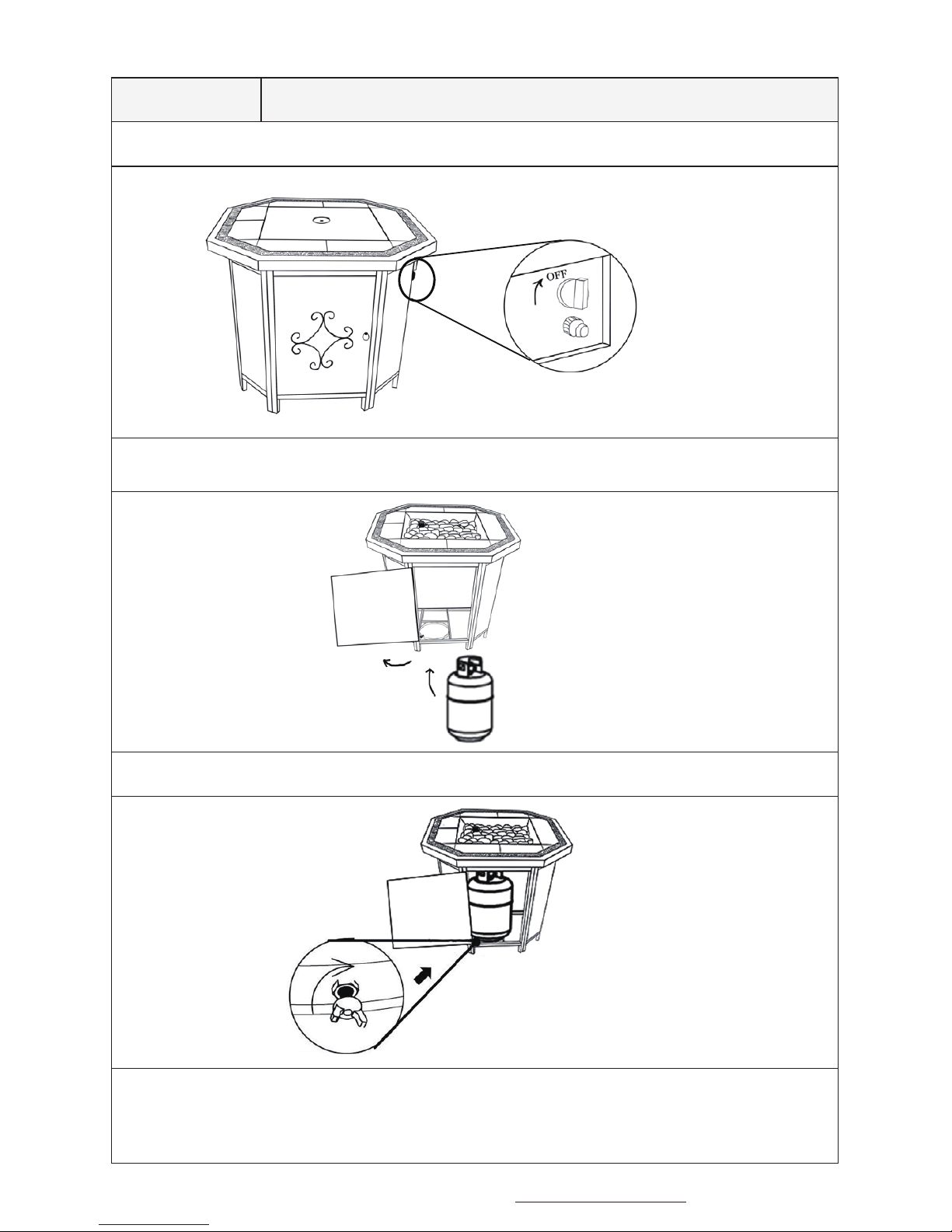

STEP1
1. Check that the Control Knob (13) for the gas supply system is turned tothe “OFF”position before starting
any assembly.
STEP 2
2. Open the Door (C) from the Fire Table / Column (C).
STEP 3
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 16 of 24

STEP 4
4. Turn the Cylinder Valve (21 ) on the tank in a clockwise direction to TURN OFF SUPPLY of the LPGas supply
.
Attach the preassembled Regulator(12/19) from the Fire Table / Column to the Cylinder Valve (21) by turning
the Black Regulator Coupling Nut (20 ) clockwise.
Make sure it is fastened securely and tighten connections - by HAND only.
STEP 5
5. Replace and Close the Door(C) back to the Mainframe of the Fire Table / Column (C ).
STEP 6
6. Remove the Electronic IgnitorCap (14) on the electronic Ignitor(14) by unscrewing and slide the Battery (B)
into the battery slot (14).
Make sure the positive sideof the Battery( B ) faces outwards.
Screw the Electronic Ignitor Cap (14) over the battery, tightly.
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 17 of 24

STEP 7
Subject to your preference, you maypour Lava Rocks over the Burer Ring.The Guard MUST NOT BE
BLOCKED.Refer to guidance below :
Note : Do not place more than 1/4 inch depth of lava rocks above the burner holes. Doing so will suffocate
the flame.
Note :Do not place more than 3KG of lava rocks above the burner holes. Doing so will suffocate the flame.
To ensure proper function, the Guard (01)on the Burner (08)should never have lava rocks (A) covered over it.
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 18 of 24

Part J.
Before performing a leak test, be sure:
1. ) DONOT press the Ignitor .
2. ) You are in a spaciousoutdoor area.
Connect the Propane Gas tank to the Regulator (12 /19) and turn the Valve (22) on the unit to the “OFF”
position.
Brush soap and water mixture onto all connections.
Turn the gas supply on;if extra large bubbles form on any connection there maybe a leak. If you smell gas or a
leak is discovered, IMMEDIATELY turn the gas valve off, disconnect Propane Gas tank.
Do not use the appliance until the leak is repaired
The Fire Table /Column has a Door. Open the Door . Inspect the Gas Hose (12)
before use the Fire Table /Column.
If there are signs of wear or abrasion on the hose, you must replace the Gas Hose (12).And the Gas Hose must
be supplied directly by manufacturer.
Lava rocks / pumice stones could pop up and strike somebody’s face during the process of lighting this unit.
Stand away from the Fire Table /Column for the initial 20 minutes after igniting.
Observe flame colour and flame height when the Fire
Table/Column after being lit :
1. ) Flame color should be yellow / blue.
2. ) Flame heightburns at 2 - 10 inches high.
Wait 10 minutes after extinguishing flame prior to replacing a lid (if applicable) orprotective cover onto the Fire
Table /Column.
SAFETY INFORMATION- OPERATIONS
2 inchesto 10 inches.
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 19 of 24

Part K. SAFETY INFORMATION
USING YOUR FIRE TABLE / COLUMN
Before each use, inspect the Gas Hose (12). Replace Gas Hose(12)if there are anysigns ofcutting, wear
or abrasion.
Before you light your Fire Table /Column,please proceed /adopt the following steps :
1. Make sure the ControlKnob (13) is in the “OFF” position.
2. Open the Door (07)and slowly open the Valve (22)on the Propane Gas Tank by turning the Contol
Knob (13)counterclockwise.
3. Close the Door (07)on the Main Frame (06)of the Fire Table /Column.
4. Push and hold in the Electronic Ignitor (14 ) to create sparks within the electrode continue to hold.
5. Push in the ControlKnob (13)and turn to the “LOW” position.
Keep holding down the ControlKnob (13) to allow gas to flow for 15 seconds.
6. If ignition doesn’t occur within a few seconds release the ControlKnob (13)and rotate to the “OFF”
position.
Wait for 5 minutes for gas to clear and then repeat the above lighting instructions.
7. Once the Fire Table / Column islit, the flame intensitymay be controlled by turning the Control Knob
(13)between the “LOW” and “HIGH” positions.
8. Observe flame height when lit:
8.1. ) Flame color should be yellow / blue.
8.2. ) Flame heightburns at2 -10 inches high.
MESA SQUARE PROPANE FIREPIT TABLE #532761 Current instructions at www.improvementscatalog.com 1-800-642-2112 Page 20 of 24
