TRESHOLD GAD1413T-C User manual

>> assembly instructions
Threshold™
30 in. Square
LP Gas Outdoor
Fireplace
article # 00010383722
stock # GAD1413T-C
THIS INSTRUCTION BOOKLET CONTAINS
IMPORTANT SAFETY INFORMATION. PLEASE
READ AND KEEP FOR FUTURE REFERENCE.
If you are assembling this unit for someone else,
give this manual to him or her to read and save
for future reference.
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only (outside any enclosure)
Do Not Use For Cooking.
DANGER
CARBON MONOXIDE HAZARD
• This appliance can produce carbon
monoxide which has no odor.
• Using it in an enclosed space can kill you.
• Never use this appliance in an enclosed
space such as a camper, tent, car or home.
Français page 30

2QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.
WARNING
FOR YOUR SAFETY:
WIf the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
WWHAT TO DO IF YOU SMELL GAS:
• Do NOT try lighting any appliance.
• Do NOT touch any electrical switch; do NOT use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone.
• Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
WInstallation and service must be performed by a
qualified installer, service agency or gas supplier.
WSave these instructions for future reference.
WIf you are assembling this unit for someone else,
give this manual to him or her to read and save for
future reference.
WARNING
FOR YOUR SAFETY:
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage.
Read the installation, operation and maintenance
instructions thoroughly before installing or
servicing this equipment.
DANGER
If you smell gas:
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance
and immediately call your gas supplier or your
fire department.
WARNING
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or other flammable
vapors or liquids in the vicinity of this or any other
appliance.
2. An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
DANGER
Do NOT leave this appliance unattended while it is in
operation.

3
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.
Congratulations on your latest Target purchase.
Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you.
All you need to do is follow our simple instructions and you’ll be on your way to transforming your backyard in no time.
Good luck—though we’re confident you won’t need it.
table of contents
important safeguards.......................................4
before you begin .........................................10
tools required............................................10

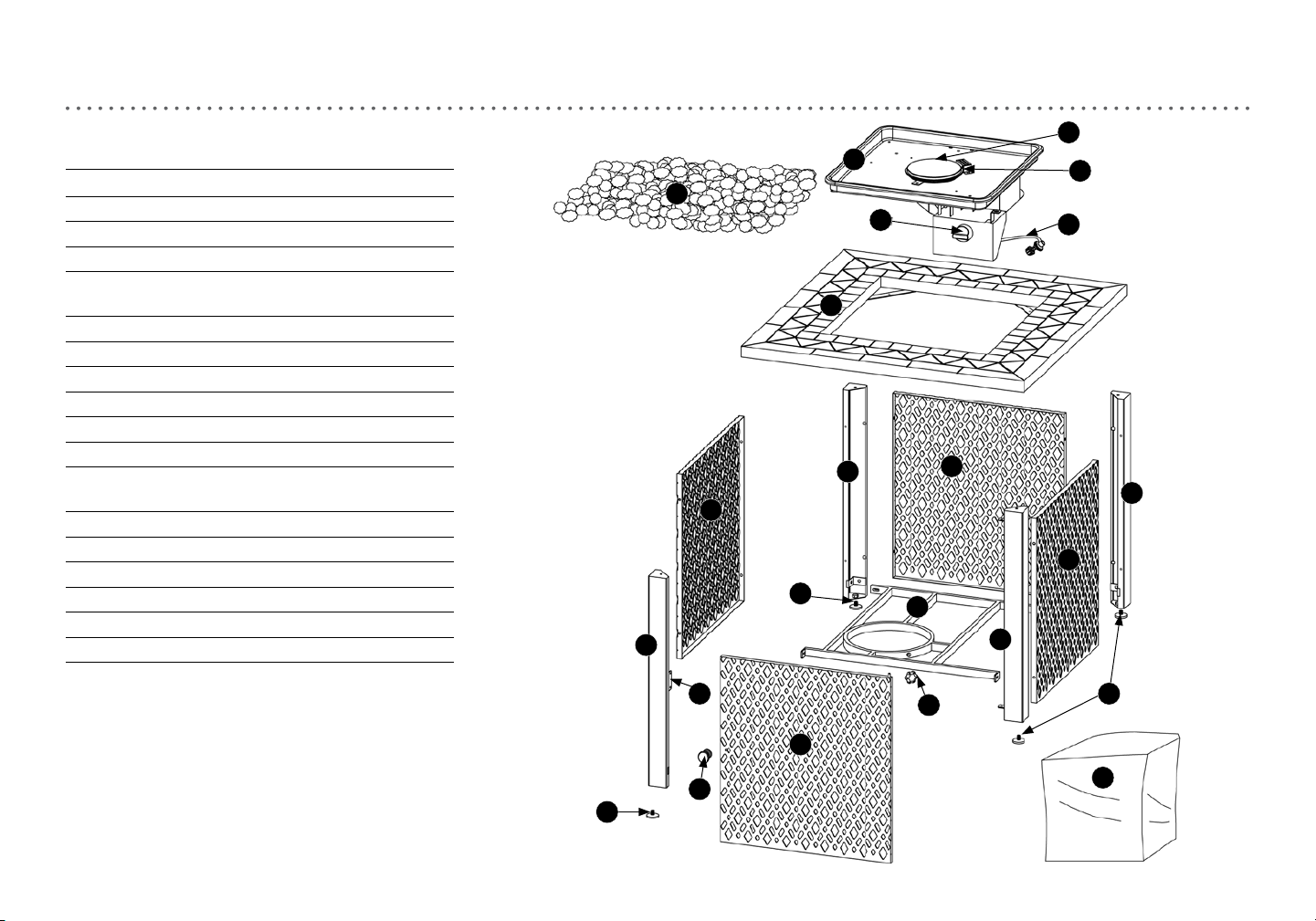

parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
hardware ...............................................12
assembly instructions .....................................13

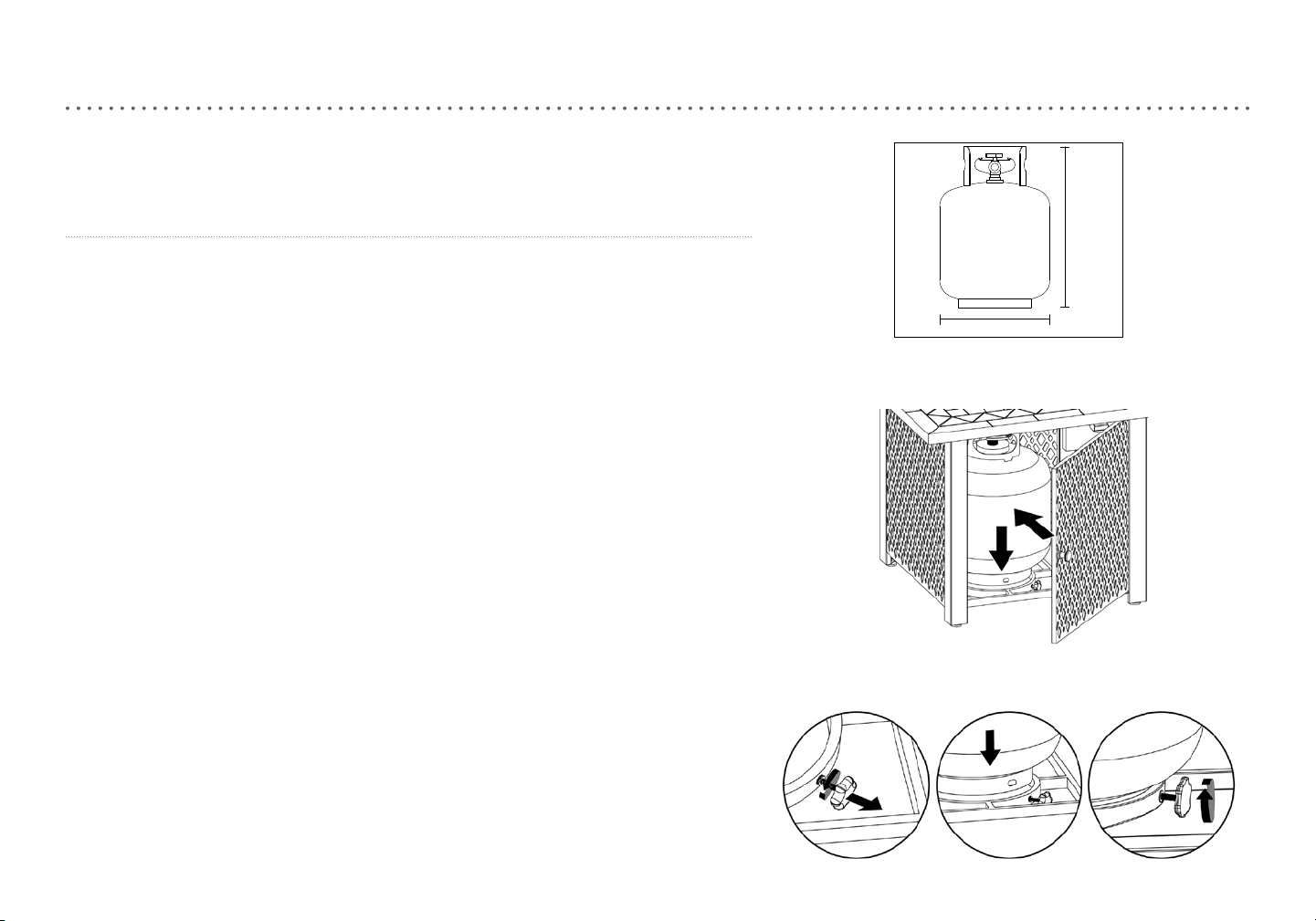

installing LP gas tank......................................19
inserting LP gas tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
securing LP gas tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
connecting LP gas tank.................................20
disconnecting LP gas tank ..............................20
operating instructions .....................................21
checking for leaks .....................................21
lighting..............................................22
turning off ...........................................23
cleaning and care ........................................24
before Each Use ......................................24
cleaning.............................................25
storing ..............................................25
product registration .......................................25
replacement parts ........................................25
limited warranty ......................................... 26
troubleshooting ..........................................27
The use and installation of this product must conform to local codes. In absence of local codes, use the latest edition of the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, or International Fuel Gas Code, Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage
and Handling Code B149.2, as applicable. This appliance, when installed, must be electrically grounded in accordance with local codes, or in the
absence of local codes with the National Electrical Code, ANSI/NFPA 70, if applicable.
For installation in Canada - these instructions, while generally acceptable, do not necessarily comply with the Canadian installation codes,
particularly with piping above and below ground. In Canada the installation of this appliance must comply with local codes and/or standard CAN/
CGA B149.1 (installation code for propane burning appliances and equipment).

4QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.
important safeguards
WDANGER: Failure to follow the dangers, warnings and cautions in this manual may result in serious bodily
injury or death, or in a fire or an explosion causing damage to property.
WWARNINGS:
WThis appliance is for outdoor use only, and should NOT be used in a building, garage or any other enclosed
area.
WDo NOT operate, light or use this appliance within ten feet (3.05 m) of walls, structures or buildings.
WFor residential use only. This outdoor fireplace is NOT for commercial use.
WDo NOT use this outdoor fireplace for indoor heating. TOXIC carbon monoxide fumes can accumulate and
cause asphyxiation.
WThis outdoor fireplace is safety certified for use in the United States and/or Canada only. Do NOT modify for
use in any other location. Modification will result in a safety hazard and will void your warranty.
WApartment dwellers: Check with management to learn the requirements and fire codes for using a liquid
propane (LP) gas outdoor fireplace in your apartment complex. If allowed, use outside on the ground floor
with a ten foot (3.05 m) clearance from any structure. Do NOT use on or under balconies.
WThis outdoor fireplace, from the factory, is for use with LP gas only. The conversion to or attempted use of
natural gas in this outdoor fireplace is dangerous, may cause bodily harm and will void your warranty.
WLP gas characteristics:
a. LP gas is flammable and hazardous if handled improperly. Become aware of the characteristics before
using any LP gas product.
b. LP gas is explosive under pressure, heavier than air, and settles/pools in low areas.
c. LP gas in its natural state has no odor. For your safety, an odorant is added that smells like rotten
cabbage.
d. Contact with LP gas can cause freeze burns to skin.
WLP gas tank needed to operate. Only tanks marked “propane” may be used.
a. The LP gas cylinder must be constructed and marked in accordance with the U.S. Department of
Transportation (D.O.T.) Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and
Tubes for the Transportation of Dangerous Goods and Commission, CAN/CSA-B339 as applicable.

5
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.
important safeguards
b. LP gas tank must be arranged for vapor withdrawal.
c. The LP gas tank must have a listed overfilling prevention device (OPD) and a QCCI or Type I (CGA810) LP
gas tank connection.
d. The LP gas tank must have a tank collar to protect the tank valve.
e. Never use an LP gas tank with a damaged body, valve, collar or footing.
f. Dented or rusted LP gas tanks may be hazardous and should be checked by your LP gas supplier prior to
use.
g. The LP gas tank should not be dropped or handled roughly.
h. Tanks must be stored outdoors, out of the reach of children and must not be stored in a building, garage or
any other enclosed area. Your LP gas tank must never be stored where temperatures can reach over 125°F.
i. Do NOT insert any tool or foreign object into the valve outlet or safety relief valve. You may damage the
valve and cause a leak. Leaking propane may result in explosion, fire, severe personal injury or death.
j. Never keep an LP gas tank in a hot car or trunk. Heat will cause the gas pressure to increase, which may
open the relief valve and allow gas to escape.
k. Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust cap
on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result
in leakage of propane.
l. Do NOT store a spare LP gas tank under or near this appliance.
m. Never fill the cylinder beyond 80 percent full.
n. A fire causing serious injury or damage to property may occur if the above is not followed exactly.
WYour outdoor fireplace has been checked at all factory connections for leaks. Recheck all connections as
described in the “Operating Instructions” section, as shipping can loosen connections.
WCheck for leaks even if your unit was assembled for you by someone else.
WDo NOT operate if a gas leak is present. Gas leaks may cause a fire or explosion.
WYou must follow all instructions in the “Checking for Leaks” section before operating. To prevent a fire or
explosion when testing for a leak:
a. Always perform a leak test before lighting this outdoor fireplace and each time the tank is connected for
use.

6QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.
important safeguards
b. No smoking. Do NOT use or permit sources of ignition in the area while conducting a leak test.
c. Conduct the leak test outdoors in a well-ventilated area.
d. Do NOT use matches, lighters or a flame to check for leaks.
e. The use of alcohol, prescription or non-prescription drugs may impair the consumer’s ability to properly
assemble or safely operate the appliance.
f. Strong odors, colds, sinus congestion, etc. may prevent the detection of propane. Use caution and
common sense when testing for leaks.
g. Do NOT use this outdoor fireplace until any and all leaks are corrected.
If you are unable to stop a leak, disconnect the LP gas supply. Call a gas appliance serviceman or your
local LP gas supplier.
WDo NOT store or use gasoline or other flammable liquids or vapors within 25 feet (7.62 m) of this appliance.
WDo NOT use in an explosive atmosphere. Keep outdoor fireplace area clear and free from combustible
materials, gasoline and other flammable vapors and liquids.
WThis outdoor fireplace is NOT to be operated by children.
WThis outdoor fireplace is NOT to be used in or on boats or recreational vehicles.
WDo NOT connect to a remote gas supply.
WNever attempt to attach this outdoor fireplace to the self-contained LP gas system of a camper trailer, motor
home or house.
WAlways use in accordance with all applicable local, state and national codes. Contact your local fire
department for details on outdoor burning.
WWhen using this outdoor fireplace, exercise the same precautions you would with any open fire.
WDo NOT use this outdoor fireplace without reading the entire Owner’s Manual.
WDo NOT burn solid fuels such as: wood, charcoal briquettes, lump charcoal, manufactured logs, driftwood,
trash, leaves, paper, cardboard, plywood, or painted/stained/pressure treated wood in this outdoor fireplace.
WIt is essential to keep the outdoor fireplace’s valve compartment, burners, and circulating air passages clean.
Inspect outdoor fireplace before each use.

7
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.
important safeguards
WDo NOT use this outdoor fireplace until it is COMPLETELY assembled and all parts are securely fastened and
tightened.
WDo NOT use this outdoor fireplace near automobiles, trucks, vans or recreational vehicles.
WDo NOT use this outdoor fireplace under any overhang or near any unprotected combustible constructions.
Avoid using near or under overhanging trees and shrubs.
WAlways use this outdoor fireplace on a hard, level, non-combustible surface such as concrete, rock or stone.
An asphalt or blacktop surface may not be acceptable for this purpose.
WDo NOT use this outdoor fireplace for cooking.
WDo NOT use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
water.
WDo NOT wear flammable or loose clothing when operating this outdoor fireplace.
WDo NOT use in windy conditions.
WNever lean over this outdoor fireplace when lighting or when in use.
WDo NOT use this outdoor fireplace unless burner is securely in place.
WKeep all electrical cords away from this outdoor fireplace during use.
WCertain areas of this outdoor fireplace when in use will become too hot to touch. To avoid burns, do NOT
touch hot surfaces until the unit has completely cooled (about 45 minutes), unless you are wearing protective
gear (such as insulated pot holders or heat-resistant gloves/mittens).
WDo NOT leave a lit outdoor fireplace unattended, especially around children and pets.
WChildren and adults should be alerted to the hazards of high surface temperatures and should stay away to
avoid burns or clothing ignition.
WYoung children should be carefully supervised when they are in the area of the appliance.
WDo NOT hang or place clothing or other flammable material on or near this appliance.
WAny guard or other protective device removed for servicing the appliance must be replaced prior to operating
the appliance.
WIf applicable, protective cover must be removed when burner is in operation.

8QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.
WDo NOT attempt to move outdoor fireplace when in use. Allow the outdoor fireplace to cool before moving or
storing.
WThis outdoor fireplace should be thoroughly cleaned and inspected on a regular basis.
a. Clean and inspect the hose before each use of the appliance. If there is evidence of abrasion, wear, cuts,
or leaks, the hose must be replaced prior to the appliance being operated.
b. Inspect the burner before each use of the appliance. If there is evidence of burner damage, the burner must
be replaced prior to the appliance being operated. Use only the burner specified by Blue Rhino Global
Sourcing, Inc.
WThis outdoor fireplace should be inspected at least annually by a qualified service person. Depending on
amount of use, more frequent cleaning may be required. Do NOT operate until all parts have been repaired or
replaced.
WUse only the regulator and hose assembly provided. Use only the replacement regulator and hose assembly
specified by Blue Rhino Global Sourcing, Inc.
WUse only Blue Rhino Global Sourcing, Inc. factory-authorized parts. The use of any part that is not factory-
authorized can be dangerous and will void your warranty.
WDo NOT operate this appliance without reading “Operating Instructions” in this manual.
WStorage of this outdoor fireplace indoors is permissible only if the tank is disconnected, removed from the
outdoor fireplace and properly stored outdoors.
WDo NOT attempt to disconnect the gas regulator from the tank or any gas fitting while the outdoor fireplace is
in use.
WIf the outdoor fireplace is not in use, the gas must be turned off at the supply tank.
WThe pressure regulator is set for 11 inches of water column.
WThe maximum inlet gas pressure for this outdoor fireplace is 11 inches of water column.
WBefore pressure testing, close LP gas tank valve and disconnect gas regulator. The gas supply piping system
must test at pressures equal to or less than 1/2 psi (3.5 kPa).
WDo NOT sit or stand on the mantle or any part of this appliance.
WDo NOT throw anything onto the fire when the unit is in operation.
important safeguards

9
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.
WFire logs, glass and lava rock are very hot. Keep children or pets at a safe distance from this appliance.
WThe opening of the tank collar should face toward the door side for easy access.
WDo NOT store any combustible materials in the base enclosure.
WUse protective gloves when assembling this product.
WDo NOT force parts together as this can result in personal injury or damage to the product.
WDeath, serious injury or damage to property may occur if the above is not followed exactly.
California Proposition 65: Combustion by-products produced when using this product contain chemicals known
to the State of California to cause cancer, birth defects, and other reproductive harm.
California Proposition 65: Wash your hands after handling this product.
important safeguards

10 QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.
tools required
before you begin
1. Check for damaged or missing parts. Call 800.762.1142 to order missing parts.
2. Use the carton as a working surface to prevent product damage during assembly.
3. Gather all tools prior to assembly.

11
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.
Item Description Qty
Re-order
Number
1Bowl Assembly 1 58-23-343
2 Burner* 1 58-23-344
3 Pilot Housing* 1 58-23-345
4 Control Knob* 1 58-23-346
5Regulator/Hose
Assembly* 1 58-23-347
6 Lava Rock 1 58-23-322
7 Hearth* 1 58-23-349
8 Side Panel 3 58-23-350
9 Rear Leg 2 58-23-351
10 Foot 4 58-23-352
11 Base 1 58-23-353
12 LP Gas Tank Retainer
Bolt* 1 58-23-354
13 Right Front Leg 1 58-23-355
14 Left Front Leg 1 58-23-356
15 Magnet* 1 58-23-357
16 Door 1 58-23-367
17 Door Handle* 1 58-23-359
18 Cover 1 58-23-360
* Pre-assembled
parts
1
18
14
16
11
15
13
8
8
8
6
7
9
9
10
10
10
12
17
2
4
3
5

12 QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.
hardware
(A) x 14
Screw
M5x12 Nickel Plated
Phillips Truss Head
(B) x 2
Screw
M5x20 Nickel Plated
Phillips Truss Head
(C) x 1
Screw
M6x12 Nickel Plated
Phillips Head
(D) x 4
Screw
M6x12 Nickel Plated
Phillips Truss Head

13
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.
DO NOT RETURN TO PLACE OF PURCHASE.
For assistance, call 1.800.762.1142 toll-free. Please have your owner’s manual and DPCI number available for reference.
Note: The model number is printed on a label which can be found on the inside door, back or side of the base assembly.
Assembly Tips:
1. Select an area where you will assemble this product. To protect components, choose a smooth non abrasive surface that’s free of cracks
or openings.
2. Spread out all parts.
3. Tighten all hardware connections by hand first. Then, before completing each step, go back and fully tighten all hardware. Be careful not
to over-tighten. That could damage surfaces or strip threads.
4. For best results, complete each step in the order presented.
To complete assembly you will need:
• (1) Leak detection solution (instructions on how to make the solution are included in the “Operating Instructions” section of this manual).
• (1) Precision-filled LP gas grill tank with Acme Type 1 external threaded valve connection (standard grill size).
Typical assembly is approximately 45 minutes.
step 1

14 QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.
step 2
(D) x 4
Screw
M6x12 Nickel
Plated Phillips
Truss Head

15
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.

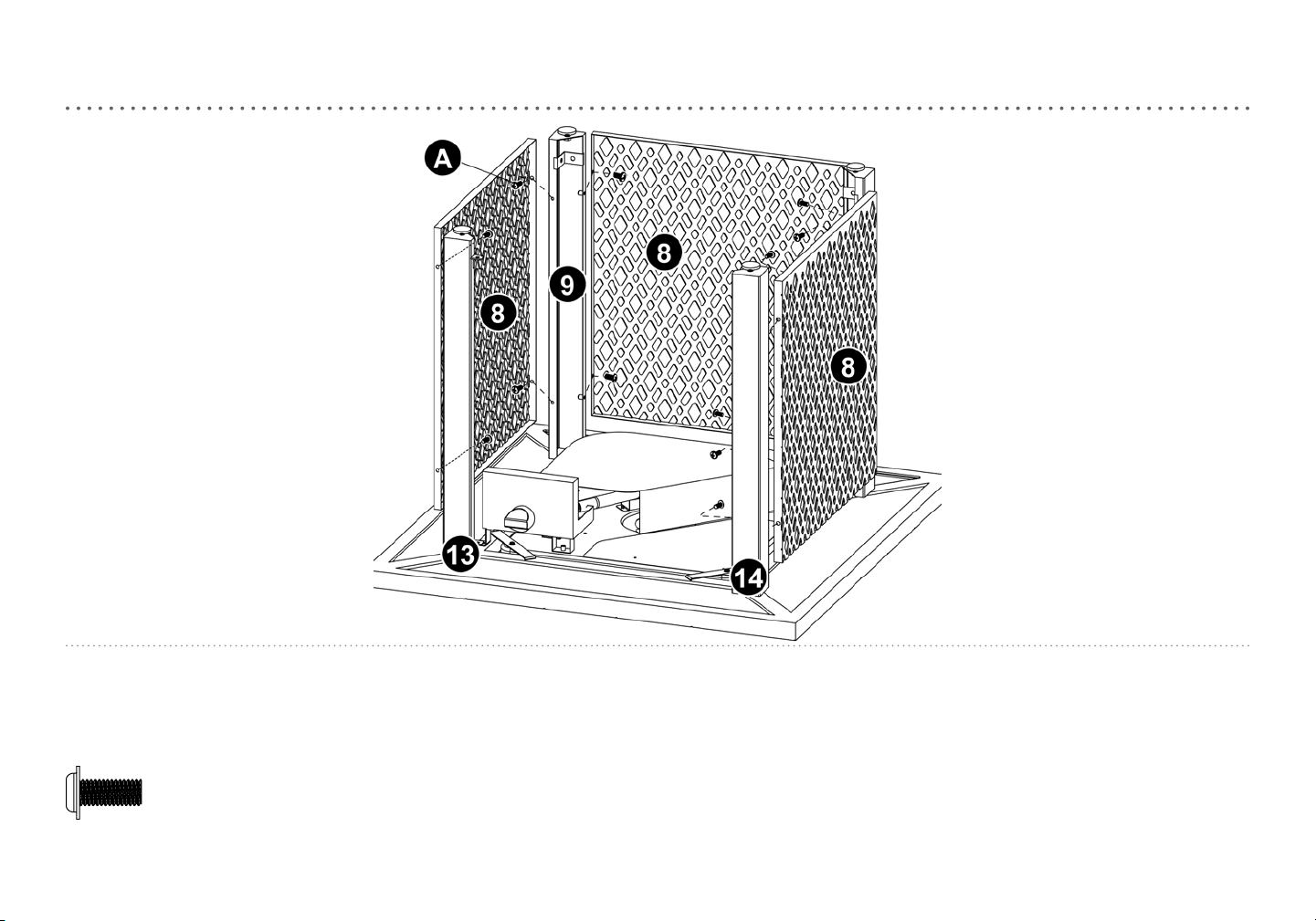

step 3
(A) x 12
Screw
M5x12 Nickel
Plated Phillips
Truss Head

16 QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.

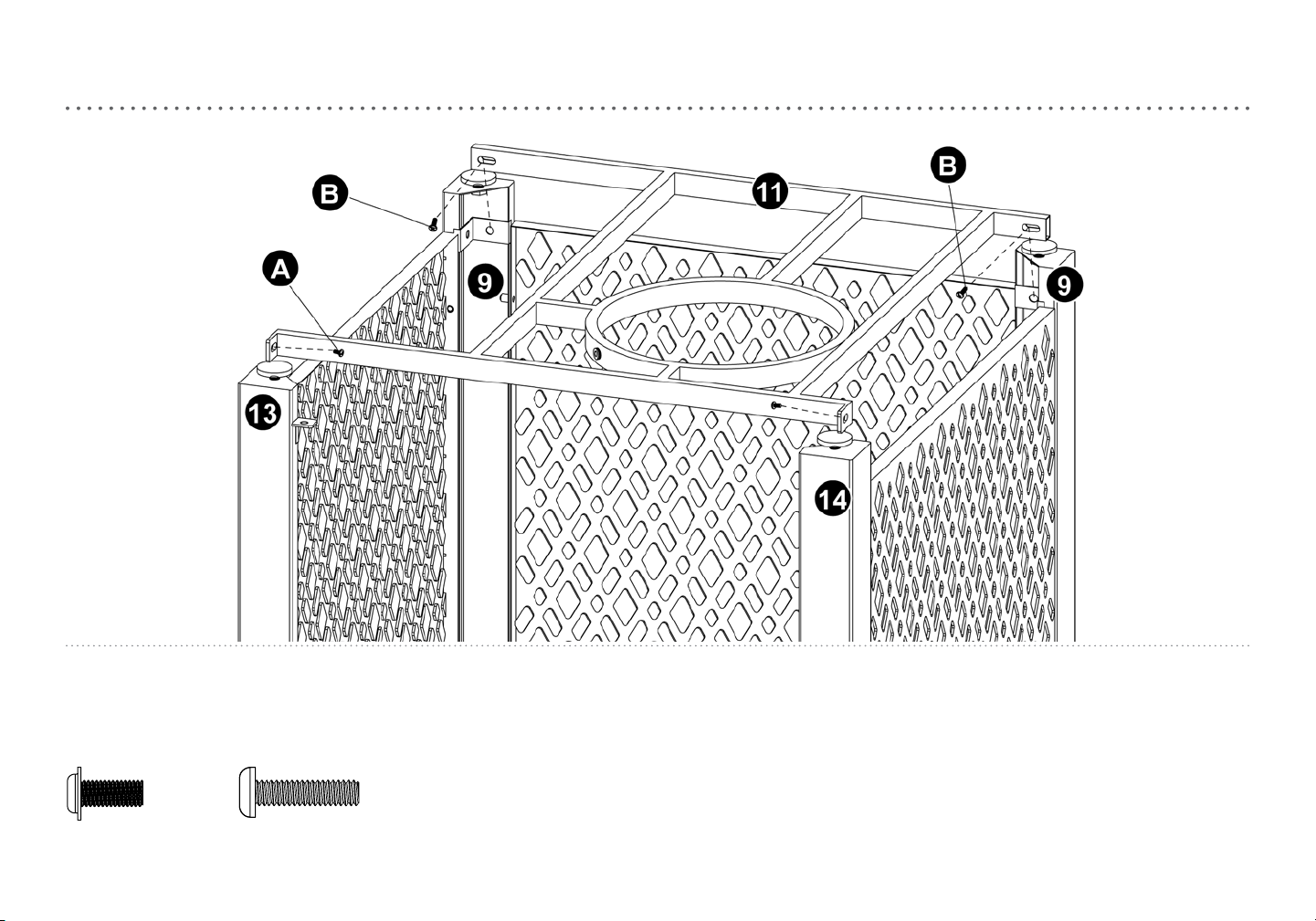

step 4
(A) x 2
Screw
M5x12 Nickel
Plated Phillips
Truss Head
(B) x 2
Screw
M5x20 Nickel
Plated Phillips
Truss Head

17
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.

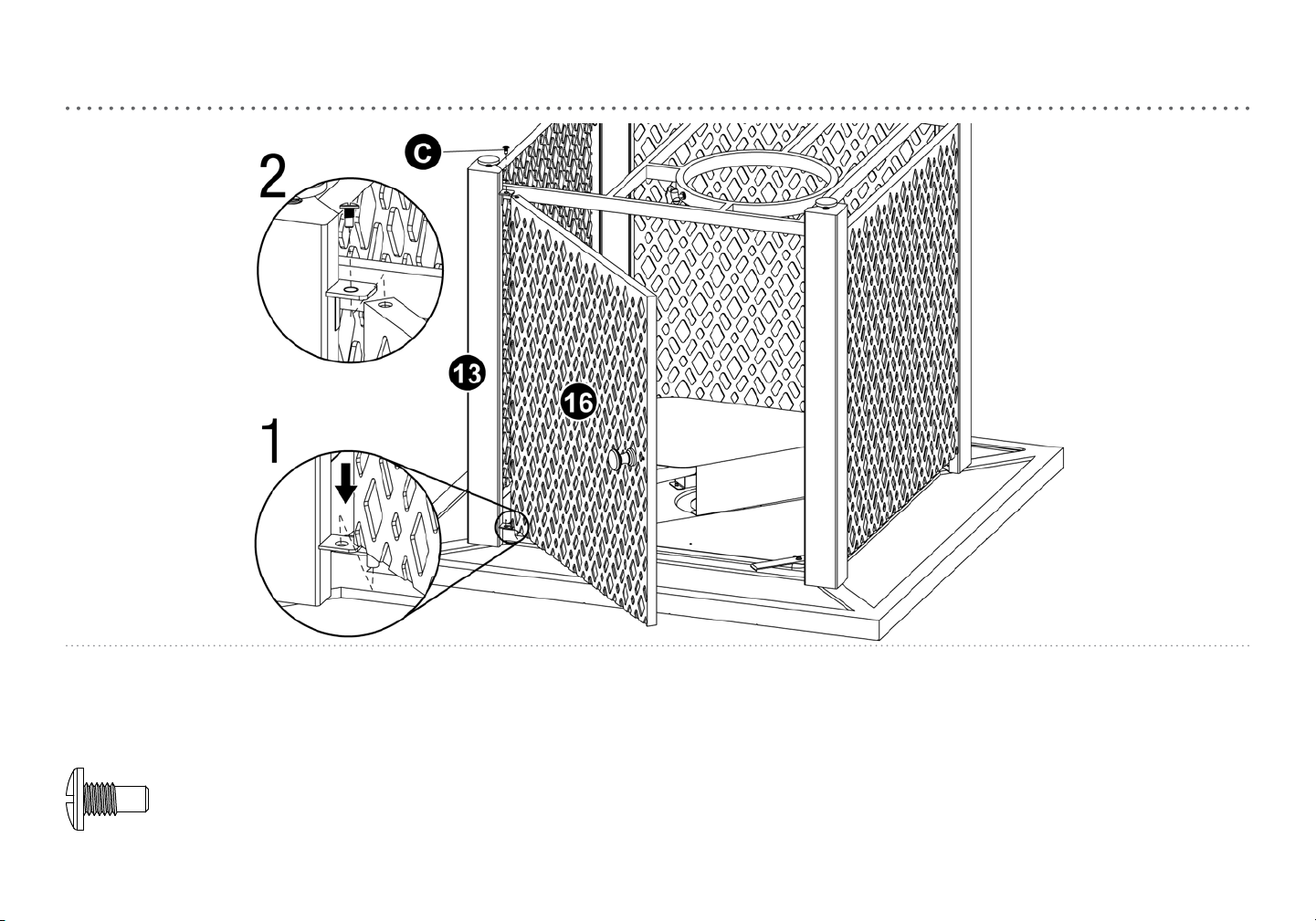

step 5
(C) x 1
Screw
M6x12 Nickel
Plated Phillips
Truss Head

18 QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.
step 6
WCAUTION: Do NOT dump lava rocks out of package. Carefully place lava rocks by hand so dust does not clog
burner.
WCAUTION: Do NOT cover pilot housing.
Note: Lava rocks should be 0.8-2.0 in. (2-5 cm) long. Approx. 5.95 lbs. (2.7 kg) of lava rocks are needed (included).

19
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.
installing LP gas tank
To operate, you will need one precision-filled standard LP grill gas tank with external
valve threads.
WCaution: LP gas tank must be properly disconnected and
removed prior to moving this outdoor fireplace.
Inserting and Securing LP Gas Tank
WWARNING: Make sure LP gas tank valve is closed.
1. Loosen LP gas tank retainer bolt by turning counter-clockwise (Figure 3).
2. Place precision-filled LP gas tank upright into hole in outdoor fireplace
body so the tank valve is facing the gas line connection (Figure 2).
3. Secure tank by turning LP gas tank retainer bolt clockwise until tight
(Figure 3).
Figure 1
20 lb
9 Kg
17.9 in. / 45.5 cm
12.2 in. / 31 cm
Figure 2
Figure 3

20 QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the article number ready when when calling.
Connecting LP Gas Tank (see Figure 4)
1. Before connecting, be sure there is no debris caught in the head of the LP gas tank, head of
the regulator valve or in the head of the burner or burner ports.
2. Connect regulator/hose assembly to tank by turning knob clockwise until it stops.
Disconnecting LP Gas Tank (see Figure 5)
1. Before disconnecting, make sure the LP gas tank valve is “CLOSED.”
2. Disconnect regulator/hose assembly from LP gas tank by turning knob counterclockwise until it
is loose.
WCaution: LP gas tank must be properly disconnected and removed prior to
moving this outdoor fireplace.
3. Place the protective cap cover on the LP gas tank and store the tank outdoors in a well-
ventilated area out of direct sunlight.
Getting More Propane
Need a tank of gas? One option is to try propane exchange. It’s easy, fast, safe, and available at
tens of thousands of conveniently located retail outlets nationwide, which are typically open nights
and weekends. You can purchase a fresh, precision-filled tank or exchange your empty for a
fresh, precision-filled tank. Another option is to have your tank refilled at a refill station. Be sure to
check the hours of operation for the refill station.
Figure 4
Figure 5
installing LP gas tank
