Impulse Lithium IML-100AH-12V User manual

Installation Guide
“Don’t Skip A Beat”
12V-100Ah LiFeP04 Battery
Congratulations on your New Impulse Lithium
purchase!
At Impulse Lithium, we took the extra steps to make our batteries compatible with most
products using AGM or Lead Acid batteries on the market today. Below are some of the
guidelines you should follow while enjoying your new battery. If you are unsure of how
to proceed with installation, please contact Impulse Lithium for clarification.

Battery Features
Impulse Lithium Batteries come standard with a Battery Management System or (BMS).
A BMS is an onboard computer that continuously monitors the parameters of the
battery. Below is a list of standard operating conditions that the BMS will monitor.
When conditions fall outside of normal operating ranges the BMS will protect the battery
and your investment
§ High Voltage
§ Low Voltage
§ High Temperature
§ Low Temperature
§ High Current
§ Continuous Amperage Output
§ Cell Balancing
Installation
Impulse Lithium Batteries are simple to install, simply connect your positive cables to
the positive terminal and your negative cables to the negative terminal. Our batteries
work great in either parallel or series configurations (up to 48v). Our batteries come
standard with 10mm mounting hardware. Positive terminals are marked with (+)(RED)
and Negative terminals are marked with (-)(BLACK)
Parallel Installation
Impulse Lithium recommends up to (4) batteries for parallel connection(12v and 36v). In this
configuration, positive leads are connected together and negative leads are connected together.
The system voltage remains (12v) but the currents change by the multiple of batteries. Please
make sure all of your wiring is sized to accommodate the increased current(s) this includes
fuses or circuit breakers. See illustration below

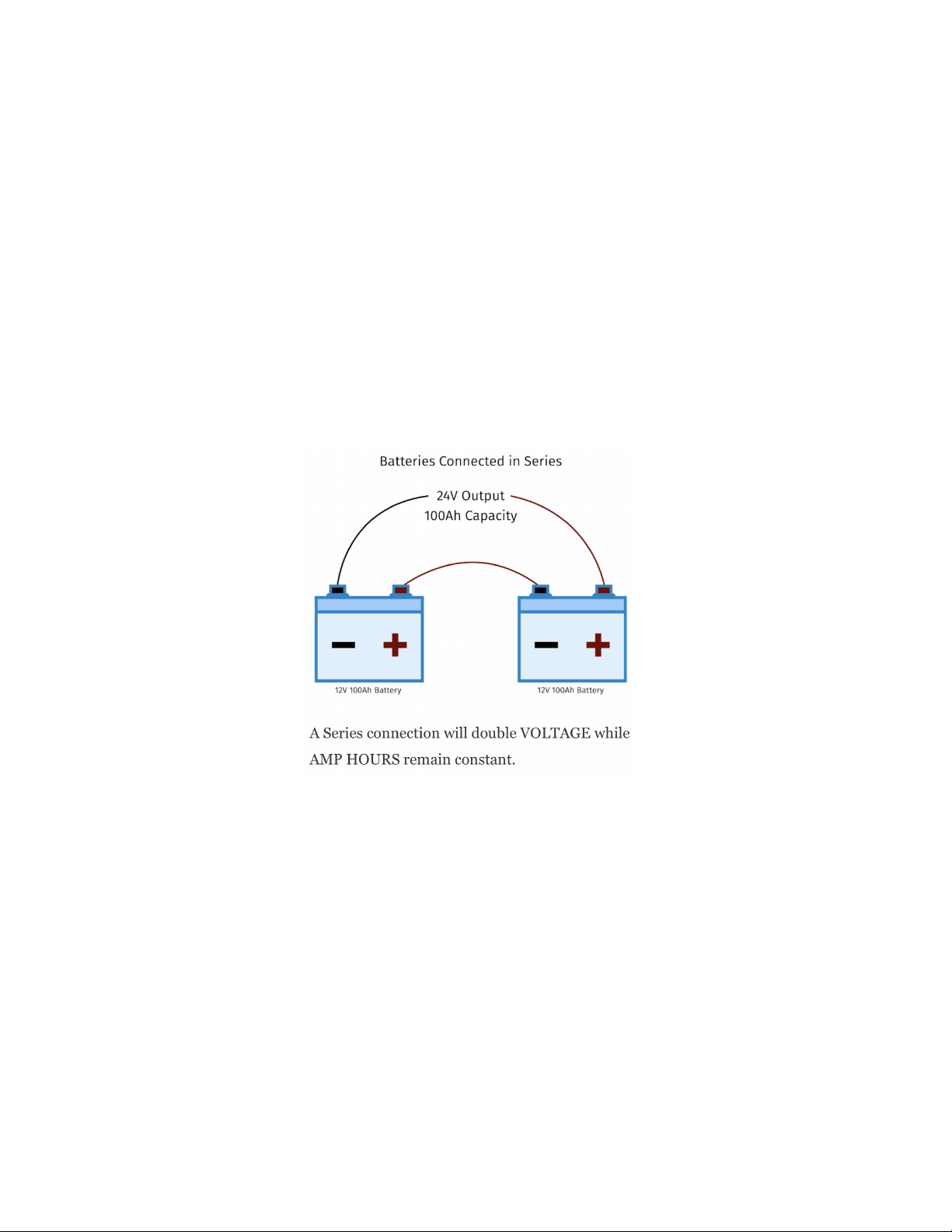

Series Installation – For 12v Batteries ONLY
Impulse Lithium recommends up to (4) batteries for a series configuration. This will increase the
voltage of the system up to 48V. Example: A Series connection is when a positive lead on the
first battery is connected to the negative lead on the second battery in a two-battery
configuration. The system will now produce 24v. The positive and negative leads that are
opposite the connections are the “power” leads. Simply attach the positive lead to the correct
terminal (RED) and the negative to the (BLACK). See illustration below
Impulse Lithium Batteries work great on trolling motor applications with 12/24/36 volt trolling
motors. Impulse Lithium recommends using the MinnKota 460 precision charger set on the
“AGM” setting for charging. Other chargers may also be compatible

Storage and maintenance
Storage
Storage is simple, Impulse Lithium recommends charging the battery fully then storing
in a dry area with a temperature range between 50-80 degrees, however higher or
Lower temperatures will not hurt the battery
Maintenance
Impulse Lithium Batteries require no maintenance other than charging. If your batteries
are not connected to a charger please be sure to charge them once a year so the
batteries stay balanced. This is accomplished by simply connecting a charger and
letting the internal BMS do the work for you.

Impulse Lithium Warranty
If you are having issues with one of our batteries, don’t worry, Impulse Lithium has
developed a straight forward warranty & return policy as identified below:
• Email [email protected] for all warranty claims
• Impulse Lithium offers a 10 year warranty on all batteries
• Returns of unopened batteries will receive full refunds less a 15% restocking fee
• Impulse Lithium offers a 10 year manufacturers defect warranty from the date of
purchase. Impulse Lithium’s warranty does not cover negligence or misuse of the
battery or abnormal wear and tear. If it is deemed that the battery was used
improperly, customer will be subject to a $100 an hour repair/inspection charge plus
parts and shipping.
• To submit a warranty claim, please contact the original place of purchase. The
battery may be required to be shipped back to Impulse Lithium for further inspection.
• 30 day warranty on all accessories, after 30 days customers are to deal with OEM
(Original Equipment MFG’s) and their applicable warranties
• Warranties can be used for an exchange of a component only once.
• Customer is responsible for costs of shipping for returns or warrantied component
inspections. Some battery shipments may require special documentation and
packaging, which could encounter extra fees. These requirements are in place to
comply with lithium battery shipping regulations. For all return shipping we
recommend using FedEx Ground Services
• If you have any issues with Impulse Lithium Batteries please contact us for technical
support, if we determine the battery needs parts or additional diagnostics, we will
ask the battery be returned. If the battery requires parts, these components will only
be sent after we have received the returned component and finalized an inspection
to determine the cause. Impulse Lithium is not responsible for return shipping.
• Any modifications to the batteries or damage due to negligence or abuse are not
covered by the warranty.
• Impulse Lithium’s Limited Warranty does not cover a Battery that has reached its
normal end of life due to usage which may occur prior to the end of the full Warranty
Period. If the battery is cycled more than once a day the battery could reach its "end
of life" prior to the expiration of the warranty. During inspection Impulse Lithium
reserves the right to deny a warranty claim if the battery is found to be at its normal,
end of life, even if within the Warranty Period.
