Incite Fire HFW-SIM-01-AS User manual

OVERVIEW
This device is an assembly of an HFW-SIM-01-AS Hyfire system interface module and a HFC-WSR-03 conventional sounder / HFC-SBR-23-
03 conventional sounder + visual alarm device. Sounder’s output is activated following an alarm condition of the Hyfire system.
INSTALLATION - IMPORTANT NOTES
-The device must be installed following your national and/or international codes of practice and standards: check them before performing the
installation of this device.
-Test this device after installation.
HFW-SIM-01-AS + HFC-WSR-03
HFW-SIM-01-AS + HFC-SBR-23-03
HYFIRE TYPE B WALL SOUNDER
HYFIRE TYPE B WALL SOUNDER + VISUAL ALARM DEVICE
INSTALLATION
1) Detach the front operating section from the sounder back box (→ SOUNDER OPENING PROCEDURE).
2) Extract the HFW-SIM-01-AS from the sounder’s back box (→ MODULE’S EXTRACTION).
3) Set the HFW-SIM-01-AS’s link switch to ON.
4) Extract the HFW-SIM-01-AS’s battery covers.
5) Insert both batteries into their HFW-SIM-01-AS holders, oriented as per polarity marks.
6) Link the HFW-SIM-01-AS device to the Hyfire system (→ LINKING).
7) Reinstall the battery covers.
8) Check the wireless link quality of the HFW-SIM-01-AS positioned in the final installation location (→ WIRELESS LINK QUALITY
CHECK).
9) Install the sealing pad if the sounder is to be installed outdoors and/or in damp environments (not EN 54-3 approved)
(→ OUTDOORS AND DAMP ENVIRONMENTS INSTALLATION).
10) Fix the sounder back box to the wall on the final installation location (→ WALL INSTALLATION).
11) Reinstall the HFW-SIM-01-AS into the sounder’s back box (→ MODULE’S INSTALLATION).
12) Set sounder’s tone and volume (→ OUTPUT TONE SETTING , →OUTPUT VOLUME SETTING).
13) Reinstall the front operating section onto the sounder back box (→ SOUNDER CLOSING PROCEDURE).
14) Test the HFW-SIM-01-AS + HFC-WSR-03 / HFC-SBR-23-03 to check if it works properly (→ TESTING).

SOUNDER OPENING PROCEDURE
In order to detach the upper sounder body from the base:
1) Insert the pins of the compatible key into the holes of one of the two side
locking mechanisms.
2) Turn the key 90° to the left whilst applying light pressure.
3) Repeat this step for the second side locking mechanism; the locking mechanism appears as in picture 1 when in the open position (flush).
4) Detach the sounder body from the base by pulling gently to separate (picture 2).
MODULE’S EXTRACTION
1) Gently release the locking catch allowing the module to lift and rotate to release from the side wall.
2) Remove the module.
Picture 2
Picture 3
Picture 1
When assembling or removing the front operating
section of the sounder to/from the back box be
careful to ensure the interconnection block is not
twisted which may cause damage. Perform such opera-
tions without using excessive force.

Table 1
LINKING
The translator / expander module is waiting to achieve a wireless child
device.
1) Move the link switch’s cursor from ON to the opposite side (BLANK
side); HFW-SIM-01-AS indicates “Linking to the system”.
2) If linking outcome is ok: HFW-SIM-01-AS stops indicating “Linking to
the system”.
3) If linking outcome is not ok: perform the LINKING RECOVERY
procedure.
LINKING RECOVERY
In case something goes wrong with the linking operation:
1) Take out both batteries from their holders.
2) Move alternatively the link switch to ON / BLANK five times.
3) Move the link switch to ON.
4) Reinsert both batteries into their holders, oriented as per polarity marks.
5) Perform the LINKING procedure.
WIRELESS LINK QUALITY CHECK
It is possible to check wireless link quality between the sounder module and its linked-to translator or expander in this way:
1) Move the link switch to the ON position.
2) Module’s LED indicator will start blinking according to the following table:
3) Move the link switch to position BLANK again; device will NOT WORK if the link switch is on position ON !
LINK SWITCH
LED INDICATOR
Picture 4
During all the duration of the linking
phase, the module must be only a
few inches away from the transla-
tor / expander module you are linking to.
LINK QUALITY EVALUATION DEVICE’S INDICATION
No connection Fail Two red blinks
Link margin is less than 10 dB Poor One red blink
Robust communication with link margin from 10 dB to 20 dB Good One green blink
Robust communication with link margin over 20 dB Excellent Two green blinks Table 2
MODULE’S STATUS GREEN LED RED LED
Power up 1 second green, then 0.5 second red for 4 times
Linking to the system Blinking until linking is
completed
Normal condition - -
Main battery fault -
0.5 second on and
10 seconds off
(orange tonality)
Secondary battery fault 0.5 second on and
10 seconds off -
Both batteries fault -
0.5 second on and
10 seconds off
(orange tonality)
Lost link with wire to wireless
translator / wireless expander
0.5 second green and red (amber) and
1 second off

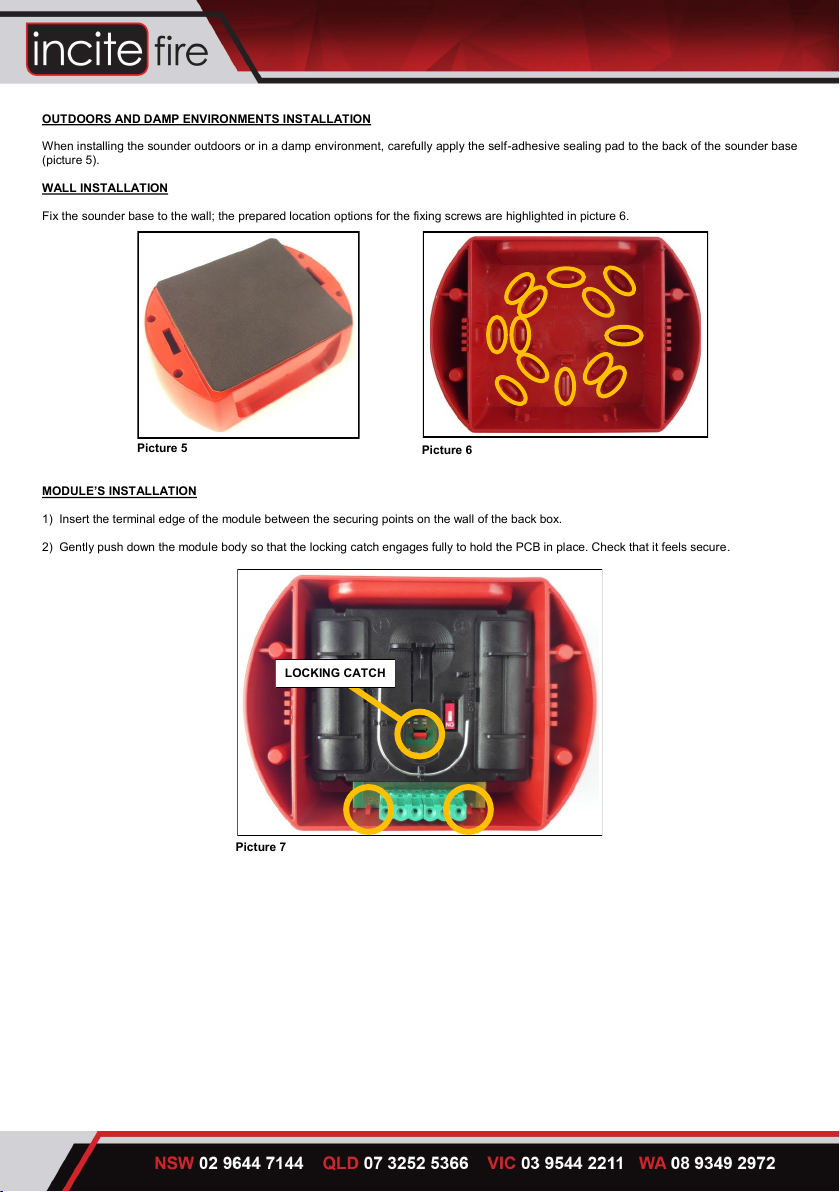

OUTDOORS AND DAMP ENVIRONMENTS INSTALLATION
When installing the sounder outdoors or in a damp environment, carefully apply the self-adhesive sealing pad to the back of the sounder base
(picture 5).
WALL INSTALLATION
Fix the sounder base to the wall; the prepared location options for the fixing screws are highlighted in picture 6.
MODULE’S INSTALLATION
1) Insert the terminal edge of the module between the securing points on the wall of the back box.
2) Gently push down the module body so that the locking catch engages fully to hold the PCB in place. Check that it feels secure.
Picture 5 Picture 6
LOCKING CATCH
Picture 7

OUTPUT TONE SETTING
Use the DIP switch on the back of the sounder body to select the tone required; for this function the first five switches are used, highlighted in
picture 8.
The switches positioned upwards acquire value “1”; on the other hand, if positioned downwards acquire value “0”.
1) From the →TONE SET table (table 4) select the output alarm tone triggered when the sounder is activated.
2) Refer to the corresponding line of the “DIP configuration” column to select the five switch selection settings.
OUTPUT VOLUME SETTING
Use the DIP switch at the back of the sounder body to select the output volume; in particular, switches 6 and 7, highlighted in picture 9, are
used.
The switches positioned upwards acquire value “1”; on the other hand, if positioned downwards acquire value “0”.
1) Select the alarm volume required when the sounder is activated (table 3).
2) Refer to the corresponding line of the “DIP configuration” column to set the two volume selection switches.
Picture 8
Picture 9
Tone volume DIP configuration - switch 6 and 7 dB(A) evaluation Notes
HIGH 11 100 dB(A) +/- 3 All tones
MEDIUM HIGH 01
MEDIUM LOW 10
LOW 00 Table 3

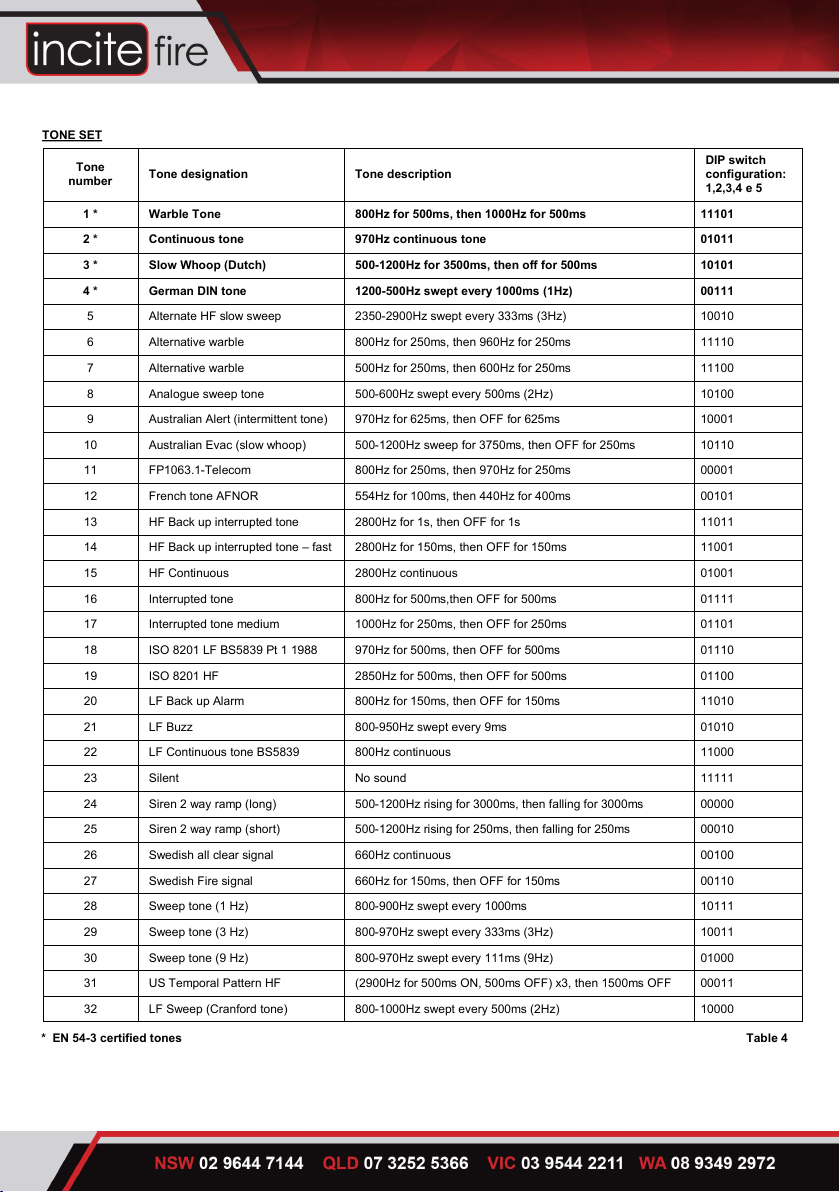

TONE SET
Tone
number Tone description
DIP switch
configuration:
1,2,3,4 e 5
Tone designation
1 * 800Hz for 500ms, then 1000Hz for 500ms 11101Warble Tone
2 * 970Hz continuous tone 01011Continuous tone
3 * 500-1200Hz for 3500ms, then off for 500ms 10101Slow Whoop (Dutch)
4 * 1200-500Hz swept every 1000ms (1Hz) 00111German DIN tone
52350-2900Hz swept every 333ms (3Hz) 10010Alternate HF slow sweep
6800Hz for 250ms, then 960Hz for 250ms 11110Alternative warble
7500Hz for 250ms, then 600Hz for 250ms 11100Alternative warble
8500-600Hz swept every 500ms (2Hz) 10100Analogue sweep tone
9970Hz for 625ms, then OFF for 625ms 10001Australian Alert (intermittent tone)
10 500-1200Hz sweep for 3750ms, then OFF for 250ms 10110Australian Evac (slow whoop)
11 800Hz for 250ms, then 970Hz for 250ms 00001FP1063.1-Telecom
12 554Hz for 100ms, then 440Hz for 400ms 00101French tone AFNOR
13 2800Hz for 1s, then OFF for 1s 11011HF Back up interrupted tone
14 2800Hz for 150ms, then OFF for 150ms 11001HF Back up interrupted tone – fast
15 2800Hz continuous 01001HF Continuous
16 800Hz for 500ms,then OFF for 500ms 01111Interrupted tone
17 1000Hz for 250ms, then OFF for 250ms 01101Interrupted tone medium
18 970Hz for 500ms, then OFF for 500ms 01110ISO 8201 LF BS5839 Pt 1 1988
19 2850Hz for 500ms, then OFF for 500ms 01100ISO 8201 HF
20 800Hz for 150ms, then OFF for 150ms 11010LF Back up Alarm
21 800-950Hz swept every 9ms 01010LF Buzz
22 800Hz continuous 11000LF Continuous tone BS5839
23 No sound 11111Silent
24 500-1200Hz rising for 3000ms, then falling for 3000ms 00000Siren 2 way ramp (long)
25 500-1200Hz rising for 250ms, then falling for 250ms 00010Siren 2 way ramp (short)
26 660Hz continuous 00100Swedish all clear signal
27 660Hz for 150ms, then OFF for 150ms 00110Swedish Fire signal
28 800-900Hz swept every 1000ms 10111Sweep tone (1 Hz)
29 800-970Hz swept every 333ms (3Hz) 10011Sweep tone (3 Hz)
30 800-970Hz swept every 111ms (9Hz) 01000Sweep tone (9 Hz)
31 (2900Hz for 500ms ON, 500ms OFF) x3, then 1500ms OFF 00011US Temporal Pattern HF
32 800-1000Hz swept every 500ms (2Hz) 10000LF Sweep (Cranford tone)
Table 4
*EN 54-3 certified tones

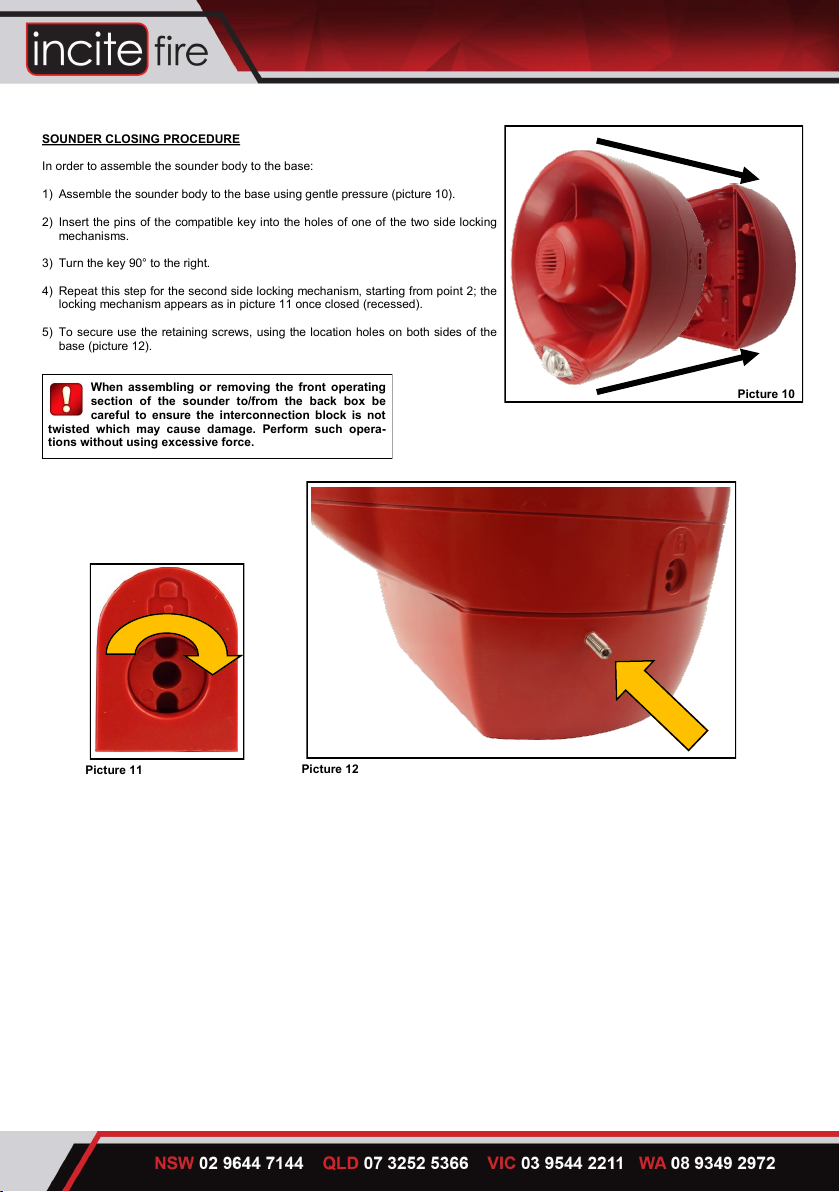

SOUNDER CLOSING PROCEDURE
In order to assemble the sounder body to the base:
1) Assemble the sounder body to the base using gentle pressure (picture 10).
2) Insert the pins of the compatible key into the holes of one of the two side locking
mechanisms.
3) Turn the key 90° to the right.
4) Repeat this step for the second side locking mechanism, starting from point 2; the
locking mechanism appears as in picture 11 once closed (recessed).
5) To secure use the retaining screws, using the location holes on both sides of the
base (picture 12).
Picture 10
Picture 12
Picture 11
When assembling or removing the front operating
section of the sounder to/from the back box be
careful to ensure the interconnection block is not
twisted which may cause damage. Perform such opera-
tions without using excessive force.

TAMPERING DETECTION AND NOTIFICATION
Tampering attempts are detected by a pair of switches (one on the front, the other on the back of the module); once detected, a tampering
event message is broadcasted to the system.
TESTING
1) Activate the fire security system’s alarm condition.
2) Check the HFW-SIM-01-AS + HFC-WSR-03 / HFW-SIM-01-AS + HFC-SBR-23-03 output activation.
3) Press the SILENCE SOUNDERS button (or equivalent) on the control panel.
4) Reset the system from the control panel.
All devices must be tested after installation and, successively, on a periodic basis.
BATTERY REPLACEMENT
When the translator module indicates a low battery condition on a child device, batteries must be replaced.
When a low battery condition is indicated, both batteries must be changed altogether.
During this procedure the linking switch must NOT be touched at all !
1) Detach the front operating section from the sounder back box.
2) Extract the HFW-SIM-01-AS from the sounder’s back box.
3) Extract the HFW-SIM-01-AS’s battery covers.
4) Extract the batteries.
5) Insert the new batteries into their holders, oriented as per polarity marks.
6) Reinstall the battery covers.
7) Reinstall the HFW-SIM-01-AS into the sounder’s back box.
8) Reinstall the front operating section onto the sounder back box.
9) Test the HFW-SIM-01-AS + HFC-WSR-03 / HFW-SIM-01-AS + HFC-SBR-23-03 to check if it works properly.

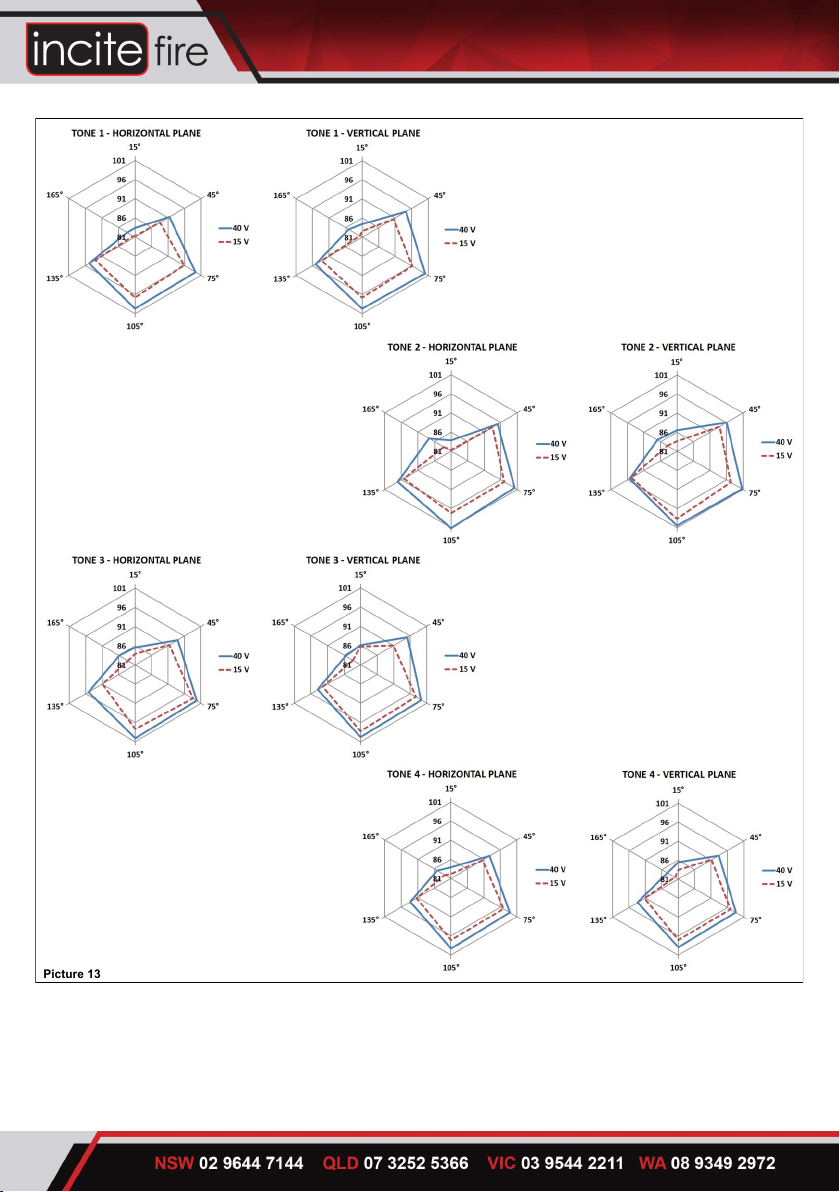

Picture 13

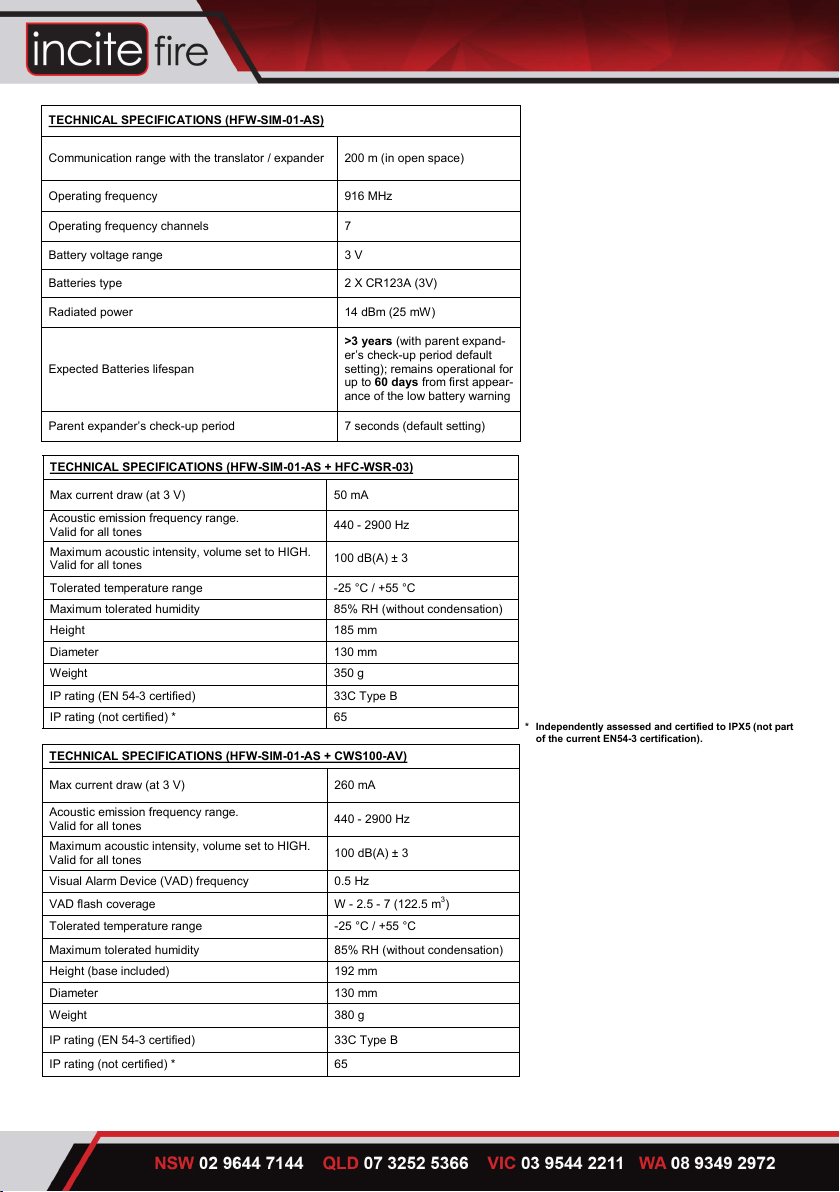

TECHNICAL SPECIFICATIONS (HFW-SIM-01-AS + HFC-WSR-03)
Max current draw (at 3 V) 50 mA
Acoustic emission frequency range.
Valid for all tones 440 - 2900 Hz
Maximum acoustic intensity, volume set to HIGH.
Valid for all tones 100 dB(A) ± 3
Tolerated temperature range -25 °C / +55 °C
Maximum tolerated humidity 85% RH (without condensation)
Height 185 mm
Diameter 130 mm
Weight 350 g
IP rating (EN 54-3 certified) 33C Type B
IP rating (not certified) * 65
TECHNICAL SPECIFICATIONS (HFW-SIM-01-AS + CWS100-AV)
Max current draw (at 3 V) 260 mA
Acoustic emission frequency range.
Valid for all tones 440 - 2900 Hz
Maximum acoustic intensity, volume set to HIGH.
Valid for all tones 100 dB(A) ± 3
Visual Alarm Device (VAD) frequency 0.5 Hz
VAD flash coverage W - 2.5 - 7 (122.5 m3)
Tolerated temperature range -25 °C / +55 °C
Maximum tolerated humidity 85% RH (without condensation)
Height (base included) 192 mm
Diameter 130 mm
Weight 380 g
IP rating (EN 54-3 certified) 33C Type B
IP rating (not certified) * 65
TECHNICAL SPECIFICATIONS (HFW-SIM-01-AS)
Communication range with the translator / expander 200 m (in open space)
Operating frequency 916 MHz
Operating frequency channels 7
Battery voltage range 3 V
Batteries type 2 X CR123A (3V)
Radiated power 14 dBm (25 mW)
Expected Batteries lifespan
>3 years (with parent expand-
er’s check-up period default
setting); remains operational for
up to 60 days from first appear-
ance of the low battery warning
Parent expander’s check-up period 7 seconds (default setting)
*Independently assessed and certified to IPX5 (not part
of the current EN54-3 certification).

WARNINGS AND LIMITATIONS
Our devices use high quality electronic components and plastic materials that are
highly resistant to environmental deterioration. However, after 10 years of continu-
ous operation, it is advisable to replace the devices in order to minimize the risk of
reduced performance caused by external factors. Ensure that this device is only
used with compatible control panels. Detection systems must be checked, ser-
viced and maintained on a regular basis to confirm correct operation.
Smoke detectors may respond differently to various kinds of smoke particles, thus
application advice should be sought for special risks. Detectors cannot respond
correctly if barriers exist between them and the fire location and may be affected
by special environmental conditions.
Refer to and follow national codes of practice and other internationally recognized
fire engineering standards.
Appropriate risk assessment should be carried out initially to determine correct
design criteria and updated periodically.
WARRANTY
All devices are supplied with the benefit of a limited 3 years warranty relating to
faulty materials or manufacturing defects, effective from the production date
indicated on each product.
This warranty is invalidated by mechanical or electrical damage caused in the field
by incorrect handling or usage.
Product must be returned via your authorized supplier for repair or replacement
together with full information on any problem identified.
Full details on our warranty and product’s returns policy can be obtained upon
request.
ARGUS SECURITY S.R.L.
Via del Canneto, 14
34015 Muggia (TS)
Italy
16
HFW-SIM-01-AS + HFC-WSR-03
HFW-SIM-01-AS + HFC-SBR-23-03
HFW-SIM-01-AS + HFC-WSR-03
HFW-SIM-01-AS + HFC-SBR-23-03
For use in compatible fire detection and alarm system.
Category rating: W - 2.5 - 7
Duration of operation: Pass
Provision for external conductors: Pass
Flammability of materials: Pass
Enclosure protection: Pass
Access: Pass
Manufacturer's adjustments: Pass
On-site adjustment of behaviour: Pass
Requirements for software controlled devices: Pass
Coverage volume: Pass
Variation of light output: Pass
Minimum and maximum light intensity: Pass
Light colour: White
Light temporal pattern / frequency of flashing: N/A / 0.5 Hz
Marking and data: Pass
Synchronization: Pass
Durability: Pass
Temperature resistance: Pass
Humidity resistance: Pass
Shock and vibration resistance: Pass
Corrosion resistance: Pass
Electrical stability: Pass
ABN 67 153 750 648
SAI Global
Lic SMK40120
AS ISO 7240.25 - 2015
AS ISO 7240.23 - 2014
