Aquatic AQ-DM-5 DIGITAL MEDIA LOCKER User manual

products with a watertight reputation
®
OWNERS MANUAL
PLEASE READ THIS INSTRUCTION MANUAL BEFORE
INSTALLATION AND OPERATION
AQ-DM-5 - DIGITAL MEDIA LOCKER™
for MP3 devices

1 Getting Started...........................................................................................................
1.1 Contents...............................................................................................................
1.2Connections..........................................................................................................
1.3 12-pin Harness Connection..................................................................................
1.4 Mounting the Digital Media Locker.......................................................................
2 Location of Controls...................................................................................................
2.1 Digital Media Locker Controls...............................................................................
2.2 Door Keypad Controls............................................................................................
3 Listening to MP3........................................................................................................
3.1 Power On..............................................................................................................
3.2 Listening via Auxiliary Input.................................................................................
3.3 Adjust Volume Level..............................................................................................
6 Specifications & Dimensions......................................................................................
6.1 Specifications.......................................................................................................
6.2Dimensions...........................................................................................................
7 Warranty Information.................................................................................................
3
3
3
4
4
5
5
5
6
6
6
6
7
7
7
8
Table of Contents Digital Media Locker AQ-DM-5
2www.aquaticav.com

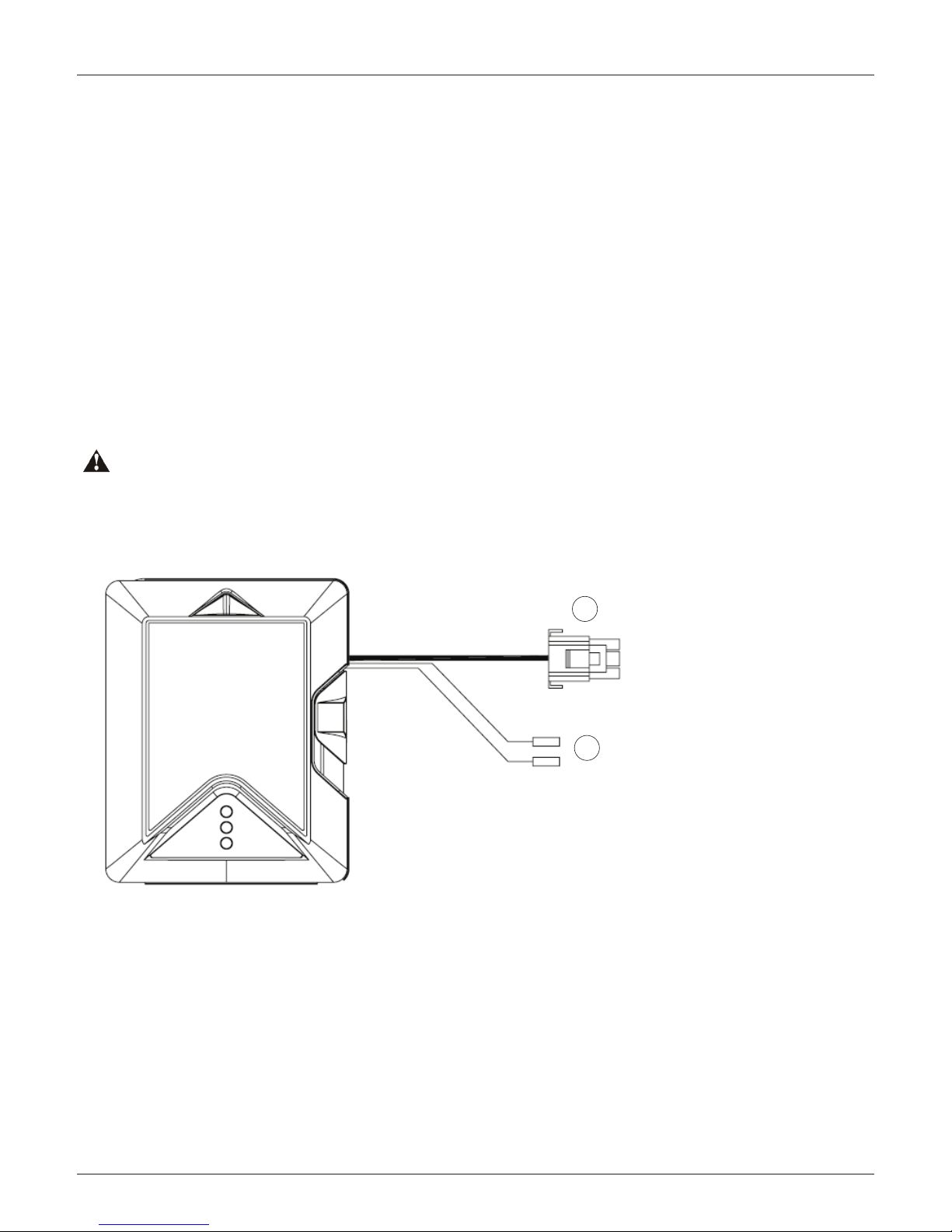

112-pin Watertight Harness
2RCA Auxiliary Outputs
• AQ-DM-5 Digital Media Locker™
• Auxiliary Jack Cable (3.5mm Male to 3.5mm Male)
• Wiring Harness (AQ-UNH-2)
• Six (6) Stainless Steel Mounting Screws
• Mounting Template
• Owner’s Manual
1.1 Contents
1. 12-pin Watertight Harness
The 12-pin harness supplies power and ground connections to the Digital Media Locker and
four (4) speaker channel output connections from the Digital Media Locker.
Do not cut or modify the 12-pin harness on the Locker side or warranty will be void.
2. Auxiliary Outputs
Allows external amplifiers to be connected to power additional speakers.
1.2 Connections
Getting Started Digital Media Locker AQ-DM-5
3www.aquaticav.com

The AQ-DM-5 includes the universal harness AQ-UNH-2 in order to connect the dock to power
and speakers.
All open wire connections should be soldered and protected against water and dust for best long
term performance.

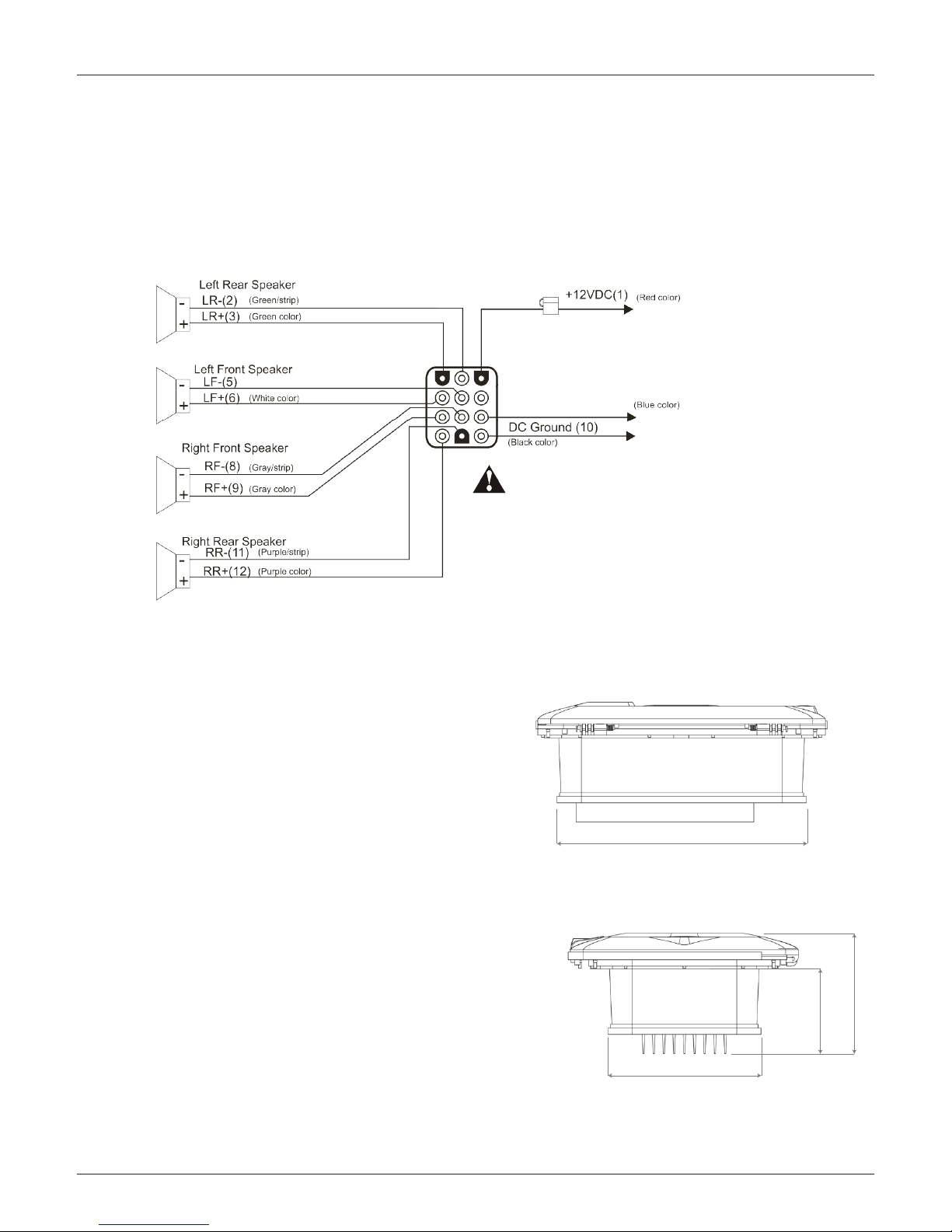

1.3 12-pin Harness Connection
1. A mounting template is included. Aquatic
AV recommends using the ‘measure twice, cut
once’ method!
2. Once the mounting hole is complete, make
sure the outside surface is clean and clear of
debris. The Digital Media Locker has an exter-
nal water/dust proof gasket, but this requires
a clean and flat surface for best performance.
3. The Digital Media Locker has six (6) front
screws. Drive the screws using a screw driver.
During final mounting apply equal pressure to
all points for the best water/dust outer seal per-
formance. Make sure screws are snug and do
not over tighten.
4. Review all outside surfaces of the Digital
Media Locker to ensure proper water/dust seal.
This is important for long term environmental
protection performance for your digital media
device.
1.4 Mounting the Digital Media Locker
194mm
118mm
95mm66.8mm
No lower than a 2 Ohm load should be used
or damage may occur to the Digital Media
Locker.
Make sure the polarity of speakers are
connected correctly.
Power Antenna (7)
Fuse Box
No lower than a 2 Ohm load should be used
or damage may occur to the Digital Media
Locker.
Make sure the polarity of speakers are
connected correctly.
(White/strip)
Getting Started Digital Media Locker AQ-DM-5
4www.aquaticav.com

2.1 Digital Media Locker Controls
1. Open/Close Latch & Protective Door
2. Power ON/OFF Button
3. Water/Dust Protection Inner Gasket
4. 3.5mm Aux Input for MP3 Devices
5. Power ON/OFF LED
6. Security Strap for digital media devices
7. Door Control Keypad
8. Cable Storage Tray
8
2.2 Door Keypad Controls
MUTE
Buttons MP3 Mode
Mute Press once: Toggle Mute
Press and hold: Toggle Mute
Volume
Up
Press once: Volume up
Press and hold: Fast volume up
Volume
Down
Press once: Volume down
Press and hold: Fast volume down
MUTE
6
7
3
5
4
2
1
Location of Controls Digital Media Locker AQ-DM-5
5www.aquaticav.com

3.2 Listening to MP3 devices
1. Connect your MP3 device to the 3.5mm Jack input.
2. Secure the device with the anchor straps provided.
3. Secure the Digital Media Locker’s protective door.
3.3 Adjust Volume Level
1. Press (VOLUME UP) once to increase the volume.
2. Press (VOLUME DOWN) once to reduce the volume.
3. Press and hold either or and the Digital Media Locker will increase or decrease
audio volume continuously.
Always ensure to connect and disconnect your media player with dry hands!
Press the Power ON/OFF button inside the Digital Media Locker. A red light will illuminate when
the unit is switched ON.
For applications where a 12V battery is not used, such as in a Spa, the power button can be left
ON and the door controls can then be used to power on/off accordingly.
3.1 Power On
If you experience distortion or poor sound quality, make sure the volume on your media device is not all the way up. We
recommend setting the volume of your device at approximately 75%.
Listening to MP3 devices Digital Media Locker AQ-DM-5
6www.aquaticav.com

Media
Supported media....................................
Supported media max. dimensions...........
Device control........................................
Inputs
Auxiliary................................................
Outputs
Pre-Out..................................................
Power
Output voltage @ 2 Ohm.........................
Output voltage @ 4 Ohm.........................
Operation voltage....................................
Max current draw....................................
Standby current draw..............................
Multi-Environment Certifications
Waterproof / Dustproof............................
Conformal PCB coating...........................
UV protection.........................................
Salt/Fog protection.................................
Stainless Steel mountings.......................
MP3
107 x 184mm (WxH)
via Door Controls
1x 3.5mm Stereo Jack Socket
1x Stereo pair RCA (4V)
4x 72W
4x 45W
9.6V - 14.4V DC
7A
6mA
Yes IP65
Yes
500 hours stable, ASTM D4329 compliant
500 hours stable, ASTM B117 compliant
Yes
4.1 Specifications
4.2 Dimensions
add mounting
depth dim
180mm
228mm
95mm
66.8mm
194mm
Specifications & Dimensions Digital Media Locker AQ-DM-5
7www.aquaticav.com

Aquatic AV offers a limited warranty of our products on the following terms:
Length of warranty
2 years on audio systems, electronics, speakers, and accessories (receipt required).
Coverage
This warranty covers only the original purchaser of a Aquatic AV product purchased from an
authorized Aquatic AV dealer in the United States. In order to receive service, the purchaser must
provide Aquatic AV with a copy of the receipt stating the customer name, dealer name, product
purchased and date of purchase.
Defective products
Products found to be defective during the warranty period will be repaired or replaced (with a
product deemed to be equivalent) at Aquatic AV’s discretion.
What is not covered
Damage caused by accident, abuse, improper operations, theft. Any cost or expense related to
the removal or reinstallation of product. Service performed by anyone other than an authorized
Aquatic AV service center. Any product with the serial number or tamper labels defaced, altered,
or removed. Subsequent damage to other components. Any product not purchased from an au-
thorized Aquatic AV dealer.
Limit on implied warranties
Any implied warranties including warranties of fitness for use and merchantability are limited in
duration to the period of the express warranty set forth above. Some states do not allow limita-
tions on the length of an implied warranty, so this limitation may not apply. No person is author-
ized to assume for Aquatic AV any other liability in connection with the sale of the product.
How to obtain service
You must obtain a return material authorization number (RMA) to return any product to Aquatic
AV. You are responsible for shipping charges of returned products to Aquatic AV.
Please record the model and serial number[s] of your equipment in the space provided below as
your permanent record and will assist us with your factory warranty coverage. These numbers can
be found on the rear of the Digital Media Locker.
Model number[s]: Serial number[s]:
Warranty Information Digital Media Locker AQ-DM-5
8www.aquaticav.com

FCC ID:
MADE IN CHINA
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
NOTE:
The equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user authority to operate
the equipment.
Digital Media Locker is a trademark of Aquatic AV Inc.
Product design and specification subject to change without notice. E&OE.
Doc V1.4
