Indesit P 604 GB User manual

Electric built-in cooking
tables
Instructions for installation and use
P 604 GB

Electric built-in cooking tables
Instructions for installation and use

3

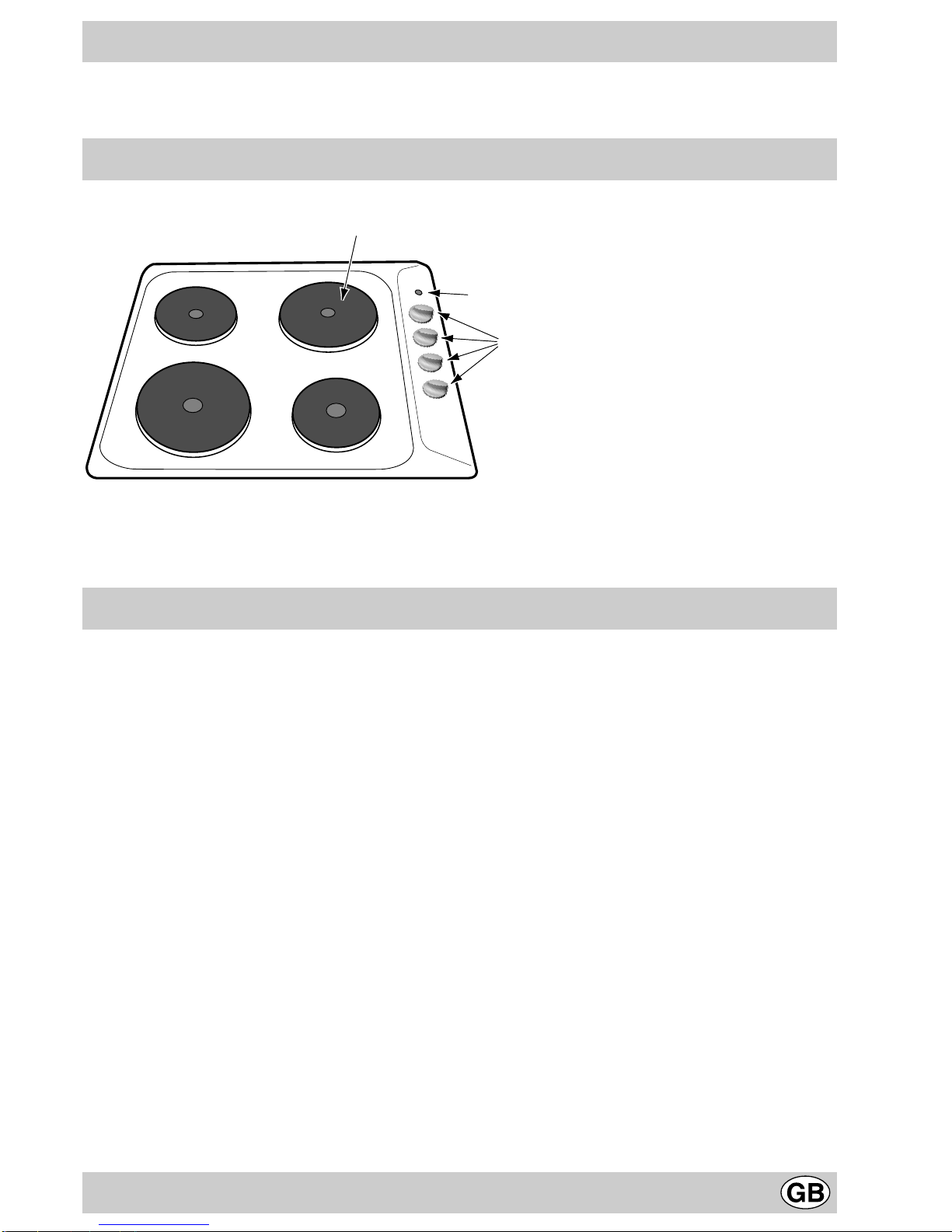

AElectric plate
BPilot lamp of the electric plates
CControl knobs for the cook-top electric plates
HowTo UseYour Appliance
Close-upView
The position of the corresponding electric hot plate is
indicated on each control knob.
Electric Hot Plates
The hot plates vary in diameter and power: "normal" and
"fast". The latter can be identified by a red boss in the
center of the hot plate itself.
The hot plate can be regulated by turning the
correspondingknobintheclockwiseorcounter-clockwise
direction to any one of the 6 different settings:
0Off
1Low
2-5 Medium
6High
Congratualtions on choosing an Indesit appliance, which you will find is dependable and easy to use.We recommend
that you read this manual for best performance and to extend the life of your appliance.Thank you.
Thesectionentitled, "PracticalCooking Advise", provides
informationontherecommendedsettings forvarioustypes
of food or cooking processes.
When the knob is on any of the settings other than "Off",
the "B" operating light comes on.
C
B
A

4
Before cleaning or performing maintenance on your
appliance, disconnect it from the electrical power supply.
To extend the life of the cooktop, it is absolutely
indispensable that it be cleaned carefully and
thoroughly on a frequent basis, keeping in mind the
following:
• Theenameledpartsandthe glasstop,if present, must
be washed with warm water without using abrasive
powders or corrosive substances which could ruin
them;
• Theelectrichobs shouldbecleanedusinga dampcloth
and then rubbed with oil while still warm;
• Stainless steel can be stained if it remains in contact
with highly calcareous water or aggressive detergents
(containing phosphorous) for an extended period of
time. It is recommended that these parts be rinsed
thoroughly with water and then dried well. It is also a
good idea to clean up any spills.
How to KeepYour Cooktop in Shape
Practical Advice on Using the Electric Hot Plates
In order to avoid heat loss and damage to the hot plate,
use cookware with a flat bottom the diameter of which is
not less than that of the hot plate.
Setting Normal or Fast Plate
0Off
1Cooking vegetables, fish
2Cooking potatoes (using steam) soups,
chickpeas, beans.
3Continuing the cooking of large quantities of
food, minestrone
4For roasting (average)
5For roasting (above average)
6For browning and reaching a boil in a short
time.
Before using the hot plates for the first time, you
should heat them at maximum temperature for
approximately 4 minutes, without any pans. During
this initial stage,their protective coating hardens and
reaches its maximum resistance.
Practical Advice
Use of the hob
Toobtainthe best cookingresultsfrom yourhob there are
a few basic rules to follow.
•Use pans with a level and even base.This ensures full
contact of the base of the pan to the ceramic heat
zones. Use heavy pans with level bases
•Use pans with a large enough diameter to completely
cover the heat zone as this ensures the most efficient
use of the heat.
•Always ensure that the bases of the pans are dry and
clean as this allows good contact and will prolong the
life of your ceramic hob and pans.
•Never leave cooking rings on without a pan on top as
maximumheatis reachedinavery shorttimeandcould
damage heating elements.
•Remember that cooking rings remain hot for at least
half an hour after being turned off. Be careful not to
inadvertently place containers or cups on the cooking
rings whilst they are still hot.
•Do not turn on the cooking rings if there are pieces of
aluminium foil or plastic on the hob.
•Do not lean over the rings whilst they are still hot or
touch them with your hands.

5
Safety Is a Good Habit to Get Into
• This manual is for a class 3 built-in cooktop.
• This appliance is designed for non-professional use in
thehomeand itsfeatures andtechnical characteristics
must not be modified.
• These instructions are only valid for the countries the
symbolsforwhich appear onthe manualand the serial
plate.
• Theelectricalsystemof thisapplianceissafeonly when
it is correctly connected to an adequate earthing
system, as required by current safety standards.
Prevent children and the disabled from coming into
contact or having access to the following, as they
are possible sources of danger:
- The controls and the appliance in general;
- The packaging (plastic bags, polystyrene, nails, etc.);
- Theappliance,during and immediatelyafter use given
the heat generated by its use;
- Theappliance when nolonger in installed(in thiscase,
all potentially dangerous parts must be made safe).
The following should be avoided:
- Touching the appliance with wet parts of the body;
- Using the appliance with bare feet;
- Pulling on the appliance or the power supply cord to
disconnect them from the electrical outlet;
- Improper and/or dangerous use;
- Obstructing the ventilation or heat dissipation slots;
- Allowing the power supply cord of small appliances to
come into contact with the hot parts of the cooktop;
- Exposure to atmospheric agents (rain, sun);
- Using flammable liquids nearby;
- Usingadaptors,multipleoutletplugsand/or extensions;
- Using unstable or deformed cookware;
- Leaving the electric hobs on without cookware on top
of them;
- Closing the glass top (if present) while the electrical
hot plates are still hot;
- Trying to install or repair the appliance without the
assistance of qualified personnel.
The assistance of qualified personnel must be called
upon in the following cases:
- Installation (in accordance with the manufacturer's
instructions);
- When in doubt about the operation of the appliance;
- Replacement of the electrical outlet becuase it is
incompatible with the plug.
Contact service centers authorized by the
manufacturer in the following cases:
- When in doubt about the condition of the appliance
after having removed the packing;
- Damage to or replacement of the power supply cord;
- In the case of a breakdown or malfunction: ask for
original spare parts.
It is recommended that you follow the guidelines
below:
- Only use the appliance to cook food, avoiding all other
uses;
- Check the condition of the appliance after it has been
unpacked;
- Disconnect the appliance from the power supply in the
event of malfunction and always before cleaning or
maintenance;
- When not in use, disconnect the appliance from the
power supply;
- Always check to make sure that the control knobs are
on the “•”/”o” setting when the appliance is not in use;
- Cut the power supply cord after disconnecting it from
the electrical mains when you decide to no longer use
theappliance.
• The manufacturer will not be held liable for any
damages arising out of : incorrect installation or
improper, incorrect or unreasonable use..
To maintain the EFFICIENCY and SAFETY of this appliance, we recommend:
• call only the Service Centers authorized by the manufacturer
• always use original Spare Parts

6
Installation Instructions for built-in
The following instructions are directed at the qualified
installer so that the installation and maintenance
proceeduresmaybe followedinthe most professionaland
expert manner possible.
Important: Unplug the electrical connection before
performing any maintenance or regulation upkeep
work.
Installation of built-in stove tops
The electric hobs are prepared with protection degree
againstexcessiveheating ofY type,it isthereforepossible
to instal them next to furniture which is higher than the
working board. For a correct installation of the cooking
top the following precautions must be followed:
a) The hob may be located in a kitchen, a kitonen/diner
or bed sitting room, but no in a bathroom or shower
room.
b) The hoods must be installed according to the
requirements in the hood handbook.
c) The dimensions of the cutout for the appliance must
be those indicated in the figure.Clamps are provided
to fasten the cooktop to counters measuring from 20
to 40 mm in thickness.To fasten the cooktop securely,
it is recommended that all the clamps be used.
555 mm.
55 mm.
475 mm.
Fastening Clamps - Assembly Diagram
20
30
Clamp Position for Clamp Position for
H=20mm top H=30mm top
Front
40
Clamp Position for
H=40mm top Back
N.B: Use the clamps contained in the "accessory kit."
d) In case a wooden panel should be fitted under the top
forinsulation,itwill havebefitted ata minimumdistance
of 20 mm from the inferior part of the top.
Important:When installing the hob on a built-in oven, the
oven should be placed on two wooden strips;in the case
of a joining cabinet surface, remember to leave a space
of at least 45 x 560 mm at the back.
560 mm.
45 mm.
Wheninstalling ona built-inovenwithoutforcedventilation,
ensure that there are air inlets and outlets for ventilating
theinterior ofthecabinet adequately.Assemblyexamples
are given in figs.
Electrical connection for electric hob
The following installation procedure must be carried out
by a qualified electrician.
Important: the cooker must be connected to the mains
by a switched (double pole) cooker outlet correctly fused
witha capacityappropriatetothat shownonthe hobRating
Plate. All electrical wiring from the consumer unit to the
appliance,viathe switcheddoublepole cookeroutlet, must
be of an acceptable type and current rating as above.The
supplycord, typeH05VV-F 3x2.5mm2, mustbe positioned
so that it never reaches at any point a temperature 50°C
higher than the room temperature. The electrical
installationmust complywith theIEE Regulations,Building
Regulation & local By-Lays.
WARNING:THIS APPLIANCE MUST BE EARTHED.
In the case of installation over a built-in electric oven the
electrical hook-up of the stove top and that of the oven
should be separate, for reasons of safety as well as for
ease of eventual removal of the oven.
Supply cable installation
Theelectrcic hobsare suppliedwithout cable.Usea cable:
H05VV-F 3x2.5mm2
•Open the terminal box by removing the "V" screw and
taking off the cover.
•Thewires inthe mainslead arecoloured inaccordance

7
with the following code:
Green &Yellow - Earth “E”
Blue - Neutral “N”
Brown -Live“L”
Connect the wires in accordance with the following
diagram
32154
NL
•Fix the cable in place with the "F" cable clamp, close
the lid and fasten it with the "V" screw.
F
V
12345
Technical characteristics
Voltage and supply frequency and power:
230V ~ 50-60 Hz
Max absorption: 7000W
Mod. Indesit: P 604 GB
This appliance conforms with the following European
Economic Community directives:
- 73/23/EEC of19/02/73(LowVoltage) and subsequent
modifications;
- 89/336/EEC of 03/05/89 (Electromagnetic
Compatibility) and subsequent modifications;
- 93/68/EEC of22/07/93 andsubsequentmodifications.
