User Instruction Book
for
INDESIT
WASHING MACHINE
W1430TG
................................................
Commercial Codes
15666
18044

1GB
ThankyouforchoosinganIndesitproduct. Thiswasher
is reliable and easy to use.
We suggest you read your owner's manual carefully.
This will help you become familiar with your washer
and its functions in order to obtain years of trouble
free performance.
Controlled consumption
The machine automatically adjusts the amount of water used
in the wash to the size of the load, giving optimum use of
water, energy and detergent.
Double-action wash
Clothes are soaked in water and detergent, water then
“rains” steadily through the clothes.
Safety, a good habit to get into
CAUTION
Pleaseread the instructions in thishandbook carefully,
as they contain important information about safe
installation, operating and servicing.
This washer is manufactured in compliance with
international safety regulations designed to safeguard
theconsumer.
1. This appliance is designed to be used indoors and under
no circumstances should it be installed outside.
2. This appliance should only be used in a domestic
environment by a responsible person to wash household
laundry according to the instructions.
3. Under no circumstances should children be allowed to
operate or tamper with this product.
4.Beware, this appliance is heavy, do not attempt to move
it, unless you are able to do so.
5. Before the introduction of a new wash load into the
machine, please ensure all previous items have been
removed.
6.For electrical safety do not attempt to operate this machine
with wet hands or feet.
7. Do not operate this appliance connected to an extension
lead.If a longer supply cable is required this must be replaced
with one of the same specifications in compliance with the
current electrical regulations.This operation should be carried
out by a qualified person.
8.After putting in the detergent, ensure the soap drawer is
fully closed before operating the appliance.Only automatic
detergent should be used, or too many suds will be produced
and damage may occur to internal parts.
9.Do not pull the supply cable to disconnect the plug from
the wall socket.
10. Beware that during the wash cycle the door glass can
become hot.Children should not be left unsupervised whilst
the appliance is in operation. During operation the door is
locked at all times.On each stop position the door will release
after an approximate 3 minute time delay. Do not attempt
to open the door before this time otherwise damage may
occur to the door release mechanism.
Saves while it washes
The double action wash penetrates so deeply that at just
60°C you obtain the same results you would normally obtain
at 90°C with a traditional washer.

2
GB

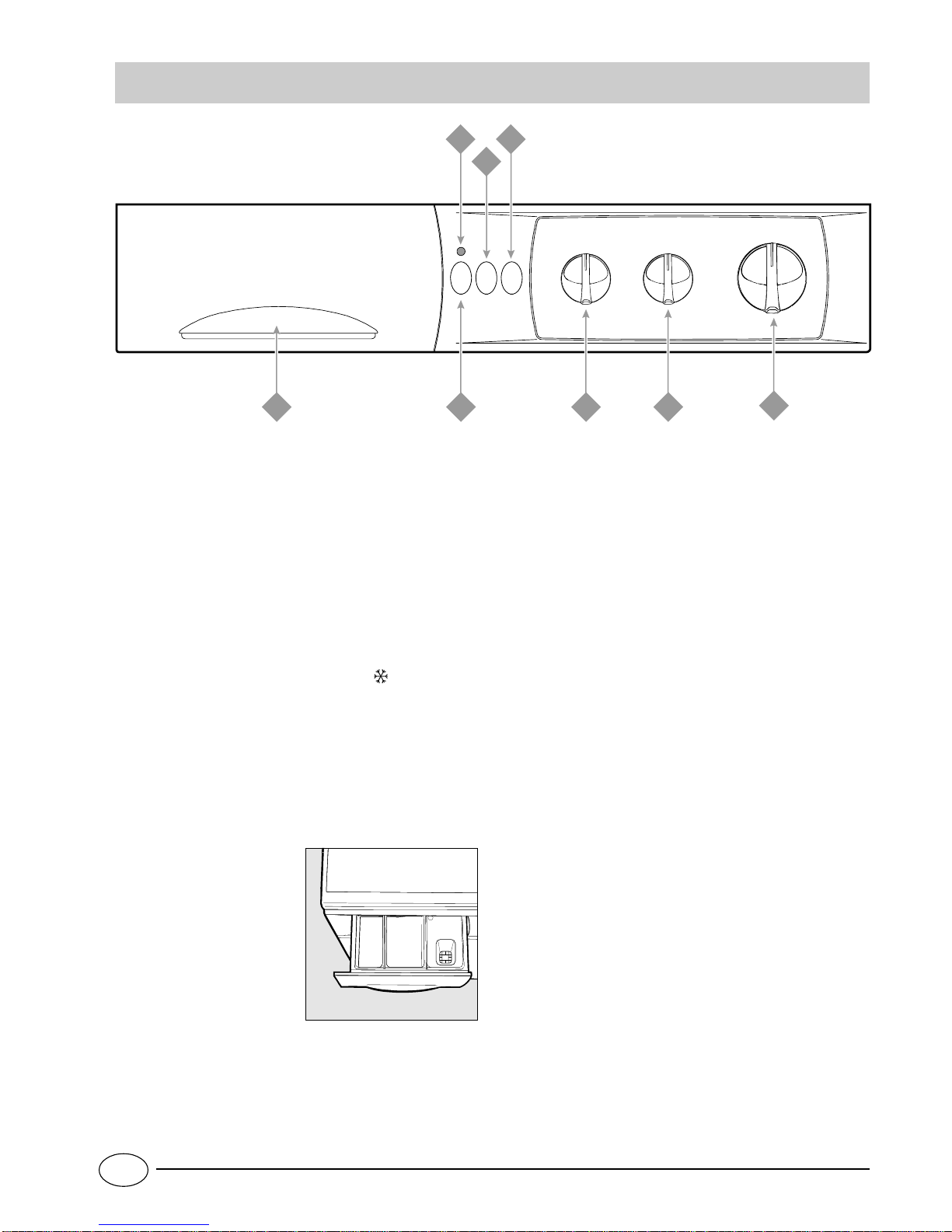

Overview
A
B
D
HG
F
CE
A.Programme selector
Use this dial to select one of the 18 wash programmes
available for all your laundry requirements (see programme
table on page 5).
Rememberthatthisdialshould be turned in a clockwise
direction and only when the machine is off.
B. Temperatureselector
Use this dial to set the wash temperature shown in the
programme table (page 5). You may reduce the
recommended wash temperature of the programme you
have selected or run a cold wash (symbol ).
Note: When using cycle number 2, do not use tempe-
rature settings below 60°C.
C.Spin cycleselector
This selector sets the speed for the spin cycle: from 400 to
1400 r.p.m. for tough fabrics, or from 600 to 850 r.p.m. for
delicate fabrics.
D. Detergent
dispenser
The detergent dispenser has
three compartments marked
1, 2and 3:
1prewash detergent
2wash detergent
3fabric softener.
E. ON-OFF button
This button turns your appliance ON/OFF. Press button Eto
turn on the washer and depress button Eto turn off the
washer.
F.Spin cancel button
Use this button to exclude the spin cycle. This function should
be used only for items that are difficult to iron and only with
the synthetics and delicate fabrics programmes.
G.Anti-crease button
This function interrupts the cycle so that the laundry is left
soaking in water before the spin cycle.
This function is extremely useful because it stops delicate or
synthetic fabrics from creasing (for example when one has
to wait several hours before removing the laundry load).
It should be used only with the programmes for synthetic
fabrics and woollens.
IMPORTANT:Before opening the door, drain away the water
by setting knob Aon "drain". To carry out the spin cycle,
simply press G.
H. ON/OFF Indicator light
When this is lit, the machine is on.
123

3GB
Wash
Strong
action
Delicate
action
Wash at
95°C
Wash at
60°C
Wash at
40°C
Wash at
30°C Hand wash
Not
washable
in water
Bleachin Bleaching
only in
cold water
Do not
bleach
Ironing Hot iron
at max
200°C
Medium hot
ironing at
max 150°C
Iron at
max 100°C
Not
ironable
Dry
cleaning
Dry clean
with any
solvent
Dry clean
only with,
perchloride
benzine
av., pure
alcohol,
R111 and
R113
Dry clean
with av.
benzine,
pure
alcohol
and R113
Do not dry
clean
Drying
High
Temperat
Low
Machine
dryable
Do not
machine dry
Spread to
dry
Hang to
dry
without
spin
drying
Dry on
clothes
hanger

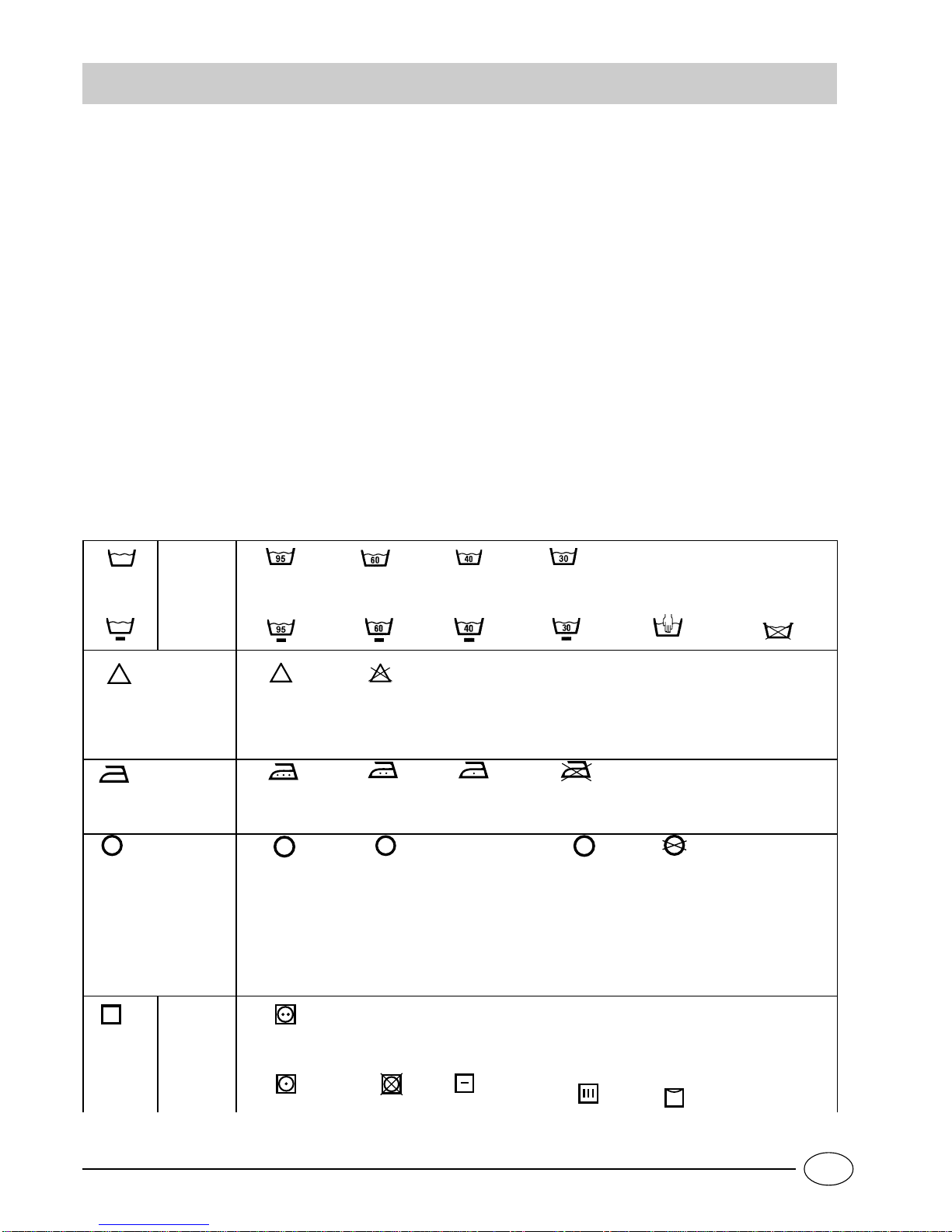

1. Understanding the labels
Using your washer
Preparing your laundry....
Divide your laundry by fabric and colour fastness.Wash white
and coloured items separately.
Remember to empty pockets, removing especially those small
items like coins, paper, pins and badges that might jam the
pump. Fasten or remove loose buttons and fasten zippers.
Turn shirts inside out for better results.
Checkwash labels
Garments and laundry generally have wash instruction labels
(which tell you if they shloud be dry-cleaned, hand washed
or machine washed) showing the wash temperature, how
to iron etc.
Important: fabrics should only be machine washed if their
labels show the appropriate symbol (see table 1).
Alternate small and large items when
loading your washer
This washing machine has an electronic load balancing
control:before carrying out the spin cycle, this device ensures
that the laundry is arranged as evenly as possible in the drum,
according to the type of fabric and the way it was initially
loaded. This will minimize vibration and noise even during
the fastest spin cycle. For best results however, we
recommend you alternate small and large items when you
load your washing machine remember to spread them out;
never wash large loads of terry cloth items.
l
c
A
P
F

4
GB

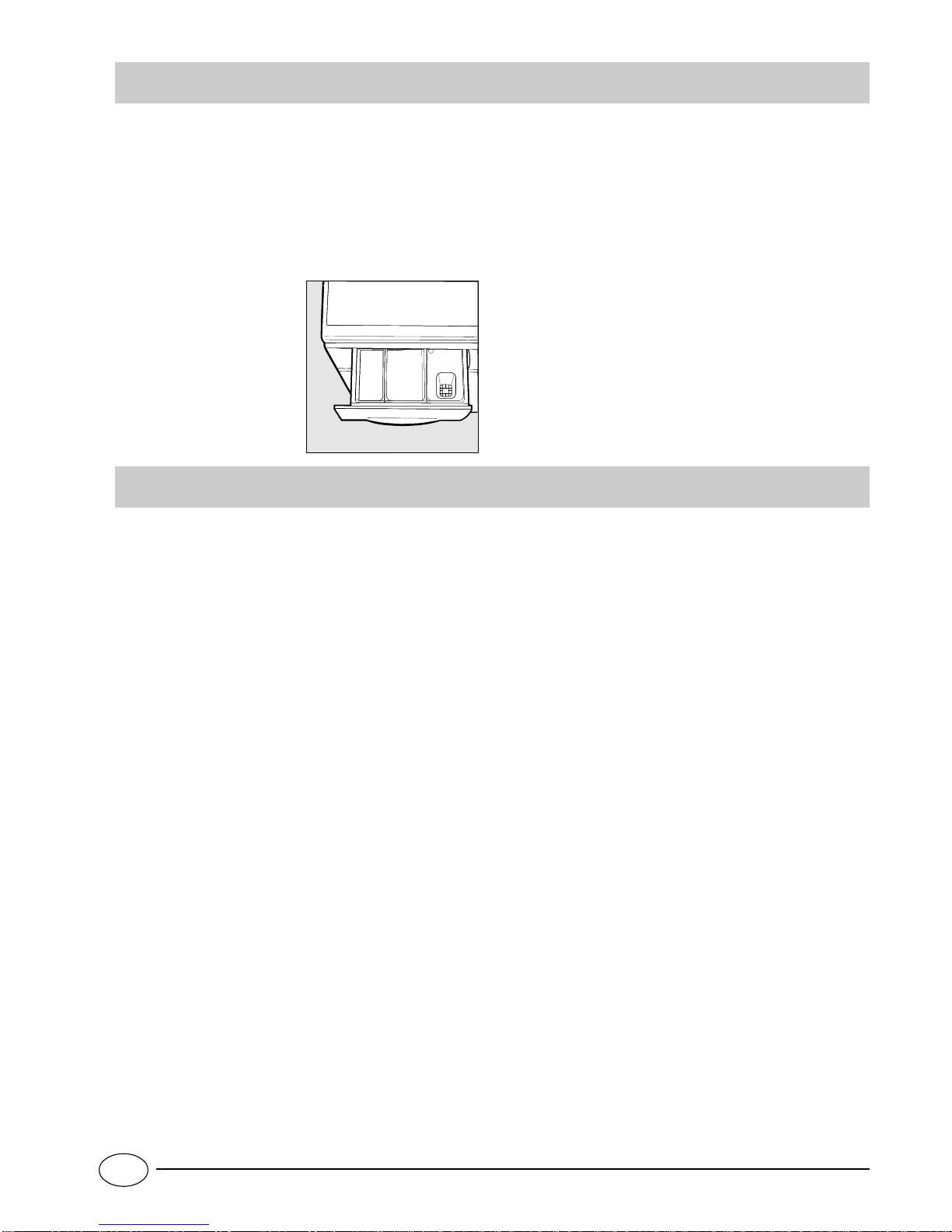

Detergents and fabric softener
Open detergent dispenser Dby pulling it outwards.Fill with
detergent and conditioner using the quantities indicated by
the manufacturer on the packet according to the load you
are washing, the water hardness and how soiled your laundry
is.As you become more familiar with your washer, you will
regulate the quantities according to your own personal
experience.
Compartment 1
Prewash cycle detergent
(powder)
Compartment 2
Wash cycle detergent
(powder or liquid)
Compartment 3
Fabric softner
Never fill compartment 3above the grid.
Use compartment 2for liquid detergent, filling the
compartment just before you start the washer. Remember
that liquid detergent is ideal for wash cycles with
temperatures up to 60°C and for the programmes with no
prewash cycle. Special containers are available for liquid and
powder detergents. Fill the container and place in the drum
with the laundry, following the instructions shown on the
detergent packet.
Do not use hand washing detergents since these produce
very heavy suds.
When using cold wash cycles, remember to reduce the
detergent dosage.
Starting up your washer
Run the first wash without laundry using programme
2 at 90°C.
Load your laundry in the washer, add the detergent and
fabric softener and remember to:
- shut the door properly
- plug the washer in at the mains
- turn on the water supply
- check that button Eis not pressed in (position O)
Selecting the programme
The table on pages 5 will help you choose the right
programme.Turn dial Ato the programme number you have
chosen.Set the temperature on dial Band, if necessary, press
functions buttons F, G; set ON/OFF button Eto position I
(ON).
At the end of the wash cycle...
To turn off the washer press the ON-OFF button Eand wait
approximately 3 minutes before opening the door. Once you
have removed your clean laundry from the washer, remember
to leave the door open or at least ajar (this will prevent the
formation of an unpleasant odour) and shut off the water
supply.
123

5GB
Selecting the programmes
The description of the wash programme by type of fabric is shown on the detergent dispenser.
Type of Fabric & How Dirty Cycle
Knob Temp. Knob Pre-wash Detergent Wash Detergent Softener Description of Wash Cycle
HEAVY FABRICS
Extremely dirty whites (sheets, tablecloths,
etc.) 1MAX
◆◆◆
Warm prewash, wash at 90°C, rinses,
intermediate and final spins.
Very dirty whites (sheets, tablecloths, etc.) 2MAX ◆◆
Wash at 90°C, rinses, intermediate and final
spins.
Very dirty heavy whites and colours 260°C◆◆
Wash at 60°C, rinses, intermediate and final
spins.
Very dirty heavy whites and colours. 240°C◆◆
Wash at 40°C, rinses, intermediate and final
spins.
Fairly dirty heavy whites and colours
(coloured underwear, house coats, etc.) 360°C◆◆
Wash at 60°C, rinses, intermediate and final
spins.
Whites and delicate colours that are not
very dirty. 340°C◆◆
Wash at 40°C, rinses, intermediate and final
spins.
Whites and delicate colours that are not
very dirty (shirts, T-shirts, etc.) 440°C◆◆
Wash at 40°C, rinses, intermediate and final
spins.
Rinses 5◆Rinses with automatic softener dispensing,
intermediate and final spins.
Softener 6◆Rinses with automatic softener dispensing,
intermediate and final spins.
Spin 7Drain and final spin.
SYNTHETICS
Very dirty heavy synthetic colours
(underwear for infants, etc.). 860°C◆◆
Wash at 60°C, rinses, wrinkle-guard or
delicate spin.
Very dirty synthetic colours. 850°C◆◆
Wash at 50°C, rinses, wrinkle-guard or
delicate spin.
Very dirty, delicate synthetic colours. 840°C◆◆
Wash at 40°C, rinses, wrinkle-guard or
delicate spin.
Fairly dirty delicate synthetic colours. 950°C◆◆
Wash at 50°C, rinses, wrinkle-guard or
delicate spin.
Not very dirty delicate synthetic colours
(all types of underwear). 10 40°C◆◆
Wash at 40°C, rinses, wrinkle-guard or
delicate spin.
Rinses 11 ◆Rinse with automatic softener dispensing,
wrinkle-guard or delicate spin.
Softener 12 ◆Rinse with automatic softener dispensing,
wrinkle-guard or delicate spin.
Spin 13 Drain and delicate spin.
DELICATES
Wool (machine washable) 14 40°C◆◆
Wash at 40°C, rinses, wrinkle-guard or
delicate spin.
Rinses 15 ◆Rinse with automatic softener dispensing,
wrinkle-guard or delicate spin.
Softener 16 ◆Rinse with automatic softener dispensing,
wrinkle-guard or delicate spin.
Spin 17 Drain and delicate spin.
Drain 18 Drain without spin.

6
GB
Washing tips
What not to wash in your appliance?
- Torn, frayed or unhemmed items; in order to wash items
of this kind, wrap them in a linen bag to prevent them from
tearing during the wash.
- Dark coloured items with white items. Dark items should
be washed separately .
Curtains
Curtains tend to crease badly.Try this washing hint to prevent
creases:fold the curtains carefully and place in a pillow case
or loose mesh bag; wash separately ensuring that the weight
is no more than a half wash load.
Quilts, tennis shoes and wind-cheaters
Contrary to common belief, goose or duck down quilts and
wind-cheaters, can in fact be machine washed, provided
the instructions shown on the label are followed carefully.
Remember however to load no more than 2-3 kg of laundry
and to repeat the rinse cycle once or twice following with a
gentle spin. In the case of tennis shoes, wipe off mud and
then machine wash with denims or heavy fabrics (but not
white fabrics).
Stain removal
The most common stains will disappear during the wash. If
they are particularly stubborn, soak the garment in water
and rub a little detergent onto the stain before putting it in
the washing machine.
Greasy marks (especially old ones) need treating with a stain-
remover. Be careful not to mark the fabric with remover.
Pre-treatment for awkward stains
- Ink:ball point/felt tip;Put a few drops of nail varnish remover
or surgical spirit onto a piece of cotton wool and dab the
stain.Wash at 90°C (NB.This is only suitable for colourfast
cottons)
- Tar and oil; Scrape off any thick tar or oil on the surface.
Soften the remainder with margarine or butter and wipe
away with a clean cloth. Treat any residual stain with
turpentine, then wash according to the fabric
- Wax; Scrape off, then put the stained garment between
two pieces of blotting paper and press with a hot iron.Dab
the stain immediately with cotton wool dipped in turpentine
- Chewing gum; Apply nail varnish remover to the gum,
then remove it carefully
- Lipstick;Pretreat with a liquid detergent using the dosing
ball, rub vigorously and rinse before washing
- Grass; Soak in a warm washing solution using a biological
washing product, then wash according to the fabric.
Alternatively, saturate the stain with white methylated spirit.
Rinse and wash normally
- Paint:Water based latex, acrylic and school paints, emulsion
paints;Treat stains while still wet. Rinse thoroughly under
running water to flush out the paint, then wash according
to the fabric.
Oil based paint/varnish; Sponge with white spirit or paint
brush cleaner before washing in the normal way.
Do not exceed the recommended weights
shown in the table
For best washing results, do not exceed the recommended
weights shown in the table; the weights shown refer to dry
laundry.
Maximum dry laundry
load
heavy fabrics
maximum 5 kg
delicate fabrics
maximum 2 kg
pure new wool
maximum 1 kg
mixed loads
maximum 2,5 kg
How heavy is your
laundry?
1 sheet 400-500 g
1 pillow case 150-200 g
1 table cloth 400-500 g
1 bathrobe 900-1200 g
1 bathroom towel150-250 g

7GB
Energy saving hints
General maintenance
-Try to wash complete laundry loads:this saves unnecessary
consumption of water and energy.
- Select the right programme for your laundry: this will
obviously depend on the type of fabric and how soiled your
laundry is;we recommend the use of programmes without
prewash which will save you time, water and energy. The
prewash cycle should in fact be used only for heavily soiled,
cotton fabrics.
- Set the right temperature: use temperatures above 60°C
only for very stubborn dirt but remember that modern
detergents are very efficient even at low temperatures.
- Use the correct quantities of detergent: do not use too
much detergent; remember that not only will this make
rinsing more difficult but also pollutes the enviroment.
- Use the economy buttons: when washing small laundry
loads use the Economy button if available on your washer
and reduce the detergent quantity.
After every wash
Leave the door open and wipe the door gasket dry after
each wash so that damp or odours do not form.
Remove the plug
Before cleaning or servicing always remove the plug from
the socket. This is for safety reasons.
No solvents or abrasive substance
You do not need solvents or abrasive substances to clean
the outside of the washing-machine and the rubber parts.
Just use a cloth, warm water and soap.
Detergent dispenser
drawer
This can be removed and
cleaned. Just pull it towards
you, as shown in the diagram,
and leave it under running
water for a few minutes.
Unplug the machine when you go away
It’s best to unplug the machine when you go away, turn off
the water supply and leave the machine door open or ajar.
The drum and rubber door lining will dry and no unpleasant
odours will form inside.
When moving house
When you move, all you need to do is secure the inside of
the machine with the transit screws (supplied with the
packaging of the machine) so that it will not be damaged.
Cleaningand special servicing
Hose
Check the hose once a year. It should be replaced if any
signs of splitting or damage can be seen. The machine is
under a lot of strain while operating and this may cause a
cracked hose to split open suddenly.
The drain pump
Your washer has a self-cleaning pump and therefore requires
no cleaning or mainteannce.
Removinglimescale
Water contains increasing amounts of limescale because of
pollution. If you live in a hard water area in addition to
using water-softener in each wash, it is a good idea to put
the machine through a cycle without laundry or detergent,
just using limescale remover.
-Your washer features automatic consumption control, this
means that you can wash laundry loads from 1 - 5 kg with
considerable savings. Your washer will use just the right
amount of water and electricity. All you need to do is dose
the detergent.
- Fabric softeners: always use a softener; not only do these
perfume and soften your laundry, they also make it easy to
iron, saving you time.

8
GB
Trouble shooting
If the machine does not seem to be working properly before
calling the service engineer there are a number of things
you can check. Perhaps you have forgotten to push in a
button or you are not using the machine properly.
Machine won't start
Make sure:
the appliance is plugged to the mains socket; you have
electricity in your home, the door is firmly shut, the ON/OFF
button Eis on I, the programming cycle knob, in washers
which have one, is on O, the programme is properly set and
the mains water tap is open.
Machine won't fill
Make sure:
the water tap is open and connected correctly to the hose;
the water mains has not been cut off and that water pressure
is sufficient;also check the hose for kinks.
Water is pumping in and out all the time
Make sure:
there are no kinks in the drain pipe and that it is at least at a
height of 60-100 cm; the pipe mouth is not below water
level and that the wall drain has no air outlet.If the problems
continue even after you have checked these points, shut
the water tap and turn off your washer.
Problems with pumping out water or
spinning
Make sure:
the programme selected has a draining cycle; the non
creasing "hydropstop" button, on washers which have one,
has not been pressed accidentally;the drainage pump is not
jammed; the drain pipe is bent; the drainage piping is
plugged; any drainage pipe extensions are properly
connected and do not prevent water flow.
Lots of vibration during the spin
Make sure:
the internal oscillating unit was released correctly at the time
of installation (see installation instructions); the washer is
levelled correctly or too tightly fitted between furniture units
and the wall.
Your washer is leaking.
Make sure:
the ring nut of the supply pipe is firmly tightened; the
detergent dispenser is not plugged and the drainage pipe is
firmly fixed.
Excessiveformation of suds.
Make sure:
the type of detergent you have used - is it suitable for an
automati washer - have you used too much detergent?
If despite all this your washer is still not running properly, call
your local Authorized Service Centre providing the
following information:
- fault
- model code (Mod. ....)
and serial number (S/N ....)
shown on the data plate at the back of your washer.
Never use the services of an unauthorised servicing technician
and insist on the use of original spare parts.

9GB
Drain hose
The drain hose (hooked pipe) is secured to the rear of the
machine by support clips and may be routed to right or left
as required (see fig.5).The drain hose should be placed in a
stand pipe with a minimum internal diameter of 38 mm (1½
inches) or it can be positioned over a sink (see fig. 6) or it
can be connected as shown in fig. 7. The height of stand
pipe or sink should be between 60 and 100 cm (24 and 40
inches).Care must be taken that the hose is not obstructed,
twisted, submerged or kinked. If the hose is connected with
an airtight joining, provision should be made to prevent
syphoning.
Installation
Transit packing
After removing the packing, check the appliance for damage.
If you have any doubts do not use the washer and call a quali-
fied technician. Keep the packaging components (plastic bags,
polyester foam, nails etc.) out of the reach of children since
they could be dangerous.The interior of the washer, has an
oscillating unit which is fixed on the back by 3 screws during
transport (fig. 1). Before starting up the washer, release the
unit, by unscrewing the 3 screws.Seal the screw holes with
the plastic plugs supplied with the appliance.
Levelling
The washer must be perfectly levelled.To level the appliance,
only the front feet need to be adjusted (see fig.2);remember
that the inclination of the working surface must not be more
than 2 degrees.If the washer is installed on a carpeted floor,
check that there is sufficient ventilation space between the
floor and the bottom of the washer.
Water supply
Both hot and cold water supplies are preferable and they
should be between 34.5kN/m²(5lb/in²) and 1034.2kN/m²
(150lb/in²) pressure. The hose having the red end fitting
should be encountered between the hot supply and the
threaded connection adjacent to the letter Hon the rear of
the machine. The hose having the whiteend fittings should
be connected between the cold supply and the threaded
connection adjacent to the letter Con the rear of the ma-
chine (see fig. 3). Remember to insert a sealing washer at
each connection to ensure watertight joints. Do not
overtighten the connections by using tools -hand tight is
sufficient to prevent leaks.It is generally more convenient to
have these supplies away from the sink taps. Where no
suitable hot water supply is available or it does not meet
these requirements, both inlet hoses may be connected to a
cold supply by using two taps etc., or a «T»junction on the
plumbing (see fig. 4) however, use of cold water only will
increase programme times.
Note: the maximum temperature should not exceed 70°C
(158°F).
Fig. 1 Fig. 2
Fig. 3 Fig. 4
Fig. 5 Fig. 6
Fig. 7

10
GB

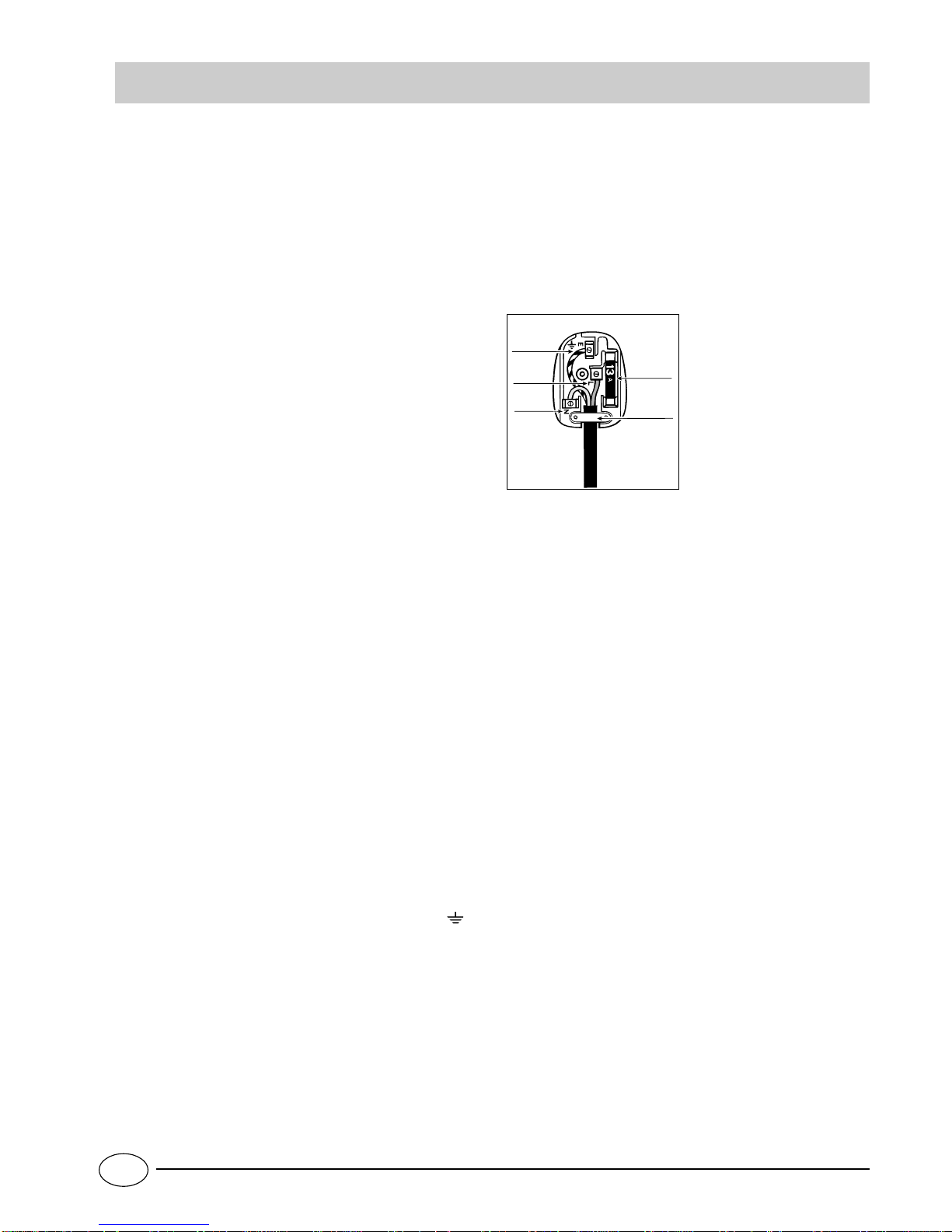

Electrical connection (figure 8)
Your appliance is now supplied with a 13 amp fused plug it
can be plugged into a 13 amp socket for immediate use.
Before using the appliance please read the instructions below.
WARNING -THIS APPLIANCE MUST BE EARTHED.
THEFOLLOWINGOPERATIONS SHOULD BE CARRIED OUT
BYAQUALIFIED ELECTRICIAN.
Replacingthe fuse:
When replacing a faulty fuse, a 13 amp ASTA approved fuse
to BS 1362 should always be used, and the fuse cover re-
fitted. If the fuse cover is lost, the plug must not be used
until a replacement is obtained.
Replacementfusecovers:
If a replacement fuse cover is fitted, it must be of the correct
colour as indicated by the coloured marking or the colour
that is embossed in words on the base of the plug.
Replacements can be obtained directly from your nearest
Service Depot.
Removing the plug:
If your appliance has a non-rewireable moulded plug and
you should wish to re-route the mains cable through
partitions, units etc., please ensure that either:
the plug is replaced by a fused 13 ampere re-wearable plug
bearing the BSI mark of approval.
or:
the mains cable is wired directly into a 13 amp cable outlet,
controlled by a switch, (in compliance with BS 5733) which
is accessible without moving the appliance.
Disposing of the plug:
Ensure that before disposing of the plug itself, you make
the pins unusable so that it cannot be accidentally inserted
into a socket.
Instructionsforconnectingcabletoan alternative plug:
Important: the wires in the mains lead are coloured in
accordance with the following code:
Green &Yellow Earth
Blue Neutral
Brown Live
As the colours of the wires in the lead may not correspond
with the coloured markings identifyng the terminals in your
plug, proceed as follows:
Connect Green &Yellow wire to terminal marked Eor or
coloured Green or Green &Yellow.
Connect Brown wire to terminal marked Lor coloured Red.
Connect Blue wire to terminal marked Nor coloured Black.
If a 13 amp plug (BS 1363) is used it must be fitted with a
13 amp fuse, either in the plug or adaptor or at the
distribution board.
If you are in any doubt the electrical supply to your machine,
consult a qualified electrician before use.
How to connect an alternative plug:
The wires in this mains lead are coloured in accordance with
the following code:
BLUE NEUTRAL (N)
BROWN LIVE (L)
GREEN& YELLOW EARTH(E)
Disposing of the appliance:
When disposing of the appliance please remove the plug by
cutting the mains cable as close as possible to the plug body
and dispose of it as described above.
GREEN &
YELLOW
BROWN
BLUE
13 ampere fuse
CROSS-BAR
CORD GRIP
Fig. 8

11 GB
m odel WG1430 T
dimensions width cm 59,5
heightcm 85
depth cm 55
capacity 1 -5 Kg
electrical
connections voltage 240 Volt50H z
maximum absorbed pow er2300 W
water
connections maximum pressu re 100 N/cm 2
minimum pressu re 5 N/cm 2
drum capaciuty 42 litres
spinning
speed up to 1400 rpm
Control
program sin
com pliance
with IEC
reg u lation
456
Cotton program :
Tu rn knob A to the "program 2"setting;
Tu rn knob B to the "60°C"setting.
This appliance conformswith the follow ing E.E.C.
directives:
-73/23/EEC of19/02/73 (Low Voltage)and
subsequentmodifications
-89/336/EEC of03/05/89 (Electrom agnetic
Com patibility) and subsequentmodifications
Technicalcharacteristics
