BEFORE YOU BEGIN
Read these instructions and check to be sure all parts and tools are accounted for. Please retain
these installation instructions for future reference and parts ordering information.
P/N 2880986
SADDLEBAG AUDIO WIRE
HARNESS KIT
APPLICATION
ALL INDIAN MOTORCYCLES WITH BOTH TRUNK AND SADDLEBAG AUDIO INSTALLED

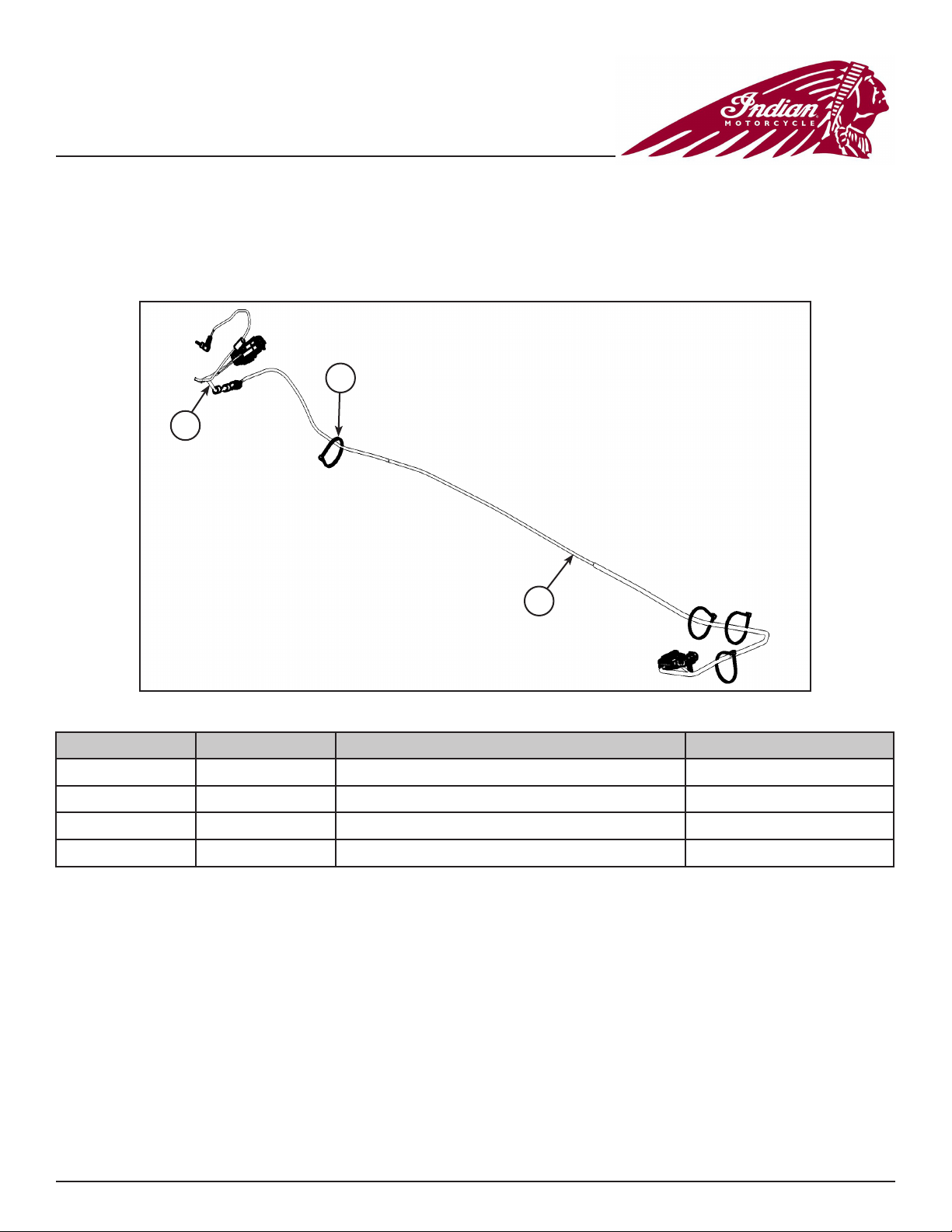

KIT CONTENTS
Ref Qty Part Description Part Number
1 1 Vehicle Harness 2412576
2 1 Harness, Audio, Accy 2412815
3 4 Panduit 7080138
1 Instructions 9925955
APPROXIMATE ASSEMBLY TIME
90 min
TOOLS NEEDED
Socket Extension Flashlight Ratchet
Diagonal Cutters 10 mm Socket Set Cutters
10 mm Open End Wrench 4 mm Hex Key Socket (Standard) Torque Wrench
5 mm and 6 mm Hex Key Sockets 4 mm Hex Key Socket (Ball-End Long)
2
1
3
IMPORTANT
Your Indian SADDLEBAG AUDIO WIRE HARNESS KIT is exclusively designed for your vehicle.
Please read the installation instructions thoroughly before beginning. Installation is easier if
the vehicle is clean and free of debris. For your safety, and to ensure a satisfactory installation,
perform all installation steps correctly in the sequence shown.

P/N 9925955 Rev 02 04/15 Page 2 of 9

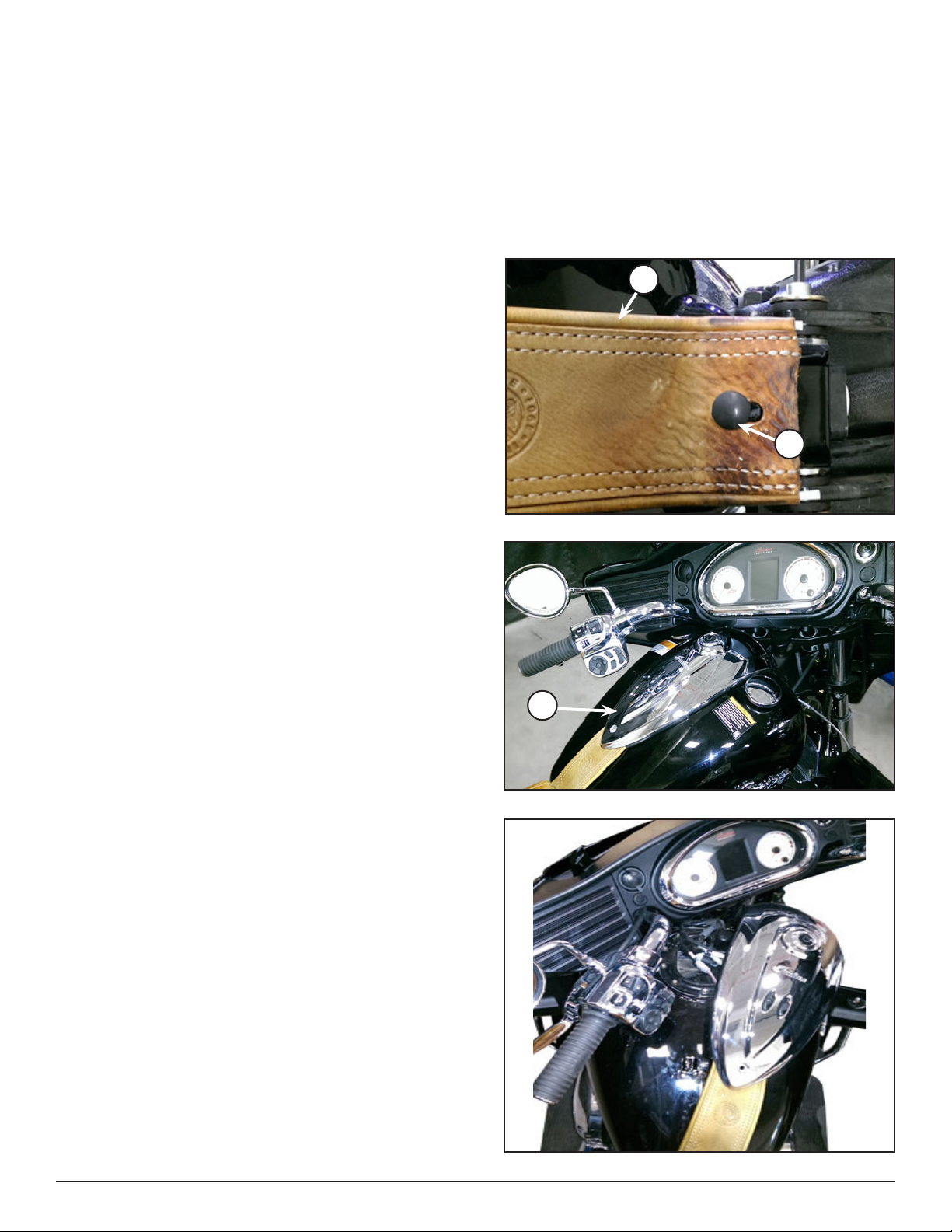

7. Loosen the socket head screw at front of
console (C) using 4 mm hex key socket (just
loosen 3 to 5 turns, DO NOT FULLY REMOVE).
8. Remove the socket head screw at the rear of the
console using 4 mm hex key socket.
9. Gently slide console forward until console is clear
of front socket head screw, then carefully lift up
and out to the right (take care to not scratch the
fuel tank).
C
6. Remove the leather (A) from the plastic button (B)
at the bottom (just like a shirt button).
INSTALLATION INSTRUCTIONS
B
A
1. On a solid, level surface, park motorcycle on side stand and turn handlebars fully to the left.
2. Raise windshield to full up position.
3. Remove the three fasteners holding the seat in place (one in the back (5 mm hex), and one on each side
(6 mm hex)).
4. Remove the seat, being careful to unplug any wire harnesses that may be connected to the seat.
Set the seat aside. See the owner’s manual for instructions on seat removal.
5. Disconnect the negative battery terminal. See the owner’s manual for instructions on locating the battery.

P/N 9925955 Rev 02 04/15 Page 3 of 9
10. Before fully removing the console, disconnect the
three wire harness connectors (D) (power button,
bag lock, and heated grips (if installed)).
Mark the connectors with a marker before
unplugging to aid in identification for re-assembly.
D
11. Once wires and leather are disconnected from
the motorcycle, carefully set the center console
assembly aside.
12. Disconnect the two vent lines at the front (E) and
rear (F) of the tank.
13. Disconnect the fuel line (G) by pushing in on both
sides while pulling up.
NOTE: A small amount of fuel from the fitting may
drip out. Have a towel or rag and a rubber band
to affix it around the end of the fitting to prevent
fuel from dripping onto the tank. Follow standard
safety precautions for dealing with flammable
liquids.
E
F
G

P/N 9925955 Rev 02 04/15 Page 4 of 9
14. Disconnect the fuel pump wire harness (H).
H
15. Remove the two socket head screws (J) from base
of fuel tank (using 6 mm hex key).
16. Remove the fuel tank by carefully lifting up the
base while sliding the tank towards the rear of the
vehicle.
17. Remove the wire tray cover (K) by cutting the zip
tie at the base, and prying up the cover from one
side.
NOTE: Note how the zip tie is routed at the base
for later assembly.
NOTE: Though not necessary, it may be easier
to route the wires if the VCM / battery cover is
moved out of the way. To do this, remove the M6
fastener that holds the battery cover in place. Lift
battery cover with VCM attached and tip forward.
CAUTION: Care must be taken to not allow the
VCM to contact the battery terminals. Also, no
metal must be allowed to touch both the terminal
and VCM at the same time (such as wrenches,
etc.). Contact with terminals will damage the
VCM.
J
K

P/N 9925955 Rev 02 04/15 Page 5 of 9

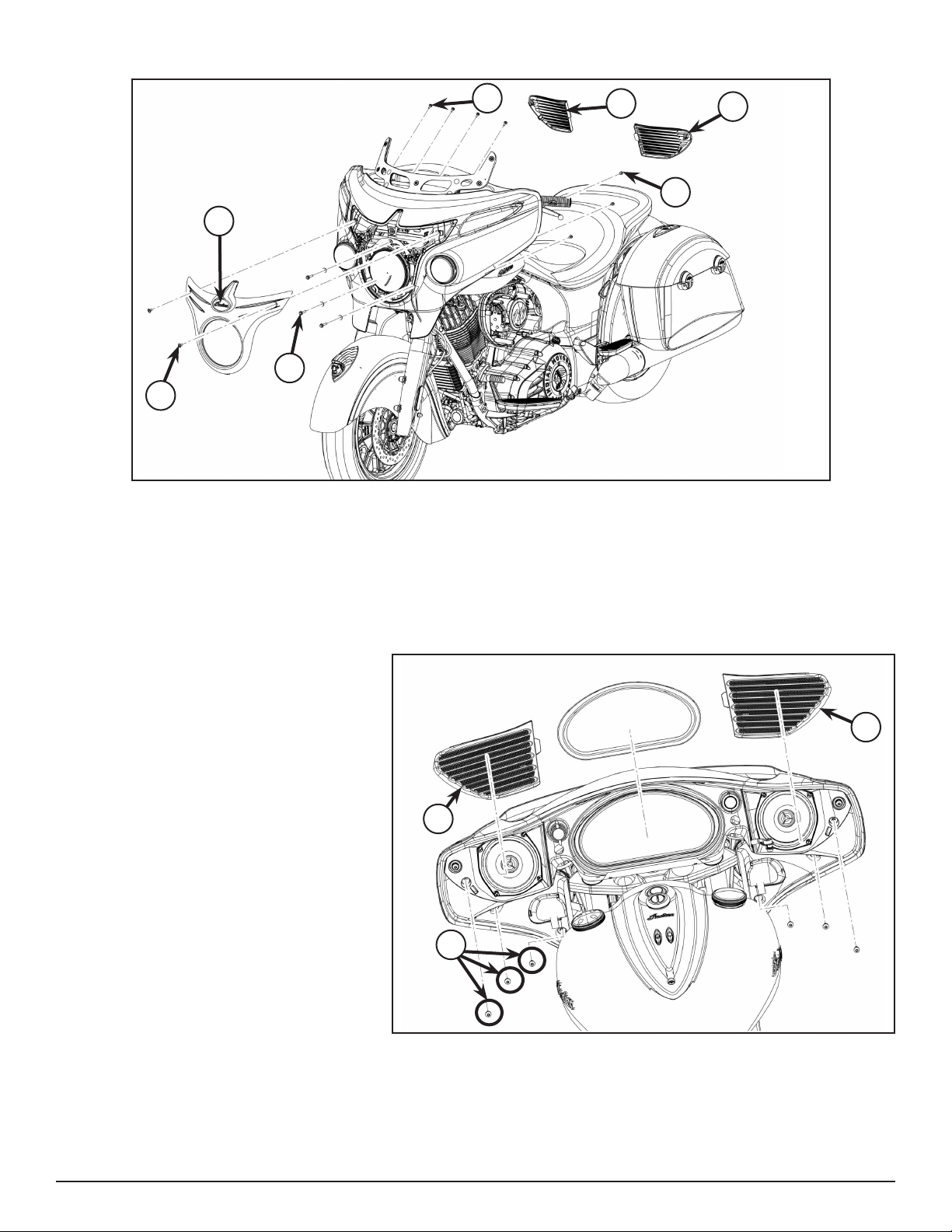

18. Remove chrome trim – remove two upper fasteners (L) using the 4 mm hex socket. The trim piece is
now held on by a hook on the bottom and darts and grommets on the top. Pull forward on the top of the
trim to disengage the darts, then lift the bezel (M) up and out of fairing.Torque the fastners to 36 in-lbs.
(4.07 Nm). See Figure.
19. Remove headlight and unplug - using 10 mm socket, remove the three fasteners (N) holding the
headlight in place. Unplug wire harness from back of light, and carefully set headlight assembly to the
side.Torque the fastners to 36 in-lbs. (4.07 Nm).
20. Remove speaker covers (Q) - pull
rearward on outboard edge to
disengage darts from grommets
and then slide outboard.
NOTE: Care should be taken when
removing the speaker covers to
avoid scratching the dash.
21. Remove three fasteners (R) on
each side between inner and outer
fairings using 4 mm hex key socket.
See Figure.
R
Q
Q
Remove Outer Fairing
L
N
M
P
R
QQ
