Induction Inside ECO KITCHEN IND Series User manual

IND Induction Cooker
Table top Series
General User’s Manual
-ORIGINAL INSTRUCTION
CAUTION:READ THE INSTRUCTION BEFORE USING THE MACHINE
Qingdao Middleby Induction Co., Ltd.
9 Xinghai Road, Qingdao Huanhai Economic Development Zone, Qingdao 266108, P.R. China

-1-
Table of Contents
1. Safety Instructions.........................................................................................................................2
1.1 Risks of Negligence of Safety Information....................................................................... 2
1.2 Safety Notes......................................................................................................................... 2
1.3 Notice to User....................................................................................................................... 2
1.4 Unauthorized Change and Part Replacement................................................................ 4
2. Foreword.........................................................................................................................................5
3. Product Features...........................................................................................................................5
4. Technical Specifications............................................................................................................... 6
5. Symbols and Instructions.............................................................................................................6
6. Installation...................................................................................................................................... 7
6.1 Heat Radiation Requirements............................................................................................7
6.2 Fire Prevention..................................................................................................................... 7
6.3 Requirements on Electrical Connection........................................................................... 7
7. Troubleshooting............................................................................................................................. 8
8. Installation and Operating Instructions...................................................................................... 8
8.1 Installation........................................................................................................................... 12
8.2 Operation Instructions....................................................................................................... 12
9. Cleaning & Maintenance............................................................................................................12
10. Regular Servicing..................................................................................................................... 13
11. Waste Disposal..........................................................................................................................14
WARNING: There is high voltage inside! Do not open the cooker!
WARNING: The induction cooker must be disconnected from power
supply during clearing or maintenance and when replacing parts!
WARNING: If the glass-ceramic is cracked, immediately switch off the
cooker and disconnect the power.

-2-
1. Safety Instructions
1.1 Risks of Negligence of Safety Information
This manual contains safety warnings and precautions on the installation, commissioning
and operation of the induction cooker. Negligence of such information may lead to harms to
people, environment and equipment, as well as potential risks as follows:
Electric shock;
Overheating of wok/pan; and
Overheating of cooker surface.
1.2 Safety Notes
The safety instructions contained in this manual, the applicable national regulations on the
prevention of accidents as well as user’s internal safety rules must be strictly observed.
1.3 Notice to User
To prevent electrical shocks, the installation and electrical connection of the induction
cooker must be performed by a qualified contractor as per national and local
regulations.
The heating zone has high temperature. To avoid injury (scalding), do not touch this
area.
To avoid dry heating (glowing) of wok/pan, don’t leave the appliance on unattended. For
the sake of safety, switch the power off.
To prevent accidents caused by automatic heating of wok/pan, switch off the cooker
before removing the wok/pan. Do not rely on the pan detector. This ensures that
anyone who wants to use the cooker must switch it on him/herself.
Don’t insert any piece of paper, cardboard, cloth, etc. between the wok/pan and the
heating area, as this may initiate a fire.
Do not place metallic objects such as kitchen utensils, cutlery, cans, aluminum foil and
keys on the hob surface within the cooking zone because such things can be heated up
quickly.

-3-
Do not wear watches and rings as these objects can be heated up when in close
proximity to the hob surface.
People with heart pacemakers should consult with the manufacturer or physician
before using the induction cooker.
The entire unit must be reliably grounded. Once the cooker body or electric cable is
found broken, immediately switch the unit off, disconnect the power and contact the
manufacturer or its authorized servicing personnel.
Do not place aluminum foil or plastic utensils on the glass-ceramic surface in the
heating zone nor use it as storage.
The contact surface of wok/pan must match that of the glass-ceramic panel; otherwise,
it may lead to reduced performance, malfunction and even damage to the induction
cooker. Therefore, only those woks/pans supplied or recommended by the
manufacturer can be used.
Don’t place credit cards, phone cards, passenger cards, cassette tapes or other
magnetic objects on the surface of the induction cooker.
There is air cooling system in the induction cooker. To avoid overheating induced
shutdown, do not block the air vents.
Do not let any liquid enter the cooker. Do not spill water or food over the wok/pan. Do
not flush the cooker with water. Do not clean the cooker with a steam cleaner.
In case the glass-ceramic panel breaks or cracks, immediately switch off the cooker
and disconnect the power. Never touch any exposed part inside the cooker.
Operation beyond the rated values and limits of the induction cooker will result in
unreliable operation and even damage. It is advised that the cooker operate at full
power, i.e. the power regulator is set to the maximum scale. Select between “3” and “5”
when slow fire is required.
Never turn the induction cooker on and off frequently without any purpose as this may
cause damage to the electrical circuit and shorten the service life of the cooker.
Normally, the cooker should not be restarted within 3 seconds after it is shut down.
The induction cooker should be cleaned, maintained and serviced on a regular basis to
keep it in good condition and extend its service life.
There is high voltage inside the cooker. It can only be opened by authorized servicing

-4-
personnel.
To avoid misuse, all discarded electrical devices must be disposed of safely and
properly by the user.
There is a small area at the bottom center of the wok/pan that heats slowly. To ensure
that oil is evenly heated, stir the oil in the wok/pan.
The glass-ceramic panel, enclosure, wok/pan, tub, pot and pot support of the induction
cooker are outside the warranty scope.
An all-pole disconnection switch having a contact separation of at least 3mm in all
poles should be connected in fixed wiring.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
Equipment for use in trades, professions, and which is not intended for sale to the
general public.
1.4 Unauthorized Change and Part Replacement
Do not make any change to the induction cooker. If the induction cooker needs to be
changed, please contact the manufacturer. For safety’s sake, please use parts and
components certified by the manufacturer. Use of any uncertified parts and components will
void all the commitments and warranties of the manufacturer.

-5-
2. Foreword
Thank you for choosing our IND product. Before installation and use of this product, please
read this manual carefully as it contains important information about the installation,
operation and maintenance of the product. Please keep the manual in a place readily
available for easy reference.
3. Product Features
IND series induction cookers have the features of strong, compact construction with a
stainless steel enclosure, continuously controlled power and higher heating efficiency than
conventional cookers. They also have the following unique features:
Plug and Play design for convenient use;
Schott glass-ceramic panel, excellent thermal shock performance, sleek aesthetic
design for easy cleaning ;
Modularized design;
Electronic circuit with automatic monitor & control and multiple safety protection;
High efficiency and large power to save cooking time and energy;
Compact size and light weight;
Customized designs.

-6-
4. Technical Specifications
Power Supply
220-240 V～, Single phase 3-wire, 50-60 Hz
380-400 V 3N～, 3-phase 5-wire, 50-60 Hz
Operating Frequency
20-40 kHz
Ambient Conditions
Temperature: Storage -40℃- +50℃; Operation +5℃- +40℃
Relative Humidity: Storage 10％- 90％; Operation 30％- 90％
Wire Requirements
3kW-8kW ≥ Φ1.5mm2
Power cord shall be at least of ordinary polychloroprene sheathed cords(code
designation 60245 IEC 57)
5. Symbols and Instructions
non-ionizing electromagnetic radiation
dangerous voltage
Equipotentiality

-7-
6. Installation
IND induction cooker series are of plug & play type, which is ready for use after power and
water supplies (if necessary) are connected.
6.1 Heat Radiation Requirements
Adequate space shall be left in the back and bottom of the unit to allow free flow of air.
Improper installation will result in blockage or decrease of airflow and poor radiation of
heat;
The air inlet and outlet should be at least 100mm from any peripheral object (such as
wall and floor);
The inlet cold air should not be mixed with the outlet hot air;
The inlet air temperature should not exceed 40℃;
The induction cooker should be away from other heat sources (such as gas cooker or
halogen stove). In case several induction cookers are used, they should be at least
100mm apart from each other. Besides, it should be ensured that there is sufficient
supply of cold air and the hot air discharged by cookers will not enter other cookers.
6.2 Fire Prevention
All objects in contact with the cooker should be made of noninflammable materials.
6.3 Requirements on Electrical Connection
Check and make sure that the power supply is consistent with the rating on the
nameplate of the product;
The electrical connection must comply with existing national and local regulations;
The electrical cable of the product must be connected to the power supply with an
appropriate Circuit breaker(The circuit limitation should be 1.5-2 times of the rating
current. e.g.: 3RV6021-4CA10, 11kW, 22A, Siemens).

-8-
7. Troubleshooting
The cooker can only be opened by authorized servicing personnel.
In case the glass-ceramic panel breaks or cracks, immediately switch off the cooker and
disconnect the power. Never touch any exposed part inside the cooker.
When malfunction occurs, the indicator will show some information as follows:
Possible Causes of Faults and Correcting Measures
Code
Meaning
Remarks
E1（01）
No Pan
1）There is no wok/pan or wok/pan is improper, place proper
wok/ pan on the cooker;
2）Consult professional personnel
E2（02）
Over-current in Coils
1) Change the utensil with more ferrous material
2) Consult professional personnel
E3（03）
Over-temperature of power
module, the equipment not
working
1）Long working hours in high ambient temperature (>38℃).
Cooling needed.
2）If ambient temperature is not high, check if the air-inlet and
air-outlet is blocked, of if the warm air from outlet can be sucked
into the inlet.
3）Check if the cooling fan of the generator works properly.
4）Check if the grease filter is too dirty.
E4（04）
Pan temperature too high,
causing the equipment to
stop working.
1）Check if the cooling fan of the coils works properly.
2）Oil temperature in the pan too high. Lower the power level.
E5（05）
Damage of power
potentiometer, or the power
level is not set at the “0”
position.
1) Set the power level at “0”position before use.
2) Problem of the power control, Consult professional
personnel
.

-9-
─
Reserve
E7（07）
Error of temperature sensor
of the power module.
Consult professional personnel
E8（08）
Temperature of power
module too high and the
generator is working with
reduced power.
Same as E3.
E9（09）
Error of pan temperature
sensor.
Consult professional personnel
EA（10）
The voltage of power
supply is too low.
1) Ensure proper voltage.
2) Ensure proper wiring.
3) Consult professional personnel
─
Reserve
EC（12）
Over temperature of coils,
the generator stops working.
1) Check if the cooling fan of the coils works properly.
2) Oil temperature in the pan too high. Lower the power level.
ED（13）
Error of Coil temperature
sensor.
Consult professional personnel
─
Reserve.
EF（15）
Surge protection
1）If this does not happen frequently, ignore it, because
automatic restart will be effected.
2）If this happens frequently, Consult professional personnel
E（16）
Hard protection of driving
board.
Consult professional personnel

-10 -
Possible Causes of Faults and Correcting Measures
Fault
Possible Cause
Correcting Measure
There is no
heating, lamp or
indicator is
blinking
Error occurs.
Check the Error code list and follow the
instructions,
There is no
heating, lamp or
indicator is off
No power supply;
Check whether the power cord is well
connected, Check primary fuse
PCB/ Components are Broken
Consult professional personnel
Heating effect is
good but indicator
or lamp is off.
Lamp or Indicator is broken.
Replace the Lamp or Indicator
Consult professional personnel
Switch does not
work or the power
could not be
adjusted by
rotating/sliding
Switch.
Switch failure;
Replace the Switch.
Consult professional personnel
Power becomes
lower than normal
power.
The power is limited by the
program because the
temperature of IGBT or Pan is
rising too fast.
Wait for a moment;
Avoid heating the empty pan.
The pan/wok is not proper, please
replace the pan/wok;
The power is limited by the
program because the ambient
temperature is too high
Please try to improve the ambient
conditions:
Cool down the ambient temperature;
Keep the induction products away from
the hot sources;
Check if the ventilation of induction
products is good, or if the air filter is
blocked.
Inappropriate Internal Setting
Parameters
Consult professional personnel

-11 -

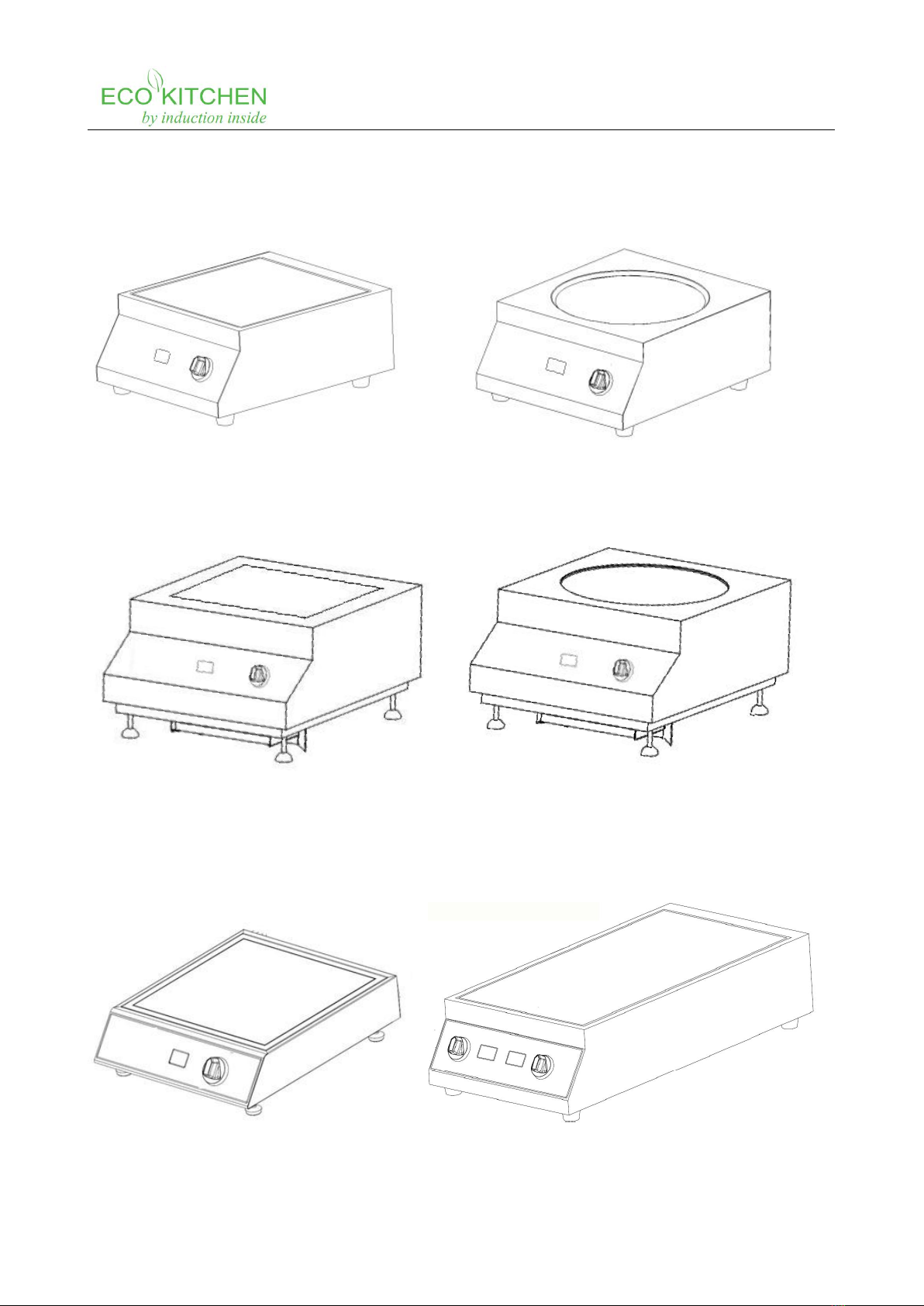

8. Installation and Operating Instructions
3.5kw&5kw 3.5kw&5kw
8kw 8kw
2.4kw &2.5kw&3kw 3.5kw*2 & 5kw*2

-12 -
8.1 Installation
Open the package and make sure that the appearance of the unit is in good condition.
Place the unit at the installation place. Pay attention to the ventilation conditions.
The cable should be connected to the power through plug or circuit breaker, and
connection should be conducted according to the labeling: the yellow/green terminal is
ground, the blue terminal is Neutral wire, and the other three are the three phases. All
connections must be secure.
8.2 Operation Instructions
After the device is powered on and there is no abnormal indication, it is ready for use.
Operate according to the following steps:
①Place a pan which is recommended by the manufacturer on the cooker, and add
appropriate amount of water.
②Connect the cooker to the power supply.
③Switch on the power, the indicator will go on.
④Depending on the food to be cooked, turn the knob slowly to an appropriate position. A
corresponding number will be shown on the indicator.
⑤After use, turn the handle to “0” and cut off the power.
9. Cleaning & Maintenance
Clean the glass-ceramic panel surface in the same way as to glass. Do not use corrosive or
grinding cleaners such as grill spray, detergent powder, deruster, polishing powder or
coarse sponge to clean the panel.
To prevent scalding, do not clean the panel when the surface is hot.
WARNING: The induction cooker must be disconnected from power supply during clearing
and maintenance.

-13 -
Stains and Removing Method
Stain Type
Removing Method
Slightly soiled, without burning
remnant
Wipe clean with a wet cloth, without using cleaning
agent.
Sticky substance
Scrape with a wooden scrapper and then wipe clean
with a wet cloth.
Scale formed by spilled boiling
water
Clean with vinegar or special cleaning agent.
Oil-resistant strainer blockage
Soak the strainer in warm water with cleaning agent,
and then clean with a brush.
Sugar, sugary food, plastic
and aluminum foil
Remove with a wooden scrapper while the stain is
warm, then clean with a cleaning agent.
Caution! Avoid scalding. If stain is not removed in
time, tiny holes may form on the surface of the
glass-ceramic panel.
Other maintenance and servicing work than cleaning and maintenance should be
conducted by designated service providers.
Important: Avoid leakage of liquid into the induction cooker. Do not flush with water
nor clean with steam cleaner.
10. Regular Servicing
To keep the induction cooker in good condition and extend its service life, it should be
cleaned, maintained and serviced on a regular basis.
The grease filter of the induction cooker must be cleaned at least once every three
months.
The induction cooker must be checked by authorized technical personnel at least once a
year.
Danger! Do not open the induction cooker. There is high voltage inside!
The induction cooker can be opened by authorized personnel only.

-14 -
11. Waste Disposal
To avoid misuse, all discarded electrical devices must be disposed of properly and safely by
the user.
Do not use uncertified or discarded induction cookers.
Our products are made of regular materials. No battery is used inside the products.
Note: The right of interpretation of this User’s Manual belongs to
Qingdao Middleby Induction Co., Ltd. The company also reserves the
right to make changes to the specifications and information contained
herein without further notice.
