Indy 32884 Quick start guide

USB Micro Hub
Installation and Use English
Benutzerhandbuch Deutsch
Manuel Français
Manuale Uso Italiano
LINDY Art. Nr. 32884
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - OCT1999
English Manual
Overview
The LINDY 4 Port USB Hub provides up to 4 downstream ports in
compliance with USB specification Rev. 1.1. It supports two power
source modes, bus-power and self-power. The LINDY Hub topology
supports up to 127 physical devices in a tiered star configuration.
Features
½
Windows 95 OSR2 / Windows 98 and USB Plug
and Play compatible
½
iMac/G3/G4 compatible
½
Full compliance with USB specification Rev. 1.1
½
Hot plug capability
½
Support OHCI and DHCI
½
Bus-powered or self-powered by selection
½
USB Tiered star topology supports up to 6 tiers and
127 devices, reliable transmission for 5 metre USB
cable segment.
½
Current overload protection and recovery
½
LED for Power and Ready for operation
Package Contents
This manual
USB Micro Hub
Power supply
USB cable (upstream), 1m
Installation and Use
l
Set the slide switch on the side of the hub to the
position self-powered or bus-powered as necessary.
l
NOTE: The bus-powered mode should be used only
when connecting devices that are self-powered by
themselves (i.e. printers, scanners, etc.) or when they
have very low power consumption (i.e. LINDY USB
mouse, LINDY USB Parallel Adapter, LINDY USB
Ethernet Adapter etc.).
l
If you want to use the hub in self-powered mode plug the
AC/DC power adapter into the mains and into the hub.
l
Connect the B type plug of the supplied cable into the
USB micro hub.
l
Connect the A type plug of the supplied cable into the
USB Host (PC or Mac) or another USB upstream hub.
l
Connect devices to one of the A type sockets on the
USB hub.
l
If using Windows the PC will automatically detect this
hub and request the drivers from the Windows
installation disk.
Benutzerhandbuch
Übersicht
Der LINDY 4 Port USB Mikro Hub stellt 4 Anschlüsse für USB
Geräte zur Verfügung. Er ist kompatibel mit dem USB 1.1 Standard.
Er kann sowohl mit oder ohne Netzteil betrieben werden, je nach
angeschlossenen Geräten. Die USB Topologie unterstützt bis zu 127
in einem Bus zusammengefasste USB Geräte.
Eigenschaften
½
PC Windows und USB Plug-and-Play kompatibel.
½
IMac/G3/G4 kompatibel.
½
Voll kompatibel mit USB Spezifikation Rev. 1.1.
½
Hot plug / Geräte im Betrieb zufügbar.
½
Unterstützt OHCI and DHCI.
½
Spannungsversorgung über USB-Bus oder Netzteil
½
USB Sterntopologie unterstützt bis zu 127 Geräte in
bis zu 6 Ebenen und Kabellängen bis 5m.
½
Kurzschlußfest
½
LED Anzeige für Betriebsbereitschaft / USB-Bus ok.
Verpackungsinhalt
Dieses Handbuch
USB-Micro Hub
Steckernetzteil
USB Kabel (upstream), 1m
Installation und Bedienung
l
Stellen Sie den Schiebeschalter an der Seite des
USB Micro Hub auf die gewünschte Position: Self-
powered oder bus-powered.
HINWEIS: Der bus-powered Modus sollte nur verwendet
werden, wenn ausschließlich Geräte mit eigener
Stromversorgung (Drucker, Scanner, etc.) oder Geräte
mit geringer Stromaufnahme (LINDY USB Maus, LINDY
USB Parallel Adapter, LINDY USB Ethernet Adapter,
etc.) verwendet werden.
l
Falls der Micro Hub im self-powered Modus betrieben
werden soll schließen Sie bitte das Steckernetzteil an.
l
Schließen Sie das mitgelieferte Kabel an die B-Typ
Buchse am LINDY USB Mikro-Hub an.
l
Verbinden Sie das andere Ende des Kabels mit dem
USB-Host-Rechner (PC oder Mac) oder einem anderen
Upstream-Port.
l
Ihr Windows PC wird automatisch den Hub erkennen
und die Treiber von der Windows Installations-CD
einbinden.

Manuel Français
Introduction
Le Micro-Hub USB 4 Ports de LINDY est conforme aux
spécifications USB 1.1. Il supporte deux types
d’alimentations :
alimentation bus-powered et self-powered. Le Micro-Hub
USB LINDY supporte jusqu’à 127 périphériques connectés.
Caractéristiques
½
Compatible PC Windows et USB Plug-and-Play.
½
Compatible IMac/G3/4.
½
Compatible USB Version 1.1.
½
Connexion àchaud.
½
Support OHCI et DHCI
½
Sélection alimentation bus-powered ou
self-powered.
½
Topologie USB en étoile, jusqu’à 127 périphériques
connectés et transmission non amplifiée jusqu’à 5
mètres.
½
Protection de surtension et stabilisation.
½
Voyant d’alimentation et status du port USB.
Contenu de l’emballage
Le manuel
Micro-Hub USB
Alimentation fixable sur le mur
Cable USB de liaison 1m
Installation et Utilisation
l
Positionnez le switch situésur le cotédu hub sur la
méthode d’alimentation.
REMARQUE: le mode bus-powered doit être unique-
ment en marche lors de l’utilisation des périphériques
auto-alimentés (imprimante, scanner, etc.) ou àfaible
consommation d’énergie (Souris LINDY USB, Adapteur
parallèle LINDY USB, Adaptateur Ethernet USB LINDY).
l
Si vous souhaitez utiliser le hub en mode self-powered,
branchez l’alimentation extérieure fournie.
l
Connectez la connexion de USB de type B vers l’entrée
de votre Micro-Hub USB.
l
Connectez la conexion de type A sur le port USB de
votre ordinateur.
l
Connectez vos périphériques àl’une des connexions de
type A de votre Micro-Hub USB.
l
Si vous utilisez Windows 98, le Micro-Hub USB sera
reconnu automatiquement au démarrage et Windows
installera les pilotes.
Manuale Italiano
Introduzione
Il LINDY USB Hub a 4 a porte fornisce la possibilitàdi gestire fino a
4 porte, avendone a disposizione una sola, in conformitàcon le
specifiche USB Rev. 1.1. Supporta due tipi di alimentazione; bus-
power e self-power. Il LINDY Hub supporta un’architettura a livelli
che permette di collegare fino a 127 periferiche.
Caratteristiche
½
PC Windows e USB Plug-and-Play compatibile.
½
IMac/G3/4 compatibile.
½
Completa conformitàcon le specifiche USB Rev. 1.1.
½
Inserimento anche a PC accesi.
½
Supporta OHCI e DHCI
½
Alimentazione Bus-power o self-power selezionabile
½
L’architettura del LINDY USB hub supporta fino a 6
livelli e 127 periferiche, con una trasmissione
affidabile se i segmenti di ogni cavo USB non
superino i 5 metri.
½
Protezione e ripristino in caso di sovralimentazione
½
LED per indicare la corretta attività
Contenuto della scatola
Manuale
USB-Micro Hub
Alimentatore
Cavo USB, ( a monte) 1m
Installazione ed Utilizzo
l
Selezionare la modalitàdi alimentazione richiesta
Self-power o bus-power, settando lo switch che
troverete sulla parte laterale.
NOTA BENE: la modalitàdi bus-power puòessere
utilizzata solo quando vengono collegate delle
apparecchiature che si auto-alimentano (p.es. stampanti,
scanner, ecc.) o quando sono a basso consumo (p.es.
LINDY USB mouse, LINDY USB Adattatore Parallelo,
Adattatore USB Ethernet, ecc.).
l
Se desiderate utilizzare l’hub in modalitàself-power
collegate l’alimentatore AC/DC in dotazione.
l
Collegare l’attacco di tipo B del cavo in dotazione al
LINDY USB micro hub.
l
Collegare l’attacco di tipo del cavo in dotazione all’uscita
USB (PC o Mac) o ad un altro USB hub.
l
Collegare le periferiche ad un attacco di tipo A sul
LINDY USB hub.
l
Se utilizzate Windows il PC rileveràautomaticamente
l’hub e Vi richiederài driver dal disco di installazione di
Windows.
Technical Data
LINDY USB Micro Hub
Size: 75 x 28 x 45 mm³
Weight: 58 g
Operating temperature 0 …. 75 °C
INPUT 1: USB Type B socket (upstream)
INPUT 2: 5V DC 2.5 A
OUTPUT: 4x USB Type A socket (twin sockets, downstream)
Outputs with overcurrent detection , protection and recovery
LINDY Art. Nr. 32884
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - OCT 1999
Table of contents
Popular Switch manuals by other brands

Interlogix
Interlogix NS3500-24T-4C Quick installation guide

IMC

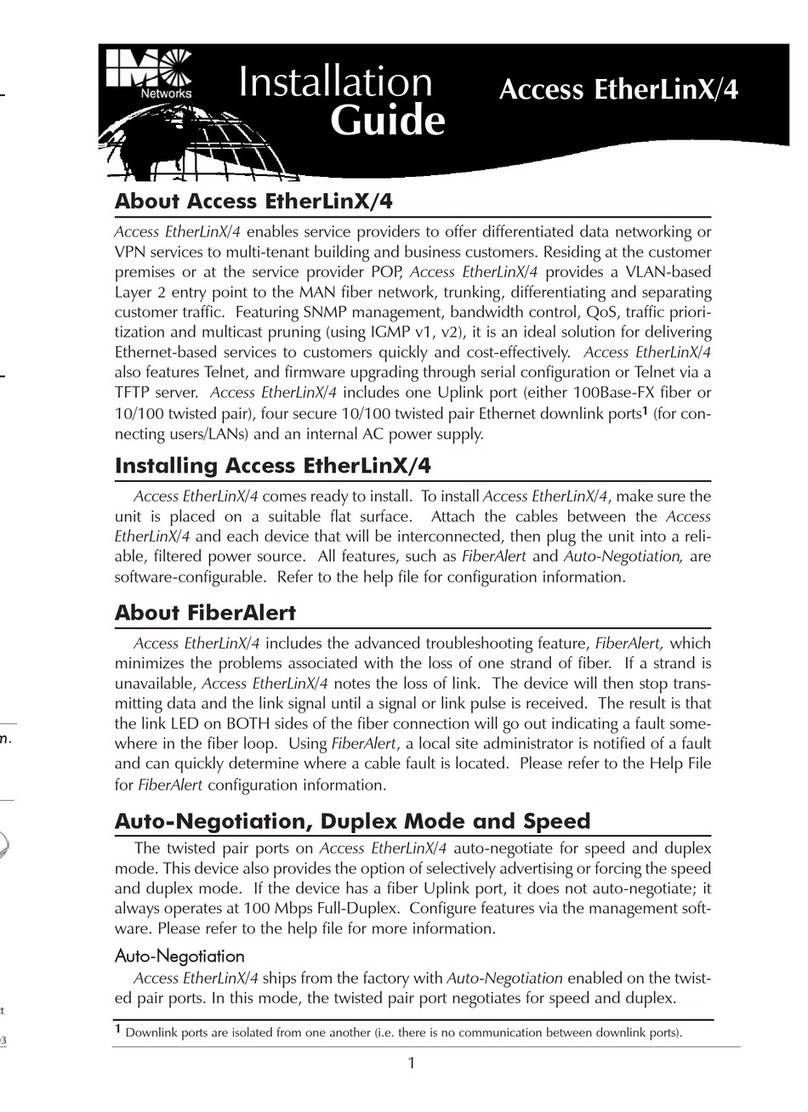

IMC Access EtherLinX/4 installation guide
