Infinity 890 PC User manual

Owner’s Manual
INCLUDES
User, Maintenance, Service, and Installation
Instructions
890 PC & 890 PC TRIMLESS
Keep this booklet for service log and future reference
For use in Great Britain and Ireland.
Literature NO 6352 (ISS 4)
IMPORTANT
This appliance is guaranteed for 12 months subject to conditions. The 5 year extended parts
warranty will only be valid if the annual service recommended in this manual has been
completed and appliance has been registered online.

Contents
EXTENDED FIVE YEAR PARTS WARRANTY ....................2
Benchmark Scheme .....................................................3
SECTION ONE Introduction (user instructions) ..........5
SECTION TWO Operating the Appliance (user
instructions).................................................................7
SECTION THREE Cleaning (user instructions)............10
SECTION FOUR Fuel Bed Cleaning and Layout (user
instructions)...............................................................11
SECTION FOUR Fuel Bed Cleaning and Layout
Continued (user instructions) ...................................12
SECTION FIVE Appliance Data (installation
instructions)...............................................................14
SECTION SIX Regulations and Warnings (installation
instructions)...............................................................15
WARNINGS ................................................................15
SECTION SEVEN Siting the Appliance (installation
instruction) ................................................................16
SECTION EIGHT To Install the Appliance (installation
instructions)...............................................................17
SECTION NINE Checking Operation of Fire
(installation instructions)..........................................20
SECTION ELEVEN Wiring Diagram (maintenance
instructions)...............................................................29
GAS FIRE COMMISSIONING CHECKLIST.....................34
SERVICE RECORD........................................................35
EXTENDED FIVE YEAR PARTS
WARRANTY
In order to validate your extended 5 years parts
warranty
please read the Benchmark Scheme on the
opposite page and ensure your installer has filled in the
appropriate
checklist.
This in no way reduces your statutory rights
Your warranty commences from the date of purchase
and
you must retain your receipt or invoice as proof of
a purchase date.
THIS EXTENDED WARRANTY SPECIFICALLY EXCLUDES
GLASS
AND SOFT REFRACTORY COMPONENTS, THE BULB
AND ANY BATTERIES.
Terms and Conditions
1. The appliance must be installed by a GAS SAFE
registered person.
2. The appliance must be used in accordance with
the
user’s instructions.
3. The appliance must be serviced annually by a GAS
SAFE
registered person.
4. The benchmark and service log must be correctly
filled
out and the record of annual services must be up
to date
and supported by receipts in each case.
5. This warranty is not transferable and relates to the
original installation only.
6. The appliance has not been subjected to misuse or
accident or been modified or repaired by any
person
other than the authorised employee or
authorised
representative of Charlton and Jenrick
Ltd.
7. The registration form must be returned within 1
month
of purchase.
Technical Help Desk 01952 200 444

Benchmark Scheme
Charlton and Jenrick Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of
installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing
to optimise safety, efficiency and performance. Benchmark is managed and promoted by the Heating and Hotwater
Industry Council. For more information and the full code of practice please visit www.centralheating.co.uk
Please ensure that the installer has fully completed the Benchmark Checklist on the inside back pages of the installation
instructions supplied with the product and that you have signed it to say that you have received a full and clear
explanation of its operation. The installer is legally required to complete a commissioning checklist as a means of
complying with the appropriate Building Regulations (England and Wales).
All installations must be notified to Local Area Building Control either directly or through a Competent Persons Scheme.
A Building Regulations Compliance Certificate will then be issued to the customer who should, on receipt, write the
Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency and performance. The service engineer
should complete the relevant Service Record on the Benchmark Checklist after each service.
The Benchmark Checklist will be required in the event of any warranty.
It is a requirement that the gas fire is installed and commissioned to the manufacturer’s instructions and the data fields
on the commissioning checklist completed in full.
To instigate the guarantee, the gas fire needs to be registered with the manufacturer within one month of the
installation.
To maintain the guarantee, it is essential that the gas fire is serviced annually by a Gas Safe registered engineer. The
service details should be recorded on the Benchmark Service Interval Record and left with the householder.

4 LT6352 (ISS 4)
Installer information required to register for the extended warranty
Name:
Date of installation:
Gas safe number:
Important
For future reference we suggest you record the following details here, and keep the receipt as proof of purchase.
This information may be asked for when you contact the helpdesk.
MODEL:
INFINITY 660 PC
Serial No.
This information can be found on the label attached to the packaging and on the data badge, which is located on
the base of the appliance behind the control cover.
Retailer Name:
Address:
Date Of Purchase:

www.charltonandjenrick.co.uk 5 LT6352 (ISS 5)24/10/2016
SECTION ONE Introduction (user instructions)
Consumer protection information
As manufacturers and suppliers of heating products, we take every care, as far as is reasonably practicable, that these
products are so designed and constructed as to meet the general safety requirement when properly used and installed.
To this end, our products are thoroughly tested and examined before despatch.
IMPORTANT NOTICE: Any alteration that is not approved by the appliance manufacturer could invalidate the approval
of the appliance, operation of the warranty and could affect your statutory rights.
Health and safety notice
Important
This appliance could contain some of the materials, indicated below, that could be interpreted as being injurious to
health and safety. It is the users / installers responsibility to ensure that the necessary personal protective clothing is
worn when handling these materials, see below for information.
Artificial Fuels, Mineral Wool, Insulation Material, Refractory/Ceramic Fibres, Glass Yarn - may be harmful if inhaled,
may be irritating to skin, eyes, nose and throat.
When handling, avoid inhaling and contact with skin or eyes. Use disposable gloves, facemasks and eye protection.
After handling wash hands and other exposed parts. If a vacuum is used for cleaning the coals or cleaning after servicing
/ installation it is recommended that it is of the type fitted with a HEPA filter.
Disposal of refractory / ceramic materials. To keep dust to a minimum these materials should be securely wrapped
in polythene and be clearly labelled ‘RCF waste’. These materials are not classified as ‘hazardous waste and should be
disposed of at a site licensed for the disposal of industrial waste.
INTRODUCTION
The 890 PC as been designed and tested to the requirements of EN 613 and is suitable for use in GB (Great
Britain) and IE (Ireland).
The 890 PC incorporates a single gas control, which selects ignition pilot, with variable setting between low
and high settings and is operated via remote control. The system is powered by a battery pack; therefore no
mains electrical supply is required.
Like all appliances incorporating an aerated burner a low frequency noise may be heard, this may be more
noticeable on the low setting.
The 890 PC incorporates a safety device in the form of an Oxygen Depletion System, which constantly
monitors the oxygen in the room and will cause the fire to switch off if the oxygen level reduces, for instance
due to insufficient ventilation or a blocked flue.
If this regularly occurs do not attempt to relight the appliance until a qualified engineer has checked it, the
problem may not be due to lack of air or a defective flue.
The pilot can be left on (standby setting) or the pilot can be extinguished and relit each time the fire is used.
To obtain an authentic fire sound, a noise will be noticeable from the burner.

6 LT6352 (ISS 4)

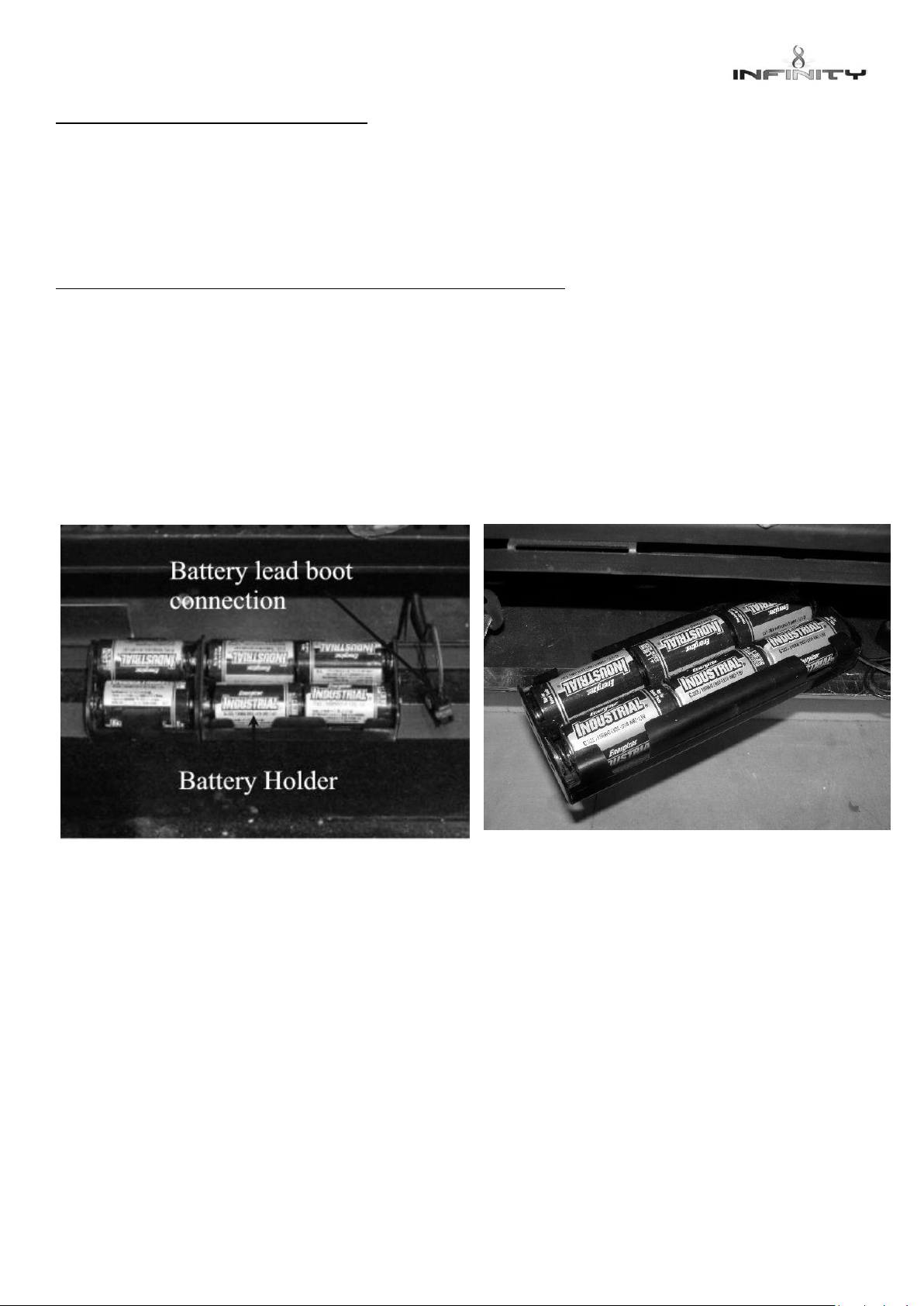

The 890 PC is battery operated; therefore no mains electrical supply is required. Power to the appliance is provided
by 6 high power alkaline 1.5V batteries (“C” size) (a spare set of 6 “C” batteries is supplied with the appliance
An audible repeated bleep warning indicates that the appliance batteries need changing or charging (if rechargeable
batteries have been used).
Important: Batteries should be changed as soon as possible as the appliance will not light if the battery power gets
to low.
IMPORTANT INFORMATION
The appliance is for use on Natural Gas (G20 @ 20mbar) only.
The chimney or flue (unless new or previously used with a gas appliance) shall be swept before
installation if it has been used for solid fuel.
Failure to install appliance correctly could lead to prosecution.
In GB (Great Britain), the appliance must be installed by a competent person i.e. Gas Safe-registered, in accordance
with the GAS SAFETY (INSTALLATION AND USE) REGULATIONS, The Building Regulations (or The Building Regulations
(Scotland) or The Building Regulations (Northern Ireland)) and The Current I.E.E. Wiring Regulations, if appropriate.
In IE (Ireland), the appliance must be installed by a competent person and installed in accordance with the current
edition of I.S.813 Domestic Gas Installation, the current Building Regulations and the current ETCI rules for electrical
installation, if appropriate.
The glass front of this fire acts as a dress guard, conforming to BS 1945 (1997) however; a fireguard
conforming to BS6539 (1997) must be used to protect young children, the elderly or infirm.
The appliance MUST NOT be used with the glass safety screen removed or if it is damaged or cracked.
During initial firing, an odour may be evident. This is the starch binder used during the manufacture of the
fibre components of the fire, and there are no harmful effects produced.
During the warming up and cooling down of the appliance you may experience some expansion and
contraction noises. These are normal.
During the normal operation of the fire some black staining may appear on some parts of the fuel bed. This
is quite normal and adds to the appearance of the appliance. However, if excessive black staining does occur
it may be due to the fuel bed being incorrectly laid. This should be checked prior to contacting a service
engineer.
When using black glass liners care should be taken to ensure flames do not make contact with them as this
will result in staining or permanent marking.
Due to the nature of the high gloss finish on the outer trim, you may experience some markings in the form
of a film. This is quite normal and can be wiped off using a dry clean cloth when the fire is cold causing no
damage to the trim.
* The top of the outer firebox (Trimmed Model) is not a working surface and therefore you should avoid placing
items on top*

www.charltonandjenrick.co.uk 7 LT6352 (ISS 5)24/10/2016
Care must be taken to prevent any damage being caused to surrounding soft furnishing or decoration; e.g.
many embossed vinyl wall coverings may become discoloured if placed too close to the appliance.
Combustible material i.e. wall panelling or wallpaper must be removed from behind the fire and fire fascia.
When the 890 PC is fitted with the false chimney breast , it is strongly recommended that any proposed wall
covering intended for use immediately above the appliance should be tested in the hottest position
(immediately above) first. Run the fire on high over a few days.
It is advised that this appliance is serviced annually; as it is more likely to provide trouble-free operation.
In GB (Great Britain) the fire does not normally require purpose built ventilation, but if for any special reason
purpose built ventilation is provided it should be checked periodically to ensure freedom from obstructions.
In IE (Ireland) permanent ventilation must comply with the current edition of IS813.
SECTION TWO Operating the Appliance (user instructions)

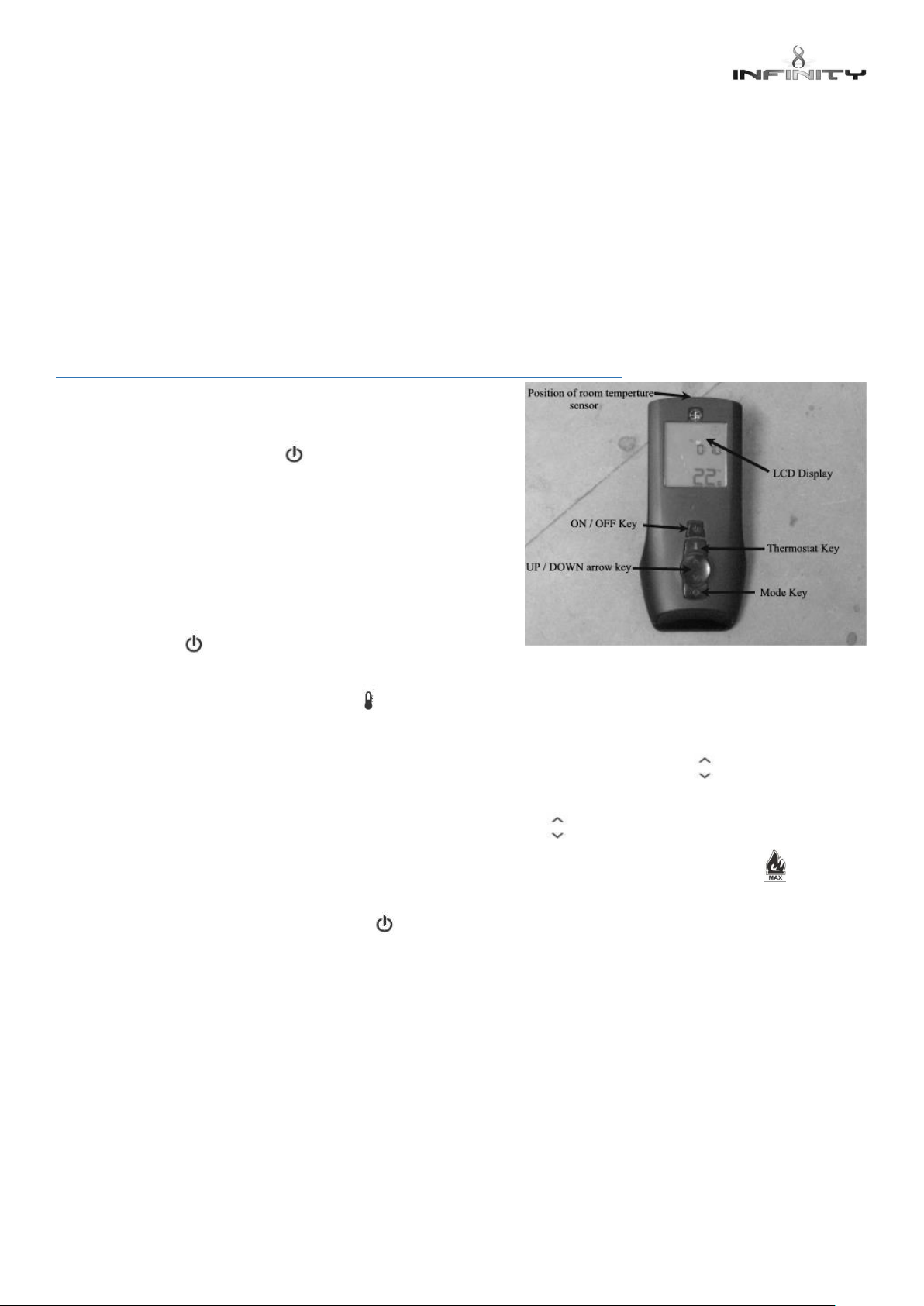

To light the appliance using the remote hand set:
A. Point the remote control hand set in the direction of the
appliance and press the button. Continue to hold
the button for approximately 2 seconds and release.
When released a bleep should be and heard the
appliance will automatically go through the ignition
sequence and the pilot should ignite. Once the pilot is
alight the appliance will automatically go to the high
setting (approximately 20-25sec).
B. If the ignitor stops sparking and the pilot fails to light
press the button for at least 2 seconds and release,
again a bleep should be heard. Then repeat the lighting procedure.* See note on page 7
C. With the appliance lit, by pressing key the operational mode is switched from manual to Room
thermostat setting and vice versa. When Room thermostat mode is active, the display shows the set
temperature value and the “AUTO” icon will appear on the LCD display. By using the arrow key the
desired room temperature can be set. When manual mode is active, the display shows the “MAN” icon plus
the flame icon and a five level bar icon setting. By pressing the arrow key, the flame picture can be
adjusted at five stages between high and low flame. If level 5 is currently active, the icon max below the
flame icon will appear.
D. To switch off the appliance press the button for at least 2 seconds and on releasing the button the
appliance will bleep and then shut off.
E. The appliance can be switched off with out using the hand set by removing the appliance batteries located
below the air grill cover. When the batteries are removed there will be a delay (up 3minutes) after which,
double bleeps may be heard and shortly after the appliance will extinguish. Ensure that the battery is
reconnected once the fire as been extinguished. The appliance cannot be operated without the use of the
handset.
Room Thermostat mode
The remote handset checks the room temperature at a fixed time intervals. Depending on the difference between
set room temperature and the actual room temperature the remote proceeds to modulate in one level steps. Once
the room temperature is reached it moves to standby position pilot only.

8 LT6352 (ISS 4)
The icon “PILOT” will appear on the LCD display. As soon as the actual room temperature falls below the SET room
temperature, the system will move from standby to the high flame level. From this point it will proceed again the
modulation process.
Note: Due to the temperature checks at timed intervals, the display temperature on the handset may exceed the
room setting temperature before the appliance defaults to the pilot setting.
To Replace Battery In Hand Set (3 AAA type batteries)
Remove the cover from the rear of the handset and fit replacement battery.

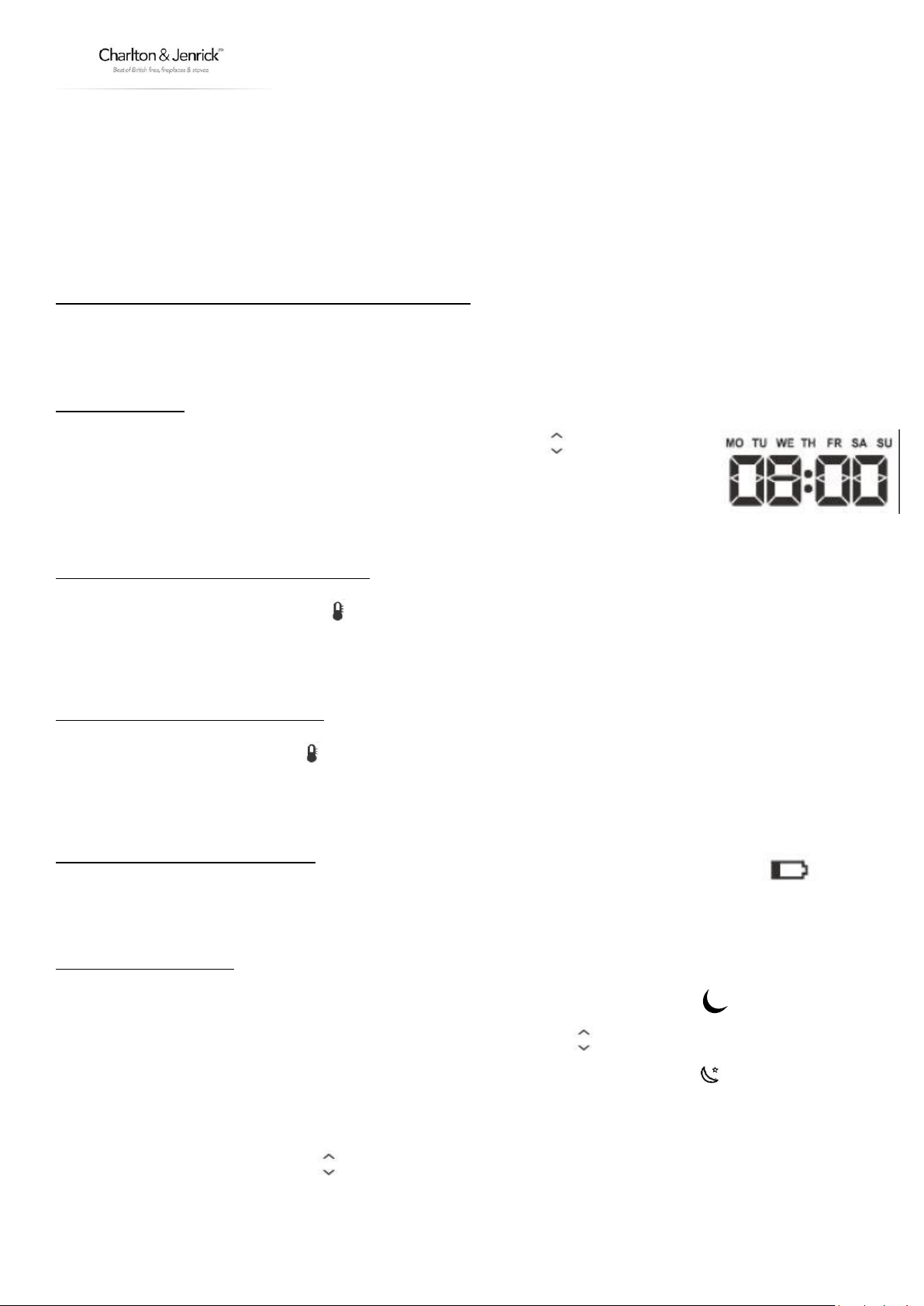

Clock Regulation
As soon as the batteries are fitted the timer digits will blink. Using the arrow key increase
or decrease the hour, minutes and week`s value. By pressing the Owill set and shift setting
until complete.
Changing Clock Setting During Operation
To amend timer setting press both the and O keys simultaneously for three seconds, the written clock will
appear. To change the clock settings, repeat the above described operation.
Change From Celsius to Fahrenheit
With remote OFF, keeping pressed key at least for 5 seconds, the temperature unit changes from Celsius to
Fahrenheit degrees and vice versa.
Battery level indication (Handset)
When the batteries have to be changed in the handset, the related icon will appear.
Setting the sleep mode
To activate the sleep mode: With the fire switched on press the O button. The sleep symbol will appear top
right. The sleep symbol replaces the time indicator in this mode. Using the arrow key increase the sleep mode in
15-minute intervals (a small star will be visible next to the sleep symbol once any time is set) .Once the set time
is reached, the fire will completely switch off without any further intervention.
When the fire is next operated, the sleep mode will automatically appear unless it is re-set to zero. This can be done
by pressing the O key and using the button to decrease the time set by 15 minute intervals until back to zero.
If you experience unexplained outing on the fire please check that the sleep mode is switched off.

www.charltonandjenrick.co.uk 9 LT6352 (ISS 5)24/10/2016
LOW BATTERY INDICATION (APPLIANCE)
If you hear a repeated ‘bleep’ sound come from the appliance this indicates the appliance battery pack is low and
should be changed. If this is ignored the system will go into a lock out mode, which will not allow the appliance to be
used until a new set of batteries are loaded.
NOTE: The appliance cannot be used when the battery is completely discharged.
TO REPLACE APPLIANCE BATTERIES (6 High Power Alkaline C 1.5V)
A. Remove the trim or inlet cover plate.
B. Remove the battery holder from within the protective cover or battery holder and replace the six high power
alkaline C batteries as a complete set.
WARNING, batteries will overheat if fitted incorrectly, when fitting the batteries ensure that they are fitted as per
the marking on the rear of the holder (i.e. minus of battery against spring).
C. Once the new batteries are loaded the fire will continue to bleep until re-set. Press the ON / OFF key for at
least 2 seconds, on release a bleep sound will be heard and the ignition process will start. If the fire
continues to bleep this may indicate a loose connection or badly loaded batteries.
*Important : If the fire burner or pilot is extinguished for any reason, do not attempt to re-light the pilot for at
least 3 minutes.

10 LT6352 (ISS 4)
SECTION THREE Cleaning (user instructions)
Warning: -
Before you clean any part of the appliance ensures that the appliance is turned off and cold.
CLEANING: FASCIA
Abrasive or chemical cleaner should never be used.
CLEANING: BLACK PAINTED SURFACES
These surfaces should be dusted regularly and any marks removed with a soft cloth.
Abrasive or chemical cleaner should never be used.
CLEANING: PILOT ASSEMBLY
(Before cleaning ensure that the appliance is turned off and cold)
In some instances you may experience ignition problems even when the
appliance is new. This may be due to the aeration hole in the pilot body (see
photograph) being partial blocked with dust, pet hairs, or other foreign
matter. The source of this debris could be such things as carpet fibres,
decorating or pets etc.
To gain access to the pilot, remove the ash pan cover and fret or fascia.
The pilot is located on the right hand side of the appliance, any debris in or
around the aeration hole should be remove using the nozzle of a vacuum
cleaner. It is advisable not to blow the debris into the hole as this may cause
more of a restriction and not rectify the problem.
Note: - Take care when cleaning in this area so as not to damage the pilot assembly.
GLASS CLEANING
From time to time, it will be necessary to clean the glass panel of your 890 PC fire. We recommend you use a
Ceramic hob cleaner these are available for all leading super markets: - i.e. ASDA, TESCO, SAINSBURY’S Etc.
Brands of hob cleaning we have tested and found suitable are - HOB BRITE & VITRO CLEAN.
Ensure the fire as been turned OFF for at least four hours to ensure it is cool.
Remove the glass panel as described below.
Lay the glass panel down on a flat working surface on top of an old opened newspaper with the side to be
cleaned uppermost.
Follow the instructions on the Hob Cleaner Bottle.
On stubborn stains (where the appliance as been used for a long period without glass panel being cleaned),
use a new Brillo Pad well wetted with the Hob cleaner applied directly to it.
Ensure all the residues of the cleaner are removed with a damp cloth and the glass panel is completely dry
before fitting to the appliance.
Important: - The appliance must not be used if the glass panel is missing or damaged.
Note: - The glass may discolour quickly when first installed, and it should be cleaned. This is due to the burning off
process of the refractory shapes.
*The top of the outer firebox is not a working surface and therefore you should avoid placing items on top*

www.charltonandjenrick.co.uk 11 LT6352 (ISS 5)24/10/2016

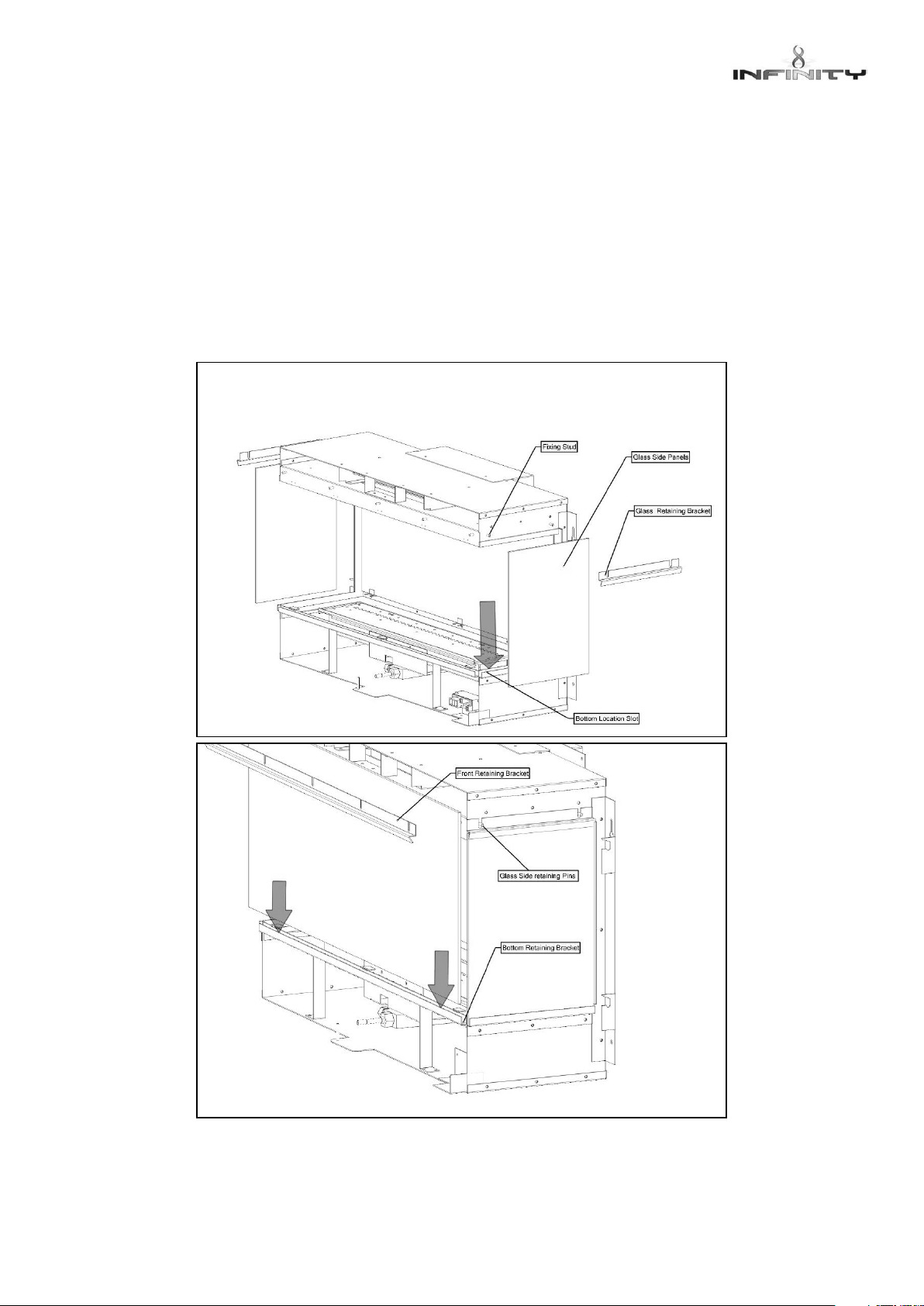

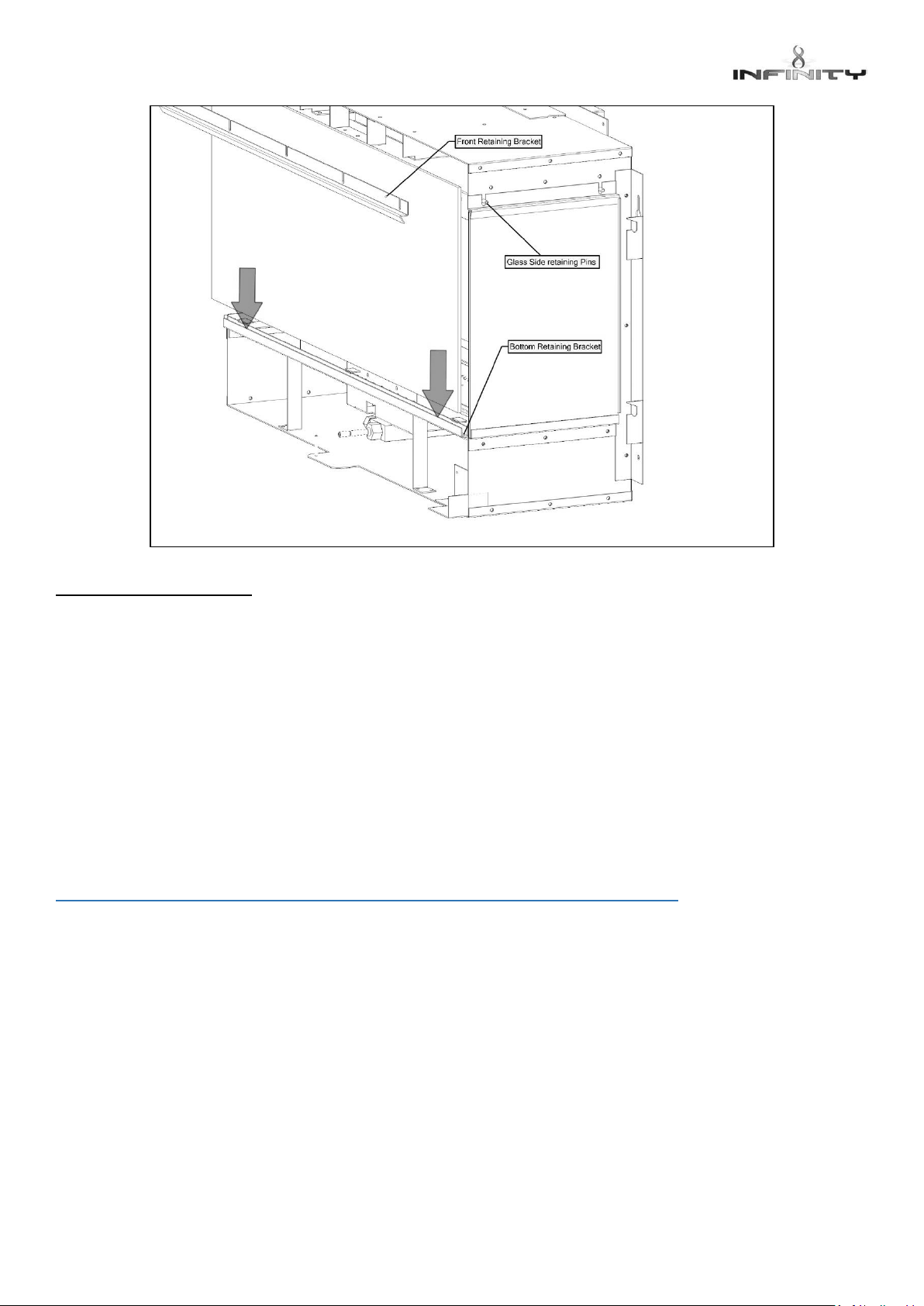

REMOVING GLASS PANEL
Remove the five 7mm nuts holding the front glass panel retaining bracket and slide the bracket clear of the
studs.
Lift the glass panel out of the bottom retaining bracket.
Before refitting the glass panel, loosen the side clamps retaining the side glass panels.
Fit the front glass panel within the bottom retaining bracket, position the glass panel central with the outer
side edges of the panel running flush with the two side glass panels.
Slide the top glass front retaining bracket over the five fixing studs and fit and tighten the 7mm nuts, making
sure again that the glass panel is flush and central.
Final tighten the four 7mm nuts retaining the LH and RH glass panels.
SECTION FOUR Fuel Bed Cleaning and Layout (user instructions)
Important: Black Glass back panel needs to be fitted before fuel bed is laid.
Ensure 3 tabs at back of tray are pushed down slightly.
Remove the 2 glass liner brackets(fixed with 2 screws and washers) the brackets are located on the top
ceramic.
Place glass at the back of the fire, ensure the textured side of the glass is facing the back of the fire, and also
that the glass is above the 3 tabs.
Bend the 3 tabs up to support the glass, and then bend the inner part of the tabs up further so it stops the
glass falling forward.
Re-fit glass retaining brackets and position so they are pushed against the glass back panel then tighten
screws
Before you clean any part of the appliance ensures that the appliance is turned off and cold.

12 LT6352 (ISS 4)
Use only the fuel bed components provided and no additional parts must added.
Incorrect positioning of the fuel bed components could result in the staining of the glass panel.
Important: - Refer to the ‘Health & Safety Notice located on page 3 of this booklet before cleaning or replacing
any refractory material.
The fuel bed components are delicate and they should be handled with great care.
The loose parts and moulded shapes may be removed for cleaning. They can be brushed very gently with a
soft brush to remove dust or any deposits.
A vacuum cleaner may only be used after the loose components and moulded shapes have been removed.
Please make sure no loose shapes are placed directly on top of the pilot head. (Please see figure below).
CARE SHOULD BE TAKEN TO AVOID CONTACT WITH THE REFRACTORY LINING THIS IS A DELICATE SURFACE AND
SHOULD NOT BE WIPED OR RUBBED.
SECTION FOUR Fuel Bed Cleaning and Layout Continued (user instructions)
Please make sure no loose shapes are placed directly on top of the pilot head. (Please see figure below)

www.charltonandjenrick.co.uk 13 LT6352 (ISS 5)24/10/2016

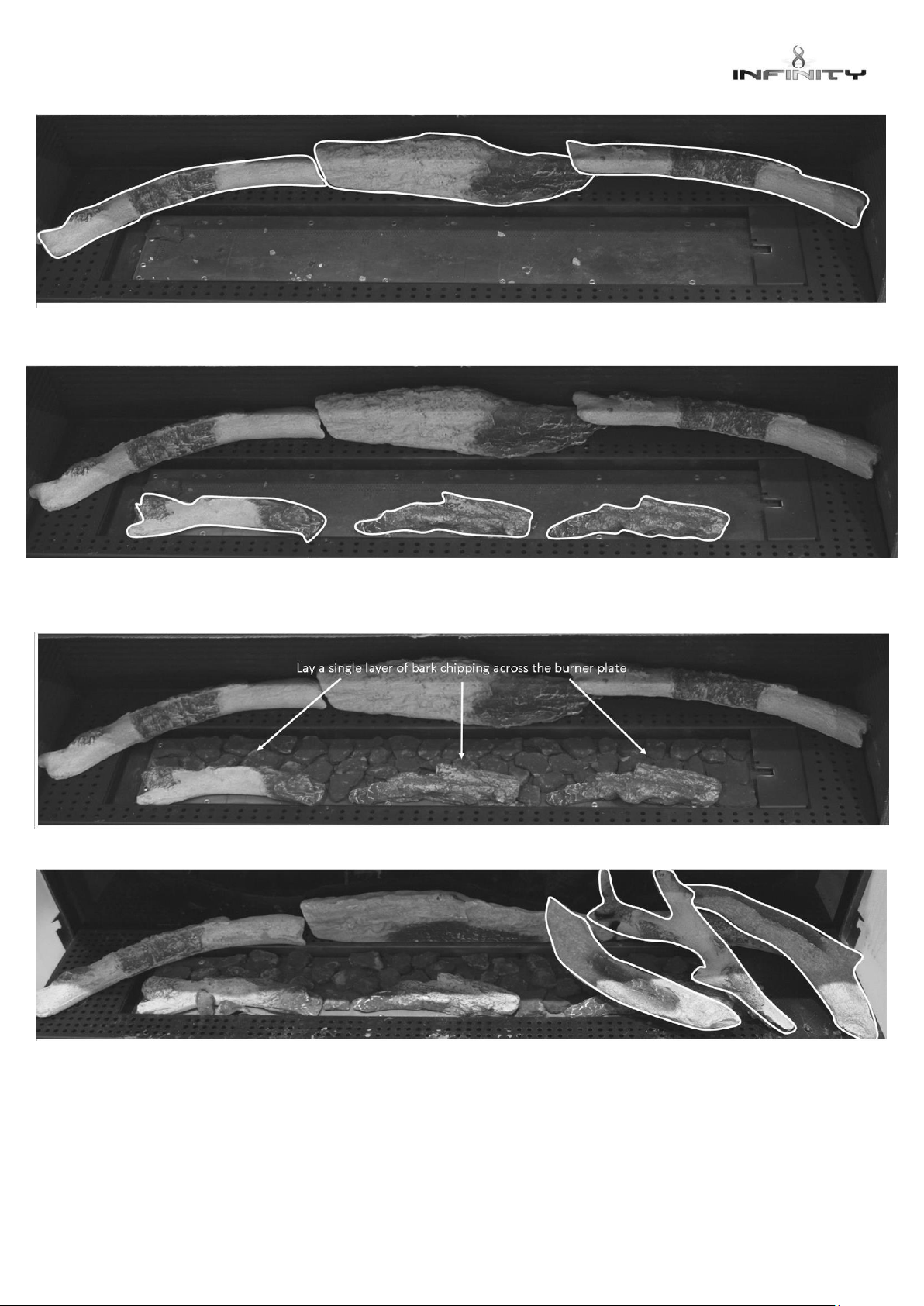

Place three shapes shown within the burner top plate and air tray as shown.
Place three shapes as shown.
Place a single layer of bark chippings on the burner top plate as shown.
Bridge three of the shapes as shown.

14 LT6352 (ISS 4)
Bridge three of the shapes as shown.
Bridge Four of the shapes as shown.
SECTION FIVE Appliance Data (installation instructions)
NATURAL GAS
Gas Type: CATEGORY I 2 H
Gas Pressure: 20 mbar +/- 1.0mbar
Pressure Test Point Location: Gas inlet elbow
Gas Input: 5.5 kW Gross (Max.)
2.4 kW Gross (Min.)
NOx Classification ………………………………..5
Injectors: Mk 360
Oxy pilot: 9079
Gas Connection: 8mm compression: semi-rigid or rigid
Data Badge Location: Located on the left hand side of the base of the appliance behind the trim.
Battery Remote…………………………………… handset 3 x AAA 1.5 V,
Appliance 6 x 1.5V “C” Cell high power alkaline.
NOTE: The efficiency of this appliance has been measured as specified in BS 7977-1 2009 and the result is 74.1%
natural gas. The gross calorific value of the fuel has been used for this efficiency calculation. Gastec have certified
the test data from which it has been calculated. The efficiency value may be used in the UK Government’s Standard
Assessment Procedure (SAP) for energy rating of dwellings.
When unpacking the appliance please check the following items are included:
Fuel Bed: Owner’s Manual, Trim and glass panels.

www.charltonandjenrick.co.uk 15 LT6352 (ISS 5)24/10/2016
SECTION SIX Regulations and Warnings (installation instructions)
This appliance must only be installed in Great Britain or Ireland.
The appliance is suitable for use on natural gas only.
GB (Great Britain) This fire does not normally require purpose build ventilation.
IE (Ireland) Permanent ventilation must comply with the current edition of IS813.
In GB, (Great Britain)
It is the law that all gas appliances must be installed by a competent person; i.e. a GAS SAFE registered installer, in
accordance with the Current Gas Safety (Installation And Use) Regulations (as amended), all relevant parts of the local
and national building regulations and all relevant recommendations of the following British Standards. Failure to do
so could lead to prosecution.
The following are relevant codes of practice and British Standards: -
B.S. 5871
B.S. 5440 PART 1 & PART 2
B.S. 6891
This appliance must be installed to current versions of the above standards and include any relevant amendments to:-
The Building Regulations Issued By The Department Of The Environment.
The Building Standards (Scotland) (Consolidated) Regulations Issued By The Scottish Development Office.
IN IE, (Ireland)
The appliance must be installed by a competent person and installed in accordance with the current edition of I.S.813
Domestic Gas Installation, the current building regulations, and the current ETCI rules for electrical installation, if
appropriate.
Prior to the installation ensure that the local distribution conditions (identification of type of gas and
pressure) and adjustment of the appliance are compatible. (G20 @ 20mbar).
IMPORTANT NOTE: -
The fire front (fret) or fascia supplied must be used with this appliance.
WARNINGS
The glass front of the fire act as a dress guard, conforming to BS 1945 (1971) and satisfies the heating appliance
regulations (1991) However, a guard conforming to BS6539 (1984) must be used to protect young children, the
elderly or infirm.
This appliance incorporates a safety device in the form of an Oxygen depletion system. IT MUST NOT BE
ADJUSTED OR PUT OUT OF OPERATION! THIS IS A NON-SERVICABLE ITEM AND MUST BE EXCHANGED AS A
COMPLETE ASSEMBLY; USING ONLY THE ORIGINAL MANUFACTURER'S PART.
A suitable proprietary fire surround with a 150°C minimum rating must be provided.
During initial firing, an odour may be evident. This is the starch binder used during the manufacture of the fibre
components of the fire, and there are no harmful effects produced.
Care must be taken to prevent any damage being caused to surrounding soft furnishing or decoration; e.g. many
embossed vinyl wall coverings may become discoloured if placed too close to the appliance.

16 LT6352 (ISS 4)
SECTION SEVEN Siting the Appliance (installation instruction)
Please note on 125mm diameter flue system the Spigot restrictor plate MUST be removed
Class 1 Conventional Flue.
The chimney must have a minimum effective height of at least 3 metres. Any permanent flue restriction or variable
dampers are to be removed or locked fully open. The chimney should be swept prior to installation if it has previously
been used with solid fuel. This is not necessary if the flue has previously been used with a gas appliance or if it is a new
installation.
Precast Flue (Please note the Spigot restrictor plate must be removed)
The appliance can be installed to a precast concrete or clay flue block system conforming to BS1289 or BS EN 1806.
The appliance is suitable for installation conforming to older versions of BS1289. The cross –sectional area must not
be less than 13,000mm2. The chimney vertical height must not be less than 3m and be correctly terminated.
Metal Flue Box
The appliance can be installed to a metal flue box conforming to BS715 with a minimum internal depth of 200mm.
The total height of the closure plate is 440mm and will accommodate a maximum opening of 430mm. (This allows a
10mm overhang). The total width of the closure plate is 520mm and will accommodate a maximum opening of 510mm.
(This allows a 10mm overhang).
PREPARING THE OPENING
100mm Min Depth
395-510mm
390-430mm
Floor
This area behind the trim/fascia
must be clear of combustible
material and be flat for the seal.
100mm Min from floor to base

www.charltonandjenrick.co.uk 17 LT6352 (ISS 5)24/10/2016
CHECKING THE FLUE AND FIRE OPENING
Check that the chimney conforms to the required specifications as previously stated. Examine the condition
and carry out any remedial work including removing any debris from the base.
If the flue has been used for solid fuel it should be swept prior to the installation
Prior to installing the appliance a smoke test (using a smoke bomb) should be carried out to check that
satisfactory smoke clearance has been established.
If all the smoke is not drawn into the flue, pre-heat the flue with a blowtorch or similar and re-check. If there
is any uncertainty examine for the cause and, if necessary, seek expert advice.
No combustible material should be fitted inside the fireplace opening.
When installing this appliance against a dry lined (plasterboard) wall ensure that any void between the
plasterboard and the wall is sealed with a suitable non-combustible material (i.e. plaster or mortar).
SECTION EIGHT To Install the Appliance (installation instructions)
FITTING THE CLOSURE PLATE
The front of the fireplace should be flat over an area sufficient to ensure a good seal with the closure plate. The flat
surface should extend for a height equal to that of the closure plate plus 20mm and for a width equal to that of the
closure plate plus 40mm.
The closure plate has an opening at the bottom for the gas feed pipe. The gap between the pipe and this opening
should be sealed with tape after connection. The closure plate must be fitted and sealed to the fireplace opening
using a suitable heat resistant material.
GAS SUPPLY ROUTING
Use rigid or semi –rigid tube to connect the supply. Determine the gas supply pipe route to the appliance before
installing the fire.
MOUNTING THE APPLIANCE
The flue spigot must be capable of passing
through the closure plate with a minimum
clearance of 50mm between its open end
and the nearest obstruction. There must
also be a minimum clearance of 100mm
between the back of the closure plate and
the back of the catchment space. Place the
fire in position and mark the wall through
the holes in the fixing brackets LH and RH
of the firebox. Drill and plug the holes using
no 10 wall plugs. Place the fire in position
and secure with four no 10 x 2in Wood
screws.

18 LT6352 (ISS 4)
CONNECTING THE GAS SUPPLY
Note: - An isolation valve may be fitted in the gas supply
adjacent to inlet pipe.

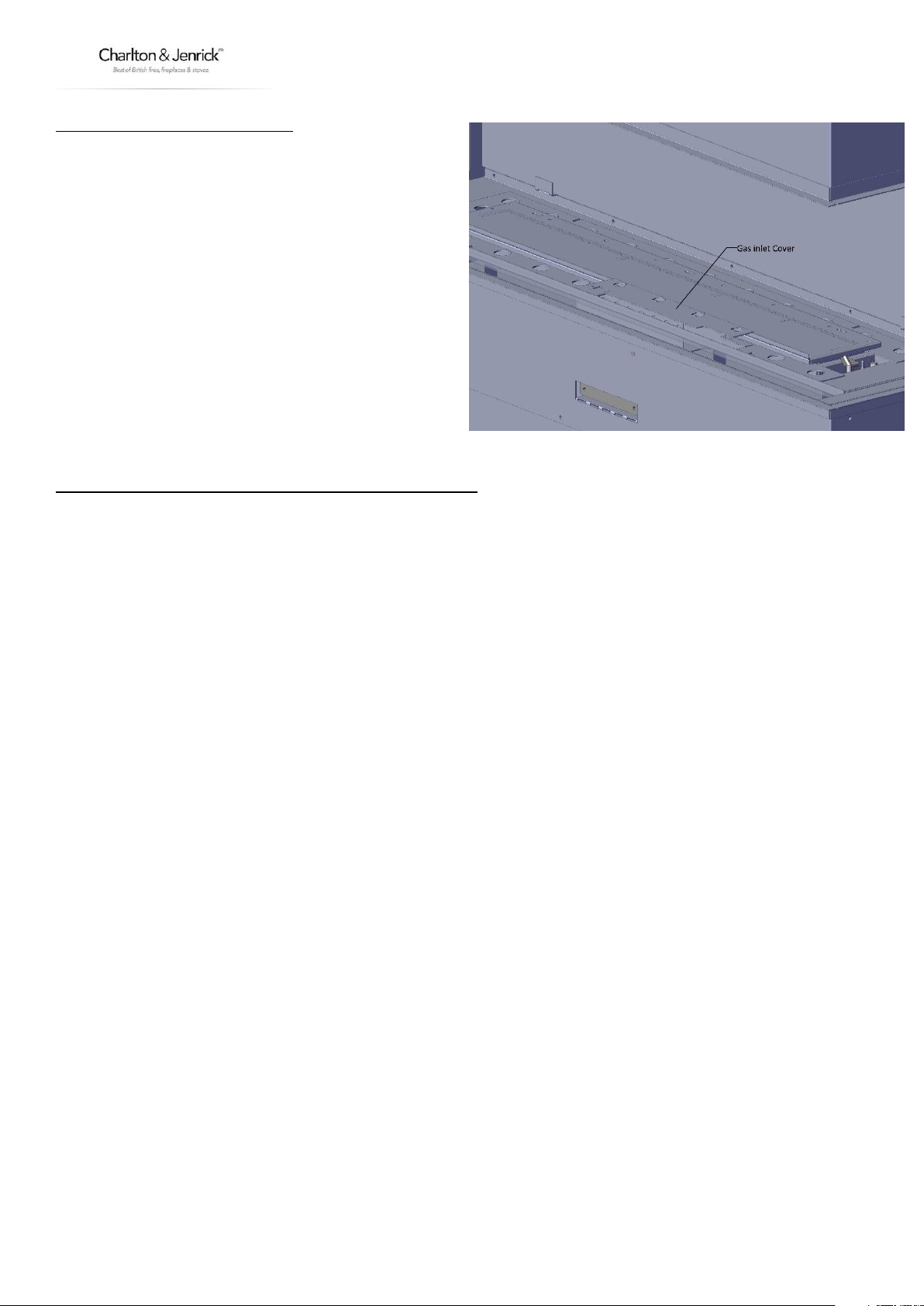

Please Note that the restrictor plate should be angled so
that access via the gas inlet cover can be obtained.
For a concealed connection: -
Remove the burner assembly by removing four
screws holding the burner tray to carrier.
fit the grommet over the pipe and seal around
the inlet hole.
Refit the burner unit and make connection
between the supply isolating valve and the
burner assembly inlet.
POSITION REMOTE RECEIVER AND BATTERY POSITION.
Connect battery pack to appliance and insert batteries.(see section 2)
Position the battery pack within the insulation sleeve or with the battery holder on trim less model.
Place the remote receiver on the fire box base.
Fit the three “AAA” batteries (supplied) to remote hand set (see Section 2).
Press the ON / OFF key for at least 2 seconds, on release a bleep sound be heard and the ignition process will
start. If the fire continues to bleep this may indicate a loose connection or badly loaded batteries.

www.charltonandjenrick.co.uk 19 LT6352 (ISS 5)24/10/2016
FITTING THE GLASS PANELS
.Slide the LH and RH glass panels within the bottom location slots.
Fit the top retaining brackets over the two fixing studs LH & RH and finger tighten using the four off 7mm
nuts. (DO NOT TIGHTEN AT THIS STAGE).
Lay the fuel bed in accordance with section four fuel bed lay out.
Fit the front glass panel within the bottom retaining bracket, position the glass panel central with the outer
side edges of the panel running flush with the two side glass panels.
Slide the top glass front retaining bracket over the five fixing studs and fit and tighten the 7mm nuts, making
sure again that the glass panel is flush and central.
Final tighten the four 7mm nuts retaining the LH and RH glass panels.

20 LT6352 (ISS 4)
SECTION NINE Checking Operation of Fire (installation instructions)
CHECKING GAS SOUNDNESS
*Batteries must be connected before proceeding with any soundness testing*
Turn on the gas supply to the appliance and check for soundness in accordance with current codes of
practice.
Turn off the gas supply at the external Isolation valve.
Remove the pressure test point screw from the inlet elbow and connect the pressure gauge.
Turn on the gas to the appliance at the Isolation valve.
Light the appliance as described in section 2.
Check the inlet pressure is 20mbar. +/- 1.0.
Turn off gas supply, at the isolation valve. Disconnect the pressure gauge and replace the pressure test point
screw.
Turn on the supply to the appliance and check the pressure test point for soundness with detection fluid.
LAY FUEL BED
Important: -
Refer to the Health & Safety Notice located on page 3 of this booklet before laying or replacing any refractory
material.
In the event of replacing fuel bed components please use only the specified number of components as illustrated.
Only use fuel bed component provided for this appliance. In the interest of safety and efficiency of your appliance
when replacing the fuel bed it is essential that the existing fuel bed be removed and the new components are
replaced correctly as a complete set.
Lay fuel bed as described under Section 4.
Warning:
It is important that the fuel bed components are positioned as shown in these instructions.
If the fuel bed components are not positioned correctly this may result in damage to the glass.
